Setting the standards in paper folding

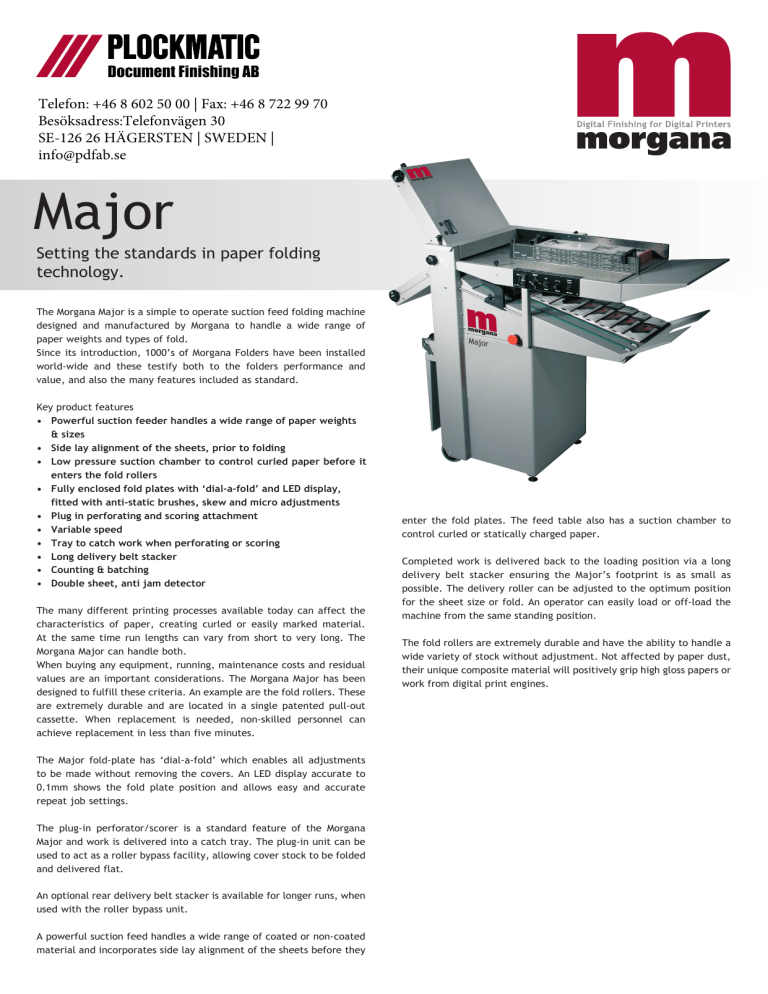

The Morgana Major is a simple to operate suction feed folding machine
designed and manufactured by Morgana to handle a wide range of
paper weights and types of fold.
Since its introduction, 1000’s of Morgana Folders have been installed
world-wide and these testify both to the folders performance and
value, and also the many features included as standard.
Key product features
• Powerful suction feeder handles a wide range of paper weights
& sizes
• Side lay alignment of the sheets, prior to folding
• Low pressure suction chamber to control curled paper before it
enters the fold rollers
• Fully enclosed fold plates with ‘dial-a-fold’ and LED display,
fitted with anti-static brushes, skew and micro adjustments
• Plug in perforating and scoring attachment
• Variable speed
• Tray to catch work when perforating or scoring
• Long delivery belt stacker
• Counting & batching
• Double sheet, anti jam detector
The many different printing processes available today can affect the
characteristics of paper, creating curled or easily marked material.
At the same time run lengths can vary from short to very long. The
Morgana Major can handle both.
When buying any equipment, running, maintenance costs and residual
values are an important considerations. The Morgana Major has been
designed to fulfill these criteria. An example are the fold rollers. These
are extremely durable and are located in a single patented pull-out
cassette. When replacement is needed, non-skilled personnel can
achieve replacement in less than five minutes.
he Major fold-plate has ‘dial-a-fold’ which enables all adjustments
to be made without removing the covers. An LED display accurate to
0.1mm shows the fold plate position and allows easy and accurate
repeat job settings.
The plug-in perforator/scorer is a standard feature of the Morgana
Major and work is delivered into a catch tray. The plug-in unit can be
used to act as a roller bypass facility, allowing cover stock to be folded
and delivered flat.
An optional rear delivery belt stacker is available for longer runs, when
used with the roller bypass unit.
A powerful suction feed handles a wide range of coated or non-coated
material and incorporates side lay alignment of the sheets before they
enter the fold plates. The feed table also has a suction chamber to
control curled or statically charged paper.
Completed work is delivered back to the loading position via a long
delivery belt stacker ensuring the Major’s footprint is as small as
possible. The delivery roller can be adjusted to the optimum position
for the sheet size or fold. An operator can easily load or off-load the
machine from the same standing position.
The fold rollers are extremely durable and have the ability to handle a
wide variety of stock without adjustment. Not affected by paper dust,
their unique composite material will positively grip high gloss papers or
work from digital print engines.
Setting the standards in paper folding
technical specifications
Maximum sheet size
648mm x 365mm
Minimum sheet size
148mm x 140mm (94mm with optional narrow sheet attachment)
Maximum paper weight
240gsm (varies according to material and grain direction)
Minimum paper weight
Load capacity
500 sheets 80gsm
Maximum number programmed applications
Speed per hour (A4)
0 to 27,000
L 1168mm x W 493mm x H 990mm
Power requirement
240v 50/60hz
Electric rear delivery, Narrow sheet guide
Note: the production speed varies according to material size
As part of our continued product improvement plan, specifications and information published here are subject to change without notice.
All specifications are dependent on application, type of stock, temperature, RH and print engine used.
Specifications quoted were measured on uncoated and unprinted stock.
E & OE.
Major data sheet ver 2 - 08/12
