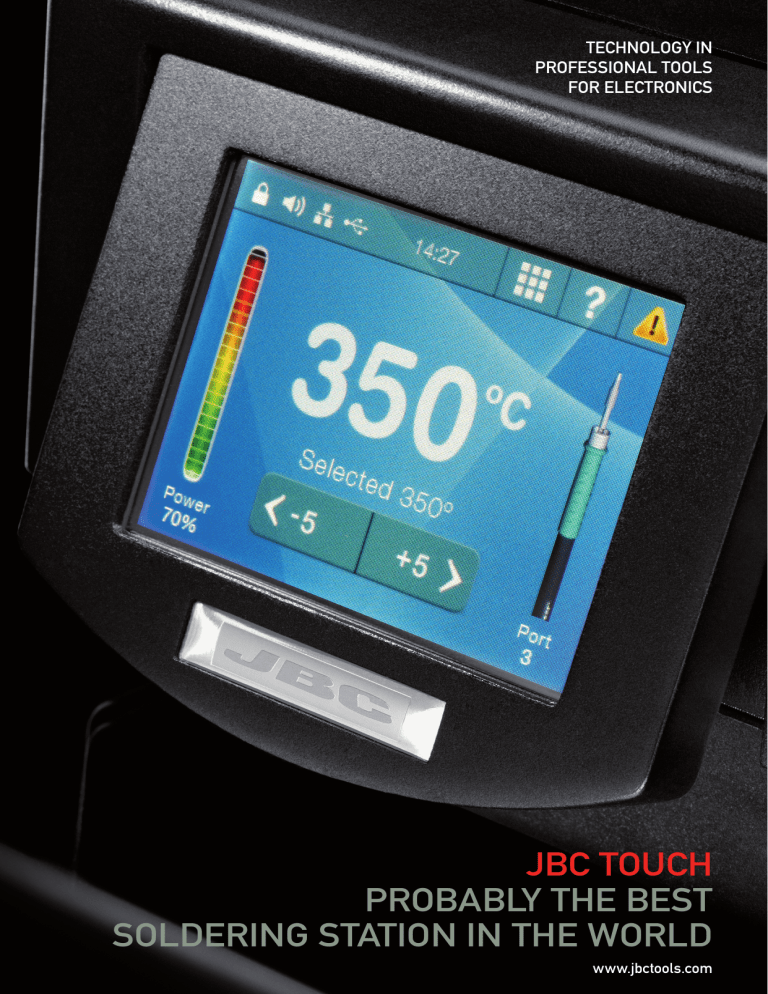

TECHNOLOGY IN
PROFESSIONAL TOOLS
FOR ELECTRONICS
JBC TOUCH
PROBABLY THE BEST
SOLDERING STATION IN THE WORLD
www.jbctools.com
JBC Touch
New Modular Station
New TFT station. Access the menu by
touching the screen to change parameters.
Total soldering control.
TOTALLY
CUSTOMIZABLE
Advanced microprossessor allows
for a completely personalized station.
Examples include:
· Temperature limits
· Preset one touch temperatures
· Sleep temperature, delay to sleep and delay to hibernation
· Total and partial counters for each port
· Select one of 7 languages: English,
French, German, Italian, Spanish,
Japanese and Chinese
· Select cartridge from menu to match
that used in handpiece to account for
slight temperature variations due to
different tip geometries
· Lock out system changes with a PIN code
· Quick help features
· JBC full product catalogue
and many more features
Includes “sleep mode” and “hibernation”
programming, as well as other features
already existing in JBC soldering stations
INTUITIVE
INTERFACE
Enables fast access to main menu for viewing and changing
parameters. Obtain information of the power supplied to the tool ,
temperature of the tip in real time and the tool selected. Selection
of the model of cartridge inserted.
Additional features include, power and temperature graphics,
clock, calendar, calculator, note book, alarm, unit converter and
catalogues and instruction manuals.
FULL
COMMUNICATION
Permits connection to other devices like digital thermometer, external thermocouples and future external peripherals.
Connection of the station to Ethernet through the RJ-45
connector enabling software updating, monitoring of the equipment and remote control of all the stations connected to the net.
Connection of robot through connector RJ-12 using the RS-232
protocol
Frontal USB-A connection:
to download data and update the equipment via pen-drive
TFT
Swing screen, allowing
orientation to suit station
positioninig.
High resolution 3,5”
TFT touch screen allows
reproducing of very high quality
videos, as well as microscope
images via USB,...
CONNECTION
Allows the simultaneous connection of up to 4 tools and 8 peripheral devices such as: desoldering
pump, nitrogen module, pedal and
fume extractor.
Compatible with the following
tools: T210, T245, AP130, HT420,
PA120, DR560 and DS360.
The station can be connected to
a PC via USB-B enabling software
updating, monitoring of the
equipment and controlling remotely.
0011143/1111
JBC Soldering, S.L.
c. Ramon y Cajal, 3
08750 Molins de Rei · SPAIN
T. +34 93 325 32 00
F. +34 93 680 49 70
info@jbctools.com
www.jbctools.com
