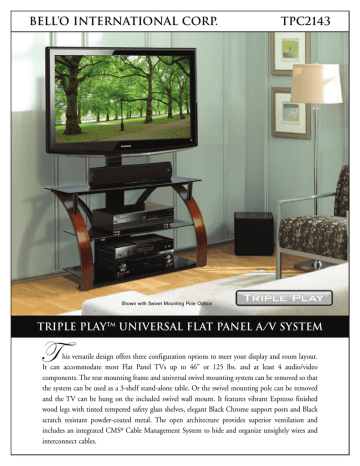

BELL’O INTERNATIONAL CORP.
TPC2143
Shown with Swivel Mounting Pole Option
T
TRIPLE PLAYTM UNIVERSAL FLAT PANEL A/V SYSTEM
his versatile design offers three configuration options to meet your display and room layout.
It can accommodate most Flat Panel TVs up to 46" or 125 lbs. and at least 4 audio/video
components. The rear mounting frame and universal swivel mounting system can be removed so that
the system can be used as a 3-shelf stand-alone table. Or the swivel mounting pole can be removed
and the TV can be hung on the included swivel wall mount. It features vibrant Espresso finished
wood legs with tinted tempered safety glass shelves, elegant Black Chrome support posts and Black
scratch resistant powder-coated metal. The open architecture provides superior ventilation and
includes an integrated CMS® Cable Management System to hide and organize unsightly wires and
interconnect cables.
BELL’O INTERNATIONAL CORP.
TPC2143
DETAILED DIMENSIONS
Overall Dimensions:
44"w x 561/2"h x 211/4"d
Mounting System fits
universal mounting
configurations up to
735mm x 500mm
Adjustable to fit
most TVs up to 46"
or up to 125 lbs.
Stand Only:
44"w x 24"h x 203/4"d
Usable Top Shelf:
44"w x 14"d
Height Adjustable to
561/2" (1435 mm)
Shown with
Swivel Pole Option
Usable Middle Shelf:
343/4"w x 103/4"h x 16"d
14"
(356 mm)
8 mm)
44" (111
Usable Bottom Shelf:
343/4"w x 101/2"h x 161/2"d
Weight Capacities:
Top Shelf: 125 lbs. (56.7 kg)
Mounting Pole: 125 lbs. (56.7 kg)
Wall Mount: 125 lbs. (56.7 kg)
Middle Shelf: 50 lbs. (22.7 kg)
Bottom Shelf: 75 lbs. (34.0 kg)
103/4"
(273 mm)
16"
(406 mm)
101/2"
(267 mm)
24"
(610 mm)
161/2"
(419 mm)
)
mm
83
8
(
"
3 /4
34
All measurements shown are nominal usable space.
Specifications are subject to change without notice.
DESIGN FEATURES
• Accommodates most Flat Panel TVs up to 46"
(or 125 lbs.), plus at least 4 audio/video components
• TV can be wall mounted, mounted on a
swivel pole, or simply placed on stand
• Design features vibrant Espresso finished wood
legs with tinted tempered safety glass shelves
elegant Black chrome support posts and Black
scratch resistant, powder-coated metal
• CMS® Cable Management System hides wires
and interconnect cables
©2011 Bell’O International Corporation. All designs are patented or patent pending.
Pricing, availability and specifications are subject to change without notice.
