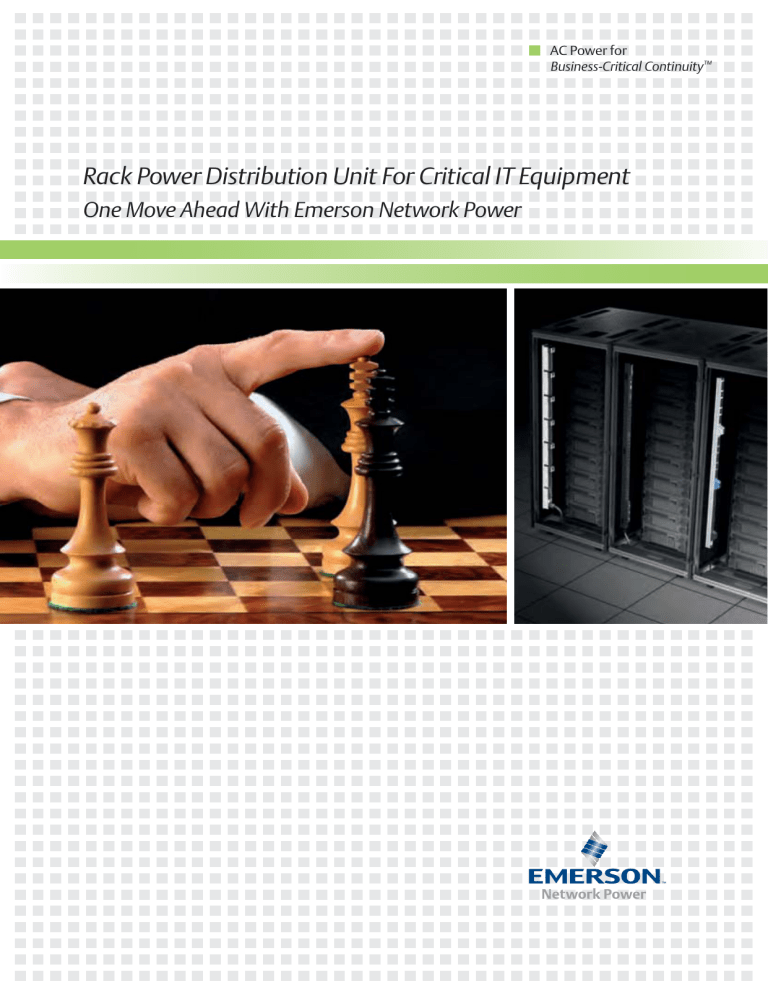

AC Power for
Business-Critical Continuity™
Rack Power Distribution Unit For Critical IT Equipment
One Move Ahead With Emerson Network Power
Emerson Network Power, a division of Emerson, is a global company that combines technology
and design to supply innovative solutions for the benefit of its customers.
Emerson Network Power is the leader in the “business-critical continuity” field, thanks to the
company’s products and services.
Emerson Network Power’s broad technology base and global expertise support a full spectrum of
enterprise-wide solutions for today’s vital business needs.
Improved
Performance
And
Management
Of Dynamic IT
2
IT space is a dynamic
environment.
Successful businesses depend
on adaptable technologies
to help them respond quickly
to market demands.
Your data center must be
built on a support
infrastructure designed
to match the power and
cooling needs of rapidly
changing IT initiatives
such as virtualization and
consolidation.
Each IT move, addition or
change will affect the entire
support infrastructure.
Therefore you need products
and support that ensure your
IT systems will operate reliably
in these environments.
Emerson Network Power’s
portfolio with brands such as
Liebert, Knürr, Alber, Aperture
and ASCO provide innovative
and flexible solutions
that ensure reliability and
efficiency. With the help of
monitoring and management
tools from Emerson Network
Power, the result is an
infrastructure that will enable
you to proactively manage
your critical IT space.
The Rack PDU product family
is the connectivity point of IT
systems into your power and
cooling infrastructure and the
critical interface to an efficient
and effective infrastructure
management ecosystem.
It’s about the right move
for your IT infrastructure
Emerson Network Power
Rack PDU Family: Distribution Solutions
From Basic To Adaptive
Liebert MPXTM- Adaptive Rack PDU
Delivers breakthrough, configurable/modular power management
technology. Its ability to increase availability and provide
comprehensive control and metering capabilities are examples
of pure innovation.
Liebert MPXTM is the perfect choice for a dynamic data center
which frequently adds and moves equipment and for any data center
deploying or planning virtualization.
Liebert MPHTM- Managed Rack PDU
Offers several levels of metering in addition to control capabilities
of connected equipment: a perfect solution for growing operations.
Knürr DI-STRIP®- Basic Rack PDU
For data centers with basic distribution needs, Emerson Network
Power manufactures Basic Rack PDUs that deliver simple and
expandable distribution in a robust package.
Liebert MPXTM and Liebert MPHTM can be
remotely monitored through a variety
of convenient interfaces.
4
Infrastructure Management: The Key to Productive Operations
Improve the performance and management of your IT infrastructure
with Liebert monitoring and control systems.
Liebert MPXTM and Liebert MPHTM include the following capabilities:
● Web-based monitoring
● Liebert Nform IT based centralized monitoring
● Liebert SiteScan centralized monitoring
● User located local display with the ability to view up to four PDUs
● Liebert SN rack sensors
Liebert MPXTM
Adaptive Rack PDU
Liebert MPHTM
Managed Rack PDU
Knürr DI-STRIP®
Basic Rack PDU
Infrastructure is not static:
can you anticipate the next move?
Liebert MPX
Adaptive Rack PDU: Respond To Change
While Watching Your Bottom Line
TM
Confidently take on the
uncertain future of connected
power requirements with
Liebert MPXTM, the most responsive
and adaptive rack PDU available.
With Liebert MPX TM adaptive
technology, you can increase
availability of critical systems
by leveraging hot - swappable
modular power up to the
receptacle level.
Status Display (RPC-BDM)
is easily moved to the most convenient spot
for the individual rack - even outside the rack.
This tethered display may be located for user
convenience.
6
Liebert MPXTM Benefits:
● Adaptive capacity, distribution,
monitoring, control and
management of critical devices
● Flexibility to respond
to constant change
● Buy only what you need
and build on your investment
● Secure communication
Reconfigurable Power
Capacity & Distribution
Liebert MPXTM is the perfect choice
to respond to the needs of a
growing data center.
Relocate or add IT equipment
to support changing needs, by
easily reconfiguring the power
input and distribution.
Designed for Critical
Environments
● Industry’s widest operating
range - up to 55˚C / 131˚F to
support rack environments
● Accurate power metering of
+/-1% voltage & current for
assured oversight
● Energy and power metering
down to the individual receptacle
● Comprehensive alarming
notification of overloaded branch
circuits
● Environmental sensing with
threshold and alarm set - points
● Notification on the loss or
removal of individual rack
equipment loads
Fits Your Needs Now And Later
Liebert MPXTM provides a
wide selection of single and three
phase power input, with the ability
to change while maintaining your
distribution infrastructure
Perfect For Blade Servers
And Changing Environments
Data centers are moving to high
density blade servers, utilizing more
processing power in less rack space,
simplify cabling and reducing power
consumption.
Liebert MPXTM allows the data
center to respond quickly to
change, therefore the right choice
to manage your infrastructure.
INPUT POWER
● Reconfigurable 20 to 60 amp (USA);
16 to 63 amp (EU);
single and three phase
● can be positioned for top or bottom cable
entrance
OUTPUT DISTRIBUTION
● Scalable, mix compatible & hot-swappable
● Single phase NEMA 5-20R, IEC-C13, IEC-C19, Schuko
● Load balanced selection
MODULARITY
● Input power, output distribution,
communications, and display
● Add connectivity with basic rack
PDU expansion unit
10.3A
1-1
119.5V 4.32kW 5.17kVA
12345
METERING
● Mix compatible levels
● Strip level + Branch Receptacle
Module + Receptacle
● (1) Aggregate Rack PDU +
Branch Receptacle Module
● (2) Aggregate Rack PDU+Branch Receptacle
Module+Receptacle
● Environmental sensors -Temperature & humidity
REMOTE RECEPTACLE CONTROL
● Receptacle level
IP
11
10.3A
1 5V 4.32kW
k 5 17
12345
LOCAL MONITORING
● User located display
● Can be positioned even outside the rack
REMOTE MONITORING
● Secure Web/SNMP Interfaces
● Liebert Nform
● Liebert SiteScan Web
OVERLOAD PROTECTION
● Physically and electrically isolated
breaker per receptacle module
RACK PDU ARRAY ™
● Single IP for up to 4 Rack PDUs
● Liebert MPXTM and Liebert MPHTM
on same private network
FORM FACTOR
● Vertical mount (Zero U)
● Fits in typical deep 23/42U racks
and/or 800 mm width racks
Do you want to be one move ahead of
your next load? MPXTM provides the flexibility.
Liebert MPX :
Hot-Swappable Power Output
& Reconfigurable Power Input
TM
Liebert MPXTM allows you to
add or change distribution
without powering down.
The hot - swappable receptacle
modules allow for easy
upgrading and get IT
equipment online quickly.
Change input power to support
dynamic environments while
maintaining distribution and
communications infrastructure.
Adaptive Rack PDU
Liebert MPXTM is an adaptive Rack
PDU system that provides AC input
power, output distribution and
critical IT quality performance via
its scalable, modular architecture.
Power Rail Chassis
(MPX TM PRC)
distributes power
and communications
to all of the support
modules
MPX TM PEM fixed capacity module
for 40-63A 3-phase applications.
Branch Receptacle
Modules (MPXTM BRM)
provide output power
connectivity and
communications
management
Power Rail Spacer
covers the unused
space until an MPX TM
module is needed
MPX TM PEM variable capacity
module, 30A (USA)/32A (EU) and
below 1 or 3 phase applications.
Detachable power cord supports
changing input power
requirements.
Branch Receptacle
Modules (MPX TM
BRM)
Rack PDU Card (Liebert RPC)
mounts in the Power Entry Module
and provides upgradable network
communications, sensor and local
display interface
Power Entry Module
(MPX TM PEM)
connects input power
to power rail chassis
8
MPXTM IPC (Input Power Cord)
allows easy power reconfiguration
to change input power to meet
changing requirements. For MPXTM
PEM variable capacity modules.
Liebert MPXTM Benefits:
Flexibility
● Allows the users to add individual
hot - swappable modules for
capacity as demand grows
● Offers the ability to change
input capacity or configuration
while maintaining Rack PDU
infrastructure
● Provides for user located local and
remote monitoring and
management of connected loads
● Change monitoring and control
functionality or mix on a single
MPXTM to suit requirements.
● Position input power module for
top or bottom cable entrance
Higher Availability
● Controls and manages individual
receptacles and or groups of loads
and devices
● Predicts overcurrent conditions
before they become critical
● Shuts down non - essential
equipment during power outages
to maximize availability and
back - up power
● Expanded branch overload
protection minimizes threat of
cascading PDU overload
● Reliably delivers connected
UPS power to the protected
equipment
Lowest Total Cost Of Ownership
● Provides the most cost-effective,
flexible design available
● Allows redeployment of modules
to suit changing needs
● Energy metering provides users
the information to maximize the
data center power and cooling
infrastructure
● Liebert MPXTM modularity and
flexibility extends the useful life
of the infrastructure investment
● Employs energy efficient
receptacle control technology
Monitoring Anywhere You Need It
From the individual receptacle of
each discrete device to the
complete rack PDU, monitoring
is available to meet user needs.
Displays are designed for easy user
location to fit changing site needs.
Display and sensors are designed for
easy mounting on the rack. A single
display can handle up to four Liebert
MPXTM or Liebert MPHTM systems and
associated monitoring accessories.
RPC-BDM
displays power parameters and alarms for up
to four Liebert MPX TM or Liebert MPHTM systems.
Display orients for horizontal or vertical
installation and reading.
Liebert MPX TM may be remotely monitored
and controlled via secure web/SNMP interfaces
or Liebert Nform or Liebert SiteScan Web.
9
Liebert MPH
Managed Rack PDU: Advanced Monitoring
And Control Support
TM
Liebert MPHTM is the flexible
Rack PDU solution with remote
monitoring and control
capabilities as well
as environmental input options.
It offers multiple power
input selections and output
configurations in both vertical
zero-U and rackmount form
factors.
Up to four Liebert MPHTM PDUs
may be interconnected as a
Rack PDU Array™, consolidating
user IP connections and device
monitoring.
Liebert MPHTM Monitoring And
Control Support
Monitored electrical parameters
include: voltage, current, real and
apparent power, power factor, and
accumulated energy or consumption.
Capacity based current thresholds provide
comprehensive alarm notifications from
the Rack PDU and branch.
TM
Liebert MPH Can Benefit Your
Data Center
● Monitors electrical and
environmental parameters with
set threshold and alarm tools
● Controls access of receptacle power
● Controls and manages individual
receptacles and/or groups of loads
and devices
● Allows you to predict failing
conditions before they occur and
proactively manage connected
equipment for maximum uptime
Liebert MPHTM Benefits:
Status Display (RPC-BDM)
provides users optimal local display positioning
by allowing mounting on rack doors or
wherever best suited for a changing rack
environment
10
Flexibility
● Local displays are easily located to
suit a crowded and changing rack
environment
● Supports mounting in 19” EIA,
42U rack environments
● Offered in vertical, zero U and
rackmount form factors
● Provides a compatible monitoring
platform for Liebert MPHTM and
Liebert MPXTM, offering seamless
common operation if deployed
together
● User positioned input power cord
interface
Higher Availability
● Controls and manages individual
receptacles
● Predicts overcurrent conditions
before they become critical
● Shuts down non - essential equipment
during power outages to maximize
availability and back - up power
● Expanded branch overload protection
minimizes threat of cascading PDU
overload
Lowest Total Cost Of Ownership
● Provides full featured monitoring and
control in a cost effective package
● A Rack PDU Array shares a single IP
address for up to four Rack PDUs,
making deployment faster and easier
● Energy and power metering provides
users the information to maximize
the data center power and cooling
infrastructure
● Employs energy efficient receptacle
control technology
INPUT POWER
● 20 to 30 amp (USA);
16 to 32 amp (EU);
single and three phase
OUTPUT DISTRIBUTION
● Single phase NEMA 5-20R,
IEC-C13 & IEC-C19;
combination systems
MODULARITY
● Modular card-based
communications and display
● Add connectivity with basic rack
PDU expansion unit
10.3A
1-1
119.5V 4.32kW 5 17kVA
12345
METERING
● Branch and aggregate Rack PDU
● Environmental sensors Temperature & humidity
REMOTE RECEPTACLE CONTROL
● Receptacle level
IP
11
10.3A
119 5V 4.32kW
kW 5 17kVA
kVA
12345
LOCAL MONITORING
● User located display
● Can be positioned even outside the rack
REMOTE MONITORING
● Secure Web/SNMP Interfaces
● Liebert Nform
● Liebert SiteScan Web
OVERLOAD PROTECTION
● Breaker per branch as required
RACK PDU ARRAY ™
● Single IP for up to 4 Rack PDUs
● Liebert MPXTM and Liebert MPHTM
on same private network
FORM FACTOR
● Vertical mount (Zero U)
● Rackmount
● Zero U slim form factor allows placement of two PDUs
in a single rack
If you know your next move and still want
availability MPHTM is the choice.
Analyzing The Next Move Requires Strategy
With The Management Platform,
The Guess Work Is Taken Out Of The Equation
Infrastructure Management
Secure Web/SNMP Interfaces
● User configured alarm thresholds
● High alarm and warning; low alarm
● Receptacle state and sequencing
configuration
● Electrical metering, Volts, Amps, kW
& kW/hr, Power Factor, frequency
● Rack PDU Array - Device consolidation
● PDU Explorer - Intuitive hierarchical
interface
● View PDU status by strip or receptacle
● Device Explorer - Browsing by user
defined device name
● Enviromental monitoring:
temperature and humidity
Liebert Nform
● Monitoring and control of Liebert
equipment through the LAN
● Provides email alerts and local
notifications
● Offers a scalable software solution
for the IT enviroment
Liebert SiteScan Web
● Alarm & event management
of any site equipment
● Provides real - time monitoring
and control
● Fully customizable user interface
● Trends and alarms reporting
Web Monitoring
● Monitors PDUs parameters via web
browser
● No dedicated software required
● Simultaneous view of up to 4 PDU
Network Management System
● Open standard solution
● Support any SNMP device
● Scalable software solution
for businesses of any size
Optional Hardware
RPC-BDM Local Display Module
● Electrical and environmental
parameters
● One RPC - BDM supports up to 4 PDUs
on array
● PDU explorer
● Device Explorer
12
Liebert SN Family Of Rack Sensors
● Single or multi - probe temperature
● Multi - probe temperature and
humidity
Monitoring Architecture
Liebert Nform
Web Monitoring
Liebert SiteScan Web
Network Management System
Network
Liebert
MPX
Liebert
MPX
Liebe
Liebert
MPH
Liebert
MPH
Liebert
MPX-BRM
(Branch
Receptacle
Module)
Branch
Monitoring
Liebert
MPX-BRM
Receptacle
Management
User’s
Server Rack
Environmental
Sensors
User’s
Server Rack
RPC-BDM
(Local Display Module)
Power Source A
Power Source B
MPX-PEM (Power Entry Module)
Rack PDU Array (up to four systems)
13
Knürr DI-STRIP ® Family:
Basic Rack PDU, Standard
And High-Power Systems
Knürr Basic Rack PDUs are the
right answer for data center users
selecting robust, economic and
flexible rack power solutions.
Knürr DI-STRIP® product family
meets a broad range of power
distribution requirements for IT
and other applications.
Especially designed to handle
the growing number of electronic
components housed within
network cabinets or server
racks. It is available with a range
of accessories including circuit
breakers, overvoltage protection
and more.
Knürr DI-STRIP® Benefits:
Higher Availability
● Reliable and robust solution
● Worldwide approvals and certification
● Full-length brass busbar on standard models enhances operational
reliability
● Standard system extruded casing, and High - Power system heavy duty
casing provide durability
Flexibility
● Multiple configurations and input power options available including
international compatibility
● The addition of the Basic Rack PDU Expansion Unit allows for growth
● 2,5 m/4 m power supply cable offers room for movement
Lowest Total Cost of Ownership
● Simple and quick installation on the rack’s extrusion requires minimal space
and reduces installation time
Construction
Extruded casing and full length brass busbar enhance the durability and
reliability of the standard systems.
Heavy duty casing and reduced wiring contact points are quality features of
the HighPower systems.
Models And Configurations
Available in a wide variety of models and power configurations to meet most
site needs.
14
INPUT POWER
● Single or three phase
● Up to 25kW
● Single or dual input feed
OUTPUT DISTRIBUTION
● Single phase, NEMA 5-20R,
IEC-C13 & C19,
Combination systems
Schuko, French, Switzerland
MODULARITY
● Add connectivity with basic rack
PDU expansion unit
GST18 PDUs
FORM FACTOR
● Vertical (Zero U) mount
● Rackmount
11
10.3A
LOCAL MONITORING
● Fixed display
119 5V 4.32kW
k 5 17kVA
k
12345
OVERLOAD PROTECTION
● Breaker/Fuses per branch/outlet
as required
If your moves are predictive
DI-STRIP® offers this with flexibility
Knürr Miracel ® and Knürr Miracel ® PLUS
Emerson Network Power delivers
a full range of enclosures and rack
systems for your data center.
Choose the right rack for your
needs.
Knürr Racks
● Enclosure height of 42U
Knürr racks provide the convenience of
robust 19” racks with high end features
and standardized options to provide fast
customization for individual site needs.
The racks are designed for optimized air
flow and maximize useful mounting space.
● Widths of 600 mm, 700 mm or 800 mm
● Fully assembled racks
● Low profile casters
● Side panels
● 600 mm, 700 mm or 800 mm
● Depth of 900 mm, 1000 mm, 1200 mm
● Mounting and cable management
options, including tool - less options
● Improved airflow with 83% open area
on perforated doors –the industry’s
highest
Knürr Rack
Lightweight design
extruded aluminum framing superior in
strength and more than 10 kg lighter than
standard steel-frame racks.
Unsurpassed airflow
83% perforated doors improve heat reduction
Tool-less accessories
simple installation with a twist of the wrist.
16
PowerTrans®- Power Distribution
Rack for Data Centers
The Knürr PowerTrans Rack provides the
interface between the low voltage feed
and the rack PDU, to feed power
to servers and other IT devices. The rack is
equipped with up to eight
PowerTrans 19” slot - in units. The slot- in
units are immediately powered with
redundant, A and B power feeds when
locked into the rack installation slot.
Knürr PowerTrans ®
Power Distribution Rack For Data Center
Knürr PowerTrans®
provide the interface between the low voltage feed and the Power Distribution
Unit (PDU) of the DI-STRIP® family, plus further components for feeding servers
and other IT devices. The rack basis: Knürr Miracel® is equipped with the existing
PowerTrans® 19” slot-in units by simply slotting and securing them into a free spot.
The electrical connection to the rack is set up immediately.
The power distribution is performed in the individual slot - in units, and therefore
no longer has to be installed fixed in the building.
Up to 8 slot-in units can be integrated. Each slot-in unit is supplied with an A and B
feed (redundancy). With max. 250A/phase loads of up to 346 kVA can be supplied
from just one single rack. Plug & Play - Only the main feed on the rack must be
installed by an electrician.
The individual slot-in units and the PDUs can be connected per Plug & Play
installation, thereby allowing cost - effective later extensions.
Equipping And Installation
The outputs on the slot-ins can be flexibly
equipped as requested by the customer
with a wide range of features, with various
CEE and GST 18 type plug-in connections
(e.g. Adaptive, Managed and Basic PDU, as
well as flexible distribution with the GST18i5
distributor block, 3-phase).
Knürr PowerTrans® - Power Distributon Rack
for Data Centers
The Knürr PowerTrans Rack provides the
interface between the low voltage feed
and the rack PDU, to feed power to servers
and other IT devices. The rack is equipped
with up to eight PowerTrans® 19” slot - in units.
The slot-in units are immediately powered with
redundant, A and B power feeds when locked
into the rack installation slot.
Two 3-phase feeds
Feed A and feed B both threephase with max.
250A/phase L1, L2, L3, N, PE Ideal for providing
load redundancy
17
Rack PDU - OVERVIEW
Applications - Systems: USA = American; EU = European
Product
Base Support / Selection Criteria
Capacity
Range
Metering
Metered Values /
Accuracy
Receptacle
Control
Form
Factor
Max Operating
Temperature
Agency
Liebert MPXTM
- Changing Infrastructure - Input/output power & Monitoring
- Metering - Aggregate, Branch & Receptacles; Environmental
- Critical Data Center Environments
4-28kW
Aggregate,
Branch,
&/or
Receptacle
+/-1%: Amps, Volts
+/-2%:kW, kW-h,
kVA, PF, HZ, Temp.&
Hum. (opt.)
Opt.
Vertical
55C/131F
CE, GS, UL
Liebert MPHTM
- Fixed Infrastructure - Input/output power
- Metering - Aggregate & Branch; Environmental
- Critical Data Center Environments
4-22kW
Aggregate,
Branch
+/-1%: Amps, Volts
+/-2%:kW, kW-h,
kVA, Temp.& Hum.
(opt.)
Opt.
Vertical,
Rackmount
55C/131F
CE, GS, UL
Knürr
DI-STRIP®
- Fixed infrastructure - Input/output power
- External Metering - Separate panel level monitoring
- Critical & Non-Critical Data Center Environments
4-25kW
Optional
Aggregate
+/-1%: Amps
-
Vertical,
Rackmount
55C/131F
CSA, GS, CE,
VDE, CB
Liebert MPXTM - Adaptive Rack PDU SUMMARY
Power & Comms Backplane - MPXTM PRC (Power Rail Chassis) One Per Liebert MPXTM System
Typical 42/47U Racks
MPXTM PRC1880 - 1880mm/74” - Supports up to 6x MPXTM BRM’s
Typical 23U Racks:
MPXTM PRC1035 - 1035mm/41” - Supports up to 3x MPXTM BRM’s
Input Power - MPXTM PEM (Power Entry Module)
Output Distribution - MPXTM BRM (Branch Receptacle Module)
One Per Liebert MPXTM System
One to Six Per Liebert MPXTM System - Quantity Per MPXTM PRC Length
Branch Monitoring - Monitor Module and Aggreate MPXTM
USA: 120 & 208VAC / 1-Phase; 208-240VAC / 3-Phase
Available Voltage
EU: 230 / 1-Phase, 400VAC / 3-Phase
Types
Types can be mixed on single MPXTM system
USA: 20Amp / 1-Phase to 30Amp / 3-Phase
MPX
TM
PEM-Variable Capacity EU: 32Amp / 1-Phase to 32Amp / 3-Phase
Input power selected with MPX-IPC (Input Power Cord)
USA: 3-Phase; 50Amp 4-wire or 60Amp 5-wire
MPXTM PEM-Fixed Capacity
EU: All 3-Phase; 63Amp 5-wire
Receptacle Management - Control & monitor to individual
receptacles
USA: 6x NEMA 5-20R; 6x IEC-C13; 4x IEC-C19
Receptacles per BRM
EU: 6x IEC-C13; 4x IEC-C20; 3x Schuko
Protection
Branch rated circuit breaker - 20Amps / Full rating
Application / Install
Hot-swappable
Liebert MPHTM - Managed Rack PDU SUMMARY (American Systems)
Liebert MPHTM - Managed Rack PDU SUMMARY (European Systems)
120VAC-Single Phase Input / Output
230VAC-Single Phase Input / Output
Rackmount Form Factor
20 or 30 Amp NEMA input; 9x 5-20R receptacles
Rackmount Form Factor
Vertical Form Factor
20 or 30 Amp NEMA input; 27x 5-20R receptacles
230VAC-Single Phase Input / Output
208-240VAC-Single Phase Input / Output
Rackmount Form Factor
20 or 30 Amp NEMA input; 9x IEC-C13 receptacles
Vertical Form Factor
20 or 30 Amp NEMA input; 27x IEC-C13 receptacles
Vertical Form Factor
16 or 32 Amp IEC input; 9x IEC-C13 receptacles
16 or 32 Amp IEC input; 27X IEC-C13 or 21x IEC-C13 plus 6x
IEC-C19 receptacles
400VAC-3Phase Input / 230V Output
120/208VAC-Three Phase Input / 208 & 120VAC Output
Vertical Form Factor
30 Amp NEMA input; 27x IEC-C13 or 21x IEC-C13 plus 6x IEC-C19
receptacles
Vertical Form Factor
32 Amp IEC input; 27x IEC-C13 or 21x IEC-C13 plus 6x IEC-C19
receptacles
Knürr DI STRIP® - Basic Rack PDU SUMMARY (American Systems)
Knürr DI STRIP® - Basic Rack PDU SUMMARY (European Systems)
120VAC-Single Phase Input / Output
230VAC-Single Phase Input / Output
Rackmount Form Factor
15 or 20 Amp NEMA input; 9x 5-20R receptacles
Rackmount Form Factor
Vertical Form Factor
15, 20 & 30 Amp NEMA & “Expansion” input; 12-24x 5-20R
receptacles
230VAC-Single Phase Input / Output
208-240VAC-Single Phase Input / Output
Rackmount Form Factor
20 or 30 Amp NEMA & “Expansion” input; 4x IEC-C20 or 9x IEC-C13
receptacles
Vertical Form Factor
20 or 30 Amp NEMA & “Expansion” input; 12-24x IEC-C13 & C19
receptacles
Vertical Form Factor
16 or 32 Amp IEC input; several receptacles
16 or 32 Amp IEC & “Expansion” input; several receptacles
400VAC-3Phase Input / 230VAC Output
Vertical Form Factor
16 & 32 Amp IEC input; several receptacles
120/208VAC-Three Phase Input / 208 & 120VAC Output
Vertical Form Factor
18
43 & 60 Amp IEC input; 6x to 48X 5-20R, IEC-C13, C19 &
combinations
All systems are RoHS compliant.
Emerson Network Power Business-Critical Continuity Expert
TM
Get More on line: www.eu.emersonnetworkpower.com
Tech Support
Always On! Our Commitment
to your daily Business,
provided by our World Wide
Tech support available in 5
languages (English, French,
German, Italian & Spanish).
e-Learning Platform
A wide spectrum of
information, tech-focus and
knowledge test to upgrade
our Partners’ competence.
Newsletter
Go On -Line and submit
immediately to get our
monthly IT Channel Business
newsletter.
Available in 5 languages,
including special promo,
event news and tech pills.
On Line Website
Visit the on line website fully
dedicated to the Liebert
MPXTM, to get the most
updated information!
www.liebertmpx.com
Ensuring The High Availability
Of Mission-Critical Data And Applications.
Locations
Emerson Network Power, a business of Emerson (NYSE:EMR), is the
global leader in enabling Business-Critical Continuity™ from grid to
chip for telecommunication networks, data centers, health care and
industrial facilities. Emerson Network Power provides innovative
solutions and expertise in areas including AC and DC power and
precision cooling systems, embedded computing and power,
integrated racks and enclosures, power switching and controls,
Emerson Network Power - Headquarters EMEA
Via Leonardo Da Vinci 16/18
Zona Industriale Tognana
35028 Piove di Sacco (PD) Italy
Tel: +39 049 9719 111
Fax: +39 049 5841 257
marketing.emea@emersonnetworkpower.com
monitoring, and connectivity. All solutions are supported globally
Knürr AG - Global Headquarters
Mariakirchener Straße 38
94424 Arnstorf - Germany
Tel: +49 (0) 8723/27-0
Fax: +49 (0) 8723/27-154
info@knuerr.com
www.knuerr.com
by local Emerson Network Power service technicians. Learn more
about Emerson Network Power products and services at
www.emersonnetworkpower.com
www.knuerr.com
United States
1050 Dearborn Drive
P.O. Box 29186
Columbus, OH 43229
Tel: +1 614 8880246
Contacts:
Emerson Network Power has a worldwide network
of Sales Representatives Offices and Distributors.
To get the list of the nearest in your country, send an e mail to:
Asia
7/F, Dah Sing Financial Centre
108 Gloucester Road,Wanchai
Hong Kong
Tel: +852 2572220
Fax: +852 28029250
Liebert.emea@emerson.com
While every precaution has been taken to ensure the accuracy
and completeness of this literature, Liebert Corporation assumes no
responsibility and disclaims all liability for damages resulting fromuse of
this information or for any errors or omissions.
©2009 Liebert Corporation
All rights reserved throughout the world. Specifications subject to change
without notice.
Emerson Network Power SrL- ISO 9001:2000:
Design, manufacturing, assembling and sales of chilled water
mixture and equipment for high precision air conditioning.
Design of uninterruptible power supply (UPS Power). Sales of
small uninterruptible power supply (UPS Small and Micro)
Emerson Network Power SrL-ISO 14001:2004:
Design, manufacturing, assembling and sales of chilled water
mixture and equipment for high precision air conditioning.
Sales of uninterruptible power supply (UPS Power). Design
of uninterruptible power supply (UPS Power). Sales of small
uninterruptible power supply (UPS Small and Micro). HQ Service
Activities (Spare parts warehouse, Technicians training)
Emerson Network Power
The global leader in enabling Business-Critical Continuity™.
EmersonNetworkPower.com
AC Power
Embedded Computing
Outside Plant
Racks & Integrated Cabinets
Connectivity
Embedded Power
Infrastructure Management & Monitoring
Power Switching & Controls
Services
Precision Cooling
Surge Protection
DC Power
Emerson, Business-Critical Continuity and Emerson Network Power are trademarks of Emerson Electric Co. or one of its affiliated companies. ©2009 Emerson Electric Co.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
