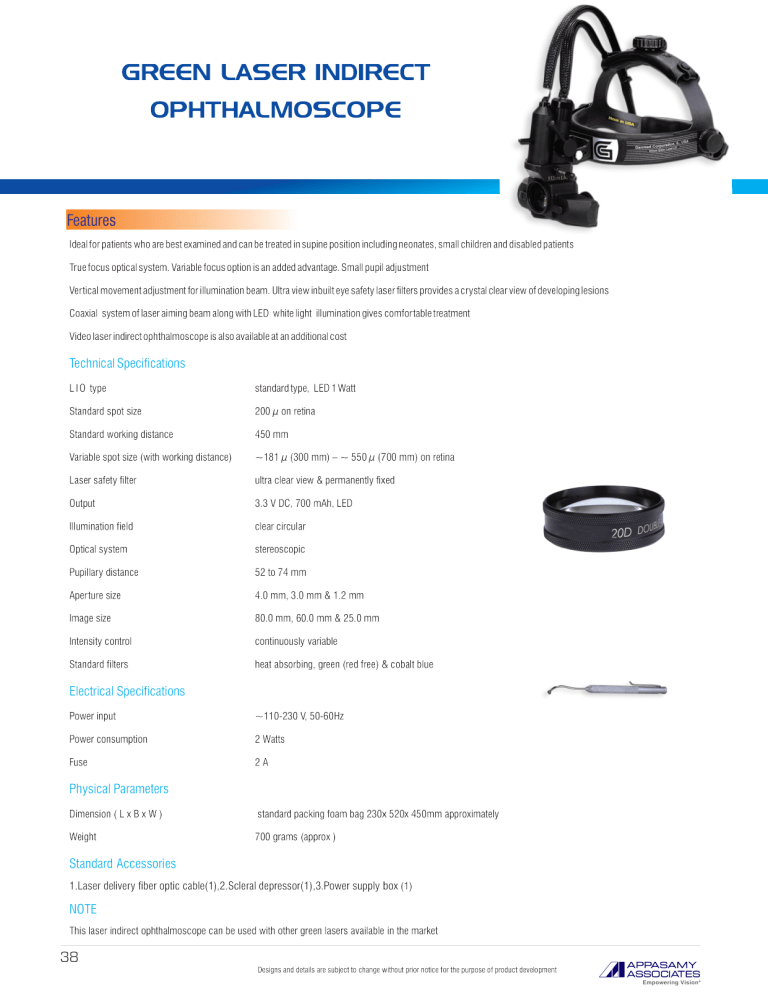

GREEN LASER INDIRECT
OPHTHALMOSCOPE
Features
Ideal for patients who are best examined and can be treated in supine position including neonates, small children and disabled patients
True focus optical system. Variable focus option is an added advantage. Small pupil adjustment
Vertical movement adjustment for illumination beam. Ultra view inbuilt eye safety laser filters provides a crystal clear view of developing lesions
Coaxial system of laser aiming beam along with LED white light illumination gives comfortable treatment
Video laserindirect ophthalmoscope is also available at an additional cost
Technical Specifications
LIO type
Standard spot size
Standard working distance
Variable spot size (with working distance)
Laser safety filter
Output
llfumination field
Optical system
Pupillary distance
Aperture size
Image size
Intensity control
Standard filters
Electrical Specifications
Power input
Power consumption
Fuse
Physical Parameters
Dimension (Lx B x W)
Weight
Standard Accessories
standard type, LED 1 Watt
200 u on retina
450 mm
—181 u (300 mm) - — 550 44 (700 mm) on retina
ultra clear view 8: permanently fixed
3.3 V DC, 700 mAh, LED
clear circular
stereoscopic
52 to 74 mm
4.0 mm, 3.0 mm & 1.2 mm
80.0 mm, 60.0 mm & 25.0 mm
continuously variable
heat absorbing, green (red free) & cobalt blue
~110-230 V. 50-60Hz
2 Watts
2 A
standard packing foam bag 230x 520x 450mm approximately
700 grams (approx )
1.Laser delivery fiber optic cable(1),2.Scleral depressor(1),3.Power supply box (1)
NOTE
This laser indirect ophthalmoscope can be used with other green lasers available in the market
38
Designs and details are subject to change without prior notice for the purpose of product development
/ Al APPASAMY
ASSOCIATES
Empowering Vision*
