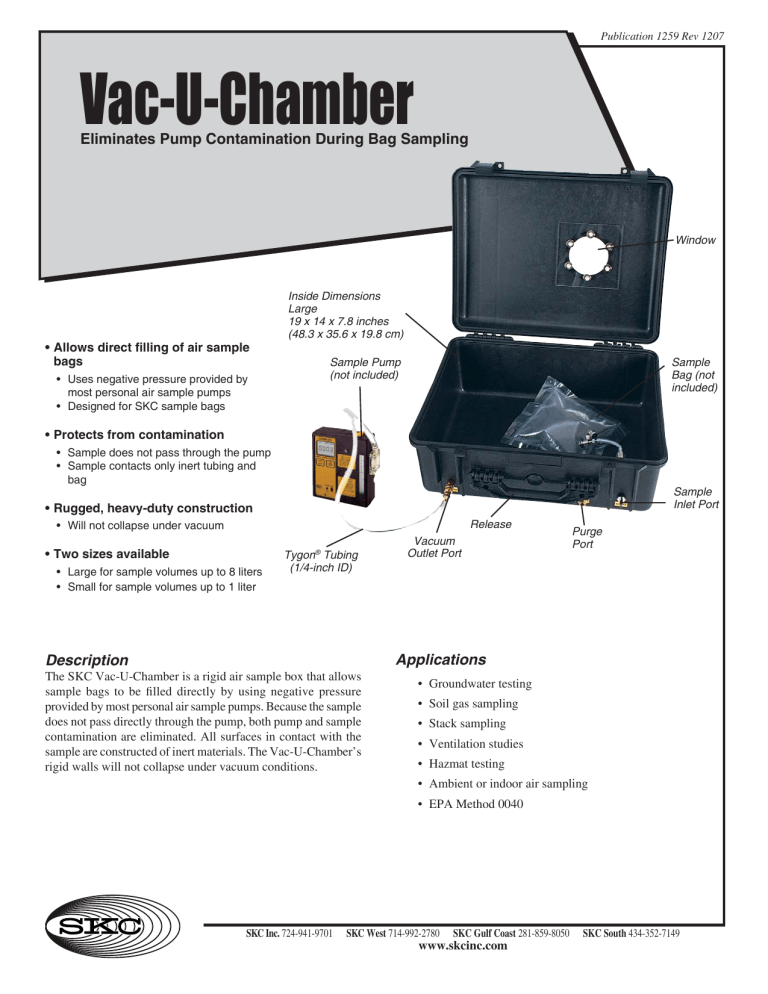

Publication 1259 Rev 1207
Vac-U-Chamber
Eliminates Pump Contamination During Bag Sampling
Window
• Allows direct filling of air sample
bags
• Uses negative pressure provided by
most personal air sample pumps
• Designed for SKC sample bags
Inside Dimensions
Large
19 x 14 x 7.8 inches
(48.3 x 35.6 x 19.8 cm)
Sample Pump
(not included)
Sample
Bag (not
included)
• Protects from contamination
• Sample does not pass through the pump
• Sample contacts only inert tubing and
bag
Sample
Inlet Port
• Rugged, heavy-duty construction
Release
• Will not collapse under vacuum
• Two sizes available
• Large for sample volumes up to 8 liters
• Small for sample volumes up to 1 liter
Tygon® Tubing
(1/4-inch ID)
Vacuum
Outlet Port
Purge
Port
Applications
Description
The SKC Vac-U-Chamber is a rigid air sample box that allows
sample bags to be filled directly by using negative pressure
provided by most personal air sample pumps. Because the sample
does not pass directly through the pump, both pump and sample
contamination are eliminated. All surfaces in contact with the
sample are constructed of inert materials. The Vac-U-Chamber’s
rigid walls will not collapse under vacuum conditions.
• Groundwater testing
• Soil gas sampling
• Stack sampling
• Ventilation studies
• Hazmat testing
• Ambient or indoor air sampling
• EPA Method 0040
SKC Inc. 724-941-9701
SKC West 714-992-2780
SKC Gulf Coast 281-859-8050
www.skcinc.com
SKC South 434-352-7149
Vac-U-Chamber
Eliminates Pump Contamination During Bag Sampling
Using the Vac-U-Chamber
Ordering Information
The Vac-U-Chamber is equipped with three 1/4-inch OD fitting
ports for inflating sample bags:
Large Vac-U-Chamber
• Sample inlet port for connecting to the sample line or
gas source
• Purge port for purging the air prior to sampling or when
preparing the bag for a standard
• Vacuum port for inflating a bag
An air sample bag is connected to the inside sample inlet port
and the chamber is closed, providing an airtight seal. An air
sample pump is connected to the outside vacuum outlet port.
When activated, the pump evacuates air from inside the chamber. The sample bag inflates as a result of the interior pressure
drop. This pneumatic technique allows the air sample to enter
the bag directly without passing through the pump, protecting
the pump from sample contaminants and the sample from pump
contaminants.
Description
Complete Vac-U-Chamber Kit includes
PCXR4 sample pump, single PowerFlex
charger with cable, large Vac-U-Chamber, and 10 SamplePro FlexFilm
bags (Cat. No. 236-004)
100-240 V
Large Vac-U-Chamber only with stainless steel fittings (supplied without pump),
suitable for use with SKC 8-liter bags
(Cat. No. 236-004)
8-liter Sample Bag with single polypropylene fitting, for use with large Vac-UChamber (Cat. No. 231-939), pk/10
SamplePro FlexFilm
FlexFoil PLUS
Standard FlexFoil
Tedlar
Quick Disconnect with tubing for use
in Cat. No. 231-939
PTFE tubing, 5/16-inch OD (1/4-inch ID), 10 feet
PTFE tubing, 5/16-inch OD (1/4-inch ID), 50 feet
Cat. No.
224-4115
231-939
236-004
252-08
262-08
232-939
P231941
231-937
231-924
Small Vac-U-Chamber
Description
Complete Vac-U-Chamber Kit includes
PCXR4 sample pump, single PowerFlex
charger with cable, small Vac-U-Chamber, and 10 SamplePro FlexFilm sample
bags (Cat. No. 236-001)
100-240 V
Small Vac-U-Chamber only with polypropylene fittings (supplied without
pump), suitable for use with SKC 1-liter
sample bags
1-liter Sample Bag with single polypropylene fitting, for use with small Vac-UChamber (Cat. No. 231-940), pk/10
SamplePro FlexFilm
FlexFoil PLUS
Standard FlexFoil
Tedlar
Cat. No.
224-4124
231-940
236-001
252-01
262-01
232-01
The Vac-U-Chamber is available in other sizes and fittings
as a custom order. Contact your SKC representative for
more information.
SKC Limited Warranty and Return Policy
SKC products are subject to the SKC Limited Warranty and Return
Policy, which provides SKC’s sole liability and the buyer’s exclusive
remedy. To view the complete SKC Limited Warranty and Return Policy,
go to http://www.skcinc.com/warranty.asp.
