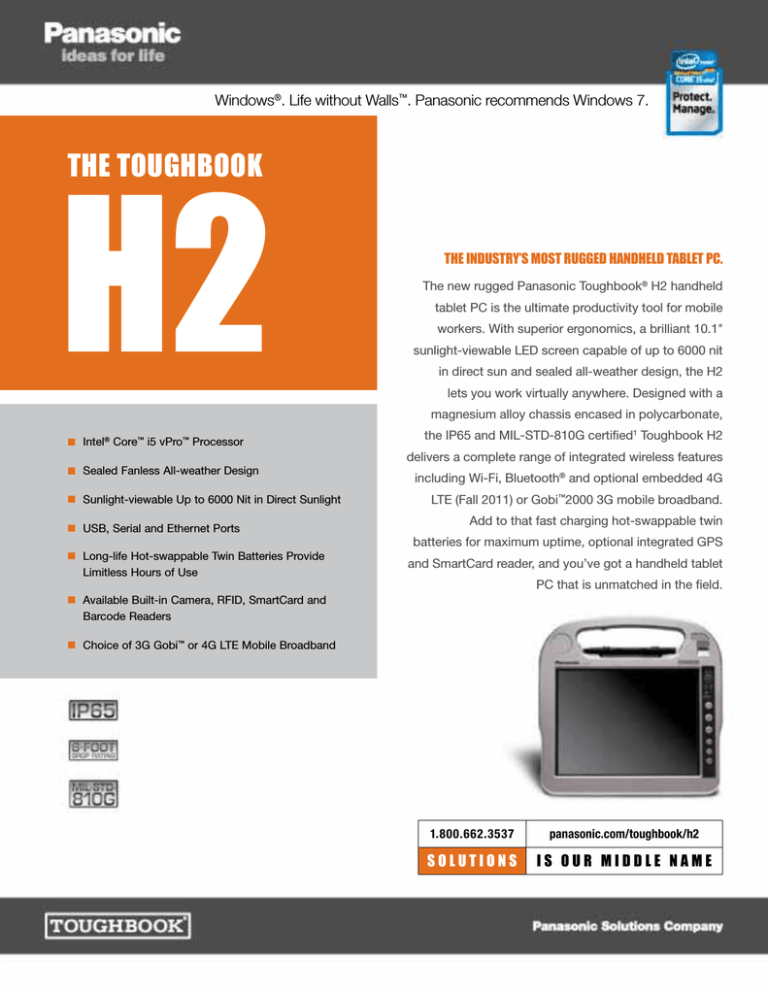

Windows®. Life without Walls™. Panasonic recommends Windows 7.
THE TOUGHBOOK
H2
The industry’s most rugged handheld tablet pc.
The new rugged Panasonic Toughbook® H2 handheld
tablet PC is the ultimate productivity tool for mobile
workers. With superior ergonomics, a brilliant 10.1"
sunlight-viewable LED screen capable of up to 6000 nit
in direct sun and sealed all-weather design, the H2
lets you work virtually anywhere. Designed with a
magnesium alloy chassis encased in polycarbonate,
■ Intel® Core™ i5 vPro™ Processor
the IP65 and MIL-STD-810G certified1 Toughbook H2
delivers a complete range of integrated wireless features
■ Sealed Fanless All-weather Design
■ Sunlight-viewable Up to 6000 Nit in Direct Sunlight
■ USB, Serial and Ethernet Ports
■ L
ong-life Hot-swappable Twin Batteries Provide
Limitless Hours of Use
including Wi-Fi, Bluetooth® and optional embedded 4G
LTE (Fall 2011) or Gobi™2000 3G mobile broadband.
Add to that fast charging hot-swappable twin
batteries for maximum uptime, optional integrated GPS
and SmartCard reader, and you’ve got a handheld tablet
PC that is unmatched in the field.
■ A
vailable Built-in Camera, RFID, SmartCard and
Barcode Readers
■ Choice of 3G Gobi™ or 4G LTE Mobile Broadband
1.800.662.3537
panasonic.com/toughbook/h2
SOLUTIONS
IS OUR MIDDLE NAME
Windows®. Life without Walls™. Panasonic recommends Windows 7.
durability
n
n
n
n
n
n
n
software
n
n
CPU
n
STORAGE & MEMORY
n
Display
n
n
n
n
n
Audio
n
n
keyboard & input
n
n
n
n
INTERFACE
n
n
n
n
wireless
n
n
n
n
n
power supply
n
n
n
n
power management
security features
n
n
n
n
n
warranty
dimensions & weight
1.800.662.3537
/
n
Intel® high-definition audio compliant
Integrated speaker
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
Optional integrated LTE 4G mobile broadband (Fall 2011)
O
ptional integrated Gobi™2000 3G mobile broadband
Intel® Centrino® Advanced-N 6205 802.11a/b/g/n
B
luetooth® v2.1 + EDR (Class 1)
S
ecurity
– Authentication: LEAP, WPA, 802.1x, EAP-TLS, EAP-FAST, PEAP
– Encryption: CKIP, TKIP, 128-bit and 64-bit WEP, Hardware AES
n
n
n
n
n
T
win hot-swappable Li-Ion battery packs
– 7.2V, typical 3400mAh, minimum 3200mAh each battery
Battery operation: 6.5 hours (with both batteries)8
Battery charging time: 3 hours on8
A
C Adapter: AC 100V-240V 50/60Hz, auto sensing/switching
worldwide power supply
3-year limited warranty, parts and labor
n
10.8"(L) x 10.6"(W) x 2.3"(H)
3.5 lbs. (with handle, strap and both batteries)
panasonic.com/toughbook /H2
Panasonic is constantly enhancing product specifications and accessories. Specifications subject to change without notice.
Trademarks are property of their respective owners. ©2011 Panasonic Corporation of North America. All rights reserved.
EN/IEC 60950-1
UL 60950-1
EN/IEC 60601-1
(with battery operation)
CAN/CSA-C22.2 No.601.1-M90
FCC CFR 47 P.15 Sub B-Class B
EN 55022/CISPR 22-Class B
EN 55024
EN 55011/CISPR 11-Class B
FCC CFR 47 P.15 Sub C
RSS-210
FCC CFR 47 P.2
LTE 4G mobile broadband (Fall 2011)
Gobi™2000 3G mobile broadband (EV-DO Rev. A, HSPA)
GPS receiver
2nd USB port (replaces Ethernet port)
128GB solid state drive (SSD)
Accessories10
Docking connector
Dedicated 19-pin
Serial
D-sub 9-pin
7
USB 2.0 (opt. 2nd usb port) 4-pin
10/100/1000 Ethernet
RJ-45
n
IT Equipment Safety
(EN:EU, UL:US)
Medical Electrical Equipment
Safety (EU)
Medical Electrical Equipment
Safety (Canada)
IT Equipment EMI (US)
IT Equipment EMI (EU)
IT Equipment EMS (EU)
Industrial EMI (EU)
Radio (US)
Radio (Canada)
SAR (US)
INTEGRATED OPTions10
Dual touch LCD (touchscreen and digitizer)
Integrated stylus holder
7
4-key on-screen keyboard with dedicated Windows® key
U
p to 5 user-defined programmable buttons (varies by model)
Financing options now available from Panasonic Finance Solutions;
please call number above for more details.
SSH2_07/11
n
n
H2 LITE
n Base model
H2 PRO
n 2.0MP camera with auto focus and LED light
n Barcode reader
H2 ELITE
n 2.0MP camera with auto focus and LED light
n Barcode reader
n Insertable SmartCard reader
n 13.56MHz Contactless RFID and SmartCard reader
– ISO 15693 and 14443 A/B compliant
n Fingerprint reader
n
n
10.1" XGA sunlight-viewable LED 1024 x 768 dual touch
– TransflectivePlus and Panasonic CircuLumin™ technology
– 1-6000 nit (depending on lighting conditions and settings)5
– Anti-reflective, anti-glare screen treatments and circular polarizer
– Ambient light sensor
Intel® QM67 video controller, max 1563MB shared VRAM with 32-bit6
E
xternal video support up to 1280 x 1024 at 16.7 million colors
C
oncealed mode
Password Security: Supervisor, User, Hard Disk Lock
Kensington cable lock slot (on optional cradle)
T
rusted platform module (TPM) security chip v.1.2
C
omputrace® theft protection agent in BIOS9
Intel® Anti-Theft Technology
F
ingerprint reader
Insertable SmartCard reader
C
ontactless SmartCard reader
n
4
GB SDRAM (DDR3-1333MHz), expandable to 8GB3,4
3
20GB 7200rpm hard drive (shock-mounted and flex-connect)4
– Optional 128GB reinforced flex-connect SSD4
n
n
SAFETY CERTIFICATIONS
I ntel® Core™ i5-2557M vPro™ Processor
– 1.7GHz with Turbo Boost up to 2.7GHz
– Intel® Smart Cache 3MB
Suspend/Resume Function, Hibernation, Standby, ACPI BIOS
n
G
enuine Windows® 7 Professional 32-bit2 or
Genuine Windows® 7 Professional 64-bit2
Panasonic Utilities (including Dashboard and Cleaning Reminder Tool),
Recovery Partition
n
integrated features
M
IL-STD-810G certified (6' drop, shock, vibration, rain, dust,
sand, altitude, freeze/thaw, high/low temperature, temperature
shock, humidity, explosive atmosphere)1
IP65 certified1 sealed all-weather design
Hard drive heater
M
agnesium alloy chassis encased with polycarbonate
S
hock-mounted flex-connect hard drive
Integrated handle and ergonomic rubber hand strap
R
einforced locking port covers
n
n
n
n
n
n
n
n
n
n
n
n
n
AC Adapter (3-prong)
CF-AA6373AM
Lithium Ion Battery Pack11CF-VZSU53W
4-Bay Battery Charger
CF-VCBU11U
LIND Car Adapter 120W
CF-LNDDC120
LIND Car Adapter 120W
Mounting Bracket
CF-LNDBRK120
LIND Car/AC Adapter 90W
(with USB port)
CF-LNDACDC90
LIND Car Adapter 90W MIL-STD
CF-LNDMLDC90
LIND Car Adapter 80W
CF-LNDDC80
LIND Shutdown Timer
CF-LNDLPT
InfoCase H2 Shoulder Strap
TBCH1SS-BLK-P
InfoCase H2 Inversion Strap
TBCH1SSINV-P
InfoCase H2 Always-on Sleeve
TBCH2SLVE-P
InfoCase U1/H2 Battery Pouch
TBCU1BPCH-P
Desktop Cradle/Spare 2-Bay
Battery Charger CF-VEBH21KU
Memory Card 4GB DDR3
CF-WMBA1004G
Magnetic Micro-dock (USB x2, LAN)
CF-VEBH12U
Gamber-Johnson Wall/Cart Mount
TBD
Gamber-Johnson Wall/Cart Mount
(no electronics)
TBD
Gamber-Johnson Vehicle Dock
(no pass-through)
7160-0348
Gamber-Johnson Vehicle Dock
(no electronics)
7160-0349
Replacement Stylus
CF-VNP011U
TetherCF-VNT003U
10.1" LCD Protector Film
CF-VPF13AU
Please consult your reseller or Panasonic representative before purchasing.
by a national independent third party lab following MIL-STD-810G Method
516.6 Procedure IV for transit drop test and IEC 60529 Sections
13.4, 13.6.2, 14.2.5 and 14.3 for IP65. Stylus has passed IP65 testing but
has not been certified.
2
A full set of Windows XP drivers are available at panasonic.com/toughbook/support.
3Total usable memory will be less depending upon actual system configuration.
41GB = 1,000,000,000 bytes.
5500 nit without ambient light assistance. Up to 6000 nit in clear, sunny conditions
under direct sunlight.
6The size of the VRAM cannot be set by the user and varies by operating system as
well as size of RAM. Windows 7 64-bit max. VRAM is 1696MB with 4GB of memory.
7Replaces Ethernet port.
8
Battery performance features such as charge time and life span can vary
according to the conditions under which the computer and battery are used.
Battery operation and recharge times will vary based on many factors, including
screen brightness, applications, features, power management, battery
conditioning and other customer preferences. Battery testing results from
MobileMark 2007.
9Requires software and activation to enable theft protection.
10
Accessories and Integrated Options may vary depending on your configuration.
117.2V, 2900mAh.
1Tested
