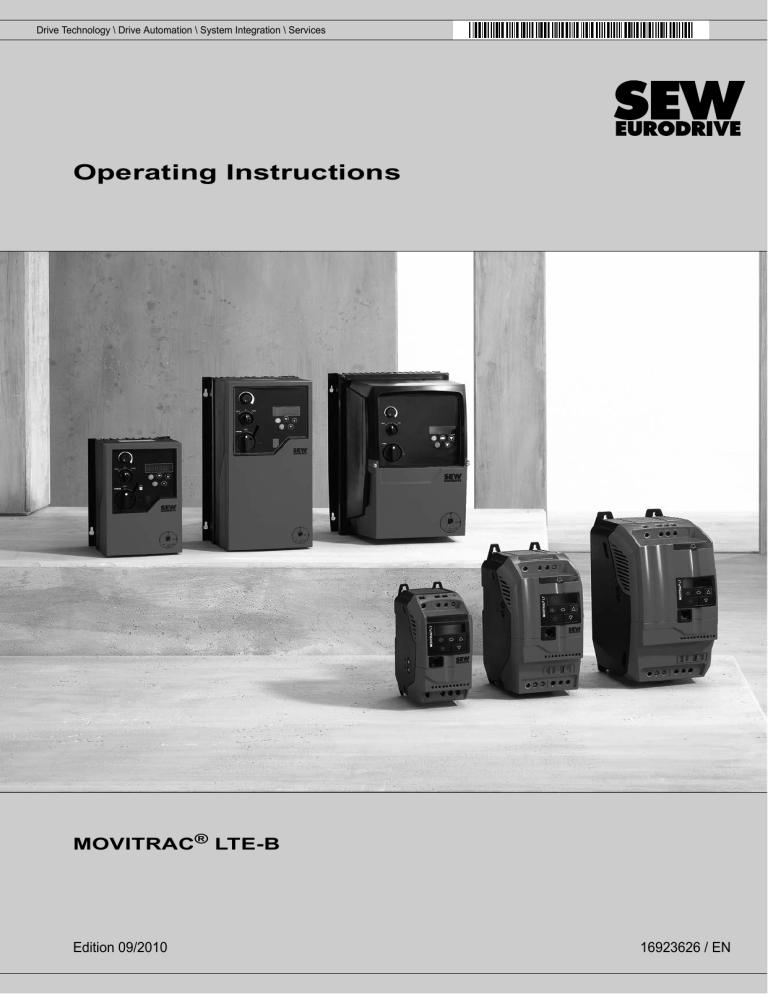

Operating Instructions

MOVITRAC

®

LTE-B

Edition 09/2010 16923626 / EN

SEW-EURODRIVE—Driving the world

1 Important Notes................................................................................................. 4

1.1

Structure of the safety notes ..................................................................... 4

1.2

Application environment............................................................................ 6

1.3

Waste disposal.......................................................................................... 6

2 Safety Notes ...................................................................................................... 7

2.1

Installation and startup .............................................................................. 7

2.2

Operation and servicing ............................................................................ 8

3 General specifications ...................................................................................... 9

3.1

Input voltage ranges ................................................................................. 9

3.2

Product designation .................................................................................. 9

3.3

Overload capability ................................................................................. 10

3.4

Protection features .................................................................................. 10

4 Mechanical Installation ................................................................................... 11

4.1

Dimensions ............................................................................................. 11

4.2

IP20 housing: mounting and dimensions of switch cabinet..................... 16

5 Electrical Installation ...................................................................................... 18

5.1

Prior to installation .................................................................................. 18

5.2

Installation ............................................................................................... 20

5.3

Signal terminals overview ....................................................................... 24

5.4

RJ45 Communication Socket.................................................................. 25

5.5

UL-compliant installation ......................................................................... 26

5.6

Electromagnetic compatibility.................................................................. 27

6 Startup.............................................................................................................. 29

6.1

User interface.......................................................................................... 29

6.2

Easy startup ............................................................................................ 30

7 Operation ......................................................................................................... 35

7.1

Drive status ............................................................................................. 35

8 Service and fault codes .................................................................................. 36

8.1

Troubleshooting ...................................................................................... 36

8.2

Fault history ............................................................................................ 36

8.3

Fault codes ............................................................................................. 37

8.4

SEW electronics service ......................................................................... 38

9 Parameters....................................................................................................... 39

9.1

Standard parameters .............................................................................. 39

9.2

Extended parameters.............................................................................. 40

9.3

P-15 Digital inputs function select ........................................................... 44

9.4

Real-time monitoring parameters (read-only) ......................................... 46

10 Technical Data ................................................................................................. 48

10.1 Conformance .......................................................................................... 48

10.2 Environmental ......................................................................................... 48

10.3 Output power and current ratings............................................................ 49

11 Index ................................................................................................................. 58

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

Operating Instructions – MOVITRAC® LTE-B

3

1

Important Notes

Structure of the safety notes

1

Operating Instructions

Important Notes

1.1

Structure of the safety notes

1.1.1

Meaning of the signal words

The following table shows the grading and meaning of the signal words for safety notes, notes on potential risks of damage to property, and other notes.

Signal Word

DANGER

WARNING

CAUTION

Meaning

Imminent danger

Possible dangerous situation

Possible dangerous situation

Consequences if disregarded

Severe or fatal injuries

Severe or fatal injuries

Minor injuries

NOTICE

Possible damage to property Damage to the drive system or its environment

INFORMATION

Useful information or tip: Simplifies the handling of the drive system.

1.1.2

Structure of the section safety notes

The section safety notes do not apply to a specific action, but to several actions pertaining to one subject. The pictograms used indicate either a general or a specific hazard.

This is the formal structure of a section safety note:

SIGNAL WORD

Nature and source of hazard.

Possible consequence(s) if disregarded.

• Measure(s) to prevent the hazard.

This is an example for a section safety note:

WARNING

Falling of suspended loads.

Severe or fatal injuries.

• Do not stand under the suspended load.

• Secure the danger zone.

4

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

Operating Instructions – MOVITRAC® LTE-B

Important Notes

Structure of the safety notes

1.1.3

Structure of the embedded safety notes

The embedded safety notes are directly integrated in the instructions just before the description of the dangerous action.

This is the formal structure of an embedded safety note:

• SIGNAL WORD Nature and source of hazard.

Possible consequence(s) if disregarded.

– Measure(s) to prevent the hazard.

This is an example for an embedded safety note:

DANGER Risk of crushing if the drive restarts unintentionally.

Severe or fatal injuries.

– De-energize the drive.

– Secure the drive against unintended restart.

Unless the information in the operating instructions is adhered to, it will be impossible to ensure:

• Trouble-free operation

• Fulfillment of any rights to claim under guarantee

Consequently, read the operating instructions before you start working with the unit!

The operating instructions contain important information about servicing. Therefore, keep the operating instructions close to the unit.

1

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

Operating Instructions – MOVITRAC® LTE-B

5

1

Important Notes

Application environment

1.2

Application environment

The following applications are forbidden unless measures are expressly taken to make them possible:

• Use in explosion-proof areas.

• Use in environments with harmful substances:

– Oils

– Acids

– Gases

– Vapors

– Dust

– Radiated interference

– Other harmful environments

• Use subject to mechanical vibration and shock loads in excess of the requirements in EN 50178.

• If the inverter performs safety functions which have to guarantee the protection of machinery and people.

1.3

Waste disposal

Please follow the current instructions: dispose in accordance with the regulations in force:

• Electronics scrap (printed-circuit boards)

• Plastic (housing)

• Sheet metal

• Copper

6

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

Operating Instructions – MOVITRAC® LTE-B

Safety Notes

Installation and startup

2 Safety Notes

MOVITRAC

®

LTE-B drive inverters may not perform safety functions without higherlevel safety systems.

Do not use MOVITRAC

®

LTE-B drive inverters for any safety functions in conjunction with hoist applications.

2.1

Installation and startup

Never install or start up damaged products. Please submit a complaint to the transport company immediately in the event of damage.

Installation, startup and service work on the unit only by trained personnel.

The personnel must be trained in the relevant aspects of accident prevention and must comply with the regulations in force (e.g. EN 60204, VBG 4,

DIN-VDE 0100/0113/0160).

• Follow the specific instructions during installation and startup of the motor and the brake!

• Make sure that preventive measures and protection devices correspond to the

applicable regulations (e.g. EN 60204 or EN 50178).

Grounding the unit is a necessary protective measure.

Overcurrent protection devices are a necessary protective measure.

The unit meets all requirements for reliable isolation of power and electronics connections in accordance with UL508. All connected circuits must also satisfy

the requirements for reliable isolation in order to guarantee reliable isolation.

• Take suitable measures to ensure that the connected motor does not start up

automatically when the inverter is switched on. To do this, you can connect binary inputs DI01 through DI03 to GND.

Integral solid state short circuit protection does not provide branch circuit pro-

tection. Branch circuit protection must be provided in accordance with the National

Electrical Code and any additional local codes.

2

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

Operating Instructions – MOVITRAC® LTE-B

7

2

Safety Notes

Operation and servicing

2.2

Operation and servicing

WARNING

Danger of electrical shock. High voltages are present in the terminals and within the drive for up to 10 minutes after the electrical supply has been disconnected.

Severe or fatal injuries.

• Disconnect and isolate the MOVITRAC

®

LTE-B from the electrical supply at least

10 minutes before commencing any work on it.

• Dangerous voltages are present in the output terminals and the cables and motor terminals connected to them when the unit is switched on. Dangerous voltages may also be present when the unit is inhibited and the motor at a standstill.

• The unit is not necessarily deenergized when the LEDs and the 7-segment

display are off.

Safety functions inside the unit or a mechanical blockage may cause the motor

to stop. The removal of the source of the malfunction or a reset can result in an

automatic restart of the drive. If, for safety reasons, this is not permissible for the driven machine, disconnect the unit from the supply system before correcting the fault.

8

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

Operating Instructions – MOVITRAC® LTE-B

General specifications

Input voltage ranges

3 General specifications

3.1

Input voltage ranges

Depending on model and power rating the drives are designed for direct connection to the following supplies:

MOVITRAC

®

LTE-B sizes 1, 2 (115 V input):

115 V ± 10 %, 1-phase, 50 – 60 Hz ± 5 %

MOVITRAC

®

LTE-B sizes 1, 2 and 3s (200 – 240 V):

200 V – 240 V ± 10 %, 1-phase* / 3-phase, 50 – 60 Hz ± 5 %

MOVITRAC

®

LTE-B sizes 1, 2 and 3s (380 – 480 V):

380 V – 480 V ± 10 %, 3-phase, 50 – 60 Hz ± 5 %

INFORMATION

*It is also possible to connect 1-phase MOVITRAC

®

LTE-B units to 2-phases of a

200 – 240 V, 3-phase mains.

Products used with a 3-phase supply are designed for a maximum supply imbalance of

3 % between phases. For input supplies which have a supply imbalance greater than

3 % (typically the Indian subcontinent and parts of the Asia Pacific including China)

SEW-EURODRIVE recommends that input chokes are used.

3.2

Product designation

MC LTE B 0015 2 0 1 1 00 (60 Hz)

60Hz American version only

Type

Quadrants

Connection type

Interference suppression on the supply side

Mains voltage

00 = Standard IP20 housing

10 = IP55 / NEMA 12 housing

20 = IP55 / NEMA 12 housing with switch

40 = IP66 / NEMA 4X housing with switch

1 = 1Q (without brake chopper)

4 = 4Q

1 = 1-phase

3 = 3-phase

0 = class 0

A = class A

B = class B

1 = 115 V

2 = 200 – 240 V

5 = 380 – 480 V

Recommended motor power

0015 = 1.5 kW

Version B

Product type MC LTE

3

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

Operating Instructions – MOVITRAC® LTE-B

9

3

General specifications

Overload capability

3.3

Overload capability

All MOVITRAC

®

LTE-B units have a possible overload of:

• 150 % for 60 seconds

• 175 % for 2 seconds

The overload is reduced to 150 % for 7.5 seconds if the output frequency is below

10 Hz.

For motor overload adjustment see parameter P-08 in chapter "Standard parameters"

(page 39).

3.4

Protection features

• Output short-circuit, phase-to-phase, phase-to-ground

• Output over-current

• Overload protection

– Drive delivers 150 % of rated motor current for 60 seconds.

• Over-voltage trip

– Set at 123 % of drive maximum rated supply voltage.

• Under-voltage trip

• Over temperature trip

• Under temperature trip

– Drive will trip if enabled below –10 °C

• Supply phase loss

– A running drive will trip if one phase of a 3-phase supply is lost for more than

15 seconds.

10

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

Operating Instructions – MOVITRAC® LTE-B

Mechanical Installation

Dimensions

4 Mechanical Installation

• Inspect the MOVITRAC

®

LTE-B carefully prior to installation to ensure it is undamaged.

• Store the MOVITRAC

®

LTE-B in its box until required. Storage should be clean and dry and within the ambient temperature range –40 °C to 60 °C.

• Install the MOVITRAC

®

LTE-B on a flat, vertical, flame-resistant, vibration-free surface, within a suitable switch cabinet. This should be according to EN 60529 if specific Ingress Protection (IP) ratings are required.

• Do not place flammable material close to the drive.

• Prevent the entry of conductive or flammable foreign bodies.

• The maximum ambient operating temperature is 50 °C for IP20 and 40 °C for IP55 /

IP66 drives. The minimum ambient operating temperature is –10 °C.

Please observe the specific ratings employed in chapter "Environmental" (page 48).

• Relative humidity must be less than 95 % (non-condensing).

• MOVITRAC

®

LTE-B units can be installed side-by-side. This gives adequate ventilation space between them. If the MOVITRAC

®

LTE-B is to be installed above another drive or any other heat-producing device, the minimum vertical spacing is 150 mm.

The switch cabinet should either be force-ventilated or large enough to allow natural cooling (see chapter "IP20 housing: mounting and dimensions of switch cabinet" on page 16).

• A DIN rail mounting is supported in size 1 and 2 (IP20) drives only.

4.1

Dimensions

MOVITRAC

®

LTE-B is available in 3 housing versions:

• Standard IP20 housing for use in switch cabinets

• IP55 / NEMA 12 K

• IP66 / NEMA 4X

The IP55 / NEMA 12 K and IP66 / NEMA 4X housing is protected against moisture and dust. Therefore, the drives can be operated indoors under harsh conditions. Electronically, the drives are identical and the only differences are the dimensions of the housing and the weight.

4

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

Operating Instructions – MOVITRAC® LTE-B

11

4

Mechanical Installation

Dimensions

4.1.1

Dimensions of the IP20 housing

L1/L L2/N L3 d c a c

A b

1 2 3 4 5 6 7 8 9 10 11

U V W

B

62741AXX

Dimension

A (Height)

B (Width)

C (Depth)

Weight a b c d

[mm]

[in]

[mm]

[in]

[mm]

[in]

[mm]

[in]

[mm]

[in]

[mm]

[in]

[mm]

[in]

[kg]

[lb]

Power terminal torque settings

[Nm]

[lb.in]

Recommended screw size

2.43

50.0

1.97

162

6.38

16

0.63

5.0

Size 1

174

6.85

79

3.11

122.6

4.83

1.1

0.2

1.0

8.85

4

× M4 d

C

62742AXX

4.40

63.0

2.48

209.0

8.23

23

0.91

5.25

Size 2

220

8.66

104

4.10

150

5.90

2.0

0.21

1.0

8.85

4

× M4

10.0

80.0

3.15

247

9.72

25.5

1.02

7.25

Size 3

261

10.28

126

4.96

178

7.01

4.5

0.29

1.0

8.85

4

× M4

62743AXX

12

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

Operating Instructions – MOVITRAC® LTE-B

Mechanical Installation

Dimensions

4.1.2

Dimensions of the IP55 / NEMA 12 housing (LTE xxx –10 and –20)

b a b

A

X Y X

Z d

4

B c

C

60198AXX 60200AXX

Dimension

Height (A)

Width (B)

Depth (C)

Weight a b c d

Power terminal torque settings

Control terminal torque settings

Recommended screw size

[mm]

[in]

[mm]

[in]

[mm]

[in]

[mm]

[in]

[mm]

[in]

[mm]

[in]

[mm]

[in]

[kg]

[lb]

[Nm]

[lb.in]

[Nm]

[lb.in]

64482AXX

0.23

25

0.98

142

5.1

128

5

6

Size 1

200

7.9

140

5.5

165

6.5

2.3

5.6

9.9

1 1

8.85

0.5

4.43

2

× M4

4

8.85

0.5

4.43

× M4

Size 2

310

12.2

165

6.5

176

6.9

4.5

0.23

25

0.98

252

9.9

153

6

6

60497AXX

12.4

196

7.72

7

0.28

25

0.98

251

Size 3

310

12.2

211

8.31

240

9.45

7.4

9.88

1

8.85

0.5

4.43

4

× M4

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

Operating Instructions – MOVITRAC® LTE-B

13

4

Mechanical Installation

Dimensions

4.1.3

Dimensions of the IP66 / NEMA 4X housing (LTE xxx –40)

b a b d

B

C

68096AXX 68095AXX

Dimension

Height (A)

Width (B)

Depth (C)

Weight a b c d

Power terminal torque settings

Control terminal torque settings

Recommended screw size

[mm]

[in]

[mm]

[in]

[mm]

[in]

[mm]

[in]

[mm]

[in]

[mm]

[in]

[mm]

[in]

[kg]

[lb]

[Nm]

[lb.in]

[Nm]

[lb.in] c

64482AXX

6.2

148.5

5.85

6.25

0.25

25

0.98

189

Size 1

232

9.13

161

6.34

179

7.05

2.8

7.44

7.87

1 1

8.85

0.5

4.43

4

× M4

4

8.85

0.5

4.43

× M4

Size 2

257

10.12

188

7.4

186.5

7.34

4.6

10.1

176

6.93

6

0.24

28.5

1.12

200

X

Y

X

Z

60497AXX

16.3

197.5

7.78

6.5

0.26

33.4

1.31

251.5

Size 3

310

12.20

210.5

8.29

228.7

9

7.4

9.9

1

8.85

0.5

4.43

4

× M4

14

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

Operating Instructions – MOVITRAC® LTE-B

Mechanical Installation

Dimensions

Cable glands

A suitable cable gland system must be used to maintain the appropriate IP / NEMA rating. Cable entry holes must be drilled for this system. The recommended sizes are detailed in the table below.

Dimension

X

Y

Z

1)

1)

[mm]

[in]

PG

[mm]

[in]

PG

[mm]

[in]

PG

1) Glands Y and Z are flip out glands.

Size 1

22.3

0.88

PG13.5 / M20

22

0.87

PG13.5 / M20

17

0.67

PG9 / M16

Size 2

28.2

1.11

PG16 / M22

22

0.87

PG13.5 / M20

17

0.67

PG9 / M16

Size 3

28.2

1.11

PG16 / M22

22

0.87

PG13.5 / M20

Lock off for

IP55 / IP66 with switching option

On the switched drive the main power isolator switch can be locked in the "off" position using a 20 mm standard shackle padlock (not supplied).

Depress the centre of the switch to open the hole to insert the padlock.

4

65207AXX

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

Operating Instructions – MOVITRAC® LTE-B

15

4

Mechanical Installation

IP20 housing: mounting and dimensions of switch cabinet

4.2

IP20 housing: mounting and dimensions of switch cabinet

For applications that require a higher IP rating than the IP20 offered by the standard housing, the drive must be mounted in a switch cabinet. The following guidelines should be observed for these applications:

• The switch cabinet should be made from a thermally conductive material, unless forced ventilation is used.

• When a vented switch cabinet is used, there should be venting above and below the drive to ensure good air circulation. Air should be drawn in below the drive and expelled above the drive.

• If the external environment contains contamination particles (e.g. dust), a suitable particle filter should be fitted to the vents and forced ventilation implemented. The filter must be serviced and cleaned as and when necessary.

• Environments with a high moisture, salt or chemical content should use a suitably sealed (non-vented) switch cabinet.

4.2.1

Dimensions of non-vented metal switch cabinet

Drive power rating

Size 1

Size 1

Size 2

Size 2

0.37 kW, 0.75 kW 115 V

0.37 kW, 0.75 kW 230 V

1.5 kW 230 V

0.75 kW, 1.5 kW 400 V

1.1 kW 115 V

1.5 kW 230 V

1.5 kW, 2.2 kW 400 V

2.2 kW 230 V

4.0 kW 400 V

C

[mm]

300

A

[in]

11.81

400 15.75

[mm]

250

Sealed switch cabinet

B C

[in]

9.84

[mm]

200

[in]

7.87

300 11.81

250 9.84

[mm]

50

D

[in]

1.97

75 2.95

400

600

15.75

23.62

B

300

450

11.81

17.72

300

300

11.81

11.81

60

100

2.36

3.94

D

A

D

16

62736AXX

Figure 1: Switch cabinet

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

Operating Instructions – MOVITRAC® LTE-B

Mechanical Installation

IP20 housing: mounting and dimensions of switch cabinet

4.2.2

Dimensions of vented switch cabinet

Drive power rating

Size 1

Size 2

Size 3

All ratings

All ratings

All ratings

A

Vented switch cabinet

B C D

[mm] [in] [mm] [in] [mm] [in] [mm] [in]

400 15.75

300 11.81

150

600 23.62

400 15.75

250

800 31.5

5.91

9.84

75

100

600 23.62

300 11.81

150

2.95

3.94

5.91

4.2.3

Dimensions of force vented switch cabinet

Drive power rating

Size 1

Size 2

Size 3

All ratings

All ratings

All ratings

A

Force vented switch cabinet (with fan)

B C D

[mm] [in] [mm] [in] [mm] [in] [mm]

300 11.81

200 7.87

150 5.91

75

[in]

2.95

400 15.75

300 11.81

250

600 23.62

400 15.75

250

9.84

9.84

100

150

3.94

5.91

Air Flow

> 15 m

3

/h

> 45 m

3

/h

> 80 m

3

/h

4

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

Operating Instructions – MOVITRAC® LTE-B

17

5

Electrical Installation

Prior to installation

5 Electrical Installation

It is essential to comply with the safety instructions in chapter 2 during installation.

WARNING

Danger of electrical shock. High voltages are present in the terminals and within the drive for up to 10 minutes after the electrical supply has been disconnected.

Severe or fatal injuries.

• Disconnect and isolate the MOVITRAC

®

LTE-B from the electrical supply at least

10 minutes before commencing any work on it.

• MOVITRAC

®

LTE-B units should only be installed by qualified electricians and in accordance with local and national regulations and codes of practice.

• The MOVITRAC

®

LTE-B has an Ingress Protection rating of IP20. For higher IP ratings, use a suitable enclosure or the IP55 / NEMA 12 or IP66 / NEMA 4X version.

• Where the electrical supply to the drive is through a plug and socket connector, do not disconnect until 10 minutes have elapsed after turning off the supply.

• Ensure correct earthing connections. See diagram in chapter "Drive and motor connection" (page 22).

• The earth cable must be sufficient to carry the maximum supply fault current which normally will be limited by the fuses or motor circuit breaker.

WARNING

Risk of fatal injury if the hoist falls.

Severe or fatal injuries.

• MOVITRAC

®

LTE-B is not designed for use as a safety device in hoist applications.

Use monitoring systems or mechanical protection devices to ensure safety.

5.1

Prior to installation

• Ensure that the supply voltage, frequency and number of phases (single or 3-phase) correspond to the rating of the MOVITRAC

®

LTE-B as delivered.

• An isolator or similar should be installed between the power supply and the drive.

• Never connect the mains power supply to the MOVITRAC

®

LTE-B output terminals

U, V or W.

• The cables are only protected when slow blow HRC fuses or a motor circuit breaker

(MCB) are used. See chapter "Permitted voltage supply systems" (page 20) for further information.

• Do not install any type of automatic switchgear between the drive and the motor.

Wherever control cabling is close to power cabling, maintain a minimum separation of 100 mm and arrange crossings at 90 °.

• Ensure that screening or armoring of power cables is effected in accordance with the connections diagram in chapter "Drive and motor connection" (page 22).

• Ensure that all terminals are tightened to the appropriate torque.

18

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

Operating Instructions – MOVITRAC® LTE-B

Electrical Installation

Prior to installation

5.1.1

Opening the front cover

IP55 size 1 & 2

Insert a screwdriver into the opening as illustrated below to release the front cover.

5

64506AXX

IP55 size 3 & IP66 all sizes

Remove the 2 screws on the front of the unit to open the front cover.

[1] [1]

64507AXX

[1] Front cover screws

5.1.2

Helpcard

In the IP20 housing the helpcard is located in a separate slot above the display. In the

IP55 / IP66 housing the helpcard is attached to the inside of the front cover.

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

Operating Instructions – MOVITRAC® LTE-B

19

5

Electrical Installation

Installation

5.2

Installation

Connect the drive according to the following diagrams. Ensure that the motor terminal box connections are correct. There are 2 standards: Star and Delta. It is essential to ensure that the motor is connected in accordance with the voltage at which it will be operated. For more information, refer to the diagram in chapter "Motor terminal box connections" (page 21).

It is recommended that the power cabling should be 4-core PVC-insulated screened cable, laid in accordance with local industrial regulations and codes of practice. Conductor end sleeves are required to connect the power cables to the drive.

The ground terminal of each MOVITRAC

®

LTE-B should be individually connected

directly to the site earth (ground) busbar (through the filter if installed) as shown.

MOVITRAC

®

LTE-B ground connections should not loop from one drive to another.

They should also not loop to or from any other equipment. Ground loop impedance must conform to local industrial safety regulations. To meet UL regulations, UL approved ring crimp terminals should be used for all earth wiring connections.

5.2.1

Permitted voltage supply systems

Voltage supply systems with grounded star point

MOVITRAC

®

LTE-B is intended for operation on TN and TT systems with directly grounded star point

Voltage supply systems with non-grounded star point

Operation on mains systems with a non-grounded star point (for example IT power systems) is also permitted. SEW-EURODRIVE recommends using an earth-leakage monitor for this according to the PCM (Pulse Code Measuring) principle. Using such devices prevents the earth-leakage monitor from mis-tripping due to the ground incapacitance of the inverter.

External conductor grounded voltage supply systems

Operate the inverters on supply systems with a maximum phase-to-earth voltage of

AC 300 V only.

5.2.2

Mains contactors and input fuses

Only use input contactors of utilization category AC-3 (EN 60947-4-1).

Ensure a minimum time of 120 seconds between 2 mains activations.

Input fuses

Fusing types:

• Line protection types in operation classes gL. gG:

– Rated fusing voltage

≥ rated mains voltage

– Rated fusing current must be designed for 100 % of the rated inverter current depending on the inverter utilization.

• Line protection switch with characteristics B, C:

– Circuit breaker rated voltage

≥ rated mains voltage

– Rated line protection switch currents must be 10 % above the rated inverter current.

20

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

Operating Instructions – MOVITRAC® LTE-B

Electrical Installation

Installation

5.2.3

Motor terminal box connections

Motors are connected in either Star, Delta, Double Star or Star Nema motors. The motor rating plate will indicate the voltage rating for the method of connection, which must match the operating voltage of the MOVITRAC

®

LTE-B unit.

R13

W2 U2 V2

W2 U2

U1

V2

V1 W1

U1 V1 W1

U V W

Low voltage

U V W

High voltage

R76

T6

W2

T4

U2

T5

V2

T9 T7 T8

U3 V3 W3

T1 T2 T3

U1 V1 W1

T6 T4 T5

W2 U2 V2

T9 T7

W3 U3

T8

V3

T1 T2 T3

U1 V1 W1

L1 L2 L1

Low voltage

댴댴

L1 L2 L1

High voltage

DT / DV

T4 T5 T6

U2

U

V2 W2

T7 T8

T9

U3 V3 W3

T1 T2

T3

U1 V1 W1

V W

Low voltage

댴댴

T4 T5 T6

U2 V2 W2

T7 T8 T9

U3 V3

W3

T1 T2 T3

U1 V1

W1

U V W

High voltage

5

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

Operating Instructions – MOVITRAC® LTE-B

21

5

Electrical Installation

Installation

5.2.4

Drive and motor connection

WARNING Risk of electrical shock. Risk of exposure to high voltage may occur if the unit is wired incorrectly.

Severe or fatal injuries.

– It is essential to observe the connection sequence illustrated below.

L1

L2/N not 1-ph. 230 V

PE

F11/F12/F13

K10

(AC-3)

[1]

L1 L2 L3

Option ND.. input choke

L1' L2' L3'

V

AC

V

AC

V

AC

Option IP55 / IP66 with switch only

(MC LT xxx –20 / -40)

F14/F15

F14/F15

F14/F15

L1 L2 L3

[2]

K11

(AC-3)

[V+]

10

11

[4]

K12

(AC-3)

GND

[3]

K11

(AC-3)

+V

K11

(AC-3)

10

11

+V

10

11

GND

K12

(AC-3)

GND

Power section

U V W BR +

BW.. / BW..-T braking resistor connection*

*

BG

BGE

1

2

3

4

5

DT/DV/D:

Cut-off in the DC and AC circuits white red blue

BMK

13

14

15

1

2

3

4 red white blue

BG

BGE

1

2

3

4

5 white red blue

DT/DV/D:

Cut-off in the AC circuit

M

3-phase

BW

Figure 2: Wiring diagram for power section

[1]

[2]

[3]

[4]

[V+]

*

Mains supply contactor to drive

Mains supply to brake rectifier, switched simultaneously by K10

Control contactor / relay, energized via the internal relay contact [4] in the drive and supplies the brake rectifier

Potential free relay contact inside the drive

External power supply for energizing the control contactor / relay

Size 2 and 3 only

68077AEN

22

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

Operating Instructions – MOVITRAC® LTE-B

Electrical Installation

Installation

INFORMATION

• Connect the brake rectifier using a separate supply system lead.

Supply via the motor voltage is not permitted!

Always switch off the brake on the DC and AC sides with:

• All hoist applications

• Drives that require a rapid brake response time

5.2.5

Motor thermal protection (TF / TH)

Motors with an internal over-temperature sensor (TF, TH or similar) can be connected directly to the MOVITRAC

®

LTE-B. A trip will then be displayed on the drive.

The sensor is connected to terminal 1 (+24 V) and digital input 3. Parameter P-15 must be set to external trip input to receive over-temperature trips. The trip level should be set to 2.5 k

Ω.

5.2.6

Multi motor / group drive

The total of the motor currents must not exceed the rated current of the drive (see chapter "Technical Data" on page 48).

The motor group is limited to 5 drives and the motors in a group must not be more than

3 sizes apart.

The maximum cable length for the group is limited to the values for the individual drives

(see chapter "Technical Data" on page 48).

For groups with more than 3 drives SEW-EURODRIVE recommends using an output choke.

5

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

Operating Instructions – MOVITRAC® LTE-B

23

5

Electrical Installation

Signal terminals overview

5.3

Signal terminals overview

IP20 and IP55 IP55 and IP66 with switch option

1 2 3 4 5 6 7 8 9 10 11

1 2 3 4 5 6 7 8 9 10 11

68075AEN 68076AEN

The signal terminal block has the following signal connections:

Terminal no.

1

Signal

+24 V ref out

2

3

4

5

6

7

8

9

10

11

DI 1

DI 2

DI 3

+10 V

Connection

+24 V ref out

Digital input 1

Digital input 2

Digital input 3 / thermistor contact

+10 V ref out

AI / DI

0 V

AO / DO

0 V

Relay contact

Analog input (12 bit)

Digital input 4

0 V common

Analog output (10 bit)

Digital output

0 V common

Relay contact

Relay common Relay common

Description

Ref. to activate DI1 – DI3 (100 mA max.)

Positive logic

"Logic 1" inout voltage range: DC 8 – 30 V

"Logic 0" inout voltage range: DC 0 – 2 V

Compatible with PLC requirement when 0 V is connected to terminal 7 or 9.

10 V ref for analog input

(pot supply +, 10 mA max., 1 K

Ω min.)

0 – 10 V, 0 – 20 mA, 4 – 20 mA

"Logic 1" input voltage range: DC 8 – 30 V

0 V ref (pot supply –)

0 – 10 V, 20 mA analog

24 V, 20 mA digital

0 V ref

N.O. relay contact (AC 250 V / DC 30 V @ 5 A)

All digital inputs activated by input voltage in range +8 – 30 V, i.e. +24 V compatible.

NOTICE Possible damage to property.

Voltages greater than 30 V applied to the control terminals may result in damage to the controller.

– Only apply voltages up to 30 V to the control terminals.

INFORMATION

Terminals 7 and 9 can be used for GND reference if MOVITRAC

®

LTE-B is controlled via SPS / PLC.

24

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

Operating Instructions – MOVITRAC® LTE-B

5.4

RJ45 Communication Socket

[1]

[2]

[3]

[4]

[5]

[6]

[7]

[8]

Electrical Installation

RJ45 Communication Socket

5

62701AXX

[5]

[6]

[7]

[8]

[1]

[2]

[3]

[4]

No connection

No connection

+24 V

Internal bus

1)

Internal bus

1)

0 V

SBus+

2)

SBus–

2)

1) The bit format is fixed as: 1 start bit, 8 data bits, 1 stop bit, no parity

2) P-12 must be set to 3 or 4 for SBus communication

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

Operating Instructions – MOVITRAC® LTE-B

25

5

Electrical Installation

UL-compliant installation

5.5

UL-compliant installation

Note the following for UL-compliant installation:

• The drives can be operated within the following ambient temperatures:

• –10 °C to 50 °C for IP20

• –10 °C to 40 °C for IP55 / NEMA 12

• –10 °C to 40 °C for IP66 / NEMA 4X

• Only use copper connection cables which can withstand ambient temperatures of up to 75 °C.

• Permitted tightening torques for MOVITRAC

®

LTE-B power terminals are:

– Sizes 1, 2 & 3s = 1 Nm / 8.9 lb.in

MOVITRAC

®

LTE-B drive inverters are suitable for operation in voltage power systems with an earthed star point (TN and TT systems), which can supply a maximum supply current and a maximum supply voltage in accordance with the following tables. The fuses listed in the following tables are the maximum permitted fuses for each inverter.

Only use melting fuses.

Only use tested units with a limited output voltage (V max current (I

≤ 8 A) as an external DC 24 V source.

= DC 30 V) and limited output

UL certification does not apply to operation in voltage supply systems with a non-earthed star point (IT systems).

5.5.1

200 – 240 V Units

MOVITRAC

®

LTE...

0004

0008

0015

0022, 0040

Short circuit rating

AC 5000 A

AC 5000 A

AC 5000 A

AC 5000 A

Max. supply voltage

AC 240 V

AC 240 V

AC 240 V

AC 240 V

Fuses

AC 6 A / 250 V

AC 10A / 250 V

AC 20A / 250 V

AC 32 A / 250 V

5.5.2

380 – 480 V Units

MOVITRAC

®

LTE...

0008, 0015

0022, 0040

0055, 0075

0110

Short circuit rating

AC 5000 A

AC 5000 A

AC 5000 A

AC 5000 A

Max. supply voltage

AC 480 V

AC 480 V

AC 480 V

AC 480 V

Fuses

AC 15 A / 600 V

AC 20 A / 600 V

AC 60 A / 600 V

AC 110 A / 600 V

26

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

Operating Instructions – MOVITRAC® LTE-B

Electrical Installation

Electromagnetic compatibility

5.6

Electromagnetic compatibility

The MOVITRAC

®

LTE-B range of frequency inverters is designed for use in machines and drive systems. They comply with the EMC product standard EN 61800-3 for variable speed drives. For EMC compliant installation of the drive system, follow the guidelines set out in council directive 2004/108/EC (EMC).

5.6.1

EMC immunity

The MOVITRAC

®

LTE-B range meets the immunity levels defined in EN 61800-3 for both industrial and domestic (light industrial) environments.

5.6.2

EMC emissions

The MOVITRAC

®

LTE-B EMC emission levels comply with the limit classifications defined in EN 61800-3 and EN 55014, allowing it to be used in both industrial and domestic (light industrial) applications.

To obtain the best EMC performance the drives should be installed in accordance with the wiring guidlines in chapter "Installation" (page 20), thereby ensuring good earth connections for the drive system. Screened motor cable must be used to achieve compliance with the radiated emissions levels.

The following table defines the conditions for the use of MOVITRAC

®

LTE-B in drive applications:

Drive type / rating

230 V, 1-phase ratings

LTEB xxxx 2B1-x-xx

230 V / 400 V, 3-phase ratings

LTEB xxxx 2A3-x-xx

LTEB xxxx 5A3-x-xx

Cat C1 (class B)

Use external filter type

NF LT 5B3 0xx

Cat C2 (class A)

No additional filtering required

Use screened motor cable

Cat C3

No additional filtering required

Use screened motor cable

In order for drives without internal filter to achieve compliance, an external filter and screened motor cable must be used:

Cat C3 Drive type / rating

230 V, 1-phase ratings

LTEB xxxx 201-x-xx

230 V, 3-phase ratings

LTEB xxxx 203-x-xx

400 V, 3-phase ratings

LTEB xxxx 503-x-xx

Cat C1 (class B) Cat C2 (class A)

Use external filter type NF LT 2B1 0xx

Use screened motor cable

Use external filter type NF LT 5B3 0xx

Use screened motor cable

5

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

Operating Instructions – MOVITRAC® LTE-B

27

5

Electrical Installation

Electromagnetic compatibility

5.6.3

EMC filter varistor disconnection (IP20)

IP20 drives with an EMC filter fitted (e.g. MOVITRAC

®

LTE-B xxxx xAxx 00 and

MOVITRAC

®

LTE-B xxxx xBxx 00) have an inherently higher leakage current to ground

(Earth) than units without EMC filter. If more than 1 MOVITRAC

®

LTE-B is being operated on earth leakage detectors, an earth leakage detector trip may occur, particularly if screened motor cables are used. In this case, the EMC filter can be disconnected by removing the EMC screw on the side of the unit.

WARNING Risk of electrical shock. High voltages are present in the terminals and within the drive for up to 10 minutes after the electrical supply has been disconnected..

Severe or fatal injuries.

– Disconnect and isolate the MOVITRAC

®

LTE-B from the electrical supply at least

10 minutes before removing the EMC screw.

[1] [2]

64408AXX

[1]

[2]

EMC screw

VAR screw

The MOVITRAC

®

LTE-B units are fitted with components which suppress surges in the input supply voltage. These components protect the power input circuits against voltage spikes, which may originate from lightning strikes or other equipment on the same supply.

When carrying out a high potential (Flash) test on a drive system, the components which suppress voltage surges may cause the test to fail. To accommodate high voltage system tests remove both screws on the side of the unit, which disconnects these components. Once the high potential test has been completed, replace both screws and repeat the test. The test should then fail, indicating that the circuit is once again protected against voltage surges.

28

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

Operating Instructions – MOVITRAC® LTE-B

Startup

User interface

I

6 Startup

6.1

User interface

Keypad

Each MOVITRAC

®

LTE-B has an integrated keypad as standard, allowing drive operation and setup without any additional equipment.

The keypad consists of 5 keys with the following functions:

Start / Run

Stop / Reset

Navigate

Up

Down

• Enables running of motor

• Reverses direction of rotation if bi-directional keypad mode is enabled

• Stops motor

• Resets a tripped drive

• Displays real time information

• Press and hold to enter / exit parameter exit mode

• Stores parameter changes

• Increases speed in real time mode

• Increases parameter values in parameter edit mode

• Decreases speed in real time mode

• Decreases parameter values in parameter edit mode

The <start> / <stop> keys on the keypad are disabled when the parameters have their factory default settings. To enable the operation of the <start> / <stop> keys on the keypad, set parameter P-12 to 1 or 2 (see chapter "Standard parameters" on page 39).

The Navigate key alone is used to gain access to the parameter edit menu. Pressing and holding this key (> 1 sec) allows the user to toggle between the parameter edit menu and the real time display (where the drive operating status / running speed is displayed).

By pressing this key (< 1 sec) the user is able to toggle between the operating speed and operating current during drive operation.

[1]

Display

[2]

[3]

[1] Display

[2] Start

[3] Stop / Reset

[4]

[5]

[6]

62354AXX

[4] Navigate

[5] Up

[6] Down

INFORMATION

To reset to factory default settings, press the <up>, <down>, and <stop> keys simultaneously for > 2 s. The display then shows "P-deF". Press the <stop> key to acknowledge the change and to reset the drive.

A standard 6-digit, 7-segment display is integrated into each drive to allow drive operation to be monitored and parameters to be set.

6

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

Operating Instructions – MOVITRAC® LTE-B

29

6

I

Startup

Easy startup

6.2

Easy startup

1. Connect the motor to the drive, checking the connection for the motor voltage rating.

2. Enter motor data from motor nameplate:

P-08 = motor rated current

P-09 = motor rated frequency

3. Enable the drive by making a connection between terminal 1 and 2.

6.2.1

Terminal mode (default setting)

To operate in terminal mode (default setting):

• Ensure that P-12 is set to 0 (default setting).

• Connect a switch between terminals 1 and 2 on the user terminal block.

• Connect a potentiometer (1 – 10 k) between terminals 5, 6 and 7 with the wiper connected to pin 6.

• Close the switch to enable the drive.

• Adjust the speed with the potentiometer.

INFORMATION

The default settings (P-12 = 0 and P-15 = 0) for the optional switch in the IP55 / IP66 switch cabinet is FWD / REV. The motor speed can be set via the potentiometer.

6.2.2

Keypad mode

To operate in keypad mode:

• Change P-12 to 1 (uni-directional) or 2 (bi-directional).

• Place a wire link or switch between terminals 1 and 2 on the user terminal block to enable the drive.

• Now press the <start> key. The drive enables at 0.0 Hz.

• Press the <up> key to increase the speed.

• To stop the drive, press the <stop> key.

• If the <start> key is now pressed, the drive will return to its original speed.

(If bi-directional mode is enabled (P-12 = 2), pressing the <start> key reverses the direction.)

INFORMATION

The desired target speed can be preset by pressing the <stop> key whilst the drive is stopped. When the <start> key is subsequently pressed, the drive will then ramp to this speed.

30

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

Operating Instructions – MOVITRAC® LTE-B

Startup

Easy startup

I

6.2.3

Key parameters

• Adjust the maximum and minimum speed limit using P-01 and P-02.

• Adjust the acceleration and deceleration times using P-03 and P-04.

• Set up the motor nameplate data in parameters P-07 to P-10.

6.2.4

Startup for operation via Fieldbus

• Start the drive as instructed at the start of chapter "Easy startup" (page 30).

• Set parameter P-12 to 3 or 4 to control the drive via SBus

• 3 = control word and speed setpoint via SBus, ramp times as defined in P-03 /

P-04.

• 4 = control word, speed setpoint and ramp time via SBus.

• Set P-14 to 101 (default) to give access to the extended menu.

• Set the values in P-36 as follows:

• For a unique SBus address set to between 1 and 63

• For an SBus baud fitted to the gateway, set to 500 kBaud (default)

• Define the timeout behavior of the drive when communication is interrupted:

– 0: continue with last data (default)

– t_xxx: trip after a delay of xxx milliseconds, trip-reset required

– r_xxx: ramp to stop after a delay of xxx milliseconds, auto-restart with new data received

• Connect the drive via SBus to the DFx / UOH-Gateway according to chapter "RJ45 communication socket" (page 25).

• Set the dipswitch AS on the DFx / UOH-Gateway from OFF to ON to perform the autosetup for the fieldbus gateway. The LED "H1" on the gateway will flash repeatedly and then remain off. If the LED "H1" is lit then the gateway or one of the drives on the SBus isn’t connected or wasn’t started correctly.

• The configuration of the fieldbus communication between DFx / UOH-Gateway and bus master is described in the corresponding DFx manual.

6

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

Operating Instructions – MOVITRAC® LTE-B

31

6

I

Startup

Easy startup

A

DFP 21B

RUN

BUS

FAULT

0 1

20

21

22

23

24

25

26 nc

ADDRESS

B

D D F

C

[A] Bus connection

[B] Gateway (e.g. DFx / UOH-Gateway)

[C] Cable to wire

[D] Splitter

[E] Selection cable

[F] Terminating resistor

E max. 8

64502AXX

Monitoring of the data transferred

The monitoring of the data transferred via the gateway can be achieved via one of the following options:

• MOVITOOLS

®

MotionStudio via the gateway’s X24 engineering interface or optional via Ethernet

• The gateway’s web page (e.g. on DFE3x Ethernet gateways)

Description of the transferred process data (PD)

Process-data words (16-bit) from the gateway to the drive (PO):

Description

PO1 Control word

PO2 Setpoint speed

Bit

0

1

2

Settings

Controller inhibit 0: Run

1: Stop

Fast stop on 2nd deceleration ramp (P-24) 0: Fast stop

1: Run

Stop on process ramp P-03 / P-04 or PO3 0: Stop

1: Run

3 – 5

6

Reserved

Trip reset

0

Edge 0 to 1 = trip reset

7 – 15 Reserved 0

Scaling: 0x4000 = 100 % of maximum speed as set in P-01

Values greater than 0x4000 or less than 0xC000 are limited to

0x4000 / 0xC000

Scaling: acceleration and deceleration in ms for rated speed n = 50 Hz PO3 Ramp-Time

(if P-12 = 4)

No function

(if P-12 = 3)

Ramp times as set in P-03 and P-04

32

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

Operating Instructions – MOVITRAC® LTE-B

Startup

Easy startup

I

Process-data words (16-bit) from the drive to the gateway (PI):

Description

PI1 Status word

PI2 Actual speed

PI3 Actual current

Bit

0

1

Enable output stage

Inverter ready

Settings

0: Disabled

1: Enabled

0: Not ready

1: Ready

1 if P-12 = 3 or 4 2

3 – 4

5

PO data enabled

Reserved

Fault / Warning 0: No fault

1: Fault

6 – 7 Reserved

8 – 15 Drive status if Bit 5 = 0

0x01 = output stage disabled

0x02 = no enable / no run

0x04 = enable / run

0x05 = factory setting is active

8 – 15 Drive status if Bit 5 = 1

0x01 = drive output over current

0x04 = no enable / no run

0x06 = input phase imbalance trip / input phase loss

0x07 = DC bus over voltage

0x08 = Motor overload

0x09 = Parameter setting to factory default

0x0B = Over temperature trip

0x1A = External trip

0x2F = Communication link (SBus) loss trip

0x71 = Analog input error, current is less than 2.5 mA

0x75 = Under temperature trip

0xC6 = DC bus under voltage

0xC8 = General error / power stage error

Scaling: 0x4000 = 100 % of maximum speed as set in P-01

Scaling: 0x4000 = 100 % of maximum current as set in P-08

Byte

Low byte

High byte

6

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

Operating Instructions – MOVITRAC® LTE-B

33

6

I

Startup

Easy startup

Example:

The following information will be sent to the drive if:

• the binary inputs are configured and wired correctly to enable the drive

• parameter P-12 is set to 3 to operate the drive via SBus

Description

PO1 Control word

PO2 Setpoint speed

1

2

Value

0

3 – 5

6

0x4000

0x2000

0xC000

0x0000

Description

Fast stop on 2nd deceleration ramp (P-24)

Coast to stop

Ramp to stop on process ramp (P-04)

Reserved

Ramp up (P-03) and run with setpoint speed (PO2)

= 16384 = maximum speed e.g. 50 Hz (P-01) clockwise

= 8192 = 50 % of maximum speed e.g. 25 Hz clockwise

= –16384 = maximum speed e.g. 50 Hz (P-01) counterclockwise

= 0 = minimum speed as set in P-02

The process data read back from the drive should be in run condition:

Description

PI1 Status word

PI2 Actual speed

PI3 Actual current

Value

0x0407

Description

Status = run

Output stage enabled

Drive ready

PO-Data enabled

Should be equal to PO2 (setpoint speed)

Depends on speed and load

34

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

Operating Instructions – MOVITRAC® LTE-B

Operation

Drive status

I

7 Operation

To enable the operational status of the drive to be determined at any time, the following information is displayed:

Status

Drive OK

Mnemonic display

Static drive status

Drive running Operational drive status

Fault / trip Fault

7

7.1

Drive status

7.1.1

Static drive status

The following list indicates which mnemonics will be displayed as drive status information when the motor is at a standstill.

Mnemonic

StoP

P-deF

Stndby

Description

Drive power stage disabled. This message will be displayed when the drive is stopped and no faults are present. The drive is ready for normal operation.

Default parameters loaded. This message will be displayed when the user invokes the command to load the factory default parameters. The <reset> key has to be pressed before the drive can be operated again.

Drive is in standby. This message will be displayed 30 seconds after the drive is on 0 speed and the setpoint is 0 as well.

7.1.2

Operational drive status

The following list indicates which mnemonics will be displayed as drive status information when the motor is in operation.

Use the <navigate> key on the keypad to toggle between output frequency, output current and speed.

Mnemonic

H xxx

A xxx xxxx

Description

The drive output frequency is displayed in Hz. This message will be displayed when the drive is running.

The drive output current is displayed in Amp. This message will be displayed when the drive is running.

The drive output speed is displayed in rpm. This message will be displayed when the drive is running and the motor rated speed is entered in parameter P-10.

C xxx Speed scaling factor (P-40).

. . . . . . (flashing dots) Output current of the drive exceeds the current which is set in P-08.

MOVITRAC

®

LTE-B will monitor the level and duration of the overload. Depending on the overload level, the MOVITRAC

®

LTE-B will trip with "I.t-trP".

7.1.3

Trip reset

In case a trip occurs (see chapter "Fault Codes" on page 37), the trip can be reset by pressing the <Stop> key or by opening or closing digital input 1.

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

Operating Instructions – MOVITRAC® LTE-B

35

8

Service and fault codes

Troubleshooting

8 Service and fault codes

8.1

Troubleshooting

Symptom

Overload or over-current trip on unloaded motor during acceleration

Cause and Solution

Check Star / Delta terminal connection in motor. Rated operating voltage of drive and motor should match. The Delta connection always gives the lower voltage rating of a dual voltage motor.

Overload or over-current – motor does not spin Check for locked rotor. Check that the mechanical brake is released (if fitted).

Drive will not enable – display remains on "StoP" Check that the hardware enable signal is applied to digital input 1.

Ensure that the User +10 V output voltage (between terminals 5 and 7) is correct.

If not, check wiring to user terminal strip.

Check P-12 for terminal / keypad mode.

If keypad mode selected, press the <start> key. Check that supply voltage is within specification.

Drive will not power up in very cold ambient temperatures

Extended menus cannot be accessed

If the ambient temperature is less than –10 °C, the drive may not power up. Ensure that a local heating source keeps the ambient temperature above 0 °C in these conditions.

Ensure that P-14 is set to the extended access code. This is "101" unless the code in P-37 has been changed by the user.

Parameters can't be changed.

Display shows "L" in front of value

Parameters are locked.

Check that parameter P38=0 to have access to parameters.

Some parameters can't be changed while the drive is running. Check that the drive is not enabled. (Digital input 1).

8.2

Fault history

The parameter P-13 in the parameter mode holds a record of the 4 most recent trips and / or events. Each trip will be displayed in abbreviated text, with the most recent trip being displayed first (on entering into the value of P-13).

Whenever a new trip occurs, this is entered at the top of the list and the other trips move down. The oldest trip will then be removed from the trip log.

INFORMATION

If the most recent trip in the trip log is an "under-voltage" trip, further under-voltage trips will not be entered into the trip log. This is to ensure that the trip log does not fill up with under-voltage trips which occur naturally every time the MOVITRAC

®

LTE-B is turned off.

36

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

Operating Instructions – MOVITRAC® LTE-B

Service and fault codes

Fault codes

8

8.3

Fault codes

Trip message Explanation

"P-dEF" Factory default parameters have been loaded.

"O-I" Over-current on drive output to motor.

Excess load on the motor.

Over temperature on the drive heatsink.

Solution

Press <stop> key. Drive is ready to configure for particular application.

Trip during constant speed:

• Investigate overload or malfunction.

Trip on drive enable:

• Check for stalled or jammed motor.

• Check for star-delta motor wiring error.

• Check cable length is within drive specification.

"I.t-trP"

"OI-b"

"OL-br"

"PS-trP"

"O.Uolt"

"U.Uolt"

"O-t"

"U-t"

"th-Flt"

"E-triP"

"SC-trP"

Drive overload trip, occurring when the drive has been delivering > 100 % rated current (set in

P-08) for a period of time. The display flashes to indicate an overload condition.

Brake channel over current. Over current in the brake resistor circuit.

Braking resistor overload

Internal power stage fault

Over-voltage on DC bus

Under-voltage on DC bus

Heatsink over temperature

Under temperature

Faulty thermistor on heatsink

External trip (connected to digital input 3)

Communication loss trip

Trip during operation:

• Check for sudden overload or malfunction.

• Possible cable fault between drive and motor.

• The acceleration / deceleration time may be too short, requiring too much power. If P-03 or P-04 cannot be increased, a bigger drive is required.

• Increase acceleration ramp (P-03) or decrease motor load.

• Check cable length is within drive specification.

• Check the load mechanically to ensure it is free and no jams, blockages or other mechanical faults exist.

• Check the cabling to the braking resistor.

• Check the braking resistor value.

• Ensure minimum resistance values from the rating tables are observed.

• Increase deceleration time, reduce load inertia or add further braking resistors in parallel.

• Ensure minimum resistance values from the rating tables are observed.

Trip on drive enable:

• Check for wiring error or short circuit.

• Look for ph-ph or ph-Earth short circuit.

Trip during operation:

• Check for sudden overload or over-temperature.

• Additional space or cooling may be required.

• Check supply voltage is within limits.

• If trip occurs on deceleration, increase deceleration time in P-04.

• If necessary, connect a braking resistor.

• If a braking resistor is already fitted, ensure

P-39 is set to 1.

Occurs routinely when drive powered down. If it occurs whilst running, check supply voltage.

• Check drive cooling and enclosure dimensions.

• Additional space or cooling may be required.

• Occurs when ambient temperature is less than

–10 °C

• Raise temperature to over –10 °C in order to start the drive.

Contact SEW-EURODRIVE Service.

• E-trip on digital input 3. Normally closed contact has opened for some reason.

• Check motor thermistor (if connected).

• Check communication link between drive and external devices.

• Make sure each drive in the network has its unique address.

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

Operating Instructions – MOVITRAC® LTE-B

37

8

Service and fault codes

SEW electronics service

Trip message

"P-LOSS"

"SPIn-F"

"dAtA-F"

"EE-F"

"4-20 F"

Explanation

Input phase loss trip

Spin start failed

Internal memory fault

EEPROM fault. Parameters not saved, defaults reloaded.

Solution

Drive intended for use with a 3-phase supply has lost one input phase.

Spin start function failed to detect the motor speed.

• Parameters not saved, defaults reloaded.

• Try again. If problem reoccurs, contact SEW-

EURODRIVE Service.

EEPROM fault. Parameters not saved, defaults reloaded. If fault reoccurs contact SEW-EURO-

DRIVE Service.

Analog input current out of range • Check input current is within range defined in

P-16.

• Check cable connection.

Internal drive fault Contact SEW-EURODRIVE Service.

"SC-FLt"

"FAULtY"

"Prog_ _"

8.4

SEW electronics service

Send in for repair

Please contact the SEW-EURODRIVE electronics service if a fault cannot be

rectified.

Please provide the following information when sending the unit in for repair:

• Serial number (

→ nameplate)

• Unit designation

• Brief description of the application (application, control via terminals or serial)

• Connected components (motor, etc.)

• Nature of the error

• Accompanying circumstances

• Your own presumption of what has happened

• Any unusual events preceding the problem, etc.

38

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

Operating Instructions – MOVITRAC® LTE-B

Parameters

Standard parameters

P6..

P60.

P600

9 Parameters

9.1

Standard parameters

Parameter Description

P-01 Max. speed limit

(Hz or rpm)

P-02

P-03

P-04

P-05

P-06

P-07

P-08

P-09

P-10

P-11

Min. speed limit

(Hz or rpm)

Acceleration ramp time (s)

Deceleration ramp time (s)

Voltage boost

Range

P-02 to 5

×

P-09

(max. 500 Hz)

0 – P-01 (max. 500 Hz)

0.0 – 600 s

0.0 – 600 s

Default

50.0 Hz

1)

0.0 Hz

5.0 s

Explanation

Maximum speed limit in Hz or rpm (see P-10)

Minimum speed limit in Hz or rpm (see P-10)

Stop mode select

Energy optimizer 0 Disabled

Motor rated voltage

Motor rated current

Motor rated frequency

Motor rated speed

0

1

2

Ramp to stop

Coast to stop

Ramp to stop (fast stop)

1 Enabled

0, 20 – 250 V

0, 20 – 500 V

5.0 s

0

0

230 V

400 V

2)

Acceleration ramp time from 0 to 50 Hz (fixed) in seconds.

Deceleration ramp time from 50 Hz (fixed) to standstill in seconds. If set to 0, then the fastest possible ramp time without trip is activated.

If the supply is lost and P-05 = 0, then the drive will try to continue running by reducing the speed of the load using the load as a generator.

If P-05 = 2, then the drive will ramp to stop using the P-24 deceleration ramp when mains supply is lost. Also activates constant power braking mode for normal braking.

When enabled, automatically reduces applied motor voltage on light load.

Rated (nameplate) voltage of the motor in volts.

The value is limited to 250 V for low voltage drives. Setting to 0 disables voltage compensation.

Rated (nameplate) current of the motor in amps. 25 – 100 % of drive current rating DR-Motor rating

25 – 500 Hz 50 Hz

1)

Rated (nameplate) frequency of the motor.

0 – 30000 rpm

0 – 20 % of max output voltage.

Resolution 0.1 %

• Size 1 = 20 %

• Size 2 = 15 %

• Size 3 = 10 %

0

Motor power dependent

When not set to 0 all speed-related parameters are displayed in rpm. Activates slip compensation when motor nameplate speed is set.

Applies an adjustable boost to the MOVITRAC

® voltage output at low speed to assist with starting

’sticky’ loads. For continuous applications at low speed use a force ventilated motor.

U

P-07

9

P-07

2

20 %

10 %

0 %

P-09 f

P-09

2

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

Operating Instructions – MOVITRAC® LTE-B

39

9

P6..

P60.

P600

Parameters

Extended parameters

Parameter Description

P-12 Terminal / keypad / SBus control

P-13 Trip log

Range

0 Terminal control

1 Keypad control

(fwd only)

2 Keypad control

(fwd / rev to toggle between fwd and rev using <start> key)

3 SBus network control with internal acceleration / deceleration ramps

4 SBus network control with accelaration / deceleration ramp adjustment via bus

Last 4 trips stored

Default

0

(Terminal control)

No fault

P-14 Extended menu access code

0 – 9999 0

Explanation

See chapter "Easy startup" on page 30.

Most recent 4 trips stored in order of occurrence, i.e. on entry, displays shows most recent first.

Press the up and down buttons to view stored trips. (See chapter "Fault codes" on page 37.)

Set to "101" (default) for extended menu access.

Change code in P-37 to prevent unauthorized access to the extended parameter set.

1) 60 Hz (American version only)

2) 460 V (American version only)

40

9.2

Extended parameters

Parameter Description

P-15 Digital input function set

P-16

P-17

Analog input

V / mA

Range

0 – 12

0 – 10 V, b 0 – 10 V, 0 – 20 mA t 4 – 20 mA, r 4 – 20 mA t 20 – 4 mA, r 20 – 4 mA

Output switching frequency

2 – 16 kHz

Default

0

0 – 10 V

4 / 8 kHz

1

(Drive healthy)

Explanation

Defines the function of the digital inputs. (See chapter "P-15 Digital inputs function select" on page 44.)

Configures the analog input format.

0 – 10 V: unipolar mode (voltage input) b 0 – 10 V: bipolar mode (voltage input)

• Can be used for bipolar input signals

• 50 % offset can be applied to P-39

• 200 % scaling in P-35 gives

±

P-01

0 – 20 mA: unipolar mode (current input)

4 – 20 mA: unipolar mode (current input)

20 – 4 mA: reverse unipolar current mode

"t" indicates the drive will trip if the signal is removed whilst the drive is enabled.

"r" indicates the drive will ramp to preset speed 1 if the signal is removed whilst the drive is enabled.

Sets maximum output switching frequency

Higher switching frequency means less noise development on the motor but higher losses in the output stage.

User relay settings. Digital output limit defined by value in P-19.

Disabled: contacts open

Enabled: contacts closed

P-18

P-19

User relay output select

User relay output limit

1 Drive healthy (not tripped)

2 Motor at target speed

3 Drive tripped

4 Motor speed

≥ limit

5 Motor current

≥ limit

6 Motor speed < limit

7 Motor current < limit

0 – 200 % 100.0 % Sets the limit for P-18 and P-25.

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

Operating Instructions – MOVITRAC® LTE-B

Parameter Description

P-20

P-21

P-22

P-23

P-24

P-25

P-26

Preset speed 1

Preset speed 2

Preset speed 3

Preset speed 4

Deceleration ramp time 2

Analog output function select

Skip frequency hysteris band

Range

P-01 (min.) to P-01 (max.)

P-01 (min.) to P-01 (max.)

P-01 (min.) to P-01 (max.)

P-01 (min.) to P-01 (max.)

0 – 25 s

Default

0.0 Hz

0.0 Hz

0.0 Hz

0.0 Hz

0

0 Drive enabled (digital)

1 Drive healthy (digital)

2 Motor at target speed (digital)

3 Drive tripped (digital)

4 Motor speed

≥ limit (digital)

5 Motor current

≥ limit (digital)

6 Motor speed < limit (digital)

7 Motor current < limit (digital)

8 Motor speed (analog)

9 Motor current (analog)

0 – P-01

8

0.0 Hz

P-27

P-28

Skip frequency

V/F characteristic adjustment voltage

P-02 (min.) – P-01 (max.)

0 – P-07

0 Hz

0 V

Parameters

Extended parameters

P6..

P60.

P600

Explanation

Defines preset / jog speed 1

Defines preset / jog speed 2

Defines preset / jog speed 3

Defines preset / jog speed 4

Selected via digital inputs or on mains loss as set in P-05.

Digital output mode

• Options 0 – 7: select a digital voltage output signal

– Disabled: 0 V

– Enabled: +24 V, (20 mA limit)

• Options 4 – 7: digital output is enabled using the level set in P-19.

Analog output mode

• Option 8: Motor speed signal range

0 – 10 V = 0 – 100 % of P-01

• Option 9: Motor current signal range

0 – 10 V = 0 – 200 % of P-08

Speed reference held at upper or lower skip frequency limit until input reaches opposite skip frequency limit.

Speed ramps through the skip frequency band at a rate set in P-03 and P-04.

Skip frequency centre point.

Adjusts the applied motor voltage to this value at the frequency set in P-29.

U

9

P07

P28

P-29

P-30

P-31

P-32

V/F characteristic adjustment frequency

Terminal mode restart function

Keypad mode restart function

DC injection enable / duration

0 – P-09

Edge-r, Auto-0 – Auto-5

0 Minimum speed

1 Previous speed

2 Minimum speed (Auto-run)

3 Previous speed (Auto-run)

0 – 25 s

0 Hz

Auto-0

1

0.0 s

P11

P29 P09 f

Sets the frequency at which the V/F adjustment voltage set in P-28 is applied.

Number of automatic resets.

When set to 0 or 1, the <start> key also has to be used.

When set to 2 or 3, the drive enables when the drive hardware enable signal is present. The speed can then be varied on the keypad.

When > 0, DC injection braking is activated when speed reaches zero with stop signal applied. Only applied on disable (Stop), not on enable. Uses the level set in P-11.

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

Operating Instructions – MOVITRAC® LTE-B

41

9

P6..

P60.

P600

Parameters

Extended parameters

Parameter

P-33

P-34

P-35

Description

Spin start

1)

Range

0 Disabled

1 Enabled

Default

0

Brake chopper enable

Analog input scaling factor

0 Disabled

1 Enabled with s/w protection for

BWLT 100 002 only

2 Enabled for other BWxxxx with external protection

0 – 500 %

0

100.0 %

Explanation

When enabled, the drive starts from the detected rotor speed. Short stay delay is possible if the rotor is stationary.

For size 1 drives, P-33 = 1 enables DC injection braking on enable.

The duration and levels are set by P-32 and

P-11 respectively.

All braking resistors must be protected by external protection devices.

Analog input scaling, resolution 0.1 %.

100%

50%

P-35 = 200%

P-35 = 100%

P -

35 = 50%

P-36

P-37

P-38

Comms address

SBus enable / baudrate select

Trip enable / delay

Adr: 0 disable, 1 – 63

125 – 1000 kBaud

0 (no trip), t 30, 100, 1000, 3000 (ms) r 30, 100, 1000, 3000 (ms)

Access code definition

Parameter access lock

0 – 9999

0 All parameters can be changed and are auto-saved on power down.

1 Read-only. No changes allowed.

0%

0V 5V

Analog input

10V

1

500 kBaud

100 ms

101

0

(Write access and auto-save enabled)

Adr: Unique drive address for comms networks.

Setting a baudrate enables SBus at that baudrate. The time before a trip in the event of a communication loss can be set in milliseconds. Setting "0" disables the comms trip.

"t" indicates the drive will trip (SC-trP) if time is exceeded.

"r" indicates the drive will ramp to stop and trip if time is exceeded

Defines Extended Parameter Set access code

P-14.

Controls user access to parameters.

If P-38 = 0, all parameters can be changed.

These changes will be stored automatically.

If P-38 = 1, parameters are locked and cannot be changed.

42

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

Operating Instructions – MOVITRAC® LTE-B

Parameter Description

P-39 Analog input offset

Range

–500 to 500 %

P-40 Display speed scaling factor

0 – 6

1) Sizes 2 and 3 only. Size 1 works with DC voltage.

Default

0.0 %

Parameters

Extended parameters

P6..

P60.

P600

Explanation

Analog input offset, resolution 0.1 %.

100%

P-39 = -50%

P-39 = 0%

50%

0%

0V 5V

P-39 = 50%

10V

Analog input

P-39 = 100%

-50%

9

0.000

-100%

Scales speed by this factor.

If P-10 = 0, speed in Hz scaled by this factor.

If P-10 > 0, speed in rpm scaled.

Displayed as real-time variable on the drive display.

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

Operating Instructions – MOVITRAC® LTE-B

43

9

P6..

P60.

P600

Parameters

P-15 Digital inputs function select

9.3

P-15 Digital inputs function select

The functionality of the digital inputs within the MOVITRAC

®

LTE-B is user programmable, allowing the user to select the functions required for the application.

The following tables define the functions of the digital inputs depending on the value of parameter P-12 (Terminal / keypad / SBus control) and P-15 (Digital input function

select).

9.3.1

Terminal mode

P-15 Digital input 1

0 Open : Stop (Disable)

Closed : Run (Enable)

1

2

Open : Stop (Disable)

Closed : Run (Enable)

Open : Stop (Disable)

Closed : Run (Enable)

3

4

5

6

7

8

9

10

If P-12 = 0 (terminal mode) then use the following table.

Open : Stop (Disable)

Closed : Run (Enable)

Open : Stop (Disable)

Closed : Run (Enable)

Open : Forward stop

Closed : Forward run

Open : Stop (Disable)

Closed : Run (Enable)

Open : Forward stop

Closed : Forward run

Open : Stop (Disable)

Closed : Run (Enable)

Open : Forward stop

Closed : Forward run

Normally Open (N.O.)

Momentarily close to run

Digital input 2

Open : Forward run

Closed : Reverse run

Open : Analog speed ref

Closed : Preset speed 1 / 2

Open

Closed

Open

Closed

Open : Analog speed ref

Closed : Preset speed 1

Open : Forward run

Closed : Reverse run

Open : Reverse stop

Closed : Reverse run

Open : Forward run

Closed : Reverse run

Open : Reverse stop

Closed : Reverse run

Open : Forward run

Closed : Reverse run

Open : Reverse stop

Closed : Reverse run

Normally Closed (N.C.)

Momentarily open to stop

Digital input 3

Open : Analog speed ref

Closed : Preset speed 1

Open : Preset speed 1

Closed : Preset speed 2

Open

Open

Closed

Closed

External trip input:

Open : Trip

Closed : Run

Open : Analog speed ref

Closed : Preset speed 1

Open : Analog speed ref

Closed : Preset speed 1

External trip input:

Open : Trip

Closed : Run

External trip input:

Open : Trip

Closed : Run

Open

Closed

Open

Closed

Open

Closed

Open

Closed

Open : Analog speed ref

Closed : Preset speed 1

Analog input

Analog input reference

Analog input reference

Comments

Open : Preset speed

1 – 4

Closed : Max. speed

(P-01)

Preset speed 1

Preset speed 2

Preset speed 3

Preset speed 4

Analog input reference Connect external

PTC thermistor or similar to digital input 3.

Analog input reference –

Analog input reference Closing digital inputs 1 and 2 together carries out a fast stop.

Analog input reference Connect external

PTC thermistor or similar to digital input 3.

Analog input reference Closing digital inputs 1 and 2 together stops the drive with deceleration ramp 2 (P-24).

Open

Open

Preset speed 1

Preset speed 2

Closed

Closed

Open

Open

Preset speed 3

Preset speed 4

Preset speed 1

Preset speed 2

Closed

Closed

Analog input reference –

Preset speed 3

Preset speed 4

44

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

Operating Instructions – MOVITRAC® LTE-B

Parameters

P-15 Digital inputs function select

P6..

P60.

P600

P-15

11

12

Digital input 1

Normally Open (N.O.)

Momentarily close to run forward

Open : Stop (Disable)

Closed : Run (Enable)

Digital input 2

Normally Closed (N.C.)

Momentarily open to stop

Closed to run

Open to activate deceleration ramp 2

Digital input 3

Normally Open (N.O.)

Momentarily close to run reverse

Open : Analog speed ref

Closed : Preset speed 1

Analog input Comments

Analog input reference Closing digital inputs 1 and 3 together stops the drive with deceleration ramp 2 (P-24).

Analog input reference –

9.3.2

Keypad mode

If parameter P-12 = 1 or 2 (keypad mode) then use the following table.

P-15 Digital input 1

0, 1,

5,

8 –

12

Open : Stop (Disable)

Closed : Run (Enable)

2

3

Open : Stop (Disable)

Closed : Run (Enable)

Open : Stop (Disable)

Closed : Run (Enable)

4

6

7

Open : Stop (Disable)

Closed : Run (Enable)

Open : Stop (Disable)

Closed : Run (Enable)

Open : Forward stop

Closed : Forward run

Digital input 2

Closed : Remote UP pushbutton

Digital input 3

Closed : Remote

DOWN pushbutton

Analog input

Open : Forward

+24 V: Reverse

Comments

Closed : Remote UP pushbutton

Closed : Remote UP pushbutton

Closed : Remote

DOWN pushbutton

External trip input:

Open : Trip

Closed : Run

Closed : Remote UP Open : Keypad speed ref

Closed : Analog input

Open : Forward run

Closed : Reverse run

External trip input:

Open : Trip

Closed : Run

Open : Reverse stop

Closed : Reverse run

External trip input:

Open : Trip

Closed : Run

Open : Keypad speed ref

+24 V: Preset speed 1

Closed : Remote DOWN pushbutton

Analog input ref

Open : Keypad speed ref

+24 V: Preset speed 1

Open : Keypad speed ref

+24 V: Preset speed 1

Connect external PTC thermistor or similar to digital input 3.

Connect external PTC thermistor or similar to digital input 3.

Closing digital inputs 1 and 2 together stops the drive with deceleration ramp 2 (P-24).

9.3.3

SBus control mode

If parameter P-12 = 3 or 4 (SBus control mode) then use the following table.

P-15

0, 1, 2,

4, 5,

8 – 12

3

6

7

Digital input 1

Open : Stop (Disable)

Closed : Run (Enable)

Digital input 2

No effect

Open : Stop (Disable)

Closed : Run (Enable)

Open : Master speed ref

Closed : Preset speed 1

Open : Stop (Disable)

Closed : Run (Enable)

Open : Master speed ref

Closed : Analog input

External trip input:

Open : Trip

Closed : Run

External trip input:

Open : Trip

Closed : Run

Open : Stop (Disable)

Closed : Run (Enable)

Open : Master speed ref

Closed : Keypad speed ref

Digital input 3

No effect

External trip input:

Open : Trip

Closed : Run

Analog input

No effect

Comments

Digital input 1 must be closed for the drive to run.

Start and stop commands are given via the gateway.

No effect

Analog input reference When digital input 2 is open, start and stop are controlled via gateway.

When digital input 2 is closed, drive auto runs if digital input 1 is closed.

No effect

Connect external PTC thermistor or similar to digital input 3.

When digital input 2 is open, start and stop are controlled via gateway.

When digital input 2 is closed, drive auto runs if digital input 1 is closed, depending on P-31.

9

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

Operating Instructions – MOVITRAC® LTE-B

45

9

P6..

P60.

P600

Parameters

Real-time monitoring parameters (read-only)

9.4

Real-time monitoring parameters (read-only)

Parameter group zero provides access to internal drive parameters for monitoring purposes. These parameters cannot be adjusted.

Parameter Description

P00 (1) Analog input 1 value

P00 (2)

P00 (3)

Reserved

Speed reference input

P00 (4)

P00 (5)

P00 (6)

P00 (7)

Digital input status

Reserved

Reserved

Applied motor voltage

P00 (8)

P00 (9)

P00 (10)

P00 (11)

P00 (12)

P00 (13)

P00 (14)

P00 (15)

P00 (16)

P00 (17)

P00 (18)

P00 (19)

P00 (20)

DC bus voltage log

Heatsink temperature

Hours run meter

Run time since last trip (1)

Display range

0 – 100 %

P1-01 to P1-01

Binary value

0

0

AC 0 – 600 V

DC 0 – 1000 V

–20 °C to 100 °C

0 – 99999 hours

99999 hours

Explanation

100 % = max. input voltage

Reserved

Speed displayed in Hz if P-10 = 0, otherwise in rpm.

Digital drive input status

Reserved

Reserved

Value of RMS voltage applied to motor

Internal DC bus voltage

Temperature of heatsink in °C

Not affected by resetting factory default parameters

Run-time clock stopped by drive disable (or trip), reset on next enable only if a trip occurred. Reset also on next enable after a power down.

Run time since last trip (2)

Run time since last disable

99999 hours

99999 hours

Run-time clock stopped by drive disable (or trip), reset on next enable only if a trip occurred (undervoltage not considered a trip).

Not reset by power down / power up cycling unless a trip occurred prior to power down. Also on next enable after a power down.

Run-time clock stopped on drive disable, value reset on next enable.

Drive effective switching frequency

Drive identifier

2 – 16 kHz Actual drive effective output switching frequency. This value may be lower than the selected frequency in P-17 if the drive is too hot. The drive will automatically reduce the switching frequency to prevent an over-temperature trip and maintain operation.

8 most recent values prior to trip DC bus voltage log 0 – 1000 V

Thermistor temperature log –20 °C to 120 °C

Motor current

8 most recent values prior to trip

0 to 2

× rated current

8 most recent values prior to trip

Software ID, IO and motor control e.g. "1.00", "47AE" Version number and checksum.

"1" on LH side indicates I/O processor

"2" on LH side indicates motor control

Drive serial number 000000 – 999999

00-000 – 99-999

Drive rating / Software version

Unique drive serial number e.g. 540102 / 32 / 005

Drive rating, drive type and software version codes e.g. 0.37, 1 230, 3 P-out

46

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

Operating Instructions – MOVITRAC® LTE-B

Parameters

Real-time monitoring parameters (read-only)

P6..

P60.

P600

Parameter group zero access

When P-14 = P-37 (101 in default setting) all parameters are visible.

When the user scrolls to P-00, pressing the <navigate> key will display "P00-z", where z represents the secondary number within P-00 (i.e. 1 – 14). The user can then scroll to the required P-00 parameter.

Pressing the <navigate> key once more will then display the value of that particular group zero parameter.

For those parameters which have multiple values (e.g. software ID), pressing the up and down buttons will display the different values within that parameter.

Pressing the <navigate> key quickly returns to the next level up. If the <navigate> key is pressed again quickly (without pressing the up or down buttons), the display changes to the next level up (main parameter level, i.e. P-00).

If the up or down buttons are pressed whilst on the lower level (e.g. P00-05) to change the P-00 index, pressing the <navigate> key quickly displays that parameter value.

9

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

Operating Instructions – MOVITRAC® LTE-B

47

10

kVA

f i

P Hz n

Technical Data

Conformance

10 Technical Data

10.1

Conformance

All products conform to the following international standards:

• CE marked for low voltage directive

• IEC 664-1 Insulation coordination within low voltage systems

• UL 508C Power conversion equipment

• EN 61800-3 Adjustable speed electrical power drive systems – Part 3

• EN 61000-6 / -2, -3, -4 Generic immunity / Emission standards (EMC)

• Enclosure protection level according to NEMA 250, EN 60529

• Flammability rating according to UL 94

• C-Tick

• cUL

10.2

Environmental

Operational ambient temperature range –10 °C to 50 °C at default PWM frequency (IP20)

–10 °C to 40 °C at default PWM frequency (IP55, NEMA 12k /

IP66, NEMA 4X)

Maximum ambient temperature derating 4 % / °C up to 55 °C for IP20 drives

4 % / °C up to 45 °C for IP55 / IP66 drives

Storage ambient temperature range

Maximum altitude for rated operation

Derating above 1000 m

Maximum relative humidity

Protection rating cabinet drive

Protection rating high enclosure drive

–40 °C to 60 °C

1000 m

1 % / 100 m to max. 2000 m

95 % (non-condensing)

IP20

IP55, NEMA 12 k / IP66, NEMA 4X

48

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

Operating Instructions – MOVITRAC® LTE-B

Technical Data

Output power and current ratings

kVA

f i

P Hz n

10.3

Output power and current ratings

10.3.1 1-phase system AC 115 V for 3-phase AC 230 V motors (voltage doubler)

MOVITRAC

®

LTE-B – EMC filter class 0

IP20 Standard Type

Part number

IP55 / NEMA 12 housing

IP55 / NEMA 12 housing with switch

Type

Part number

Type

Part number

IP66 / NEMA 4X housing with switch

Type

Part number

INPUT

Supply voltage

Supply frequency

Supply fuse rating

Nominal input current

OUTPUT

Recommended motor power

MC LTE B...

MC LTE B...

MC LTE B...

MC LTE B...

V mains f mains

[A]

[A]

Output voltage

Output current

Motor cable size Cu 75C

[kW]

[hp]

V motor

[A]

[mm

2

]

[AWG]

[m]

Max. motor cable length Shielded

Unshielded

GENERAL

Size

Heat loss at nominal output power

Min. braking resistor value

1) Recommended value for UL compliance

[

[W]

Ω]

0004-101-1-00

08296839

0004-101-1-10

08297754

0004-101-1-20

08297290

0004-101-1-40

18252540

10

6.7

0008-101-1-00

08296847

0008-101-1-10

08297762

0008-101-1-20

08297304

0008-101-1-40

18252559

1

× AC 115 V ± 10 %

50 / 60 Hz ± 5 %

16 (15)

1)

12.5

0011-101-4-00

08296855

0011-101-4-10

08297770

0011-101-4-20

08297312

0011-101-4-40

18252567

20

16.8

0.37

0.5

2.3

0.75

1.0

3

× 20 – 250 V (voltage doubler)

4.3

1.5

16

25

40

1.1

1.5

5.8

100

150

11

1

22

2

33

47

10

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

Operating Instructions – MOVITRAC® LTE-B

49

10

kVA

f i

P Hz n

Technical Data

Output power and current ratings

10.3.2 1-phase system AC 230 V for 3-phase AC 230 V motors

Without Filter

MOVITRAC

®

LTE-B – EMC filter class 0

IP20

Standard

1)

Type MC LTE

B...

0004-201-1-

00

IP55 /

NEMA 12 housing

IP55 /

1)

NEMA 12 with switch

1)

Part number

Type

Part number

Type

Part number

MC LTE

B...

MC LTE

B...

08296863

0004-201-1-

10

08297789

0004-201-1-

20

08297320

INPUT

Supply voltage

Supply frequency

Supply fuse rating

Nominal input current

OUTPUT

Recommended motor power f

V mains mains

[A]

[A]

10

6.7

0.37

0.5

Output voltage

Output current

Motor cable size Cu 75C

[kW]

[hp]

V motor

[A]

[mm

2

]

[AWG]

2.3

Max. motor cable length

Shielded

Unshielded

[m]

GENERAL

Size

Heat loss at nominal output power

[W]

Min. braking resistor value [

Ω]

11

1) Unit for America, Asia & Africa

2) Recommended value for UL compliance

0008-201-1-

00

08296871

0008-201-1-

10

08297797

0008-201-1-

20

08297339

16

12.5

0.75

1

4.3

25

40

1

22

0015-201-1-

00

08296898

0015-201-1-

10

08297800

0015-201-1-

20

08297347

0015-201-4-

00

08296901

0015-201-4-

10

08297819

0015-201-4-

20

08297355

1

× AC 200 – 240 V ± 10 %

50 / 60 Hz

± 5 %

20

14.8

14.8

1.5

1.5

2

3

× 20 – 250 V

2

7 7

1.5

16

45 45

2

0022-201-4-

00

08296928

0022-201-4-

10

08297827

0022-201-4-

20

08297363

32 (35)

2)

22.2

2.2

3

10.5

100

150

66

47

0040-201-4-

00

18250394

0040-201-4-

10

18250408

0040-201-4-

20

18250416

40

35

4

5

15

2.5

18

3

120

50

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

Operating Instructions – MOVITRAC® LTE-B

Technical Data

Output power and current ratings

kVA

f i

P Hz n

With Filter

MOVITRAC

®

LTE-B – EMC filter class B

IP20

Standard with filter

1)

Type MC LTE

B...

0004-2B1-1-

00

08297061

IP55 /

NEMA 12 housing with filter

1)

Part number

Type MC LTE

B...

Part number

0004-2B1-1-

10

08297975

Type MC LTE

B...

0004-2B1-1-

20

IP55 /

NEMA 12 with switch and filter

1)

IP66 /

NEMA 4X housing with switch and filter

1)

Part number

Type

Part number

MC LTE

B...

08297525

0004-2B1-1-

40

18251013

INPUT

Supply voltage

Supply frequency

Supply fuse rating

Nominal input current

OUTPUT

Recommended motor power f

V mains mains

[A]

[A]

10

6.7

0.37

0.5

Output voltage

Output current

Motor cable size Cu 75C

[kW]

[hp]

V motor

[A]

[mm

2

]

[AWG]

2.3

Max. motor cable length

Shielded

Unshielded

[m]

GENERAL

Size

Heat loss at nominal output power

[W]

Min. braking resistor value [

Ω]

11

1) Unit for Europe, Australia & New Zealand

2) Recommended value for UL compliance

0008-2B1-1-

00

08297088

0008-2B1-1-

10

08297983

0008-2B1-1-

20

08297533

0008-2B1-1-

40

18251021

16

12.5

0.75

1

4.3

25

40

1

22

0015-2B1-1-

00

08297096

0015-2B1-1-

10

08297991

0015-2B1-1-

20

08297541

0015-2B1-1-

40

18251048

0015-2B1-4-

00

08297118

0015-2B1-4-

10

08298009

0015-2B1-4-

20

08297568

0015-2B1-4-

40

1.5

1.5

2

3

× 20 – 250 V

2

7 7

1.5

16

45

18251056

1

× AC 200 – 240 V ± 10 %

50 / 60 Hz

± 5 %

20

14.8

14.8

45

2

0022-2B1-4-

00

08297126

0022-2B1-4-

10

08298017

0022-2B1-4-

20

08297576

0022-2B1-4-

40

18251064

32 (35)

2)

22.2

2.2

3

10.5

100

150

66

47

0040-2B1-4-

00

18250424

0040-2B1-4-

10

18250432

0040-2B1-4-

20

18250440

0040-2B1-4-

40

18251072

40

35

4

5

15

2.5

18

3

120

10

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

Operating Instructions – MOVITRAC® LTE-B

51

10

kVA

f i

P Hz n

Technical Data

Output power and current ratings

10.3.3 3-phase system AC 230 V for 3-phase AC 230 V motors

Without Filter

MOVITRAC

®

LTE-B – EMC filter class 0

IP20

Standard

1)

Type MC LTE

B...

0004-203-1-

00

IP55 /

NEMA 12 housing

1)

IP55 /

NEMA 12 with switch

1)

INPUT

Supply voltage

Supply frequency

Supply fuse rating

Nominal input current

OUTPUT

Part number

Type MC LTE

B...

Part number

Type MC LTE

B...

Part number

V mains f mains

[A]

[A]

08296936

0004-203-1-

10

08297835

0004-203-1-

20

08297371

6

3

0.37

0.5

Recommended motor power

[kW]

[hp]

Output voltage

Output current

[V motor

]

[A]

Motor cable size Cu 75C [mm

2

]

[AWG]

Max. motor cable length

Shielded

Unshielded

[m]

2.3

GENERAL

Size

Heat loss at nominal output power

Min. braking resistor value

[

[W]

Ω]

11

1) Unit for America, Asia & Africa

2) Recommended value for UL compliance

0008-203-1-

00

08296944

0008-203-1-

10

08297843

0008-203-1-

20

08297398

10

5.8

0.75

1

4.3

25

40

1

22

0015-203-1-

00

08296952

0015-203-1-

10

08297851

0015-203-1-

20

08297401

0015-203-4-

00

08296960

0015-203-4-

10

08297878

0015-203-4-

20

08297428

3

× AC 200 – 240 V ± 10 %

50 / 60 Hz

± 5 %

16 (15)

2)

9.2

1.5

1.5

2

3

× 20 – 250 V

7

2

7

1.5

16

45

2

0022-203-4-

00

08296979

0022-203-4-

10

08297886

0022-203-4-

20

08297436

20

13.7

2.2

3

10.5

100

150

66

47

0040-203-4-

00

08296987

0040-203-4-

10

08297894

0040-203-4-

20

08297444

32 (35)

2)

20.7

4.0

5

18

2.5

12

3s

120

52

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

Operating Instructions – MOVITRAC® LTE-B

With Filter

Technical Data

Output power and current ratings

kVA

f i

P Hz n

10

MOVITRAC

®

LTE-B – EMC filter class A

IP20

Standard with filter

1)

Type

Part number

MC LTE B...

IP55 /

NEMA 12 housing with filter

1)

Type

Part number

MC LTE B...

IP55 /

NEMA 12 with switch and filter

1)

IP66 /

NEMA 4X with switch and filter

1)

Type

Type

Part number

MC LTE B...

MC LTE B...

INPUT

Supply voltage

Supply frequency

Supply fuse rating

V mains f mains

[A]

[A] Nominal input current

OUTPUT

Recommended motor power

[kW]

[hp]

Output voltage

Output current

[V motor

]

[A]

Motor cable size Cu 75C [mm

2

]

[AWG]

Max. motor cable length

Shielded

Unshielded

[m]

GENERAL

Size

Heat loss at nominal output power

Min. braking resistor value

[

[W]

Ω]

1) Unit for Europe, Australia & New Zealand

2) Recommended value for UL compliance

0015-2A3-4-00

08297134

0015-2A3-4-10

08298025

0015-2A3-4-20

08297584

0015-2A3-4-40

18251110

16 (15)

9.2

1.5

2

7

2)

3

× AC 200 – 240 V ± 10 %

50 / 60 Hz

± 5 %

20

1.5

16

2

0022-2A3-4-00

08297142

0022-2A3-4-10

08298033

0022-2A3-4-20

08297592

0022-2A3-4-40

18251129

13.7

2.2

3

3

× 20 – 250 V

10.5

100

150

66

47

0040-2A3-4-00

08297150

0040-2A3-4-10

08298041

0040-2A3-4-20

08297606

0040-2A3-4-40

18251137

32 (35)

20.7

4.0

5

18

2.5

12

3s

120

2)

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

Operating Instructions – MOVITRAC® LTE-B

53

10

kVA

f i

P Hz n

Technical Data

Output power and current ratings

10.3.4 3-phase system AC 400 V for 3-phase AC 400 V motors

Sizes 1 & 2

Without Filter

MOVITRAC

®

LTE-B – EMC filter class 0

IP20

Standard

1)

Type MC LTE

B...

IP55 /

NEMA 12 housing

1)

Part number

Type MC LTE

B...

IP55 /

NEMA 12 with switch

1)

Part number

Type MC LTE

B...

Part number

INPUT

Supply voltage

Supply frequency

Supply fuse rating

V mains f mains

[A]

[A] Nominal input current

OUTPUT

Recommended motor power [kW]

[hp]

Output voltage

Output current

Motor cable size Cu 75C

[V motor

]

[A]

[mm

2

]

[AWG]

Max. motor cable length

Shielded

Unshielded

GENERAL

Size

Heat loss at nominal output power

Min. braking resistor value [

[m]

[W]

0008-503-1-00

08296995

0008-503-1-10

08297908

0008-503-1-20

08297452

5

2.9

0.75

1

2.2

22

25

40

1

Ω] –

0015-503-1-00

08297002

0015-503-1-10

08297916

0015-503-1-20

08297460

1.5

2

4.1

5.4

45

0015-503-4-00

08297010

0015-503-4-10

08297924

0015-503-4-20

08297479

3

× AC 380 – 480 V ± 10 %

50 / 60 Hz

± 5 %

10

1.5

2

3

× 20 – 480 V

4.1

1.5

16

0022-503-4-00

08297029

0022-503-4-10

08297932

0022-503-4-20

08297487

7.6

2.2

3

5.8

50

75

2

66

100

1) Unit for America, Asia & Africa

2) Recommended value for UL compliance

0040-503-4-00

08297037

0040-503-4-10

08297940

0040-503-4-20

08297495

16 (15)

2)

12.4

4

5

9.5

120

54

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

Operating Instructions – MOVITRAC® LTE-B

Technical Data

Output power and current ratings

kVA

f i

P Hz n

With Filter

MOVITRAC

®

LTE-B – EMC filter class A

IP20

Standard with filter

1)

Type MC LTE

B...

IP55 /

NEMA 12 housing with filter

1)

Part number

Type

Part number

MC LTE

B...

Type MC LTE

B...

0008-5A3-1-00 0015-5A3-1-00 0015-5A3-4-00 0022-5A3-4-00 0040-5A3-4-00

08297169 08297177 08297185 08297193 08297207

0008-5A3-1-10 0015-5A3-1-10 0015-5A3-4-10 0022-5A3-4-10 0040-5A3-4-10

08298068

0008-5A3-1-20

08298076

0015-5A3-1-20

08298084

0015-5A3-4-20

08298092

0022-5A3-4-20

08298106

0040-5A3-4-20 IP55 /

NEMA 12 with switch and filter

1)

IP66 /

NEMA 4X with switch and filter

1)

Part number

Type

Part number

MC LTE

B...

08297614

0008-5A3-1-40

18251145

08297622

0015-5A3-1-40

18251153

08297630

0015-5A3-4-40

18251161

08297649

0022-5A3-4-40

18251188

08297657

0040-5A3-4-40

18251196

INPUT

Supply voltage

Supply frequency

Supply fuse rating

V mains f mains

[A]

[A] Nominal input current

OUTPUT

Recommended motor power [kW]

[hp]

Output voltage

Output current

Motor cable size Cu 75C

[V motor

]

[A]

[mm

2

]

[AWG]

5

2.9

0.75

1

2.2

1.5

2

4.1

3

× AC 380 – 480 V ± 10 %

5.4

50 / 60 Hz

± 5 %

10

1.5

2

3

× 20 – 480 V

4.1

1.5

16

7.6

2.2

3

5.8

16 (15)

12.4

4

5

9.5

2)

Max. motor cable length

Shielded

Unshielded

GENERAL

Size

Heat loss at nominal output power

Min. braking resistor value [

[m]

[W] 22

25

40

1

Ω] –

45

50

75

2

66

100

120

1) Unit for Europe, Australia & New Zealand

2) Recommended value for UL compliance

10

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

Operating Instructions – MOVITRAC® LTE-B

55

10

kVA

f i

P Hz n

Technical Data

Output power and current ratings

Size 3

Without Filter

MOVITRAC

®

LTE-B – EMC filter class 0

IP20 Standard

1)

Type

IP55 / NEMA 12 housing

1)

Part number

Type

IP55 / NEMA 12 with switch

1)

Part number

Type

Part number

INPUT

Supply voltage

Supply frequency

Supply fuse rating

Nominal input current

OUTPUT

Recommended motor power f

MC LTE B...

MC LTE B...

MC LTE B...

V mains mains

[A]

[A]

0055-503-4-00

08297045

0055-503-4-10

08297959

0055-503-4-20

08297509

20

17.6

0075-503-4-00

08297053

0075-503-4-10

08297967

0075-503-4-20

08297517

3

× AC 380 – 480 V ± 10 %

50 / 60 Hz

± 5 %

25

22.1

Output voltage

Output current

Motor cable size Cu 75C

[kW]

[hp]

[V motor

]

[A]

[mm

2

]

[AWG]

5.5

7.5

14

2.5

12

7.5

10

3

× 20 – 480 V

18

Max. motor cable length

Shielded

Unshielded

GENERAL

Size

Heat loss at nominal output power

Min. braking resistor value

1) Unit for America, Asia & Africa

2) Recommended value for UL compliance

[m]

100

150

3s

[W] 165 225

[

Ω] 22

0110-503-4-00

08299218

32 (35)

2)

28.2

11

15

24

4

10

330

56

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

Operating Instructions – MOVITRAC® LTE-B

Technical Data

Output power and current ratings

kVA

f i

P Hz n

With Filter

MOVITRAC

®

LTE-B – EMC filter class A

IP20 Standard with filter

1)

Type

Part number

IP55 / NEMA 12 housing with filter

1)

Type

Part number

Type IP55 / NEMA 12 with switch and filter

1)

IP66 / NEMA 4X with switch and filter

1)

Part number

Type

Part number

INPUT

Supply voltage

Supply frequency

Supply fuse rating

Nominal input current

OUTPUT

Recommended motor power

MC LTE B...

MC LTE B...

MC LTE B...

MC LTE B...

V mains f mains

[A]

[A]

0055-5A3-4-00

08297215

0055-5A3-4-10

08298114

0055-5A3-4-20

08297665

0055-5A3-4-40

18251218

20

17.6

0075-5A3-4-00

08297223

0075-5A3-4-10

08298122

0075-5A3-4-20

08297673

0075-5A3-4-40

18251226

3

× AC 380 – 480 V ± 10 %

50 / 60 Hz

± 5 %

25

22.1

Output voltage

Output current

Motor cable size Cu 75C

[kW]

[hp]

[V motor

]

[A]

[mm

2

]

[AWG]

5.5

7.5

14

2.5

12

7.5

10

3

× 20 – 480 V

18

Max. motor cable length

Shielded

Unshielded

GENERAL

Size

Heat loss at nominal output power

Min. braking resistor value

1) Unit for Europe, Australia & New Zealand

2) Recommended value for UL compliance

[m]

100

150

3s

[W] 165 225

[

Ω] 22

0110-5A3-4-00

08299196

32 (35)

28.2

11

15

24

4

10

330

2)

10

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

Operating Instructions – MOVITRAC® LTE-B

57

58

11 Index

A

Ambient temperature...................................... 48

Application environment................................... 6

C

Conformance.................................................. 48

Current ratings ............................................... 49

D

Dimensions .................................................... 11

Force vented switch cabinet

.................... 17

IP20 housing

............................................ 12

IP55/NEMA 12 housing

........................... 13

IP66/NEMA 4X housing

........................... 14

Non-vented metal switch cabinet

............. 16

Vented switch cabinet

.............................. 17

Display ........................................................... 29

Drive status .................................................... 35

E

Easy startup ................................................... 30

Electrical Installation ................................ 18, 20

Prior to installation

................................... 18

Electromagnetic compatibility......................... 27

EMC emissions

........................................ 27

EMC immunity

......................................... 27

Filter varistor disconnection (IP20)

.......... 28

Environment, application.................................. 6

Environmental data ........................................ 48

Explosion-proof areas ...................................... 6

Extended parameters..................................... 40

F

Fault codes............................................... 36, 37

Fault finding.................................................... 36

Fault history.................................................... 36

H

Housing .......................................................... 11

I

Important Notes................................................ 4

Input voltage ranges......................................... 9

Installation ........................................................ 7

Drive and motor connection

..................... 22

electrical

............................................ 18, 20

mechanical

.............................................. 11

Terminal box connections

........................ 21

UL-compliant

........................................... 26

Interface, user ................................................ 29

IP20 housing

Dimensions

.............................................. 12

IP20/NEMA 1 housing

Mounting

.................................................. 16

IP55/NEMA 12 housing

Dimensions

.............................................. 13

IP66/NEMA 4X housing

Dimensions

.............................................. 14

K

Keypad ........................................................... 29

Keypad mode ................................................. 30

M

Mechanical Installation ................................... 11

O

Operation ................................................... 8, 35

Drive status

.............................................. 35

Output power.................................................. 49

Overload......................................................... 10

P

P-19 Digital inputs .......................................... 44

Parameters..................................................... 39

Extended

.................................................. 40

Standard

.................................................. 39

Power, output ................................................. 49

Product designation ......................................... 9

Protection features ......................................... 10

R

Repair............................................................. 38

S

Safety Notes..................................................... 7

Safety notes

Structure

.................................................... 4

Structure of the embedded safety notes

.... 5

Structure of the section safety notes

......... 4

Service ..................................................... 36, 38

Fault codes

.............................................. 37

Fault history

............................................. 36

SEW Electronics Service

......................... 38

Troubleshooting

....................................... 36

Servicing .......................................................... 8

Signal terminals overview .............................. 24

Signal word

Meaning

..................................................... 4

Specifications ................................................... 9

Standard parameters ..................................... 39

Startup........................................................ 7, 29

Key parameters

....................................... 31

Keypad mode

........................................... 30

Terminal mode

......................................... 30

Startup, easy .................................................. 30

Status, drive ................................................... 35

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

Operating Instructions – MOVITRAC® LTE-B

Structure

Embedded safety notes

............................. 5

Safety notes

............................................... 4

Section safety notes

.................................. 4

Switch cabinet, mounting ............................... 16

T

Technical Data ............................................... 48

Terminal box connections .............................. 21

Troubleshooting ............................................. 36

U

UL-compliant installation ................................ 26

User interface................................................. 29

V

Vented switch cabinet

Dimensions

.............................................. 17

Voltage ranges, input ....................................... 9

W

Waste disposal................................................. 6

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

Operating Instructions – MOVITRAC® LTE-B

59

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
