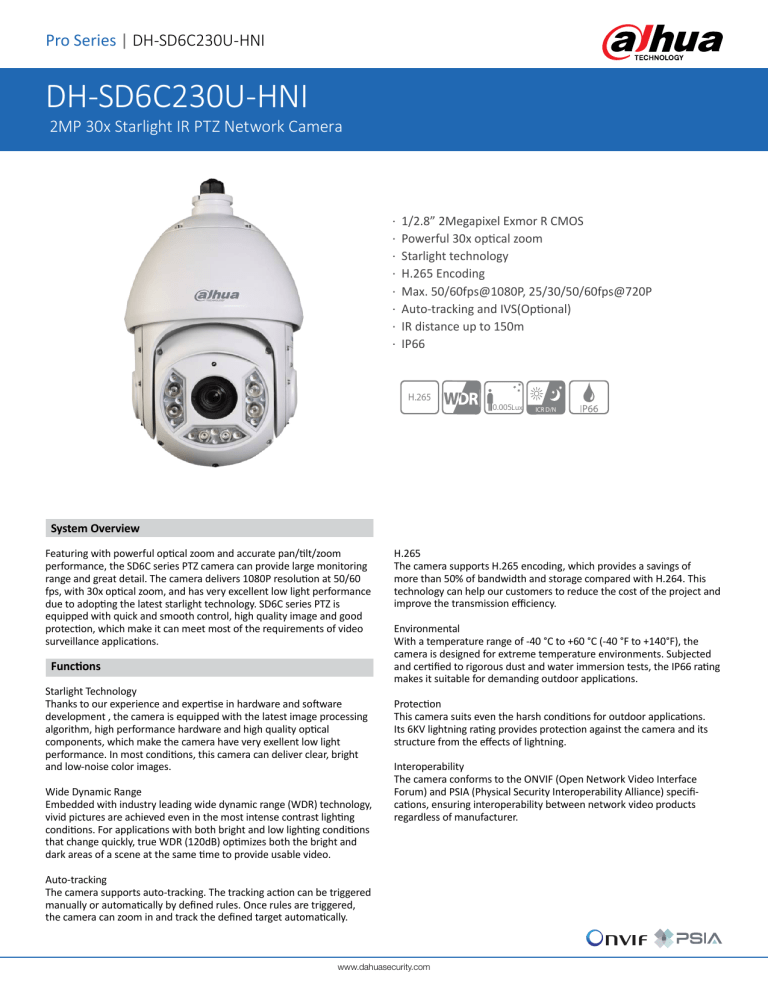

DH-SD6C230U-HNI
Pro Series | DH-SD6C230U-HNI
DH-SD6C230U-HNI
2MP 30x Starlight IR PTZ Network Camera
·
·
·
·
·
·
·
·
1/2.8” 2Megapixel Exmor R CMOS
Powerful 30x optical zoom
Starlight technology
H.265 Encoding
Max. 50/60fps@1080P, 25/30/50/60fps@720P
Auto-tracking and IVS(Optional)
IR distance up to 150m
IP66
H.265
0.005Lux
ICR D/N
System Overview
Featuring with powerful optical zoom and accurate pan/tilt/zoom
performance, the SD6C series PTZ camera can provide large monitoring
range and great detail. The camera delivers 1080P resolution at 50/60
fps, with 30x optical zoom, and has very excellent low light performance
due to adopting the latest starlight technology. SD6C series PTZ is
equipped with quick and smooth control, high quality image and good
protection, which make it can meet most of the requirements of video
surveillance applications.
Functions
Starlight Technology
Thanks to our experience and expertise in hardware and software
development , the camera is equipped with the latest image processing
algorithm, high performance hardware and high quality optical
components, which make the camera have very exellent low light
performance. In most conditions, this camera can deliver clear, bright
and low-noise color images.
Wide Dynamic Range
Embedded with industry leading wide dynamic range (WDR) technology,
vivid pictures are achieved even in the most intense contrast lighting
conditions. For applications with both bright and low lighting conditions
that change quickly, true WDR (120dB) optimizes both the bright and
dark areas of a scene at the same time to provide usable video.
H.265
The camera supports H.265 encoding, which provides a savings of
more than 50% of bandwidth and storage compared with H.264. This
technology can help our customers to reduce the cost of the project and
improve the transmission efficiency.
Environmental
With a temperature range of -40 °C to +60 °C (-40 °F to +140°F), the
camera is designed for extreme temperature environments. Subjected
and certified to rigorous dust and water immersion tests, the IP66 rating
makes it suitable for demanding outdoor applications.
Protection
This camera suits even the harsh conditions for outdoor applications.
Its 6KV lightning rating provides protection against the camera and its
structure from the effects of lightning.
Interoperability
The camera conforms to the ONVIF (Open Network Video Interface
Forum) and PSIA (Physical Security Interoperability Alliance) specifications, ensuring interoperability between network video products
regardless of manufacturer.
Auto-tracking
The camera supports auto-tracking. The tracking action can be triggered
manually or automatically by defined rules. Once rules are triggered,
the camera can zoom in and track the defined target automatically.
www.dahuasecurity.com
Pro Series | DH-SD6C230U-HNI
Technical Specification
Bit Rate Control
CBR/VBR
Camera
Bit Rate
H.265/H.264: 448K ~ 8192Kbps, MJPEG: 5120K ~
10240Kbps
Day/Night
Auto(ICR) / Color / B/W
Backlight Compensation
BLC / HLC / WDR (120dB)
White Balance
Auto,ATW,Indoor,Outdoor,Manual
Gain Control
Auto / Manual
Noise Reduction
Ultra DNR (2D/3D)
Motion Detetion
Support
Region of Interest
Support
Electronic Image
Stabilization (EIS)
Support
Defog
Support
Digital Zoom
16x
Flip
180°
Privacy Masking
Up to 24 areas
Image Sensor
1/2.8” Exmor R CMOS
Effective Pixels
1920(H) x 1080(V), 2 Megapixels
RAM/ROM
512M/128M
Scanning System
Progressive
Minimum Illumination
Color: 0.005Lux@F1.6; 0Lux@F1.6 (IR on)
S/N Ratio
More than 55dB
IR Distance
Distance up to 150m (492ft)
IR On/Off Control
Auto/Manual
IR LEDs
6
Lens
Focal Length
4.5mm~135mm
Max. Aperture
F1.6 ~ F4.4
Angle of View
H: 67.8° ~ 2.4°
Optical Zoom
30x
Focus Control
Auto/Manual
Close Focus Distance
100mm~ 1000mm
Audio
Compression
G.711a/G.711Mu/AAC/G.722 / G.726/G.729/
MPEG2-L2
Network
PTZ
Ethernet
RJ-45 (10/100Base-T)
Protocol
IPv4/IPv6,HTTP,HTTPS,SSL,TCP/IP, UDP,UPnP,
ICMP,IGMP,SNMP,RTSP,RTP, SMTP, NTP,DHCP,
DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x
Pan/Tilt Range
Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°,auto flip 180°
Manual Control Speed
Pan: 0.1° ~160° /s; Tilt: 0.1° ~120° /s
Preset Speed
Pan: 240° /s; Tilt: 200° /s
Interoperability
ONVIF, PSIA, CGI
Presets
300
Streaming Method
Unicast / Multicast
PTZ Mode
5 Pattern, 8 Tour, Auto Pan ,Auto Scan
Max. User Access
20 users
Speed Setup
Human-oriented focal Length/ speed adaptation
Edge Storage
NAS (Network Attached Storage),Local PC for
instant recording, 128GB
Power up Action
Auto restore to previous PTZ and lens status after
power failure
Web Viewer
IE10/Google/Firefox/Safari...
Idle Motion
Activate Preset/ Scan/ Tour/ Pattern if there is no
command in the specified period
Management Software
Smart PSS, DSS
Protocol
DH-SD, Pelco-P/D (Auto recognition)
Smart Phone
iPhone, iPad, Android, Windows Phone
Intelligence
Certifications
Auto Tracking
Support
IVS (optional)
Tripwire, Intrusion,Abandoned/Missing, Face
Detection
CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB,ANSI C63.4- 2014
UL: UL60950-1+CAN/CSA C22.2,No.60950-1
Interface
Video
Compression
H.265/H.264 / MJPEG
Streaming Capability
3 Streams
Resolution
1080P(1920×1080)/1.3M(1280×960)/720P(1280×
720)/D1(704×576/704×480)/CIF(352×288/352×240)
Frame Rate
Certifications
Main stream
1080P/720P(1 ~ 50/60fps), 1.3M(1 ~ 25/30fps)
Sub stream1
D1/CIF(1 ~ 25/30fps)
Sub stream2
1080P/1.3M/720P/D1/CIF (1 ~ 25/30fps)
Video Interface
1
Audio Interface
1/1
RS485
1
Alarm
2/1
Electrical
Power Supply
AC24V/3A(±10%)
Power Consumption
10.5W,26W (IR on)
www.dahuasecurity.com
Pro Series | DH-SD6C230U-HNI
Optional:
Environmental
Operating Conditions
-40°C ~ 60°C (-40°F ~ +140°F) / Less than 90% RH
Ingress Protection
IP66
Vandal Resistance
N/A
Construction
Casing
Metal
Dimensions
Φ204.7(mm) x 359.9(mm)
Net Weight
7.8kg(17.20lb)
Gross Weight
8.3kg(18.30lb)
Mount Adapter
PFA114
PFB303W
Wall Mount
PFA140
Power box
PFB300C
Ceiling Mount
PFA120
Junction Box
PFA150
Pole Mount
PFA151
Corner Mount
PFB303S
Parapet Mount
Ordering Information
Type
2MP PTZ
Camera
Accessories
Part Number
Description
DH-SD6C230U-HNI
2MP 30x Starlight IR PTZ
Network Camera, WDR, PAL
DH-SD6C230UN-HNI
2MP 30x Starlight IR PTZ
Network Camera, WDR, NTSC
SD6C230U-HNI
2MP 30x Starlight IR PTZ
Network Camera, WDR, PAL
SD6C230UN-HNI
2MP 30x Starlight IR PTZ
Network Camera, WDR, NTSC
64FB
Wall Mount
AC24V/3A
Power Supply
PFA114
Mount Adapter
PFB303W
Wall Mount
PFA140
Power box
PFB300C
Ceiling Mount
PFA120
Junction Box
PFA150
Pole Mount
PFA151
Corner Mount
PFB303S
Parapet mount
PFA114 + PFB300C
PFA114 + PFB303W + PFA120
Power Box Mount
Pole Mount
PFA114 + PFB303W + PFA150
Corner Mount
Parapet Mount
PFA114 + PFB303W + PFA151
PFA114+ PFB303S
Included:
Rev 001.001
Juncon Mount
PFA114 + PFB303W + PFA140
Accessories
64FB
Wall Mount
Ceiling Mount
AC24V/3A
Power Supply
© 2016 Dahua®. All rights reserved.
www.dahuasecurity.com
Pro Series | DH-SD6C230U-HNI
Dimensions (mm)
Rev 001.001
© 2016 Dahua®. All rights reserved.
www.dahuasecurity.com
