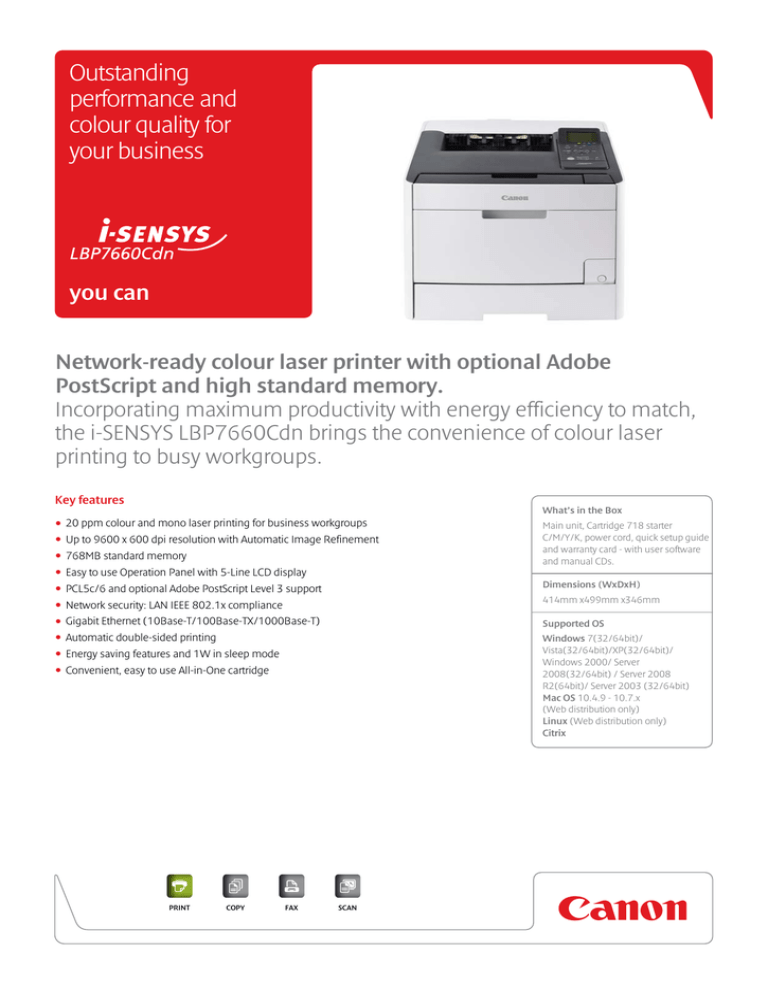

Outstanding
performance and
colour quality for
your business
you can
Network-ready colour laser printer with optional Adobe
PostScript and high standard memory.
Incorporating maximum productivity with energy efficiency to match,
the i-SENSYS LBP7660Cdn brings the convenience of colour laser
printing to busy workgroups.
Key features
•
•Up to 9600 x 600 dpi resolution with Automatic Image Refinement
•768MB standard memory
•Easy to use Operation Panel with 5-Line LCD display
•PCL5c/6 and optional Adobe PostScript Level 3 support
•Network security: LAN IEEE 802.1x compliance
•Gigabit Ethernet (10Base-T/100Base-TX/1000Base-T)
•Automatic double-sided printing
•Energy saving features and 1W in sleep mode
•Convenient, easy to use All-in-One cartridge
20 ppm colour and mono laser printing for business workgroups
PRINT
COPY
FAX
SCAN
What’s in the Box
Main unit, Cartridge 718 starter
C/M/Y/K, power cord, quick setup guide
and warranty card - with user software
and manual CDs.
Dimensions (WxDxH)
414mm x499mm x346mm
Supported OS
Windows 7(32/64bit)/
Vista(32/64bit)/XP(32/64bit)/
Windows 2000/ Server
2008(32/64bit) / Server 2008
R2(64bit)/ Server 2003 (32/64bit)
Mac OS 10.4.9 - 10.7.x
(Web distribution only)
Linux (Web distribution only)
Citrix
1
2
Specifications
4
3
Printer Engine
Print speed
Printing method
Print quality
Print resolution
Warm-up time
First Page Out Time
Duty cycle Print Margin
Up to 20 ppm colour and mono (A4)
Colour laser beam printing
Up to 9600 x 600 dpi with Automatic Image Refinement
Up to 600 x 600 dpi
Approx. 29 seconds or less from power on
Approx. 16 seconds or less
Max. 60,000 pages per month
5 mm-top, bottom, left and right (10 mm - envelope)
Media handling
Paper input (Standard)
250-sheet cassette
50-sheet multi-purpose tray
Paper input (Option)
250-sheet cassette
Paper output
125-sheet face down
Media typesPlain Paper, Heavy Paper, Coated Paper, Transparency (B/W Only),
Label, Envelope
Media sizes
Cassette (Standard and optional):
A4, B5, A5, Legal, Letter, Executive, Foolscap, Statement, Envelope
COM-10, Envelope C5, Envelope DL, Envelope B5,
Custom sizes: Width 100.0 to 215.9 mm; Length 148.0 to 355.6mm.
Multi-purpose tray:
A4, B5, A5, Letter, Legal, Executive, Foolscap, Statement, Envelope,
Envelope C5, Envelope Monarch, Envelope B5, Index card,
Custom sizes: Width 76.2 to 215.9 mm; Length 127.0 to 355.6mm.
Media weights
Cassette (Standard and optional):
60 to 163 g/m² (220 g/m² for Coated Paper)
1 5-line LCD display
2 50 sheet multi-purpose tray
3 250-sheet tray
4 Cartridge 718:
5 cartridges available:
Cyan, Magenta, Yellow, Black
and Black Value Pack
Controller
Processor Speed
528MHz + 264MHz
Memory
768 MB
Printer languages
UFRII (Ultra Fast Rendering), PCL5c, PCL6, Adobe PostScript (Optional)
Fonts
45 Scalable fonts, 10 Bitmap fonts, 136 PS fonts (optional)
Interface and connectivity
USB 2.0 High-Speed, 10Base-T/100Base-TX/1000Base-T
Operating systems compatibilityWindows 7(32/64bit)/Vista(32/64bit)/XP(32/64bit)/
Windows 2000/Server 2008(32/64bit) / Server 2008 R2(64bit)/
Server 2003 (32/64bit)/Mac OS10.4.9 - 10.7.x²/Linux², Citrix
Consumables
All-in-One cartridges
Standard:
Cartridge 718 Black (3,400 pages3)4
Cartridge 718 Cyan (2,900 pages3)4
Cartridge 718 Magenta (2,900 pages3)4
Cartridge 718 Yellow (2,900 pages3)4
Cartridge 718 Black VP (6,800 pages3)4
Accessories/ options
Items
PAPER FEEDER PF-701 (250-sheet cassette)
PS Printer Kit-AQ1 (Adobe PostScript 3 ROM module)5
Barcode Printing Kit- F1 (Barcode ROM module)5
Footnotes
[1]Declared noise emission in accordance with ISO 9296
[2]Web distribution only. Driver release in November 2011
[3] Based on ISO/IEC19798
[4] Printer ships with 1,200/1,400 pages (Mono/Colour) starter cartridge
[5]Barcode ROM and PS ROM cannot be installed simultaneously
Multi-purpose tray:
60 to 176 g/m² (220 g/m² for Coated Paper)
Double sided printing
Automatic
General features
Power requirements
220-240V (±10%) 50/60Hz (±2Hz)
Power consumption
Maximum: 950 W or less
Active: Average approx. 405 W
Standby: Average approx 23 W
Sleep modes: Approx 23 W (Sleep Mode 1), Approx 7.5 W
(Sleep Mode 2), Approx 1 W (Sleep Mode 3)
Noise Level
Typical Electricity Consumption (TEC): 0.9 kWh/week
Sound power¹:
Active: 6.7B or less
Standby: 4.3B or less
Sound pressure¹:
Active: 52 dB(A) or less
Standby: 24 dB(A) or less
Dimensions (W x D x H)
Weight Operating environment
Control panel
414mm x499mm x346mm
Approx 25.2kg
Temperature: 10 to 30ºC (50 to 86ºF)
Humidity 20 to 80% RH (no condensation)
5 line LCD display
8 LED indicators
12 Operation keys
Canon Inc.
canon.com
Canon Europe
canon-europe.com
UK English Edition
© Canon Europa N.V., 2011
Canon (UK) Ltd
Woodhatch, Reigate
Surrey RH2 8BF
Telephone No: 01737 220000
Facsimile No: 01737 220022
www.canon.co.uk
