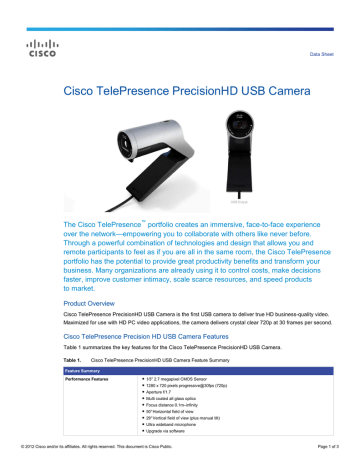

Cisco PrecisionHD Datasheet

Data Sheet
Cisco TelePresence PrecisionHD USB Camera
The Cisco TelePresence™ portfolio creates an immersive, face-to-face experience
over the network—empowering you to collaborate with others like never before.
Through a powerful combination of technologies and design that allows you and
remote participants to feel as if you are all in the same room, the Cisco TelePresence
portfolio has the potential to provide great productivity benefits and transform your
business. Many organizations are already using it to control costs, make decisions
faster, improve customer intimacy, scale scarce resources, and speed products
to market.
Product Overview
Cisco TelePresence PrecisionHD USB Camera is the first USB camera to deliver true HD business-quality video.
Maximized for use with HD PC video applications, the camera delivers crystal clear 720p at 30 frames per second.
Cisco TelePresence Precision HD USB Camera Features
Table 1 summarizes the key features for the Cisco TelePresence PrecisionHD USB Camera.
Table 1.
Cisco TelePresence PrecisionHD USB Camera Feature Summary
Feature Summary
Performance Features
● 1⁄3" 2.7 megapixel CMOS Sensor
● 1280 x 720 pixels progressive@30fps (720p)
● Aperture f/1.7
● Multi coated all glass optics
● Focus distance 0.1m–infinity
● 50° Horizontal field of view
● 29° Vertical field of view (plus manual tilt)
● Ultra wideband microphone
● Upgrade via software
© 2012 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public.
Page 1 of 3
● Auto focus
● Auto light adjustment (mechanical iris)
Application Features
● Auto anti flicker (50/60Hz light detection)
● No software installation required
● Laptop, desktop and stand alone mounting
● Mechanical privacy shutter
Design Features
● LED In-call indicator
● Travel case included
Supported Resolutions
Wide Resolutions
● 1280x720 (w720p)
● 1024x576 (w576p) 768x448 (w448p) 512x288 (w288p)
Native PAL
● 352 x288 (CIF)
Native PC Resolutions
● 640x480 (VGA)
● 320x240 (QVGA) 160x120 (1/16 VGA)
*
Specifications
All resolutions are supported at 30 fps, 25 fps and 15 fps
● Height: 58mm
● Width: 34mm
● Length: 125mm
● Weight: 230g
System Requirements
● Windows XP SP2 or Windows Vista
● USB 2.0
PC Requirements For 720P 30FPS
● Cisco TelePresence Movi: Available on Cisco TelePresence Movi product data sheet
● Microsoft OCS 2007 R2: Available from Microsoft
Certifications
Ordering Information
To place an order, please contact a Cisco sales representative.
Table 2.
Ordering Information
Product Name
Part Number
Compliance
Model Number
PrecisionHD USB Camera - 10 Pack, cameras come with power cord attached
CTS-PHD-USB
TTC8-03
PrecisionHD USB Camera - SPARE, 1 camera, comes with power cord attached
CTS-PHD-CAM-USB=
TTC8-03
Cisco TelePresence PrecisionHD USB Camera
Service and Support
Cisco and our partners provide a broad portfolio of intelligent, personalized services and support that can help you
realize the full value of your Cisco TelePresence investment by increasing business agility and network availability.
This portfolio of services accelerates business innovation through a network-based collaboration platform that
enables businesses to collaborate anywhere, anytime. For more information about these services, visit:
http://www.cisco.com/go/telepresenceservices.
For More Information
For more information about the Cisco TelePresence PrecisionHD USB Camera, visit
http://www.cisco.com/go/telepresence or contact your local Cisco account representative or authorized Cisco
partner. Product specifications are estimates and subject to change without notice.
© 2012 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public.
Page 2 of 3
Printed in USA
© 2012 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public.
C78-628611-02
10/12
Page 3 of 3
