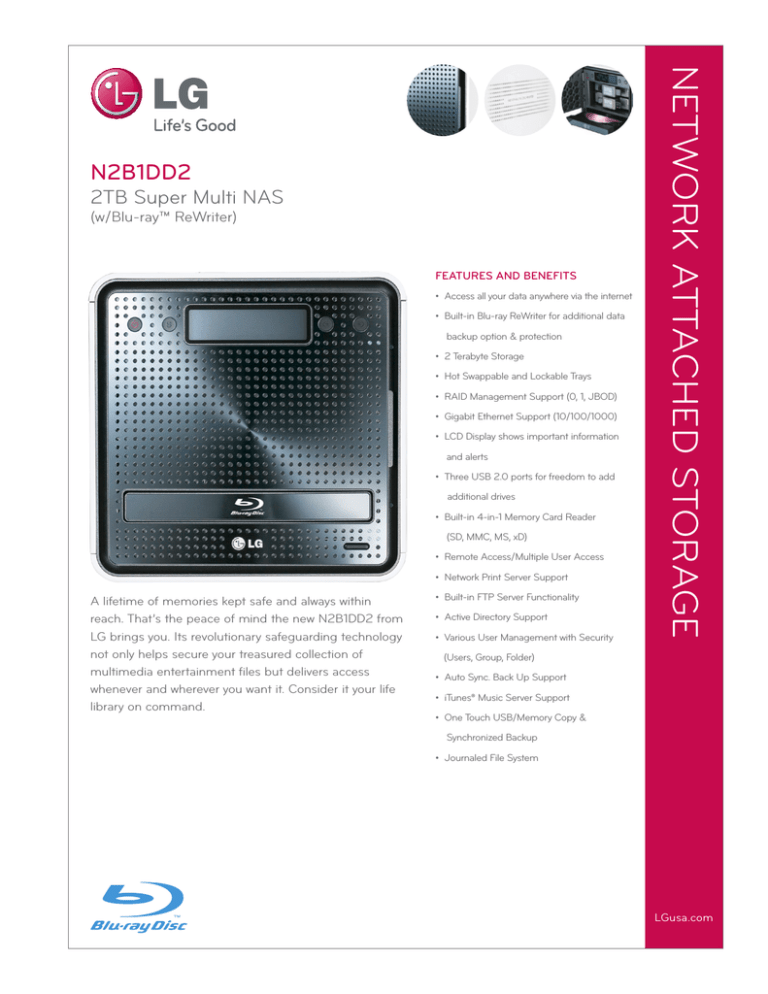

LG N2B1DD2.AUAR Datasheet

LG N2B1DD2.AUAR Datasheet
2TB Super Multi NAS
(w/Blu-ray™ ReWriter)
FEATURES AND BENEFITS
• Access all your data anywhere via the internet
• Built-in Blu-ray ReWriter for additional data backup option & protection
• 2 Terabyte Storage
• Hot Swappable and Lockable Trays
• RAID Management Support (0, 1, JBOD)
• Gigabit Ethernet Support (10/100/1000)
• LCD Display shows important information and alerts
• Three USB 2.0 ports for freedom to add additional drives
• Built-in 4-in-1 Memory Card Reader
(SD, MMC, MS, xD)
• Remote Access/Multiple User Access
• Network Print Server Support
A lifetime of memories kept safe and always within
reach. That’s the peace of mind the new N2B1DD2 from
LG brings you. Its revolutionary safeguarding technology
not only helps secure your treasured collection of
multimedia entertainment files but delivers access
whenever and wherever you want it. Consider it your life
library on command.
• Built-in FTP Server Functionality
• Active Directory Support
• Various User Management with Security NETWORK ATTACHED STORAGE
N2B1DD2
(Users, Group, Folder)
• Auto Sync. Back Up Support
• iTunes® Music Server Support
• One Touch USB/Memory Copy & Synchronized Backup
• Journaled File System
LGusa.com
NETWORK ATTACHED STORAGE
N2B1DD2
2TB Super Multi NAS
(w/Blu-ray™ ReWriter)
GENERAL SPECIFICATIONS
Number of HDD Bays
2
Processor
Marvell 88F6192 800MHz
SDRAM
1024Mbits
Data Transfer Rates
16bit/DDR2 (400MHz Data Rate)
HDD Capacity
500GB / 1TB (Up to 2TB Total)
Supported RAID Levels
0, 1, JBOD
HDD
Included Storage
2TB
Interface
SATA II
RPM
7200
Buffer
8MB / 16MB
Size
3.5”
LAN INTERFACE
Standard Compliance
IEEE802.3 (1000/100/10 Base-T)
Data Transfer Rates
1000/100/10 Mbps
Connector Type
RJ-45
Number of Ports
1
BLU-RAY RE-WRITER
Supported Media
BD/DVD/CD
Writing Speed
BD (6x Max.)/ DVD (16x Max.)
CD (40x Max.)
Reading Speed
BD (6x Max.)/ DVD (12x Max.)
CD (40x Max.)
USB INTERFACE
Standard Compliance
USB 2.0
Connector Type
USB Type A
Number of Ports
3 (Top 1 ea., Rear 2 ea.)
Data Transfer Rates
Max: 480Mbps (High Speed Mode)
Max: 12Mbps (Full Speed Mode)
OTHER INTERFACE
Memory Card Reader
4 in 1 (SD, MMC, MS, xD)
NETWORK FILE SERVICES
Transport Protocol
TCP/IP
Network Services
DHCP, NTP Support
Management
HTTP/HTTPS, FTP/FTPS
Time Syncronization
NTP
Network Options
DHCP, NTP
POWER
Voltage/Hz
90V - 264V, 47Hz ~ 63Hz
Idle Mode (Typical)
44W
Sleep Mode (Typical)
14W
Standby Mode (Typical)
1.0W
OTHER
Operating System
Embedded Linux (Kernel 2.6)
Client OS Support
Win 2000, XP, Vista, Windows
Server 2003, Mac OS 10.3 and later
Linux (Redhat 9, Ubuntu, Suse)
Regulations & Standards
FCC, UL, CE, CE Marking, RoHS
Software Bundle
Power2Go v.6, PowerDVD v.8, MVP Album. PhotoDVD 4.0 SE
DIMENSIONS & WEIGHTS
Dimensions (WxHxD) 6.5” x 6.4” x 9.1”
Weight (without HDD)
9.26 lbs.
Weight (with HDD)
11.46 lbs.
WARRANTY/UPC
Limited Warranty
1 Year Parts & Labor
UPC
058231293739
Dimension and weights are approximate. Design, features and
specifications subject to change without notice.
© 2009 LG Electronics USA, Inc. All rights reserved. “LG Life’s Good” is a
registered trademark of LG Corp. All other product and brand names are
trademarks or registered trademarks of their respective companies.
October 2009
LGusa.com
LG Electronics U.S.A., Inc.
1000 Sylvan Avenue Englewood Cliffs, NJ 07632
Customer Service and Technical Support: (800) 243-0000
