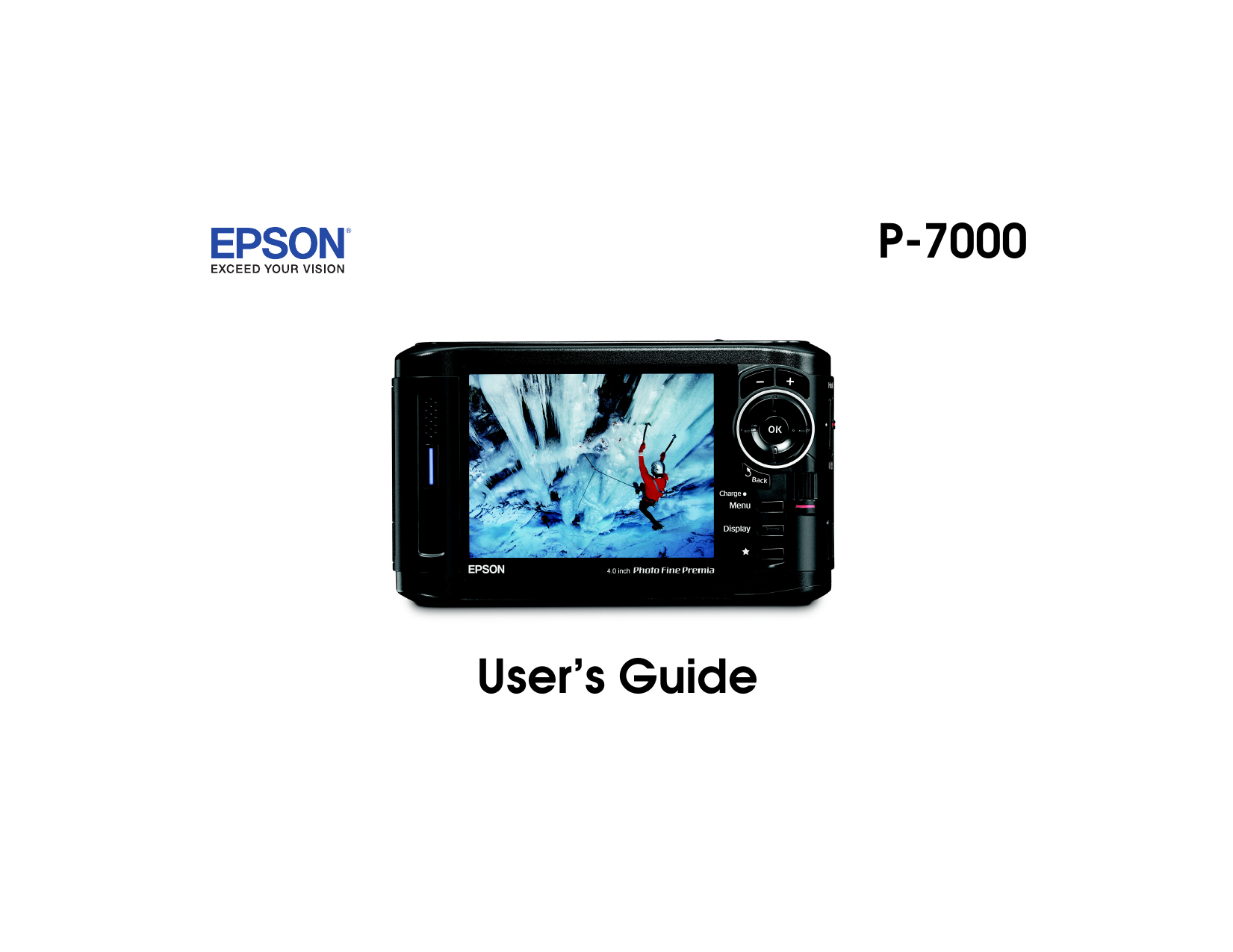

Epson P-7000 User's Guide

P-7000
User’s Guide
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical,
photocopying, recording, or otherwise, without the prior written permission of Seiko Epson Corporation. The information contained herein is designed only for use with
this Epson product. Epson is not responsible for any use of this information as applied to other products.
Neither Seiko Epson Corporation nor its affiliates shall be liable to the purchaser of this product or third parties for damages, losses, costs, or expenses incurred by the
purchaser or third parties as a result of accident, misuse, or abuse of this product or unauthorized modifications, repairs, or alterations to this product, or (excluding the
U.S.) failure to strictly comply with Seiko Epson Corporation’s operating and maintenance instructions.
Seiko Epson Corporation shall not be liable for any damages or problems arising from the use of any options or any consumable products other than those designated as
Original Epson Products or Epson Approved Products by Seiko Epson Corporation.
Seiko Epson Corporation shall not be held liable for any damage resulting from electromagnetic interference that occurs from the use of any interface cables other than
those designated as Epson Approved Products by Seiko Epson Corporation.
Trademarks
Epson, Epson Stylus, Photo Fine, and Multimedia Storage Viewer are trademarks, and Epson Exceed Your Vision is a registered logomark of Seiko Epson Corporation.
QuickTime and the QuickTime logo are trademarks or registered trademarks of Apple, Inc., used under license.
CompactFlash is a registered trademark of SanDisk Corporation.
SD is a trademark of SD Card.
This product is protected by certain intellectual property rights of Microsoft. Use or distribution of such technology outside of this product is prohibited without a license
from Microsoft.
This product is licensed under the MPEG-4 Visual Patent Portfolio License for the personal and non-commercial use of a consumer for (i) encoding video in compliance
with the MPEG-4 visual standard (MPEG-4 Video) and/or (ii) decoding MPEG-4 Video that was encoded by a consumer engaged in a personal and non-commercial
activity and/or was obtained from a video provider licensed by MPEG LA to provide MPEG-4 Video. No license is granted or shall be implied for any other use. Additional
information including that relating to promotional, internal and commercial uses and licensing may be obtained from MPEG LA, L.L.C. (See www.mpegla.com)
2
This product is licensed under the AVC Patent Portfolio License for the personal and non-commercial use of a consumer to (i) encode video in compliance with the AVC
standard (AVC Video) and/or (ii) decode AVC Video that was encoded by a consumer engaged in a personal and non-commercial activity and/or was obtained from a
video provider licensed to provide AVC Video. No license is granted or shall be implied for any other use. Additional information may be obtained from MPEG LA, L.L.C.
(See www.mpegla.com)
MPEG Layer-3 audio coding technology is licensed from Fraunhofer IIS and Thomson.
General Notice: Other product names used herein are for identification purposes only and may be trademarks of their respective owners. Epson disclaims any and all rights
in those marks.
This information is subject to change without notice.
© 2008 Epson America, Inc. 4/08
NPD 3297-00
3
Contents
Introduction
Chapter 2 Using Memory Cards
Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Using the Documentation. . . . . . . . . . . . . . . . . . . . . . . . . . 8
Inserting and Removing Memory Cards . . . . . . . . . . . . . .
Using the CF Card Slot . . . . . . . . . . . . . . . . . . . . . . .
Using the SD Card Slot . . . . . . . . . . . . . . . . . . . . . . .
Copying Files From a Memory Card . . . . . . . . . . . . . . . . .
Copying All Files . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Copying Selected Files . . . . . . . . . . . . . . . . . . . . . . . .
Creating a New Folder and Copying Files . . . . . . . . .
Chapter 1 Getting Started
Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Lights and Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Installing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Charging the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Removing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Turning On the Power . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Setting the Language, Date, and Time . . . . . . . . . . . . . . . 13
Locking the Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Using the Home Screen . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Turning Off the Power . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Saving Power. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
17
18
19
20
20
21
22
Chapter 3 Viewing Photos and Videos
Using the Viewer Screen . . . . . . . . . . . . . . . . . . . . . . . . . .
Changing the Display . . . . . . . . . . . . . . . . . . . . . . . . .
Using the Pop-up Menu . . . . . . . . . . . . . . . . . . . . . . . . . .
Supported Image Formats . . . . . . . . . . . . . . . . . . . . . . . . .
Viewing Images . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Zooming an Image . . . . . . . . . . . . . . . . . . . . . . . . . . .
Displaying Image Information . . . . . . . . . . . . . . . . . .
Displaying a Wider Color Gamut. . . . . . . . . . . . . . . .
Displaying Images as a Slide Show . . . . . . . . . . . . . . .
Rotating an Image . . . . . . . . . . . . . . . . . . . . . . . . . . .
24
25
25
27
27
28
29
30
30
31
4
Viewing Videos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Supported Video Formats . . . . . . . . . . . . . . . . . . . . .
Playing Videos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting the Display Mode. . . . . . . . . . . . . . . . . . . . . .
Viewing Files on a TV. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Changing the File View Mode . . . . . . . . . . . . . . . . . . . . .
32
32
33
34
34
35
Chapter 4 Playing Music
Copying Music From Your Computer . . . . . . . . . . . . . . .
Supported Audio Formats . . . . . . . . . . . . . . . . . . . . . . . . .
Playing Audio Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting Repeat and Shuffle Options. . . . . . . . . . . . . . . . . .
Creating a Playlist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Creating a Playlist on the Viewer . . . . . . . . . . . . . . . .
Adding Tracks to an Existing Playlist . . . . . . . . . . . . .
Removing Tracks From a Playlist . . . . . . . . . . . . . . . .
Changing the Order of a Playlist . . . . . . . . . . . . . . . .
Using the Equalizer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Deleting Audio Files From the Viewer . . . . . . . . . . . . . . .
36
38
38
40
40
41
42
42
42
43
43
Chapter 5 Managing Files
Copying Files To and From Your Computer. . . . . . . . . . .
Backing Up Files to Your Computer. . . . . . . . . . . . . .
Copying Files From Your Computer to the Viewer . .
Disconnecting the Viewer From Your Computer . . . .
Setting Backup and Conversion Preferences . . . . . . . .
Using the Viewer With USB Devices . . . . . . . . . . . . . . . .
Connecting a USB Device . . . . . . . . . . . . . . . . . . . . .
Copying Files to the Viewer . . . . . . . . . . . . . . . . . . . .
Copying Files to a USB Device. . . . . . . . . . . . . . . . . .
Setting Folders as Private . . . . . . . . . . . . . . . . . . . . . . . . . .
Renaming a Folder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Copying and Moving Files to a Folder. . . . . . . . . . . . . . . .
Deleting Files and Folders . . . . . . . . . . . . . . . . . . . . . . . . .
Locking Files and Folders . . . . . . . . . . . . . . . . . . . . . . . . .
Setting a Folder Icon or Home Screen Wallpaper . . . . . . .
Rating Photos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Selecting a Screen Saver . . . . . . . . . . . . . . . . . . . . . . . . . . .
Monitoring the Color of Images . . . . . . . . . . . . . . . . . . . .
44
45
46
46
47
48
49
49
51
52
54
54
55
57
58
58
58
58
5
Chapter 6 Printing
Connecting the Viewer to a Printer . . . . . . . . . . . . . . . . . .
Selecting a Photo. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Retouching a Photo. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cropping a Photo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Selecting Layout Settings. . . . . . . . . . . . . . . . . . . . . . . . . .
Printing Your Photos . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Making Copies of a Print . . . . . . . . . . . . . . . . . . . . . . . . .
Printing Multiple Photos. . . . . . . . . . . . . . . . . . . . . . . . . .
Printing a Contact Sheet . . . . . . . . . . . . . . . . . . . . . . . . . .
Creating a Watermark. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Creating a Watermark with Text . . . . . . . . . . . . . . . .
Using an Image as a Watermark . . . . . . . . . . . . . . . . .
60
61
62
63
65
66
66
67
67
68
68
69
Chapter 7 Customizing Settings
Device Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power Save . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
View Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Backup Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Movie Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Slide Show . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
70
71
71
72
72
72
73
Watermark Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
LCD Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Date and Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
73
73
73
73
Chapter 8 Maintenance and
Troubleshooting
Cleaning the Viewer . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Problems and Solutions . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
File Viewing Problems . . . . . . . . . . . . . . . . . . . . . . . .
File Operation Problems . . . . . . . . . . . . . . . . . . . . . .
Printing Problems. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Updating the Firmware and Printer Driver . . . . . . . . . . . .
Uninstalling Software . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Macintosh . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Resetting the Viewer . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Replacing the Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Where To Get Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Internet Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Speak to a Support Representative . . . . . . . . . . . . . . .
74
74
75
75
76
77
78
78
78
78
79
79
80
80
80
80
6
Appendix A Notices and Specifications
System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windows System Requirements . . . . . . . . . . . . . . . . .
Macintosh System Requirements . . . . . . . . . . . . . . . .
Safety Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Standards and Approvals . . . . . . . . . . . . . . . . . . . . . . . . . .
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
81
81
81
82
87
88
Index
7
Introduction
With the Epson® P-7000 Multimedia Storage Viewer™, you
can enjoy photos, videos, and music wherever you go. Your
images are displayed on Epson’s exclusive 4-inch Photo
Fine® Premia LCD in brilliant color and detail.
Features
❍
Large 4-inch LCD with true Adobe® RGB color gamut
❍
Support for JPEG and RAW files (including zoom)
❍
Support for MP3 and AAC audio, with music playlists
❍
Support for MPEG4 and Motion JPEG video
❍
160GB hard drive
❍
Two slots for CompactFlash® and SD™ memory cards
❍
Hi-speed USB 2.0 interface for PC or Macintosh®
❍
Software for convenient file conversion and transfer
❍
Direct printing to PictBridge™ printers
❍
Lithium-ion battery and AC adapter
❍
Video output to display pictures on a TV or projector
Using the Documentation
This guide provides information and instructions for all the
viewer features, including troubleshooting tips.
Make sure you read and follow all the “Safety Instructions”
on page 82. Please follow these guidelines:
Warning:
Must be followed carefully to avoid bodily injury.
Caution:
Must be observed to avoid damage to your equipment.
Note:
Contains important information and useful tips on the operation
of your product.
If you need assistance using your viewer, see “Where To Get
Help” on page 80.
Your package also includes a P-6000/P-7000 Basics Guide.
Keep it with the viewer for handy reference.
8
Chapter 1
Getting Started
Parts
SD card slot
CompactFlash card slot
Memory card
access light
Host USB connector
(for camera, flash drive, etc.)
CF card slot
eject button
Device USB
connector
(for computer)
A/V Out connector
Headphone
connector
Power switch
with Hold function
AC adapter
connector
T.
BAT
Reset button
Liquid Crystal
Display (LCD)
Strap hook
Battery cover
Rubber
covers
Speaker
Getting Started 9
Lights and Buttons
Zoom buttons
Press to zoom in or out,
or adjust the volume for
music or video
4-way ring
Press to select a photo
or navigate the menus
OK button
Press to select an option,
open a folder or photo, or
play music or video
Activity light
Jog dial
Flashes blue during
power on, printing,
file transfer, and
computer connection
Roll to select a photo
or navigate the menus
Menu button
Press to display a pop-up menu
Display button
Back button
Charge light
Press to cancel your
selection or return to
the previous display
or menu item
Green for battery
charging; orange
for problems
Press to change the display
or view photo information
button
Press to select a file or rate
a photo from 1 to 5 stars;
press and hold to connect to
a computer
Getting Started 10
Installing the Battery
The viewer comes with a lithium-ion battery.
3 Close the battery cover and slide it to the left until it
clicks.
1 Slide the battery cover to the right to open it.
2 Insert the battery into the compartment in the direction
of the arrow on the battery.
Charging the Battery
After installing the battery, you need to charge it using the
AC adapter. It takes about 3.5 hours to fully charge the
battery when the viewer is off, and longer when the viewer
is on.
The Charge light is green while the battery is being
charged. When the battery is fully charged, the light
turns off.
Getting Started 11
To charge the battery, connect the AC adapter as shown
below. Connect the other end to the power cord and plug it
into an electrical outlet.
Removing the Battery
If you plan to store the viewer for an extended period of
time, you should remove the battery.
1 Make sure the viewer is turned off (see page 16).
Caution:
Remove the AC adapter if it is connected to the viewer.
Never remove the battery while the viewer is turned on.
Doing so may cause files to be lost or damaged.
Caution:
Do not connect the AC adapter when the battery is not installed;
this can damage the viewer. Turn off the viewer before
disconnecting the AC adapter.
2 Open the battery cover.
3 Slide the battery release lever to the left. The battery
pops out.
The battery status is displayed in the top right corner of the
LCD screen when the viewer is on.
Battery is fully charged.
Battery power is about half full.
Battery power is low.
Battery is charging.
Note:
The battery may become hot when the viewer is operated
during charging. Charging will stop until the battery cools down.
Getting Started 12
4 Pull out the battery. Then close the battery cover.
Turning On the Power
Slide the power switch down as shown below, then release it.
The activity light flashes for a moment then turns off.
Note:
If you remove the battery, the date and time settings will be
erased after about one day. The next time you turn on the
viewer, the date and time setting screen will be displayed.
Activity
light
Setting the Language, Date, and Time
The first time you turn on the viewer, you see the Language
setting screen:
Getting Started 13
Note:
If you see the Home screen instead (as shown in “Using the
Home Screen” on page 15), the language has already been
selected. To change it or check the date and time, select
Settings on the Home screen. Then follow the instructions in
“Date and Time” or “Language” on page 73.
1 Press OK to select English. You see a message about
setting the date.
2 Press OK. You see the Date and Time screen:
6 When you finish, highlight Complete and press OK.
You see the Home screen. See page 15 for details.
Note:
If you remove the battery, the date and time settings will be
erased after about one day. The next time you turn on the
viewer, the date and time setting screen will be displayed.
Locking the Buttons
You can lock the buttons on the viewer. This allows you to
place the viewer in a purse or backpack and use it with
headphones without accidentally pressing the buttons.
To lock the buttons, slide the power switch to Hold.
3 Press right or left on the 4-way ring to highlight a setting
to change.
4 Press up or down on the 4-way ring to change the
setting (such as the year).
5 After setting the date, set the date format.
To unlock the buttons, slide the power switch back to the
middle position.
Getting Started 14
Using the Home Screen
Icon
Whenever you turn on the viewer, the Home screen
appears. All operations can be started from this screen.
Hold icon
SD icon
CF icon
Battery icon
The following table summarizes the Home screen.
Icon
Function
Hold
icon
Indicates that the buttons are locked. See
“Locking the Buttons” (page 14).
Backup
Files
View folders and files backed up from memory
cards or USB devices.
My
Photos
View folders and files that you have copied
into the Photos folder. See “Viewing Images”
(page 27).
My
Videos
View folders and play videos that you have
copied into the Videos folder. See “Viewing
Videos” (page 32).
My
Music
Listen to music copied from your computer.
See “Playing Audio Files” (page 38).
Memory
Card
View files on memory cards or copy the files
to the viewer. See “Copying Files From a
Memory Card” (page 20).
USB
Device
Copy files to or from a USB device. See
“Using the Viewer With USB Devices” (page
48).
Function
Battery
icon
Indicates the remaining charge in the battery.
See “Charging the Battery” (page 11).
Settings
Check and adjust viewer settings. See
“Customizing Settings” (page 70).
CF icon
Indicates that a memory card is inserted in the
CompactFlash slot.
Print
Wizard
Edit and print photos you have copied to the
viewer. See “Printing” (page 60).
SD icon
Indicates that a memory card is inserted in the
SD slot.
Getting Started 15
Turning Off the Power
Saving Power
Before you turn off the viewer, make sure the memory card
access light is off. Then slide the power switch as shown
below, and hold it down for a few seconds until the activity
light flashes and the viewer turns off.
When you are not using the viewer, it goes into one of the
power-saving modes listed below. You can adjust the timing
for all of the power-saving modes; see “Power Save” on
page 71 for more information.
Memory card
access light
Activity
light
❍
The LCD screen turns dark after one minute of
inactivity. Press any button to turn it on.
❍
The LCD screen turns off after five minutes of
inactivity. Press any button to turn it on.
❍
The viewer turns off automatically after 10 minutes of
inactivity. Slide down the power switch to turn it back
on.
When the AC adapter is connected, the viewer plays a
screen saver after three minutes of inactivity instead of
turning off.
To customize the screen saver, see “Selecting a Screen
Saver” on page 58.
Getting Started 16
Chapter 2
Using Memory Cards
The viewer has two memory card slots: one for
CompactFlash or Microdrive™ cards, and one for SD
(Secure Digital) and MultiMediaCard cards.
This chapter explains how to insert and remove memory
cards and how to display and copy files.
Inserting and Removing Memory
Cards
The viewer supports the following types of memory cards:
❍
CompactFlash (Type2 and 3.3V)
❍
Microdrive
❍
Secure Digital (up to 2GB)
❍
SDHC (up to 32GB)
❍
MultiMediaCard
❍
MMCplus (up to 4GB)
With a CompactFlash adapter, you can use the memory
cards listed below in the CF Card slot:
❍
miniSD™ Card
❍
Memory Stick PRO Duo™
❍
Memory Stick™
❍
xD-Picture Card™
❍
Memory Stick Duo™
❍
SmartMedia Card
❍
Memory Stick PRO™ ❍ RS-MMC Card
Caution:
Make sure you follow all instructions included with your
memory card.
Never remove a memory card, or shake or drop the viewer
while the memory card access light is flashing. Doing so may
cause files to be lost or damaged.
Do not put labels or stickers on memory cards. The sticker may
peel off, preventing the card from being ejected and damaging
the viewer.
Avoid using or storing cards in direct sunlight, or in places that
are extremely hot, humid, or dusty.
Using Memory Cards 17
Using the CF Card Slot
You can use Type2 and 3.3V CompactFlash cards or
Microdrive cards in the CF Card slot. If you have a
CompactFlash adapter, you can also use other types of cards,
as described in “Inserting and Removing Memory Cards”
on page 17.
To remove a card from the CF Card slot, first make sure the
memory card access light is off. Then press the eject button
and pull out the card.
If the button is not sticking out, press it once to pop it out,
then press it again to eject the card.
Insert the memory card into the slot with the label facing
forward. Then push the memory card all the way into the
slot.
If you are using a CompactFlash adapter, put the card into
the adapter and insert the adapter into the slot.
Note:
If you are using a CompactFlash adapter, remove the adapter
from the viewer; do not remove only the memory card.
Caution:
Make sure you insert memory cards in the correct orientation.
Otherwise, the card and viewer may be damaged.
Using Memory Cards 18
Using the SD Card Slot
You can use Secure Digital, SDHC, MultiMediaCard, or
MMCplus cards in the SD Card slot.
To remove a card from the SD Card slot, first make sure the
memory card access light is off. Then press in on the top of
the card.
Insert the memory card into the slot as shown below. Then
push the memory card all the way into the slot.
When the card pops up, pull it out of the slot.
Caution:
Make sure you insert memory cards in the correct orientation.
Otherwise, the card and viewer may be damaged.
Using Memory Cards 19
Copying Files From a Memory Card
After you insert a memory card, you can browse the files and
decide what you want to do with them, or simply copy all
the files on the card to the viewer.
The files are copied to a folder that is automatically created
in the Backup Files folder on the viewer. The folder is
named according to the date and the date format you
selected, for example, 03292008M.001. Folders are
numbered in the order they are copied.
Note:
If the battery power is low, copying may not be completed. Use
the AC adapter when copying files.
If you want to change the name, see “Creating a New Folder
and Copying Files” on page 22.
Copying All Files
When the backup is complete, you see thumbnail images of
the copied photos.
1 Insert a memory card.
If the Memory Card menu doesn’t open automatically,
select Memory Card on the Home screen, then press
OK. You see the following menu:
Note:
The files on the memory card can be automatically deleted after
copying is complete. For details, see “Backup Settings” on
page 72.
To check the copied files, select Backup Files on the Home
screen, then press OK. Press OK again to select the folder
you just copied and display the files.
2 Select CF Memory Card Backup or SD Memory
Card Backup. Then press OK.
Using Memory Cards 20
Copying Selected Files
You can copy selected files directly from a memory card to a
new or existing folder in My Photos or My Videos.
6 Select Select and Copy Files, then press OK.
Checkboxes appear on each thumbnail image.
1 Insert a memory card.
If the Memory Card menu doesn’t open automatically,
select Memory Card on the Home screen, then
press OK.
Checkbox
Note:
To copy a single file, select the file you want to copy, press
Menu, and select Copy/Move. Select Copy this File, then
continue with step 8.
2 In the Memory Card menu, select Browse CF Memory
Card or Browse SD Memory Card.
3 Press OK. The files on the memory card appear in
thumbnail view.
4 Press the Menu button to display the pop-up menu.
7 Use the 4-way ring or jog dial to highlight each file you
want to copy, then press the button to select it. The
selected items are displayed with red check marks.
Note:
To select all files and folders, press Menu and choose
Select All.
8 When you’re finished selecting photos, press OK.
5 Select Copy/Move, then press OK.
Using Memory Cards 21
9 Use the 4-way ring to highlight My Photos or My
Videos, then press right on the 4-way ring to select it.
10 Do one of the following:
❍
To copy the items into the selected folder, press OK.
Your items are copied.
❍
To copy the items into a new subfolder, highlight
Create New Folder and press OK. Then see the
next section to enter a name for the new folder and
copy the items.
Creating a New Folder and Copying Files
You can create a folder and copy files to it from a memory
card, USB device, or from Backup Files.
1 To copy items to a new folder, follow the steps in the
previous section.
When you select Create New Folder and press OK, the
on-screen keyboard appears with the current date
entered as the default name for the folder.
Note:
It’s easier to manage your files if you copy them into a
folder you’ve named, instead of placing them in the root of
a main folder (such as My Photos or My Videos).
You can either keep the name or enter a new one.
2 To keep the current name, highlight Done and press
OK. Your files are copied to the new folder.
Using Memory Cards 22
3 To enter a new name, use the Back (backspace) button
to clear the current name. Then enter a new name using
the 4-way ring or jog dial (highlight each character and
press OK to enter it).
❍
To move the cursor forward or backward, press the
+ (plus) or – (minus) buttons.
❍
To delete the last letter input, press Back.
❍
To enter a space, press Menu.
❍
To switch between upper- and lowercase, press
Display.
❍
To cancel the name, highlight Cancel and press
OK.
4 After entering the name, highlight Done and press OK.
Your files are copied to the new folder.
Using Memory Cards 23
Chapter 3
Viewing Photos and Videos
After you have copied files from a memory card, you can
view or play them in various ways. This chapter explains
how to view photos and video files on your viewer and on a
TV or projector.
Using the Viewer Screen
The following illustrations identify the icons that appear on
the screen:
Indicates a locked file or folder
Indicates an unsupported file
Indicates a file with rating information
Indicates a file with a sound memo
Indicates a music file
Indicates a private folder
Indicates that the folder is set as the screen saver
Viewing Photos and Videos 24
❍
By default, unsupported files are not displayed. If you
want to change this setting, see “View Mode” on
page 71.
❍
Thumbnails of video files that have not been played
back, or have not been played back completely, are
displayed with
( ) or
( ) respectively (not
shown in mini-thumbnail view).
❍
Thumbnails of folders that have been backed up on
your computer in Backup Files are displayed with the
icon.
❍
Files in unsupported formats or with names that contain
unsupported characters may be displayed as “?”, and
may not be accessible.
Changing the Display
You can change the file view by pressing the Display button
while in a folder.
Thumbnails
(12 per screen)
Mini-thumbnails
(64 per screen)
Details
(file name, date modified,
and file size)
Using the Pop-up Menu
Press the Menu button at any time to display a menu of the
options currently available. These options vary, depending
on what you are doing with the viewer.
The following table summarizes the menu functions for
photo files:
Menu
Function
Rating Filter
Display
Displays only photos with the specified
rating (page 58).
Viewing Photos and Videos 25
Menu
Function
Menu
Function
Enhanced
Photo Display
Mode
Displays photo images using a wider color
gamut. See page 30.
Return to
HOME
Returns to the Home screen.
Delete
Deletes files or folders. See page 55.
Playback
Sound Memo
Plays the sound memo recorded with an
image file.
Copy/Move
Copies or moves files or folders. See
page 21.
Edit
Locks files or folders (page 57), renames
folders (page 54), or rotates photos
(page 31).
The following table summarizes the menu functions for
video files:
Menu
Function
Copy/Move
Copies or moves files or folders (page 21).
Edit
Locks files or folders (page 57), renames
folders (page 54), or rotates photos
(page 31).
Sort
Organizes the files in a folder by date,
name, or file extension.
Print
Prints photo images. See page 66.
Sort
Wallpaper and
Icon Settings
Selects an image to be used as
background for a folder or the Home
screen. See page 58.
Organizes the files in a folder by date,
name, or file extension.
Play from
Beginning
Restarts playback from the beginning of
the video file.
Set as Screen
Saver
Creates a screen saver from the images in
a folder. See page 58.
Play Settings
Adjusts the screen size of a video. See
page 72.
Slide Show
Starts displaying the images in a folder as a
slide show. See page 30.
Set This
Frame as Icon
Sets the currently displayed frame as the
video’s thumbnail image.
Settings
Adjusts LCD brightness, turns the guide
and key beep on or off, and sets display
options for private folders and unsupported
files. See pages 72 to 73.
Display mode
Adjusts the display mode for video files.
Viewing Photos and Videos 26
Menu
Function
Viewing Images
Settings
Adjusts LCD brightness, turns the guide
and key beep on or off, and sets display
options for private folders and unsupported
files. See pages 72 to 73.
After you have copied files from a memory card you can
view them in various ways. You can display the images at
full screen, zoom in, or show several types of photographic
information.
Return to
HOME
Returns to the Home screen.
Delete
Deletes files or folders. See page 55.
1 Use the 4-way ring or jog dial to select My Photos or
Backup Files.
Supported Image Formats
files
Extension
Details
JPEG
.jpg
.jpeg
Minimum size: 320 × 240 pixels
Maximum size: 31 megapixels
Maximum image aspect ratio: 3:1
RAW
.arw
.cr2
.crw
.dng
.erf
.mrw
.nef
.orf
.pef
.raf
JPEG data stored in the header of
RAW files is displayed.
2 Press OK.
3 Select the folder containing the images you want to
view, then press OK.
Note:
TIFF files and progressive JPEG files are not supported.
For DNG files, the viewer supports only the JPEG preview
embedded in the file.
Viewing Photos and Videos 27
You see a screen like this:
Zooming an Image
You can zoom RAW and JPEG images up to 400%.
4 Use the 4-way ring or jog dial to select the image you
want to view, then press OK. The selected image is
enlarged to fill the screen.
Note:
If your image file contains a sound memo (WAV format),
you can listen to it during full screen display. To listen to the
sound memo, press the Menu button and select Playback
Sound Memo.
❍
To zoom in on an image, press the + (plus) button. Keep
pressing it to zoom in up to 400%.
❍
To zoom out, press the – (minus) button. Continue
pressing it to zoom all the way out.
❍
To pan around a zoomed image, use the 4-way ring.
❍
To return to the normal full-screen view, press Back.
❍
To select an area to zoom in, press OK when a full-screen
image is displayed. Use the 4-way ring to move the red
box to the area you want to zoom, then press OK again.
When you are viewing a zoomed-in image, you can use the
jog dial to display the next or previous photo without
changing the zoom.
Viewing Photos and Videos 28
Displaying Image Information
You can view image information, a histogram, and display
an over- and under-exposure preview.
3 To view the over- and under-exposure preview, press
Display a third time:
1 To view the file name and date for a full-screen image,
press the Display button.
2 To view image information, and a histogram, press
Display again:
In the over- and under-exposure preview, highlight
and shadow areas show graduated tone reversal. The
brightest 6% of the image shows 4 levels of black, and
the darkest 6% shows 4 levels of white.
4 To return to normal display, press the Display button
again.
Viewing Photos and Videos 29
Displaying a Wider Color Gamut
Displaying Images as a Slide Show
Images are displayed in the color space they were captured
in, either sRGB or AdobeRGB. You can also display images
in a wider color gamut and correct color casts, backlighting,
under-exposure, and low-contrast images with Enhanced
Photo Display Mode.
You can display images in a folder as a slide show and select
transition effects, timing, and background music.
1 Select a folder you want to display as a slide show.
2 Press the Menu button to display the pop-up menu:
Note:
Enhanced Photo Display Mode affects only the image shown on
the viewer, and does not change the file itself. The Menu,
Display, , + (plus), and – (minus) buttons are not available in
this mode.
1 When you are viewing a full-screen image, press Menu
and select Enhanced Photo Display Mode. You can
use the 4-way ring or jog dial to view the next or
previous photo in Enhanced Photo Display Mode.
2 To return to normal display, press Back.
3 Select Slide Show and press OK. The slide show starts.
To stop the slide show, press Back.
4 To adjust the timing, effects, and music, press Menu
while the slide show is playing.
Viewing Photos and Videos 30
5 Select one of the following, then press OK and adjust the
settings as noted.
❍
LCD Brightness: Choose from 10 brightness levels.
❍
Slide Show Duration: Choose the time between
slide transitions, from 1 to 30 seconds.
❍
❍
Slide Show Music: Choose from three preset
music selections or a playlist that you have created.
You can use the jog dial or the + (plus) and
– (minus) buttons to adjust the volume while the
slide show is playing.
Slide Show Effects: Choose from 4 transition
effects, Enhanced Photo Display, or choose None
to move through your images without transitions.
❍
Return to HOME: End the slide show and return to
the Home screen.
You can also adjust slide show options by selecting Settings
on the Home screen. See “Slide Show” on page 72 for
details.
Rotating an Image
Images that contain rotation information are automatically
rotated on the viewer. You can also rotate an image
manually in Backup Files and My Photos.
1 Select the image in thumbnail view, then press the
Menu button to display the pop-up menu.
2 Select Edit, then press OK.
3 Select Rotate Right to rotate the image 90° clockwise,
or Rotate Left to rotate it 90° counterclockwise.Then
press OK. You see your photos displayed with white
checkboxes.
4 Use the 4-way ring to highlight each photo you want to
rotate, and press to select it. The selected items are
displayed with red check marks.
5 Press OK to rotate the photos.
Note:
To rotate a photo displayed full-screen, press Menu, select Edit,
then select Rotate and press OK. Then select Right or Left and
press OK. To rotate other photos in the folder, press right or left
on the 4-way ring.
You can turn off the Auto-Rotation feature. See “Backup
Settings” on page 72 for details.
Viewing Photos and Videos 31
Viewing Videos
The viewer supports video files in resolutions ranging from
320 × 240 pixels to 720 × 576 pixels, with file sizes up to
2GB.
Supported Video Formats
File
format
Video
codec
Audio codec
.avi
MPEG
G.711, PCM,
QT LPCM,
ADPCM,
MS ADPCM,
IMA ADPCM,
MS IMA
ADPCM,
G.722, G.726
File
format
Video
codec
Audio codec
.mov
MPEG-4
(Advanced
Simple
Profile)
AAC-LC, PCM,
QT LPCM,
ADPCM,
MS ADPCM,
IMA ADPCM,
MS IMA
ADPCM,
G.722, G.726
Motion
JPEG
G.711, PCM,
QT LPCM,
ADPCM,
MS ADPCM,
IMA ADPCM,
MS IMA
ADPCM,
G.722, G.726
H.264/AVC
(Baseline
Profile)
AAC-LC
H.264/AVC
(Baseline
Profile
Level 1.3)
PCM, QT LPCM
Detail
30 fps: 720 × 480
25 fps: 720 × 576
60 fps: QVGA
Detail
30 fps: 720 × 480
25 fps: 720 × 576
8 Mbps (peak)
4 Mbps (avg.)
30 fps: 720 × 480
25 fps: 720 × 576
60 fps: QVGA
30 fps: 720 × 480
25 fps: 720 × 576
3 Mbps (peak)
2.5 Mbps (avg.)
Viewing Photos and Videos 32
File
format
Video
codec
Audio codec
.mp4
m4v
MPEG-4
(Advanced
Simple
Profile)
AAC-LC, PCM,
QT LPCM,
ADPCM,
MS ADPCM,
IMA ADPCM,
MS IMA
ADPCM,
G.722, G.726
H.264/AVC
(Baseline
Profile
Level 1.3)
AAC-LC,
QT LPCM
Detail
30 fps: 720 × 480
25 fps: 720 × 576
8 Mbps (peak)
4 Mbps (avg.)
30 fps: 720 × 480
25 fps: 720 × 576
3 Mbps (peak)
2.5 Mbps (avg.)
Playing Videos
You can transfer video files directly from memory cards as
described in “Copying Files From a Memory Card” on
page 20. Or you can copy and convert video files from your
computer, as described in “Copying Files From Your
Computer to the Viewer” on page 46.
1 Use the 4-way ring or jog dial to select Backup Files or
My Videos, then press OK.
3 Use the 4-way ring or jog dial to select the video you
want to play, then press OK.
Note:
You can set the video screen size by selecting Play at Full
Screen or Play at Original Size from Play Settings in the
pop-up menu. Setting Play at Full Screen displays the image by
adjusting the longest side to the LCD display without changing
the aspect ratio.
❍
To play or pause the video, press OK.
❍
To adjust the audio volume, use the jog dial or press the
+ (plus) or – (minus) buttons.
❍
To rewind or fast-forward, press left or right on the
4-way ring. Press repeatedly to increase the speed. (This
function may not work with some videos, such as .mov).
❍
To stop the video and return to the previous screen,
press Back.
The viewer remembers where you stopped. When you
resume, playback starts 3 seconds before the stop point
(for videos longer than 1 minute). If you want to play
the video from the beginning, press Menu, select Play
Settings, then select Play from Beginning.
2 Select the folder containing the video you want to play,
then press OK.
Viewing Photos and Videos 33
❍
To view information about the video, press Display.
You see a progress bar on the video. Press Display again
to view information including frame rate, bit rate, and
video and audio codecs:
3 Select one of the following:
❍
Home video: for camcorder video (the default
setting)
❍
Cinema: for increased contrast and color saturation
❍
Nature: to display video in a wider color space than
sRGB
❍
Power saving: to decrease the brightness of the
LCD backlight and save battery life
❍
Original: to display video with the most accurate
color and brightness
4 Press OK to return to the video.
Setting the Display Mode
You can choose from five different modes to adjust the
color, brightness, and contrast for various types of videos.
1 While a video is playing, press the Menu button to
display the pop-up menu.
2 Select Display mode, then press OK.
Viewing Files on a TV
You can connect the viewer to a TV or projector and view
your images, videos, and slide shows.
You will need a camcorder AV cable (3.5-mm mini-plug to
3 RCA plugs), available at many electronics stores.
1 Connect the cable’s three RCA plugs to the video and
audio IN jacks on your TV or projector.
Viewing Photos and Videos 34
2 Connect the cable’s mini-plug to the A/V Out jack on
the side of the viewer.
Changing the File View Mode
You can switch between two file display modes in My
Photos. Folder View displays files in their folders on the
viewer. DSC View displays all files in one folder.
1 Use the 4-way ring or jog dial to select My Photos or
Backup Files.
The viewer’s LCD screen turns off.
3 Set the TV or projector to display video input from the
viewer.
You can use all of the viewer’s controls to play slide shows,
photos, and videos on your TV or projector.
Note:
You may need to set the Video Out setting to match your TV
(see page 71).
2 Press OK.
3 Press the Menu button, select Settings, then press OK.
4 Select Folder View or DSC View, then press OK.
Some TVs may crop your images on the top and bottom, or you
may notice some flickering, for example, near the edges of the
screen. This is a normal result of your viewer’s high image
resolution.
Viewing Photos and Videos 35
Chapter 4
Playing Music
You can transfer audio files from your computer and play
them on the viewer. You can create playlists using the Epson
Link2 software on your computer, or using the viewer itself.
This chapter describes how to transfer and play music, and
how to manage your audio files on the viewer.
Copying Music From Your Computer
First, make sure you have installed the Epson Link2
software, following the instructions in your P-6000/P-7000
Basics guide.
WMA and WAV files are automatically converted to M4A
when they are transferred. You can specify conversion
settings if necessary; see “Setting Backup and Conversion
Preferences” on page 47 for instructions.
1 Connect the AC adapter to the viewer and plug it in.
2 Turn on the viewer and your computer.
3 Use the included USB cable to connect the viewer to
your computer.
If you want to copy files from a music CD, you first need to
convert the files to MP3 or M4A format using a CD
copying software on your computer. You can also use this
software to change the song and artist names displayed on
the playlist if necessary.
Larger end
Smaller end
Playing Music 36
4 Make sure the viewer is on the Home screen, then press
the button to connect to your computer.
The LCD screen turns off.
5 Double-click the Epson Link2 icon on your desktop
to open the program.
6 Click My Music on the screen, then locate the audio
files you want to copy from your computer.
Caution:
Epson Link2 uses ID3 tags to organize your music files. If
the ID3 tag information is missing, these items will appear
as “unknown.” The viewer will rename your files to make
them playable. Always keep backup copies of your songs,
and never transfer your only copies to the viewer.
7 Click the
down arrow in the center of the screen to
transfer the files to your viewer.
8 When the transfer is finished, disconnect the viewer
from your computer:
❍
Windows®: Right-click the
or
icon in the
lower right corner of your screen and select Safely
Remove Hardware or Unplug or Eject
Hardware. Then remove the USB cable.
❍
Macintosh: Drag and drop the viewer icon to the
trash, then remove the USB cable.
9 If you see a message on the viewer asking you to update
the music list, click OK.
Note:
Only audio files transferred from a computer can be displayed in
My Music. If you want to play a music file copied from a
memory card, select it in Backup Files, then press OK to play it.
Playing Music 37
Supported Audio Formats
Playing Audio Files
The viewer can store up to 10,000 audio files. It supports
the following audio formats without copyright protection
and with a maximum file size of 200MB:
You can connect headphones to the
jack on top of the
viewer, or listen through the viewer’s built-in speaker.
Audio file
extensions
Audio codec
Details
.m4a
AAC (MPEG4)
Maximum bit rate: 320 kbps
(8 to 48 kHz, 16 bit, stereo,
mono)
.mp3
MP3
(MPEG2.5Layer 3)
Bit rate: 8 to 160 kbps
(8 to 12 kHz, 16 bit,
stereo, mono)
MP3 (MPEG2Layer 3)
Bit rate: 8 to 160 kbps
(16 to 24 kHz, 16 bit,
stereo, mono)
MP3 (MPEG1Layer 3)
Bit rate: 32 to 320 kbps
(32 to 48 kHz, 16 bit,
stereo, mono)
Note:
The viewer supports non-lossless-compliant M4A and WMA
files. Some files may not be played, even if the formats are
supported.
1 Select My Music on the Home screen using the 4-way
ring or jog dial, then press OK.
2 Select Music List, then press OK. If you don’t see the
songs you transferred to the viewer, select Update
Music List and press OK.
Note:
To continue playing from a previously played track, select
Resume, then press OK.
Playing Music 38
3 Select a category to start playing, then press right on the
4-way ring.
4 Select the track you want using the 4-way ring, then
press OK.
You can narrow your search by selecting one of the
categories and navigating its subcategories using the
4-way ring. Select All to include all items in the list.
You can do the following while listening to music or audio
files.
❍
To play or pause music, press OK.
❍
Artist - Artist name - Album name - Track name
❍
❍
Album - Album name - Track name
To adjust the volume, use the jog dial or press the
+ (plus) or – (minus) buttons.
❍
Genre - Genre name - Artist name - Album name Track name
❍
To skip back or forward, press left or right on the 4-way
ring. Press and hold to rewind or fast-forward.
❍
All - Track name
❍
❍
Playlist - Playlist name - Track name
(for details, see “Creating a Playlist” on page 40)
To return to the previous screen (without stopping the
audio), press Back. (If you return to the main My Music
screen, audio playback stops.)
❍
Update Music List (to update audio data after
transferring from your computer.)
❍
To display information about the audio file such as
codec, bit rate, and sampling rate, press Display.
Playing Music 39
Setting Repeat and Shuffle Options
Creating a Playlist
In My Music, press the Menu button, select Play Mode,
and press OK. Set the following items using the 4-way ring
or jog dial, then press OK.
You can create playlists using the Epson Link2 software, or
on the viewer itself. Follow the steps below to create a
playlist using Epson Link2, or see “Creating a Playlist on the
Viewer” on page 41.
First select either Shuffle or Normal Play Order to set the
playback order, then select the desired repeat play mode.
1 Connect the viewer to your computer as described on
page 36.
To play...
Select...
Current category once
No Repeat
2 Double-click the Epson Link2 icon on your desktop
to open the program.
Current track repeatedly
Repeat One Song
3 Click Playlist on the left side of the screen.
Current category repeatedly
Repeat All
4 Click the
Current category in random order
Shuffle
Current category in normal order
repeatedly
Normal Play Order
icon in the lower right corner.
Playing Music 40
5 Enter a name for the playlist.
6 Select the songs you want to add. If you want to add all
the songs from an album or by an artist, you can select
the album or artist.
The on-screen keyboard appears, with Playlist001 as
the default name.
7 Click the down arrow in the center of the screen to add
the songs to your playlist.
After you have created playlists, you can use the buttons in
the lower right corner of the screen to rearrange the songs
and edit the lists.
Creating a Playlist on the Viewer
You can also create and edit playlists on the viewer.
1 In My Music, press the Menu button to display the
pop-up menu.
2 Select Add to Playlist, then press OK.
4 To use this name, highlight Done and press OK.
To enter a new name, use the Back (backspace) button
to clear the current name. Then enter a new name using
the 4-way ring or jog dial (highlight each character and
press OK to enter it).
❍
To move the cursor forward or backward, press the
+ (plus) or – (minus) buttons.
❍
To delete the last letter input, press Back.
❍
To enter a space, press Menu.
❍
To switch between upper- and lowercase, press
Display.
❍
To cancel the name, highlight Cancel and press OK.
3 Select Create New Playlist, then press OK.
Playing Music 41
5 After entering the name, select Done, then press OK.
Removing Tracks From a Playlist
6 Select the tracks for the playlist using the 4-way ring
and the button. The selected files are displayed with
red check marks.
1 Select a playlist in My Music, then highlight a track you
want to remove.
If you want to select all the tracks displayed, press
Menu and select Select All.
7 When you have selected all the tracks you want,
press OK.
Note:
To delete a playlist, select it in My Music, press Menu, select
Delete this Playlist, then press OK.
2 Press Menu, select Delete, and press OK.
3 Select each track you want to remove using the 4-way
ring and the button, then press OK.
The tracks are removed from the playlist, but not
deleted from the viewer.
Changing the Order of a Playlist
1 Select a playlist in My Music then press OK.
Adding Tracks to an Existing Playlist
1 Display a list of songs in My Music, then press Menu.
2 Select Add to Playlist, then press OK.
3 Select the list you want to add to, and press OK.
4 Select the tracks for the playlist using the 4-way ring and
the button, then press OK.
2 Select a track you want to move.
3 Press Menu, then select Change Song Order.
4 Press up or down on the 4-way ring to move the track
within the playlist.
5 When the track is where you want it, press OK.
6 Repeat steps 2 through 5 to change the order of
additional tracks. When you’re finished, press Back.
Playing Music 42
Using the Equalizer
You can use the equalizer to select from 7 music type
settings or create a customized setting of your own.
1 In My Music, press the Menu button to display the
pop-up menu.
4 Adjust the level of each frequency using the 4-way ring,
then press OK.
Note:
You may need to listen with headphones to hear the effects of
the various settings.
2 Select Audio Equalizer Setting.
Deleting Audio Files From the Viewer
3 Select the setting you want and press OK.
❍
Normal
❍
Pop
1 In My Music, press the Menu button to display the
pop-up menu.
❍
Jazz
❍
Live
2 Select Delete.
❍
Classical
❍
Full Bass
❍
Rock
3 Select audio files to delete using the 4-way ring and the
button.
To create a custom setting, select Custom and press
OK.
4 Once you have selected all the files you want to delete,
press OK. You see a confirmation message.
5 Select Yes, then press OK.
Playing Music 43
Chapter 5
Managing Files
You can back up files from the viewer to your computer,
and copy files from your computer to the viewer. You can
also transfer files to and from USB devices.
2 Use the included USB cable to connect the viewer to
your computer.
This chapter explains how to work with the files and folders
on your viewer and transfer them between the viewer and
other devices.
Copying Files To and From Your
Computer
You can use the Epson Link2 software to back up files from
the viewer to your computer and copy files from your
computer to the viewer. Make sure you have installed the
software, following the instructions in your P-6000/P-7000
Basics guide.
1 Connect the AC adapter to the viewer and plug it in.
Then turn on the viewer and your computer.
Larger end
Smaller end
3 Make sure the viewer is on the Home screen, then press
the button to connect to your computer.
The LCD screen turns off.
Note:
Although your computer may recognize the viewer as a
removable drive, it is best to transfer files using the Epson Link2
software.
Managing Files 44
Caution:
When the viewer is connected to a computer, do not connect a
USB device to the Host USB port on the viewer. Do not change
the names of any folders on the viewer from your computer, or
the viewer may become unusable.
Backing Up Files to Your Computer
You can back up files to your computer automatically or
manually. First, make sure you connect the viewer as
described on page 44.
1 Double-click the Epson Link2 icon on your desktop
to open the program.
2 If you see a message that Epson Link2 has found files in
your viewer’s Backup Files folder, click Yes to copy the
files.
Note:
Only files that haven’t already been copied will be
transferred.
3 To transfer files manually, click the Backup icon on the
left side of the screen, then click the
icon in the
middle of the screen.
All the files in the Backup Files folder of the viewer are
copied to your computer.
By default, the files are copied to the Epson Link2
Backup folder in Documents or My Documents.
If you want to change the location or turn off the
automatic backup feature, see “Setting Backup and
Conversion Preferences” on page 47.
4 If a confirmation dialog box is displayed, select whether
to delete or keep the transferred files in the viewer.
Note:
You can also select individual video or photo files to transfer
from the viewer to your computer. For instructions, click the ? in
the upper right corner of the Epson Link2 screen.
Managing Files 45
Copying Files From Your Computer to the
Viewer
Disconnecting the Viewer From Your
Computer
You can copy photos, videos, and music from your
computer to the viewer. For instructions on copying music,
see “Copying Music From Your Computer” on page 36.
When you are finished transferring files between your
computer and the viewer, make sure you follow these steps
to disconnect.
WMV files are automatically converted to MP4 when they
are transferred, and videos that exceed 2GB are
automatically divided into multiple files.
1 Do one of the following:
❍
Windows: Right click the
or
icon in the
lower right corner of your screen and select Safely
Remove Hardware or Unplug or Eject
Hardware.
❍
Macintosh: Drag and drop the viewer icon to the
trash.
If you want to specify conversion settings, see “Setting
Backup and Conversion Preferences” on page 47.
1 Connect the viewer to your computer as described on
page 44.
Epson Link2 icon on your desktop
2 Double-click the
to open the program.
2 Remove the USB cable from your computer.
3 Remove the USB cable from the viewer.
3 Select Photos, Videos, or Music, depending on the
type of files you want to transfer.
4 Select the files to transfer in the Computer window,
then click the
down arrow in the center of the screen.
The files are transferred to the viewer.
Note:
You can also transfer files by dragging and dropping them into
the lower contents window. For more information, click the ? in
the upper right corner of the Link2 screen.
Managing Files 46
Setting Backup and Conversion Preferences
The Settings window appears.
You can use the Settings window in Epson Link2 to change
the folder where files from the viewer are saved on your
computer.
You can also change the conversion settings for video files
transferred from your computer to the viewer. In Windows,
you can also change the conversion settings for audio files.
Epson Link2 icon on your desktop
1 Double-click the
to open the program.
2 Click the
the screen.
settings icon in the upper right corner of
Managing Files 47
3 If you don’t want to have files from the viewer
automatically backed up on your computer, deselect the
Copy backup data to the computer checkbox. You
can still back up files manually, as described on page 45.
4 If you want to specify the conversion settings for video
files, click the arrow next to Normal in the Movie File
box.
6 If you want to change the folder where files are backed
up on your computer, you can adjust the Store Folder
Settings. The default folder is Epson Link2 Backup in
My Documents (Windows XP or 2000) or Documents
(Windows Vista® or Macintosh).
7 When you are finished, click OK.
Select Normal, High Quality, High Compression,
Custom, or No Conversion.
For more information about backup and conversion settings
in Epson Link2, click the ? in the upper right corner of the
Epson Link2 screen.
Selecting Custom allows you to specify the resolution,
frame rate, and bit rate.
Using the Viewer With USB Devices
Choose higher settings for improved video quality, or
lower settings for reduced file sizes. Frame rates lower
than 29.97 may cause flicker or poor quality video.
5 If you want to specify the conversion settings for music
files, click the arrow next to Normal in the Music File
box (Windows only).
Select Normal, High Quality, High Compression, or
Custom.
Selecting Custom allows you to specify the sampling
rate and bit rate. Choose higher settings for improved
audio quality, or lower settings for reduced file sizes.
You can connect a flash memory drive or other USB device
to your viewer and copy files to or from the device.
The viewer supports devices that are compatible with the
USB Mass Storage specification, including:
❍
Digital cameras
❍
Flash memory drives
❍
Memory card readers
❍
External hard drives
❍
Epson multimedia storage viewers
Managing Files 48
Note:
USB hubs are not supported, and some USB devices may not
work without a power connection. Epson cannot guarantee the
compatibility of any device.
Note:
To prevent a possible malfunction, do not use both USB
connectors on the viewer at the same time.
3 Turn on the viewer and the USB device if necessary.
Connecting a USB Device
Before you connect a USB device, connect the AC adapter
to the viewer and plug it in if possible. If your USB device
has an AC adapter, use it to prevent the possible loss of files
during transfer.
1 Open the connector cover on the side of the viewer.
2 Plug the device into the Host USB connector on the
side of the viewer.
Copying Files to the Viewer
After you connect a USB device, you can copy all the files to
the viewer, or select individual files to copy.
1 On the Home screen, use the 4-way ring to highlight
USB Device, then press OK. You see the USB Device
menu:
If the device has a USB cable, connect one end of the
cable to the device and the other end to the Host USB
connector on the viewer.
2 Select Connect to USB device, then press OK.
Managing Files 49
3 Do one of the following:
❍
To copy all files, select Backup USB device to
Viewer, then press OK. The files are copied to a
9 Use the 4-way ring to highlight My Photos or My
Videos, then press right on the 4-way ring to select it.
folder that is automatically created in the Backup
Files folder on the viewer.
10 Do one of the following:
The folder is named according to the date, for
example, 03292008M.001. You can change the
date format by selecting Settings > Date and
Time on the Home screen (see page 73). Folders
are numbered in the order they are copied.
Skip to step 11.
❍
8 When you are finished selecting files, press OK.
To copy selected files, select Browse USB Device
in the USB Device menu, then press OK. You see
your files displayed in thumbnail view.
Continue with the steps below.
4 Press the Menu button to display the pop-up menu.
❍
To copy the items into the selected folder, press OK.
Your items are copied.
❍
To copy the items into a new folder, highlight
Create New Folder and press OK. Then continue
with step 2 on page 22 to enter a name for the new
folder and copy the items.
Note:
It’s easier to manage your files if you copy them into a
folder you’ve named, instead of placing them in the root of
a main folder (such as My Photos or My Videos).
11 Wait until all the files are copied, then disconnect the
USB device.
5 Select Copy/Move, then press OK.
6 Select Select and Copy Files, then press OK. Small
white checkboxes appear on each thumbnail image.
7 Use the 4-way ring to highlight each file you want to
copy, then press the button to select it. The selected
items are displayed with red check marks.
Managing Files 50
Copying Files to a USB Device
4 Select Copy all Backup Files.
You can copy all the files or selected files from the viewer to
a USB device.
If your USB device has an AC adapter, connect the adapter
and plug it in before starting.
Backing Up All Files to a USB Device
This process may take some time, depending on the volume
of data in the viewer.
1 Follow the instructions on page 49 to connect the USB
device.
2 On the Home screen, use the 4-way ring or jog dial to
highlight USB Device, then press OK.
3 In the USB Device menu, select Connect to USB
Device, then press OK.
5 Press OK, then wait while the files are copied.
Copying Selected Files to a USB Device
You can select individual files or folders to copy.
1 Follow the instructions on page 49 to connect the USB
device.
2 Select the file or folder you want to copy.
Managing Files 51
3 Press the Menu button.
8 Use the 4-way ring to highlight USB Device, then press
right on the 4-way ring to select it.
9 Do one of the following:
4 Select Copy/Move, then press OK.
5 Select Select and Copy Files, then press OK. Your
photos are displayed with white checkboxes.
6 Use the 4-way ring or jog dial to highlight each file you
want to copy, then press the button to select it. The
selected items are displayed with red check marks.
7 When you are finished selecting files, press OK.
❍
Select a folder to copy the items into, then press
OK. Your items are copied.
❍
To copy the items into a new folder, highlight
Create New Folder and press OK. Then see
“Creating a New Folder and Copying Files” on
page 22 to enter a name for the new folder and copy
the items.
10 When the copy is complete, you can disconnect the
device.
Setting Folders as Private
You can select and hide folders so that other people cannot
view the files.
Note:
Even if folders are set as private folders on the viewer, they may
still be viewed on a computer, depending on the computer
setting.
1 Using the 4-way ring, select a folder you want to hide.
2 Press the Menu button, select Settings, then press OK.
Managing Files 52
3 Select Show Private Folders, then press OK.
You see your folders displayed:
You see the Password screen:
4 If you have already set a password for your viewer, enter
the 4-digit password number using the 4-way ring, then
press OK.
If you have not set a password, leave the password at the
default setting, 0000, and press OK. For instructions on
setting a password, see “Backup Settings” on page 72.
5 Select a folder you want to set as private, then press the
Menu button.
6 Select Settings, select Set/Unset as Private, and press
OK.
7 Use the 4-way ring to highlight each folder you want to
set as private, and press to select it. The selected items
are displayed with red check marks.
8 Once you have selected all the folders you want to set as
private, press OK.
Note:
To select all files and folders, press Menu and select Select
all, then press OK.
To hide the folders set as private, select Hide Private
Folders in step 3. To show private folders, select Show
Private Folders in step 3.
Managing Files 53
Renaming a Folder
Note:
Folders in Backup Files can’t be renamed.
1 Using the 4-way ring, select a folder to rename.
❍
To enter a space, press Menu.
❍
To switch between upper- and lowercase, press
Display.
❍
To cancel the name, highlight Cancel and press OK.
2 Press Menu, select Edit, then press OK.
5 After you enter the name, select Done, then press OK.
3 Select Rename, then press OK. You see the on-screen
keyboard:
Copying and Moving Files to a Folder
1 Open a folder to a thumbnail view, as shown below, and
highlight the file or folder you want to copy or move.
Highlight a file
4 Use the Back (backspace) button to clear the current
name. Then enter a new name using the 4-way ring
(highlight each character and press OK to enter it).
❍
To move the cursor forward or backward, press the
+ (plus) or – (minus) button.
❍
To delete the last letter input, press Back.
2 Press the Menu button, then select Copy/Move.
Managing Files 54
3 Do one of the following:
❍
❍
To copy files to another folder, select Select and
Copy Files, then press OK.
To move files to another folder, select Select and
Move Files, then press OK.
Note:
To copy or move a single file, select the file you want to
copy or move, press Menu, and select Copy/Move. Select
Copy this File or Move this File, then continue with step 5.
4 Use the 4-way ring or jog dial to highlight each
additional item you want to copy or move, then press
to select it. The selected items are displayed with red
check marks.
Tip:
To select all files and folders, press Menu and choose
Select All.
5 Press OK.
6 Use the 4-way ring to select a folder to copy or move the
items to.
7 Do one of the following:
❍
To copy or move the items into the selected folder,
press OK. Your items are copied or moved.
❍
To copy or move the items into a new subfolder
within the selected folder, highlight Create New
Folder and press OK. Then see “Creating a New
Folder and Copying Files” on page 22 to enter a
name for the new folder and copy or move the
items.
Tip:
It’s easier to manage your files if you copy or move them
into a folder you’ve named, instead of placing them in the
root of a main folder (such as My Photos or My Videos).
Deleting Files and Folders
You can delete files and folders from the viewer using the
menu and buttons as described below. To use the Link2
software for deletion, click the ? in the upper right corner of
the Link2 screen.
1 Select a file or folder to delete.
2 Press Menu, select Delete, then press OK.
Managing Files 55
Checkboxes appear on each thumbnail image:
5 If you are viewing a full-screen photo, press Menu and
select Delete to enter deletion mode.
Checkbox
3 Use the 4-way ring or jog dial to highlight each file or
folder you want to delete, and press to select it. The
selected items are displayed with red check marks.
4 Press OK.
Note:
To select all files and folders, press Menu and select Select
all, then press OK.
Select Delete again, then press OK. You can display
additional photos to delete by pressing right or left on
the 4-way ring. (To cancel deletion mode, select Cancel
and press OK, or press the Back button.)
6 When the confirmation message appears, select Yes,
then press OK.
Managing Files 56
Locking Files and Folders
5 Press OK to lock the files or folders.
You can lock selected files or folders so they cannot be
deleted or rotated. When a file or folder is locked, the
icon is displayed.
6 If you are viewing a full-screen photo, press Menu,
select Edit, then select Lock/Unlock to enter lock mode.
1 Select a folder or file to lock.
2 Press the Menu button to display the pop-up menu.
3 Select Edit, then select Lock/Unlock and press OK.
Checkboxes appear on each thumbnail image:
Checkbox
4 Use the 4-way ring to highlight each file or folder you
want to lock, and press to select it. The selected items
are displayed with red check marks.
Select Lock or Unlock then press OK. You can display
additional photos to lock by pressing right or left on the
4-way ring. To cancel, select Cancel and press OK or
press the Back button.
Note:
The lock on the folder or file remains in effect until you
unlock it, even if you turn off the viewer.
Note:
To select all files and folders, press Menu and select Select
all, then press OK.
Managing Files 57
Setting a Folder Icon or Home Screen
Wallpaper
You can set your favorite file as an icon for the folder or
“wallpaper” for the Home screen.
1 Select the file you want to use.
Selecting a Screen Saver
You can select a folder to be used as a screen saver. The
photos in the folder will be displayed as a slide show when
the viewer is plugged in using the AC adapter and is inactive
for 3 minutes.
2 Press Menu, then select Wallpaper and Icon Settings,
then press OK.
If you want to change the timing for the screen saver, see
“Power Save” on page 71. If you want to change the
transition effects, see “Slide Show” on page 72.
3 Select Set as Folder Icon or Set as Wallpaper of
HOME, then press OK.
1 Select a folder, then press Menu to display the pop-up
menu.
Rating Photos
You can rate your photos from one to five stars. This lets
you filter your photos for display according to their rating.
When you copy a rated file to your computer, you must use
the Epson Link2 software to copy the rating information.
You can then move your rated files into certain Adobe
applications.
To rate a single photo, select it in My Photos or Backup
Files, then press the button to rate it. Continue pressing
the button to increase the rating up to 5, or remove the
rating.
2 Select Set as Screen Saver, then press OK.
Note:
To cancel the setting, select Don’t Use as Screen Saver.
Monitoring the Color of Images
You can display images from Adobe Photoshop® on the
viewer to maintain color accuracy when editing your images.
Make sure you have installed the USB Monitor Plug-in,
following the instructions in your P-6000/P-7000 Basics
guide.
1 Connect the AC adapter to the viewer and plug it in.
Then turn on the viewer and your computer.
Managing Files 58
2 Use the included USB cable to connect the viewer to
your computer.
Larger end
Smaller end
3 On the Home screen, use the 4-way ring to highlight
USB Device, then press OK.
4 In the USB Device menu, select USB Display.
Monitoring begins automatically.
5 When you’re finished, disconnect the USB cable from
the viewer and computer.
Managing Files 59
Chapter 6
Printing
You can print photos or videos by connecting the viewer to
a PictBridge-compatible printer, such as the Epson Stylus®
Photo R380, 1440, R1900 and R2400.
Check the Epson website to get the latest information on
supported printers. See “Where To Get Help” on page 80.
Depending on your printer model and settings, you can use
the following types of paper.
❍
Epson Ultra Premium Photo Paper Glossy
❍
Epson Premium Photo Paper Glossy
❍
Epson Premium Photo Paper Semigloss
❍
Epson Photo Paper Glossy
Connecting the Viewer to a Printer
Refer to your printer manual to locate the external device
USB connector on the printer, which may be labeled or
EXT. I/F.
1 Connect the AC adapter to the viewer, then connect the
small end of the USB cable to the Device USB
connector on the viewer.
For details about paper, see your printer documentation.
2 Turn on the viewer.
Printing 60
3 Connect the other end of the cable to the USB
connector on the printer.
Selecting a Photo
1 Select Print Wizard on the Home screen using the
4-way ring or jog dial, then press OK.
Note:
Disconnect the USB cable from the viewer when not
operating with a computer or printer.
2 Select Create Custom Print, then press OK.
3 Select the photo you want to print using the 4-way ring,
then press OK.
Printing 61
4 You see the retouch confirmation message. Do one of
the following:
❍
To retouch your photo before printing, select Yes,
then press OK.
You see the Retouch Settings menu. Continue with
the steps below to retouch your photo.
❍
❍
To continue without retouching your photo, select
No, then press OK.
Select one of the adjustment presets. After a
moment, you see the results of the retouching
effects. If you are satisfied with the results, press OK.
Continue with step 5.
❍
Select Manual Settings to adjust individual
settings, then press OK.
2 Select the settings you want to adjust using the 4-way
ring, then press OK.
Note:
If the photo you selected is not supported by the viewer,
see “Printing Multiple Photos” on page 67 to print your
photos.
You see the Cropping setting menu. Continue with the
steps on page 63 to crop your photo.
Adjustment
settings
Retouching a Photo
You can retouch a photo before printing without modifying
the original. Use one of the adjustment presets or adjust
individual settings as necessary.
Histogram
1 Do one of the following:
Printing 62
Adjust settings as necessary. After a moment, you see the
results of the retouching effects.
Original
Retouch
preview
3 When you’re finished adjusting the settings, highlight
OK and press OK to return to the Retouch Additions
screen.
Note:
To set the Retouch Additions settings to their original
values, select Return to Default, then press OK.
4 When you’re finished adjusting settings, select Preview,
then press OK.
5 Do one of the following:
❍
To save your changes, select OK or Start
❍
To make additional adjustments to the image, select
Additional Adjustments or Custom Settings,
then repeat steps 2 through 4.
The retouched photo is automatically saved in a folder
that is automatically created in the My Photos > PRINT
folder on the viewer. The folder is named according to
the date and the date format you selected, for example,
03292008M.001.
When you’re finished retouching your photo, you see the
Cropping setting menu. Continue with the steps in the next
section to crop your photo.
Cropping a Photo
1 Select one of the following cropping methods using the
4-way ring or jog dial, then press OK:
❍
Fixed Aspect to select a 1:1, 3:2, or 4:3 aspect ratio
❍
Free Aspect to manually adjust the aspect ratio
❍
No Cropping to continue without cropping your
image. Continue with the steps on page 65 to select
print layout settings.
Processing, then press OK.
Printing 63
You see a red cropping indicator.
❍
Free Aspect: Use the 4-way ring to adjust the top
and left edges of crop area, then press the button
to adjust the bottom and right edges of the crop
area.
Note:
While cropping a photo, press the Menu button to adjust
the grid display, change the crop area aspect ratio, adjust
the horizontal angle of the photo, or reset the crop area.
3 When you’re finished adjusting the cropping area, press
OK and do one of the following:
2 Crop your image using the following buttons:
❍
To crop the image, select OK, then press OK.
To make adjustments to the crop area, select
Additional Adjustments, then repeat step 2.
❍
Use the + (plus) and – (minus) buttons to enlarge
and reduce the cropping area.
❍
❍
Use the jog dial to make fine adjustments to the
crop area. To make vertical adjustments, press up or
down on the 4-way ring, then rotate the jog dial. To
make horizontal adjustments, press left or right on
the 4-way ring, then rotate the jog dial.
The cropped photo is automatically saved in a folder
that is automatically created in the My Photos > PRINT
folder on the viewer. The folder is named according to
the date and the date format you selected, for example,
03292008M.001.
❍
Fixed Aspect: Use the 4-way ring to move the
cropping indicator. To rotate the crop area, press the
Display button.
When you’re finished cropping your photo, you see the
Select Print Layout Size menu. Continue with the steps on
below to select layout settings.
Printing 64
Selecting Layout Settings
1 Select the paper size that you are printing on using the
4-way ring or jog dial, then press OK.
You see a preview of your print layout:
3 To adjust the background color, frame, and watermark
settings, press the Menu button and select settings as
necessary.
Note:
Before you can add a watermark to your printed images,
you need to create a watermark as described on page 68.
4 When you’re finished adjusting the print layout, press
OK and do one of the following:
2 Use the following buttons to adjust the print layout:
❍
Use the + (plus) or – (minus) buttons to enlarge and
reduce your photo to fit the paper.
❍
Use the 4-way ring to move the image on the page.
❍
Use the jog dial to make fine adjustments to the
photo position. To make vertical adjustments, press
up or down on the 4-way ring, then rotate the jog
dial. To make horizontal adjustments, press left or
right on the 4-way ring, then rotate the jog dial.
❍
To save the print layout, select OK, then press OK.
❍
To make adjustments to the print layout, select
Additional Adjustments, then repeat steps 2 to 3.
The photo with the print layout settings is
automatically saved in a folder that is automatically
created in the My Photos > PRINT folder on the
viewer. The folder is named according to the date and
the date format you selected, for example,
03292008M.001.
5 If you would like to save the layout as a template for
creating similar photos, select Yes when you see the
confirmation message. Name the template, select Done,
then press OK.
When you’re finished selecting layout settings, press OK.
Printing 65
Printing Your Photos
Making Copies of a Print
Make sure the AC adapter is connected to the viewer before
you print. If the viewer can’t find the printer, make sure the
printer is turned on and has paper and ink, then select
Check Printer Connection to continue.
You can quickly make copies of a print that you previously
retouched, cropped, and selected layout settings for.
1 On the printer confirmation screen, use the 4-way ring
to change the following settings:
Setting
Description
Number of
Prints
Set the number of prints.
Print Date
Print the date when the photo was taken. If
the photo does not include date
information, the printing date is added.
Paper size
Choose the paper size loaded in the printer.
Paper kind
Choose type of paper loaded in the printer.
Print Mode
Choose Photo, High speed, or Best Photo.
Color
Enhance
Automatically adjusts the photo when it’s
printed (not available for all types of image
files).
1 Select Print Wizard on the Home screen using the
4-way ring or jog dial, then press OK.
2 Select Make Copies of Custom Print, then press OK.
3 Select the photo you want to print using the 4-way ring,
then press OK.
4 Follow the steps in the previous section to finish
printing your photo.
2 When you have finished selecting settings, select Start
Printing, then press OK.
Printing 66
Printing Multiple Photos
You can print multiple photos without retouching or
cropping.
1 Select Print Wizard on the Home screen using the
4-way ring or jog dial, then press OK.
2 Select Print Original Photo, then press OK.
7 Follow the steps in “Printing Your Photos” on page 66
to finish printing your photos.
Printing a Contact Sheet
You can print a contact sheet containing small versions of
the photos on the viewer.
1 Select Print Wizard on the Home screen using the
4-way ring or jog dial, then press OK.
2 Select Print Contact Sheet, then press OK.
3 Select the folder that contains the images you want to
print, then press OK.
4 Select the photos you want to print using the 4-way
ring, then select the number of copies you want to print
using the + (plus) and – (minus) buttons.
3 Select the type of contact sheet you want to print, then
press OK.
5 When you’re finished selecting photos, press OK.
4 Select the folder that contains the images you want to
print, then press OK.
6 Select a print layout setting using the 4-way ring, then
press OK.
Printing 67
5 Use the 4-way ring or jog dial to highlight each photo
you want to print, then press the button to select it.
The selected items are displayed with red check
marks.
3 Select Create New Watermark then press OK.
Note:
To select all files, press Menu and choose Select All JPEG
Files, Select All RAW Files, or Select All Files, then
press OK.
6 When you’re finished selecting photos, press OK.
7 Follow the steps in “Printing Your Photos” on page 66
to finish printing your photos.
Creating a Watermark
You can add a copyright watermark to your images when
printing them from the viewer. You can store up to three
text or graphic watermarks.
Creating a Watermark with Text
1 Select Settings on the Home screen using the 4-way
ring or jog dial, then press OK.
2 Select Watermark Settings then press OK.
4 Enter the text for your new watermark using the 4-way
ring or jog dial (highlight each character and press OK
to enter it).
❍
To move the cursor forward or backward, press the
+ (plus) or – (minus) buttons.
❍
To delete the last letter input, press Back.
❍
To enter a space, press Menu.
❍
To switch between upper- and lowercase, press
Display.
❍
To cancel the name, highlight Cancel and press
OK.
5 After entering your text, highlight Done and press OK.
Printing 68
6 Select a color for the watermark, then press OK.
7 When the confirmation message appears, press OK.
Using an Image as a Watermark
Note:
You can only assign PNG format images created in Adobe
Photoshop. The images must be no larger than 720 × 480 pixels
and less than 10MB in size.
1 Copy your image file to the viewer’s Photos folder.
2 Select the image file on the viewer, then press OK.
3 When the confirmation message appears, select Yes,
then press OK to assign the image as a watermark.
Printing 69
Chapter 7
Customizing Settings
You can change settings for displaying images, copying files,
controlling the viewer’s sounds, and other functions.
On the Home screen, select Settings and press OK. You see
this screen:
Device Information
Use the following options to check the firmware version of
the viewer, the available hard drive space, and to set a
password for private folders:
❍
Firmware Version to display the viewer’s firmware
version.
❍
Hard Drive Capacity to display the available space on
the viewer’s hard drive and also on any memory cards
that are loaded in the viewer. The total file size is also
given for all files in the Backup, My Photos, My Videos,
and My Music folders.
❍
Set Password to set a password for private folders. The
default password is 0000.
Use the 4-way ring or jog dial to select and change any of
the settings described in this chapter.
Customizing Settings 70
Power Save
View Mode
Use the following options to adjust how the viewer saves
power:
Use the following options to adjust how the viewer displays
images:
❍
Backlight Timer to set when the LCD screen turns
dark during inactivity. You can select 1, 3, 5, 10, or 15
minutes.
❍
Video Out to select NTSC or PAL according the type of
TV system or external display connected to the viewer.
❍
❍
Sleep Timer to set when the LCD turns off during
Auto-Rotation to determine whether the viewer
auto-rotates images according to Exif information
included in the file by the camera that took the photo.
❍
Unsupported Files to set whether unsupported files
are displayed on the viewer. If you select Show,
unsupported files appear as gray boxes with ? question
inactivity. You can select 1, 3, 5, 10, or 15 minutes.
❍
Power Off Timer to set when the viewer turns off
during inactivity. If the AC adapter is connected to the
viewer, it will not turn off but will play a screen saver
instead. You can select 1, 3, 5, 10, or 15 minutes.
❍
marks inside.
Screen Saver to set when the screen saver begins
❍
during inactivity (if the AC adapter is connected). You
can select 1, 3, 5, 10, or 15 minutes. See ““Slide Show”
on page 72 to control the features of the screen saver.
Color Space to set the color space, if color space
information in the image is unspecified. Select sRGB or
AdobeRGB.
❍
RAW Image Display Settings
Customizing Settings 71
Backup Settings
Movie Setting
Use these options to change how the viewer handles various
Backup operations:
Use these options for movies played on the viewer:
❍
❍
❍
Backup Method to select what files are backed up.
Select Backup All Data to copy all files or Backup
New Data to copy only new files.
Process After Backup to set what happens after files
are copied. Select Verify backed up data to verify that
the files were copied successfully. Select Verify & del.
orig. data to clear the files from their original location
automatically after successfully copying them, or
Confirm to ask each time if you want to clear them. Or
select No action to copy files without doing anything
after they’re copied.
Backup Complete Sound to select one of several
preset sounds to alert you when the viewer finishes
backing up files.
❍
Screen Size to adjust the screen size of a video. You can
select Play at Full Screen or Play at Original Size.
❍
Playback Mode to play the video file once or to play
video files continuously. Select Playback Continuously
or Stop at End of File.
❍
Movie Display Mode to adjust the color, brightness,
and contrast for various types of videos.
Slide Show
Use these options to select effects, timing, and background
music for slide shows. These settings also control the
features of your screen saver.
❍
Effects to choose one of five slide show effects.
❍
Duration to choose the time between slide transitions.
You can select from 1 to 30 seconds.
❍
Slide Show Music to choose background music for the
slide show. You can select none, one of three presets, or a
music playlist that you’ve created.
❍
Clock to choose whether to display the current time in
the corner of the screen.
Customizing Settings 72
Sound
Date and Time
Use these options to control the default volume for movies
and music, and to set audible alerts.
If you remove the battery, the date and time settings will be
erased after about one day. Use this screen to re-enter the
date and time, if necessary.
❍
❍
Guide Beep to turn on or off sounds made by the
viewer when an error occurs.
Key Beep to turn on or off sounds made by the viewer
when you press the buttons.
❍
Volume to set the default volume for music and videos.
You can change the volume when playing music or
videos using the jog dial or by pressing the + (plus) or –
(minus) buttons.
❍
Enter the Year, Month, Day, Hour, and Minute.
❍
Use Date Format to change the format of the file dates
shown on the Details screen. Folders created in Backup
Files are also named according to the selected format
with a letter M, D, or Y to indicate the date format you
selected when the photos were copied.
Language
Watermark Settings
Lets you choose one of ten languages.
Lets you create or delete watermarks.
LCD Settings
Use these options to adjust the LCD screen and how the
viewer displays images:
❍
LCD Brightness to control the brightness of the screen.
❍
LCD Custom setting to set the color temperature,
gamma, gray point, and gray level of the LCD.
Customizing Settings 73
Chapter 8
Maintenance and Troubleshooting
This chapter describes how to clean the viewer and solve
problems.
Cleaning the Viewer
Follow these guidelines to clean the viewer:
❍
Turn off the viewer and unplug the AC adapter before
cleaning.
❍
Use a clean, dry cloth to wipe it clean.
❍
Do not use harsh or abrasive cleaners.
Error Messages
When a problem occurs, an error message or icon may
appear on the LCD. Refer to the following table to diagnose
an error message. For more assistance, see “Problems and
Solutions” on page 75.
Error message
Description
Unable to access file.
Wait until the memory card
access light turns off, then
reinsert the memory card and try
again.
An error occurred during
verification. Files were not
deleted from the memory
card.
Some files failed to be copied.
Check the files and try again.
Cannot access the hard
drive. There may be a
problem with the hard
drive, or it may not be
formatted as FAT32.
Backup all the data to the
computer and contact Epson as
described in “Where To Get
Help” on page 80.
Maintenance and Troubleshooting 74
Error message
Description
Problems and Solutions
No response from the
printer. Please check the
printer.
Make sure your printer is on and
the USB cable is connected
correctly. Check the printer’s
manual to make sure it’s
PictBridge-compatible.
Use the information in this section to diagnose problems
and find solutions.
Turn off the viewer and wait until
it cools down.
The battery power is running
out. Charge the battery. For
details, see “Charging the
Battery” on page 11.
Press the reset button.
See “Resetting the Viewer” on
page 79.
Power Problems
The power does not turn on.
Cause
What to do
The battery has run out.
When the
icon appears on
the top right corner of the LCD,
the battery has run out. See
“Charging the Battery” on
page 11.
The battery is not installed
correctly.
Make sure the battery is installed
correctly. See “Installing the
Battery” on page 11.
The viewer may have shut off Slide the power switch down to
automatically to save battery turn the viewer back on.
power.
The battery may need to be
replaced.
See “Replacing the Battery” on
page 80.
Maintenance and Troubleshooting 75
File Viewing Problems
The image is not displayed.
Cause
What to do
The image format is not
supported.
If an image doesn’t appear or
appears as ?, it may not be in a
supported file type. See “Supported
Image Formats” on page 27.
The image data is
corrupted.
Copy the image again.
The video or audio file
is not supported.
See “Supported Video Formats” on
page 32 or “Supported Audio
Formats” on page 38.
The LCD is too dark.
Adjust the LCD brightness. See
“LCD Settings” on page 73.
The screen may have turned off
automatically to save power. Press
any button to turn the screen on.
You’ve connected the
Some TVs may crop your images at
viewer to your TV and the the top and bottom, or you may
image is cut off or flickering. notice some flickering near the
edges of the screen. This is a normal
result of your viewer’s high image
resolution.
The video is not displayed clearly or stops abruptly.
Cause
What to do
The bit rate of the video is
too high.
Check the bit rate. See “Supported
Video Formats” on page 32 for
details.
Sound breaks off when the video or audio is played.
Cause
What to do
The bit rate of the file is
too high.
Check the bit rate. See “Supported
Video Formats” on page 32 or
“Supported Audio Formats” on
page 38 for details.
If you’ve connected the viewer to
your TV or computer, the LCD
screen turns off.
Maintenance and Troubleshooting 76
No sound comes out when a video is played.
Cause
What to do
The Audio Codec of the
file is not supported.
Check the file format. See
“Supported Video Formats” on
page 32 or “Supported Audio
Formats” on page 38 for details.
File Operation Problems
You cannot copy files from Connect the AC adapter to the
an external USB device.
viewer. If the external USB device
has its own power adapter, connect
it too.
You cannot delete a file.
Cause
What to do
The file is locked.
Unlock the file and then delete it.
See “Locking Files and Folders” on
page 57 and “Deleting Files and
Folders” on page 55.
You cannot copy a file or files.
Cause
What to do
You cannot use the buttons on the viewer.
There is not enough space
available on the hard drive
to copy all of the files on the
memory card.
Check the hard drive space. See
“Device Information” on page 70.
Delete unnecessary files or reduce
the number of files to copy from the
memory card.
Cause
The viewer’s hard drive
space doesn’t increase, even
though data has been
deleted.
If you’ve connected the viewer to
your computer, it’s best to delete
files using the Link2 software, or
data may not be removed
completely. Check the Recycle Bin
(Windows) or Trash (Macintosh)
and empty it to clear any files.
You cannot set/unset a folder as private.
What to do
The buttons are deactivated Slide the power switch back to the
because the power switch is middle position.
set to Hold.
Cause
What to do
The password is incorrect.
If you forget the password, enter
5555, 7777, then 3333 to reset it to
the default (0000).
Maintenance and Troubleshooting 77
Uninstalling Software
Printing Problems
You cannot print.
Cause
What to do
The printer is not supported. Make sure your printer is
supported. See page 60.
The printer’s power is off.
Turn on the printer.
The USB cable is not
connected correctly.
See “Connecting the Viewer to a
Printer” on page 60 and reconnect
the cable.
You cannot print a JPEG
image.
Make sure the JPEG image does
not exceed 4600 pixels in either the
vertical or horizontal direction.
If you need to uninstall the Epson Link2 software, follow
the procedure below for Windows or on page 79 for
Macintosh.
Windows
1 Click
or Start, point to All Programs or
Programs, then select EPSON. Select Epson Link2,
then click Uninstaller.
Note:
For Windows Vista, when you see the User Account
Control screen, click Allow.
2 After the confirmation dialog box appears, click Yes.
Updating the Firmware and Printer
Driver
Epson will occasionally update the viewer firmware. You can
download the latest firmware for the viewer from Epson’s
support website. Instructions for updating the firmware are
provided online.
Maintenance and Troubleshooting 78
3 When you see a message that the uninstall is complete,
click Finish.
4 If you see a message asking you to restart, click Restart
Now.
Macintosh
Resetting the Viewer
If the viewer stops working, or you want to restore its
default settings, you can reset it.
Gently insert the end of a paper clip into the Reset button
next to the viewer’s USB ports.
1 Connect the viewer to your Macintosh.
2 Double-click the P-7000 drive on your desktop.
3 Double-click the installation software icon.
4 Select Custom Install.
5 Select Epson Link2.
6 On the software installation screen, select Uninstall.
7 When you see a message asking you to restart, click
Restart Now.
The viewer shuts off, resets to its default settings, and comes
back on.
Maintenance and Troubleshooting 79
Replacing the Battery
Speak to a Support Representative
You can purchase a replacement lithium-ion battery
(B32B818262) from an Epson authorized reseller.
To find the nearest reseller, call 800-GO-EPSON
(800-463-7766). Or you can purchase online at
www.epsonstore.com (U.S. sales) or www.epson.ca
(Canadian sales).
Before you call Epson for support, please have the following
information ready:
Where To Get Help
Epson provides these technical support services:
Internet Support
Visit Epson’s support website for solutions to common
problems with your viewer. You can download software and
documentation, get FAQs and troubleshooting advice, or
e-mail Epson with your questions.
❍
Product name (Epson P-7000)
❍
Product serial number (located on the bottom of the
viewer)
❍
Proof of purchase (such as a store receipt) and date of
purchase
❍
Computer configuration
❍
Description of the problem
Then call:
❍
U.S.: (562) 276-4303, 6 AM to 6 PM, Pacific Time,
Monday through Friday.
❍
Canada: (905) 709-3839, 6 AM to 6 PM, Pacific Time,
Monday through Friday.
Days and hours of support are subject to change without
notice. Toll or long distance charges may apply.
Maintenance and Troubleshooting 80
Appendix A
Notices and Specifications
System Requirements
Macintosh System Requirements
To use your viewer software, your system should have:
Windows System Requirements
To use your viewer software, your system should have:
❍
A Microsoft Windows compatible PC with a
Pentium® III processor (1 GHz or faster recommended)
❍
Microsoft Windows 2000 Professional (SP3 or later),
Windows XP, Windows XP Professional x64 Edition, or
Windows Vista.
®
❍
At least 256MB RAM
❍
100MB free hard disk space for installation (1GB or
more recommended), 2GB required for operation
❍
SVGA monitor (800 × 600), 16-bit color or higher
❍
USB type A port
❍
700 MHz G4 processor or higher (PowerPC® or Intel®)
❍
Macintosh OS X 10.3 to 10.5.x
❍
At least 512MB RAM
❍
150MB free hard disk space for installation (1GB or
more recommended), 2GB required for operation
❍
SVGA monitor (800 × 600), 32,000 colors or more
❍
USB type A port
Notices and Specifications 81
Safety Instructions
❍
Read all these instructions before using the viewer, and keep
this guide handy for later reference. Follow all warnings and
instructions marked on the viewer and any options.
Do not insert objects into the slots or openings on the
viewer.
❍
Do not touch the components inside the viewer unless
instructed to do so in the documentation. Never force
the viewer’s components into place. Although the viewer
is designed to be sturdy, rough handling can damage it.
❍
Never spill liquid onto the viewer.
❍
If the viewer emits unusual noises, odors, or smoke,
cancel the current operation and turn it off immediately.
Remove the battery and disconnect the AC adapter from
the viewer, then unplug the AC adapter from the power
outlet. Contact Epson.
❍
Do not use your headphones for long periods at high
volume as this can cause permanent hearing loss.
❍
Do not use your headphones while operating a vehicle
or performing an activity that requires attention to
external sound. When wearing your headphones, we
strongly recommend setting the volume so that you can
hear your normal speaking voice.
❍
Do not stand the device upright as it may fall over and
be damaged.
❍
Do not use the viewer after moving it between extreme
temperatures, which may cause condensation to form on
electronic parts.
Using the Viewer
Caution:
Do not drop the viewer or expose it to any impact to avoid
damaging the internal hard disk and losing stored files. Do not
format the hard disk from your computer or the viewer will be
unusable.
Epson is not responsible for backing up or recovering data. It is
strongly recommended that you make your own backup files.
❍
Follow all warnings and instructions marked on this
product.
❍
Use only AC adapter model A351H and lithium-ion
battery model D111A with this product.
❍
When connecting the viewer to a computer or other
device with a cable, ensure the correct orientation of the
connectors. Each connector has only one correct
orientation. Inserting a connector in the wrong
orientation may damage both devices connected by the
cable.
Notices and Specifications 82
❍
If you use the viewer in places where the use of
electronic devices is limited, such as in airplanes or
hospitals, follow all instructions in those places.
❍
Do not use the viewer outdoors during a thunderstorm.
❍
To prevent fire or electric shock, do not cover the viewer
with a blanket or other covering that may give off a
static electric shock.
❍
To prevent fire or electric shock, do not expose the
viewer or its options to rain or moisture.
❍
To prevent fire or explosion, do not use the viewer where
flammable or volatile gas is stored.
Using the Battery
Caution:
There is a risk of explosion if the battery is replaced by the
incorrect type. Use the specified new batteries only. Dispose of
used batteries according to the instructions.
❍
❍
❍
Use only AC adapter model A351H and the viewer
(Model G961A/G961B) to charge batteries.
❍
Do not use the battery that comes with the viewer for
other devices.
❍
To protect against short-circuiting, do not remove the
outside sleeves of the battery.
❍
Do not handle the battery with wet hands or use it near
water.
❍
Do not expose the battery to water or high humidity.
❍
Do not drop, puncture, disassemble, mutilate, or
short-circuit the battery.
❍
Do not place the battery near or into fire or water.
❍
Do not use batteries that are leaking or damaged in any
way.
❍
Do not charge the battery on devices except the viewer.
❍
If battery acid gets into your eyes or on your skin,
immediately rinse the affected area thoroughly with
water and seek medical treatment. If a battery is
swallowed, seek medical treatment immediately.
Do not charge the battery near open flame or in very hot
locations.
❍
Keep batteries away from heat sources.
❍
Use only an Epson lithium-ion battery for the viewer
according to the instructions in this manual.
Do not leave the battery in a vehicle to prevent the
battery from overheating.
❍
Do not insert objects into any openings as they may
touch dangerous voltage points or short-circuit
components.
Notices and Specifications 83
❍
Prevent the battery from coming into contact with
metal objects that could short-circuit it, such as coins or
keys.
Disposing of the Battery
Before disposing of the battery, make sure you discharge it
completely.
❍
Do not insert the battery into power outlets or other
power sources such as car cigarette lighter sockets.
❍
Do not solder wires or terminals directly to the battery.
Warning:
Be sure to securely cover the end of the battery with tape to
prevent combustion or explosion when disposing.
❍
Do not touch battery terminals.
Do not incinerate or dispose of the battery in fire.
❍
Keep batteries away from open flame if they leak or
smell strange.
Do not dispose of batteries as ordinary refuse. Instead, dispose
of them in a collection or recycle box in accordance with local
laws.
❍
If overheating, discoloration, or distortion occur,
remove the battery from the viewer and do not use it.
For users in the U.S. and Canada:
❍
Charge the battery before using it if it has not been used
for a long period.
This mark indicates that the battery will be
recycled by the RBRC. When you are ready to
dispose of the battery, contact the RBRC at
(800) 822-8837.
Storing the Battery
❍
When not using this device for a long period, remove
the battery from the viewer and store it separately.
❍
Do not store batteries where the temperature or
humidity is very high.
❍
Store batteries out of children’s reach.
Using the AC Adapter
❍
Use only the type of power source indicated on the AC
adapter’s label, and always supply power directly from a
standard, domestic power outlet with a power cord that
meets the relevant local safety standards.
❍
Place the AC adapter near an electrical outlet where the
power cord can be easily unplugged.
Notices and Specifications 84
❍
The AC adapter and power cable provided are designed
for use with the viewer. Do not attempt to use them
with other electronic devices unless specified.
❍
Do not use a damaged or frayed AC adapter.
❍
Never disassemble, modify, or attempt to repair the AC
adapter by yourself.
❍
Do not remove the AC adapter from this device during
operations (connecting the AC adapter during
operations is possible).
❍
Do not use power outlets controlled by wall switches or
automatic timers.
❍
The AC adapter included is designed for use with the
viewer. Use of any other adapter could result in fire,
electrical shock, or injury.
❍
Do not use power outlets on the same circuit as large
motors or other appliances that may cause voltage
fluctuations.
❍
Use only AC adapter model A351H with the viewer.
❍
Avoid using outlets on the same circuit as photocopiers
or air control systems that regularly switch on and off.
❍
Do not connect the AC adapter when the battery is not
installed. Otherwise, the viewer may be damaged.
❍
To prevent fire or electric shock, do not cover the AC
adapter with a blanket or similar covering.
❍
Use only the power source that meets the power
requirements indicated on the label attached to the
product. If you are not sure of the power supply
specifications in your area, contact your local power
company or regulatory agency.
❍
Position the viewer’s power cord so that it will not be
stepped on or run over.
❍
Do not place any objects on the power cord or the AC
adapter.
❍
Keep the power cord straight at the ends and at the
points where it enters the transformer.
❍
The power cord should be placed to avoid abrasions,
cuts, fraying, crimping, kinking, and other damage.
❍
If you cannot insert the plug into the power outlet,
contact an electrician.
❍
❍
Make sure the total amperage of all devices plugged into
the power outlet does not exceed the power outlet’s
ampere rating.
If you use an extension cord with the viewer, make sure
the total amperage of all devices plugged into the
extension cord does not exceed the cord’s amperage
rating.
Notices and Specifications 85
❍
Remove the AC plug from the outlet during lightning
storms.
❍
If the liquid crystal solution contained in the LCD panel
on the viewer leaks out and gets onto your hands, wash
them thoroughly with soap and water. If it gets into
your eyes, flush them immediately with water. If
discomfort or vision problems remain after a thorough
flushing, see a doctor immediately.
❍
Use only a soft, dry cloth to clean the display. Do not
use liquid or chemical cleaners.
Using a Memory Card
❍
Use only memory cards designed for the product’s
specifications. (See page 17 for details.)
❍
The methods for using memory cards vary according to
card type. See the documentation included with your
memory card for details.
❍
Do not remove a memory card or turn off the product
while the memory card access light is flashing.
Storing, Maintaining, or Transporting the
Viewer
❍
Do not store the viewer outdoors.
Using the LCD
❍
Do not store the viewer near water.
❍
❍
Do not store the viewer in a location subject to high
temperature or humidity.
❍
Do not store the viewer in a location subject to rapid
changes in temperature or humidity.
❍
Do not store the viewer in a location subject to direct
sunlight or strong light sources.
❍
Unplug the viewer from the power outlet before
cleaning it. Use a damp cloth for cleaning and do not
use liquid or aerosol cleaners.
❍
The LCD panel on the viewer may contain a few small
bright or dark spots. These are normal and do not mean
that your LCD panel is damaged in any way.
If the LCD panel on the viewer is damaged, contact
Epson.
Notices and Specifications 86
❍
Remove the battery, unplug the viewer, and refer
servicing to qualified service personnel under the
following conditions: The power cord or plug is
damaged; liquid has entered the viewer or its options;
the viewer or its options have been dropped or the case
is damaged; the viewer or its options do not operate
normally or exhibit a distinct change in performance.
WARNING: The cords included with this product contain
chemicals, including lead, known to the State of California
to cause birth defects or other reproductive harm. Wash
hands after handling. (provided in accordance with
Proposition 65 in Cal. Health & Safety Code § 25249.5
and following)
Standards and Approvals
Epson P-7000
EMC:
FCC Part 15 Subpart B Class
CAN/CSA-CEI/IEC CISPR22 Class B
AC Adapter (Model A351H)
Safety:
UL60950
CSA C22.2 No. 60950
EMC:
CAN/CSA-CEI/IEC CISPR22 Class B
Battery (Model D111A)
Safety:
UL2054
Notices and Specifications 87
Specifications
Altitude
Operating:
9,842 feet or less
Non-operating: 39,370 feet or less
General
LCD
HDD
Memory card
Size:
4.0 inches
Pixels:
640 × 480
Colors:
Approx. 16,770,000
2.5 inch HDD, 160GB, (148GB FAT32
available for storage)
Height:
Dimensions
(without
Width:
projections) and
Depth:
weight
Temperature
1.3 inches (33.1 mm)
Weight:
(approx.)
,
including battery
Operating (or
charging):
41 to 95 °F
(5 to 35 °C)
Non-operating: –4 to 140 °F
(–20 to 60 °C)
Humidity
(without
condensation)
Operating:
Note:
A commercially available CF adapter is needed to
use other memory cards (see page 17).
Power sources
Lithium-ion battery (Model D111A)
AC adapter (Model A351H)
Battery life
(when fully
charged)*
Approx. 3 hours when playing a slide show
(default settings)
Approx. 3 hours when playing video (MPEG4,
2 Mbps, using headphones)
Approx. 6 hours when playing audio (MP3, 128
kbps, using headphones)
3.5 inches (88.7 mm)
5.9 inches (150 mm)
CompactFlash memory card (Type2/ 3.3V,
including Microdrive); SD memory card, SD
High-Capacity Card, MultiMedia Card,
MultiMedia Card Plus
* Times may vary depending on the memory card being used, the number
of files, ambient temperature, and other factors.
30 to 80%
Non-operating: 10 to 80%
Notices and Specifications 88
Electrical
Battery
Input voltage
DC 5.0 V
Type
Rechargeable lithium-ion battery
Rated current
Maximum 2.3 A
Model
D111A
Power
consumption
6.3 W (when using the battery)
7.9 W (when using the AC adapter)
Size
(H × W × D)
0.88 × 0.80 × 2.78 inches
(22.45 × 20.4 × 71 mm)
Ratings
3.7 V, 2600 mAh
Temperature
Storage: –4 to 104 °F (–20 to 60 °C)
Interface
USB connector
A/V Out
connector
Two USB 2.0 (Mass Storage Class)
interfaces, Full-Speed and High-Speed
mode
Host: Standard A
Device: Mini-B
Quadruple mini pin jack (Ø 3.5 mm)
Headphone Out 3-pole mini pin jack (Ø 3.5 mm)
connector
CF Card slot
One slot (Type2/3.3V) for CompactFlash
or Microdrive memory cards
Keep the battery in a cool place when
storing for a long period.
AC Adapter
Model
A351H
Input
AC 100 to 240 V, 50 to 60 Hz, 0.3 to 0.1 A
Output
DC 5.0 V, 2.3 A
Power
consumption
Maximum 18 W
Note:
A commercially available CF adapter is
needed to use other types of memory cards
(see page 17).
SD Card slot
One slot for SD memory card or
MultiMedia card
Notices and Specifications 89
Optional Accessories
Type
Lithium-ion battery, D111A
Product code
B32B818262
Type
Multimedia Viewer Travel Pack
Product code
B32B818281
Notices and Specifications 90
Index
A
B
A/V Out connector, 9, 34
AC adapter
connecting, 12
connector, 9
safety, 84 to 86
specifications, 89
standards, 87
Activity light, 13
adapter, memory card, 17
AdobeRGB, 30, 71
Audio
conversion, 48
copying files to viewer, 36 to 37
creating playlist, 40 to 42
deleting files, 43
equalizer, 43
file formats, 38
playing, 38 to 43
problems, 76 to 77
repeat and shuffle, 40
Backing up
from memory cards, 20 to 22
preferences, 47
to/from USB devices, 50 to 51
to computer, 44 to 46
Backup Files icon, 15
Battery
charging, 11 to 12
cover, 9
disposing of, 84
icon, 12
installing, 11
removing, 12
replacing, 80
safety, 83 to 84
specifications, 89
Beep settings, 73
Bit rate
audio, 38
video, 32
91
Buttons
locking, 14
using, 10
C
Cable
USB, 44 to 46, 60 to 61
video, 34
Charge light, 11
Charging the battery, 11 to 12
Cleaning the viewer, 74
Codec, 32
Color space, 30, 71
CompactFlash
adapter, 17
card slot, 9, 18
icon, 15
Computer
connecting to, 36, 44
disconnecting from, 37, 46
Connecting
computer, 36, 44
printer, 60 to 61
TV or projector, 34
USB devices, 49
Copying
files from memory cards, 20 to 22
files to/from computer, 44 to 46
files to/from USB devices, 49 to 52
problems, 77
Customizing settings, 70 to 73
D
Date and time, setting, 13 to 14, 73
Deleting
audio files, 43
files and folders, 55
Device USB connector, 9, 36, 44 to 46, 60 to 61
Direct printing, 60 to 69
Display button, 29
Display modes, video, 34
Display Photo Enhance, 30
DNG files, 27
E
Eject button, 9
Electrical specifications, 89
Epson
Link2, 37, 40, 44 to 48
printers, 60
purchasing battery, 80
technical support, 80
92
Equalizer, 43
Error messages, 74 to 75
Exif, 29
F
File formats
audio, 38
image, 27
video, 32
File Operation settings, 72
Files
copying from memory card, 20 to 22
copying to/from computer, 44 to 46
copying to/from USB devices, 49 to 52
deleting, 55
locking, 57
problems copying, 77
problems viewing, 76
rating, 58
Firmware, updating, 78
Firmware version, 70
Folders
changing display, 25
copying files to, 21 to 22
creating, 22 to 23
deleting, 55
locking, 57
renaming, 54
setting as private, 52 to 53
setting as screen saver, 58
setting icon, 58
H
Hard drive capacity, 70
Headphones
connector, 9
using, 38
Histogram, 29
Hold icon, 15
Home screen, 15
Host USB connector, 9, 49
93
I
ID3 tags, 37
Images
copying to folder, 22 to 23
displaying as a slide show, 30
displaying information, 29
display problems, 76
file formats, 27
printing, 60 to 69
rating, 58
rotating, 31, 71
viewing, 27 to 31
zooming, 28
Installing battery, 11
Interface specifications, 89
J
JPEG files, 27
L
Language setting, 13, 73
LCD, 9, 76, 86
Lights, 10
Link2 software
backing up files, 45
copying files, 44 to 46
creating playlist, 40
setting preferences, 47
transferring music files, 37
Locking
buttons, 14
files and folders, 57
M
Macintosh
disconnecting from, 46
system requirements, 81
Maximum bit rate, video, 32
Memory card
access light, 16
adapter, 17
copying files, 20 to 22
safety instructions, 86
types, 17
94
Memory Card icon, 15
Memory Stick, 17
Menu options, 25 to 26
Metadata, 29
Microdrive, 17
Movie Settings, 72
MultiMedia card, 17
Music
conversion, 48
copying to viewer, 36 to 37
creating playlist, 40 to 42
deleting files, 43
equalizer, 43
file formats, 38
playing, 38 to 43
repeat and shuffle, 40
O
Overexposure preview, 29
P
Password, 53
Photo Enhance, 30
Photos, see Images
PictBridge, 60
Playing
music, 38 to 43
videos, 32 to 34
Playlist
creating, 40 to 42
modifying, 42
Pop-up menu, 25 to 26
Power
problems, 75
saving, 16, 71
switch, 9
turning off, 16
turning on, 13
Printing
photos, 60 to 69
problems, 78
Private folders, 52
Problems
audio and video, 76 to 77
copying and deleting files, 77
power, 75
printing, 78
solving, 74 to 78
viewing files, 76
Projector, connecting to, 34
Protecting files, 57
95
R
Rating photos, 58
RAW files, 27
Reset button, 9, 79
Resetting the viewer, 79
Rotating images, 31
S
Safety instructions, 82 to 87
Screen icons, 24
Screen saver, 58
Secure Digital
cards, 17
card slot, 9, 19
icon, 15
Settings
customizing, 70 to 73
Date and time, 13 to 14, 73
icon, 15
Language, 13, 73
Slide show
creating, 30
settings, 72
Sound
problems, 76 to 77
settings, 73
Speaker, 9
Specifications
AC adapter, 89
battery, 89
electrical, 89
general, 88
interface, 89
standards and approvals, 87
sRGB, 30, 71
Status and error messages, 74 to 75
Support, technical, 80
System requirements, 81
T
Technical support, 80
Time, setting, 13 to 14
Troubleshooting
audio and video problems, 76 to 77
error messages, 74 to 75
file operation problems, 77
file viewing problems, 76
power problems, 75
printing problems, 78
Turning off power, 16
Turning on power, 13
TV, connecting to, 34
96
U
W
Underexposure preview, 29
Updating firmware, 78
USB
cable, 36, 44 to 46, 60 to 61
connectors, 9
USB devices
connecting, 49
copying files, 49 to 52
types, 48
Wallpaper, 58
Windows
disconnecting from, 46
system requirements, 81
V
X
xD-Picture card, 17
Z
Zooming images, 28
Video
codec, 32
conversion, 48
display modes, 34
file formats, 32
playing, 32 to 34
problems, 76 to 77
screen size, 33
selecting NTSC or PAL, 71
settings, 72
97

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
