DO`S and DON`TS

DO`S and DON`TS

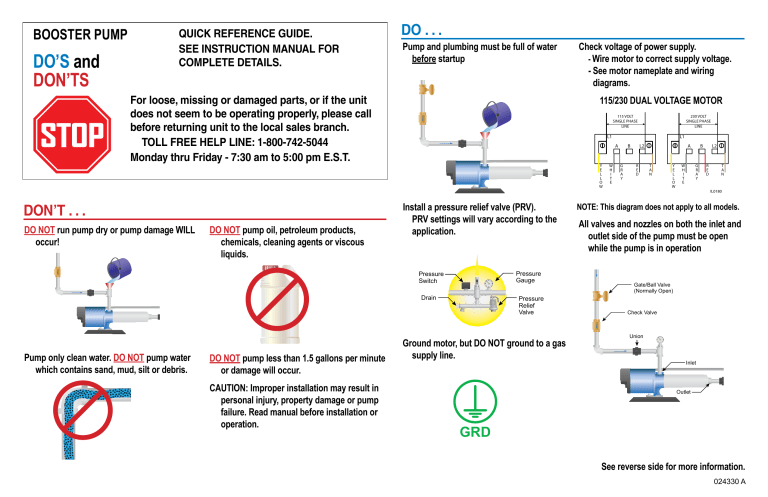

BOOSTER PUMP
DO’S and
DON’TS
STOP
QUICK REFERENCE GUIDE.
SEE INSTRUCTION MANUAL FOR
COMPLETE DETAILS.
DO . . .
P
ump and plumbing must be full of water
before startup
For loose, missing or damaged parts, or if the unit
does not seem to be operating properly, please call
before returning unit to the local sales branch.
TOLL FREE HELP LINE: 1-800-742-5044
Monday thru Friday - 7:30 am to 5:00 pm E.S.T.
C
heck voltage of power supply.
- Wire motor to correct supply voltage.
- See motor nameplate and wiring
diagrams.
115/230 DUAL VOLTAGE MOTOR
115 VOLT
SINGLE PHASE
LINE
230 VOLT
SINGLE PHASE
LINE
L1
L1
A
B
L2
A
B
L2
TAN
RED
GRAY
WHITE
YELLOW
TAN
RED
GRAY
WHITE
YELLOW
IL0180
DON’T . . .
Do not run pump dry or pump damage WILL
occur!
Do not pump oil, petroleum products,
chemicals, cleaning agents or viscous
liquids.
Install a pressure relief valve (PRV).
PRV settings will vary according to the
application.
Pressure
Gauge
Pressure
Switch
Drain
Pump only clean water. Do not pump water
which contains sand, mud, silt or debris.
Do not pump less than 1.5 gallons per minute
or damage will occur.
CAUTION: Improper installation may result in
personal injury, property damage or pump
failure. Read manual before installation or
operation.
Pressure
Relief
Valve
G
round motor, but DO NOT ground to a gas
supply line.
NOTE: This diagram does not apply to all models.
ll valves and nozzles on both the inlet and
A
S p
outlet side of the pump must be open
while the pump is in operation
Gate/Ball Valve
(Normally Open)
Check Valve
Union
Inlet
Outlet
GRD
See reverse side for more information.
024330 A
TYPICAL APPLICATIONS
Pump used to boost water pressure in mist spray applications
(automatic operation).
Fuse Box
or Switch
Pump used to boost incoming city pressure (automatic operation).
Water Supply
Union
Main Power
Box
Check Valve
Control
Pressure
Gauge
Gate/Ball Valve
(Normally Open)
Gate/Ball Valve
(Normally Open)
From Water Source
Line
Filter
Fuse Box
or Switch
Check Valve
Union
Pressure
Relief
Valve
Union
Gate/Ball Valve
(Normally Open
Solenoid
Valve
To Nozzles
Pressure Switch
Inlet
To
Drain
Pump used to boost incoming pressure from a wall hydrant
(manual operation).
Outlet
Pressure
Switch
Drain
IL0423A
Pressure
Gauge
caution:
Wall Hydrant
Pressure
Relief
Valve
Hose Adapter
IL0422A
Pressure
Gauge
When pump is running, a minimum
flow of 1.5 GPM (Gallons per minute)
is required or damage will result.
Service Tee
High Pressure
Reinforced Hose
Pressure
Relief
Valve
Inlet
Hose
Adapter
Outlet
See reverse side for more information.
IL0424A
Spray
Nozzle
High Pressure
Reinforced Hose
