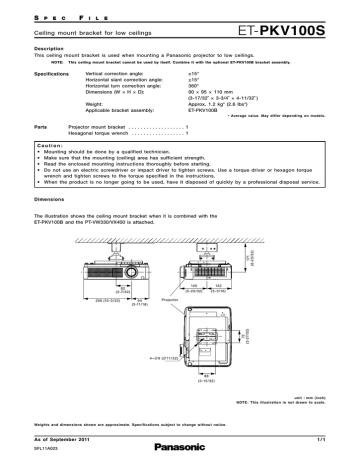

ET-PKV100S
Ceiling mount bracket for low ceilings
­D escription
This ceiling mount bracket is used when mounting a Panasonic projector to low ceilings.
NOTE:
This ceiling mount bracket cannot be used by itself. Combine it with the optional ET-PKV100B bracket assembly.
Specifications
Vertical correction angle:
Horizontal slant correction angle:
Horizontal turn correction angle:
Dimensions (W × H × D):
±15°
±15°
360°
90 × 95 × 110 mm
(3-17/32˝ × 3-3/4˝ × 4-11/32˝ )
Approx. 1.2 kg* (2.6 lbs*)
ET-PKV100B
Weight:
Applicable bracket assembly:
* Average­ value.­ May­ differ­ depending­ on­ models.
Parts
Projector mount bracket . . . . . . . . . . . . . . . . . . . 1
Hexagonal torque wrench . . . . . . . . . . . . . . . . . . 1
Caution:
• Mounting should be done by a qualified technician.
• Make sure that the mounting (ceiling) area has sufficient strength.
• Read the enclosed mounting instructions thoroughly before starting.
• Do not use an electric screwdriver or impact driver to tighten screws. Use a torque driver or hexagon torque
wrench and tighten screws to the torque specified in the instructions.
• When the product is no longer going to be used, have it disposed of quickly by a professional disposal service.
Dimensions
171
( 6-23/32)
The illustration shows the ceiling mount bracket when it is combined with the
ET-PKV100B and the PT-VW330/VX400 is attached.
82
( 3-7/32)
94
( 3-11/16 )
132
( 5-3/16 )
Projector
72
( 2-27/32)
256 (10-3/32)
145
( 5-23/32)
4 – ∅ 9 ( ∅ 11/ 32 )
88
( 3-15/32)
unit­ : mm­ (inch)
NOTE:­ This­ illustration­ is­ not­ drawn­ to­ scale.
Weights­ and­ dimensions­ shown­ are­ approximate.­ Specifications­ subject­ to­ change­ without­ notice.
As­ of­ September­ 2011
SFL11A023
1/1
