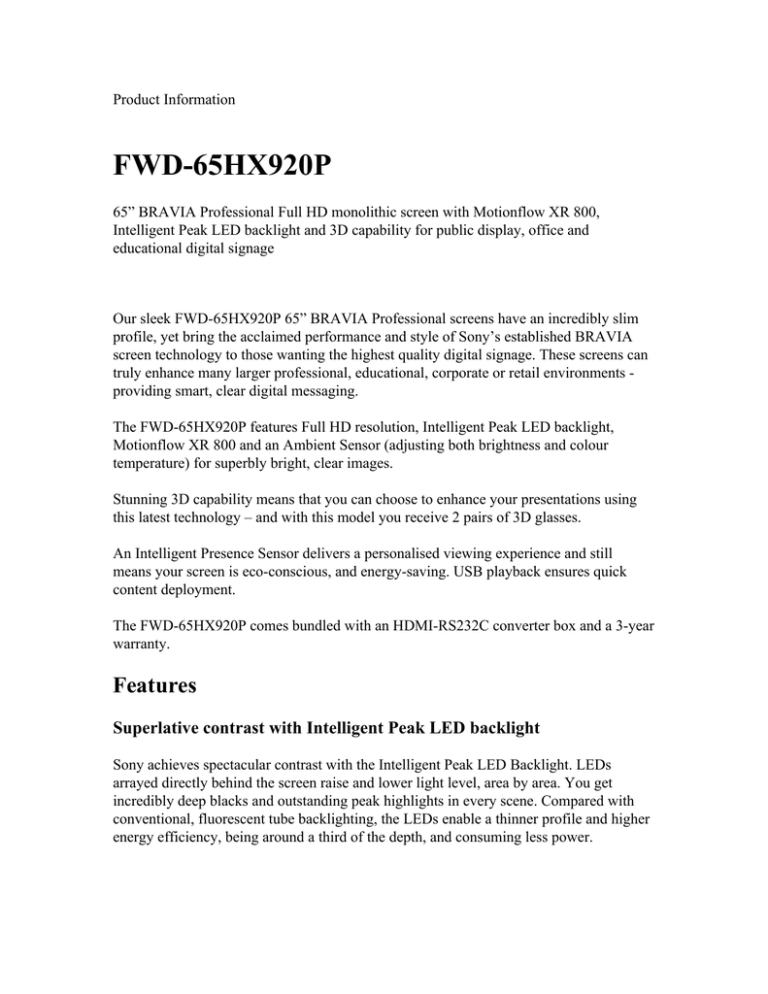

Product Information
65” BRAVIA Professional Full HD monolithic screen with Motionflow XR 800,
Intelligent Peak LED backlight and 3D capability for public display, office and
educational digital signage
Our sleek FWD-65HX920P 65” BRAVIA Professional screens have an incredibly slim
profile, yet bring the acclaimed performance and style of Sony’s established BRAVIA
screen technology to those wanting the highest quality digital signage. These screens can
truly enhance many larger professional, educational, corporate or retail environments providing smart, clear digital messaging.
The FWD-65HX920P features Full HD resolution, Intelligent Peak LED backlight,
Motionflow XR 800 and an Ambient Sensor (adjusting both brightness and colour
temperature) for superbly bright, clear images.
Stunning 3D capability means that you can choose to enhance your presentations using
this latest technology – and with this model you receive 2 pairs of 3D glasses.
An Intelligent Presence Sensor delivers a personalised viewing experience and still
means your screen is eco-conscious, and energy-saving. USB playback ensures quick
content deployment.
The FWD-65HX920P comes bundled with an HDMI-RS232C converter box and a 3-year
Superlative contrast with Intelligent Peak LED backlight
Sony achieves spectacular contrast with the Intelligent Peak LED Backlight. LEDs
arrayed directly behind the screen raise and lower light level, area by area. You get
incredibly deep blacks and outstanding peak highlights in every scene. Compared with
conventional, fluorescent tube backlighting, the LEDs enable a thinner profile and higher
energy efficiency, being around a third of the depth, and consuming less power.
Monolithic design
Due to the optical properties of the image matching those of the glass, the image appears
to float on the front surface of the glass. When powered down, the screen appears to be a
seamless black monolith.
Standard External Control Terminals
It comes with HDMI-RS232C converter box which enables external control of the
display, for features like volume control and more.
Ambient Sensor
The Ambient Sensor ensures your screen looks great in daylight, fluorescent light,
incandescent light or darkness. It also detects the lighting conditions and automatically
adjusts both the brightness and colour temperature accordingly, saving energy by
reducing brightness at night.
Intelligent Presence Sensor
Experience a screen that knows where you are in the room, and adjusts accordingly.
Using a built-in camera, with ‘face detection’ and ‘motion detection’, the Intelligent
Presence Sensor switches the screen into Standby mode to save power when nobody is
watching, warns children when they are too close to the screen and even optimises the
picture and sound based on where people are in the room.
Internet Capability
All models feature RJ45 input and wifi capability (with extra external accessories),
allowing customers to surf the web via the built-in browser.
Skype™ Ready
Now BRAVIA Professional owners can take advantage of free Skype-to-Skype Internet
voice and video calls. Widely popular for PC-based phone calls, the Skype service is a
great way to keep in touch with friends and family at little or no cost. Sony makes it easy
– simply attach the dedicated Sony camera/microphone (sold separately).
3D Capacity
Stunning 3D capability means that you can choose to enhance your presentations using
this latest technology – and with this model you receive 2 pairs of 3D glasses.
USB Playback
For easy, entry-level signage displays, you can play a variety of content straightaway
from a USB memory stick, complete with looping and adjustable interval settings.
Wide variety of input options
Models can accept a wide variety of input sources, including 4 x HDMI, laptop, Blu-ray
and DVD player.
Picture frame mode
This power-saving mode comes as standard, allowing the screen to be used to show
artwork or user-generated images as if it were a picture frame.
Enhanced on-screen interface
BRAVIA Professional displays now feature a refinement of the Xross Media Bar™
(xmb™) user interface. Now it’s easier than ever to take advantage of all of your screen’s
features: the content continues to play in a window as you navigate the menus; the feature
categories appear across the bottom of the screen, while the feature choices appear on the
right-hand side.
Technical Specifications
Display Features
Inch Size
Backlight Type
Intelligent Peak LED
OptiContrast PanelYes
Display Specs
Panel Frequency
Display ResolutionFull HD
Aspect Ratio
Video Features
13modes ( Vivid / Standard / Custom /Photo-Vivid / Photo-Standard /
Picture Mode Photo-Original / Photo-Custom / Cinema / Game-Standard / GameOriginal / Graphics / Sports / Animation )
Motionflow XR 800
3D Features
3D Sync Transmitter IntegratedYes
Simulated 3D
Audio Specs
Speaker Position
Rear Facing
Audio Power Output 10W + 10W + 10W
Speaker Configuration2,1
Audio Features
Invisible Speaker (w/Sound Elevation)Yes
Sound Mode
Dynamic / Standard / Clear Voice
Surround Effect
Cinema / Sports / Music / Game
Auto Mute (on no signal)
Network Features
Wi-Fi Direct
Network Update(WLAN Integrated model)
Media Remote Yes(Network Update)
HTML BrowserYes
Wireless LAN Integrated
Convenience Features
Quick Start & Viewing Yes
Twin Picture
PAP (Variable)
Control for HDMI (HDMI
Skin Naturalizer
Scene Select
Photo / Music / Cinema / Game / Graphics / Sports /
Yes / Yes
Input Skip
On Screen Clock
Sleep Timer / On/Off Timer
Yes / Yes
USB Play
Picture Frame Mode
Multiple Language Display
27 Languages
Sensing Features
Ambient Sensor
Intelligent Presence Sensor Yes
Dynamic Backlight ControlYes
Backlight Off Mode
Energy Saving Switch
General Features
Hotel Mode MenuYes
RS-232C Control Yes ( with supplied HDMI converter box)
Design Features
Monolithic Design
Illuminated Sony LogoYes
Inputs and Outputs
RF Connection Input(s)
1 (Rear)
Composite Video Input(s)
1 (Rear/1 Hybrid)
Component Video (Y/Pb/Pr) Input(s)
SCART (without Smartlink)
HDMI™ Connection(s) (Total)
4(1 Side/3Rear)
PC In (D-Sub) + Audio In (Stereo Mini)D-Sub 1(Side) / Mini 1(Rear)
Video Out (SCART)
1 (Rear)
Analog Audio Input(s) (Total)
Digital Audio Output(s)
Audio Out
1(Side) Hybrid w/HP
Headphone Output(s)
1(Side) Hybrid w/Audio out
Ethernet Connection(s)
RS-232C Input(s)
Yes ( with supplied HDMI converter box)
HDMI™ PC Input
Power RequirementsAC 220-240V / 50Hz
Recycled & Recyclable Materials
Packaging MaterialsRecycled Carton (more than 70%)
Supplied Accessories
RM-ED041 (AL-Simple_AEP)
Remote Control
TDG-BR250 x2
3D Glasses
separate (HDMI connection required)HDMI-RS232C Converter
separate (assembly required)
Table Top Stand
