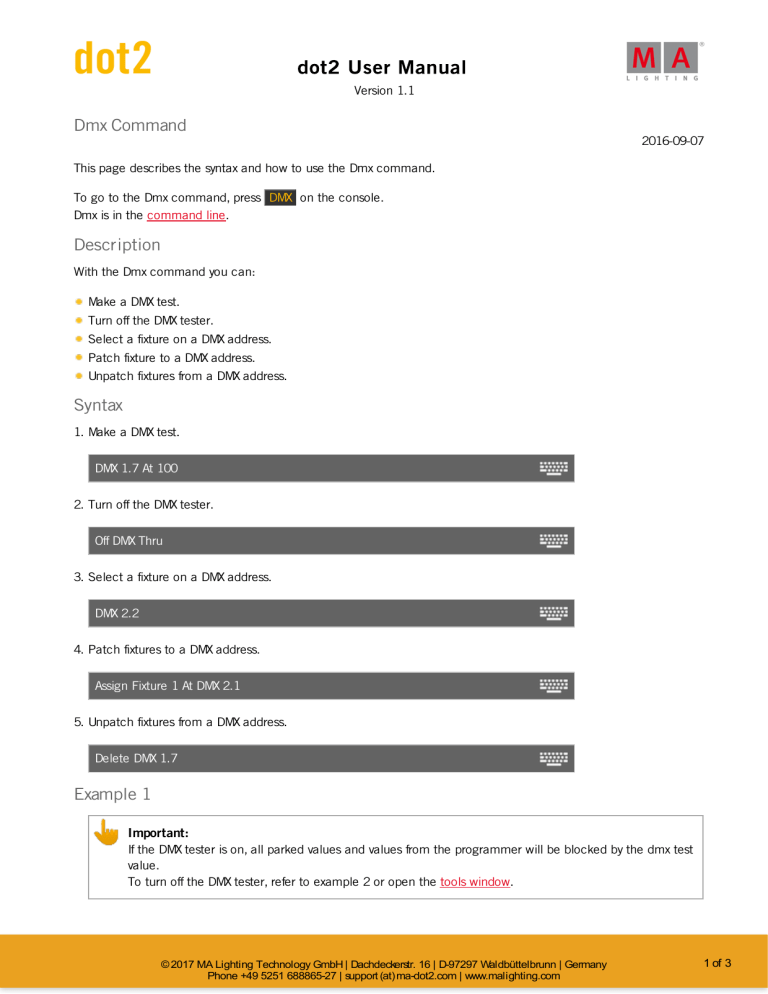

Dmx Command
2016-09-07
This page describes the syntax and how to use the Dmx command.
To go to the Dmx command, press DMX on the console.
Dmx is in the command line.
Description
With the Dmx command you can:
Make a DMX test.
Turn off the DMX tester.
Select a fixture on a DMX address.
Patch fixture to a DMX address.
Unpatch fixtures from a DMX address.
Syntax
1. Make a DMX test.
DMX 1.7 At 100
2. Turn off the DMX tester.
Off DMX Thru
3. Select a fixture on a DMX address.
DMX 2.2
4. Patch fixtures to a DMX address.
Assign Fixture 1 At DMX 2.1
5. Unpatch fixtures from a DMX address.
Delete DMX 1.7
Example 1
Important:
If the DMX tester is on, all parked values and values from the programmer will be blocked by the dmx test
value.
To turn off the DMX tester, refer to example 2 or open the tools window.
