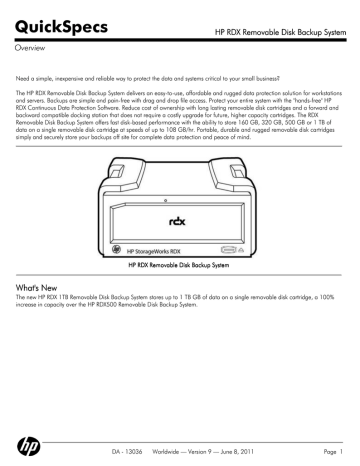

QuickSpecs
HP RDX Removable Disk Backup System
Overview
Need a simple, inexpensive and reliable way to protect the data and systems critical to your small business?
The HP RDX Removable Disk Backup System delivers an easy-to-use, affordable and rugged data protection solution for workstations
and servers. Backups are simple and pain-free with drag and drop file access. Protect your entire system with the "hands-free" HP
RDX Continuous Data Protection Software. Reduce cost of ownership with long lasting removable disk cartridges and a forward and
backward compatible docking station that does not require a costly upgrade for future, higher capacity cartridges. The RDX
Removable Disk Backup System offers fast disk-based performance with the ability to store 160 GB, 320 GB, 500 GB or 1 TB of
data on a single removable disk cartridge at speeds of up to 108 GB/hr. Portable, durable and rugged removable disk cartridges
simply and securely store your backups off site for complete data protection and peace of mind.
HP RDX Removable Disk Backup System
What's New
The new HP RDX 1TB Removable Disk Backup System stores up to 1 TB GB of data on a single removable disk cartridge, a 100%
increase in capacity over the HP RDX500 Removable Disk Backup System.
DA - 13036
Worldwide — Version 9 — June 8, 2011
Page 1
QuickSpecs
HP RDX Removable Disk Backup System
Features
Key Features
Drag and drop file backup and restore
"Hands free" HP RDX Continuous Data Protection Software
Up to 108 GB/hour* transfer rate (uncompressed data) - * Where 1KB = 1,000 Bytes
Fast disk based random access file retrieval
Choice of 160 GB, 320 GB, 500 GB or 1TB capacity removable disk cartridges (interchangeable in any HP RDX docking
station)
Compatibility with leading ISV backup software applications
Disk cartridges designed for long usage life - over 5,000 load/unload insertions
Compatible with future higher capacity cartridges and mobile 2.5 inch Hard Disk Drive technology roadmap
Portable, durable and shock proof cartridges
Easy to install (USB 2.0 plug and play) and compact (Half-height 5.25-inch form-factor) internal or external docking station
for removable cartridges
Choice of half-height external, internal or rack-mount models to fit both servers and workstations
HP RDX Removable Disk Backup System DL Server Module provides integrated data protection inside HP ProLiant
DL380/DL385 G6/G7 rack-optimized servers.
Broad compatibility with a wide range of servers and operating systems
Supporting tools -- HP LT&T available as a download with the drive to make installation, performance tuning and troubleshooting even easier
Customer Benefits
The simple way to protect
your business data
Reduces total cost of
protecting your business
data
Simply and securely store
backups off-site for
complete data protection
Drag and drop file access makes backup as easy and convenient as the click of a mouse
Protect your entire system with "hands free" HP RDX Continuous Data Protection Software
Less time spent on backups with fast disk based file transfer/retrieval performance
Flexibility to meet budget and capacity requirements with choice of cartridge capacities
Usage model fits traditional backup architecture (e.g. ISV software) if required
Long usage life span of cartridges lowers media replacement costs
No need to replace docking station when future higher capacity cartridges are available
Portable/durable disk cartridges enable easy off site archiving and disaster recovery
Rugged cartridge protects data from drops, ESD and harsh environmental conditions for secure
archiving/transportation/archiving
Plug and play USB dock allows flexible media rotation and easy future scalability
DA - 13036
Worldwide — Version 9 — June 8, 2011
Page 2
QuickSpecs
HP RDX Removable Disk Backup System
Product Highlights
Product Highlights
Combines the best of
tape and disk
The HP RDX Removable Disk Backup System is based on removable disk technology that handles and
operates like a traditional tape drive and media, yet has all of the advantages of disk-to-disk backup.
The HP RDX Removable Disk Backup System allows backups to be accomplished with "hands free" HP
RDX Continuous Data Protection Software, standard ISV backup applications or data can be dragged
and dropped directly to the rugged removable storage media. To the host computer, the HP RDX
Removable Disk Cartridge appears as a Windows drive letter with the high performance benefits of a
disk based backup system.
Easy to implement and
use
Many small business customers have limited time, knowledge, experience or desire to dedicate to
backup and therefore currently have no or very rudimentary backup processes in place. The HP RDX
Removable Disk Backup System offers these customers a complete backup solution that is simple to
implement and easy to use.
Installation is an easy and quick process of connecting the industry standard form factor HP RDX
Removable Disk Backup System USB docking station either internally to a server or rack-mount kit or
externally as a tabletop. The new HP RDX Removable Disk Backup System DL Server Module provides
integrated data protection for HP ProLiant DL380/385 G6/G7 servers,
optimizing rack utilization by integrating into any HP ProLiant DL380/385 G6/G7 rack-optimized server.
Backing up is a simple matter of inserting a removable disk cartridge into the docking station. The
cartridge will automatically show up as a letter drive in Windows explorer with no extra formatting or
extra steps required. Simply select the files that need to be protected and drag them into the removable
drive folder. To restore files, just reverse the process.
For a hands free backup experience use the HP RDX Continuous Data Protection Software designed for
ease of use and complete workstation and server backup protection. Key features of the HP RDX
Continuous Data Protection Software include continuous data protection, file deduplication, bare metal
restore, seamless cartridge rotation and archiving support, simple file recovery, complete backup
coverage (unlimited file versions, open files, application data user settings and the complete operating
system are all automatically backed up), and comprehensive backup status updates. Scheduled backups
can be performed through support for standard ISV backup applications.
Fast backup and restore
Staff productivity and thus customer service can be negatively impacted by the lengthening backup
window and restore/recovery times associated with optical backup solutions. The HP RDX Removable
Disk Backup System provides a backup solution that backs up and retrieves data quickly and reliably
thus optimizing application availability and staff productivity.
Data can be backed up to HP RDX Removable Disk Cartridges at hard drive speeds (up to 108
GB/hour). HP RDX Removable Disk Cartridges are randomly accessed and read so critical single files
and selected file stores can be restored in seconds instead of hours.
DA - 13036
Worldwide — Version 9 — June 8, 2011
Page 3
QuickSpecs
HP RDX Removable Disk Backup System
Product Highlights
Affordable cost of
ownership
Many small business customers have limited IT budget available for data protection with business owners
wanting to reduce IT capital and operational expenditure and protect IT investments to optimize business
profitability. The HP RDX Removable Disk Backup System provides a complete backup solution that has
low initial acquisition costs and low on-going media and upgrade costs.
Total cost of ownership is lowered by the fact that HP RDX Removable Disk Cartridges are specified for
5,000 insertion/removal cycles, so HP RDX Removable Disk Cartridges will not wear out (and therefore
need to be replaced) over the typical life cycle of the solution. Upgrade and obsolescence costs are also
reduced and investment protection guaranteed by the fact that HP RDX Removable Disk Backup System
docking stations are compatible with all current and future higher capacity HP RDX Removable Disk
Cartridges. Customers will not need to purchase a new docking station when next generation higher
capacity HP RDX Removable Disk Cartridges are released. Similarly, today's HP RDX Removable Disk
Cartridges are compatible with all current and future HP RDX docking stations. Customer's existing HP
RDX Removable Disk Cartridges will work with next generation HP RDX docking stations when they are
released.
Removability and
portability
To ensure complete data protection against all types of data loss - including on-site system/site
destruction or natural disaster - small businesses need the ability to remove their backup and archive
data off-site. The HP RDX Removable Disk Backup System provides a backup solution that enables onsite backup data to be removed, stored and rotated off-site in an easy, safe and secure way.
HP RDX Removable Disk Cartridges are portable (palm size), durable (2.5 inch disk drive features
include ramp loading heads, fluid dynamic bearings, inactive state spin down) and rugged. The robust
HP RDX Removable Disk Cartridge is also designed to protect data from potentially damaging
Electrostatic Discharge (ESD) and as well as prolonged exposure to heat, dust and other environmental
contaminants.
Reliability
The HP RDX Removable Disk Backup System provides a docking station specified for more than 10,000
load and unloads and an HP RDX cartridge specified for over 5,000 load and unloads and long life
expectancy.
Easy scalability and
expandability
Many growing small businesses are experiencing storage capacity growth that is outstripping the
capacity/performance of current optical backup solutions. The HP RDX Removable Disk Backup System
provides a backup solution that scales easily as capacity needs grow. Adding capacity is a simple matter
of adding cartridges to an existing HP RDX Removable Disk Backup System USB docking station. The HP
RDX Removable Disk Backup System docking Station will work with all current as well future higher
capacity cartridges as they are introduced. The product's roadmap leverages the industry standard
mobile 2.5" hard disk drive roadmaps with new higher capacity cartridges expected to be introduced
regularly.
DA - 13036
Worldwide — Version 9 — June 8, 2011
Page 4
QuickSpecs
HP RDX Removable Disk Backup System
Compatibility
Compatibility
The HP extensive compatibility testing program assures that your HP RDX Removable Disk Backup System
works with leading servers, operating systems, and backup applications. For the latest list of servers,
workstations, operating systems, and backup software that support the HP RDX Removable Disk Backup
System, check the HP RDX Removable Disk Backup System compatibility pages on our web site at:
http://www.hp.com/go/connect or www.hp.com/storage/spock.
HP Server and
The HP RDX Removable Disk Backup System is compatible with HP ProLiant servers and HP workstations.
Workstation Compatibility HP RDX Removable Disk Backup System is supported on the following classes of HP systems:
HP ProLiant DL servers
including the HP ProLiant DL380/385 G6/G7 servers
HP ProLiant ML servers
HP Personal Workstations
For details of which HP RDX Removable Disk Backup System models work with which systems, including
third-party systems, visit: http://www.hp.com/go/connect or www.hp.com/storage/spock for the latest
hardware compatibility information.
NOTE: HP recommends that no more than one HP RDX Removable Disk Backup System be connected
to a system at a time.
OS Support
Microsoft® Windows®, Linux (various distributions)
NOTE: Please visit: http://www.hp.com/go/connect or www.hp.com/storage/spock for the latest
compatibility information.
Backup Software Support HP RDX Continuous Data Protection Software, HP Data Protector Express, CA BrightStor ARCServe
Backup, Symantec Backup Exec, and other backup applications that support removable disk media
NOTE: Please visit: http://www.hp.com/go/connect or www.hp.com/storage/spock for the latest
compatibility information.
DA - 13036
Worldwide — Version 9 — June 8, 2011
Page 5
QuickSpecs
HP RDX Removable Disk Backup System
Service and Support, HP Care Pack, and Warranty Information
Warranty and Services
Hewlett-Packard provides a 1-year, next-day, parts exchange, limited warranty for the HP RDX
Included with the Product Removable Disk Backup System, plus 9x5 phone support for the duration of the warranty.
HP warrants only that the Storage software media will be free of physical defects for a period of ninety
(90) days from delivery.
For more information about HP's Global Limited Warranty and Technical Support, visit:
ftp://ftp.compaq.com/pub/products/storageworks/warranty/en_321708-008.pdf
HP Care Pack Information For increased uptime, productivity and ROI -HP Care Pack packaged services for Storage
These days, you need to get the most out of your storage investment-you can't afford not to. When you
buy HP storage products and solutions, it's also a good time to think about what levels of service and
support you may need. To help take the worry out of deploying, designing, maintaining, and managing
your environment, we've designed a portfolio of service options that are as flexible, reliable and scalable
as your storage. Unlike storage-only vendors, we take a holistic approach to your entire environment,
bridging storage, servers, blades, software and network infrastructures with our HP Care Pack packaged
services for Storage.
Protect your business beyond the warranty
When it comes to robustness and reliability, standard warranties on today's computing equipment have
matured just as the technologies have matured. Good news on some fronts-but also a source of
potential problems and subsequent consequences that come from depending on standard warranties
alone. Standard warranty protects against product defects and some causes of downtime- but not the
business. By using a standard approach to warranty uplifts, such as HP Care Pack Services, you can
reduce downtime risks and be more certain of operational consistency for both mission-critical and
standard business computing. Simply put, HP Care Pack Services normalize the warranty of combined
products - helping you proactively guard against unplanned downtime.
Extending warranties with HP Care Pack Services
For cost-effective upgrading or extending your standard warranty, HP Care Pack Services offer a suite of
standard reactive hardware and software support services that are sold separately, or combined as with
our Support Plus and Support Plus 24 services. The portfolio also provides a combination of proactive
and reactive services, such as Proactive 24 Service and Critical Service. In addition, with HP Proactive
Select we offer an innovative approach to service delivery that gives you the flexibility to acquire the
specific proactive services you need today, then add services as your needs evolve. HP Proactive Select
offers a broad set of technical or per-event type service options - including server, storage, and network,
SAN device, and software, environment, installation and education services. Services that you can mix
and match depending on your specific requirements, from preliminary planning and equipment delivery
to installation, configuration, integration, and testing, through every level of ongoing support. Our HP
Care Pack packaged services for Storage assures help when you need it most. And for many products,
post-warranty HP Care Pack Services are available when your original warranty has expired.
HP Storage Services: Offering reliability, flexibility and value-just like your storage
HP Storage Services offers a full spectrum of customer care, from technology support to complex
migrations to complete completely managed services. HP Factory Express provides customization,
integration and deployment services for turnkey solutions. HP Education offers flexible, comprehensive
training on storage networking, disk storage systems, and storage software to help your IT staff get the
most out of your investments. And HP Financial solutions extend innovative financing and asset
management programs to cost-effective buy, manage and eventually retire your older equipment.
DA - 13036
Worldwide — Version 9 — June 8, 2011
Page 6
QuickSpecs
HP RDX Removable Disk Backup System
Service and Support, HP Care Pack, and Warranty Information
HP Storage Services, the trusted business technology experts who manage your technology in action,
because when technology works, business works. http://www.hp.com/hps/storage
NOTE: Care Pack Services availability may vary by product and country.
HP Care Pack Services are sold by HP and HP Authorized Service Partners:
Services for customers purchasing from HP or an enterprise reseller are quoted using HP order
configuration tools.
Customers purchasing from a commercial reseller can find HP Care Pack Services at
http://www.hp.com/go/lookuptool
Recommended Support
For a higher return on your storage investment, HP Support Plus 24 provides integrated hardware and
software support services designed specifically for your technology. Available 24x7, this 3-year
combined reactive support option delivers onsite hardware support and over-the-phone software support
around-the-clock. Leverage the full strength of HP Technology Services - customers can trust the services
professionals at HP to work collaboratively with them, putting our strategic and technical know-how to
work across their entire infrastructure.
Improve uptime with responsive hardware and software services
Enjoy consistent service coverage across geographically dispersed sites
Update HP party software at a predictable cost
Increase customer satisfaction-with no interoperability gaps
http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-6638EN.pdf
Recommended
Deployment
HP Installation Service.
For smooth startup and better business outcomes, HP Hardware Installation - this service provides initial
hardware installation of your product into your technology environment (system configuration is not
included).
Service Features:
Installation in accordance with your business's configuration requirements
The ability to achieve more effective data management
http://h71028.www7.hp.com/ERC/downloads/5981-9356EN.pdf
DA - 13036
Worldwide — Version 9 — June 8, 2011
Page 7
QuickSpecs
HP RDX Removable Disk Backup System
Service and Support, HP Care Pack, and Warranty Information
Related HP Care Pack Services that will enhance your HP product
experience
For customers who need to improve IT performance and manageability through the use of cost effective
Related Services
flexible proactive services:
Proactive Select - increased flexibility, minimal complexity -- Select what works for you - your package
Delivery planning + Proactive Service Credits
Credits are used to redeem proactive services
Three 'predefined' service credit levels - 30, 60,180 credits
Additional credits available
Available in 1,3, 4 & 5 year packages
Reactive
Utilize existing reactive services products - ranging from Next Day, through 24x7, to 6 Hour Call
to Repair
http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA2-3842ENN.pdf
eSupport
HP eSupport is a portfolio of technology-based services that assist you with managing your business
environment - from the desktop to the data center.
Support Portal
The HP support portal provides one-stop access to the information, tools and services you need to
manage the daily operations of your IT environment.
Features include:
Access to self-solve tools (including search technical knowledge base)
Efficient logging and tracking of support cases
Collaboration with other business and IT professionals
Download of patches and drivers
Access to diagnostic tools
Proactive notification of relevant information
Access to certain features of the support portal requires an HP service agreement. To access the support
portal, visit: http://www.hp.com/support
Customer Technical
Training
Consider education as an integral part of your strategy to get the best return on investment for your HP
storage solution. HP offers a variety of training courses on storage software, networking, archiving and
disk storage systems. Our classes are available in many delivery modalities from traditional instructor-led
courses at one of our 80 training centers worldwide to on-site training customized to your needs or
online. www.hp.com/learn/storage
DA - 13036
Worldwide — Version 9 — June 8, 2011
Page 8
QuickSpecs
HP RDX Removable Disk Backup System
Service and Support, HP Care Pack, and Warranty Information
HP Services Awards
HP Services continues to be recognized for service and support excellence by customers, partners,
industry organizations and publications around the world. Recent honors and award reflect our services
team's dedications, technical expertise, professionalism and uncompromising commitment to customer
satisfaction. For a list of all our awards, please visit
http://h20219.www2.hp.com/services/cache/433028-0-0-225-121.html
Additional Services
Information
For more information about HP Care Pack Services for Storage, please visit:
http://www.hp.com/hps/storage
If you have specific questions, contact your local HP representative. Contact information for a
representative in your area can be found at "Contact HP" http://www.hp.com
DA - 13036
Worldwide — Version 9 — June 8, 2011
Page 9
QuickSpecs
HP RDX Removable Disk Backup System
Kit Contents
Kit Contents
Model Name
HP RDX160 Internal Removable Disk Backup System
RDX Internal Docking Station, installation poster, HP Storage CD (containing
electronic user's guide and drivers), internal USB cable, HP RDX 160 GB Removable
Disk Cartridge, HP RDX Continuous Data Protection Software CD
NOTE: 0D1 will appear after this part number on your sales order if factory
integration is indicated.
Part Number
AJ765A
HP RDX160 External Removable Disk Backup System
RDX External Docking Station, installation poster, HP Storage CD (containing
electronic user's guide and drivers), external USB cable, power cord/supply, HP RDX
160 GB Removable Disk Cartridge, HP RDX Continuous Data Protection Software CD
AJ766A
HP RDX320 Internal Removable Disk Backup System
RDX Internal Docking Station, installation poster, HP Storage CD (containing
electronic user's guide and drivers), internal USB cable, HP RDX 320 GB Removable
Disk Cartridge, HP RDX Continuous Data Protection Software CD
NOTE: 0D1 will appear after this part number on your sales order if factory
integration is indicated.
AJ767A
HP RDX320 External Removable Disk Backup System
RDX External Docking Station, installation poster, HP Storage CD (containing
electronic user's guide and drivers), external USB cable, power cord/supply, HP RDX
320 GB Removable Disk Cartridge, HP RDX Continuous Data Protection Software CD
AJ768A
HP RDX500 Internal Removable Disk Backup System
RDX Internal Docking Station, installation poster, HP Storage CD (containing
electronic user's guide and drivers), internal USB cable, HP RDX 500 GB Removable
Disk Cartridge, HP RDX Continuous Data Protection Software CD
NOTE: 0D1 will appear after this part number on your sales order if factory
integration is indicated.
AJ934A
HP RDX500 External Removable Disk Backup System
RDX External Docking Station, installation poster, HP Storage CD (containing
electronic user's guide and drivers), external USB cable, power cord/supply, HP RDX
500 GB Removable Disk Cartridge, HP RDX Continuous Data Protection Software CD
AJ935A
HP RDX 1TB Internal Removable Disk Backup System
RDX Internal Docking Station, installation poster, HP Storage CD (containing
electronic user's guide and drivers), internal USB cable, HP RDX 1 TB Removable Disk
Cartridge, HP RDX Continuous Data Protection Software CD
NOTE: 0D1 will appear after this part number on your sales order if factory
integration is indicated.
BV847A
DA - 13036
Worldwide — Version 9 — June 8, 2011
Page 10
QuickSpecs
HP RDX Removable Disk Backup System
Kit Contents
Media
HP RDX 1TB External Removable Disk Backup System
RDX External Docking Station, installation poster, HP Storage CD (containing
electronic user's guide and drivers), external USB cable, power cord/supply, HP RDX 1
TB Removable Disk Cartridge, HP RDX Continuous Data Protection Software CD
BV849A
HP RDX160 Removable Disk Backup System DL Server Module
HP RDX Removable Disk Backup System DL Server Module, installation poster/flyer,
HP Storage CD (containing electronic user's guide and drivers), internal USB cable,
power cable, HP RDX 160 GB Removable Disk Cartridge, HP RDX Continuous Data
Protection Software CD
NOTE: 0D1 will appear after this part number on your sales order if factory
integration is indicated.
AP724A
HP RDX320 Removable Disk Backup System DL Server Module
HP RDX Removable Disk Backup System DL Server Module, installation poster/flyer,
HP Storage CD (containing electronic user's guide and drivers), internal USB cable,
power cable, HP RDX 320 GB Removable Disk Cartridge, HP RDX Continuous Data
Protection Software CD
NOTE: 0D1 will appear after this part number on your sales order if factory
integration is indicated.
AP725A
HP RDX500 Removable Disk Backup System DL Server Module
RDX Removable Disk Backup System DL Server Module, installation poster/flyer, HP
Storage CD (containing electronic user's guide and drivers), internal USB cable, power
cable, HP RDX 500 GB Removable Disk Cartridge, HP RDX Continuous Data
Protection Software CD
NOTE: 0D1 will appear after this part number on your sales order if factory
integration is indicated.
AP726A
HP RDX 1TB Removable Disk Backup System DL Server Module
RDX Removable Disk Backup System DL Server Module, installation poster/flyer, HP
Storage CD (containing electronic user's guide and drivers), internal USB cable, power
cable, HP RDX 1TB GB Removable Disk Cartridge, HP RDX Continuous Data
Protection Software CD
NOTE: 0D1 will appear after this part number on your sales order if factory
integration is indicated.
BV848A
HP RDX 160GB Removable Disk Cartridge
HP RDX 320GB Removable Disk Cartridge
HP RDX 500GB Removable Disk Cartridge
HP RDX 1TB Removable Disk Cartridge
Q2040A
Q2041A
Q2042A
Q2044A
DA - 13036
Worldwide — Version 9 — June 8, 2011
Page 11
QuickSpecs
HP RDX Removable Disk Backup System
Kit Contents
Rack-Mount Options
HP 1U USB Rack-Mount Kit
NOTE: 1U USB Rack-Mount Kit holds up to two internal HP RDX Removable Disk
Backup Systems
NOTE: Please refer to the following web page for further information:
http://h18006.www1.hp.com/products/storageworks/1urackmount/index.html
DA - 13036
Worldwide — Version 9 — June 8, 2011
A8007B
Page 12
QuickSpecs
HP RDX Removable Disk Backup System
Technical Specifications
HP RDX 160
Dimensions
Form Factor
1.63 x 5.78 x
6.72 in
(4.14 x 14.68 x
17.07 cm)
Physical
2.04 x 4.32 x
(HxWxD)
7.00 in
External Dock
(including bezel)
(5.18 x 10.98 x
17.75 cm
(including
bezel))
Physical
0.92 x 3.39 x
(HxWxD)
4.68 in
Removable Disk (2.34 x 8.66 x
11.9 cm)
Cartridge
Shipping
8.07 x 7.87 x
(HxWxD)
15.75 in
Internal/External (20.5 x 20.0 x
40 cm)
Shipping
3.35 x 5.32 x
(HxWxD)
7.99 in
Removable Disk (8.50 x 13.5 x
Cartridge
20.3 cm)
Out of box,
Internal Dock
Out of box,
External Dock
Out of box,
Removable Disk
Cartridge
Shipping,
Internal Dock
Shipping
External Dock
HP RDX 500
HP RDX 1TB
Half-height, 5¼ Half-height, 5¼ Half-height, 5¼ Half-height, 5¼
in (internal
inches (internal
in (internal
in (internal
module)
module)
module)
module)
Physical
(HxWxD)
Internal Dock
Weight
HP RDX 320
1.63 x 5.78 x
6.72 in
(4.14 x 14.68 x
17.07 cm)
2.04 x 4.32 x
7.00 in
(including bezel)
(5.18 x 10.98 x
17.75 cm
(including
bezel))
0.92 x 3.39 x
4.68 in
(2.34 x 8.66 x
11.9 cm)
8.07 x 7.87 x
15.75 in
(20.5 x 20.0 x
40 cm)
3.35 x 5.32 x
7.99 in
(8.50 x 13.5 x
20.3 cm)
1.63 x 5.78 x
6.72 in
(4.14 x 14.68 x
17.07 cm)
2.04 x 4.32 x
7.00 in
(including bezel)
(5.18 x 10.98 x
17.75 cm
(including
bezel))
0.92 x 3.39 x
4.68 in
(2.34 x 8.66 x
11.9 cm)
8.07 x 7.87 x
15.75 in
(20.5 x 20.0 x
40 cm)
3.35 x 5.32 x
7.99 in
(8.50 x 13.5 x
20.3 cm)
HP RDX
DL380/385
G6/G7 server
module
Module with
Half-height, 5¼
inch internal
RDX drive
3.36 x 7.00 x
6.72 in
(8.535 x 17.791
x 17.072 cm)
N/A
1.63 x 5.78 x
6.72 in
(4.14 x 14.68 x
17.07 cm)
2.04 x 4.32 x
7.00 in
(including bezel)
(5.18 x 10.98 x
17.75 cm
(including
bezel))
0.92 x 3.39 x
0.92 x 3.39 x
4.68 in
4.68 in
(2.34 x 8.66 x (2.34 x 8.66 x
11.9 cm)
11.9 cm)
8.07 x 7.87 x
8.07 x 7.87 x
15.75 in
15.75 in
(20.5 x 20.0 x (20.5 x 20.0 x
40 cm)
40 cm)
3.35 x 5.32 x
3.35 x 5.32 x
7.99 in
7.99 in
(8.50 x 13.5 x (8.50 x 13.5 x
20.3 cm)
20.3 cm)
1.40 lb (635 g) 1.40 lb (635 g) 1.40 lb (635 g) 1.40 lb (635 g)
3.29 lb (1494
g)
1.19 Ib (540 g) 1.19 Ib (540 g) 1.19 Ib (540 g) 1.19 Ibs (540 g)
N/A
0.38 lb (173 g) 0.38 lb (173 g) 0.41 lb (188 g) 0.53 lb (240 g) 0.38 lb (173 g)/
0.41 lb (188 g)
3.37 lb (1.53
kg)
3.37 lb (1.53
kg)
3.45 lb (1.57
kg)
3.45 lb (1.57
kg)
3.45 lb (1.57
kg)
3.5 lb (1.59 kg) 3.5 lb (1.59 kg)
3.58 lb (1.63
3.58 lb (1.63
N/A
kg)
kg)
Shipping,
0.76 lb (345 g) 0.77 lb (349 g) 0.81 lb (367 g) 0.81 lb (374 g) 0.77 lb (349 g)/
Removable Disk
0.81 lb (382 g)
Cartridge
DA - 13036
Worldwide — Version 9 — June 8, 2011
Page 13
QuickSpecs
HP RDX Removable Disk Backup System
Technical Specifications
Orientation
Internal Dock
Horizontal +/90 degrees
Horizontal +/90 degrees
160 GB
Horizontal +/90 degrees
Horizontal +/90 degrees
320 GB
Horizontal +/90 degrees
Horizontal +/90 degrees
500 GB
Horizontal +/90 degrees
Horizontal +/90 degrees
1 TB
Compressed
(assumes 2:1
application
based data
compression)
320 GB
640 GB
1 TB
3.0 TB
Average
sustained
transfer rate,
native
Average
sustained
transfer rate,
compressed
(assumes 2:1
application
based data
compression)
Burst transfer
rate(USB)
Data access
time
Supported file
systems
MTBF (Dock)
30 MBs
30 MBs
30 MBs
30 MBs
30 MBs
60 MBs
60 MBs
60 MBs
60 MBs
60 MBs
480 MBs
480 MBs
480 MBs
480 MBs
480 MBs
External Dock
Capacity
Performance
Reliability
Media
Compatibility
Native
Horizontal +/90 degrees
N/A
Choice of 160
GB, 320 GB,
500 GB or 1 TB
Choice of 320
GB, 640 GB, 1
TB or 3.0 TB
15 milliseconds 15 milliseconds 15 milliseconds 15 milliseconds 15 milliseconds
FAT32, NTFS, FAT32, NTFS, FAT32, NTFS, FAT32, NTFS, FAT32, NTFS,
ext2, ext3
ext2, ext3
ext2, ext3
ext2, ext3
ext2, ext3
550,000 hours 550,000 hours 550,000 hours 550,000 hours 550,000 hours
@100% duty
@100% duty
@100% duty
@100% duty
@100% duty
cycle
cycle
cycle
cycle
cycle
500,000 hours 500,000 hours 500,000 hours 500,000 hours 500,000 hours
MTBF
(cartridge)
1 error per 1014
Uncorrected
Error Rate
bits read
10,000
Docking Station
Load/Unload
(minimum)
cycles
5,000
Cartridge
Load/Unload
(minimum)
cycles
Backwards and
forwards
compatibility to
any
current/future
DA - 13036
1 error per 1014 1 error per 1014
1 error per
1 error per 1014
bits read
bits read
1014 bits read
bits read
10,000
10,000
10,000
10,000
(minimum)
(minimum)
(minimum)
(minimum)
5,000
(minimum)
5,000
(minimum)
5,000
(minimum)
5,000
(minimum)
Backwards and Backwards and Backwards and Backwards and
forwards
forwards
forwards
forwards
compatibility to compatibility to compatibility to compatibility to
any
any
any
any
current/future
current/future
current/future
current/future
Worldwide — Version 9 — June 8, 2011
Page 14
QuickSpecs
HP RDX Removable Disk Backup System
Technical Specifications
RDX removable RDX removable RDX removable RDX removable RDX removable
disk cartridge
disk cartridge
disk cartridge
disk cartridge
disk cartridge
Interface
Interface type
USB 2.0
USB 2.0
USB 2.0
USB 2.0
USB 2.0
USB connector
USB standard
USB standard
USB standard
USB standard
USB standard
series B
series B
series B
series B
series B
receptacle
receptacle
receptacle
receptacle
receptacle
Power Specifications
Power
+5V ± 5%
+5V ± 5% +5V ± 5% (100 +5V ± 5% (100 +5V ± 5% (100
requirements,
(100mV Max
(100mV Max mV Max ripple) mV Max ripple) mV Max ripple)
Internal
ripple) @1.3A ripple) @1.1A
@ 1.1 A
@ 1.1 A
@ 1.1 A
+12V ± 10% +12V ± 10% +12V ± 10% +12V ± 10% +12V ± 10%
(150mV Max
(150mV Max
(150 mV Max
(150 mV Max
(150 mV Max
ripple) @0.04A ripple) @0.4A ripple) @ 0.4 A ripple) @ 0.4 A ripple) @ 0.4 A
Power
100 to 240
100 to 240
100 to 240
100 to 240
100 to 240
requirements,
VAC, 50-60 Hz, VAC, 50-60 Hz, VAC, 50-60 Hz, VAC, 50-60 Hz, VAC, 50-60 Hz,
External
auto-ranging
auto-ranging
auto-ranging
auto-ranging
auto-ranging
Power
6.6W/20 W
6.6W/20 W
6.6W/20 W
6.6W/20 W
6.6W/20 W
consumption
(typical/peak) (typical)/ (peak) (typical)/ (peak) (typical)/ (peak) (typical)/ (peak)
Environmental
Temperature
5 to 45º C; 41 to 113º F (operating)Specifications (all models) range
-40 to 65º C; -40 to 149º F (non operating)
Relative
20 to 80%, non condensing (operating), 10 to 90%, non-condensing (non operating)
humidity
-50 ft to 10,000 ft (operational), -50 ft to 35,000 ft (non operational)
Altitude
random vib(operational): 0.30Grms 5Hz to 500Hz, sine vib(non-op): 0.75g (0-peak)
Vibration
5Hz to 500Hz, random(non-op): 2.41Grms 5Hz to 500Hz
half sine 31G @2.6ms (operational), half sine 71G @ 2m (non operational)
1 m (39.4 in) drop to tile over concrete floor
Shock:
Cartridge non
operating drop
shock
Standards Compliance
(all models)
cURus Recognized (UL60950), TÜV EN60950 (IEC 60950), FCC and CE Declaration of Conformity, CTICK Approved (AS/NZS CISPR22), VCCI Approved, RRL Approved, BSMI Approved, GOSH Approved
DA - 13036
Worldwide — Version 9 — June 8, 2011
Page 15
QuickSpecs
HP RDX Removable Disk Backup System
Technical Specifications
Front Panel LED
Eject Button/Power LED
Indicators and buttons (all (on docking station)
models)
Off
Green
Blinking Green
Amber
Blinking Amber
Activity LED (on cartridge) Green
Blinking Green
No Power
Power is on and unit is working correctly
Unit is ejecting the cartridge
Unit has detected a fault. For more information
run a diagnostic application
Host computer is accessing the media, and the
user has pressed the eject button. The unit will
eject the cartridge after the host access
completes
Cartridge is ready
Activity (Reading, writing, seeking)
Amber
Emergency Eject Hole
Unit has detected a fault. For more information
run a diagnostic application
Emergency Eject Hole to eject the cartridge
© Copyright 2011 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
Microsoft and Windows NT are US registered trademarks of Microsoft Corporation. Intel is a US registered trademark of Intel
Corporation.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.
For RDX drives and media, 1 GB = 1 billion bytes. Actual formatted capacity is less.
DA - 13036
Worldwide — Version 9 — June 8, 2011
Page 16
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
