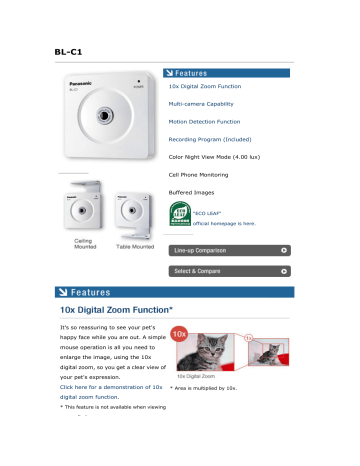

BL-C1
10x Digital Zoom Function
Multi-camera Capability
Motion Detection Function
Recording Program (Included)
Color Night View Mode (4.00 lux)
Cell Phone Monitoring
Buffered Images
"ECO LEAF"
official homepage is here.
It's so reassuring to see your pet's
happy face while you are out. A simple
mouse operation is all you need to
enlarge the image, using the 10x
digital zoom, so you get a clear view of
your pet's expression.
Click here for a demonstration of 10x
digital zoom function.
* This feature is not available when viewing
on a cell phone.
* Area is multiplied by 10x.
Check the images from four cameras at
once. Monitor 12 cameras in all, and
display them all at once (with no
audio). Use a recording program
(BB-HNP11) to save images and audio
to a PC hard disk.
*1-1 To use this function, one of the
cameras must be registered with the
addresses of all other cameras in advance.
The 640 x 480 resolution cannot be used
with the multi-screen display.
*1-2 Switching from the moving image
mode to the still image mode reduces the
load on the network. The still image mode is
recommended when the Internet
connection speed is 100 kbps or lower
(guideline speed).
*1-3 This function can be used only with a
PC. It cannot be used with a cell phone.
In this mode, the camera captures an
image only when motion is detected
based on the preset threshold or
sensitivity of the camera. The image
can be stored temporarily in the
camera, or sent to you by e-mail or FTP
data transfer.*1
*1-1 The sensor's detection history can also
be e-mailed to you once each day at a
preset time.
*1-2 POP before SMTP authentication and
SMTP authentication (PLAIN and LOGIN)
are supported. SMTP authentication
(CRAM-MD5) is not supported.
You can record the moving images
captured by the camera on your PC.
This lets you enjoy natural motion that
isn't possible with still pictures.
*Recording is possible for only one camera.
To record images from multiple cameras,
use the BB-HNP11.
Server
Image compression
Video resolution
JPEG (Motion JPEG for moving image display)
640 x 480, 320 x 240(default), 160 x 120
Image quality
3 modes (favor clarity, standard, favor motion)
Frame rate*1
Max. 7.5 frames/sec (640 x 480)
Max. 15 frames/sec (320 x 240, 160 x 120)
Security
Supported protocols
User access limit
Buffered images*2
User ID/password
TCP, UDP, IP, HTTP, FTP, SMTP, DHCP,
DNS, ARP,ICMP, POP3, NTP, UPnPTM
Max. 20 simultaneous accesses
Approx. 250 images (320 x 240)
•standard image quality •with time display
Image transfer method
SMTP*3, FTP
Image buffer/transfer
triggers
Alarm or motion detection
Network camera
Zoom
Viewing angle
Sensor type
Lens focal point
10x digital zoom (by area)
53° horizontal
41° vertical
1/4 inch CMOS sensor, approx. 320,000 pixels
Fixed (focal range: 0.3 m to ∞)
Lens brightness
Required light intensity
F2.8
10 to 10,000 lux (in color night view mode : 4 to
10,000 lux)
Terminal
Network interface
Ethernet (10Base-T/100Base-TX)
General
Operating temperature
Operating humidity
Dimensions (H x W x D)
Weight (only the unit)
Power supply (E)
Power supply (CE)
Power supply (US)
Consumption
+41°F to +104°F (+5°C to +40°C)
20% to 80% (no condensation)
85 x85 x25 mm
(3 3/8 x 3 3/8 x 1 inches)
100 g (0.22 lb)
Input: 220-240 V AC,
output: 9 V DC
Input: 100-240 V AC,
output: 9 V DC
Input: 120 V AC,
output: 9 V DC
1.7 W
*1 The frame rate may slow down depending on the network environment, PC
performance, image quality, SD memory recording, when color night view
mode is activated, etc.
*2 The maximum number of frames changes depending on the image quality
and what object you buffer.
*3 PDP before SMTP authentication and SMTP authentication (PLAIN and
LOGIN) are supported. SMTP authentication (CRAM-MD5) is not supported
Your PC (Personal Computer) and network must meet the following technical
specifications for the camera to work properly.
Operating System
CPU
Protocol
Windows® 98/SE
Windows® 2000
Windows® Me
Windows® XP
Pentium® III (500 MHz or greater is recommended.)
TCP/IP protocol (HTTP, TCP, UDP, IP, DNS, ARP, ICMP)
Interface
10/100 Mbps network card installed
Web browser
Internet Explorer 6.0 or later
(Not included on the Setup CDROM)
