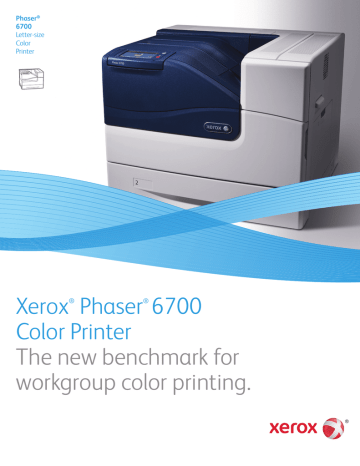

Xerox Phaser 6700
Color Printer
The new benchmark for
workgroup color printing.
The Xerox Phaser 6700 color printer accelerates
workgroup productivity, giving you more time to focus
on what matters most: the success of your business.
With the winning combination of exceptional image quality and blazing fast
print speed, the Phaser 6700 takes your business or large workgroup to a new level of
high-volume productivity. You get unbeatable color accuracy on every business-critical
document you print, with the added benefits of superior ease-of-use and renowned
reliability that only come from Xerox.
Unrivaled Performance
and Productivity
Easy in Your Office,
Easy on the Environment
In the push to make your business rise above
the competition, the Phaser 6700 color printer
raises the bar when it comes to print quality,
performance and reliability.
The Phaser 6700 color printer combines
helpful features engineered to make office life
easier for a large group of users, with smart
design considerations aimed at boosting your
sustainability efforts.
• Superior print quality. The Phaser 6700
delivers true 2400 x 1200 dpi print resolution.
Combine that with true Adobe® PostScript®
3™, and there’s simply no other workgroupclass color printer that makes your color
documents look as realistic as they were
• No sacrificing speed. You get exceptional
print quality plus incredible performance, with
a color and black-and-white print speed of up
to 47 ppm.
• Keep the busiest workgroups productive.
The 1.25 GHz processor and standard 1 GB
system memory handle a steady stream of
complex jobs with ease.
• Your job, your priority. Our Print Around
feature lets you keep the work flowing by
moving your job ahead of stalled documents
in the print queue.
• Heavy-duty durability. The 120,000-page
monthly duty cycle supports the heaviest
office print volumes.
• Advanced touch screen interface. The
Phaser 6700 color printer’s state-of-the-art
4.3-inch color touch-screen interface makes
walk-up operation fast and extremely easy.
• Helpful walk-up features. Embedded
help videos provide quick troubleshooting
assistance right on the front panel.
• Standard duplexing. The Phaser 6700DN,
DT and DX configurations come with standard
automatic two-sided printing on media up to
220 gsm.
• EA Toner. Our EA Toner fuses at a much lower
temperature, and reduces power consumption
by up to 20% and CO2 emissions by up to
35%, compared to conventional toner. It’s
also oil-free, delivering brilliant, glossy output,
even on ordinary paper.
• Simply smarter. The Phaser 6700 features
Smart Trays – paper trays that alleviate
guesswork by showing all available media
types and sizes at print time.
• Lower monthly energy bills. The Phaser
6700 supports the highest ENERGY STAR®
standards for power-saving.*
* DN, DT and DX configurations.
Peace of Mind Comes Standard
With industry-leading security technologies
and unmatched reliability, you can depend on
the Phaser 6700 color printer for worry-free
operation day after productive day.
• State-of-the-art security. The Phaser 6700
offers free 256-bit encryption using the FIPS
140-2 standard. You also get built-in support
for IPv6, IPsec, secure HTTPS, and other
industry-standard network security features.
• Keep unauthorized eyes from sensitive
documents. The available Image Overwrite
feature completely removes unneeded data
from the Phaser 6700 printer’s internal storage.
• Print securely. The optional Productivity
Kit with Hard Drive includes the Secure Print
feature, which holds private print jobs in the
queue until they’re released at the device by
the job owner.
• Engineered to keep performing. The Phaser
6700 uses long-life consumables for extended,
uninterrupted performance. Plus, in the
unlikely event that a repair is needed, you’re
covered by an industry-leading one-year
on-site warranty and the unmatched Xerox®
Total Satisfaction Guarantee.
• Print more for longer. A maximum paper
input of 2,900 pages and high-capacity toner
cartridges keep the Phaser 6700 printing
longer with fewer interruptions to reload
• Configure once, deploy fleet wide. No need
to configure each printer individually. Device
configurations can be cloned and distributed
to all other Phaser 6700 color printers.
Fast, Easy Walk-up Operation
The Right Help, Right Away
The Phaser 6700 features a newly engineered touch
screen interface with large, intuitive color icons for
easy navigation.
Embedded help videos provide easy, step-by-step
troubleshooting assistance right on the color touch
4.3-inch color touch-screen user interface.
Fast, automatic two-sided printing is standard on
all configurations except 6700N.
150-sheet multipurpose tray (standard) supports
a wide range of media, from executive to card stock
to envelopes, in weights up to 220 gsm/80 lb. cover.
550-sheet tray (standard) allows you to add a full
ream of paper.
Two optional 550-sheet paper feeders provides added
convenience and no-hassle media loading.
Add the 1,100-sheet high-capacity feeder and turn the
Phaser 6700 into a convenient floor standing printer
with a total paper capacity of 2,900 sheets.
Optional Finisher includes 1,000-sheet stacking and
50-sheet stapling.
Optional Productivity Kit with 160 GB hard drive.
Color By Words: Intuitive
Color Enhancement
With Color By Words, there is no need to go
back to square one and manipulate source
files. You can change the color of one
object or area without affecting the rest of
the page. Simply select the desired color
modifications from a drop-down list and
your printout is automatically adjusted.
Xerox® Phaser® 6700
Quick Facts
Original photo not right? Use the Color By
Words drop-down list and choose “yellowgreen colors a lot more green,” and “red
colors a lot more saturated.” Pictureperfect results.
Print up to 47 ppm
True 2400 x 1200 dpi
Powerful 1.25 GHz processor
Robust 120,000 pages/
month duty cycle
• First page out time as fast
as 8 seconds
8.5 x 11 in.
Xerox® Phaser® 6700
Color Printer
Phaser 6700N
Phaser 6700DN
Up to 47 ppm color / 47 ppm black-and-white
Duty Cycle
Up to 120,000 pages / month1
Paper Handling
Paper Input
Phaser 6700DT
Phaser 6700DX
Tray 1 (MPT): 150 sheets; Custom sizes: 3 x 5 in. to 8.5 x 14 in. / 76 x 127 mm to 216 x 356 mm
Tray 2: 550 sheets; Custom sizes: 3.9 x 7.5 in. to 8.5 x 14 in. / 99 x 191 mm to 216 x 356 mm
Paper Output
Additional 1,100-sheet Feeder: Custom sizes: 3.9 x 7.5 in. to 8.5 x 14 in. / 99 x 191 mm to 216 x 356 mm
500 sheets
Office Finisher: 1,000-sheet stacker, 50-sheet stapling
Additional 550-sheet Tray: Custom sizes: 3.9 x 7.5 in. to 8.5 x 14 in. / 99 x 191 mm to 216 x 356 mm
Automatic Two-sided Printing
Additional 550-sheet Tray: Custom sizes: 3.9 x 7.5 in. to 8.5 x 14 in. /
99 x 191 mm to 216 x 356 mm
First-page-out Time
As fast as 8 seconds color / 7 seconds black-and-white
Resolution (max)
Up to 2400 x 1200 dpi
1.25 GHz
Memory (std / max)
1 GB / 2 GB
10/100/1000Base-T Ethernet, USB 2.0, Optional external wireless, Apple Bonjour®
Page Description Languages
Adobe® PostScript® 3™, PCL® 6 / PCL® 5c emulation, Direct PDF (with optional Productivity Kit)
Print Features
Earth Smart driver settings, Color By Words, Collation, Bi-directional driver, Smart Duplex, Layout/watermark
Productivity Kit: 160 GB hard drive: Print Around, Secure Print, Personal Print, Sample Set, Hard Disk Overwrite, Form/
Font Storage
SSLv3, IPsec, 802.1X Authentication, HTTPS, IPPS, SMTP Authentication, IPv6, SNMPv3, IP Filtering, 256-bit encryption, Image Overwrite 2, FIPS 140-2
One-year on-site warranty, Xerox® Total Satisfaction Guarantee
Maximum volume capacity expected in any one month. Not expected to be sustained on a regular basis.
Device Management
CentreWare® Internet Services, CentreWare Web, Email alerts,
Cloning, PhaserSMART®, Job Accounting, Usage Analysis, Print
Job Tracker, WebJet Admin Interface, Tivoli, Apple® Bonjour
Print Drivers
Windows® XP, 2003 Server, 2008 Server, Vista, 7; Mac OS® 10.5
and higher, Oracle® Solaris 9, 10, RedHat® Enterprise Linux 4/5,
Fedora Core 11-13, SUSE® 11.x, IBM AIX 5™, HP-UX® 11.0/11.i,
Novell® NetWare® 5.x, 6.x Open Enterprise Server
Font Capability
PostScript® Fonts: 173, PCL® Fonts: 94
Media Handling
Tray 1 (MPT): 16–40 lb. bond to 50–80 lb. cover / 60–220
gsm; Tray 2 and Additional 550-sheet trays: 16–40 lb. bond
to 50–80 lb. cover / 60–220 gsm; 1,100-sheet Feeder: 16–40
lb. bond to 50–80 lb. cover / 60–220 gsm; Two-sided output:
16–40 lb. bond to 50–80 lb. cover / 60–220 gsm; Media types:
Plain paper, Pre-printed, Recycled, Heavyweight, Letterhead,
Hole-punched, Cardstock, Heavyweight cardstock, Glossy,
Heavyweight glossy, Labels, Envelopes, Transparencies, Custom
Color Standards
PANTONE® Color calibrated solid-color simulations, Adobe®
PostScript® device-independent color, CIE International color
standards, Color options, ICC Profile, Apple ColorSync®
Requires Productivity Kit with Hard Drive.
Operating Environment
Temperature: Storage: -4° to 104° F / -20° to 40° C; Operating: 50°
to 90°F / 10° to 32°C; Humidity: 10% to 85%; Sound pressure
levels: Printing: less than 59 dB(A); Standby: less than 26 dB(A);
Sound power levels: Printing: less than 7.3 B(A); Standby: less than
4.11 B(A); Warm-up time (from sleep mode): 35 seconds
High-capacity toner cartridge:
Black: 18,000 pages1106R01510
Cyan: 12,000 pages1106R01507
Magenta: 12,000 pages1106R01508
Yellow: 12,000 pages1106R01509
Staples (3-boxes)
110-127 VAC, 50/60 Hz, 12 A; Power consumption: Avg.
Operations: 637 W, Standby: 116 W, Sleep: 6 W; 220-240 VAC,
50/60 Hz, 6 A; Power consumption: Avg. Operations: 672 W,
Standby: 118 W, Sleep: 8 W; ENERGY STAR® qualified (DN, DT,
DX configurations)
Routine Maintenance Items
Cyan Imaging unit: 50,000 pages2108R00971
Magenta Imaging Unit: 50,000 pages2108R00972
Yellow Imaging unit: 50,000 pages2108R00973
Black Imaging Unit: 50,000 pages2108R00974
Waste Cartridge: 25,000 pages2108R00975
Dimensions (WxDxH)
6700N/DN: 22 x 20.3 x 16.9 in. / 560 x 516 x 429 mm, Weight:
93 lbs. / 42.2 kg; 6700DT: 22 x 20.3 x 22.2 in. / 560 x 516 x
563 mm, Weight: 114 lbs. / 52 kg; 6700DX: 22 x 20.3 x 30.7 in. /
560 x 516 x 780 mm, Weight: 138 lbs. / 62.8 kg
1 Average standard pages. Declared Yield in accordance with ISO/IEC 19798.
Yield will vary based on image, area coverage and print mode.
2 Approximate pages. Declared yield based on an average job size of 4 A4-/letter-size
pages. Yield will vary depending on job run length and media size and orientation.
FCC Part 15, Class A, Listed UL 60950-1/CSA 60950-1-07, CE
Marking applicable to Directives 2004/108/EC and 2006/95/
EC, GOST, Section 508 ADA, ENERGY STAR® qualified (DN, DT,
DX configurations)
Standard-capacity toner cartridge:
Black: 7,100 pages1106R01506
Cyan: 5,000 pages1106R01503
Magenta: 5,000 pages1106R01504
Yellow: 5,000 pages1106R01505
For more information, call 1-877-362-6567 or visit us at
©2013 Xerox Corporation. All rights reserved. Contents of this publication may not be reproduced in any form without permission of Xerox Corporation.
Xerox®, Xerox and Design®, CentreWare® and Phaser® are trademarks of Xerox Corporation in the United States and/or other countries. As an
ENERGY STAR® partner, Xerox Corporation has determined that this product meets the ENERGY STAR guidelines for energy efficiency. ENERGY STAR
and the ENERGY STAR mark are registered U.S. marks. The information in this brochure is subject to change without notice. BR145. Updated 9/13
610P730288C 670BR-01UD
550-sheet Tray
1,100-sheet Tray
2 GB Memory 097S04396
Productivity Kit with Hard Drive
Office Finisher
– 1,000-sheet stacker, 50-sheet stapling
Wireless Network Adapter
– N. America Power Converter
– European Power Converter
– UK Power Converter
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF
