BELL’O INTERNATIONAL CORP.
T

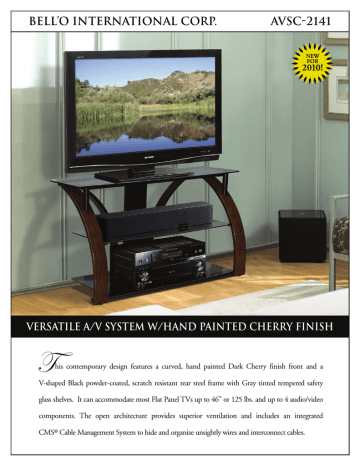

AVSC-2141
VERSATILE A/V SYSTEM W/HAND PAINTED CHERRY FINISH
his contemporary design features a curved, hand painted Dark Cherry finish front and a
V-shaped Black powder-coated, scratch resistant rear steel frame with Gray tinted tempered safety
glass shelves. It can accommodate most Flat Panel TVs up to 46" or 125 lbs. and up to 4 audio/video
components. The open architecture provides superior ventilation and includes an integrated
CMS® Cable Management System to hide and organize unsightly wires and interconnect cables.
BELL’O INTERNATIONAL CORP.
AVSC-2141
DETAILED DIMENSIONS
Overall:
44"w x 25"h x 19"d
Top Glass:
44"w x 14"d
107/8"
(276 mm)
Usable Middle Shelf:
343/4"w x 107/8"h x 141/2"d
Usable Bottom Shelf:
343/4"w x 11"h x 161/2"d
Weight Capacities:
Top Shelf:
125 lbs. (56.7 kg)
Middle Shelf:
50 lbs.(22.7 kg)
Bottom Shelf:
75 lbs.(34 kg)
14"
(356 mm)
44" (1118 mm)
141/2"
(368 mm)
25"
(635 mm)
11"
(279 mm)
161/2"
(419 mm)
3 " (8
34 / 4
19"
(483 mm)
83 m
m)
DESIGN FEATURES
• Accommodates most Flat Panel TVs up to 46",
plus up to 4 audio/video components
• Contemporary design features a curved, hand painted
Dark Cherry finish front
• Black scratch resistant, powder-coated rear steel
frame with Gray tinted tempered safety glass
• Open architecture provides flow through ventilation
for components
• CMS® Cable Management System hides wires
and interconnect cables
©2010 Bell’O International Corporation. All designs are patented or patent pending.
Pricing, availability and specifications are subject to change without notice.
