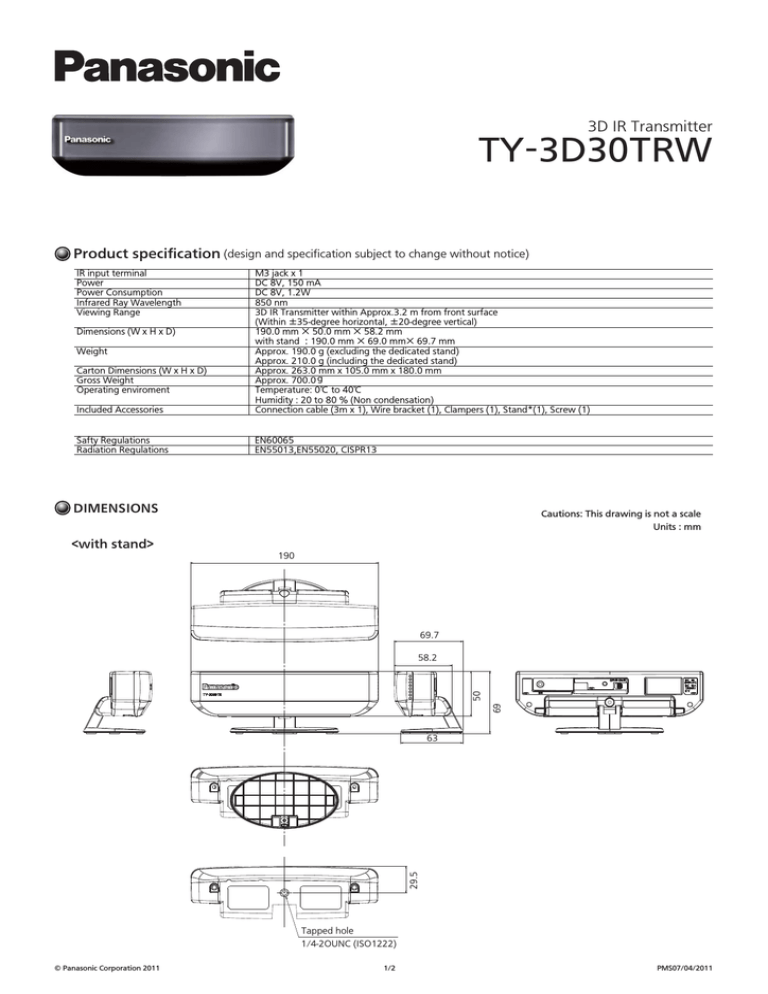

3D IR Transmitter
TY-3D30TRW
Product specification (design and specification subject to change without notice)
IR input terminal
Power
Power Consumption
Infrared Ray Wavelength
Viewing Range
Included Accessories
M3 jack x 1
DC 8V, 150 mA
DC 8V, 1.2W
850 nm
3D IR Transmitter within Approx.3.2 m from front surface
(Within ±35-degree horizontal, ±20-degree vertical)
190.0 mm × 50.0 mm × 58.2 mm
with stand :190.0 mm × 69.0 mm× 69.7 mm
Approx. 190.0 g (excluding the dedicated stand)
Approx. 210.0 g (including the dedicated stand)
Approx. 263.0 mm x 105.0 mm x 180.0 mm
Approx. 700.0g
Temperature: 0℃ to 40℃
Humidity : 20 to 80 % (Non condensation)
Connection cable (3m x 1), Wire bracket (1), Clampers (1), Stand*(1), Screw (1)
Safty Regulations
Radiation Regulations
EN60065
EN55013,EN55020, CISPR13
Dimensions (W x H x D)
Weight
Carton Dimensions (W x H x D)
Gross Weight
Operating enviroment
DIMENSIONS
Cautions: This drawing is not a scale
Units : mm
<with stand>
190
69.7
69
50
58.2
29.5
63
Tapped hole
1/4-2OUNC (ISO1222)
© Panasonic Corporation 2011
1/2
PMS07/04/2011
TY-3D30TRW
3D IR Transmitter
Cautions: This drawing is not a scale
<without stand>
Units : mm
190
29.5
50
58.2
Tapped hole
1/4-2OUNC (ISO1222)
© Panasonic Corporation 2011
2/2
PMS07/04/2011
