Panasonic TH-47LF25U, TH-42LF25U Datasheet

Panasonic TH-47LF25U, TH-42LF25U Datasheet

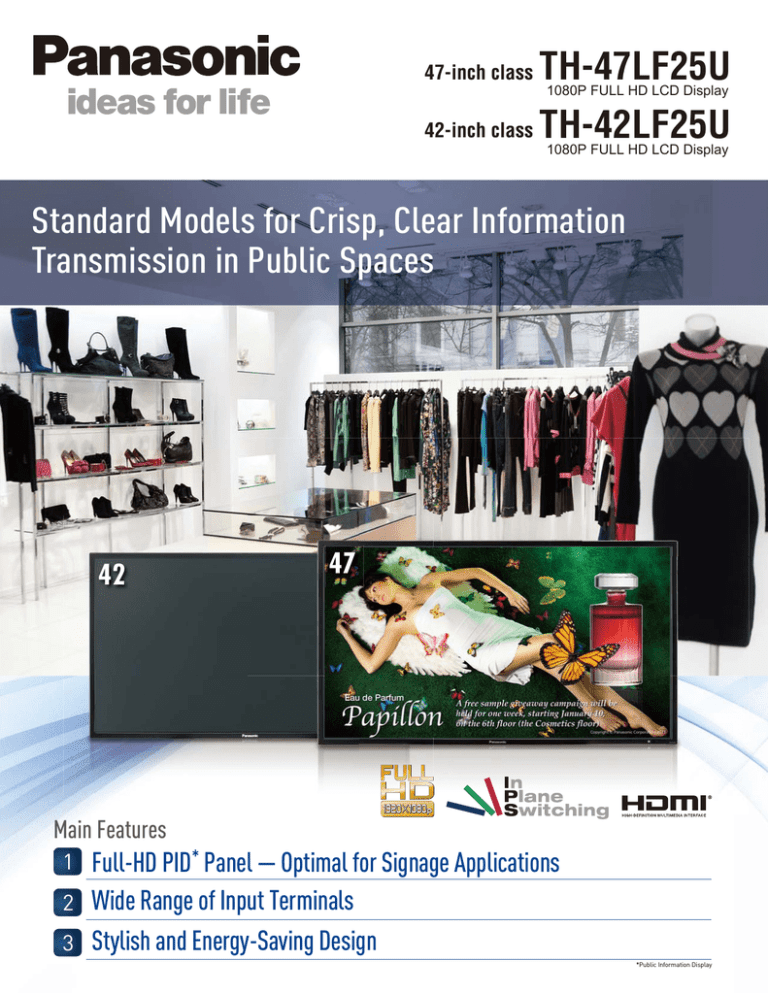

47-inch class
TH-47LF25U
42-inch class
TH-42LF25U
1080P FULL HD LCD Display
1080P FULL HD LCD Display
Standard Models for Crisp, Clear Information
Transmission in Public Spaces
42
47
Main Features
1
2
3
Full-HD PID* Panel — Optimal for Signage Applications
Wide Range of Input Terminals
Stylish and Energy-Saving Design
*Public Information Display
Bright, Full HD (1920 x 1080) Professional LCD Display
Versatile Functions for Public Information Displays
In addition to the high resolution of Full-HD and the
wide viewing angle of the IPS panel, the LF25
Series features 500-cd/m2 brightness and 9-ms
response. This makes it possible to display crisp,
clear images even in bright places, for signage with
excellent information transmission performance.
Brightness
(500 cd/m2)
Anti image
sticking panel
Wide viewing angle
with an IPS panel
Portrait
use possible
Extensive Input Terminals
Standard features include highly versatile terminals
The LF25 Series has various input terminals
including component or RGB input, composite
video input, S-video input, PC input and RS-232C
control port input. It’s also equipped with HDMI 1/2
inputs with deep colour, and DVI-D input with
HDCP for high definition signals.
AUDIO IN
VIDEO/S-VIDEO IN, AUDIO IN
(DVI-D, PC) (COMPONENT) HDMI IN
AUDIO IN
SERIAL PORT
L
S-VIDEO
SERIAL
VIDEO
AUDIO
AUDIO
R
R
46.9-inch (1,192 mm)
42.0-inch (1,067 mm)
16:9
40.9" x 23.0" (1,039 x 584 mm)
500 cd/m2
Brightness (Typ)
Contrast Ratio
1,200 : 1
Response Time
9 ms (G to G)
178° / 178°
Viewing Angle (Horizontal/Vertical)
Landscape / Portrait
Orientation
VIDEO IN/AUDIO IN
HDMI IN
BNC x 1, S-terminal x 1 / RCA (L/R) x 1 set (for VIDEO/S-VIDEO)
HDMI TYPE A Connector x 2 (Deep Color Compatible)
BNC x 3
COMPONENT/RGB IN
MINI D-SUB 15 pin x 1, Plug & Play (VESA DDC 2B)
M3 Jack x 1
AUDIO IN (for DVI-D/PC)
CONTROL
TERMINAL
Serial
ELECTRICAL
Power Requirements
D-SUB 9 pin x 1
(EXTERNAL CONTROL TERMINAL), RS-232C Compatible
110-127 V AC, 50 Hz / 60 Hz
Power Consumption
300 W
250 W
On Mode Average Power Consumption*
190 W
170 W
Power Off Condition
0.1 W
0.1 W
Stand-by Condition
Save ON 0.1 W, Save OFF 0.2 W
Save ON 0.1 W, Save OFF 0.2 W
AUDIO
Built-in Speakers
MECHANICAL
Dimensions (W x H x D)
Bezel Width
Weight
Cabinet Material/Color
Mounting Method
Operating Environment
DVI-D IN
PC-IN
COMPONENT/RGB IN
Narrow bezel and multi display
The bezel on the TH-42LF25U is
only 18.3 mm wide (18.6 mm on the
TH-47LF25U). It is a most suitable
model for multi screen display. The
video image and graphics can be
displayed in greatly by using two or
more displays. The effect of the
digital signage of a high noteworthy
thy
level is achieved by decorating thee
wall with the video image.
0.72-inch
(18.3 mm)
DVI-D 24 pin (HDCP Compatible) x 1
DVI-D IN
PC IN
B/Pb/Cb
RCA (L/R) x 1 set
AUDIO IN
ENVIRONMENTAL
36.6” x 20.6" (930 x 523 mm)
1,920 x 1,080 pixels
Number of Pixels (H x V)
CONNECTION
TERMINAL
G/Y
TH-42LF25U
Aspect Ratio
Effective Display Area (W x H)
R/Pr/Cr
Stylish and Energy Saving Design
TH-47LF25U
Screen Size (Diagonal)
COMPONENT/RGB IN
2
1
AV IN
AVI IN
PC-IN
L
AUDIO
Specifications
DISPLAY PANEL
DVI-D IN
8 Ω, 10 W [5 W + 5 W] (10 % THD)
38.2” x 22.1” x 4.0”
(968 x 561 x 101 mm)
42.5" x 24.6" x 4.0"
(1,079 x 624 x 101 mm)
0.73" (18.6 mm)
0.72" (18.3 mm)
Approx. 50.7 lbs, (23 Kg)
Approx. 39.7 lbs, (18 Kg)
Plastic / Black
VESA 15.8" x 15.8" (400 x 400 mm)
Temperature: 32 °F to 104 °F (0 °C to 40 °C)
Humidity 20% to 80% (Non Condensation)
Low Standby Power Consumption
umption
The standby power consumption of the
TH-42LF25U is 0.1 W.
Eco Mode
The light sensor detects the ambient light level and
control the brightness of the backlight accordingly.
This maintains optimum display brightness. It also
helps to save energy by reducing the backlight
power consumption.
Slim and Light Design
The LF25 Series has a slim
and lightweight design even
with the built-in speakers.
*Based on IEC62087 Ed.2 measurement method.
Simulated pictures on screen.
Design and specifications are subject to change without notice.
As of August 26, 2011.
CR11LF25U_03
