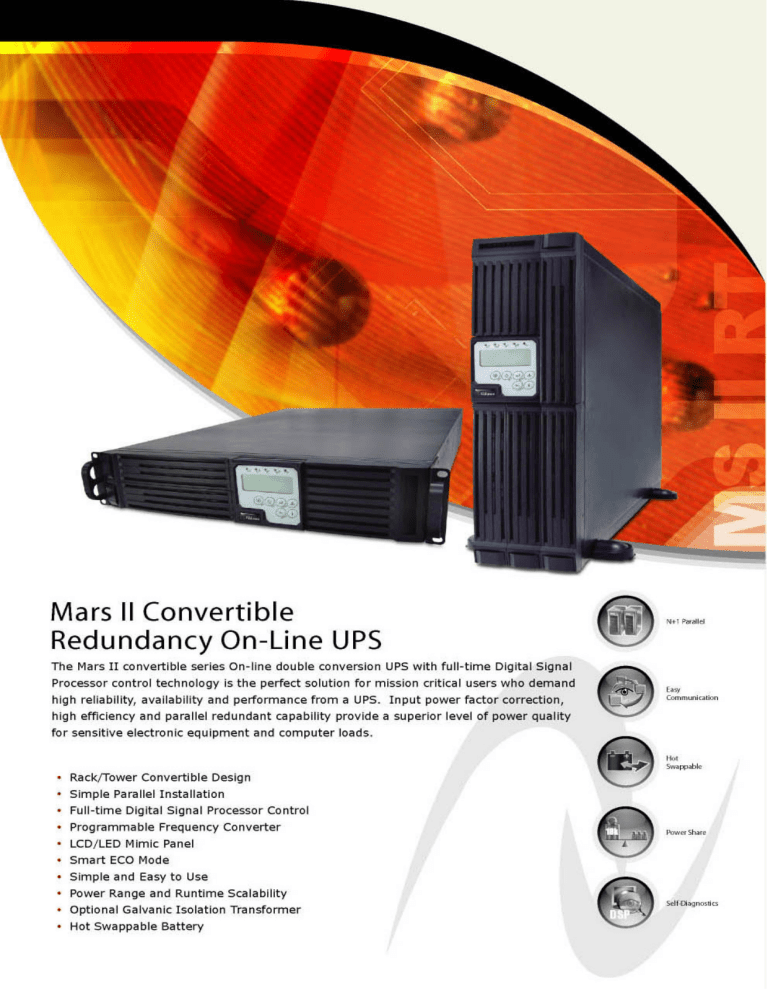

Mars ll Convertible Redundancy On-Line UPS
Mars Il Convertible
Redundancy On-Line UPS
The Mars II convertible series On-line double conversion UPS with full-time Digital Signal
Processor control technology is the perfect solution for mission critical users who demand
high reliability, availability and performance from a UPS. Input power factor correction,
high efficiency and parallel redundant capability provide a superior level of power quality
for sensitive electronic equipment and computer loads.
« Rack/Tower Convertible Design
* Simple Parallel Installation
* Full-time Digital Signal Processor Control
* Programmable Frequency Converter
* LCD/LED Mimic Panel
* Smart ECO Mode
« Simple and Easy to Use
« Power Range and Runtime Scalability
+ Optional Galvanic Isolation Transformer
* Hot Swappable Battery
NT Parallel
Easy
Communication
Но!
swappable
Power Share
Selt-Diagnostics
yr
Mars Il Convertible
Redundancy On-Line UPS
U using our field proven Digital Signal Processor{DSP) with SMD techniques, the Mars II convertible
series UPS achieves high reliability and greater immunity from utility power problems. The front
display panel provides all major systems parameters and operational status of the UPS that include
full diagnostics for simple, easy servicing. The Mars II convertible series UPS uses a patented
inverter control technology that allows it to achieve N+1 scalable redundant power without the use of
additional components. The Mars II convertible parallel configuration also eliminates any single point
of failure.
Al саве ГГ) yrs
Box
fume нае Simple Parallel Installation
— E NN E
t To increase the power capacity or configuring a parallel redundant UPS
—— was [Un system, up to 3 additional Mars II convertible series UPS are simply
aa ey [ E interconnected using the CAN-bus RJ45 cables on the rear of the Mars
E So ива |7 To Load II convertible series UPS.
оао Programmable Frequency Converter
The Mars II convertible series UPS may be used as a frequency
converter. Simple programming through the front LCD panel provides
the convenience of 50 or 60Hz,
Intelligent Self-Diagnostics
The Mars II convertible series UPS with DSP Control, systematically
checks each component and displays the result using on LCD display.
This feature allows service technicians the ability to pinpoint and repair
the UPS very quickly.
High Input Power Factor and Low Current THD
The Mars II convertible series UPS provides a ‘clean’ rectifier connection
to utility source. It meets today’s industry standard for energy saving
with low reflected harmonic pollution to utility. The Mars II convertible
series UPS achieves up to 0.99 Input Power Factor as well as <6%
Input Current THD.
Cold Start Function
The Mars II convertible series UPS may be powered up without the
presence of utility, providing AC power for immediate power
requirements.
Full-time Digital Signal Processor Control
True Double Conversion On-line Technology
Dual Input Loops
The Mars II convertible series UPS provides single input connections as standard. Optional input terminal
connections for the bypass and rectifier are available. A three-phase input and single phase output option is also
available,
LCD /LED Mimic Panel
A precise LCD/LED display provides real time status and parameter readings. These include AC Input and Output
Voltage, Frequency, Battery Voltage, Load Level, UPS temperature, etc. A full size, user-friendly microprocessor
based LCD display, provides advanced monitoring functions and simple operation.
Energy-efficient UPS
The AC to AC efficiency of the Mars II convertible series UPS may be up to 90% at 25% load and higher with larger
loadings in normal VFI operation. Using the ECO mode, an efficiency of up to 97% can be achieved,
simple and Easy To Use
The LCD front panel provides direct access to the DSP controller. Changes to the UPS operational modes and
parameters such as output voltage settings, fine adjustments for frequency, bypass voltage settings as well as
alarms status may be easily performed.
Emergency Power Off
The Emergency Power Off enables users to remotely shutdown the UPS.
Smart ECO Mode
Matching Battery Cabinet
Power Range and Runtime Scalability
Optional Galvanic Isolation Transformer Module
The Optional Galvanic Transformer Module provides isolation between the input
and the output of the UPS and various secondary voltage 110/115/120/208/220/
230/240Vac.
; ‘ Net Weight (kgs/1bs) pete
Model Dimension (WxHxD, mm/inch) ———— Application
w/ MTES** w/o MTBS**
MSI|GOCORT-GTM-WS* 44Ox88x660/17.3x3.5x26.0 For 4.5K/6K
MSII1 COOORT-GT M-WS* 440x132x660/17.3x5.2x29.0 49/1080 MA LA
= MSIISOOORT-GTM-\V0S/MSIT10000RT-GTM-WOS are without MTÉS.
*= MTBS: Maintenance Bypass Switch
Parallel Distribution Boxes(Rack/Wall Mount Type)
Model Description Dimension { WxHxD, mm./inch) Application
— The 20 (=) 50=C RacPDU-230 376x88x100/12.8x3.5x4 rt
LINE — UPS — LOAD e RacPDU-260 Max. GOA Max, Zpes 4.5/6kva or 1pce EK/10kva
a a a | a RacPDU-2120 Max.1204 440x176x124/17.3x7.0x4,9 | Max, 4pes 4.5/Gkva or 2pcs EK/10Kva
RackPDU-2200 EEE
Advanced Battery Discharge
Management
The Mars II convertible series UPS automatically manages the End-Discharge
voltage of the internal batteries according to the load, The ABDM function
(e) (9) ($) prevents the deep discharge of the batteries during a power failure,
7)
a" ==
+
aC Hot Swappable Battery —
The Mars II convertible series UPS allows users to easily replace the battery
packs without interruption of the critical load.
Vablerex
The Mars II convertible series UPS employs variable-speed, forced air cooling fans. These fans will vary
in speed according to the percentage of load. This variable-speed control ensures a low audible noise level
making the Mars II convertible series UPS suitable for most environments including offices and hospitals.
The Mars II convertible series UPS is shipped with monitoring and shutdown software. The software allows
the control and graceful shutdown when Utility Power fails
Remote testing of the major operating UPS functions.
Communicate via SNMP/WEB card.
Access UPS functions via the WEB.
о
Optional External Battery Charger
fé With its isolation conversion technology plus precision control, the optional charger
can be installed in Parallel operation up to 4 units. The specifications are as follows:
AC Input Range 100-280Vac, 45-65Hz
Maximum Power Output 1000W, continuously
Operation Mode Constant Voltage with Current Limitation
Maximum Parallel Units Up to 4 units
Protections Over-temperature, Over-voltage, Against Output Short-Cireuit
& Isolated devices for Opposite Polarity Connection
alia [ys Mounted on the rear of the UPS or the wall
Dimension (WxHxD, mm/inch) | 166xX282%86 / 6.6x11.1x3.4
Met Weight (Kas/ Ibs) Hoa el
Variety of Customer Options Slots
The Mars II convertible series UPS also provides one or two additional
Customer Options Communication slot(s) in additional to the standard RS232.
An internal 2" RS232, USB, RS485, Dry Contact, or WEB/SNMP card
provides isolated contacts for industrial and remote alarm applications.
Super Compact Convertible Design
The Mars II convertible series UPS is small and
compact. Install the UPS in a 19” rack and utilize
the space efficiently.
Hower Abler & Excelsior
J Mars II Convertible
Model
INPUT
Voltage Window
Frequency
Phase / Wire
Power Factor
Current THD (100% linear load)
Voltage Window
voltage Adjustment
voltage Regulation
Capacity
Rated Power Factor
Vilave Form
Frequency Stability
Frequency Regulation
Transfer Time
Crest Factor
Efficiency (AC to AC. Nomal)
Efficiency (AC to AC, ECO)
Autonomy
DC Start
BATTERY
Capacity
Quantity
Voltage
Recharge Time
DISPLAY
Status on LED + LCD
Readings on LCD
Self-Diagnosties
Audible and Visual
PROTECTION
Overioad
(wisimulated thermal tripping |-T Curve)
Short Circuit
Cvemeat
Battery Low
Moise Suppression
Spike Suppression
Without Isolated
Heat Dissipation
(At Full Linear
With Isolated
Load)"
Transformer Module
Leakage Current
PHYSICAL
Dimensions WAHxD (mm / inch)
InputrQuiput Connection
Extemal Battery Connection
Net Weight (kgs / Ibs)
éSOUVA à 3150
Transformer Module
Technical Specifications
FIR RNR] 4
pr RON A EUR
FE EEL] oa ER,
Leino sa
MSIH4A500RT (HRA EET] y MSI6000C
160 ~ 280Vac 160 - 280Vac (14) / 277 = 485Vac (3d)
Single, Line + Neutral + Ground (14)
Single. Line + Neutral + Ground a tr = : mo
Three, KR, 5, T + Neutral + Ground (34)
Up to 0,99 at 100% Linear Load
<6% *
200 / 208 ! 220 / 230 / Z240Vac Selectable (208 / 120Vac optional}
Nominal +1%, +2%, +3%, -1%, -2% or-3%
+2%
210/0007 CNO
0 7 Lagging
sine Wave, THD < 3% (no load to full load)
+ 02% {Free Running)
+ 1Hz | £3Hz
Oms
3:1
Up to 90%
Up to 95%
= 32min
Yes
S000'VA y 5600 07) ¿(e ara e
Sealed Lead Acld Maintenance Free
12V / 5SAH
Ebel
Z40Vde
124 / TAH 12 / TAH E
4 hours to 90% 5 hours to 90%
Line Mode, Backup Mode. ECO Mode, Bypass Supply, Battery Low, Battery Bad/Disconnect, Overload,
Transfering with interruption & UPS Fault,
input Voltage, Input Frequency, Output Voltage, Output Frequency, Load Percentage, Battery Voltage &
Inner Temperature
Upon Fower-on, Front Panel Setting 6 Software Control, 24-hour routing checking
Line Failure, Battery Low, Transfer to Bypass, System Fault Conditions
Inverter Supply. 105%~150% for 160 seconds ~ 2 cycles before switching bypass.
Bypass Supply: 105%~200% for 500 seconds ~8 cycles before stopping supply load
Switch off Immediately
AC Mode: Switch to Bypass
Backup Mode: Switch off the UPS
Alarm and Switch Off
Complies with ENGZ2040-2
Complies with ENE1000-4-5
ALLS a
10KP: <SSOVV
T0K: < T10OVV
10KP; <1050W
< 450W
< 615
< 3mA at Fuil Load
440% 176x580 /
17.37. .0n26.8
Hardwire
Plug-in & Play
52.0/ 114.6
440 B8xEE0 PN £40x 132x680 J 17 3x0 226.8
ez MEER 1d: 26 057.3: 30: 28 0/61.7
Power Abler & Excelsior
ENVIRONMENT
Operating Temperature
Temperature vwaming
Altitude
Humidity
Moise
COMPUTER INTERFACE
Interface Type
Communication Slots
SAFETY CONFORMANCE
Quality Assurance
Safety Standard
EMC Standard
Marks
BATTERY BANK
Dimension(VWxHxD
Model Battery Type Maximum Quantity Without Batteries kgs / lbs | With Battenes kgs / lbs bids
BBC20J0007
ios 39.7 68.0 / 149.8 40% 132x680 / 17.3x5 x26.8
BBCZONOOOS
6 = {180~176Vac for 1-phase mput model or 277~305Vac for 3-phase mput model at <75% load)
«= phase inpul modal <30%
«== reference dats
Specifications are subject to change without prior notice:
Ablerex Ablerex Electronics Co., Ltd.
Head Office:
Ablerex Electronics Co, Ltd.
1F, Mo. 5. Lane 7, Paokao Rd, Hsintien, 23114, Taipei Hsien, Taiwan, ROC
Tel: +886 2 2917-6857 + Fax: +886 2 2913-1705
Attp-/a ablerex com. tw
E-mail: ablerexg? ablerex.com.tw
CORY
9617 ED
Mars Il Parallel Redundancy On-Line UPS
The Mars II series On-line double conversion UPS with full-time Digital Signal Processor
control technology is the perfect solution for mission critical users who demand high
reliability, availability and performance from a UPS. Input power factor correction, high
efficiency and parallel redundant capability provide a superior level of power quality for
sensitive electronic equipment and computer loads.
+ Simple Parallel Installation
"Full-time Digital Signal Processor Control
* Programmable Frequency Converter
* LCD/LED Mimic Panel
« Smart ECO Mode
“ Simple and Easy to Use
+ Power Range and Runtime Scalability
« Optional Galvanic Isolation Transformer
+ Optional Hot Swappable Battery
» Optional Dual Input Loops
a
=
NT Parallel
Easy
Communication
Но!
Swappable
Poser Share
SelfMHhagnostics
Mars Il Parallel Redundancy
On-Line UPS
4 U sing our field proven Digital Signal Processor(DSP) with SMD techniques, the Mars II series
UPS achieves high reliability and greater immunity from utility power problems. The front display
ro panel provides all major systems parameters and operational status of the UPS that include full
a diagnostics for simple, easy servicing.
| The Mars II series UPS uses a patented inverter control technology that allows it to achieve N+1
a scalable redundant power without the use of additional components. The Mars II parallel
configuration also eliminates any single point of failure.
Simple Parallel Installation
— To increase the power capacity or configuring a parallel redundant UPS
system, up to 3 additional Mars II series UPS are simply interconnected
:
4 UPE 2 fed a
= + | using the CAN-bus RJ45 cables on the rear of the Mars II series UPS.
me A e La amt
SE | > Programmable Frequency Converter
Fo UPA Е Ъ
The Mars II series UPS may be used as a frequency converter. Simple
programming through the front LCD panel provides the convenience
of 50 or 60Hz.
Intelligent Self-Diagnostics
The Mars II series UPS with DSP Control, systematically checks each
component and displays the result using on LCD display. This feature
allows service technicians the ability to pinpoint and repair the UPS
very quickly.
High Input Power Factor and Low Current THD
The Mars II series UPS provides a ‘clean’ rectifier connection to utility
source, It meets today's industry standard for energy saving with low
reflected harmonic pollution to utility. The Mars II achieves up to 0.99
Input Power Factor as well as <6% Input Current THD.
Energy-efficient UPS
The AC to AC efficiency of the Mars II series UPS may be up to 90%
at 25% load and higher with larger loadings in normal VFI operation.
Using the ECO mode, an efficiency of up to 97% can be achieved.
Full-time Digital Signal Processor Control
True Double Conversion On-line Technology
Dual Input Loops
The Mars II series UPS provides single input connections as standard. Optional input terminal connections for the
bypass and rectifier are available. A three-phase input and single phase output option is also available.
LCD/LED Mimic Panel
A precise LCD/LED display provides real time status and parameter readings. These include AC Input and Output
Voltage, Frequency, Battery Voltage, Load Level, UPS temperature, etc. A full size, user-friendly microprocessor
based LCD display, provides advanced monitoring functions and simple operation.
Simple and Easy To Use
The LCD front panel provides direct access to the DSP controller. Changes to the UPS operational modes and
parameters such as output voltage settings, fine adjustments for frequency, bypass voltage settings as well as
alarms status may be easily performed.
Silent Fan Control
The Mars II series UPS employs variable-speed, forced air cooling fans. These fans will vary in speed according to
the percentage of load. This variable-speed control ensures a low audible noise level making the Mars II series UPS
suitable for most environments including offices and hospitals.
Emergency Power Off
Smart ECO Mode Xi
i п pad i
= bo
sn
Power Range and Runtime Scalability
Optional Galvanic Isolation Transformer
The Optional Galvanic Transformer provides isolation between the input and the
output of the UPS and various secondary voltage 110/115/120/208/220/230/
240Vac.
Maintenance Manual Bypass
The Maintenance Bypass Switch ensures a continuous supply of power to the
critical loads during service or periodical maintenance of the UPS.
Parallel Distribution Boxes(Rack/Wall Mount Type)
Description Dimension (WxHxD, mm/ inch) Application
a ye — UPS — LOAD “A a i O НЕ TowPDU-260 | Max. 60Arms Max. 2pcs 4.5/6Kva or 1pce 8K/10Kva
^ >55) Lima TOwPDU-2120 | Max. T20Arms | 440x176x124 7 17.3x7.0x4.9 | Max. 4pcs 4.5/6Kva or Zpes BK/10Kva
Max. 200Arms Max. docs 8K/1 0Kva
TowPDU-2200
Advanced Battery Discharge
Management
The Mars II series UPS automatically manages the End-Discharge voltage of the
internal batteries according to the load. The ABDM function prevents the deep
discharge of the batteries during a power failure.
: |”
| a |
| A=
1 1
elle
A
LE
Cold Start Function
The Mars II series UPS may be powered up without the presence of utility,
providing AC power for immediate power requirements.
Add matching battery cabinets and extend the back up time up to several hours.
The Mars II series UPS is shipped with monitoring and shutdown software. The software allows the control
and graceful shutdown when Utility Power fails
Remote testing of the major operating UPS functions.
Communicate via SNMP/WEB card.
Access UPS functions via the WEB.
Vablerex
Optional External Battery Charger
With ¡ts isolation conversion technology plus precision control, the optional charger
can be installed in parallel operation up to 4 units. The specifications are as follows:
AC Input Range 100-2BOVac, 45
o TE ae Leia ee a re E
Operation Mode Constant Voltage with Current Limitation
Maximum Parallel Units Up to 4 units
Protections Over-temperature, Over-yoltage, Against Output Short-Circuit
& Isolated devices for Opposite Polarity Connection
le ida Mounted on the rear of the UPS or the wal
e e AM tir: D, mm/inch) | 160x2B82x86 / 6.6x11,1x3.4
= EU
Net Weight Tee
Variety of Customer Options Slots
The Mars II series UPS also provides two additional Customer Options
Communication slots in additional to the standard RS232. An internal 2nd
RS232, USB, R5465, Dry Contact, or WEB/SNMP card provides isolated
contacts for industrial and remote alarm applications. The RS232 will
remain active, even with the additional cards installed.
Optional Hot Swappable Battery
The Mars II series UPS allows users to
easily replace the battery packs without
interruption of the critical load.
Power Abler & Excelsior £
Model
Voltage Window
Frequency
Phase [Wire
Power Factor
Current THD (100%: linear load)
Mars II Series Technical Specifications
MS/|14500 MSII6000 MSIHBO00 / B000P MS1110000 / 40000P
160 ~ 280Vac 150 - 280Vac (19) / 277 = 485Vac (30)
Single, Line + Neutral + Ground ( 1d)
Three, R. 5, T + Neutral + Ground (34
Lp ta 0.99 at 100% Linear Load
y de
Single, Line + Neutral + Ground
OUTPUT
4500VA / 3150W SODOVA / 4200W S000VA / 5600WV ECON
Rated Power Factor 0.7 Lagging
Wave Form Sine Wave. THD < 3% (no load 1o full load)
Frequency Stability 10.2% (Free Running)
Frequency Regulation + 1Hz | £3Hz
Transfer Time От5
Crest Factor 3:1
Efficiency (AC to AC, Normal) Me E
Eficiency (AC to AC, ECO) Up to 95%
Autonomy =12min = 8 min = 5m
DC Start Yes
sealed Lead Acid Maintenance Free
em mm AE
Quantity tae
voltage all Fa
Recharge Time 4 hours to 20% 5 hours to 20%
DISPLAY
Line Mode, Backup Mode, ECO Mode, Bypass Supply, Battery Low, Battery Bad/Disconnect, Overload,
Status on LED + LCD id ; Sere shined
Transferring with Interruption & UPS Fault,
Input Voitage, Input Frequency. Quiput Voltage, Output Frequency, Load Percentage, Battery voltage
Readings on LCD ih
& Inner Temperature
Upon Power-on, Front Panel Setting & Software Control. 24-hour Routine Checking
ALARMS :— |: oe “Ue—]ÚÚ——;— LL ——;—;—]—; ;;;—L]—e 0
Line Failure. Battery Low, Transfer to Bypass, System Fault Conditions
Overicad inverter Supply: 105%-150% for 160 seconds-2 cydes before swilching bypass.
(wisimulated thermal tripping |-T Curve) Bypass Supply. 105%~200% for 500 seconds~8 cydes before stopping supply load
Short Circuit Switch off Immediately
C Mode: Swilch to Bypass
Backup Mode; Switch off the UPS
larm and Swiich OF
Complies with ENG2040-2
Complies with ENG 1000-4-5
ГРАДИЕНТ
Cverheat
Battery Low
Moise Suppression
Spike Suppression
Without |solated
Heat Dissipation Transformer 10KP: <550VV
(At Full Linear Load)™ | With Isolated EE 0 aa
Transformer 10KP: <1050W
< 3mA at Full Load
LA] Da ут)
ие ВОТ
Leakage Current
PHYSICAL
Dimensions
Met Welght Standard Unit / Hot
(with transformer) | Swappable unit
without transformer
VuxHxDímm / inch) | With transformer
Input/Output Connection
External Battery Connection
Met Weight (without | Standard Unit / Hot
transformer} Swappable unit
290% 748x645/ 11. 4x29 6x25 4
290x748x545 f 11. 4x20 5x25. 4 200x881%645 f 11.4x34 7x25. 4
Hardwire
Plug-in & Play
BK: 87/11 3kgs (192/240 bs); 10K: 96/1 22kgs (215/265 lbs)
BKP: 92/118kgs (203/260 bs) 10KP: 1011 2Tkgs (223/280 Bs)
BK: 1alv166kgs (309/366 bbs). 10K: 149/175kgs (329/386 Ibs)
BMP: 14517 1kgs (320/377 Ibs) 10KP: 1541 80kgs (340/207 os)
86/112kgs (190/247 165)
JN ST er i]
Power Abler & Excelsior
Model MS114500 MSIGOOO MSIEO00 / SO0OP
ENVIRONMENT
Operating Temperature
MSI 0000 / 10000P
Oto 40°C / 3210 104°F
The battery design life Is based on a temperature of 25°C / 77°F
TemperenrE Vang Ambient temperature above this range will affect battery life
0-2000M/G600ft up to 40C/104"F, 3000M/9900ft up to 3510/95*F
20% RH Maxamum. Non-Condansing
<50dB (af 1 Meter/3, 31)
Altitude
Humidity
Noise
SAFETY CONFORMANCE
Quality Assurance
Safety Standard
EMC Standard
Marks
1508001 Certified
ENS2040-1-1, ULTr7B
ENGZ040-2 ENG1000-3-2, ENS 1000-3-3. FCC Class A
CE. cul, UL
BATTERY BANK
Model Battery Type Maximum Quantity Without Batteries kgs / Ibs | With Batteries kgs / Ibs a A
mm/ing
BBT40J0007 AH РНЕ 148 / 326
BBT40J0012 {Fal 208 / 460
BEER [ais alin 198 / 436 790x748x645 / 114 4x29 5x25 4
B8T40N0009 Sete 8 148 / 326 dis =>
¿ee
BBT40N0012 {Fat
209 / 460
LIT La)
BE TEONOOOS Fe e ea
O) - (160-170Va0 tor iphase inputmódel or 377-305Vhe for 3-phaze input model at <75% load)
phase inpul mode! 30%
тот reference Cala
Specifications are subject to change without ror notice
Ablerex Ablerex Electronics Co., Ltd.
Head Office:
Ablerex Electronics Co., Ltd,
1F, No. 3, Lane 7, Paokao Rd,, Hsintien, 22114, Taipei Hsien, Taiwan, R.O.C
Те! +886 2 2917-6857 « Fax: +886 2 2913-1705
UD: ablerex COM. Di
E-mail. ablerexfd ablerex. com.tw
С ® ©
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
