Windows®. Life without Walls™. Panasonic recommends Windows.

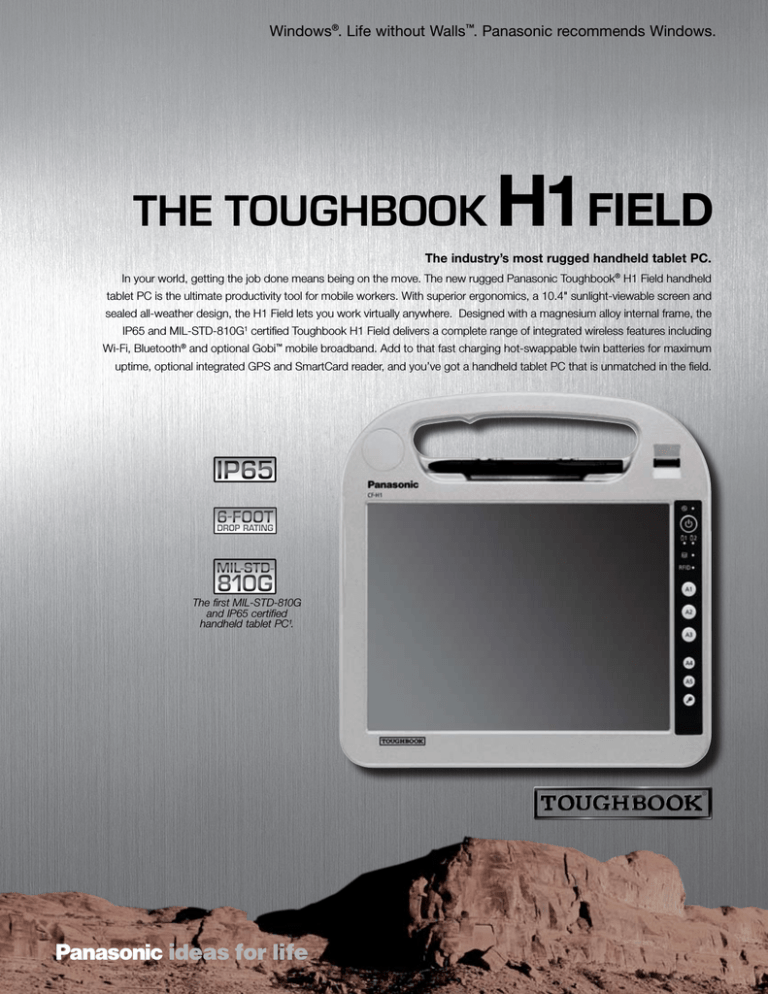

THE TOUGHBOOK H1 field
The industry’s most rugged handheld tablet PC.
In your world, getting the job done means being on the move. The new rugged Panasonic Toughbook® H1 Field handheld
tablet PC is the ultimate productivity tool for mobile workers. With superior ergonomics, a 10.4" sunlight-viewable screen and
sealed all-weather design, the H1 Field lets you work virtually anywhere. Designed with a magnesium alloy internal frame, the
IP65 and MIL-STD-810G1 certified Toughbook H1 Field delivers a complete range of integrated wireless features including
Wi-Fi, Bluetooth® and optional Gobi™ mobile broadband. Add to that fast charging hot-swappable twin batteries for maximum
uptime, optional integrated GPS and SmartCard reader, and you’ve got a handheld tablet PC that is unmatched in the field.
The first MIL-STD-810G
and IP65 certified
handheld tablet PC1.
Windows®. Life without Walls™. Panasonic recommends Windows.
The NEW Panasonic Toughbook
H1 Field.
durability features
•
•
•
•
•
•
software
• Genuine Windows® 7 Professional (with XP Tablet downgrade option)
• Cleaning Reminder Tool, Panasonic Dashboard, Panasonic Handwriting Tool,
Setup, Diagnostics, PC Information Viewer, Online Reference Manual, Adobe®
Reader, Keyboard Button Manager, Hard Disk Data Erase Utility, Recovery DVD
CPU
•
•
•
•
STORAGE & MEMORY
• 2048MB SDRAM (DDR2)2
• 64GB reinforced flex-connect solid state drive (SSD)3
DISPLAY
•
•
•
•
AUDIO
• Intel® high-definition audio compliant
• Integrated speaker
■
KEYBOARD & INPUT •
•
•
•
■
INTERFACE
• Docking connector
WIRELESS
• Optional integrated Gobi™ mobile broadband
• Intel® Wireless WiFi Link 5100 802.11a/b/g/n
• Bluetooth® v2.1 + EDR (Class 1)
• Security
– Authentication: LEAP, WPA, 802.1x, EAP-TLS, EAP-FAST, PEAP
– Encryption: CKIP, TKIP, 128-bit and 64-bit WEP, Hardware AES
POWER SUPPLY
MIL-STD-810G certified (6' drop)1
IP65 certified1 sealed all-weather design
CCX Certified v4
Magnesium alloy chassis encased with polycarbonate
Reinforced flex-connect solid state drive (SSD)
Integrated handle and ergonomic rubber hand strap
Intel® Atom™ Processor Z540
Processor speed 1.86GHz
512KB L2 cache
533MHz FSB
10.4" dual-touch 1024 x 768 XGA sunlight-viewable LCD
Intel® SCH (GMA 500 video controller) max. 256MB UMA VRAM 4
500 nit LCD brightness
Circular polarizer with anti-glare and anti-reflective screen treatments
Dual-touch LCD (touchscreen and digitizer)
Integrated stylus holder
74-key on-screen keyboard with dedicated Windows® key
Up to 5 user-defined programmable buttons (varies by model)
POWER MANAGEMENT
• Suspend/Resume Function, Hibernation, Standby, ACPI BIOS
SECURITY FEATURES
• Password Security: Supervisor, User, Hard Disk Lock
• Trusted platform module (TPM) security chip v.1.2
• Computrace® theft protection agent in BIOS 6
• Fingerprint reader (on Elite model)
• Insertable SmartCard reader (on Elite model)
• Contactless SmartCard reader (on Elite model)
integrated features
H1 Field Base
H1 Field Pro
■
■
INTEGRATED OPTions7
• Gobi™ mobile broadband (EV-DO Rev. A, HSPA)
• GPS receiver
Accessories7
• AC Adapter (3-pin)
• 4-bay Battery Charger
• Lithium Ion Battery Pack
• Replacement Stylus
(with tether hole & pocket clip)
• InfoCase H1 Shoulder Strap
• InfoCase H1 Always-on Sleeve
• InfoCase U1/H1 Battery Pouch
• Desktop Cradle / Spare 2-Bay
Battery Charger • 10.4" LCD Protector Film
• Gamber-Johnson Docking Station
(no pass-through)
• Gamber-Johnson Docking Cradle
(no electronics)
• Gamber-Johnson Vehicle Dock
H1 Field Elite
• 2MP camera with dual LED light
• 2D barcode reader (1D and 2D capable)
• Insertable SmartCard reader
• 13.56MHz Contactless RFID and SmartCard reader
– ISO 15693 & 14443 A/B Compliant
• Fingerprint reader
WARRANTY
• 3-year limited warranty, parts and labor
DIMENSIONS & WEIGHT • 10.4" (L) x 10.6" (W) x 1.3-2.3" (H)
• 3.4 lbs. (with handle, strap and both batteries)
SAFETY CERTIFICATIONS • IT Equipment Safety
/
(EN:EU, UL:US)
• Medical Electrical Equipment
Safety (EU)
• Medical Electrical Equipment
Safety (Canada)
• IT Equipment EMI (US)
• IT Equipment EMI (EU)
• IT Equipment EMS (EU)
• Industrial EMI (EU)
• Radio (US)
• Radio (Canada)
• SAR (US)
EN/IEC 60950-1
UL 60950-1
EN/IEC 60601-1
(with battery operation)
CAN/CSA-C22.2 No.601.1-M90
FCC CFR 47 P.15 Sub B-Class B
EN 55022/CISPR 22-Class B
EN 55024
EN 55011/CISPR 11-Class B
FCC CFR 47 P.15 Sub C
RSS-210
FCC CFR 47 P.2
panasonic.com/toughbook/H1-Field
Financing options now available from Panasonic Finance Solutions;
please call number above for more details.
Panasonic is constantly enhancing product specifications and accessories. Specifications subject to change without notice.
Trademarks are property of their respective owners. ©2010 Panasonic Corporation of North America. All rights reserved.
ssH1Field 02/10
■
• 2MP camera with dual LED light
• 2D barcode reader (1D and 2D capable)
1.800.662.3537
■
Dedicated 19-pin
• Twin hot-swappable lithium ion battery packs
(typical 2900mAh, nominal 2750mAh each battery)
• Battery operation: 6 hours (with both batteries)5
• Battery charging time: 5.5 hours off, 5.5 hours on 5
• AC Adapter: AC 100V-240V 50/60Hz, auto sensing/switching
worldwide power supply
■
he First MIL-STD-810G and IP65 Certified
T
Handheld Tablet PC1
6-foot Drop Rating1
Sunlight-viewable 10.4" Dual-touch Display
Designed for Vehicle Use
Long-life Hot-swappable Twin Batteries Provide
Limitless Hours of Use
Available Built-in Camera, RFID, SmartCard and
Barcode Readers
Complete Range of Integrated Wireless Features:
Wi-Fi, Bluetooth®, Optional Gobi TM Mobile
Broadband and GPS
CF-AA1633AM
CF-VCBU11U
CF-VZSU53W
CF-VNP012U
TMH1-SS-P
TMH1SLV-P
TMU1-BP-P
CF-VEBH11U
CF-VPF13U
7160-0166
7160-0167
Available Spring 2010
Please consult your reseller or Panasonic representative before purchasing.
by a national independent third party lab following MIL-STD-810G
Method 516.6 Procedure IV for transit drop test and IEC 60529 Sections
13.4, 13.6.2, 14.2.5 and 14.3 for IP65. Stylus has passed IP65 testing but
has not been certified.
2Total usable memory will be less depending upon actual system configuration.
31GB = 1,000,000,000 bytes.
4Max with standard RAM. The size of the VRAM cannot be set by the user and
varies by operating system as well as size of RAM.
5Battery performance features such as charge time and life span can vary
according to the conditions under which the computer and battery are used.
Battery operation and recharge times will vary based on many factors, including
screen brightness, applications, features, power management, battery
conditioning and other customer preferences. Battery testing results from
MobileMark 2007.
6Requires software and activation to enable theft protection.
7Accessories and Integrated Options may vary depending on your configuration.
1Tested
