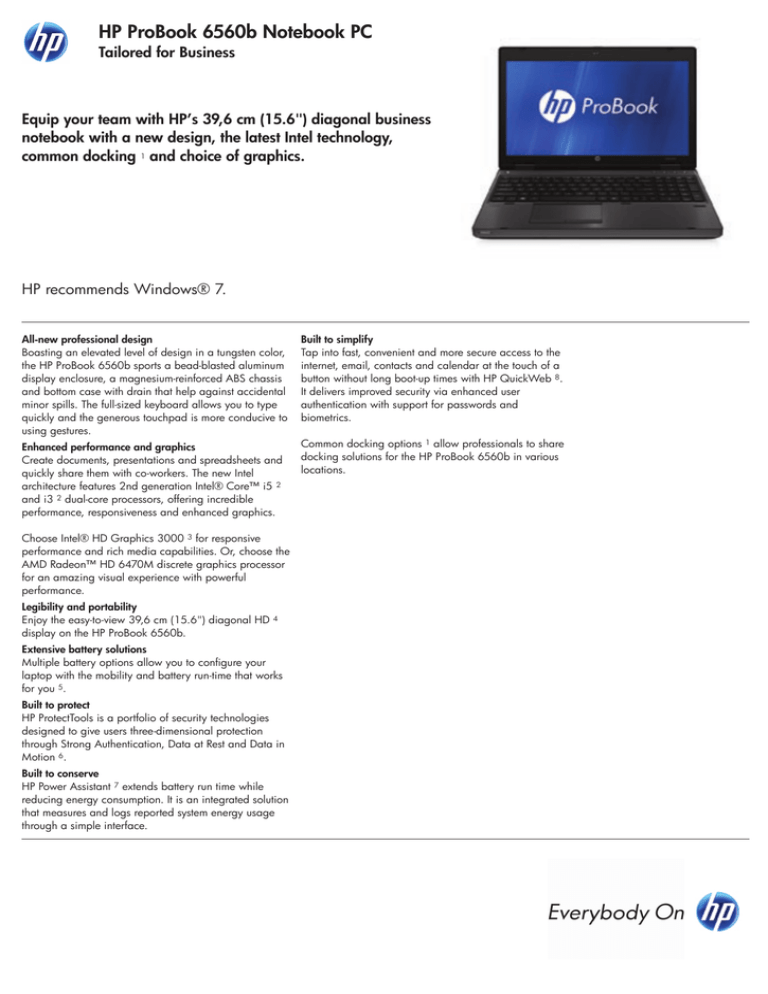

HP ProBook 6560b Notebook PC
Tailored for Business
Equip your team with HP’s 39,6 cm (15.6") diagonal business
notebook with a new design, the latest Intel technology,
common docking 1 and choice of graphics.
HP recommends Windows® 7.
All-new professional design
Boasting an elevated level of design in a tungsten color,
the HP ProBook 6560b sports a bead-blasted aluminum
display enclosure, a magnesium-reinforced ABS chassis
and bottom case with drain that help against accidental
minor spills. The full-sized keyboard allows you to type
quickly and the generous touchpad is more conducive to
using gestures.
Enhanced performance and graphics
Create documents, presentations and spreadsheets and
quickly share them with co-workers. The new Intel
architecture features 2nd generation Intel® Core™ i5 2
and i3 2 dual-core processors, offering incredible
performance, responsiveness and enhanced graphics.
Choose Intel® HD Graphics 3000 3 for responsive
performance and rich media capabilities. Or, choose the
AMD Radeon™ HD 6470M discrete graphics processor
for an amazing visual experience with powerful
performance.
Legibility and portability
Enjoy the easy-to-view 39,6 cm (15.6") diagonal HD
display on the HP ProBook 6560b.
4
Extensive battery solutions
Multiple battery options allow you to configure your
laptop with the mobility and battery run-time that works
for you 5.
Built to protect
HP ProtectTools is a portfolio of security technologies
designed to give users three-dimensional protection
through Strong Authentication, Data at Rest and Data in
Motion 6.
Built to conserve
HP Power Assistant 7 extends battery run time while
reducing energy consumption. It is an integrated solution
that measures and logs reported system energy usage
through a simple interface.
Built to simplify
Tap into fast, convenient and more secure access to the
internet, email, contacts and calendar at the touch of a
button without long boot-up times with HP QuickWeb 8.
It delivers improved security via enhanced user
authentication with support for passwords and
biometrics.
Common docking options 1 allow professionals to share
docking solutions for the HP ProBook 6560b in various
locations.
HP ProBook 6560b Notebook PC
HP recommends Windows® 7.
SPECIFICATIONS
Operating system
Preinstalled
Genuine Windows® 7 Professional 32
Genuine Windows® 7 Professional 64
Genuine Windows® 7 Home Premium 32
Genuine Windows® 7 Home Premium 64
Genuine Windows® 7 Home Basic 32
Genuine Windows® 7 Starter
Genuine Windows Vista® Home Basic 32
SUSE Linux Enterprise 11
FreeDOS
Processor
Intel® Core™ i5-2540M (2.60 GHz, 3 MB L3 cache); Intel® Core™ i5-2520M (2.50 GHz, 3 MB L3 cache); Intel® Core™ i5-2410M (2.30 GHz, 3 MB L3 cache); Intel®
Core™ i3-2310M (2.10 GHz, 3 MB L3 cache)
Chipset
Mobile Intel® QM67 Express; Mobile Intel® HM65 Express
Memory
DDR3 SDRAM, 1333 MHz, 2048/4096/8192 MB; 2 SODIMM; Upgradeable to 16 GB
Internal Storage
SATA II Hard Drive 250, 320, 500 GB (7200 rpm), 128 GB Solid State Drive, 3D DriveGuard
Upgrade Bay
DVD+/-RW SuperMulti DL; DVD-ROM; Weight saver
Display
39,6 cm (15.6") diagonal LED-backlit HD anti-glare (1366 x 768); 39,6 cm (15.6") diagonal LED-backlit HD+ WVA anti-glare (1600 x 900)
Graphics
Integrated: Intel® HD Graphics 3000 or Intel® HD Graphics; Discrete: AMD Radeon HD 6470M with 512 MB dedicated DDR3 video memory
Audio/Visual
SRS Premium Sound, Integrated stereo speakers, Stereo headphone/line out, Stereo microphone in, Integrated microphone (dual-microphone array with optional webcam)
Wireless Support
HP hs2340 HSPA+ Mobile Broadband; HP un2430 EV-DO/HSPA Mobile Broadband; Intel Centrino 802.11a/b/g/n; Broadcom 802.11a/b/g/n; Broadcom
802.11b/g/n; HP Integrated Module with Bluetooth 2.1+EDR Wireless Technology; HP un2430 EV-DO/HSPA Mobile Broadband (available as of May 2011)
Communications
Integrated Intel 82579LM Gigabit Network Connection (10/100/1000 NIC), Integrated Intel 82579V Gigabit Network Connection (10/100/1000 NIC)
Expansion slots
1 Express Card/54; 1 SD/MMC; An optional Integrated Smart Card Reader is available and replaces the ExpressCard/54 slot
Ports and Connectors
4 USB 2.0; 1 eSATA/USB 2.0 Combo; 1 external VGA monitor; 1 DisplayPort; 1 stereo microphone in; 1 stereo headphone/line-out; 1 1394a; 1 AC power; 1 RJ-11; 1
RJ-45; 1 serial; 1 docking connector; 1 secondary battery connector
Input Device
Spill-resistant keyboard with numeric keypad and drains; Touchpad with on/off button, two-way scroll, gestures, two pick buttons; Pointstick with two additional pointstick
buttons (select models); 720p HD Webcam (select models)
Software
Roxio Secure Burn; Microsoft Office 2010 preloaded (purchase of a Product Key required to activate a full Office 2010 suite); Norton Internet Security 2011 (60-day
subscription). Additional software included; see QuickSpecs for details.
Security
Standard: HP ProtectTools, Central Management capable, TPM Embedded Security Chip 1.2, Enhanced Pre-Boot Security, HP Spare Key (requires initial user setup), HP
Disk Sanitizer, Drive Encryption for HP ProtectTools, Credential Manager for HP ProtectTools, File Sanitizer for HP ProtectTools, security lock slot; Optional: Computrace Pro
for HP ProtectTools, HP Fingerprint Sensor, Smart Card Reader (replaces ExpressCard), HP Privacy Filter
Dimensions
37.4 x 25.1 x 3.4 cm
Weight
Starting at 2.5 kg
Energy efficiency compliance
ENERGY STAR® qualified configurations available
Power
6-cell (55 WHr) Li-Ion; 90W HP AC Adapter (discrete); 65W HP AC Adapter (integrated); HP Fast Charge
Warranty
1 year carry-in, pick-up and return in some countries (upgrades available, sold separately), 1 year warranty on primary battery.
Supported
1 Sold separately or as an optional feature
2 64-bit computing on Intel architecture requires a computer system with a processor, chipset, BIOS, operating system, device drivers and applications enabled for Intel® 64 architecture. Processors will not operate (including 32-bit operation) without an Intel 64
architecture-enabled BIOS. Performance will vary depending on your hardware and software configurations. See www.intel.com/info/em64t for more information. Quad Core is designed to improve performance of multithreaded software products and
hardware-aware multitasking operating systems and may require appropriate operating system software for full benefit. Not all customers or software applications will necessarily benefit from use of this technology. Intel’s numbering is not a measurement of higher
performance
3 Intel HD 3000 not available with Celeron processors. Celeron configurations feature Intel HD graphics
4 HD content required to view HD images
5 Battery life will vary depending on the product model, configuration, loaded applications, features, use, wireless functionality and power management settings. The maximum capacity of the battery will naturally decrease with time and usage. See
MobileMark07 battery benchmark www.bapco.com /products/mobilemark2007 for additional details
6 Microsoft Windows required
7 Power calculations and cost calculations are estimates. Results will vary based on variables, which include information provided by the user, time PC is in different power states (on, standby, hibernate, off), time PC is on battery or AC, hardware configuration,
variable electricity rates and utilities provider. HP advises customers to use information reported by HP Power Assistant for reference only and to validate impact in their environment. Environmental calculations were based on U.S. EPA eGrid 2007 data found at
www.epa.gov/egrid/. Regional results will vary. Microsoft Windows required. Requires discrete graphics configuration
8 HP QuickWeb is accessible when the notebook is off in Windows XP, Windows Vista or Windows 7-based systems. Internet access is required. Timing may vary depending on the system configuration. To enable the feature following the removal of the battery,
reboot the notebook prior to subsequent use
For more information, please visit www.hp.com/eur/notebooks
© Copyright 2011 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express
warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained
herein.
Systems may require upgraded and/or separately purchased hardware to take full advantage of Windows 7 functionality. Not all features are available in all editions of Windows 7. See
http://www.microsoft.com/windows/windows-7/ for details.
Bluetooth is a trademark of its proprietor and used by Hewlett-Packard Company under license. Microsoft, Windows and Windows Vista are trademarks of the Microsoft group of companies. Intel, Celeron and Core are
trademarks or registered trademarks of Intel Corporation or its subsidiaries in the U.S. and other countries.
4AA3-3221EEE. July 2011
HP ProBook 6560b Notebook PC
HP recommends Windows® 7.
Accessories and Services
HP Business Nylon Carrying
Case
HP Business Nylon Carrying Case is designed inside and out with features that will be appreciated by a
mobile traveler. Made from durable nylon, the case offers a large topload compartment with plenty of room
to organize materials, plus store business cards, cell phones and other supplies. It can carry a notebook up to
16.1 inch (40.89 cm) and also includes a neoprene pouch for a mini or thin-and-light notebook up to 12.1
inch (30.73 cm). Convenient outer pockets provide quick access to frequently used items, and can be closed
with zippers and Velcro. Padding added to the handles and shoulder strap provide comfort as it is carried.
Best of all, attach the HP Nylon Carrying Case to a rolling cart or suit case. A unique pass-through strap
helps keep the case attached to the handle of a rolling cart or suit case, to avoid being lost or stolen.
Product number: BP848AA
HP 90W Docking Station
Desktop convenience with full port replication capability in a space-saving design.
Product number: VB041AA
HP Display and Notebook
Stand
The perfect home base for the business traveler who is constantly on the go - turn your HP Business Notebook
into a desktop solution supporting up to two displays (notebook display plus external display). The adaptable
design of the HP Adjustable Display Stand can accommodate a range of notebook sizes with the innovative
adjustable shelf. This stand can also accommodate notebooks that can be connected to a docking station
and notebooks that do not have a docking connector. Integrated base rollers let you rotate the stand so you
can more easily share your work. A dual-hinged, smooth-motion display stand allows for greater depth,
height and tilt adjustment for maximum comfort.
Product number: AW662AA
HP Docking Station Cable
Lock
The HP Docking Station Cable Lock is dramatically simpler to use than previous locks and delivers enhanced
security. The HP Docking Station Cable Lock gives you two locking options: lock the docking station only
(which also prevents access to the advanced docking stations drive bay) or lock both the docking station and
the notebook.
Product number: AU656AA
HP 15.6 Privacy Filter
No more need to worry about prying eyes. This unique HP built-to-fit solution ensures confidential business
data, personal information and financial records are visible only to the person sat directly in front of the
notebook display.
Product number: AU103AA
3-year Next Business Day
Onsite
Receive 3 years of next business day onsite repair from an HP-qualified technician for your computing device,
if the issue cannot be solved remotely
Product number: U4386E
For more information, please visit www.hp.com/eur/hpoptions
Keep your PC running at its best with HP Support Assistant www.hp.com/eu/supportassistant
