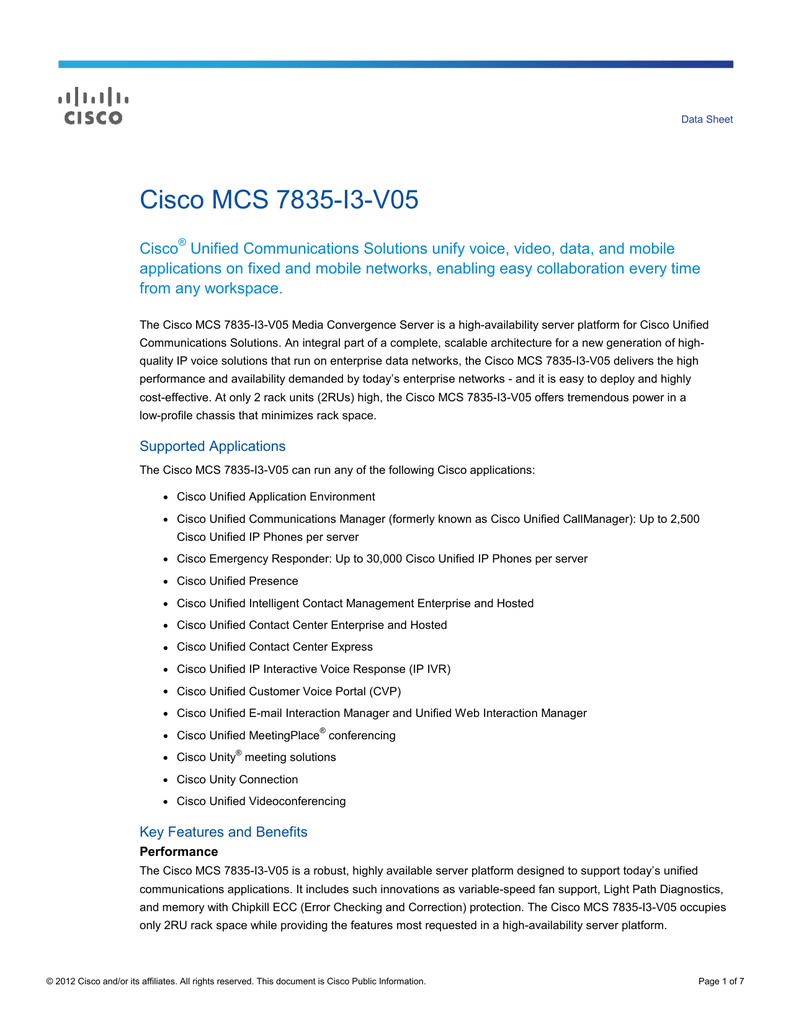

Data Sheet
Cisco MCS 7835-I3-V05
Cisco
®
Unified Communications Solutions unify voice, video, data, and mobile applications on fixed and mobile networks, enabling easy collaboration every time from any workspace.
The Cisco MCS 7835-I3-V05 Media Convergence Server is a high-availability server platform for Cisco Unified
Communications Solutions. An integral part of a complete, scalable architecture for a new generation of highquality IP voice solutions that run on enterprise data networks, the Cisco MCS 7835-I3-V05 delivers the high performance and availability demanded by today’s enterprise networks - and it is easy to deploy and highly cost-effective. At only 2 rack units (2RUs) high, the Cisco MCS 7835-I3-V05 offers tremendous power in a low-profile chassis that minimizes rack space.
Supported Applications
The Cisco MCS 7835-I3-V05 can run any of the following Cisco applications:
● Cisco Unified Application Environment
●
Cisco Unified Communications Manager (formerly known as Cisco Unified CallManager): Up to 2,500
Cisco Unified IP Phones per server
●
Cisco Emergency Responder: Up to 30,000 Cisco Unified IP Phones per server
● Cisco Unified Presence
●
Cisco Unified Intelligent Contact Management Enterprise and Hosted
● Cisco Unified Contact Center Enterprise and Hosted
●
Cisco Unified Contact Center Express
● Cisco Unified IP Interactive Voice Response (IP IVR)
●
Cisco Unified Customer Voice Portal (CVP)
● Cisco Unified E-mail Interaction Manager and Unified Web Interaction Manager
● Cisco Unified MeetingPlace
®
conferencing
●
Cisco Unity
®
meeting solutions
● Cisco Unity Connection
●
Cisco Unified Videoconferencing
Key Features and Benefits
Performance
The Cisco MCS 7835-I3-V05 is a robust, highly available server platform designed to support today’s unified communications applications. It includes such innovations as variable-speed fan support, Light Path Diagnostics, and memory with Chipkill ECC (Error Checking and Correction) protection. The Cisco MCS 7835-I3-V05 occupies only 2RU rack space while providing the features most requested in a high-availability server platform.
© 2012 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 1 of 7
High Availability
High availability on the Cisco MCS 7835-I3-V05 is achieved through the following mechanisms:
●
Redundant hot-swap 675W power supplies increase system uptime by eliminating another point of failure with a second hot-swap power supply.
● Hot-swap Serial Attached SCSI (SAS) hard drives are configured using Redundant Array of Independent
Disks (RAID) 1.
● Redundant hot-swap fans allow the server to continue to operate even with a fan failure and allow for fan replacement without taking the server offline.
●
An integrated management module (IMM) increases server availability by continuously monitoring the system and providing secure alerts and status, thereby ensuring maximum uptime.
Memory
The Cisco MCS 7835-I3-V05 supports a maximum of 128 GB of double-data-rate 3 (DDR3) memory, which implies up to 16 GB per core or 64 GB per CPU socket. By matching the high-performance speed of the Intel Xeon
5500 Series processor with new-generation, high-performance DDR-3 registered dual-inline-memory-module
(RDIMM) memory, performance is improved by transmitting 8 bits of data in one clock cycle while lowering the power required for the memory by 17 percent over the previous generation of memory thermal design.
Variable-Speed Fan Support
The Cisco MCS 7835-I3-V05 includes variable-speed fans to reduce operating noise. Through the use of temperature sensors within the server, the speed of the fans is adjusted to maintain the proper cooling, reducing the noise generated by the fans by operating them only when required and at a speed based upon the cooling requirements.
Serviceability
Light Path Diagnostics
The Cisco MCS 7835-I3-V05 is equipped with Light Path Diagnostics, which provides a central information LED panel (visible without removing the cover) and individual LED lights throughout the system on items such as DIMM modules, peripheral-component-interconnect (PCI) slots, power supplies, and CPUs. IT can quickly view system status, and service personnel can pinpoint a specific failing component, helping reduce downtime and service costs. This capability provides increased availability, because nontechnical personnel can report error conditions without removing the top cover and exposing vital components to further risk. If the system-error LED on the front of the server is on, one or more LEDs inside the server or on the power supply will be on. These LEDs help identify and locate problems with some server components. By following the path of lights, you can quickly identify the type of system error that occurred. The Cisco MCS 7835-I3-V05 is designed so that any LEDs that are illuminated remain illuminated when the server shuts down as long as the AC power source is good and the power supply can provide +5 VDC to the server.
© 2012 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 2 of 7
Light Path Diagnostics provide indication of failures for the following conditions:
● One or both power supplies consuming power higher than maximum rating
●
Power-supply failure
● Failure of one or both processors
● Hardware configuration error
●
Memory error
● Nonmaskable interrupt
●
Error on the system board
● Service processor failure (IMM)
●
Error on adapter on PCI slots
● Hard disk error
●
Fan failure or slow operation
● System temperature exceeded maximum rating
Remote Management
The included Virtual Media key coupled with the advanced IMM provides for 24-hour remote management capability.
Tape Drive Support
The Cisco MCS 7835-I3-V05 can support an optional customer-provided 36-/72-GB USB external Digital Audio
Tape (DAT) drive or an optional customer-provided USB rack-mount DAT drive (required specs described at http://www.cisco.com/go/swonly ). This tape drive connects through one of the USB 2.0 ports provided by the Cisco
MCS 7835-I3-V05.
Product Specifications
Tables 1 through 5 list the Cisco MCS 7835-I3-V05 bare metal and appliance configurations, and Table 6 gives information about previously released configurations.
Table 1. Currently Shipping Configuration with Single Processor and 300-GB Hard Drives
Current Component
Product part number
Preload
OS included
Processor
Memory included
Memory maximum
Current Value
MCS-7835-I3-IPC2 (Bare Metal)
MCS7835I3-K9-CME1 (Unified Communications Manager 9.0 appliance)
MCS7835I3-K9-CMD3B (Unified Communications Manager 8.6 appliance)
MCS7835I3-K9-CMD2B (Unified Communications Manager 8.5 appliance)
MCS7835I3-K9-CXC1 (Unified Contact Center Express 9.0 appliance)
IPC2: None
CME1: Cisco Unified Communication Manager 9.0
CMD3B: Cisco Unified Communication Manager 8.6
CMD2B: Cisco Unified Communication Manager 8.5
CXC1: Cisco Unified Contact Center Express 9.0
IPC2: None
All others: included
Single Intel 5504 Quad-core 2.00-GHz; last level cache: 8 MB
4-GB (two 2-GB DIMM) PC3-10600 1333-MHz, fully buffered double-data-rate 3 (DDR-3) RDIMM
128 GB (64 GB per processor slot)
© 2012 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 3 of 7
Current Component
Memory bus clock
Memory technology
Multibit error mitigation
Current Value
Up to 1333 MHz
Registered PC3-10600 DDR-3 1333-MHz dual-rank DIMM
Advanced Chipkill ECC
16 (8 per processor slot)
United Extensible Firmware Interface (UEFI)
Total DIMM slots
Basic input/output system
(BIOS) type
Hard disks
Hot-swappable bays
Hard disk interface type
Hard disk spindle speed
Hard disk seek time
Hard disk latency
Data transfer rate
Hard disk form size
RAID controller model
RAID interface
RAID cache
Battery-backed write cache
(BBWC)
RAID level
Two 300-GB SAS 2.5-in. hot-swap
8
SAS
10,000 revolutions per minute (rpm)
4 ms (average)
3 ms (average)
Capable of 6 Gbps
2.5-inch SFF
IBM mezzanine ServeRAID MR10i controller
Connected to motherboard
256 MB
Yes
Configured as one RAID 1 array
Ethernet network interface card
(NIC)
Dual onboard 10/100/1000
Ethernet connectors
10BASE-T cable support
Two RJ-45 connectors on back of server
EIA Category 3, 4, or 5 unshielded twisted pair (UTP) (2 or 4 pair) up to 328 ft (100m)
100BASE-TX cable support
1000BASE-T cable support
Serial ports
Parallel ports
EIA Category 5 UTP (2 pair) up to 328 ft (100m)
EIA Category 6 UTP (recommended), 5E UTP, 5 UTP (2 pair) up to 328 ft (100m)
1
0
USB 2.0 ports
Keyboard ports
Mouse ports
Audio ports
Video Graphics Array (VGA) ports
System management ports
8x PCIe non-hot plug slots
5 (2 front, 2 rear, and 1 internal)
Use one of the USB ports (PS/2 ports are not provided)
Use one of the USB ports (PS/2 ports are not provided)
None
1 front and 1 rear
RJ-45 for IMM
4
Dimensions (H x W x D)
Weight (maximum)
Height: 3.346 in.
Width:
● With top cover: 17.465 in.
● With front bezel: 18.976 in.
Depth:
● EIA flange to rear: 27.480 in.
● Overall: 28.791 in.
64 lb
Height: 85.2 mm
Width:
● With top cover: 443.6 mm
● With front bezel: 482.0 mm
Depth:
● EIA flange to rear: 698 mm
● Overall: 729 mm
29.03 kg
© 2012 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 4 of 7
Current Component
Input requirements
*
Current Value
Rated line voltage: 100-127 VAC; 50 or 60 Hz
Input current (amps)
Leakage current (mA)
Power (watts)
VA rating (VA)
BTU rating (BTU/hr)
0.98 (idle)
1.64 (maximum measured)
7.8 (system rated)
60 (peak inrush current; 4 ms)
0.94 (idle; maximum measured; system rated)
115 (idle)
191 (maximum measured)
780 (system rated)
118 (idle)
194 (maximum measured)
797 (system rated)
392 (idle)
652 (maximum measured)
2661 (system rated)
Power supply output power
Temperature range
Rated line voltage: 200-240 VAC; 50 or 60 Hz
Input current (amps)
Leakage current (mA)
Power (watts)
VA rating (VA)
BTU rating (BTU/hr)
Rated steady-state power
Operating
Nonoperating
Relative humidity
(RH; noncondensing)
Shipment
Operating
Shipment
Maximum altitude
Acoustic noise
7000 ft
Operating minimum
Airflow (cubic feet per minute) 30 CFM minimum
Remote management IBM IMM with Virtual Media enabled
0.56 (idle)
0.92 (maximum measured)
3.9 (system rated)
60 (peak inrush current; 4 ms)
0.94 (idle; maximum measured; system rated)
114 (idle)
189 (maximum measured)
780 (system rated)
117 (idle)
191 (maximum measured)
797 (system rated)
389 (idle)
644 (maximum measured)
2661 (system rated)
675W
50 to 95°F (10 to 35°C) at 0-3000 ft (0-914.4m) with an altitude de-rating of
1.4°F (0.75°C) per 1000 ft (304.8m)
50 to 109.4°F (10 to 43°C)
-40 to 140°F (-40 to +60°C)
8 to 80%
5 to 100%
2133m
L WAd (bels) 6.5
75 CFM maximum
*
Maximum measured values were determined with 25ºC ambient temperature, and your results may vary.
*
Idle power: Power drawn with the machine(s) logged into the OS, and no other applications running. Memory, HDDs, optical
* drives, and tape drives are not being used.
Measured maximum power: Maximum measured power is the power drawn by the machine with the CPUs 100-percent used and memory is used 10 percent more than base usage. The exerciser used is Prime95 (torture test) and can be downloaded
* from http://www.mersenne.org
.
Rated system maximum: The maximum power able to be drawn by the machine according to the system label rating.
© 2012 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 5 of 7
Compliance Specifications
●
FCC - Verified to comply with Part 15 of the FCC Rules, Class A (US Emissions)
● ICES-003 Class A (Canada Emissions)
●
AS/NZS CISPR22 Class A (Australia/New Zealand Emissions)
● CISPR22 Class A (International Emissions)
● EN55022 Class A (Europe Emission)
●
EN55024 (Europe Immunity)
● IEC 61000-3-2 (Europe Emission)
●
IEC 61000-3-3 (Europe Emission)
● KN22 Class A (Korea Emissions)
●
CNS13438 Class A (Taiwan Emissions)
● GB9254 Class A (China CCC EMC)
●
GB4943 (China CCC Safety)
● VCCI-03 Class A (Japan emissions)
● CSA C22.2 No. 60950-1-03 (Canada Safety)
●
UL 60950-1 (US Safety)
● IEC/EN 60950-1 (European Safety)
●
CE Mark (2006/95/EC (LVD), 2004/108/EC (EMC))
● NOM (Mexico Safety)
●
KN24 Immunity Series (Korea Immunity)
Ordering Information
To place an order, visit the Cisco Ordering Home Page and refer to Tables 6 through 8.
Table 2. Ordering Information
Product Name
Cisco Unified Application Environment
Cisco Unified Communications Manager
Cisco Emergency Responder
Cisco Unified Intelligent Contact
Management Enterprise & Hosted
Cisco Unified Contact Center Enterprise
& Hosted
Cisco Unified Contact Center Express
Cisco Unified IP IVR
Cisco Unified Customer Voice Portal
Cisco Unity Connection
Cisco Unity
Cisco Unified MeetingPlace
Conferencing
Cisco Unified MeetingPlace Express
Cisco Unified Presence
Cisco Unified Mobility Advantage
Ordering Information
Refer to Cisco Unified Application Environment data sheet at: http://www.cisco.com/en/US/products/ps7058/tsd_products_support_series_home.html
Refer to Cisco Unified Communications Solutions Ordering Guide at: http://www.cisco.com/web/partners/downloads/sell/technology/storage/unifiedcomm/ucs1_og.pdf
Refer to CCBU Ordering Guide at http://www.cisco.com/web/partners/sell/technology/ipc/integratedsolutions/customer_contact_center.html
Refer to Cisco Unified Communications Applications Ordering Guide at http://www.cisco.com/web/partners/sell/technology/ipc/integrated-solutions/uca.html
© 2012 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 6 of 7
Printed in USA
Server Spares
Table 3. Ordering Information for Spare Servers by Application
Application
Bare-metal spare for use with all supported Cisco Collaboration Applications
Spare Part Number
MCS-7835-I3-IPC2
Field-Replaceable Spares
Table 4. Ordering Information for Server Spare Parts
Spare Part Number
Spare 300GB 10K SAS drive with 6Gbps controller
Spare 2GB memory for the MCS-7845-I3
Description
HDD-7845-I3-300=
MEM-7845-I3-2GB=
Replacement Part Numbers
Table 9 provides the replacement part numbers for those products that are no longer orderable.
Table 5. Replacement Part Numbers
Old Part Number
MCS-7835-I2-ECS1
MCS-7835-I2-ECS2
MCS-7835-I2-IPC2
MCS-7835-I2-IPC1
MCS-7835-I2-RC1
MCS-7835-I2-RC2
Replacement Part Number
MCS-7835-I3-ECS1
MCS-7835-I3-IPC2
MCS-7835-I3-RC3
Warranty Information
Cisco offers a 1-year limited hardware warranty on Cisco Media Convergence Servers. For terms and conditions of this warranty, refer to http://www.cisco.com/en/US/docs/general/warranty/English/1Y1DEN__.html
.
Cisco Unified Communications Services
Cisco Unified Communications Services allows you to accelerate cost savings and productivity gains associated with deploying a secure, resilient Cisco Unified Communications Solution. Delivered by Cisco and our certified partners, our portfolio of services is based on proven methodologies for unifying voice, video, data, and mobile applications on fixed and mobile networks. Our unique lifecycle approach to services enhances your technology experience to accelerate true business advantage.
© 2012 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information.
C78-718406-00 10/12
Page 7 of 7
