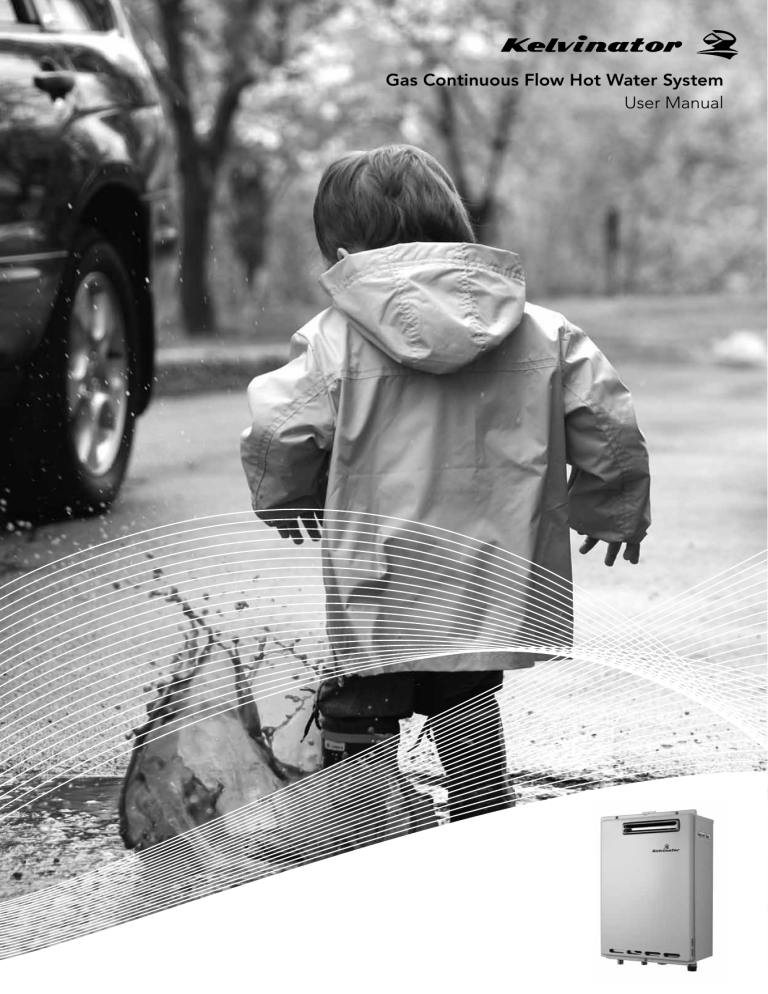

Gas Continuous Flow Hot Water System

User Manual

Congratulations Contents

Congratulations and thank you for choosing our gas continuous flow hot water system. We are sure you will find your new hot water system a pleasure to use. Before you use your hot water system, we recommend that you read through the entire user manual, which provides the description of the hot water system and its functions.

To avoid the risks that are always present when you use an appliance, it is important that the hot water system is installed correctly and that you read the safety instructions carefully to avoid misuse and hazards.

We recommend that you keep this instruction booklet for future reference and pass it on to any future owners.

After unpacking the hot water system please check it is not damaged. If in doubt, do not use the hot water system but contact your local Electrolux Customer Care Centre.

NOTE: The actual gas heating appliance that is part of this gas continuous flow hot water system will here after be refered to as "water heater" for the purposes of this manual.

The gas continuous flow hot water system as a whole may also be refered to as "hot water system" for simplicity.

Important .......................................................................... 3

Important safety instructions ........................................... 4

Specifications .................................................................... 5

Your gas continuous flow hot water system .................... 6

How it works .................................................................. 6

Initial operation ............................................................... 7

Normal operation ............................................................ 8

Freeze prevention ............................................................. 9

Winter shutdown ............................................................. 9

Maintenance and service ................................................ 10

Water heater draining and filter cleaning ..................... 10

General troubleshooting ................................................. 11

Warranty .......................................................................... 15

environmental tips

Information on disposal for users

• Most of the packing materials are recyclable.

Please dispose of those materials through your local recycling depot or by placing them in appropriate collection containers.

• If you wish to discard this hot water system, please contact your local authorities and ask for the correct method of disposal.

• Contact an authorised installer for installation of this hot water system.

• Contact an authorised service technician for repair or maintenance of this hot water system.

• If the power cord is to be replaced, replacement work must be performed by authorised personnel only.

• Installation work must be performed in accordance with national standards by authorised personnel only.

Wrong connection can cause over heating or fire.

• This hot water system should be installed in accordance with AS/NZS 3000 and your electricity suppliers rules.

Conditions of use

This hot water system is intended to be used in household and similar applications such as :

• staff kitchen areas in shops, offices and other working

environments.

• farm houses.

• by clients in hotels, motels and other residential type

environments.

• bed and breakfast type environments.

2 contents Kelvinator gas continuous flow hot water systems

Important

This User Manual has been prepared for owners and users of the hot water system. Please keep it in a safe place for future reference.

Meanings of symbols used in this manual are shown below:

warning

This symbol indicates information concerning your personal safety

caution

This symbol indicates information on how to avoid damaging the hot water system

tips & information

This symbol indicates tips and information about use of the hot water system

environmental tips

This symbol indicates tips and information about economical and ecological use of the hot water system

For the installer

The installation must be completed in accordance with the information supplied in the Installation Manual that comes with your gas continuous flow hot water system.

All other relevant National, State or Local regulations must also be conformed with and these include (but are not limited to):

• Australian Standard AS3500.1 – Water Supply

• Australian Standard AS3500.4 – Hot Water Supply

• Australian Standard AS3000 – Electrical Installation

• Australian Gas Association Code AS5601 –

Gas Appliance Installation

• Local Water, Gas & Electrical Authority Regulations

Municipal Building Codes

warning

Installation must be performed by a qualified installer (for example, a licensed plumber or gas fitter).

Inside you will find many helpful hints on how to use and maintain your hot water system properly.

Just a little preventative care on your part can save you a great deal of time and money over the life of your hot water system. You'll find many answers to common problems in the chart of troubleshooting tips. If you review the chart of Troubleshooting Tips first, you may not need to call for service.

This symbol indicates never to do this

This symbol indicates always do this

warning

Connect with power properly.

Otherwise, it may cause electric shock or fire due to excess heat generation.

Always ensure effective earthing.

No earthing may cause electric shock.

Disconnect the power and turn off the gas inlet valve to the hot water system if strange sounds, smell, or smoke comes from it.

It may cause fire and electric shock.

Do not operate or stop the water heater by switching on or off the power.

It may cause electric shock or fire due to heat generation.

Do not damage or use an unspecified power cord.

It may cause electric shock or fire.

If the power cord is damaged, it must be replaced by the manufacturer or an authorised service centre or a similarly qualified person in order to avoid a hazard.

Do not modify power cord length or share the outlet with other appliances.

It may cause electric shock or fire due to heat generation.

Do not operate with wet hands or in a damp environment.

It may cause electric shock.

Do not allow water to run into electric parts.

It may cause failure of machine or electric shock.

Do not use the socket if it is loose or damaged.

It may cause fire and electric shock.

Do not open the water heater during operation.

It may cause electric shock.

Do not allow the power cord to rest close to hot surfaces.

It may cause fire and electric shock.

Do not disassemble or modify water heater.

It may cause failure and electric shock.

Kelvinator gas continuous flow hot water systems important notes 3

Important safety instructions

Ensure the following safety instructions are read and understood before using this water heater.

warning warning

Water temperatures above 50°C can cause severe burns, scalding or death. Feel the water temperature before bathing or showering. Do not leave children unsupervised.

The Australian Standards AS3498 provides full details of the requirements for the supply of controlled temperatures to bathrooms and is required to be conformed to under all

Australian plumbing codes.

• Do not store or use gasoline or other flammables, vapours or liquids in the vicinity of the gas continuous flow hot water system.

• Do not reverse the water and/or gas connections as this will cause damage to the gas valves, and may also cause severe injury or death.

• Do not use this water heater if it has at any stage been immersed in water. Immediately call a licensed plumber, gas fitter or authorized technician to inspect and/or service the system.

• Do not disconnect the electrical supply if the ambient temperature drops below freezing. The Freeze Protection

System only works when the water heater is connected to the power. The warranty is void if the heat exchanger is damaged as a result of freezing.

• This hot water system is not intended for use by persons

(including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the hot water system by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the hot water system.

If you fail to follow the instructions below, a fire or explosion may result, causing property damage, personal injury or loss of life.

• This hot water system is equipped with an ignition device.

Do not try and light the burner manually.

• Prior to operating ensure that there is no evidence of leaking gas.

What to do if you smell gas:

• Do not light the hot water system

• Do not touch the electric switch

• Immediately contact your gas supplier and follow their instruction (DO NOT use a phone near the suspected leak)

• Do not use tools or other foreign objects to turn the gas valve knob, this should only be done by hand. If it is not possible to turn the knob by hand then contact a qualified service technician. Force or attempted repair may result in fire or explosion.

FLAMMABLES

Safety before operating

warning

FLAMMABLE VAPOURS

For your safety, please read before operating

• Check the GAS and WATER CONNECTIONS for leaks before using it for the first time.

• Open the main gas supply valve to the water heater using only your hand to avoid any spark. Never use tools.

If the knob will not turn by hand, do not try to force it; call a qualified service technician. Forced repair may result in a fire or explosion due to gas leaks.

• Be sure to check next to the bottom of the water heater because some gases are heavier than air and may settle towards the floor.

• Check the GAS PRESSURE.

• Do not try to light the burner manually. It is equipped with an electronic ignition device which automatically lights the burner.

• Check for PROPER VENTING and COMBUSTIBLE AIR to the heater.

• Purge the GAS and WATER LINES to remove any air pockets.

• Do not use this water heater if any part has been submersed in water. Immediately call a qualified service technician to inspect the water heater and to replace any damaged parts.

• If this water heater is a 70°C model installed as part of a gas boosted solar hot water system, please refer to the user manual supplied with that system for safety regarding the relief valves installed to limit temperature, pressure and energy.

4 important safety instructions Kelvinator gas continuous flow hot water systems

Specifications

Your gas continuous flow hot water system (please tick)

Stand alone installation

50°C – 20L Natural Gas KGC20BNA

26L Natural Gas KGC26BNA

20L LPG Gas KGC20BLA

26L LPG Gas KGC26BLA

60°C – 20L Natural Gas KGC20KNA

26L Natural Gas KGC26KNA

20L LPG Gas KGC20KLA

26L LPG Gas KGC26KLA

Gas boosted solar installation

70°C – 20L Natural Gas KGC20SNA

26L Natural Gas KGC26SNA

20L LPG Gas KGC20SLA

26L LPG Gas KGC26SLA

Serial number:

Installation date:

Installed by:

Notes:

Serial number label position

Rating label position

Gas type label position

When calling the service centre, please refer to this section of the user manual as it will help you to describe your gas continuous flow hot water system and assist you in quoting its model number.

MODELS

Capacity L/min

Gas Input MJ/h

Inlet Supply Pressure kPa – Nat. Gas

Inlet Supply Pressure kPa - LPG

Water Supply

Pressure kPa

Height mm

Depth mm

Width mm

Weight kg

Gas Connection mm

Water Connections

Ignition

Electrical Supply Voltage

Operating current

KGC20BNA

KGC20KNA

KGC20SNA

KGC20BLA

KGC20KLA

KGC20SLA

20L/min

160

1.13 min.

2.75 max.

2.61 min

2.89max

150* min.

1200 max

542

170

350

15.7

20 BSP

15 BSP

Electronic

240 AC

0.8A

KGC26BNA

KGC26KNA

KGC26SNA

KGC26BLA

KGC26KLA

KGC26SLA

26L/min

195

1.13 min.

2.75 max.

2.61 min

2.89max

150* min.

1200 max

542

215

350

17.2

20 BSP

15 BSP

Electronic

240 AC

0.8A

*The water heater will operate at reduced performance when inlet water supply pressures are below 340kPa.

Kelvinator gas continuous flow hot water systems specifications 5

Your gas continuous flow hot water system – how it works

When a hot water tap is turned on, cold water begins flowing through the gas continuous flow hot water system and out of the hot water tap. A flow sensor inside the water heater detects that there is water flow and the computer opens the internal gas supply valve, ignites the burner and starts the internal fan. The water circulating inside the water heater goes through a heat exchanger that absorbs the heat created by the flames of the burner and transfers the heat into the water circulating through it. The internal computer modulates the gas supply valve and the water flow to produce the right amount of hot water to the correct temperature. When the hot water tap is turned off, the unit detects that the water flow has stopped and closes the gas supply valve, stopping the burner. The internal fan continues to run for a little while longer and then shuts down.

Your gas continuous flow hot water system may be installed on its own or part of a gas boosted solar hot water system. flow sensor thermistors

Exhaust

Burner

Fan

Computer

Board

AC240V

Turning on your gas continuous flow hot water system

If your gas continuous flow hot water system has been turned off after commissioning or shut down for a period of time follow these instructions:

• If the system has been drained, ensure that the drain plugs have been screwed back in place (hand tighten only)

• Open any hot tap or fixture in the house

• Open the cold water isolation valve located on the inlet to the water heater

• Once water is flowing freely from the open hot tap or fixture, indicating that all air has been dispelled from the system, close the open hot water tap or fixture

• Open the gas isolation valve located on the inlet to the water heater

• Plug in the power cord to the power outlet (if it isn’t already) and turn on the power supply to the outlet.

• Turn on the remote controller (if fitted) by pressing the

ON/OFF button and press the PRIORITY button

Your gas continuous flow hot water system is now ready to be used and will operate automatically when a hot tap or fixture is opened.

heat exchanger gas valve gas

Turning off your gas continuous flow hot water system

If you wish to turn off your gas continuous flow hot water system follow these instructions:

• Turn off the remote controller (if fitted) by pressing the

ON/OFF button

• Switch off electrical supply at the power outlet that the water heater is plugged into

• Close the gas isolation valve located on the inlet to the water heater

• Close the cold water isolation valve located on the inlet to the water heater

Note: If there is a risk of freezing conditions, do not switch off power to the water heater unless it is drained of water first.

Please see the section on freeze prevention on page 9 of this manual for more information.

hot water outlet cold water inlet

6 how it works Kelvinator gas continuous flow hot water systems

Initial operation

caution

The following process should be completed by the installer only

Once all checks have been completed, please clean filter of any debris. Refer to page 10 for instructions.

1. Fully open the manual water control valve on the water supply line.

4. Turn on the 240 volt 50 Hz power supply to the water heater.

2. Open a hot water tap to verify that water is flowing to that tap then turn the tap off.

3. Fully open the manual gas control valve installed.

5. Now you are ready to enjoy hours of endless hot water.

Kelvinator gas continuous flow hot water systems operation 7

Normal operation

Please note the following flow rates to properly operate the hot water system:

• Flow rate to activate the water heater:

3.0 litres per minute

• Flow rate to keep the water heater running:

2.5 litres per minute

Without the remote controller

1. Open a hot water tap.

With the remote controller (KGCMRCA) installed

1. Press the ON/OFF button to activate the display on the controller.

2. Press the PRIORITY button and ensure that the priority lamp is lit.

3. Set your desired temperature. This systems allows you to set your water temperature between 37°C and 55°C.

Note: If a tempering valve is installed as part of the installation, the water temperature will not be able to go above the setting on the tempering valve e.g. 50°C.

4. Turn on your hot water tap.

5. Ensure that the BURNER ON display indicator is lit.

6. Turn off your hot water tap.

7. Ensure that the BURNER ON display indicator is off.

priority lamp display set temperature

2. Mix cold water with the hot to get the correct temperature water. burner on lamp

PRIORITY

Main

PRIORITY

BURNER ON

40

°C

HOT

COOL

ON/OFF

MADE IN JAPAN

3. Close the hot water and cold water taps.

priority button burner on lamp

ON/OFF button

KGCMRCA

NOTE: If power to the hot water system is lost then re-set, the remote controller will also lose power and switch off. If the water is still running during this time it will go cold, until the remote controller is switched on returning to default temperature setting of 40°C. The temperature can then be adjusted back to the desired temprature

8 operation Kelvinator gas continuous flow hot water systems

Freeze prevention

This water heater comes equipped with heaters that prevent the water heater from freezing. For this freeze prevention system to operate there has to be electrical power to the water heater. The freeze prevention device will not work if the electrical power source is disconnected. The water heater has been rated for temperatures down to -15°C in a wind free environment.

caution

The pipe heaters are located on the water heater only.

Any hot or cold water pipes located outside of the water heater will not be protected. Properly protect and insulate these pipes to ensure they do not freeze.

When it is safe to use the water heater again:

• Make sure all hot water taps are closed and the drain plugs are securely attached.

• Purge the water line of debris.

• Turn on the manual water control valve located on the water supply line.

• Open all the hot water taps to verify water flows to the taps. Close hot water taps.

• Turn on the manual gas control valve located on the gas supply line.

• Turn on the power supply to the water heater.

Winter shutdown

If you will not be using your gas continuous flow system for a long period of time or if the temperatures is expected to drop below -15°C with the wind chill factor, turn off your water heater and drain it of water. This will keep your water heater from freezing and being damaged.

Follow these instructions carefully:

1. Close the manual gas shut off valve.

2. Turn off the power supply to the system.

3. Close the manual water shut off valve located on the water supply line.

4. Open all hot water taps in the house. (Bathroom, kitchen, laundry room, etc.). When the water flow has ceased, close all hot water taps.

5. Have a bucket or pan to catch the water from the water heater’s drain plugs. Unscrew the drain plugs to drain all the water out of the water heater.

6. Wait a few minutes to ensure all water has completely drained from water heater.

7. Securely screw the drain plugs back into place.

Hand-tighten only.

power supply drain plug hot cold manual water valve gas

Kelvinator gas continuous flow hot water systems freeze prevention 9

Maintenance & service

Preventative maintenace can maximise the lifetime of this system. It's therefore recommended to have this system checked and serviced every 3 years. All servicing and repairs must be completed by a licensed technician. Please call the service centre (numbers located in the warranty section of this manual) for servicing and spare parts for your gas continuous flow hot water system.

warning

Turn off the electrical power supply and close the manual gas control valve and the manual water control valve before servicing.

When it is safe to use the gas continuous flow water heater again:

• Make sure all hot water taps are closed and the drain plugs are securely attached.

• Purge the water line of debris.

• Turn on the manual water control valve located on the water supply line.

• Open all the hot water taps to verify water flows to the taps. Close hot water taps.

• Turn on the manual gas control valve located on the gas supply line.

• Turn on the power supply to the system.

• Clean the cold-water inlet filter.

(Refer to the diagram below right)

• Be sure that all openings for combustion air are free from blockage. If blocked, remove the obstruction.

• Check that the opening for exhaust is not blocked. If blocked, shut off the water heater’s combustion. Wait until the system has completely cooled before removing the obstruction. DO NOT touch while the system is running – extremely high temperature can cause severe burns.

• Check the gas pressure.

• Keep the area around the system clear. Remove any combustible materials, gasoline or any flammable vapours and liquids. remove filter by turning counterclockwise, clean and replace turn off the water inlet supply valve then turn on a hot tap to release the pressure

Water heater draining and filter cleaning

1. Close the manual gas shut off valve.

2. Turn off the power supply to the system.

3. Close the manual water shut off valve.

4. Open all hot water taps in the house (bathroom, kitchen, laundry room, etc.). When the residual water flow has ceased, close all hot water taps.

5. Have a bucket or pan to catch the water from the water heater’s drain plugs. Unscrew the drain plugs to drain all the water out of the water heater.

6. Wait a few minutes to ensure all water has completely drained.

7. Clean the filter: Check the water filter located within the cold inlet. With a tiny brush, clean the water filter of any debris which may have accumulated and reinsert the filter back into the cold water inlet.

8. Securely screw the drain plugs back into place.

Hand- tighten only. filter

10 maintenance and service Kelvinator gas continuous flow hot water systems

Troubleshooting

Problem

Temperature and amount of hot water

It takes a long time for hot water to reach the fixtures.

The water is not hot enough

The water is too hot

The hot water is not available when a fixture is opened.

The hot water gets cold and stays cold

Fluctuation in hot water temperature.

Possible solutions

The time it takes to deliver hot water from the water heater to your fixtures depends on the length of piping between the two. The longer the distance or the bigger the pipes, the longer it will take to get hot water.

If a tempering valve is installed, is it set too low or malfunctioning?

Are the cold water and hot water lines cross connected?

Is the gas supply valve fully open?

Is the gas line sized properly?

Is the gas supply pressure enough?

Is the set temperature set too low?

Is the combustible air inlet or exhaust outlet blocked?

Is the set temperature set too high?

Does the water heater have a 240V 50Hz power supply available?

If you are using the remote controller, is the power button turned on?

Is the gas supply valve fully open?

Is the water supply valve fully open?

Is the filter on cold water inlet clean?

Is the hot water fixture sufficiently open to draw at least 3.0l/min through the water heater?

Is the water heater frozen?

Is there gas available to the water heater and (if applicable) does the gas storage tank have enough gas in it?

Is the flow rate enough to keep the water heater running?

Is the gas supply valve fully open?

Is the filter on the cold water inlet clean?

Are the fixtures clean of debris and obstructions?

Is the filter on the cold water inlet clean?

Is the gas line sized properly?

Is the supply gas pressure enough?

Are the cold water and hot water lines cross connected?

Problem

Burner does not ignite when water goes through the water heater.

The fan motor is still spinning after operation has stopped.

White vapour clouds are coming from the hot air outlet of the water heater

Water heater

Possible solutions

Is the flow rate over 3.0l/min?

Is there a 240V 50Hz power supply available to the water heater?

Are the cold water and hot water lines cross connected or reversed?

If you use the remote controller, is the power button turned on?

This is normal. After operation has stopped, the fan motor keeps running for

15 – 75 seconds in order to re-ignite quickly, as well as push all exhaust gas out of the flue.

It is normal to see water vapour clouds or steam coming from the hot air outlet of the water heater especially during cold and wet days.

Problem

Remote controller does not display anything when the power button is turned on.

An ERROR code is displayed

Remote controller can not change the set temperature.

Remote controller (optional)

Possible solutions

Press the ON/OFF button.

If the lamp does not light:

Make sure the water heater has power supply.

Make sure the connection to the water heater is correct.

Call a service technician.

Is priority lamp lit? If it is not, press the priority button after closing all hot water taps.

Kelvinator gas continuous flow hot water systems troubleshooting 11

Notes

12 notes Kelvinator gas continuous flow hot water systems

Notes

Kelvinator gas continuous flow hot water systems notes 13

Notes

14 notes Kelvinator gas continuous flow hot water systems

Warranty

FOR SALES IN AUSTRALIA AND NEW ZEALAND

APPLIANCE: HOT WATER SYSTEMS

This document sets out the terms and conditions of the product warranties for Electrolux Appliances. It is an important document.

Please keep it with your proof of purchase documents in a safe place for future reference should you require service for your Appliance.

1. In this warranty

(a) ‘acceptable quality’ as referred to in clause 10 of this warranty has the same meaning referred to in the ACL;

(b) ‘ACL’ means Trade Practices Amendment (Australian Consumer

Law) Act (No.2) 2010;

(c) ‘Appliance’ means any Electrolux product purchased by you accompanied by this document;

(d) ‘ASC’ means Electrolux’ authorised serviced centres;

(e) ‘Electrolux’ means Electrolux Home Products Pty Ltd of 163

O’Riordan Street, Mascot, NSW 2020, ABN 51 004 762 341 in respect of Appliances purchased in Australia and Electrolux (NZ)

Limited of 3-5 Niall Burgess Road, Mount Wellington, in respect of

Appliances purchased in New Zealand;

(f) ‘major failure’ as referred to in clause 10 of this warranty has the same meaning referred to in the ACL and includes a situation when an Appliance cannot be repaired or it is uneconomic for Electrolux, at its discretion, to repair an Appliance during the Warranty Period;

(g) ‘Warranty Period’ means:

(i) where the Appliance is used for personal, domestic or household use (i.e. normal single family use) as set out in the instruction manual, the Appliance is warranted against manufacturing defects in Australia and in New Zealand for the period of 1 year, following the date of original purchase of the Appliance. Specific components are warranted against manufacturing defects in

Australia for the periods listed below if there is evidence provided to Electrolux that the Appliance was installed by a licensed plumber; and in New Zealand if there is evidence that the

Appliance was installed according to the Electrolux installation guidelines which can be inspected on the Kelvinator website;

• Hot water tank cylinders - parts 5 years , labour 3 years

• Continuous Gas

- Heat Exchanger – parts 10 years, labour 3 years

- all others components - parts 3 years, labour 3 years

• Heat Pump Refrigerant Sealed System - 2 years parts and labour

• Solar Collectors - parts 5 years, labour 3 years, 1 year for all other parts (mounting and connection sets)

(ii) where the Appliance is used for commercial purposes (including being used to directly assist a business or where the Appliance is used in a multi-family communal or share type environment), the

Appliance will then be warranted against manufacturing defects in Australia for 0 years and in New Zealand for 0 years, following the date of original purchase of the Appliance.

(h) ‘you’ means the purchaser of the Appliance not having purchased the Appliance for re-sale, and ‘your’ has a corresponding meaning.

2. This warranty only applies to Appliances purchased and used in Australia or New Zealand and is in addition to (and does not exclude, restrict, or modify in any way) any non-excludable statutory warranties in Australia or New Zealand.

3. During the Warranty Period Electrolux or its ASC will, at no extra charge if your Appliance is readily accessible for service, without special equipment and subject to these terms and conditions, repair or replace any parts which it considers to be defective. Electrolux or its ASC may use remanufactured parts to repair your Appliance. You agree that any replaced Appliances or parts become the property of Electrolux.

This warranty does not apply to light globes, batteries, filters or similar perishable parts.

4. Parts and Appliances not supplied by Electrolux are not covered by this warranty.

5. You will bear the cost of transportation, travel and delivery of the

Appliance to and from Electrolux or its ASC. If you reside outside of the service area, you will bear the cost of:

(a) travel of an authorised representative;

(b) transportation and delivery of the Appliance to and from Electrolux or its ASC,

In all instances, unless the Appliance is transported by Electrolux or an

Electrolux authorised representative, the Appliance is transported at the owner’s cost and risk while in transit to and from Electrolux or its ASC.

6. Proof of purchase is required before you can make a claim under this warranty.

7. You may not make a claim under this warranty unless the defect claimed is due to faulty or defective parts or workmanship. Electrolux is not liable in the following situations (which are not exhaustive):

(a) the Appliance is damaged by:

(i) accident

(ii) misuse or abuse, including failure to properly maintain or service

(iii) normal wear and tear

(iv) power surges, electrical storm damage, excessive water pressure, excessive inlet water temperature or incorrect power supply

(v) incomplete or improper installation

(vi) incorrect, improper or inappropriate operation

(vii) insect or vermin infestation

(viii) failure to comply with any additional instructions supplied with the Appliance;

(ix) quality of water that is not in accordance with the “Water Quality” guidelines in the installation instructions;

(b) the Appliance is modified without authority from Electrolux in writing;

(c) the Appliance’s serial number or warranty seal has been removed or defaced;

(d) the Appliance was serviced or repaired by anyone other than

Electrolux, an authorised repairer or ASC.

8. This warranty, the contract to which it relates and the relationship between you and Electrolux are governed by the law applicable where the Appliance was purchased. Where the Appliance was purchased in

New Zealand for business purposes the Consumer Guarantee Act does not apply.

9. To the extent permitted by law, Electrolux excludes all warranties and liabilities (other than as contained in this document) including liability for any loss or damage whether direct or indirect arising from your purchase, use or non use of the Appliance.

10. For Appliances and services provided by Electrolux in Australia, the

Appliances come with a guarantee that cannot be excluded under the

ACL. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage.

You are also entitled to have the Appliance repaired or replaced if the

Appliance fails to be of acceptable quality and the failure does not amount to a major failure. The benefits to you given by this warranty are in addition to your other rights and remedies under a law in relation to the Appliances or services to which the warranty relates.

11. At all times during the Warranty Period, Electrolux shall, at its discretion, determine whether repair, replacement or refund will apply if an

Appliance has a valid warranty claim applicable to it.

12. For Appliances and services provided by Electrolux in New Zealand, the Appliances come with a guarantee by Electrolux pursuant to the provisions of the Consumer Guarantees Act, the Sale of Goods Act and the Fair Trading Act.

13. To enquire about claiming under this warranty, please follow these steps:

(a) carefully check the operating instructions, user manual and the terms of this warranty;

(b) have the model and serial number of the Appliance available;

(c) have the proof of purchase (eg an invoice) available;

(d) telephone the numbers shown below.

14. You accept that if you make a warranty claim, Electrolux and its ASC may exchange information in relation to you to enable Electrolux to meet its obligations under this warranty.

Important Notice

Before calling for service, please ensure that the steps listed in point 13 above have been followed.

FOR SERVICE

or to find the address of your nearest state service centre in Australia

PlEASE CAll 13 62 26

For the cost of a local call (Australia only)

SERVICE AUSTRAlIA

ELECTROLUX HOME PRODUCTS www.electrolux.com.au

FOR SPARE PARTS

or to find the address of your nearest state spare parts centre in Australia

PlEASE CAll 1300 666 019

For the cost of a local call (Australia only)

FOR SERVICE

or to find the address of your nearest authorised service centre in New Zealand

FREE CAll 0800 10 66 10

(New Zealand only)

KHWS_Warr_Oct11

SERVICE NEW ZEAlAND

ELECTROLUX HOME PRODUCTS www.electrolux.co.nz

FOR SPARE PARTS

or to find the address of your nearest state spare parts centre in New Zealand

FREE CAll 0800 10 66 20

(New Zealand only)

Kelvinator Gas Continuous Flow hot water systems warranty 15

If you’d like further information about Kelvinator appliances, please visit your retailer, phone or email our Customer Care team or visit our website.

telephone: 1300 363 640 fax: 1800 350 067 email: [email protected]

web: www.kelvinator.com.au

Kelvinator. We are part of the Electrolux family.

Share more of our thinking at www.electrolux.com.au

P/No. KHWGCFI/1

© Copyright 2011 Electrolux Home Products Pty Ltd ABN 51 004 762 341

Print code: KMAN_KHWGCFI_Nov11

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
