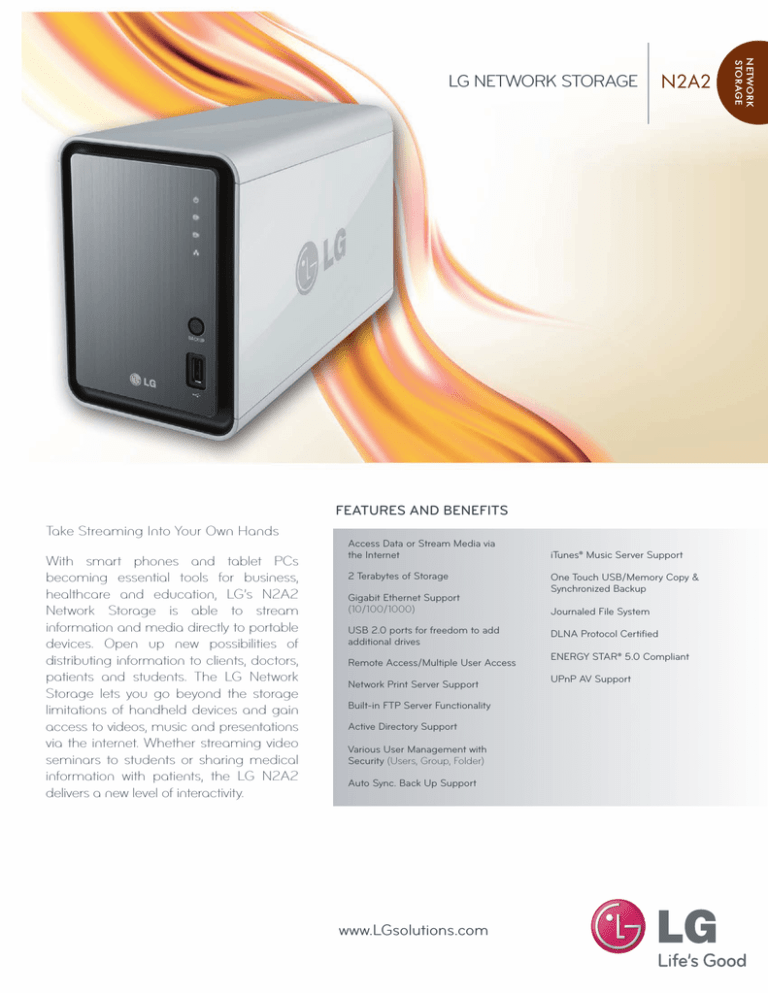

N2A2
FEATURES AND BENEFITS
Take Streaming Into Your Own Hands
With smart phones and tablet PCs
becoming essential tools for business,
healthcare and education, LG’s N2A2
Network Storage is able to stream
information and media directly to portable
devices. Open up new possibilities of
distributing information to clients, doctors,
patients and students. The LG Network
Storage lets you go beyond the storage
limitations of handheld devices and gain
access to videos, music and presentations
via the internet. Whether streaming video
seminars to students or sharing medical
information with patients, the LG N2A2
delivers a new level of interactivity.
Access Data or Stream Media via
the Internet
2 Terabytes of Storage
Gigabit Ethernet Support
(10/100/1000)
USB 2.0 ports for freedom to add
additional drives
Remote Access/Multiple User Access
Network Print Server Support
Built-in FTP Server Functionality
Active Directory Support
Various User Management with
Security (Users, Group, Folder)
Auto Sync. Back Up Support
www.LGsolutions.com
iTunes® Music Server Support
One Touch USB/Memory Copy &
Synchronized Backup
Journaled File System
DLNA Protocol Certified
ENERGY STAR® 5.0 Compliant
UPnP AV Support
network
storage
LG NETWORK STORAGE
network
storage
N2A2
LG NETWORK STORAGE
GENERAL SPECIFICATION
Processor
Memory
Speed (Read/Write)
HDD Capacity
HDD
Included Storage
Interface
RPM
Size
LAN INTERFACE
Standard Compliance
Data Transfer Rates
Connector Type
Number of Ports
USB INTERFACE
Standard Compliance
Connector Type
Number of Ports
Data Transfer Rates
Marvell 88F6281 1.0GHz
128MB
Read: 60MB/s
Write: 40MB/s
2TB (1TB * 2) (3.5", 7,200rpm)
2TB Total (1TB x 2)
SATA II
7200
3.5”
IEEE802.3 (1000/100/10 Base-T)
1000/100/10 Mbps
RJ-45
1
USB 2.0
USB Type A
2 (1 Front, 1 Rear)
Max: 480Mbps (High Speed Mode)
Max: 12Mbps (Full Speed Mode)
RAID
RAID 0, 1, JBOD, RAID1+JBOD, Individual
TCP/IP
Transport Protocol
Network Services
DHCP, NTP Support
Management
HTTP/HTTPs, FTP/FTPs
Time Syncronization
NTP
Network Options
DHCP, NTP
POWER
Idle Mode (Typical)
23W
Standby Mode (Typical)
<1W
REQUIRED APPROVALS
ENERGY STAR5.0 Compliant
Yes
DIMENSIONS & WEIGHTS
Dimensions (WxHxD)
4.5" x 6.3" x 9.1"
WARRANTY/UPC
1 Year Limited
Limited Warranty
1 Year Parts & Labor
UPC
0 58231 29874 1
www.LGsolutions.com
LG Electronics U.S.A., Inc.
Commercial Displays Group
2000 Millbrook Drive
Lincolnshire, IL 60069
Customer Service: 888.865.3026
www.LGsolutions.com/support
Contact your LG Regional Sales Representative:
Hospitality: 800.228.1236
Vertical Markets: 800.897.8788
Channel: 800.897.8871
E-mail: info@LGsolutions.com
SPEC_N2A2_121011_PR
Dimensions and weights are approximate. Design, features and specifications subject
to change without notice.
Copyright 2011 LG Electronics USA, Inc. All Rights Reserved. “LG Life’s Good” is a
registered trademark of LG Corp. All other product and brand names are trademarks
or registered trademarks of their respective companies.
Printed in the USA. January 2011
