Sony SNCA-HPOE1 Datasheet

Sony SNCA-HPOE1 Datasheet

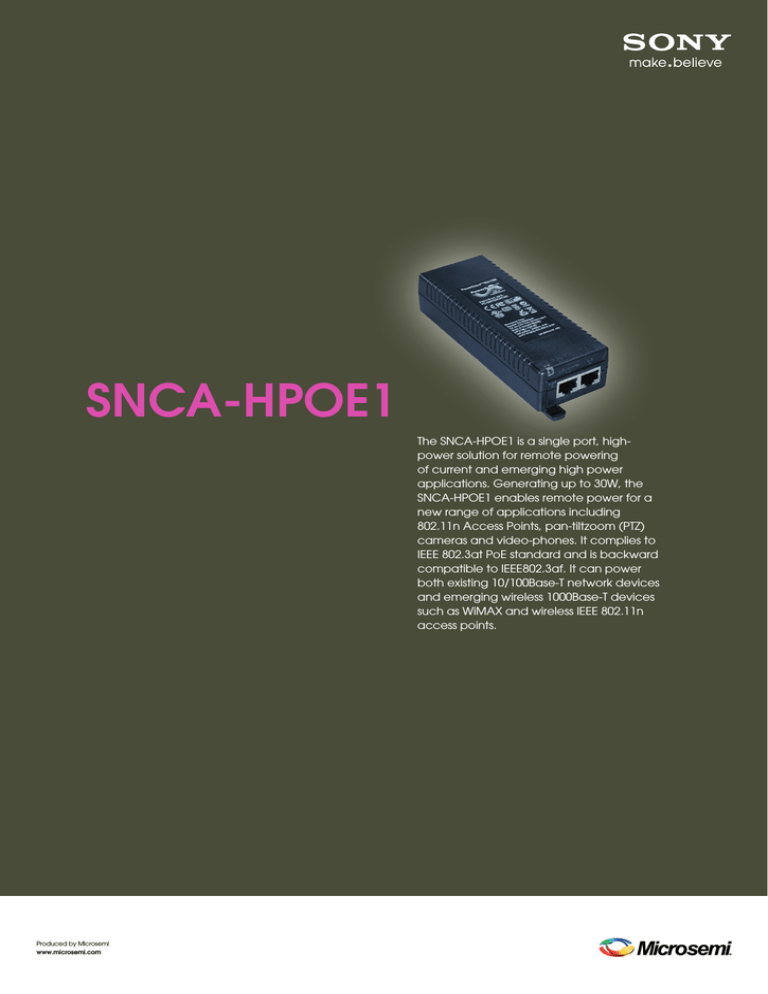

The SNCA-HPOE1 is a single port, highpower solution for remote powering
of current and emerging high power
applications. Generating up to 30W, the
SNCA-HPOE1 enables remote power for a
new range of applications including
802.11n Access Points, pan-tiltzoom (PTZ)
cameras and video-phones. It complies to
IEEE 802.3at PoE standard and is backward
compatible to IEEE802.3af. It can power
both existing 10/100Base-T network devices
and emerging wireless 1000Base-T devices
such as WiMAX and wireless IEEE 802.11n
access points.
Produced by Microsemi
SNCA-HPOE1 Features
Weight: 0.44 lbs (200g)
– IEEE 802.3at compliant with 2-event classification
– IEEE 802.3af backward compatible
– Output power of 30W is guaranteed
– Supports 10/100/1000Base-T applications
– Compatible with IEEE 802.3af devices and pre
standard devices
– Safe: low power devices receive only the power
they need
– Automatic Detection and Protection of non–
standard Ethernet terminals
– Compact design fits easily in WLAN Access Point
and IP Cameras installations
– AC Power (Yellow)
– Channel Power (Green)
Connectors: Shielded RJ-45, EIA 568A and 568B
Environmental Conditions:
– Operating Ambient Temperature:
-4º to 104ºF (-20 to 40ºC) @ 30W
-4º to 131ºF (-20 to 55ºC) @ 22.5W
– Operating Humidity: Maximum 90%, ­
– Storage Temperature: -4º to 158ºF (-20º to 70ºC)
– Storage Humidity: Maximum 95%, Non-condensing
Reliability: MTBF: 100,000 hrs. @25ºC
SNCA-HPOE1 Specifications
Thermal Rating: 20 BTU/Hr (@240VAC)
Warranty: 1-year
No. of Ports: 1
Pass Through Data Rates: 10/100/1000 Mbps
Power over Ethernet Output:
– Pin Assignment and Polarity: 4/5 (+), 7/8 (–)
– Output Power Voltage: 55Vdc
– User Port Power: 30Watts (Guaranteed)
Input Power Requirements:
– AC Input Voltage: 100 to 240 Vac
– AC Input Current: 0.8A @100-240Vac
– AC Frequency: 50 to 60 Hz
Regulatory Compliance:
– IEEE 802.3at (PoE,) RoHS Compliant,
WEEE Compliant, CE
Electromagnetic Emission & Immunity:
– FCC Part 15, Class B
– EN 55022 Class B (Emissions)
– EN 55024 (Immunity), VCCI
Safety Approvals:
– UL/cUL Per IEC 60950-1
– GS Mark Per IEC 60950-1
– 53 mm (W) x 32.5 mm (H) x 140 mm (L)
– 2.09 in. x 1.28 in. x 5.5 in
© 2013 Sony Corporation. All rights reserved. Reproduction in
whole or in part without permission is prohibited. Features and
specifications are subject to change without notice. All nonmetric weights and measurements are approximate. Sony,
‘make.believe’, IPELA, DEPA, Exmor and their respective logos
are trademarks of Sony Corporation. HDMI and High-Definition
Multimedia Interface are trademarks or registered trademarks
of HDMI Licensing LLC. All other trademarks are the property of
their respective owners.
