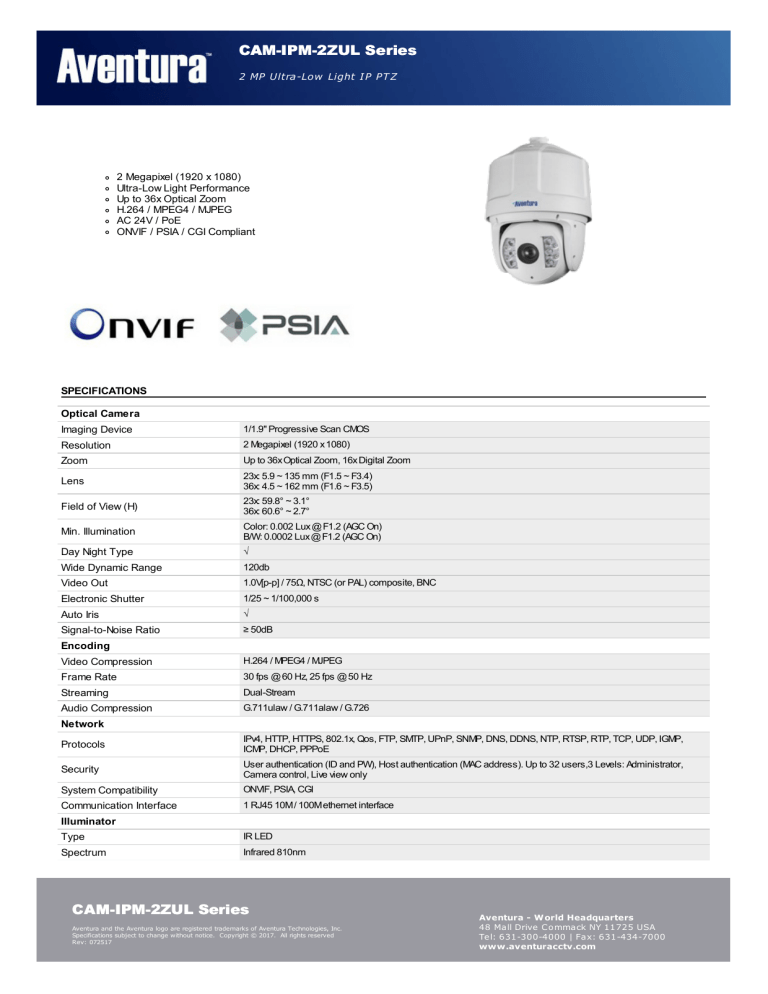

CAM-IPM-2ZUL Series CAM-IPM-2ZUL Series

CAM-IPM-2ZUL Series CAM-IPM-2ZUL Series
CAM-IPM-2ZUL Series
2 MP Ultra-Low Light I P PT Z
2 Megapixel (1920 x 1080)
Ultra-Low Light Performance
Up to 36x Optical Zoom
H.264 / MPEG4 / MJPEG
AC 24V / PoE
ONVIF / PSIA / CGI Compliant
SPECIFICATIONS
Optical Camera
Imaging Device
Resolution
Zoom
Lens
Field of View (H)
Min. Illumination
Day Night Type
Wide Dynamic Range
Video Out
Electronic Shutter
Auto Iris
Signal-to-Noise Ratio
Encoding
Video Compression
Frame Rate
Streaming
Audio Compression
Network
Protocols
Security
System Compatibility
Communication Interface
Illuminator
Type
Spectrum
1/1.9" Progressive Scan CMOS
2 Megapixel (1920 x 1080)
Up to 36x Optical Zoom, 16x Digital Zoom
23x: 5.9 ~ 135 mm (F1.5 ~ F3.4)
36x: 4.5 ~ 162 mm (F1.6 ~ F3.5)
23x: 59.8° ~ 3.1°
36x: 60.6° ~ 2.7°
Color: 0.002 Lux @ F1.2 (AGC On)
B/W: 0.0002 Lux @ F1.2 (AGC On)
√
120db
1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC
1/25 ~ 1/100,000 s
√
≥ 50dB
H.264 / MPEG4 / MJPEG
30 fps @ 60 Hz, 25 fps @ 50 Hz
Dual-Stream
G.711ulaw / G.711alaw / G.726
IPv4, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP,
ICMP, DHCP, PPPoE
User authentication (ID and PW), Host authentication (MAC address). Up to 32 users,3 Levels: Administrator,
Camera control, Live view only
ONVIF, PSIA, CGI
1 RJ45 10M / 100M ethernet interface
IR LED
Infrared 810nm
CAM-IPM-2ZUL Series
Aventura and the Aventura logo are registered trademarks of Aventura Technologies, Inc.
Specifications subject to change without notice. Copyright © 2017. All rights reserved
Rev: 072517
Aventura - World Headquarters
48 Mall Drive Commack NY 11725 USA
Tel: 631-300-4000 | Fax: 631-434-7000
www.aventuracctv.com
CAM-IPM-2ZUL Series
2 MP Ultra-Low Light I P PT Z
Effective Range
Additional Features
Noise Reduction
Back Light Compensation
Auto White Balance
Alarm Input/Output
200M / 800M
Audio Input/Output
Audio input (Line input), 2-2.4V[p-p]; output impedance: 1KΩ, ±10%
Audio output line level impedance: 600Ω
Built-in MicroSD/SDHC slot, up to 128 GB
On-board storage
Additional Features
Pan/Tilt
Pan Range
Pan Speed
Tilt Range
Tilt Speed
Presets
Patrol
Pattern
Park Action
Protocol
Environment
Operating Environment
Ingress Protection
Vandal Proof
Operating Temperature
Operating Humidity
Electrical
Input Voltage
Current Draw
Surge Protection
General
Weight
Dimensions
Optional Accessories
Warranty
√
√
√
7 inputs, 2 outputs
Smart Defog, Electronic Image Stabilization (EIS), Privacy Masking (up to 24 zones)
360° Continuous
Pan manual speed: 0.1° -300°/s, pan preset speed: 540°/s
-5 ~ 90° (Auto Flip)
Tilt manual speed: 0.1°-240°/s, tilt preset speed: 400°/s
256
8 patrols, up to 32 presets per patrol
4 patterns, with the recording time not less than 10 minutes per pattern
Preset / patrol / pattern / pan scan / tilt scan / random scan / frame scan / panorama scan
Pelco-P, Pelco-D, self-adaptive
Indoor/Outdoor
IP66 standard (outdoor dome)
IEC60068-2-75Eh, 50J; EN50102, IK10
-22 ~ 149° F (-30 ~ 65° C) outdoor
14 ~ 122° F (-10 ~ 50° C) indoor
≤ 90% non-condensing
AC 24V ± 10%, High PoE (802.3at)
Outdoor dome: Max. 40W (Heater On), Max. 20W(Heater Off); Indoor/In-ceiling dome: Max. 20W
TVS 4,000V lightning protection, surge protection and voltage transient
11.02 Ibs (5000 g)
Φ220 × 325.5mm (Φ8.66” × 12.81”) (outdoor), Φ183.4 × 247mm (Φ7.22” × 9.72”) (indoor)
CAM-BKT-IPZ Series
CAM-BKT-PTZ-CNR
CAM-BKT-PTZ-PIL
CAM-BKT-PTZ-PPT Series
5 Years
AVAILABLE MODELS
Part number
Description
CAM-IPM-2ZUL-23X-IR
CAM-IPM-2ZUL-36X-IR
CAM-IPM-2ZUL-36X-IRL
2 Megapixel Ultra-Low Light Outdoor 23x IP PTZ w/ 200M IR
2 Megapixel Ultra-Low Light Outdoor 36x IP PTZ w/ 200M IR
2 Megapixel Ultra-Low Light Outdoor 36x IP PTZ w/ 800M IR
