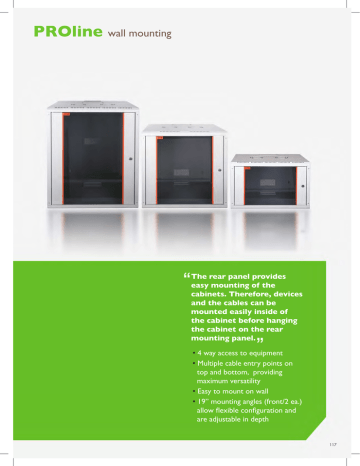

PROline wall mounting
The rear panel provides
easy mounting of the
cabinets. Therefore, devices
and the cables can be
mounted easily inside of
the cabinet before hanging
the cabinet on the rear
mounting panel.
• 4 way access to equipment
• Multiple cable entry points on top and bottom, providing maximum versatility
• Easy to mount on wall
• 19” mounting angles (front/2 ea.) allow flexible configuration and are adjustable in depth
117
PROline wall mounting
600x450 - 600x560 - 600x(160+450)
PROline wall mounting enclosures
7U 9U 12U 16U 20U
600 x 450*
7U 9U 12U 16U 20U
600 x 560*
600 x (160+450)*
600 x 150*
600 x 300*
PROline residential enclosures
6U 9U 12U
The PROline wall mounting enclosures cabinets provide
an economic solution for cabling installations.
This series is used in the offices for horizontal segments
where a reduced amount of U height is required while
providing a pleasing and professional look.
Attention to style in light grey RAL 7035 with left and
right metal frames means that cabinets can be deployed
in the most demanding of office environments when
looks really matter. RAL 9005 is also available in a black.
Front door frame is available with decorative stripe
colour of orange.
PROline cabinets can be used in almost all locations.
Standard PROline wall mounting cabinet is delivered as a
single enclosure and assembled.
Wall mounted cabinets can be used as free standing by
using accessories castor or levelling feet under a table
or in any environment.
* Please check drawing pages for cabinet sizes.
118
PROline WALL MOUNTING ENCLOSURES FOR STANDARD DIMENSIONS:
Heights : 7U, 9U, 12U, 16U, 20U
Width : 600 mm
Depths : 450 mm, 560 mm and 160+450 mm
LOAD CARRYING CAPACITY: 80 kg
600x450 - 600x560 - 600x(160+450)
STANDARDS:
ISO 9001 :2008 Quality Management Systems
ISO 14001: 2004 Environmental Management System
19” mounting to IEC 297-1
EN 61587-1 mechanical structures ( cabinets for
electronic equipment)
Overall cabinet dimensions for IEC 297-2
COLOUR:
RAL 9005 black
RAL 7035 light grey
KEY FEATURES
Easy to access
Front door features a full-Iength smoked and
shatterproof glass door with decorative accent stripe
reinforced with left/right metal frames and integral
locking mechanism.
Side doors; lockable, removable complete with
a lock. Rear panel; mechanically lockable, removable
can be used as mounting plate at the same time. When
mounting the enclosure, the rear panel is removed
and mounted directly on the wall and hung over the
enclosure to the rear panel. Being hung, straight on wall,
using fast installation, low manpower, offer a time saving
and cost-effective solution. This gives you 4-way access
to equipment.
Frames are made with 24-fold design for increased
stability.
Vented top cover provides passive heat transportation
via convection. There are vented fan holes suitable for a
cooling unit. (see accessories)
19” mounting angles (front/2 ea.) allow for flexible
configuration and are adjustable in depth. Extensive
range of accessories.
Cable entry
Multiple cable entry points on top (1 ea) and bottom
(1 ea), provide maximum versatility. There is a rubber
edge sliding cover mechanism that protects and fixed
the cables. On the rear panel, there is also a cable entry
hole closed with cover. When used, it is replaced with
on of top/bottom rubber edge sliding cover mechanism.
Construction
Rigid welded frame construction is sheet steel. Corner
of bases have welded sockets on each corner that are
tightly fixed into the columns gives maximum stability.
119
PROline wall mounting
600x450 - 600x560 - 600x(160+450)
Double Sectioned
Cabinets
(160+450) mm
Allows for maintenance
and installation from the
back. Easy to access when
opening 2nd. section of the
cabinet. Due to heavy duty
hinges. Cabinet opening is
100 degree and is lockable.
Stand alone application
All PROline cabinets can be used as stand alone by
using castor group or with levelling feet. (Please see
the accessories for levelling feet and castor group).
It has the advantage of use under table or in narrow
places.
Easy to mount on wall
All PROline cabinets rear panels are removable. It is
removed easily and can be assembled and installed by
one person labour costs.
120
MOUNTING STEPS OF PROline 1
2
3
6
5
MARKING
9
600x450 - 600x560 - 600x(160+450)
7
4
8
DRILLING
10
11
121
PROline wall mounting
PART NUMBER DEFINITION FOR 600x450 - 600x560
STEPS TO SELECTING THE RIGHT WALL MOUNTING CABINETS
In addition to Estap product part numbers, the options mentioned below are to supply the right definition to
meet your requirements. Each wall mounting and free standing enclosure section in the catalogue, has a ‘’Main
part numbers’’ and ‘’Options’’ sections.
The below example explains how to select the right options.
As for the PROline wall mounting cabinets, the product part number has the below structure:
Product range name + U height (HHU)
+
Width=600 mm & depth (DD)
As for the PROline wall mounting cabinets, the product options have the below structure:
Colour option (MX)
+
Front door options (FX)
HOW TO SELECT THE OPTIONS
Step 1 - Please choose product part number.
For example: PRL07U45
Step 2 - Please choose the colour from the table and place it after the part number.
For example: PRL07U45 - M02 (MX=Look at the MX colour options on the next page)
Step 3 - Please choose the front door from the table and place it after MX colour.
For example: PRL07U45 - M02 - F26 (FX= Look at the FX front door options on the next page)
MAIN PART NUMBER STRUCTURE
PRL - HHU - DD
Product
range
PROline
PRL
PRL
MX - FX
Front
door
options
Width= 600
&
depth
Colour
options
DD
MX
07U
45
M01
F26*
09U
56
M02
F27
U
height
+
OPTIONS
HHU
+
+
FX
12U
16U
20U
MAIN PART NUMBER STRUCTURE
PRL: PROline wall mounting product range
HHU: “U” height
DD: Depth (width= 600 mm)
OPTIONS
MX: Colour options
M01= RAL 9005 black
M02= RAL 7035 light grey
FX: Front door options
F26*= Single opening tempered proof glass door with left and right metal frame, single point barrel type locking
F27= Single opening solid metal door with
single point barrel type locking
* F26 is the standard front door.
122
TECHNICAL DRAWINGS FOR 600x450 - 600x560
F26*
F27
Exploded view
Part
number
Product
definition
(mm)
U
size
Width:
overall
(mm)
Depth:
overall
(mm)
Height:
vertical
mounting
profile (mm)
Height:
without
levelling feet
(mm)
PROline wall mounting cabinets 19” 600 x 450 mm
PRL07U45
7U 600x450
7
600
450
397
402
PRL09U45
9U 600x450
9
600
450
485
491
PRL12U45
12U 600x450
12
600
450
618
624
PRL16U45
16U 600x450
16
600
450
798
802
PRL20U45
20U 600x450
20
600
450
976
980
Part
number
Product
definition
(mm)
U
size
Width:
overall
(mm)
Depth:
overall
(mm)
Height:
vertical
mounting
profile (mm)
Height:
without
levelling feet
(mm)
PROline wall mounting cabinets 19” 600 x 560 mm
PRL07U56
7U 600x560
7
600
560
397
402
PRL09U56
9U 600x560
9
600
560
485
491
PRL12U56
12U 600x560
12
600
560
618
624
PRL16U56
16U 600x560
16
600
560
798
802
PRL20U56
20U 600x560
20
600
560
976
980
* F26 is the standard front door.
123
PROline wall mounting
TECHNICAL DRAWINGS FOR 600x450 - 7U/9U/12U/16U/20U
F26*
518
600
0,5
145
368
70
(Min 52) (Min 90-Max. 390)
82
360
1
H
19”
Bottom view
Mounting profile
600
Front view
450
600
H
70
H
Front view
145
Side view
Back view
Front view
600
450
70
145
Top view
Iso view
H= Enclosure height
* F26 is the standard door
124
F27
TECHNICAL DRAWINGS FOR 600x560 - 7U/9U/12U/16U/20U
518
145
479
(Min 86-Max. 506)
476
70
F26*
600
(Min 52)
82
H
19”
Bottom view
Mounting profile
Front view
600
560
600
F27
H
70
H
145
Front view
Side view
Back view
Front view
600
560
70
145
Top view
Iso view
H= Enclosure height
* F26 is the standard door
125
PROline wall mounting
TECHNICAL DRAWINGS FOR 600x450 - 600x(160+450)
F26*
F27
Exploded view
MAIN PART NUMBER STRUCTURE
PRD - HHU - DD
Product
range
PROline
PRD
HHU
MX - FX
Width= 600
&
depth
U
height
+
OPTIONS
+
MX
DD
7U
PRD
9U
Front
door
options
Colour
options
56
+
FX
M01
F26*
M02
F27
12U
16U
20U
PRD: PROline double section wall mounting product range
HHU: “U” height
DD: Depth (width= 600 mm)
MX: Colour options
M01= RAL 9005 black
M02= RAL 7035 light grey
FX: Front door options
F26*= Single opening shatter proof glass door with left and right metal frame, single point barrel type locking
F27= Single opening solid metal door, single
point barrel type locking
Part
number
Product
definition
(mm)
U
size
Width:
overall
(mm)
Depth:
overall
(mm)
Height:
vertical
mounting
profile (mm)
Height:
without
levelling feet
(mm)
PROline wall mounting cabinets 19” 600 x (160+450) mm (Double section)
PRD07U56
7U 600x(160+450)
7
600
610
397
402
PRD09U56
9U 600x(160+450)
9
600
610
495
491
PRD12U56
12U 600x(160+450)
12
600
610
618
624
PRD16U56
16U 600x(160+450)
16
600
610
798
802
PRD20U56
20U 600x(160+450)
20
600
610
976
980
* F26 is the standard door.
126
TECHNICAL DRAWINGS FOR 600
F26*
(Min 253-Max. 553)
523
70
145
600x450 - 600x(160+450)
(Min 54)
84
H
Bottom view
Front view
19”
Mounting profile
600
600
F27
160
H
H
Front view
Side view
Front view
70
145
Back view
145
70
600
10
2°
Top view
Iso view
H= Enclosure height
* F26 is the standard door
127
PROline wall mounting
TECHNICAL SPECIFICATIONS
TESTS AND CERTIFICATIONS
Environment
EN61587-1/4.2, IEC60068-2-1, IEC60068-2-2, IEC60068-2-30, IEC60917 and IEC60297
Industrial environment
EN61587-1/4.3, IEC60068-2-42, IEC60068-2-43 and IEC600682-49, IEC60068-2-1, IEC60917 and IEC60297
Statical mechanical structure load test EN61587-1 / 5.2.2, IEC60917 and IEC60297
Statical mechanical structure stability EN61587-1 / 5.2.2, IEC60917 and IEC60297
Dynamic load, vibration and mechanical stroke
EN61587-1 / 5.3.1, EN61587-1 / 5.3.3, IEC60917, IEC60297,
IEC62208
Grounding continuity
EN61587-1 / 6.2, IEC60917 and IEC60297
Fire and Flame Resistance
EN61587-1 / 6.3, IEC60917 and IEC60297
Corrosion
ISO9227 and ASTM B 117-85, IEC60917 and IEC60297
IP protection degree
IP20 accordingly EN61587-1 / 6.4, IEC60529, IEC60917 and IEC60297
Transportation
ETS300019-1-2 Class2.3
Storage
ETS300019-1-1 Class1.2
Security
EN60950_LVD
PURCHASED PRODUCT CERTIFICATION
Sheet steel
DIN EN 10130 – 99 Ereğli DC-01 6112, 7122, RoHS
Electrostatic powder coating
ISO 9001, ISO 2178, ISO 2813, ISO 6272, ISO 8130-5,
ISO 8130-3, RoHS
Fan
ISO 9001, CE (89/336/EEC EMC, 73/23/EEC LVD), RoHS
Glass
ISO 9001, EN 12150 – 1: 2000 tempered and secure
Fixings
DIN 7985, DIN 965, DIN 7981, DIN 934, DIN 985, DIN 933,
RoHS
Castors
TS EN 12530, TS EN 12532, RoHS
Lock
DIN 1743, DIN 53571, RoHS
128
KEY FEATURES
Main profile (framework) has an aesthetic structure
which increases mechanical resistance, folded at an angle
of 90 degrees and consisting of 4 bends for each profile.
In total; 16 folds provide framework stability.Tested to
provide (x, y, z) axis resistance that meets
EN 61587-1 / 5.2.1 and 5.2.2 and external impact
resistance that meets EN 61587-1 / 5.3.3. Bottom and
upper case have a structure to increase resistance and
strength of cabinet using a block bended, welded and
profile-interlockingdesign. Profiles aremanufacturedto
interlock bottom and upper case with heavy duty steel
rivets. Cable access at top case has a sliding type blanking
access plate that would block any dust inlet.
A plastic cable entry cover plate housed in the bottom
case can be replaced with the cable entry on top which
is sliding and rubber edged; incase of cables entering
from bottom. Additionally there is a plastic cable entry
cover plate housed in the rear panel which can be used
when the cables are coming from the wall.
Rear panel in standard is mechanically locked with
2 screws from inside which allows the rear panel to be
used as a wall fixing pattern and bracket. Side panels
have a structure that can be opened and removed with
barrel type locking with key. It is lockable and removable.
Front doors are with lateral framed glass structure which
is tempered, anti-static, secure and smoked glass (4 mm
thickness) with decorative stripe, according to
EN 12150-1:2000 standard. glass front door in standard
configuration has left and right metal frame structure
with high density polyurethane adhesive and screw.
Front door can be opened to 105 degrees, is removable
and lockable with a barrel type locking unit.Vented top
panel housing with a dedicated space for ventilation, fan
module system allows easy installation of max. 2 fans.
19”(inch) mounting angles for 2 ea. in front are part
of cabinet interior configuration and are adjustable
in depth. Levelling feet or castor group is optional.
The cabinet meets EN 61587-1, IEC 60917, IEC 60297
standards, RoHS compliancy, Gost and TSE certified.
Cabinets are manufactured in our factory which has
ISO 9001: 2008 Quality Assurance System and our
responsibility for environment with ISO 14001:2004
Environmental Management System.
Additional architect and engineering specifications for
double section wall mounting cabinets It has D=160
mm welded monoblock, wall section frame, which
allows double section applications on PROline range.
Ithasheavydutyhinges which are made of zamac as well
traverse type handled locking between front and rear
sections providing additional stability and strength.
Double section wall mounting PROline cabinets have
80 kg. Load capacity while the cabinet is in swinging
process. 19” mounting angles are 2 ea. in front for all
sizes.
TECHNICAL SPECIFICATIONS
Custom number
85380000 / 85381000 / 853710990019
Packs of (ea.)
1
Shipping structure
Assembled
Mounting surface
Wall mounting
Load carrying capacity (kg)
80
Certification on product
TSE, Gost
Surface finish
Electrostatic powder coated c/with surface treatment , 80 +/ - 5
micron paint thickness and tested according to IEC 60068-2-1,
2-2, 2-30, 2-42, 2-43, 2-49, 2-11
Standart colour
RAL 7035 light grey and RAL 9005 black
IP protection standard
IP20
FRONT DOOR
Shatterproof glass with left and right metal frame
Glass
4 mm thickness full-length smoked, shatterproof, tempered,
secure
Front door construction
Single door opening with barrel type lock
Front door lock
Barrel type, single point locking
Adhesive material
High density polyurethane DIN 53479, DIN 53505
Hinge system
Spring loaded
Door opening angle and swapping
105 degree, possible to swap one side to the other
SIDE PANEL
Solid metal, 1,0 mm. Left and right (2 ea.)
Construction
Lockable, removable c/with barrel type lock
Lock
Barrel type lock unit, single point
FRAMEWORK
Top and bottom base units
Solid metal 1,5 mm
Constructions
Completely welded corner socket system
UPRIGHTS
Solid metal, 1,2 mm
Construction
Tightly fixed into top and bottom base units ,
5 times folded x 4 = 20 folds
INTERIOR PARTS
19’’ mounting angles
Solid metal, 1,5 mm
There are 2 pcs. 19” mounting angles in front.
Zinc plated, passivated, 8-12 micron
Adjustable in depth
For CUSTOMIZED PRODUCTS rather than
above options, please contact sales department.
Additional technical specifications for double
section wall mounting cabinets
Double section (wall)
D=160 mm, monoblock, welded, construction
Connected to the front section with zamac hinges system
Swing openning
105 degree
Rear section lock
Traverse style , heavy duty
19’’ mounting angles
Solid metal, 1,5 mm
3 times folded as C profile system
2 ea. in front
Pre-configured as 19’’
Zinc plated, passivated, 8-12 micron
Adjustable in depth
REAR PANEL
Solid metal 1,5 mm
Rear panel construction
Mechanically locked with 2 screws from inside
129
PROline wall mounting accessories
FREQUENTLY USED ACCESSORIES SELECTION CHART FOR PROline WALL MOUNTING
Estap has a wide range of accessories: Fixed shelves, sliding shelves, cooling units, cable managements, cable rings,
organisers, trays and so on...
* See the other accessories part numbers and definitions on pages 173-213.
Please state colour choice in your orders. M01=RAL 9005 black and M02= RAL 7035 light grey
Frequently used accessories selection table
PROline / Shelves
Part numbers
Enclosure size*
600x450
600x560
Fixed shelves (rack mount)
E44RAK25/
E44RAK35
E44RAK25/
E44RAK35
Sliding shelves
-
M44HRK60
M44HRK60
(If enclosure configured with 4 pcs. 19”rails)
PROline / Fan units
Part numbers
Enclosure size*
600x450
600x560
600x(160+450)
1 Fan unit with on/off switch
M11HV1FW
M11HV1FW
M11HV1FW
2 Fan unit with on/off switch
M11HV2FW
M11HV2FW
M11HV2FW
1 Fan unit with thermostat unit
M11HV1FW T
M11HV1FW T
M11HV1FW T
2 Fan unit with thermostat unit
M11HV2FW T
M11HV2FW T
M11HV2FW T
PROline / Cable management
Part numbers
19’’ 1U cable management panel
Enclosure size*
600x450
600x560
E44ORG1U
E44ORG1U
600x(160+450)
E44ORG1U
PROline / PDU
Part numbers
Enclosure size*
600x450 600x560
600x(160+450)
6 way PDU with 1x16A CCT breaker,1U
M446AL_ES M446AL_ES
M446AL_ES
PROline / Fixing
Part numbers
Fixings/ M6 cagenut, washer, screw
(1set=20 pcs.)
130
600x(160+450)
E44RAK25/
E44RAK35
* Please check drawing pages for cabinet sizes.
Enclosure size*
600x450
600x560
KFS6X15
KFS6X15
600x(160+450)
KFS6X15
PROline residential
PART NUMBER DEFINITION FOR 600x150 - 600x300
STEPS TO SELECTING THE RIGHT WALL MOUNTING CABINETS
In addition to Estap product part numbers, the options mentioned below are to supply the right definition to
meet your requirements. Each wall mounting and free standing enclosure section in the catalogue, has a ‘’Main
part numbers’’ and ‘’Options’’ sections.
The below example explains how to select the right options.
The product part number has the below structure:
Product range name + U height (HHU)
+
Width=600 mm & depth (DD)
The product options have the below structure:
Colour option (MX)
+
Front door options (FX)
HOW TO SELECT THE OPTIONS
Step 1 - Please choose product part number.
For example: PRL06U15
Step 2 - Please choose the colour from the table and place it after the part number.
For example: PRL06U15 - M02 (MX=Look at the MX colour options on the next page)
Step 3 - Please choose the front door from the table and place it after MX colour.
For example: PRL06U15 - M02 -F29 (FX= Look at the FX front door options on the next page)
MAIN PART NUMBER STRUCTURE
PRL - HHU - DD
Product
range
PROline
PRL
PRL
MX - FX
Width= 600
&
depth
Colour
options
DD
MX
06U
615
M01
09U
630
M02
U
height
+
OPTIONS
HHU
+
Front
door
option
+
FX
F29
12U
MAIN PART NUMBER STRUCTURE
PRL: PROline residential product range
HHU: “U” height
DD: Depth (width= 600 mm)
OPTIONS
MX: Colour options
M01= RAL 9005 black
M02= RAL 7035 light grey
FX: Front door option
F29= Single opening shatter proof
glass door with left and right metal
frame, single point barrel type locking 131
PROline residential
TECHNICAL DRAWINGS FOR 600x150 - 600x300
F29
F29
Exploded view
Part
number
Product
definition
(mm)
U
size
Width:
overall
(mm)
Depth:
overall
(mm)
Height:
vertical
mounting
profile (mm)
PROline residential wall mounting cabinets 19” 600 x 150 mm
PRL06U615
6U 600x150
6
600
150
338
9U 600x150
9
600
150
463
12U 600x150
12
600
150
596
PRL09615
PRL12U615
132
Part
number
Product
definition
(mm)
U
size
Width:
overall
(mm)
Depth:
overall
(mm)
Height:
vertical
mounting
profile (mm)
PROline residential wall mounting cabinets 19” 600 x 300 mm
PRL06U630
6U 600x300
6
600
300
338
PRL09U630
9U 600x300
9
600
300
463
PRL12U630
12U 600x300
12
600
300
596
TECHNICAL DRAWINGS FOR 600x150 - 6U/09U/12U
600
F29
147,60
H
450
(Min 50-Max. 90)
70
Bottom view
Mounting profile
Front view
150
600
H
Side view
Front view
Back view
600
452,5
150
30
76
75
75
Top view
22
28
Iso view
H= Enclosure height
133
PROline residential
TECHNICAL DRAWINGS FOR 600x300 - 6U/09U/12U
600
F29
Min 50
Max 240
H
19”
Bottom view
Mounting profile
300
600
H
Side view
Front view
Back view
600
28
300
30
452,5
77,50
75 75
Top view
H= Enclosure height
134
Iso view
Front view
TECHNICAL SPECIFICATIONS
TESTS AND CERTIFICATIONS
Environment
EN61587-1/4.2, IEC60068-2-1, IEC60068-2-2, IEC60068-2-30, IEC60917 and IEC60297
Industrial environment
EN61587-1/4.3, IEC60068-2-42, IEC60068-2-43 and IEC600682-49, IEC60068-2-1, IEC60917 and IEC60297
Statical mechanical structure load test EN61587-1 / 5.2.2, IEC60917 and IEC60297
Statical mechanical structure stability EN61587-1 / 5.2.2, IEC60917 and IEC60297
Dynamic load, vibration and mechanical stroke
EN61587-1 / 5.3.1, EN61587-1 / 5.3.3, IEC60917, IEC60297,
IEC62208
Grounding continuity
EN61587-1 / 6.2, IEC60917 and IEC60297
Fire and Flame Resistance
EN61587-1 / 6.3, IEC60917 and IEC60297
Corrosion
ISO9227 and ASTM B 117-85, IEC60917 and IEC60297
IP protection degree
IP20 accordingly EN61587-1 / 6.4, IEC60529, IEC60917 and IEC60297
Transportation
ETS300019-1-2 Class2.3
Storage
ETS300019-1-1 Class1.2
Security
EN60950_LVD
PURCHASED PRODUCT CERTIFICATION
Sheet steel
DIN EN 10130 – 99 Ereğli DC-01 6112, 7122, RoHS
Electrostatic powder coating
ISO 9001, ISO 2178, ISO 2813, ISO 6272, ISO 8130-5,
ISO 8130-3, RoHS
Fan
ISO 9001, CE (89/336/EEC EMC, 73/23/EEC LVD), RoHS
Glass
ISO 9001, EN 12150 – 1: 2000 tempered and secure
Fixings
DIN 7985, DIN 965, DIN 7981, DIN 934, DIN 985, DIN 933,
RoHS
Castors
TS EN 12530, TS EN 12532, RoHS
Lock
DIN 1743, DIN 53571, RoHS
KEY FEATURES
Main frameworks has an aesthetic structure which
include folded side&rear panels those are welded to
top&bottom panels. Side and rear panel has totaly
8 bends to provide framework stability. Tested to provide
(x, y, z) axis resistance that means EN 61587-1 / 5.2.1
and 5.2.2 and external impact resistance that meets
EN 61587-1/5.3.3
Cable access in the top & bottom case has a microjointed structure. Due to the demand of cable entry,
its easily breakable.
Rear panel has four wall mounting holes, which allows
the rear panel to be used as a wall fixing pattern and
bracket.
Front door is with lateral framed glass structure which is
tempered as a safey glass, anti-static, secure and smoked
glass (4 mm thickness) with decorative strips (optional),
according to EN 12150-1:2000 standard. Glass front
door in standart configuration has left&right metal frame
structure with high density polyurethane adhesive.
Front door can be opened upto 100 degrees, is
removable and lockable with a barrel type locking unit.
19”(inch) mounting uprights for 2 ea. in front are part
of cabinet interior configuration and are adjustable in
depth.The cabinet meets EN 61587-1, IEC 60917,
IEC 60297 standards, RoHS compliancy, GOST and
TSE certified.
Cabinets are manufactured in our factory which has
ISO 9001:2008 Quality Assurance System and our
responsibility for environment with ISO 14001:2004
Environmental Management System.
135
PROline residential
TECHNICAL SPECIFICATIONS
Custom number
85380000 / 85381000 / 853710990019
Packs of (ea.)
1
Shipping structure
Assembled
Mounting surface
Wall mounting
Load carrying capacity (kg)
80
Certification on product
TSE, Gost
Surface finish
Electrostatic powder coated c/with surface treatment , 80 +/ - 5
micron paint thickness and tested according to IEC 60068-2-1,
2-2, 2-30, 2-42, 2-43, 2-49, 2-11
Standart colour
RAL 7035 light grey and RAL 9005 black
IP protection standard
IP20
INTERIOR PARTS
19’’ mounting angles
Solid metal, 1,5 mm
There are 2 pcs. 19” mounting angles in front.
Zinc plated, passivated, 8-12 micron
Adjustable in depth
FRONT DOOR
Shatterproof glass with left and right metal frame
Glass
4 mm full-length smoked, shatterproof, tempered, secure
Front door construction
Single door opening with barrel type lock
Front door lock
Barrel type, single point locking
Adhesive material
High density polyurethane DIN 53479, DIN 53505
Hinge system
Spring loaded
Door opening angle and swapping
100 degree, possible to swap one side to the other
UNIQUE BODY
Side panel, rear panel, bottom and upper cases and mounting
angle holders are completely welded-monoblock
Complete metal 1,2 mm
Main body has bends in total 14 and has embedded structure
For CUSTOMIZED PRODUCTS rather than
above options, please contact sales department.
** For PROline residential range, please ask for a
separate dedicated data sheet from your customer
representative for your projects.
136
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
