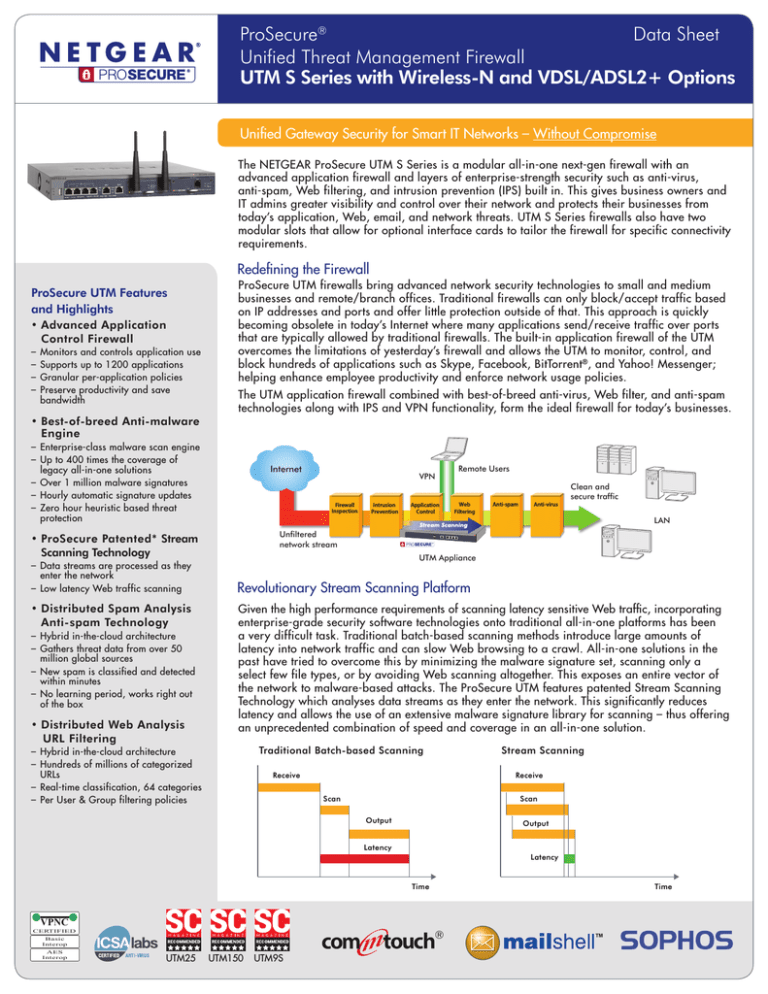

ProSecure® Data Sheet
Unified Threat Management Firewall UTM S Series with Wireless-N and VDSL/ADSL2+ Options
Unified Gateway Security for Smart IT Networks – Without Compromise
The NETGEAR ProSecure UTM S Series is a modular all-in-one next-gen firewall with an
advanced application firewall and layers of enterprise-strength security such as anti-virus,
anti-spam, Web filtering, and intrusion prevention (IPS) built in. This gives business owners and
IT admins greater visibility and control over their network and protects their businesses from
today’s application, Web, email, and network threats. UTM S Series firewalls also have two
modular slots that allow for optional interface cards to tailor the firewall for specific connectivity
requirements.
ProSecure UTM Features
and Highlights
•Advanced Application
Control Firewall
– –Monitors and controls application use
– – Supports up to 1200 applications
– – Granular per-application policies
– – Preserve productivity and save
bandwidth
•Best-of-breed Anti-malware Engine
Redefining the Firewall
ProSecure UTM firewalls bring advanced network security technologies to small and medium
businesses and remote/branch offices. Traditional firewalls can only block/accept traffic based
on IP addresses and ports and offer little protection outside of that. This approach is quickly
becoming obsolete in today’s Internet where many applications send/receive traffic over ports
that are typically allowed by traditional firewalls. The built-in application firewall of the UTM
overcomes the limitations of yesterday’s firewall and allows the UTM to monitor, control, and
block hundreds of applications such as Skype, Facebook, BitTorrent ®, and Yahoo! Messenger;
helping enhance employee productivity and enforce network usage policies.
The UTM application firewall combined with best-of-breed anti-virus, Web filter, and anti-spam
technologies along with IPS and VPN functionality, form the ideal firewall for today’s businesses.
– –Enterprise-class malware scan engine
– –Up to 400 times the coverage of
legacy all-in-one solutions
– –Over 1 million malware signatures
– –Hourly automatic signature updates
– – Zero hour heuristic based threat
protection
Internet
Firewall
Inspection
•Distributed Spam Analysis
Anti-spam Technology
– –Hybrid in-the-cloud architecture
– –Gathers threat data from over 50
million global sources
– –New spam is classified and detected
within minutes
– –No learning period, works right out
of the box
•Distributed Web Analysis
URL Filtering
Intrusion
Prevention
Application
Control
Remote Users
Web
Filtering
Anti-spam
Anti-virus
Clean and
secure traffic
LAN
Unfiltered
network stream
•ProSecure Patented* Stream
Scanning
Technology
– –Data streams are processed as they
enter the network
– –Low
latency Web traffic scanning
VPN
UTM Appliance
Revolutionary Stream Scanning Platform
Given the high performance requirements of scanning latency sensitive Web traffic, incorporating
enterprise-grade security software technologies onto traditional all-in-one platforms has been
a very difficult task. Traditional batch-based scanning methods introduce large amounts of
latency into network traffic and can slow Web browsing to a crawl. All-in-one solutions in the
past have tried to overcome this by minimizing the malware signature set, scanning only a
select few file types, or by avoiding Web scanning altogether. This exposes an entire vector of
the network to malware-based attacks. The ProSecure UTM features patented Stream Scanning
Technology which analyses data streams as they enter the network. This significantly reduces
latency and allows the use of an extensive malware signature library for scanning – thus offering
an unprecedented combination of speed and coverage in an all-in-one solution.
Traditional Batch-based Scanning
– –Hybrid in-the-cloud architecture
– –Hundreds of millions of categorized
URLs
– –Real-time classification, 64 categories
– –Per User & Group filtering policies
Stream Scanning
Receive
Receive
Scan
Scan
Output
Output
Latency
Latency
24 / 7
Time
Time
TECHNICAL
S U P P O R T*
VPNC
®
CERTIFIED
Basic
1-888-NETGEAR
(638-4327)
Interop
AES
Email:
[email protected]
Interop
UTM25
UTM150
UTM9S
ProSecure® Unified Threat Management Firewall
•Virtually
Limitless Logging,
Reporting and Quarantine
Capability
– –Integrates with NETGEAR ReadyNAS models with UTM plugin
– – Automatically store logs on
ReadyNAS NAS
– – Up to 4.6 GB of log storage space
for reports
– – Conduct security forensics and
reporting years in arrears
•SSL & IPSec VPN
Remote Access
– –S SL VPN - clientless remote access, a nywhere, anytime
– –I PSec VPN - secure site-to-site tunnels a nd client-based remote access
– –P urchase additional licenses for
IPSec VPN
•Built-in SPI Firewall
– –D ual WAN Gigabit Firewall**
provides load balancing and failover
– –G igabit LAN ports, configurable
hardware DMZ port
– –S tateful packet inspection (SPI)
– –D enial-of-service (DoS) protection
– –IPS prevents hackers from penetrating
the network perimeter
UTM S SERIES COMPARISON
UTM S Series
Simple Setup, Ease of Management
The ProSecure UTM will easily replace any existing firewall or router. A simple 10-step setup
wizard guides you through installation and the UTM will be up and running in minutes.
Administration is performed through an intuitive Web-based interface. Set granular policies
and alerts, check summary statistics and graphical reports, drill down to IP address-level
data, and integrate log data with standard network management tools using SNMP. Malware,
Application, and IPS signature, software, and firmware updates are all handled by the UTM online and automatically.
For many administrators and IT personnel one of their biggest nightmares is the management
of individual licenses or “seats.” Buying additional licenses when computers and personnel
are added to the network is time-consuming and costly. The ProSecure UTM offers Web and
email protection subscriptions with no “per-user ” licensing.
Expandability
ProSecure UTM S Series firewalls have two modular slots that allow for optional interface cards
to be addedto tailor the appliance for specific installation requirements.
A VDSL/ADSL2+ Modem Module, available in both Annex A and Annex B versions, furnishes
direct, always-on Internet connectivity. VDSL capability provides Internet connection speeds
up to three times faster than traditional ADSL2+ DSL networks while providing backwards
compatibility with ADSL2+.
In conjunction with two onboard RJ45 WAN ports for redundancy and failover, the VDSL/ADSL
2+ Modem Module, if installed, can be employed either as the primary WAN connection or as a
third WAN port in a redundant/ load balancing scenario.
A Wireless-N Module provides access point capability to connect Wireless-N clients at both 2.4
GHz and 5.0 GHz frequencies at up to 15x the speed and 10x the coverage of legacy 802.11g
networks.
The built-in USB port supports qualified 3G/4G USB dongles from major ISPs to be used as
either a primary or backup WAN connection.
MODEL
UTM9S
UTM25S
Firewall Throughput¹
933 Mbps
980 Mbps
Application Firewall Throughput¹
900 Mbps
905 Mbps
23 Mbps
30 Mbps
172 Mbps
240 Mbps
PERFORMANCE
Anti-virus Throughput¹
IPS Throughput¹
UTM Throughput¹ (HTTP Traffic)
UTM Throughput¹ (non-HTTP Traffic, e.g. P2P,
DNS, SSH)
Maximum VPN Throughput¹
Maximum Concurrent Connections¹
802.1q VLANs
18 Mbps
24 Mbps
172 Mbps
240 Mbps
80 Mbps
90 Mbps
16,000
40,000
255
255
CONTENT SECURITY
Web and Email Scanned Protocols
HTTP, HTTPS, FTP, SMTP, IMAP, POP3
Stream Scanning
Inbound and Outbound Inspection
Signature-Less Zero Hour Protection
Malware Signatures
Automatic Signature Updates
1.2 Million
1.2 Million
Hourly
Hourly
Web Content Filters
HTTPS Smart Block, HTML Body Keywords, File Extension
Web Object Filters
ActiveX, Java™, Flash, JavaScript™, Proxy, Cookies
Email Content Filters
Filter By: Subject Keywords, Password-protected Attachments, File Extension, File Name
Distributed Spam Analysis
Distributed Spam Analysis Supported Protocols
SMTP, POP3
Anti-spam Real-time Blacklist (RBL)
User-defined Spam Allowed/Block Lists
Distributed Web Analysis w/64 categories
Filter By: Sender Email Address, Domain, IP Address, Recipient Email Address, Domain
ProSecure® Unified Threat Management Firewall
MODEL
UTM S Series
UTM9S
Maximum Number of Users
UTM25S
Unlimited
FIREWALL FEATURES
Stateful Packet Inspection (SPI)
Application Firewall
Applications Protected
Port/Service Blocking, Denial-of-service (DoS) Prevention, Stealth Mode,
Block TCP Flood, Block UDP Flood, WAN/LAN Ping Response Control
Global Mode, Policy Mode, SSL Decryption, Granular Application Policies,
Application Session Monitoring, Application Dashboard
332
1212
Intrusion Detection & Prevention (IPS)
IPS Signatures
619
WAN Modes
ISP Address Assignment
Secondary WAN IP Addresses
DHCP, Static IP Assignment, PPPoE, PPTP
32
NAT Modes
Static, Dynamic, RIPv1, RIPv2
VoIP
SIP ALG
DDNS
DynDNS.org, TZO.com, Oray.net, 3322 DDNS
Port Range Forwarding, Port Triggering, DNS proxy, MAC Address Cloning/spoofing, Network Time
Protocol NTP Support, Diagnostic Tools (ping, DNS lookup, trace route, other), Auto-Uplink on Switch
Ports, L3 Quality of Service (QoS) ,LAN-to-WAN and WAN-to-LAN (ToS)
DHCP
User Authentication for VPN
32
1-1 NAT, PAT
Routing
Firewall Functions
2114
NAT, Classical Routing
DHCP Server, DHCP Relay
Active Directory, LDAP, Radius, Local User Database
Security Policies Based on Active Directory with
Single Sign-On (SSO)
PCI Compliance Two Factor
Authentication Support
VPN
IPSec VPN Tunnels
10
25
SSL VPN Tunnels
5
14
L2TP, PPTP VPN Tunnels
5
5
IPSec Encryption/Authentication
DES, 3DES, AES(128,192,256 bit)/SHA-1, MD5
Key Exchange
IKE, Manual Key, Pre-Shared Key, PKI, X.500
IPSec NAT Traversal (VPN Passthrough)
iPhone Native VPN Client Support
Included ProSafe VPN Client Lite Licenses
SSL Version Support
SSL Encryption Support
1
1
SSLv3, TLS1.0
DES, 3DES, ARC4, AES(128,256 bit)
SSL Message Integrity
MD5, SHA-1, MAC-MD5/SHA-1, HMAC-MD5/SHA-1
SSL Certificate Support
RSA, Diffie-Hellman, Self (Key Lengths 512-bit, 1024-bit, 2048-bit )
SSL VPN Platforms Supported
Windows 2000/XP/Vista® (32bit), Windows 7 (32 and 64bit), Mac OS® X 10.4.x/10.6.x
DEPLOYMENT
802.1q VLAN Support
Multi-WAN Failover
Intelligent Traffic Load Balancing
USB Dongle Support for 3G/4G
WAN Connections
Configuration Wizards
Setup, IPsec VPN, SSL VPN
Electronic License
LOGGING AND REPORTING
Management
HTTP/HTTPS, SNMP v2c
ProSecure® Unified Threat Management Firewall
UTM S Series
MODEL
Reporting
Logging
UTM9S
UTM25S
Summary Statistics, Graphical Reporting, Automatic Outbreak Alerts,
Automatic Malware Notifications, System Notifications
Traffic, Malware, Spam, Content Filter, Email Filter, System, Service, IPS,
Application, Port Scan, IM, P2P, Firewall, IPsec VPN, SSL VPN
Log Delivery
Management GUI Query, Email Delivery, Syslog
HARDWARE
Gigabit RJ45 Ports WAN/LAN
2/4
DMZ Interfaces (Configurable)
Flash Memory/RAM
1
1
2 GB/512 MB
2 GB/1 GB
1
1
USB Ports
Certifications
Major Regulatory Compliance
Storage and Operating Temperatures
2/4
ICSA: Anti-virus VPNC: AES Interop, Basic Interop
Checkmark: Anti-Malware, Anti-Spam, Enterprise Firewall, VPN, IPS, URL Filtering
FCC Part 15 Class A, CE mark commercial, VCCI, C-Tick Class A, CE/LVD, cUL, RoHS, China RoHS
Operating Temperature 0°-45° C (32°-113° F), Storage Temperature -20°-70° C (-4°-158° F)
Humidity
Operation 90% Maximum Relative, Storage 95% Maximum Relative
Power Input Rating
100-240V, AC/50-60Hz, Universal Input, 1.0 Amp Max
Dimensions (W x H x D) cm
33 x 4.3 x 28.6
33 x 4.3 x 28.6
Dimensions (W x H x D) in
13 x 1.7 x 11.25
13 x 1.7 x 11.25
2.56/5.65
2.56/5.65
Weight kg/lb
Package Contents
ProSecure UTM Appliance, Power Cable, Rubber Feet, Resource CD, Rackmount Kit,
Warranty Card, Quick Installation Guide, Electronic License (Bundles only)²
Hardware Warranty
Lifetime
MODEL
UTM Wireless-N Module Specifications
• IEEE® 802.11n, 2.4 GHz and 5.0 GHz, Dual Band Selectable
• IEEE 802.11a 5.0 GHz
• IEEE 802.11g, IEEE 802.11b, 2.4GHz
• WiFi Protected Access® (WPA, WPA2)
• Wired Equivalent Privacy (WEP) 64, 128, & 256 bit
• IEEE 802.1x RADIUS authentication with EAP TLS, TTLS, PEAP
• Detachable antennas
• Ordering Part Number: NMWLSN-10000S
UTM VDSL/ADSL2+ Module
Specifications
(Annex A)
• Annex A/Annex M Support
• VDSL2 support
• ADSL 2/ADSL 2+ ADSL over ISDN (ITU G.992.3, ITU Annex G.992.5 Annex A)
• ATM Support of layer 1 protocol AAL5, PVCs, RFC 1483
• ATM Support of ATM traffic management (COS - CBR, VBR, UBR)
• Ordering Part Number: NMVDSLA-10000S
UTM VDSL/ADSL2+ Module
Specifications
(Annex B)
• Annex B/Annex M Support
• ADSL/ADSL2+ over ISDN (ITU G.992.1 Annex B, ISDN - compatible to U-R2 connection of
Deutsche Telekom, G.Lite (ITU G.922.2)
• VDSL2 support
• ADSL 2/ADSL 2+ ADSL over ISDN (ITU G.992.3, ITU Annex G.992.1 Annex B)
• ATM Support of layer 1 protocol AAL5, PVCs, RFC 1483
• ATM Support of ATM traffic management (COS - CBR, VBR, UBR)
• Ordering Part Number: NMVSDSLB-10000S
ProSecure® Unified Threat Management Firewall
UTM S Series
ORDERING INFORMATION
Hardware (Firewall and VPN Functionality Only)
North America
Europe
Asia
UTM9S-100NAS
UTM9S-100EUS
UTM9S-100AJS
UTM25S-100NAS
UTM25S-100EUS
UTM25S-100AJS
1-Year Bundle
(Hardware including 1-year Web, 1-year Email, and 1-year Software Upgrades, IPS, App Firewall, 24/7 Support, and Advanced Replacement)
North America
Europe
Asia
UTM9SEW-100NAS
UTM9SEW-100EUS
UTM9SEW-100AJS
UTM25SEW-100NAS
UTM25SEW-100EUS
UTM25SEW-100AJS
3-Year Bundle
(Hardware including 3-year Web, 3-year Email, and 3-year Software Upgrades, IPS, App Firewall, 24/7 Support, and Advanced Replacement)
North America
Europe
Asia
UTM9SEW3-100NAS
UTM9SEW3-100EUS
UTM9SEW3-100AJS
UTM25SEW3-100NAS
UTM25SEW3-100EUS
UTM25SEW3-100AJS
1-Year Module Bundle - Includes UTMS Firewall + Wireless or DSL Module + 1-Year Security Bundle Subscription (North America Only)
(Hardware including 1-year Web, 1-year Email, and 3-year Software Upgrades, IPS, App Firewall, 24/7 Support, and Advanced Replacement)
Wireless-N Module Bundle
VDSL/ADSL2+ Module (Annex A) Bundle
VDSL/ADSL2+ Module (Annex B) Bundle
UTM9EWWN-100NAS
UTM9EWDA-100NAS
UTM9EWDB-100NAS
UTM25EWWN-100NAS
UTM25EWDA-100NAS
UTM25EWDB-100NAS
Optional Hardware Modules (not included with bundles)
NMWLSN-10000S
Wireless-N Module
NMVDSLA-10000S VDSL/ADSL2+ Module (Annex A)
NMVSDSLB-10000S VDSL/ADSL2+ Module (Annex B)
1-Year Subscriptions
Web Threat Management
Email Threat Management
Software Maintenance and Upgrades,
24/7 Support, Advanced Replacement
Subscription Bundle (Web + Email +
Support & Maintenance)
UTM9SW-10000S
UTM25SW-10000S
UTM9SE-10000S
UTM25SE-10000S
UTM9SM-10000S
UTM25SM-10000S
UTM9SB-10000S
UTM25SB-10000S
Web Threat Management
Email Threat Management
Software Maintenance and Upgrades,
24/7 Support, Advanced Replacement
Subscription Bundle (Web + Email +
Support & Maintenance)
UTM9SW3-10000S
UTM9SE3-10000S
UTM9SM3-10000S
UTM9SB3-10000S
UTM25SW3-10000S
UTM25SE3-10000S
UTM25SM3-10000S
UTM25SB3-10000S
3-Year Subscriptions
*U.S. Patent No. 7,971,254
**Additional WAN connections available through the optional ADSL module and qualified 3G/4G USB dongles.
¹Throughput measured in a lab environment. Actual performance may vary depending on network conditions and activated services.
Electronic Licenses are now used to register UTMs that are purchased as part of a bundle. A license key will be assigned to the UTM at the time it is registered with NETGEAR License servers.
2
350 E. Plumeria Drive
San Jose, CA 95134-1911
1-888-NETGEAR (638-4327)
E-mail: [email protected]
www.NETGEAR.com
NETGEAR, the NETGEAR logo, Connect with Innovation, ProSafe and ProSecure, are trademarks and/or registered trademarks of NETGEAR,
Inc. and/or its subsidiaries in the United States and/or other countries. Other brand names mentioned herein are for identification purposes
only and may be trademarks of their respective holder(s). Information is subject to change without notice. © 2012 NETGEAR, Inc. All rights
reserved.
This product comes with a limited warranty, the acceptance of which is a condition of sale.
DS-UTMS Series-1
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
