Panasonic recommends Windows 8 Pro.

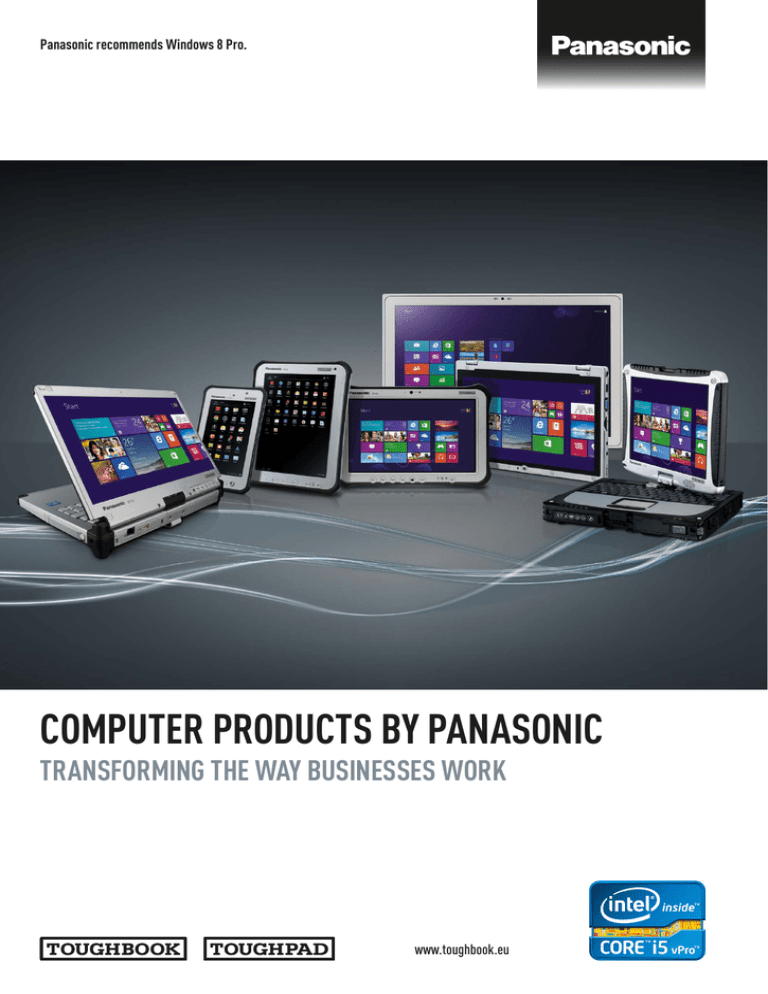

COMPUTER PRODUCTS BY PANASONIC
TRANSFORMING THE WAY BUSINESSES WORK
www.toughbook.eu
Panasonic recommends Windows 8 Pro.
FULLY RUGGED
FULLY RUGGED
CF-31
CF-19
Offering the ultimate balance of screen,
performance and rugged reliability, the CF-31
is the flagship of the Toughbook range.
The market-leading, rotating screen,
convertible notebook, which sets the
benchmark in ruggedness.
Mobile Computing
Platform / CPU
Intel® Core™ i5-3380M vPro™ processor (2.9GHz, 3MB Intel® Smart Cache, Intel® 7 series
Express chipset QM77) (Performance model) or
Intel® Core™ i5-3340M vPro™ processor (2.7GHz, 3MB Intel® Smart Cache, Intel® 7 series
Express chipset QM77) (Standard model)
Intel® Core™ i5-3340M vPro™ processor
(2.7GHz, 3MB Intel® Smart Cache, Intel® 7 series Express chipset QM77)
Operating System
Windows 8 Pro
Windows® 7 Professional downgrade
Windows 8 Pro
Windows® 7 Professional downgrade
Memory & Storage
4GB DDR3L SDRAM (max. 8GB)
500GB HDD (SATA)
4GB, DDR3L SDRAM (max. 8GB)
500GB HDD (SATA, easy accessible, shock resistant – withstands 180cm4 drop)
Display
13.1" LCD sunlight-viewable XGA Active Matrix (TFT) colour LCD (up to 1,200cd/m²)
with circular polariser; concealed mode
Graphic Chip: AMD Radeon™ HD 7750M, 512MB (Performance model) or Intel® HD Graphics
4000, UMA (Windows® 7 64bit max 1696MB, 32bit max 1428MB) (Standard model)
10.1" sunlight-viewable transflective plus XGA Active Matrix (TFT) colour LCD with circular
polariser (up to 500cd/m² transmissive and 6,500cd/m² reflective brightness, depending on
light conditions); Concealed Mode; Ambient light sensor for advanced power management;
Graphic Chip: Intel® HD Graphics 4000, UMA (Windows® 7 64bit max 1696MB, 32bit max 1557MB)
Camera
Rear (optional): 3MP, dual LED light, still picture
PC Card: x1 Type II (3.3V: 400mA, 5V: 400mA)
ExpressCard: x1, ExpressCard/34 or ExpressCard/54
SD/SDXC Memory Card: x1
RAM Module: x1 DDR3L 200-pin SO-DIMM (1.5V, DDR3 SDRAM, PC3-10600 Compliant)
Expansion Slots
PC Card: x1 Type I or x1 Type II, Allowable current 3.3V, 400mA, 5V: 400mA
ExpressCard: x1, ExpressCard/34 or ExpressCard/54
SD/SDXC Memory Card: x1
RAM Module: x1 DDR3L 200-pin SO-DIMM (1.5V, DDR3 SDRAM, PC3-10600 Compliant)
Optical Drive
Multi Media Pocket: Will accept optional Multi Drive
Interfaces
Serial (16550A compatible): D-sub, 9-pin
External display (VGA port): Mini D-sub, 15-pin
HDMI: x1
Headphone: Mini-jack, 3.5 DIA
Microphone: Mini-jack, 3.5 DIA, stereo
DC Input: Jack
USB: 2.0 x3, 4-pin; 3.0 x1, 9-pin
Modem: RJ-11 (Optional, project based)
LAN: RJ-45 (2nd LAN optional, project based)
Firewire (IEEE1394a): x1, 4-pin (Optional, project based)
External Antenna: x1 (Dedicated 50 ohms coaxial connector)
Port Replicator: 80-pin
Serial (16550A compatible): D-sub, 9-pin
External display (VGA port): Mini D-sub, 15-pin
Headphone: Mini-jack, 3.5 DIA, stereo
Microphone: Mini-jack, 3.5 DIA, stereo
DC Input: Jack
USB: 2.0 x1, 4-pin; 3.0 x1, 9-pin
Modem: RJ-11
LAN: RJ-45
Firewire (IEEE1394a): x1, 4-pin
External Antenna: x2 (Dedicated 50 ohms coaxial connector)
Port Replicator: 100-pin
Connectivity
Bluetooth™: Version 4.0 + EDR Class 1
Wireless LAN: Intel® Centrino® Advanced-N 6235 802.11 a/b/g/n compliant;
slide on/off switch
LAN: IEEE 802.3 10 Base-T, IEEE 802.3u 100 Base-TX, IEEE 802.3ab 1000 Base-T
(2nd LAN Project based)
Modem Data (optional): 56 kbps (V.92); Fax: 14.4 kbps
Bluetooth™: Version 4.0 + EDR Class 1
Wireless LAN: Intel® Centrino® Advanced-N 6235 802.11 a/b/g/n compliant;
slide on/off switch
LAN: 1000BASE-T/100BASE-TX/10Base-T
Modem Data: 56 kbps (V.92); Fax: 14.4 kbps / voice not compatible
Power
AC Adaptor: Input: 100–240V AC, 50Hz/60Hz; Output: 15.6V DC, 7.05A
Battery: Lithium-Ion (10.65V, Typical 8550mAh / Minimum 8100mAh)
Battery Life: Approx. 12 hours (Performance model) / 14.5 hours (Standard model)
(Windows® 7, Mobile Mark™ 2007, LCD brightness: 60cd/m²)
AC Adaptor: Input: 100–240V AC, 50Hz/60Hz; Output: 16V DC, 5A
Battery: Lithium-Ion (10.65V, Typical 5.7Ah / Minimum 5.4Ah)
Battery Life: Approx. 10 hours (Windows® 7, Mobile Mark™ 2007, LCD brightness: 60cd/m²)
Security Features
TPM (TCG V1.2 compliant), Integrated hardware security lock slot, Password security
(supervisor password, user password, HDD lock)
TPM (TCG V1.2 compliant), Integrated hardware security lock slot, Password security
(supervisor password, user password, HDD Lock)
Dimensions (W x H x D)
& Weight (Approx.)
302mm x 73.5mm x 292mm / 11.9" x 2.9" x 11.5" (excluding protrusions)
3.72kg / 8.2lb
271mm x 49mm x 216mm / 10.7" x 1.93" x 8.5" (excluding protrusions)
2.3kg / 5.0lb (including battery)
Options for Integration
GPS, Fingerprint Reader, Smart Card Reader, 3G Mobile Broadband (HSPA+, up to 14.4Mbps)
GPS, Fingerprint Reader, Smart Card Reader, 3G Mobile Broadband (HSPA+, up to 14.4Mbps),
Solid State Disk
Ruggedisation
Water resistance test: IEC529 (JIS C0920) IP-X54, MIL-STD 810G 506.5– I & III4
Dust resistance test: IEC529 (JIS C0920) IP-6X4, MIL-STD 810G 510.5– I & II4
Gravity drop resistance test: MIL-STD 810G 516.6 IV4 (180cm drop)
Vibration resistance test: MIL-STD 810G 514.6– I & II4
Water resistance test: IEC529 (JIS C0920) IPX54, MIL-STD 810G 506.5, III4
Dust resistance test: IEC529 (JIS C0920) IP6X4, MIL-STD 810G 510.5, Level4
Gravity drop resistance test: MIL-STD 810G 516.6, (180cm drop)4
Vibration resistance test: MIL-STD 810G 514.6, category 20 & 244
FULLY RUGGED
FULLY RUGGED
CF-D1
CF-U1
Fully rugged professional tablet, built for the
world of diagnostics, designed in conjunction
with technicians working on engines,
automobiles, trucks and machines
in either the workshop or field.
As the world’s first rugged ultra-mobile
PC, the Toughbook CF-U1 combines
maximum functionality and connectivity
in a compact size, with extreme durability.
Mobile Computing
Platform / CPU
Intel® Core™ i5-2520M processor
(2.5GHz, 3MB Intel® Smart Cache, Intel® 6 series Express chipset QM67)
Intel® Atom™ processor Z530 embedded
(1.6GHz, 512KB L2 cache, 533MHz FSB)
Operating System
Windows® 7 Professional
Windows® 7 Professional
Memory & Storage
4GB DDR3 SDRAM (max. 8GB)
320GB HDD (SATA)
2GB DDR2 SDRAM
64GB SSD
Display
13.3" Active Matrix (TFT) colour LCD 1366 x 768 pixels (HD) with Touchscreen
Up to 400cd/m² transmissive brightness
Optional Outdoor Display: 1.000cd/m² transmissive brightness with circular polariser
5.6" sunlight-viewable transflective plus WSVGA, 1024 x 600 pixels, Active Matrix (TFT)
colour LCD with circular polariser (up to 380cd/m² transmissive and 6,380cd/m²
transflective brightness, depending on light conditions) and Circulumin™ technology
Camera
Rear (optional): 3MP, still picture
Rear (optional): 3MP, dual LED light, still picture
Expansion Slots
PC Card: x1, Type I or II, Allowable current 3.3V: 400 mA, 5V: 400 mA
ExpressCard: x1, ExpressCard /34 or /54
SD/SDXC Memory Card: x1
RAM Module: x1 DDR3 200-pin SO-DIMM (1.5V, DDR3 SDRAM, PC3-10600 Compliant)
SDHC Memory Card: x1
Interfaces
Serial: D-sub, 9-pin
VGA: Mini D-sub, 15-pin optional5 (eliminates serial)
Headphone: Mini-jack, 3.5 DIA, stereo
Microphone: Mini-jack, 3.5 DIA, stereo
DC Input: Jack
USB: 2.0 x 3, 4-pin, 4th USB 2.0 optional5 (Modular Bay Port)
Rugged USB: 2.0 x1, 4-pin optional5 (Modular Bay Port)
LAN: RJ-45, 2nd LAN optional5 (Modular Bay Port)
Fingerprint Reader: x1 optional5 (Modular Bay Port)
Industry Cradle: x1
Microphone: Mini-jack, 3.5 DIA, stereo
Headphone: Mini-jack, 3.5 DIA, stereo
USB: 2.0 x1, 4-pin
Expansion Connector: x1 Cradle I/O
DC Input: x1
Connectivity
Bluetooth™: Version 2.1 + EDR Class 2
Wireless LAN: Intel® Centrino® Advanced-N 6205 802.11 a/b/g/n compliant
LAN: IEEE 802.3 10Base-T / IEEE 802.3u 100BASE-TX / IEEE 802.3ab 1000BASE-T
(2nd LAN 100MBit optional5)
Bluetooth™: Version 2.1 + EDR
Wireless LAN: Atheros 802.11 a/b/g/n
Power
AC Adaptor: Input: 100–240V AC, 50Hz/60Hz; Output: 15.6V DC, 7.05A
Battery: Lithium-Ion (10.8V, 6.2Ah)
Battery Life: Approx. 9 hours (Windows® 7, Mobile Mark™ 2007, LCD brightness: 60cd/m²)
AC Adaptor: Input: 100–240V AC, 50Hz/60Hz; Output: 16V DC, 3.75A
Battery Pack: Lithium-Ion (7.2V, 2900mAh) x2 packs hot swappable
Battery Life: Approx. 9 hours (Windows® 7, Mobile Mark™ 2007, LCD brightness: 60cd/m²)
Security Features
Password security (supervisor password, user password, hard disc lock), Kensington Lock,
Fingerprint Reader (optional), Smartcard Reader (optional)
TPM (TCG V1.2 compliant), Integrated hardware security lock slot, Password security
(supervisor password, user password, HDD lock)
Dimensions (W x H x D)
& Weight (Approx.)
349mm x 46mm x 244mm / 13.7" x 1.8" x 9.6"
2.25kg / 4.96lb
184mm x 151mm x 57mm / 7.24" x 5.94" x 2.24" (including hand strap)
1.06kg / 2.34lb (including hand strap)
Options for Integration
3G Mobile Broadband (Ericsson F5521gw, up to 21Mbps DL), GPS
3G Mobile Broadband (HSPA, 21Mbps), Bar Code Reader, GPS, Fingerprint Reader
Ruggedisation
Water resistance test: IPX51
Dust resistance test: IP6X1
Gravity drop resistance test: 90cm drop5
Water resistance test: IEC529 (JIS C0920) IPX54, MIL-STD 810G 506.5, III4
Dust resistance test: IEC529 (JIS C0920) IP6X4, MIL-STD 810G 510.5 Level4
Gravity drop resistance test: MIL-STD 810G 516.6 (180cm drop)4
Vibration resistance test: MIL-STD 810G 514.6, category 20 & 24
Optical Drive
Panasonic recommends Windows 8 Pro.
FULLY RUGGED
FULLY RUGGED
CF-H2 Field
CF-H2 Healthcare
The Toughbook CF-H2 is a unique tool.
Unique in its ability to transform the way
mobile professionals work – wherever and
whenever that might be.
A fully rugged healthcare tablet. Easy to
clean/disinfect (meets Hospital Safety
Certifications6), waterproof and
able to withstand drops, it can be used for
anything from reading patient notes
to accessing medical databases.
Mobile Computing
Platform / CPU
Intel® Core™ i5-3437U vPro™ processor
(1.9GHz, 3MB Intel® Smart Cache, Intel® 7 series Express chipset QM77)
Intel® Core™ i5-3437U vPro™ processor
(1.9GHz, 3MB Intel® Smart Cache, Intel® 7 series Express chipset QM77)
Operating System
Windows 8 Pro
Windows® 7 Professional downgrade
Windows 8 Pro
Windows® 7 Professional downgrade
Memory
& Storage
4GB DDR3L SDRAM (max. 8GB)
500GB HDD (SATA) or 128GB SSD (Contact Smartcard Reader Model)
4GB DDR3L SDRAM (max. 8GB)
500GB HDD (SATA) or 128GB SSD (Contact Smartcard Reader Model)
Display
10.1" sunlight-viewable transflective plus XGA Active Matrix (TFT) colour LCD with
circular polariser (up to 500cd/m² transmissive and 6.500cd/m² reflective brightness,
depending on light conditions) and ambient light sensor
Graphic Chip: Intel® HD Graphics 4000, UMA (Windows® 7 64bit max 1696MB,
32bit max 1547MB)
10.1" sunlight-viewable transflective plus XGA Active Matrix (TFT) colour LCD
(up to 500cd/m² transmissive and 6,500cd/m² transflective brightness,
depending on light conditions)
Graphic Chip: Intel® HD Graphics 4000, UMA (Windows® 7 64bit max 1696MB,
32bit max 1547MB)
Camera
Rear (optional): 3MP, autofocus with LED light
Rear (optional): 3MP, autofocus with LED light
Interfaces
Serial (RS232C): x1
LAN: x1 (depends on model)
USB: 3.0 x1, 9-pin (2nd USB 2.0, 4-pin depends on model, eliminates LAN)
Docking Connector: x1 Cradle I/0
DC Input: x1
Serial (RS232C): x1
LAN: x1 (depends on model)
USB: 3.0 x1, 9-pin (2nd USB 2.0, 4-pin depends on model, eliminates LAN)
Docking Connector: x1 Cradle I/O
DC Input: x1
Connectivity
Bluetooth™: Version 4.0 + EDR Class 1
Wireless LAN: Intel® Centrino® Advanced-N 6235 802.11 a/b/g/n compliant
LAN: IEEE 802.3 10 Base-T, IEEE 802.3u 100 Base-TX, IEEE 802.3ab 1000 Base-T
Bluetooth™: Version 4.0 + EDR Class 1, Continua certified
Wireless LAN: Intel® Centrino® Advanced-N 6235 802.11 a/b/g/n compliant
LAN: IEEE 802.3 10 Base-T, IEEE 802.3u 100 Base-TX, IEEE 802.3ab 1000 Base-T
Power
AC Adaptor: Input: 100–240V AC, 50Hz/60Hz; Output: 16V DC, 3.75A
Battery Pack: Lithium-Ion (7.2V, 3400mAh) x2 packs hot swappable
Battery Life: Approx. 7 hours (Windows® 7, Mobile Mark™ 2007,
LCD brightness: 60cd/m²)
AC Adaptor: Input: 100–240V AC, 50Hz/60Hz; Output: 16V DC, 3.75A
Battery Pack: Lithium-Ion (7.2V, 3400 mAh) x2 packs hot swappable
Battery Life: Approx. 7 hours (Windows® 7, Mobile Mark™ 2007,
LCD brightness: 60cd/m²)
Security Features
TPM (TCG V1.2 compliant)
TPM (TCG V1.2 compliant)
Dimensions (W x H x D)
& Weight (Approx.)
274mm x 268mm x 58mm / 10.8" x 10.6" x 2.3"
1.58kg / 3.5lb (including hand strap)
274mm x 268mm x 58mm / 10.8" x 10.6" x 2.3"
1.58kg / 3.5lb (including hand strap)
Options for Integration
Barcode Reader, 3G Mobile Broadband (HSPA+, 14.4Mbps DL), Combined Contactless
Smart Card (ISO 14443 Type A/B) and RFID (ISO 15693), Contact Smartcard Reader,
GPS, Fingerprint Reader
Barcode Reader, 3G Mobile Broadband (HSPA+, 14.4Mbps DL), Combined Contactless
Smart Card (ISO 14443 Type A/B) and RFID (ISO 15693), Contact Smartcard Reader,
GPS, Fingerprint Reader
Ruggedisation
Water resistance test: IEC529 (JIS C0920) IPX54, MIL-STD 810G 506.5, I & III4
Dust resistance test: IEC529 (JIS C0920) IP6X4, MIL-STD 810G 510.5, I & II4
Gravity drop resistance test: MIL-STD 810G 516.6, IV (180cm drop)4
Vibration resistance test: MIL-STD 810G 514.6, category 244
Water resistance test: IEC529 (JIS C0920) IPX54, MIL-STD 810G 506.5, I & III4
Dust resistance test: IEC529 (JIS C0920) IP6X4, MIL-STD 810G 510.5, I & II4
Expansion Slots
SEMI RUGGED
SEMI RUGGED
CF-C2
CF-53
Combining ground-breaking ergonomics,
semi rugged design and outstanding performance,
the Toughbook CF-C2 redefines the way mobile
professionals operate, allowing them to be
more productive than ever before.
Combines industry-leading balanced-mobility
with semi-rugged features, integrated carrying
handle and optional sunlight-viewable
touchscreen. It is the ideal companion for all
mobile users looking for premium mobile business
quality combined with rich computing power.
Mobile Computing
Platform / CPU
Intel® Core™ i5-4300U vPro™ processor
(1.9GHz, 3MB Intel® Smart Cache)
Intel® Core™ i5-3340M vPro™ processor
(2.7GHz, 3MB Intel® Smart Cache, Intel® 7 series Express chipset QM77)
Operating System
Windows 8.1 Pro
Windows® 7 Professional downgrade
Windows 8 Pro
Windows® 7 Professional downgrade
Memory & Storage
4GB DDR3L SDRAM (max. 8GB)
500GB HDD (SATA)
4GB DDR3L SDRAM (max. 8GB)
500GB HDD (SATA)
Display
12.5" Active Matrix (TFT) IPS colour LCD, 1366 x 768 pixels, HD (up to 500cd/m²)
10 finger Capacitive touch screen + Digitiser
14" Active Matrix (TFT) colour LCD, 1366 x 768 pixels (HD) (Standard model) or
14" Active Matrix (TFT) colour LCD, 1366 x 768 pixels (HD) with sunlight viewable resistive
touchscreen (up to 1,000cd/m²) (Touchscreen model)
Graphic Chip: Intel® HD 4000 Graphics, UMA (Windows® 7 64bit max 1696MB, 32bit max 1428MB)
Camera
Front: 720p
Rear (optional): 5MP, still picture
Front (optional): 1.3MP, digital microphone
Expansion Slots
ExpressCard: x1, ExpressCard/34 optional
SD/SDXC Memory Card: x1
RAM Module: x1, DDR3L SDRAM, 204-pin SO-DIMM (1.5V, SO-DIMM, PC3-10600 Compliant)
PC Card: x1, Type I or Type II, Allowable Current: 3.3V: 400mA, 5V: 400mA2
ExpressCard: x1, ExpressCard/34 or ExpressCard/542
SD/SDXC Memory Card: x1
RAM Module: x2, DDR3L 200-pin SO-DIMM (1.5V, DDR3 SDRAM, PC3-10600 Compliant),
one slot occupied
Optical Drive
DVD Super Multi Drive
Interfaces
Serial (16550A compatible): D-sub, 9-pin optional
External Display (VGA port): Mini D-sub, 15-pin optional
HDMI: x1
Headphone: Mini-jack, 3.5 DIA, stereo
Microphone: Mini-jack, 3.5 DIA, stereo
DC Input: Jack
USB: 2.0 x1, 4-pin; 3.0 x2, 9-pin
NFC: x1 optional
Modem: RJ-11 optional
LAN: RJ-45
Port Replicator: 100-pin
Serial (16550A compatible): D-sub, 9-pin
External Display (VGA port): Mini D-sub, 15-pin
HDMI: x1
Headphone: Mini-jack, 3.5 DIA, stereo
Microphone: Mini-jack, 3.5 DIA, stereo
DC Input: Jack
USB: 2.0 x2, 4-pin; 3.0 x2, 9-pin
Firewire (IEEE1394a): x1, 4-pin (Project based)
Modem: RJ-11 (Project based)
LAN: RJ-45 (2nd LAN Project based)
Port replicator: 100-pin
Connectivity
Bluetooth™: Version 4.0 + EDR Class 1
Wireless LAN: Intel® Dual Band Wireless-N 7260 802.11 a/b/g/n compliant;
slide on/off switch
LAN: IEEE 802.3 10 Base-T, IEEE 802.3u 100 Base-TX, IEEE 802.3ab 1000 Base-T
Bluetooth™: 4.0 + EDR Class 1
Wireless LAN: Intel® Centrino® Advanced-N 6235 802.11 a/b/g/n compliant;
slide on/off switch
LAN: IEEE 802.3 10Base-T / IEEE 802.3u 100BASE-TX / IEEE 802.3ab 1000BASE-T
(2nd LAN Project based)
Modem Data: 56 kbps (V.92); Fax: 14.4 kbps
Power
AC Adaptor: Input: 100–240V AC, 50Hz/60Hz; Output: 15.6V DC, 7.05A
Battery: Lithium-Ion (10.8V, Typical 6800mAh / Minimum 6400mAh)
Battery Life: Approx. 14 hours (Windows® 7, Mobile Mark™ 2007,
LCD brightness: 60cd/m²)
AC Adaptor: Input: 100–240V, 50Hz/60Hz; Output: 15.6V, 7.05A
Battery: Lithium-Ion (10.8V, Typical 6750 mAh / Minimum 6300 mAh)
Battery Life: Approx. 11 hours (Windows® 7, Mobile Mark™ 2007,
LCD brightness: 60cd/m²)
Power Management: Standby function, ACPI BIOS
Security Features
TPM (TCG V1.2 compliant), Integrated hardware security lock slot, Password security
(supervisor password, user password, HDD lock)
TPM (TCG V1.2 compliant), Password security (supervisor password, user password,
hard disc lock), Integrated hardware security lock slot
Dimensions (W x H x D)
& Weight
299mm x 25mm x 217.3mm / 11.8" x 1.0" x 8.6" (including handstrap)
1.81kg / 3.99lb
341mm x 48-55mm x 281mm / 13.6" x 1.9-2.2" x 11.2" (including carrying handle)
Standard model: 2.65kg / 5.84lb (including carrying handle)
Touchscreen model: 2.95kg / 6.50lb (including carrying handle)
Options for Integration
Full size smart card reader, half size smart card reader, rear camera (5MP), 4G Mobile
Broadband (LTE), Modem
Fingerprint Reader, Smart Card Reader, 3G Mobile Broadband (HSPA+, up to 14.4Mbps),
dedicated GPS, RFID
Ruggedisation
Withstands drops from a height of 76cm (bottom)3
Spill resistant touchpad, keyboard
Fanless design
Withstands drops from a height of 76cm1
Water resistant touchpad, keyboard
MIL-STD 810G (Vibration, altitude, drop, shock, temperature & humidity)
Panasonic recommends Windows 8 Pro.
FULLY RUGGED
FULLY RUGGED
FZ-M1
FZ-G1
Compact and lightweight, fully rugged
Windows 8.1 field tablet, offering wide
functionality and outstanding durability
for outdoor working.
The first fully rugged Windows 8 tablet
to feature IPSα screen technology,
the 10.1" FZ-G1 combines lightweight design,
business expansion ports and durability for the
ultimate in field-based computing.
Mobile Computing
Platform / CPU
Intel® Core™ i5-4302Y vPro™ processor
(1.6GHz, 3MB Intel® Smart Cache)
Intel® Core™ i5-3437U vPro™ processor
(1.9GHz, 3MB Intel® Smart Cache, Intel® 7 series Express chipset QM77)
Operating System
Windows 8.1 Pro
Windows® 7 Professional downgrade
Windows 8 Pro
Windows® 7 Professional downgrade
Memory
& Storage
4GB RAM (max. 8GB)
128GB SSD
4GB DDR3L SDRAM (max. 8GB)
128GB SSD
Display
7" Active Matrix (TFT) colour LCD
1280 x 800 pixels, WXGA (up to 500cd/m²)
10 finger Capacitive touch screen
10.1" Active Matrix (TFT) IPS pro next colour LCD,
1920 x 1200 pixels, WUXGA (up to 800cd/m²)
10 finger Capacitive touch screen + Digitiser
Camera
Front: 2MP
Rear: 5MP with autofocus and LED light (8MP optional)
Front: 720p
Rear (optional): 3MP, still picture
Expansion Slots
Micro SD/SDXC Memory Card: x1
Micro SD/SDXC Memory Card: x1 optional (configuration port)
Interfaces
Serial (16550A compatible): D-sub, 9-pin optional (configuration port)
LAN: RJ-45 optional (configuration port)
2D Barcode Reader: Optional (configuration port)
Smartcard Reader: Optional (business expandison module)
UHF RFID: Optional (business expandison module)
Headset: x1
DC Input: Jack
USB 3.0: x1, 9-pin
Port Replicator: 24-pin
External Antenna connector: Optional
Serial (16550A compatible): D-sub, 9-pin optional (configuration port)
HDMI: x1
Headset: x1
DC Input: Jack
USB 2.0: x1, 4-pin optional (configuration port)
USB 3.0: x1, 9-pin
LAN: RJ-45 optional (configuration port)
Port Replicator: 24-pin
External Antenna connector: Optional
Connectivity
Bluetooth™: Version 4.0 + EDR Class 1
Wireless LAN: Intel® Dual Band Wireless-AC 7260
LAN: IEEE 802.3 10 Base-T, IEEE 802.3u 100 Base-TX,
IEEE 802.3ab 1000 Base-T optional
Bluetooth™: Version 4.0 + EDR Class 1
Wireless LAN: Intel® Centrino® Advanced-N 6235 802.11 a/b/g/n compliant
LAN: IEEE 802.3 10 Base-T, IEEE 802.3u 100 Base-TX,
IEEE 802.3ab 1000 Base-T optional
Power
AC Adaptor: Input: 100–240V AC, 50Hz/60Hz; Output: 16V DC, 4.06A
Battery: Lithium-Ion (7.2V, 3220mAh), user replaceable
Battery Life: Approx. 8 hours (Windows® 7, Mobile Mark™ 2007, LCD brightness: 60cd/m²)
Hot Swap Battery: Optional via business expansion module
AC Adaptor: Input: 100–240V AC, 50Hz/60Hz; Output: 16V DC, 4.06A
Battery: Lithium-Ion (10.8V, 4400mAh), user replaceable
Battery Life: Approx. 8 hours (Windows® 7, Mobile Mark™ 2007, LCD brightness: 60cd/m²)
Security Features
TPM (Trusted Platform Module, TCG V2.0 Windows 8.1, V1.2 Windows 7 compliant)
Integrated hardware security lock slot
TPM (TCG V1.2 compliant), Integrated hardware security lock slot, Password security
(supervisor password, user password, HDD lock)
Dimensions (W x H x D)
& Weight (Approx.)
203mm x 18mm x 132mm / 7.98" x 5.20" x 0.71"
540g / 1.2lbs
270mm x 19mm x 188mm / 10.6" x 0.75" x 7.4"
1.1kg / 2.43lb
Options for Integration
GPS, Mobile Broadband (3G HSPA+ or 4G LTE)
GPS, Mobile Broadband (HSPA+, up to 14.4Mbps)
Ruggedisation
Water resistance test: IEC529 (JIS C0920) IPX54
Dust resistance test: IEC529 (JIS C0920) IP6X4
Gravity drop resistance test: 150cm drop)1
Water resistance test: IEC529 (JIS C0920) IPX54, MIL-STD 810G 506.5, III4
Dust resistance test: IEC529 (JIS C0920) IP6X4, MIL-STD 810G 510.5, Level4
Gravity drop resistance test: MIL-STD 810G 516.6, (180cm drop)4
Vibration resistance test: MIL-STD 810G 514.6, category 20 & 244
FULLY RUGGED
FULLY RUGGED
FZ-A1
JT-B1
The 10.1" Android™-powered Toughpad FZ-A1
is ideal for highly mobile outdoor workers
in challenging conditions.
Lightweight, one-handed operation,
fully rugged Android™ 4.0 tablet with 7"
outdoor display – enables field workforces
to work anywhere, efficiently and securely.
Mobile Computing
Platform / CPU
Marvell® 1.2GHz dual-core processor
Texas Instruments® OMAP™ 4460,
1.5GHz Dual Core Processor
Operating System
Android™ 4.0
Android™ 4.0
Memory & Storage
1GB
16GB Flash
1GB
16GB Flash
Display
10.1" Active Matrix (TFT) colour LCD 1024x768 (XGA), up to 500cd/m² brightness with
ambient light sensor, anti-glare/reflection film, capacitive multi touchscreen and digitiser
7" Active Matrix (TFT) colour LCD, 1024 x 600 pixels, up to 500cd/m² brightness with
ambient light sensor, anti-glare/reflection film, 4 finger Capacitive touch screen
Camera
Front: 2MP, fixed focus
Rear: 5MP, auto focus with LED flash
Front: 1.3MP, fixed focus
Rear: 13MP, auto focus with LED flash
Expansion Slots
Micro SDHC: x1 (up to 32GB)
Micro SDHC: x1 (up to 32GB)
Interfaces
Docking Connector: x1
Micro USB: 2.0 x1
Micro HDMI: x1
SIM card: x1 (3G model only)
Audio: x1
DC Input: x1
Docking Connector: x1
Micro USB: 2.0 x1
SIM card: x1 (3G model only)
Headset: x1
DC Input: x1
NFC: ISO/IEC21481 Type A/B, Felica
Connectivity
Bluetooth™: Version 2.1 + EDR
Wireless LAN: IEEE802.11 a/b/g/n
3G : Ericsson F5521gw HSPA+, up to 21MBps (optional)
GPS: Satellite GPS
Bluetooth™: Version 4.0 + EDR
Wireless LAN: IEEE802.11 a/b/g/n
GPS: Satellite GPS
Power
AC Adaptor: Input: 100–240V AC, 50Hz/60Hz; Output: 12V DC, 2A
Battery: Lithium-Ion (33.9Wh) Serviceable
Battery Life: Approx. 10 hours
AC Adaptor: Input: 100–240V AC, 50Hz/60Hz; Output: 12V DC, 2A
Battery: Lithium-Ion (5.720mAh), user replaceable
Battery Life: Approx. 8 hours
Security Features
Dedicated security processor core SoC compliant with FIPS 140-2 Level 2, Marvell®
Trusted Boot, Marvell® hardware assisted storage encryption, AuthenTec® Mobile Security,
McAfee Mobile Security (trial version)
Dimensions (W x H x D)
& Weight
226.3mm x 17mm x 212mm / 10.5" x 0.67" x 8.35"
993g / 2.19lb (without pen)
Options for Integration
Ruggedisation
221mm x 17.8mm x 130mm / 8.7" x 0.7" x 5.1"
545g / 1.2lb
Mobile Broadband (HSPA+, up to 14.4Mbps), 4G Mobile Broadband (LTE)
Water resistance test: IPX51
Dust resistance test: IP6X1
Gravity drop resistance test: 120cm (unit power off)1
Temperature (operating) -10 °C to 50 °C (14 °F to 122 °F)1
Water resistance test: IEC529 (JIS C0920) IPX54, MIL-STD 810G 506.5, III4
Dust resistance test: IEC529 (JIS C0920) IP6X4, MIL-STD 810G 510.5, Level4
Gravity drop resistance test: MIL-STD 810G 516.6, (180cm drop)4
Vibration resistance test: MIL-STD 810G 514.6, category 20 & 244
BUSINESS RUGGED
BUSINESS RUGGED
UT-MB5 Standard Model
CF-AX3
The 20" 4K business rugged tablet
designed for photographers,
architects, marketers and
sales people.
One of the world’s lightest business rugged,
2-in-1 convertible Ultrabooks™
inspired by Intel.
Mobile Computing
Platform / CPU
Intel® Core™ i5-3437U vPro™ processor
(1.9GHz, 3MB Intel® Smart Cache, Mobile Intel® Express chipset QM77)
Intel® Core™ i5-4300U vPro™ processor
(1.9GHz, 3MB Intel® Smart Cache)
Operating System
Windows 8.1 Pro
Windows 8.1 Pro
Windows® 7 Professional downgrade
Memory & Storage
4GB DDR3 SDRAM (max. 8GB)
256GB SSD
4GB DDR3L SDRAM
128GB SSD (SATA)
Display
4K (3840 x 2560 pixels) Ultra high resolution, 230 ppi
20" IPSα display with 15:10 aspect ratio
Graphic Chip: NVIDIA® GeForce® 745M Graphics (2GB dedicated VRAM)
11.6" Active Matrix (TFT) colour LCD, 1920 x 1080 pixels, Full HD
10 finger Capacitive touch screen
Camera
Front: HD Front camera
Front: 720p
Expansion Slots
SDXC Memory Card Slot: x1 (max 64 GB)
SD/SDXC Memory Card: x1
Interfaces
USB: 3.0 x1
Headset: x1
Port replicator: x1 (24 Pin)
External Display (VGA port): Mini D-sub, 15-pin
HDMI: x1
Headphone: Mini-jack, 3.5 DIA, stereo
Microphone: Mini-jack, 3.5 DIA, stereo
DC Input: Jack
USB: 3.0 x2, 9-pin
LAN: RJ-45
LAN (100BASE-TX): x1 (via optional cradle)
HDMI: x1 (via optional cradle)
Additional USB: 3.0 x3 (via optional cradle)
Connectivity
Bluetooth™: 4.0 + EDR Class 1
Wireless LAN: Intel® Centrino® Advanced-N 6235 802.11a/b/g/n
Bluetooth™: Version 4.0 + EDR Class 1
Wireless LAN: Intel® Dual Band Wireless-N 7260 802.11 a/b/g/n compliant
LAN: IEEE 802.3 10 Base-T, IEEE 802.3u 100 Base-TX, IEEE 802.3ab 1000 Base-T
Power
AC Adaptor: Input: 100–240V AC, 50Hz/60Hz; Output: 15.6V DC, 7.05A
Battery: Built-in Lithium-Ion 11.1V, 3180mAh
AC Adaptor: Input: 100–240V AC, 50Hz/60Hz; Output: 16V DC, 5.0A
Battery: Main: Lithium-Ion (7.2V, Typical 4400mAh / Minimum 4100mAh);
Internal: Lithium-Ion (7.2V, Typical 2200mAh / Minimum 2050mAh)
Battery Life: Approx. 12 hours (Windows® 7, Mobile Mark™ 2007, LCD brightness: 60cd/m²)
Security Features
TPM (Trusted Platform Module, TCG V1.2 compliant), Integrated hardware security lock hole,
Password security (supervisor password, user password, HDD lock)
TPM (TCG V1.2 compliant), Integrated hardware security lock slot, Password security
(supervisor password, user password, HDD lock)
Dimensions (W x H x D)
& Weight
475mm x 334mm x 12.5mm / 18.7" x 13.1" x 0.49"
Approx. 2.35kg / Approx. 5.18lb
288mm x 18mm x 194mm / 11.34" x 0.71" x 7.64"
1.135kg / 2.502lb
Options for Integration
Smart Card Reader (optional on 8GB RAM model only)
Smart Card Reader, 4G Mobile Broadband (LTE), 3G Mobile Broadband (HSPA+)
Ruggedisation
Passes 76cm free-fall test3
Passes a 76cm free-fall test3
100kgf pressurised vibration test3
As an ENERGY STAR® Partner, Panasonic Corporation has determined that this product meets the ENERGY STAR® guidelines for energy efficiency. Active Matrix colour display conforms to industry standards. Some displays may contain isolated illuminated or dark pixels
as an artefact of the manufacturing process (effective pixels: minimum 99.998%). RAM capacity calculated as follows: 1MB = 1,048,576 bytes. HDD capacity calculated as follows: 1GB = 1,000,000,000 bytes. Toughbook is a brand name and registered trademark of
Panasonic Corporation. Google, the Google logo, YouTube and Android are trademarks of Google Inc. Acrobat® is a registered trademark of Adobe® Systems Incorporated. Intel, the Intel logo, Intel Core, Intel vPro, Core Inside and vPro Inside are trademarks of Intel
Corporation in the U.S. and other countries. Microsoft® and Windows® are registered trademarks of Microsoft® Corporation of the United States and/or other countries. All other brand names shown are the registered trademarks of the relevant companies. All rights
reserved. All working conditions, times and figures quoted are optimum or ideal levels and may differ as a result of individual and local circumstances. Technical specifications are subject to change without notice. *Among 11.6" hybrid PC, as of 12th December 2012.
1
4
Tested in Panasonic Factory. 2 Config. A: 1x PC Card Type I or II + 1x ExpressCard; Config. B: 2x PC Card Type I or II, no ExpressCard. 3 The shock resistance, pressure resistance, and splashproof functions are not a guarantee against damage or malfunction.
Tested by an independent third-party lab following IEC 60529, sections 13.4, 13.6.2, 14.2.5, 14.3. 5 Project based. Only one interface can be selected. 6 Safety Certifications list available at www.toughbook.eu.
Computer Product Solutions (CPS) BU, Panasonic System Communications Company Europe (PSCEU), Panasonic Marketing Europe GmbH, Hagenauer Straße 43, 65203 Wiesbaden (Germany).
21699–JAN2014-EN-V7
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
