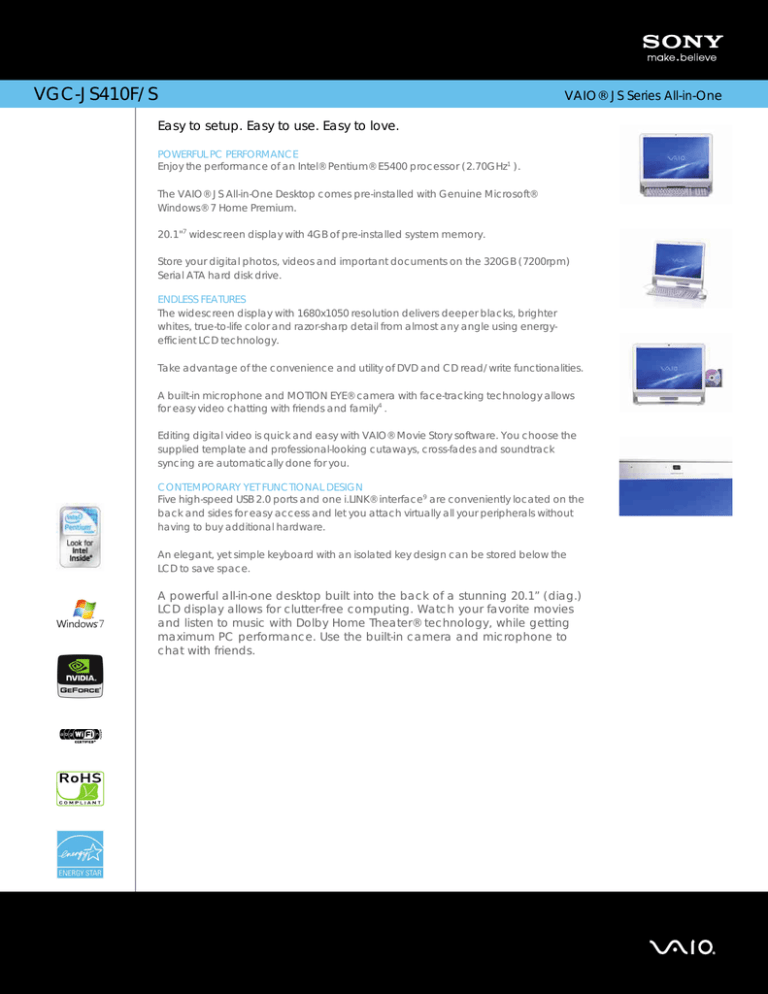

VAIO® JS Series All-in-One
Easy to setup. Easy to use. Easy to love.
Enjoy the performance of an Intel® Pentium® E5400 processor (2.70GHz1 ).
The VAIO® JS All-in-One Desktop comes pre-installed with Genuine Microsoft®
Windows® 7 Home Premium.
20.1"7 widescreen display with 4GB of pre-installed system memory.
Store your digital photos, videos and important documents on the 320GB (7200rpm)
Serial ATA hard disk drive.
The widescreen display with 1680x1050 resolution delivers deeper blacks, brighter
whites, true-to-life color and razor-sharp detail from almost any angle using energyefficient LCD technology.
Take advantage of the convenience and utility of DVD and CD read/write functionalities.
A built-in microphone and MOTION EYE® camera with face-tracking technology allows
for easy video chatting with friends and family4 .
Editing digital video is quick and easy with VAIO® Movie Story software. You choose the
supplied template and professional-looking cutaways, cross-fades and soundtrack
syncing are automatically done for you.
Five high-speed USB 2.0 ports and one i.LINK® interface9 are conveniently located on the
back and sides for easy access and let you attach virtually all your peripherals without
having to buy additional hardware.
An elegant, yet simple keyboard with an isolated key design can be stored below the
LCD to save space.
A powerful all-in-one desktop built into the back of a stunning 20.1” (diag.)
LCD display allows for clutter-free computing. Watch your favorite movies
and listen to music with Dolby Home Theater® technology, while getting
maximum PC performance. Use the built-in camera and microphone to
chat with friends.
VAIO® JS Series All-in-One
Ethernet Protocol: 10Base-T / 100Base-TX / 1000Base-T
Type of Use: All-in-One
Ethernet Speed: Fast Ethernet (RJ-45)
Wi-Fi: (802.11b/g/n)
Keyboard: QWERTY, 19.05 mm pitch, 2.0 mm stroke
Action Buttons: Action Buttons on Keyboard - Standby,
S1, Volume - / +, Muting, Zoom In, Zoom Out
Action Buttons on PC - PC On / Off, Wireless On / Off
Camera: Built-in MOTION EYE® camera and microphone
with face-tracking technology
Operating System: Genuine Microsoft® Windows 7®
Home Premium 64-bit5
Supplied Software: Microsoft® Works SE 9.0 w/ 60-Day
Trial Version of Microsoft® Office Home and Student
The VAIO® Software Experience: VAIO Care™ - System
diagnostics and maintenance
VAIO® Multimedia Suite: VAIO® Movie Story - Simple
Movie Creation
VAIO® Media plus - Multimedia Streaming Software
*Please access VAIO® Help and Support from your
PC for a complete list of software applications and
Anti-Virus Software: Norton Internet Security™ 2009 30-Day
Trial Offer
Installed: 4GB PC2-6400 (2GBx2)
Service and Warranty Information
Maximum: 8GB
Type/Speed: DDR2/800MHz
Telephone Support: 1 year toll-free technical assistance
available 24/712 at 888-476-6972
Hard Drive
Online and Email Support: Available from
Capacity: 320GB
Speed: 7200rpm
Type: Serial ATA
Onsite/In-Home Service: 1 year limited warranty with
Onsite/In-Home Service14 . See actual warranty for
Limited Warranty Term: 1 year limited warranty12 . See
actual warranty for details.
Computer Type: Desktop
Type: Intel® Pentium® Processor E5400
Speed: 2.70GHz1
Front Side Bus Speed: 800MHz
L2 Cache: 2MB
Optical Drive
CD Support: Read / Write (CD/-R/-RW)
DVD Support: Read / Write (DVD±R/±RW/±R DL/-RAM)
Environmental Information
Expansion Slots
RoHS®: Compliant
For more information:
Multimedia Card Reader: One Memory Stick PRO™
(Standard / Duo) media slot with MagicGate®
One Secure Digital (SD memory card) media slot
EPEAT™ : Silver
Weight: 18.7 lbs. (CPU and Display only)
Sound System: Intel® High Definition Audio with Dolby®
Digital Live
Speakers (Total): Built-in 2 x 3 Watt stereo speakers
Supplied Accessories
Power Cord
AC Adapter
Screen Size: 20.1"
Processor: Mobile Intel® Graphics Media Accelerator
X4500HD with Intel® Clear Video Technology. Total
Available Graphics Memory: 1750MB (max.)10
Chipset: Intel® G45 Express Chipset
Inputs and Outputs
Audio In: 1 (Line In)
Microphone Input: 1
USB Port(s): 5 (2.0 compliant)
DC-In: 1
i.LINK® Connection: 1 (4pin) i.LINK® connector (IEEE
Headphone Output(s): 1
S/PDIF Output(s): 1
Ethernet Connection (s): 1
Power Requirements: 150W + 10%
Input Voltage: 100-240V
Start-up Times
Average Boot Time: 60 sec
Average Resume Time from Suspend: 2 sec
Computer Interface: For this product,there are a multitude of varying
software packages and add-on hardware options. This product is not
manufactured to work with any specific software, and Sony does not and
cannot make any warranty or representation with respect to the
performance of this product with any particular software packages
and/or non-Sony add-on hardware options except those mentioned here.
Sony hereby disclaims any representations or warranties that this
product is compatible with any combination of non-Sony products you
may choose to connect to it. While Sony representatives or Sony
authorized dealers may be able to assist you and may make
recommendations, they are NOT authorized to vary or waive this
disclaimer. Purchasers must determine for themselves the suitability and
compatibility of the hardware and software in each and every particular
instance. Software titles pre-installed on the Sony computer are subject
to change without notice. Preinstalled software may not be identical to
retail versions or have all documentation. Features and specifications are
subject to change without notice. Non-metric weights and measures are
approximate and may vary.
Lamp in this product contains mercury. Disposal of these materials may
be regulated due to environmental considerations. This product meets
the standards of the International Energy Star Program for energy
efficiency. For disposal or recycling information, please contact your local
authorities or the Electronic Industries Alliance (
©2009 Sony Electronics Inc. All rights reserved. Reproduction in whole or
in part without written permission is prohibited. Sony, i.LINK, VAIO, VAIO
Care,Sony logo, VAIO logo, MOTION EYE and Memory Stick PRO are
trademarks of Sony in the U.S. and in other countries. Intel and Core are
trademarks of the Intel Corporation in the U.S. and in other countries.
Microsoft, Windows Live, One Care and Windows are registered
trademarks of the Microsoft Corporation in the U.S. and in other
countries. Blu-ray Disc is a trademark. Bluetooth and the Bluetooth logo
are registered trademarks of SIG, Inc. Dolby is a registered trademark of
Dolby Laboratories. ENERGY STAR is a registered U.S. trademark. HDMI is
a trademark of HDMI Licensing LLC. PS3 is a trademark of Sony Computer
Entertainment. All other trademarks are trademarks of their respective
Printed 11/09.
USB Keyboard
USB Mouse
Resolution: 1680 x 1050
First Boot Time: 5 min
Measurements: 19.2"(W) x 16.1"(H) x 6.18"(D) (CPU and
Display only)
13. 60-Day Trial Version of Microsoft® Office 2007 - This trial software will
work only for 60 days after you first use it. You will not be able to use
the software if you do not activate it as described the first time you use
the software. You can activate the software by Internet: Internet
service charges may apply. If you want to keep using the software
after the 60-day trial period, you must convert to the perpetual
version. You can convert online by following the conversion
instructions presented during setup and paying the required fees.
14. When available, Sony will provide Onsite/In-Home Service in
fulfillment of its limited warranty obligations. Any such services are
subject to the terms and conditions of the limited warranty. See
actual Limited Warranty for details. Onsite/In-Home Service will be
provided via third-party technician to be dispatched as needed
following phone-based troubleshooting. Some repairs may be
accomplished with self repair kits. Onsite/In-Home Service may not be
available in all locations.
15. Interoperability and compatibility among Bluetooth® devices vary.
16. Norton Internet Security™ 2009 30-day subscription is pre-installed
on your Sony VAIO PC. You need to activate the software for the
product to work. After your 30-days are finished, buy Norton Internet
Security to continue to be protected from viruses, hackers and
identify theft.
17. Based on original factory image and will vary with product
configuration changes and additional software added to the hard
18. Excluding end user interaction.
Color: Silver
UPC Code: 027242780422
1. GHz denotes microprocessor internal clock speed; other factors may
affect application performance. CPU speed will be reduced under
certain operating conditions.
2. GB means one billion bytes when referring to hard drive capacity.
Accessible capacity may vary. A portion of hard disk space is
reserved as a recovery partition.
3. Requires 802.11n compatible access point. Some functionality may
require Internet services.
4. Broadband Internet service required along with third party services
which may require a subscription or other service fee.
5. Compatibility and performance in a 64 bit environment may vary.
Check with the manufacturer of your software or accessory to ensure
you have the latest updates.
6. Viewable area measured diagonally.
7. Non-metric weights and measures are approximate and may vary.
8. Measured at the narrowest point
9. i.LINK is a trademark of Sony used only to designate that a product
contains an IEEE 1394 connector. All products with an i.LINK
connector may not communicate with each other.
10. Total Available Graphics Memory refers to the new Windows® 7
classification of graphics memory, which varies depending on the
operating condition, version of device driver and system memory size.
11. See actual limited warranty for details. For a copy of Sony's warranty,
please visit, call toll-free 888-476-6972 (8884SONYPC), or write to Sony Electronics, 12451 Gateway Boulevard,
Fort Myers, FL 33913.
12. For certain third party software applications, Sony provides first level
phone support. Additional telephone support may be available from
the applicable 3rd party vendor. Availability and schedule for any
such support is determined by the applicable software vendor.
Sony Electronics Inc. •16530 Via Esprillo •San Diego, CA 92127 •1.800.222.7669 •
