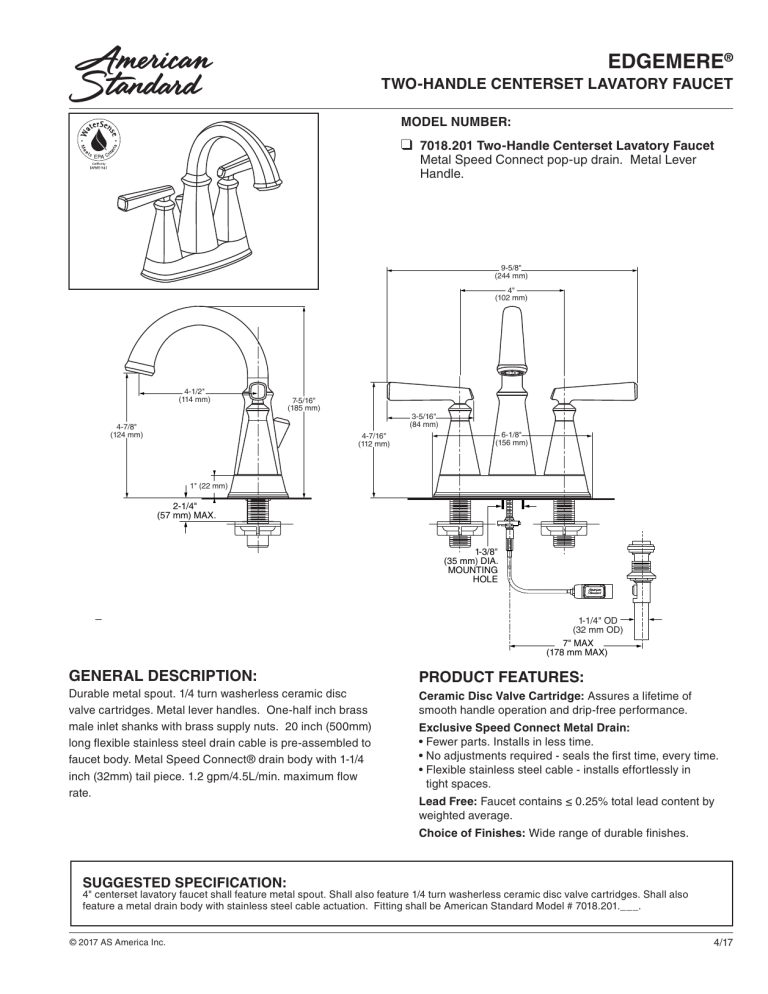

EDGEMERE®
TWO-HANDLE CENTERSET LAVATORY FAUCET
MODEL NUMBER:
❑7018.201 Two-Handle Centerset Lavatory Faucet
Metal Speed Connect pop-up drain. Metal Lever
Handle.
9-5/8"
(244 mm)
4"
(102 mm)
4-1/2"
(114 mm)
4-7/8"
(124 mm)
4-1/2"
(114 mm
7-5/16"
(185 mm)
3-5/16"
(84 mm)
4-7/16"
(112 mm)
4-7/8"
(124 mm)
6-1/8"
(156 mm)
1" (22 mm)
1" (22
2-1/4"
(57 mm) MAX.
2-1/4"
(57 mm) MA
1-3/8"
(35 mm) DIA.
MOUNTING
HOLE
1-1/4" OD
(32 mm OD)
7" MAX
8 mm MAX)
1-1/4" OD
(32 mm OD)
7" MAX
(178 mm MAX)
GENERAL DESCRIPTION:
PRODUCT FEATURES:
Durable metal spout. 1/4 turn washerless ceramic disc
valve cartridges. Metal lever handles. One-half inch brass
male inlet shanks with brass supply nuts. 20 inch (500mm)
long flexible stainless steel drain cable is pre-assembled to
faucet body. Metal Speed Connect® drain body with 1-1/4
inch (32mm) tail piece. 1.2 gpm/4.5L/min. maximum flow
rate.
Ceramic Disc Valve Cartridge: Assures a lifetime of
smooth handle operation and drip-free performance.
Exclusive Speed Connect Metal Drain:
• Fewer parts. Installs in less time.
• No adjustments required - seals the first time, every time.
• Flexible stainless steel cable - installs effortlessly in
tight spaces.
Lead Free: Faucet contains ≤ 0.25% total lead content by
weighted average.
Choice of Finishes: Wide range of durable finishes.
SUGGESTED SPECIFICATION:
4" centerset lavatory faucet shall feature metal spout. Shall also feature 1/4 turn washerless ceramic disc valve cartridges. Shall also
feature a metal drain body with stainless steel cable actuation. Fitting shall be American Standard Model # 7018.201.___.
© 2017 AS America Inc.
4/17
EDGEMERE®
TWO-HANDLE CENTERSET LAVATORY FAUCET
ANSI A117.1
ASME A112.18.1
CSA B125.1
NSF 61/Section 9
NSF 372
FLOW RATE*
1.4
1.2
GALLONS PER MINUTE
CODES AND STANDARDS
These products meet or exceed the following codes
and standards:
1.0
0.8
0.6
0.4
0.2
0.0
0
20
40
60
80
INLET PRESSURE (PSI)
*Flow rates shown are for mixed hot and cold.
Finish Options
Product
Number
7018.201
Description
Polished
Chrome
Legacy
Bronze
Brushed
Nickel
002
278
295
Edgemere ® 4" centerset lavatory faucet.
Metal Speed Connect ® pop-up drain.
Meets the American Disabilities Act Guidelines
ANSI A117.1 Requirements for the
physically challenged.
© 2017 AS America Inc.
4/17
