 SLANE |

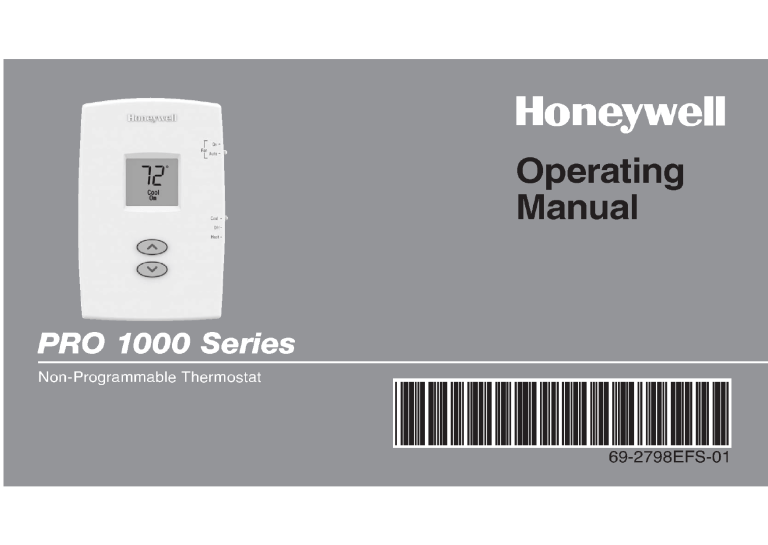

PRO 1000 Series
Non-Programmable Thermostat
This manual covers the following models:
TH1100DV: For 1 Heat systems
TH1110DV: For 1 Heat/1 Cool systems
TH1210DV: For 2 Heat/1 Cool heat pump systems
(Pull thermostat from wallplate and turn over to find model number.)
CAUTION: EQUIPMENT DAMAGE HAZARD.
To prevent possible compressor damage, do not operate cooling system when outdoor
temperature Is below 50°F (10°C).
Need Help?
For assistance with this product please visit http://yourhome.honeywell.com
or call Honeywell Customer Care toll-free at 1-800-468-1502
Read and save these instructions.
® U.S. Registered Trademark. Patents pending.
Copyright © 2013 Honeywell International Inc. All rights reserved.
Table of contents
About your new thermostat
Thermostat features ee
Quick reference to controls .........................
Quick reference to display...........................
Operation
Select system setting...
Select fan setting es
Adjust the temperature................................
Compressor protection................................
Appendices
Battery replacement... ne 9
Customer assistance 10
In case of difficulty suce 11
Limited warranty......................eeeeoenreveceeeo 13
69-2798EFS—O01
About your new thermostat
Your new Honeywell thermostat has been designed to give you many years of reliable
service and easy-to-use, push-button climate control.
Features
* Backlit display is easy to read
* Displays ambient (measured) temperature at all times
* One-touch access to setpoint temperature
* Built-in compressor protection
69-2798EFS—O01 2
Quick reference to controls
Fan Switch (see page 6)
On: Fan runs continuously.
Auto: Fan runs only when heating
or cooling system Is on.
D
- DA: switch (see page 5)
Ls * Cool: Cooling system control.
* Off: All systems off.
а» не * Heat: Heating system control.
— * Em Heat: Emergency & Auxiliary Heat control.
<> Compressor is locked out. (Select models only.)
Up/Down buttons
Press to adjust
temperature.
M34675
3 69-2798EFS—O01
Quick reference to display screen
Setpoint indicator Temperature
Appears when the setpoint —— о The ambient (measured) temperature 15
temperature Is displayed во, : | normally displayed. To view the setpoint
temperature, press the Up or Down
button once. The setpoint temperature
Goo will appear for five seconds.
Low battery warning
(see page 9) M34802
System status
Cool on: Cooling system is on.
Heat on: Heating system is on.
Aux On: Auxiliary heat is on. (Only for heat pumps with this capability [select models only].)
When “Heat On” or “Cool On” is flashing, compressor protection is engaged (see page 8).
69-2798EFS—O01 4
Select the system setting
CI
se
Set SYSTEM
switch to
control the
heating or
cooling system.
The SYSTEM switch can be set to control
your heating or cooling system, depending
on the season.
* Cool: Cooling system control.
e Off: All systems are off.
* Heat: Healing system control.
* Em Heat: Emergency & Auxiliary Heat
control. Compressor is locked out.
(Select models only.)
CAUTION: EQUIPMENT DAMAGE
A HAZARD. To prevent possible
compressor damage, do not operate
cooling system when outdoor
temperature is below 50°F (10°C).
69-2798EFS—O01
Select the fan setting
г.|| — Set FAN switch to
choose whether
the fan runs
continuously or
>> only as needed.
69-2798EFS—O01
Set the FAN switch to Auto or On.
In “Auto” mode (the most commonly used
setting), the fan runs only when the heating
or cooling system is on.
If set to “On,” the fan runs continuously.
Adjust the temperature
Press A or Y to adjust the temperature.
Note: Make sure the thermostat is set to the
system you want to control (heat or cool).
Cool
O
se
=
Gi
h
CT
~]
Ti
7 69-2798EFS—O01
Built-in compressor protection
Set 1 7
Cool
On
M32769
Message flashes until safe restart
time has elapsed.
69-2798EFS—O01
This feature helps prevent damage to the com-
pressor in your air conditioning or heat pump
system.
Damage can occur if the compressor is restarted
too soon after shutdown. This feature forces the
compressor to wait 5 minutes before restarting.
During the wait time, the display will flash the
message Cool On (or Heat On if you have a
heat pump model). When the safe wait time has
elapsed, the message stops flashing and the
compressor turns on.
Battery replacement
Pull at bottom to
remove thermostat
from wallplate.
Turn thermostat over,
insert fresh AAA
alkaline batteries,
then reinstall ther-
mostat.
Install two fresh AAA batteries when
Lo Batt flashes on the screen. Lo Batt
appears for 60 days before the batter-
les are depleted.
Replace batteries once a year, or
when you will be away for more than a
month.
The settings are stored In non-volatile
(permanent) memory and are thus pre-
served when the thermostat is without
batteries.
69-2798EFS—O01
Customer assistance
Pull at bottom to For assistance with this product,
remove thermostat - | please visit
from wallplate. > 0 AN http://yourhome.honeywell.com.
=
N N Or call Honeywell Customer Care
Turn thermostat over to e ES ^^ toll-free at 1-800-468-1502.
find model number and ep |. |
of |: г. To save time, please note your
date code. т Г.
— © TT model number and date code
a 5 J before calling.
;
69-2798EFS—O01 10
In case of difficulty
If you have difficulty with your thermostat, please try the following suggestions.
Most problems can be corrected quickly and easily.
Display is blank o
Heating or cooling
system does not
respond
Check circuit breaker and reset If necessary.
Make sure power switch at heating & cooling system is on.
Make sure furnace door is closed securely.
Make sure fresh AAA alkaline batteries are correctly installed (see page
9).
Set system switch to Heat (see page 5). Make sure the temperature is
set higher than the Inside temperature.
Set system switch to Cool (see page 5). Make sure the temperature is
set lower than the Inside temperature.
Wait 5 minutes for the system to respond.
11 69-2798EFS—O01
In case of difficulty
Temperature
settings do not
change
“Heat On” or
“Cool On” Is
flashing
“Heat On” Is not
displayed
“Cool On” is not
displayed
69-2798EFS—O01
Make sure heating and cooling temperatures are set to acceptable ranges:
Heat: 40° to 90°F (4.5° to 32°C).
Cool: 50° to 99°F (10° to 37°C).
Compressor protection feature is engaged. Wait 5 minutes for the system to
restart safely, without damage to the compressor (see page 8).
Set the System switch to Heat, and set the temperature level above the
current room temperature (see page 5).
Set the System switch to Cool, and set the temperature level below the
current room temperature (see page 5).
12
2-year limited warranty
Honeywell warrants this product, excluding battery, to be free from defects in the workmanship or materials, under normal use and
service, for a period of two (2) years from the date of purchase by the consumer. If at any time during the warranty period the product
is determined to be defective or malfunctions, Honeywell shall repair or replace it (at Honeywell's option).
If the product is detective,
(1) return it, with a bill of sale or other dated proof of purchase, to the place from which you purchased it; or
(IN) call Honeywell Customer Care at 1-800-468-1502. Customer Care will make the determination whether the product should be
returned to the following address: Honeywell Return Goods, Dock 4 MN10-3860, 1885 Douglas Dr. N., Golden Valley, MN 55422, or
whether a replacement product can be sent to you.
This warranty does not cover removal or reinstallation costs. This warranty shall not apply if it is shown by Honeywell that the detect or
malfunction was caused by damage which occurred while the product was in the possession of a consumer.
Honeywell's sole responsibility shall be to repair or replace the product within the terms stated above. HONEYWELL SHALL NOT
BE LIABLE FOR ANY LOSS OR DAMAGE OF ANY KIND, INCLUDING ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES
RESULTING, DIRECTLY OR INDIRECTLY, FROM ANY BREACH OF ANY WARRANTY, EXPRESS OR IMPLIED, OR ANY OTHER
FAILURE OF THIS PRODUCT. Some states do not allow the exclusion or limitation of incidental or consequential damages, so this
limitation may not apply to you.
THIS WARRANTY 15 THE ONLY EXPRESS WARRANTY HONEYWELL MAKES ON THIS PRODUCT. THE DURATION OF ANY
IMPLIED WARRANTIES, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE,
IS HEREBY LIMITED TO THE ONE-YEAR DURATION OF THIS WARRANTY.
Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. This warranty
gives you specific legal rights, and you may have other rights which vary from state to state.
If you have any questions concerning this warranty, please write Honeywell Customer Relations, 1985 Douglas Dr, Golden Valley, MN
55422 or call 1-800-468-1502. In Canada, write Retail Products ON15-02H, Honeywell Limited/ Honeywell Limitee, 35 Dynamic Drive,
Toronto, Ontario M1V4Z9.
13 69-2798EFS—O01
Automation and Control Solutions
Honeywell International Inc.
1985 Douglas Drive North
Golden Valley, MN 55422
Honeywell Limited-Honeywell Limitee
35 Dynamic Drive
Toronto, Ontario M1V 479
http://yourhome.honeywell.com
® U.S. Registered Trademark
© 2013 Honeywell International Inc.
69-2798EFS—01 M.S. 05-13
Printed in U.S.A.
