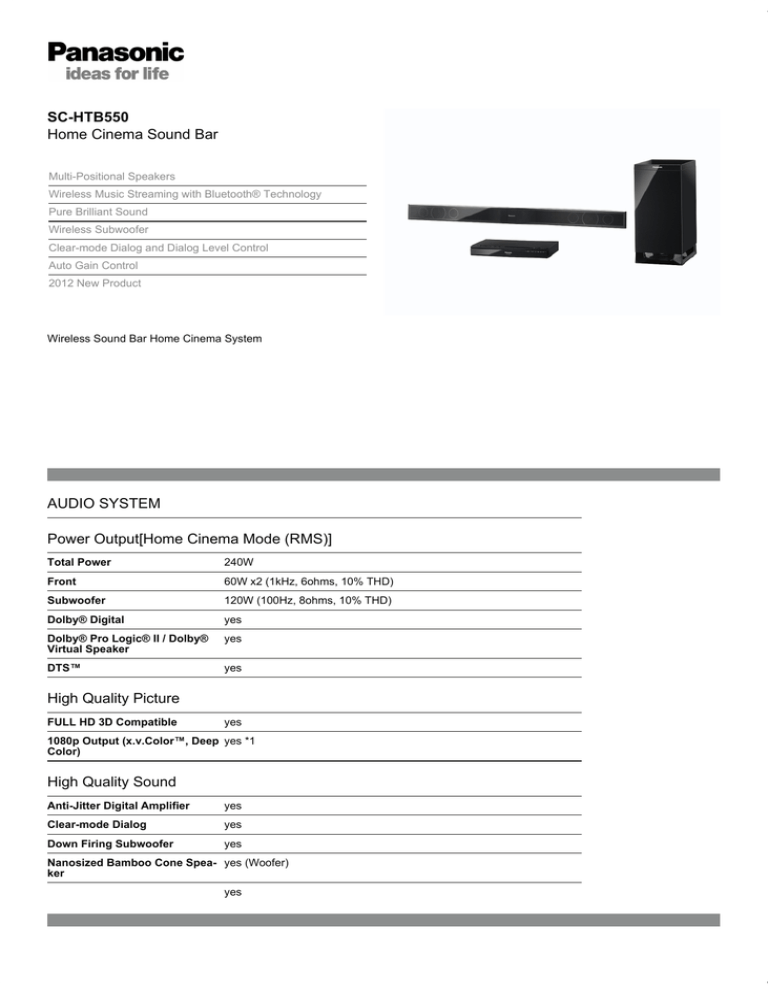

SC-HTB550
Home Cinema Sound Bar
Multi-Positional Speakers
Wireless Music Streaming with Bluetooth® Technology
Pure Brilliant Sound
Wireless Subwoofer
Clear-mode Dialog and Dialog Level Control
Auto Gain Control
2012 New Product
Wireless Sound Bar Home Cinema System
AUDIO SYSTEM
Power Output[Home Cinema Mode (RMS)]
Total Power
240W
Front
60W x2 (1kHz, 6ohms, 10% THD)
Subwoofer
120W (100Hz, 8ohms, 10% THD)
Dolby® Digital
yes
Dolby® Pro Logic® II / Dolby®
Virtual Speaker
yes
DTS™
yes
High Quality Picture
FULL HD 3D Compatible
yes
1080p Output (x.v.Color™, Deep yes *1
Color)
High Quality Sound
Anti-Jitter Digital Amplifier
yes
Clear-mode Dialog
yes
Down Firing Subwoofer
yes
Nanosized Bamboo Cone Spea- yes (Woofer)
ker
yes
Up to 7.1ch Linear PCM Input via
HDMI
Easy to Use
Multi-Positional Speakers
yes
Wireless Subwoofer
yes
Dialog Level Control
yes
Auto Gain Control
yes
ARC (Audio Return Channel)
yes
VIERA Link™ (HDAVI Control 5) yes
Auto Lip Synchronization Functi-yes
on
Wall-Mountable
yes
Front
Configuration
2 way 2 speaker, Bass-reflex
Speaker Unit [Approx.]
Woofer: 6.5 cm Cone Type x1
Tweeter: 2.5 cm Semi-dome Type x1
Subwoofer
Configuration
1 way 1 speaker, Bass-reflex (Down Firing)
Speaker Unit [Approx.]
Woofer: 16 cm Cone Type
Networking
Bluetooth® Wireless Link Functi-yes
on
Terminal
HDMI Output
yes (TV)
HDMI Input
yes (2) (BD/DVD,AUX1)
Optical Input
yes (2) (TV,AUX2)
Analog Audio Input
RCA
-
3.5mm
-
Others
Power Supply
AC 220-240V, 50Hz
Power Consumption (Total) [Approx.]
Normal Use
50W
Standby
0.4W
Power Consumption (Main Unit) [Approx.]
Normal Use
33W
Standby
0.2W
Power Consumption (Subwoofer) [Approx.]
Normal Use
23W
Standby
0.2W
Main Unit
Weight [Approx.]
1.1 kg
Dimensions (W x H x D) [Approx.]
310 x 44 x 195 mm*3
Front - Bar Style (for wall-mount)
Dimensions (W x H x D) [Approx.]
956 x 75 x 35 mm
Weight [Approx.]
1.54 kg
Front - 2.1ch Separated Style (with stand)
Dimensions (W x H x D) [Approx.]
148 x 528 x 145 mm
Weight [Approx.]
0.88 kg
Front - 2.1ch Separated Style (for wall-mount)
Dimensions (W x H x D) [Approx.]
75 x 478 x 35 mm
Weight [Approx.]
0.77 kg
Subwoofer
Dimensions (W x H x D) [Approx.]
180 x 408 x 306 mm
Weight [Approx.]
5.2 kg
NOTE
*1 x.v.Colour is a trademark.
*2 For HTB20 and HTE50, main unit is subwoofer.
*3 Excluding the projecting parts.
*Specifications are subject to change without notice. Weight and dimensions are approximate.
