commercial offices

commercial offices

designed to be better.

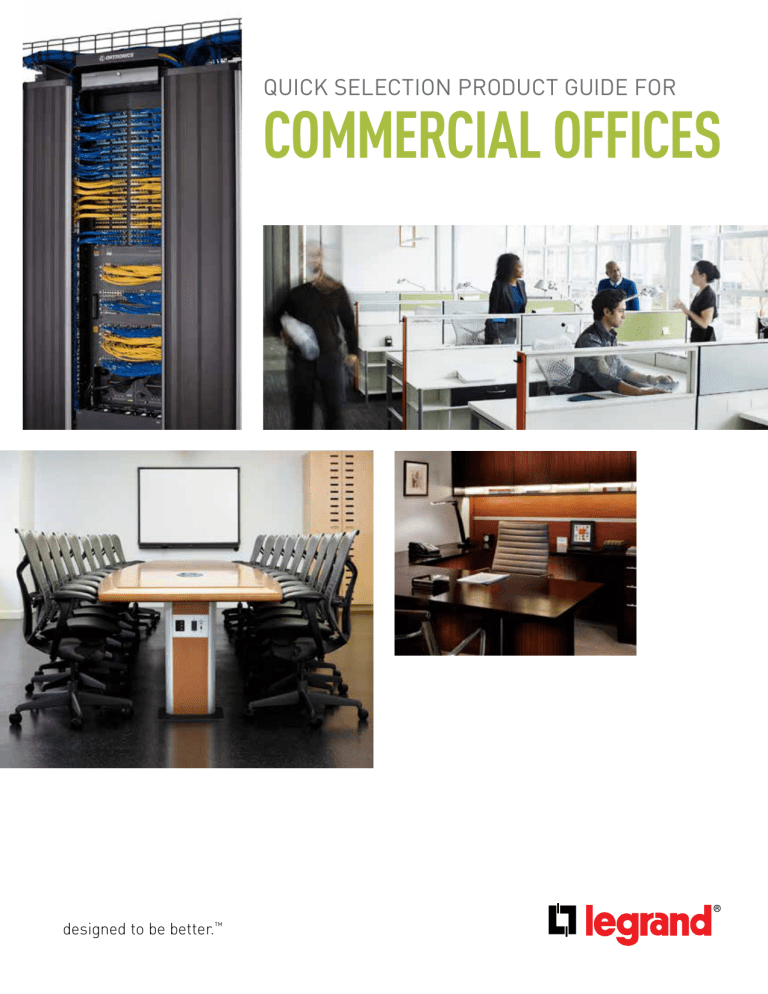

QUICK SELECTION PRODUCT GUIDE FOR

COMMERCIAL OFFICES

COMMERCIAL

FACILITIES SOLUTIONS

Today, newly constructed facilities aren’t the only ones that can boast high performance and energy efficiencies. Retrofitting an existing structure using

Legrand electrical and network infrastructure solutions can turn a tired, out-of-date building into a high performance, cost-saving infrastructure.

Welcome to the next generation of commercial buildings, where connectivity, energy efficiency, flexibility and infrastructure all come together under one roof, by design.

From data centers to commercial offices, workspaces to conference rooms as well as training rooms to education centers, you can rely on Legrand to deliver a building that’s more competitive – with reduced ownership costs.

CONNECTIVITY,

ENERGY,

EFFICIENCY,

FLEXIBILITY

All under one roof, by design

Better productivity – innovative solutions that will save time and money in planning and installation.

Better connectivity – smart technology to bring voice, video, data and power wherever you need it.

Better flexibility and versatility – high-performance electrical, data and A/V solutions that easily accommodate moves, adds and changes and open-space designs.

Better energy savings and sustainability – superior energy efficiency helps contribute to LEED certification and support green building practices.

b a g a d b e

c a b

f

PARKING AREA

Electric Vehicles (EVs) are hitting the road in a big way and Legrand can help keep you ahead of the curve with our new line of electric vehicle chargers and mounting pedestals.

Available in a variety of configurations, these devices will deliver a full charge in just three to six hours. Perfect for public parking spaces, they’re safe, easy to install and fully code compliant.

Electric Vehicle Charging Stations.........22

Fixture Integrated Outdoor Sensors ......30

a b

RECEPTION

No-hassle check-in, a safe, open environment plus access to internet and informational entertainment are quickly becoming the norm in today’s modern facilities. Legrand solutions allow you to create open floor plans from the atrium to reception while providing access to power, A/V and communications.

USB Charger Outlet ...............................23

Lighting Controls ...................................25

Vista Architectural

Columns ................10

Viewpoint

Security Badging System ....52

A/V Racks ...............................................46

Vista Architectural

Pedestal

With USB Charging ................................10

New Work Recessed TV Box ..................24

f g a b

c d e

SECURITY ROOM

Security is more important than it ever has been in the past. Security centers must have multiple video systems running on secure servers that Legrand products make possible.

Security Monitoring Area .......................52

OFR Overfloor Series Raceway ................8

a b

3 2

WWW.LEGRAND.US

DATA CENTER

With a large increase in digital records, data centers are vital to today’s commercial facilities.

The increase in digital record keeping means that networks need stronger security and larger storage capabilities. Legrand’s datacom solutions are flexible and scalable to accommodate current and future expansions.

g f a EZ Patch ................................................. 42 b

Clarity Copper Solutions ........................ 37 c

Mighty Mo Wall Mount Cabinet .............. 33 d e

Mighty Mo 20 Cable Management .......... 32

Fiber Systems ........................................ 37

GX Cabinet .............................................. 34

Wire Mesh Cable Tray ............................ 20 a b

c d e

VIDEO CONFERENCING ROOM

Effective video conferencing suites are designed to accommodate large displays and the ever-changing array of accompanying electronic components. Middle Atlantic VTC

Series Teleconferencing products provide all this and more in stylish and functional products designed to enhance conference rooms and adapt easily to changes in equipment and resources.

Worksurface Modular Power ................. 19

Lighting Controls ................................... 25

VTC Series Video Telepresence Center ...55

InteGreat

Transition Channel ............... 16

Adapt one cable type to another with

C2G adapters

4

WWW.LEGRAND.US

i b f e d c a d e a

c b d a g h j i l f b d

c k e f c b e a g

MEETING ROOM

Commercial facilities now include conference rooms that are used for conferences, education and meetings. These rooms all need access to communication technology, and provide for cutting edge

A/V and communication connectivity.

The InteGreat Series provides an easy and aesthetic way to meet the needs of these high-performing meeting spaces.

Lighting Controls ................................... 25

InteGreat

Cable Management .............. 16

InteGreat

Transition Channel ............... 18

Evolution

Series Poke-Thru Devices .... 12

A/V Credenza Rack ................................. 50

PlugTail

®

Device ..................................... 25

Wire Mesh Cable Tray ............................ 20

Daylighting Sensors ............................... 27

Evolution

Series Ceiling Boxes ............ 14

TechPed

Series Technology Pedestal .. 51

InteGreat

A/V Table Boxes with

Cable Retractors .................................... 16

Adapt one cable type to another with

C2G adapters k l a b

c d f e j i h g

WORKSTATIONS

Bring everything your network offers to your workstations easily and efficiently while being able to move, add or change your configurations quickly.

Nonmetallic Raceway with

Integrated Services ..................................8

Tele-Power

®

Poles .................................10

a

Isole Plug Load Control .........................31

USB Charger Outlet ................................. 23

Evolution

Series Poke-Thru Devices ..... 12 e

Tablesource Worksurface Portals .........16

f

Evolution

Series Floor Boxes ...............11

g b c d

5

a b c

EXECUTIVE OFFICE

Legrand provides advanced automation solutions to improve energy efficiency in executive offices. By pairing WattStopper

®

Digital Lighting Management (DLM) with Pass & Seymour

®

Plug Load controllable receptacles, sensordriven lighting control systems react to occupant movement and better manage light levels with automated controls to save energy. Protect expensive electrical equipment against power surges with P&S Surge Protection Devices.

Digital Lighting Management (DLM) ......26

Surge Protection Device ........................23

Plug Load Controllable Receptacles......23

a b

c d e f

TRAINING ROOM

Some commercial facilities require state-of-the-art classrooms, lecture halls and more. And most need meeting rooms with video conferencing capabilities. Legrand products enable flexible power management while meeting a variety of A/V needs.

4000

®

Series Metal Raceway ....................8

OFR Overfloor Series Raceway ................8

Lighting Controls ...................................25

Worksurface Modular Power .................19

A/V Racks ...............................................46

Evolution

Series Wall Box ....................15

c f a b c a b d e d a

6

WWW.LEGRAND.US

WIREMOLD

®

PLUGMOLD

®

MULTIOUTLET SYSTEMS

Plugmold

®

Multioutlet Systems are an excellent choice for applications where space is minimal but multiple outlets for power are required.

Note: Color Codes: Ivory Painted [V], Gray

Painted [G], Black Painted [BK], White

Painted [WH], Stainless Steel [S], and

Anodized Aluminum [AL].

Part Number

20GB206

20BG306

20IG306

20GB506

20GB512

20GBA512

20IG512

20GB606

20GB609

20GB612

20GB618

20GBA609

20GBA612

20GBA618

20IG606

24R312TRS15

24R512TRS15

20GB306TR

20GB306TRGFI

PLUGMOLD MULTIOUTLET SYSTEMS CONFIGURATION MATRIX

OUTLETS (15A 125V NEMA

5-15R)

Finish

S

V, G, BK, WH, S

V, G

V, G, BK, WH, S

V, G, BK, WH, S

V, G

V, G

V, G, BK, WH, S

V, G

V, G, BK, WH, S

V, G

V, G

V, G

V, G

V, G

BK, WH

BK, WH

AL, V, G, BK, WH, S 6

AL, V, G, BK, WH, S 6

6

6

6

6

3

5

ft

3

5

3

3

5

5

6

6

5

6

6

GBA

GBA

GBA

IG

GB

GB

GB

GB

2GB

GB

IG

GB

GB

GBA

IG

GB

GB

GB

GB

Length

[mm]

[915mm]

[915mm]

[915mm]

[1.5m]

[1.5m]

[1.5m]

[1.5m]

[1.8m]

[1.8m]

[1.8m]

[1.8m]

[1.8m]

[1.8m]

[1.8m]

[1.8m]

[915mm]

[1.5m]

[1.8m]

[1.8m]

Wiring

Config.

9

12

18

6

12

12

6

6

Center Distance

Inches [mm]

6

6

6

6

12

12

12

6

9

12

18

[152mm]

[152mm]

[152mm]

Outlet

QTY

[152mm] 10 Single

[305mm]

[305mm]

[305mm]

[229mm]

[305mm]

[457mm]

4 Single

6 Single

6 Single

5 Single

5 Single

5 Single

[152mm] 12 Single

8 Single

6 Single

4 Single

[229mm] 8 Single

[305mm] 6 Single

[457mm] 4 Single

[152mm] 12 Single

[305mm] 3 Duplex

[305mm] 5 Duplex

[152mm]

[152mm]

6 Single

6 Single

USB PLUGMOLD

®

MULTIOUTLET SYSTEMS

Plugmold

®

Multioutlet Systems are an excellent choice for applications where space is minimal but multiple outlets for power are required. They are now available with multiple USB charging options that provide power and USB charging options for any application.

Part Number Finish ft

Length

[mm]

Wiring

Config.

Center Distance in [mm]

Outlet

QTY

20GB306TRUSB V, G, BK, WH, S, AL

20GB506TRUSB V, G, BK, WH, S, AL

3 [914mm]

5 [1.5m]

GB

GB

PLUGMOLD WITH USB MODULE

6 [152mm] 1 USB / 5 Single

6 [152mm] 1 USB / 9 Single

20GB506TRUSB V, G, BK, WH, S, AL

20USB312

20USB512

V, G, BK, WH, S, AL

V, G, BK, WH, S, AL

6 [1.8m] GB 6 [152mm] 1 USB / 11 Single

ALL USB PLUGMOLD

[229mm] 3 USB Modules 3 [914mm] GB/USB 9

5 [1.5m] USB 12 [305mm] 5 USB Modules

ALTERNATING USB-POWER RECEPTACLE PLUGMOLD

20GB509TRUSBA V, G, BK, WH, S, AL 5 [1.5m] GB/USB 9

Color Codes: “V” for Ivory Painted, “G” for Gray Painted, “BK for Black Painted, “WH” for White Painted, “S” for Stainless Steel, and “AL” for Anodized Aluminum.

7

WIREMOLD

®

RACEWAY SYSTEMS

For over 100 years, Wiremold

®

Surface Raceway Systems have provided the highest quality, most dependable solutions for building owners and facility managers.

STEEL RACEWAY PROFILES

Single-Channel Raceway Systems

700 Series

Raceway

System

Base &

Cover

500 Series 500

700 Series 700

Internal

Elbow (A)

517

717

External

Elbow (B)

518

718

Flat

Elbow (C)

511, 512

711, 712

Entrance End

Fitting (D)

5785, 5786

5785, 5786

Blank End

Fitting (E)

Cover

Clip (F)

506

706

2400 Series 2000BC 2017TC

Dual-Channel Raceway Systems

2018C 2011 2010A2 2010B

4017 4018 4011

4010DFC,

4010DFO

NONMETALLIC RACEWAY PROFILES

5400 Series

Dual-Channel Raceway Systems

Raceway

System

Base &

Cover

Internal

Elbow (A)

2300D

Series

5400

Series

2300BACD

5400TB, 5400C,

5400TC

5417FO

External

Elbow (B)

Flat Elbow

(C)

Entrance End

Fitting (D)

2317DFO 2318DFO 2311DFO 2310DFO

5418,

5418FO

5411FO 5410DFO

4010B

Blank End

Fitting (E)

2310B

5410

2006

Cover

Clip (F)

2306

5406A,

5406T

1-Gang

Box (G) 2-Gang Box (H)

5748

5748-2, 5747-2,

5744-2

5748

2048

5748-2, 5747-2,

5744-2

2048-2

1-Gang Box

(G)

2-Gang Box

(H)

2348D 2348D-2A

ALUMINUM RACEWAY PROFILES

Dual-Channel Raceway Systems

ALA 4800

Raceway

System

ALDS4000

ALA4800

Base &

Cover

ALDS4000B

ALDS4000C

ALA4800B-10

ALAC-5

Internal

Elbow (A)

ALDS4017

ALA4817

External

Elbow (B)

ALDS4018

ALA4818

Flat Elbow

(C)

ALDS4011

ALA4811

Entrance End

Fitting (D)

ALDS4010A

ALA4810B2

Blank End

Fitting (E)

ALDS4010B ALDS4006

ALA4010B

Cover Clip

(F)

ALA4806

1-Gang Box

(G)

ALDS4047C

ALDS4047D

ALDS4047R

ALA-E, ALA-

DR, ALA-G,

ALA-MABRT,

ALA-ABRT

OVERFLOOR RACEWAY PROFILES

Multiple Channel Overfloor Raceway

OFR Series

Raceway

System

Base &

Cover

Internal

Elbow (A)

External

Elbow (B)

Flat

Elbow

(C)

Entrance End

Fitting (D)

Blank End

Fitting (E)

Cover Clip

(F)

1-Gang

Box (G)

OFR Series OFRBC-8

OFR11,

OFR17

OFR48-GX OFR15 OFR10A,

OFR10IW

OFR89-2400,

OFR89-4000,

OFR89-DS4000,

OFR89-VIS

OFR48-2MRTC

OFRWC,

OFR6

2-Gang

Box (H)

N/A

2-Gang

Box (H)

OFR48-2 OFR48-4

TYPICAL RACEWAY SYSTEM LAYOUT

G

KEY

A – Internal Elbow

B – External Elbow

C – Flat Elbow

D – Entrance End Fitting

E – Blank End Fitting

F – Cover Clip

G – 1-Gang Device Box

H – 2-Gang Device Box

D

A

B

H

A

H

E

8

F

C

WWW.LEGRAND.US

H H

H

H

M6SR

WIREMOLD

®

Part Number

M6BZ

M6BZ-15

M6BZR

M6BZR-15

M6BZNET

M6BZNET-15

M6S

M6S-15

M6SR

M6SR-15

R610

R612

15ft

6ft

15ft

6ft

15ft

6ft

Cord

Length

6ft

15ft

6ft

15ft

6ft

15ft

PLUG-IN OUTLET CENTER UNITS & SURGE STRIPS

Sentrex

®

High Performance Surge Protector Series and the Perma Power® Computer Grade Surge Protector Series include a wide range of solutions for point-of-use surge protection applications. By dissipating and diverting excess voltage,

Sentrex and Perma Power surge protection devices keep your critical systems functioning properly. Commercial quality putty white 2” x 1-3/4” [44mm x 51mm} aluminum construction withstands years of hard use. All models have 6 outlets and are rated 15A, 125Vac. Non-surge units are also available. Surge Units are UL Listed to UL1449, Third Edition. Non-surge units are UL Listed to UL1363.

Enclosure Length

13 1/4” [337mm]

13 1/4” [337mm]

13 1/4” [337mm]

13 1/4” [337mm]

18” [457mm]

18” [457mm]

15 1/4” [387mm]

15 1/4” [387mm]

15 1/4” [387mm]

15 1/4” [387mm]

12 1/4” [311mm]

12 1/4” [311mm]

Remote

Switch

No

No

Yes - 44”

Cord Length

Yes - 44”

Cord Length

No

No

No

No

Yes - 44”

Cord Length

Yes - 44”

Cord Length

No

No

Surge Type

Perma Power 36,000 amps

Perma Power 36,000 amps

Perma Power 36,000 amps

Perma Power 36,000 amps

Perma Power 36,000 amps

Perma Power 36,000 amps

Sentrex 56,000 amps

Sentrex 56,000 amps

Sentrex 56,000 amps

Sentrex 56,000 amps

Non-Surge

Non-Surge

No

Yes

Yes

No

No

No

No

No

No

RJ45

Network

Surge

No

No

No

Warranty

Term

5 Years

5 Years

5 Years

5 Years

5 Years

5 Years

Lifetime

Lifetime

Lifetime

Lifetime

2 Years

2 Years

Connected

Equipment

Warranty

$10,000

$10,000

$10,000

$10,000

$10,000

$10,000

$30,000

$30,000

$30,000

$30,000

None

None

M6BZNET with data line protector

M6BZ

9

WIREMOLD

®

VERTICAL SOLUTIONS

ORDERING GUIDE

Part

Number

Outlets

Height

Inches [mm]

Finish

Capacity

THHN THWN UTP

#10 #12 4-PR 25-PR

25DTP-4*

25DTP-412*

25DTP-415*

30TP-4V

30TP-412V

AMDTP-4

Two Duplex

Receptacles

[20A, 125V]

10’5” [3.175m]

12’5”

10’5”

[3.780m]

15’5” [4.700m]

[3.175m]

Ivory/

Gray

Ivory

AMDTP-412

12’5”

10’5”

12’5”

* Add -DG for designer gray finish.

[3.780m] Ivory

[3.175m]

[3.780m]

Anodized

Aluminum

10

18

18

10

15

18

18

15

49

49

30

15

10

10

11

6

TELE-POWER EXPRESS POLE AND POLE EXTENDERS

Easier Job Site Handling – More Reliable Shipping Options

Tele-Power Express Poles and Tele-Power Pole Extenders were introduced to make creating or altering poles easy. The TP Express Pole allows you to create a single 10' pole using two sections, which are easy to ship and easy to assemble on the job site.

Configurability of the TPP Extenders allows for on site modifications to accommodate a variety of ceiling heights. TP Express Poles and TPP Extenders can ship UPS or air freight. TPP

Extenders have been designed to be compatible with existing poles, so relocating is literally, a snap – quick, easy, and done with in-stock components. Existing poles can also be retrofit/ extended to be used in a location with a higher ceiling using TPP Extenders.

25DTP-4

15.875"

[403mm]

1"

[25mm]

30TP-4V

Power

14.25"

[365mm]

1"

[25mm]

VISTA

ARCHITECTURAL COLUMNS

Vista

Architectural Columns provide aesthetically pleasing configurable solutions for power, communications and AV services in open spaces. An easy to use configurator is available at www.legrand.us/vista.

AMDTP-4

Communications

Tele-Power Extenders: 25DTC-E5,

Tele-Power Express Poles: 25DTP-E10, 25DTC-E10

Tele-Power Pole Extenders Accessory Pack: 25AM-AP

15.875"

[403mm]

1"

[25mm]

Small

ROUND PROFILE

Large

3 25/32"

[96mm]

3 25/32"

[96mm]

3 25/32"

[96mm]

Small

SQUARE PROFILE

3 25/32"

[96mm]

Large

8 29/32"

[226mm]

13 3/8"

[340mm]

8 29/32"

[226mm]

13 3/8"

[340mm]

Part Number

VS662345

VS662345FF

VL662345

Description

Small frame, round end channels

Small frame, round end channels

Furniture feed

Large frame, round end channels

VL662345FF

VSP5662345

VLP5662345

Large frame, round end channels

Furniture feed

Pedestal format.

Small frame, round end channels

Pedestal format.

Large frame, round end channels

VSP5662345USB USB charging pedestal.

Small frame, round end channels.

10

WWW.LEGRAND.US

Outlets

Two Duplex Receptacles (20A, 125V) located 27" (686mm) above the floor

Three Duplex Receptacles (20A, 125V) located 27" (686mm) above the floor

Two 20A Duplex Receptacles located 32 1/4” (819mm) above the floor

Four 20A Duplex Receptacles located 32 1/4” (819mm) above the floor

Four 20A duplexes with dual USB charging – two on each side

Dimensions

10'6" x 8 29/32" x 3 25/32"

(3200mm x 276mm x 96mm)

10'6" x 8 29/32" x 3 25/32"

(3200mm x 276mm x 96mm)

10'6" x 13 3/8" x 3 25/32"

3200mm x 340mm x 96mm)

10'6" x 13 3/8" x 3 25/32"

3200mm x 340mm x 96mm)

36” x 13 1/8” x 8”

914mm x 333mm x 203mm)

36” x 17 5/8” x 8”

3200mm x 448mm x 203mm)

2'6" x 8 29/32" x 3 25/32"

3200mm x 340mm x 96mm)

Finish

Anodized Aluminum

Anodized Aluminum

Anodized Aluminum

Anodized Aluminum

Anodized Aluminum

Anodized Aluminum

Anodized Aluminum

EFB8S

WIREMOLD

®

Product

Evolution Series Floor

Box – 6 Gang

Evolution Series Floor

Box - 6 Gang, on grade

EVOLUTION

SERIES FLOOR BOXES

Evolution

Series Floor Boxes are the latest advancement in the most complete and innovative line of floor solutions in the industry.

Part Number Cover

Cover Part

Numbers

Cover

Color

EFB6S

EFB6S-OG

Dimensions Capacity

15 18" [384mm] x 11

3/16" [284mm] x 4

1/16" [103mm]

16 18" [384mm] x 11

3/16" [284mm] x 4

1/16" [103mm]

Uses standard size device plates – single gang (2 3/4" x 4 1/2"

[70mm x 114mm]) - six (6) per box

Uses standard size device plates – single gang (2 3/4" x 4 1/2"

[70mm x 114mm]) - six (6) per box

Evolution Series Floor

Box - 6 Gang, fire classified

EFB6S-FC

Evolution Series Floor

Box - 8 Gang

EFB8S

Evolution Series Floor

Box - 8 Gang, on grade

EFB8S-OG

Evolution Series Floor

Box - 8 Gang, fire classified

EFB8S-FC

Evolution Series

10 Gang

Evolution Series Floor

Box - 10 Gang, on grade

Evolution Series Floor

Box - 10 Gang, fire classified

EFB10S

EFB10S-OG

EFB10S-FC

16 18" [384mm] x 11

3/16" [284mm] x 4

1/16" [103mm]

16 18" [384mm] x 11

3/16" [284mm] x 4

1/16" [103mm]

16 18" [384mm] x 11

3/16" [284mm] x 4

1/16" [103mm]

16 18" [384mm] x 11

3/16" [284mm] x 4

1/16" [103mm]

16 18" [384mm] x 11

3/16" [284mm] x 4

1/16" [103mm]

16 18" [384mm] x 11

3/16" [284mm] x 4

1/16" [103mm]

16 18" [384mm] x 11

3/16" [284mm] x 4

1/16" [103mm]

Uses standard size device plates – single gang (2 3/4" x 4 1/2"

[70mm x 114mm]) - six (6) per box

Surface Style

Cover with

Carpet Insert

Uses standard size device plates – single gang (2 3/4" x 4 1/2" – up to eight (8) per box – double gang (4 9/16" x 4 1/2") – up to four (4) per box – triple gang (6 3/8 x 4

1/2") – up to two (2) per box

Flush Style

Cover with

Solid Lid

Uses standard size device plates – single gang (2 3/4" x 4 1/2" – up to eight (8) per box – double gang (4 9/16" x 4 1/2") – up to four (4) per box – triple gang (6 3/8 x 4

1/2") – up to two (2) per box

Uses standard size device plates – single gang (2 3/4" x 4 1/2" – up to eight (8) per box – double gang (4 9/16" x 4 1/2") – up to four (4) per box – triple gang (6 3/8 x 4

1/2") – up to two (2) per box

Uses non-standard size device plates

– single (4.652" x 2.302" [117mm x

58mm]) – ten (10) per box

Uses non-standard size device plates

– single (4.652" x 2.302" [117mm x

58mm]) – ten (10) per box

Uses non-standard size device plates

– single (4.652" x 2.302" [117mm x

58mm]) – ten (10) per box

Flush Style

Cover with

Solid Lid

Surface Style

Cover with

Solid Lid

EFB610CTCBK

EFB610CTCGY

EFB610CTCNK

EFB610CTCBZ

EFB610CTCBS

EFB610BTBK

EFB610BTGY

EFB610BTNK

EFB610BTBZ

EFB610BTBS

EFB610CTBK

EFB610CTGY

EFB610CTNK

EFB610CTBZ

EFB610CTBS

EFB610BTCBK

EFB610BTCGY

EFB610BTCNK

EFB610BTCBZ

EFB610BTCBS

Black

Gray

Nickel

Bronze

Brass

Black

Gray

Nickel

Bronze

Brass

Black

Gray

Nickel

Bronze

Brass

Black

Gray

Nickel

Bronze

Brass

Evolution

Series Floor Box

11

WIREMOLD

®

POKE-THRU DEVICES

Wiremold

®

Poke-Thru Devices expand the capacity, capabilities, and aesthetics of infloor power and communication in open office layouts.

RECESSED STYLE POKE-THRU DEVICES

Maximum Copper

Cross-Sectional Area

Model Series Capacity

Fire

Classification

Hours Rating

Outer Channel Center

Flange/

Cover

Diameter

Conduit Stem

Diameter

6" CORE HOLE

6ATC Series

• A/V

• Prewired

• Unwired

6ATCFF Series

• Furniture feed

Three Duplex Receptacles or

Twelve Communication Ports or

Ten Legrand AVIP AV Device plate or Ten Extron

®

MAAP Plates or

Two Extron

®

AAP Plates or any combination of the above

Power

3/4" Trade Size

Opening

Ten AWG

Conductors

Comm/Data

1 1/4" & 2"

Concentric

Trade Size

Openings

28 Cat 6

Conductors

Two Hours

Two Hours

0.0154in

2

[9.9mm

2

]

0.0387in

2

[24.97mm

2

]

Power Outer

Channel

0.0815in2

[52.60mm2]

Data Outer Channel

0.0187in2

[12.10mm2]

Data Channel

0.0686in

2

[44.30mm

2

]

7 1/4"

[184mm]

7 3/4"

[197mm]

3/4" Conduit for

Outer Channel,

Maximum

1 1/4" Conduit for

Center Channel

3/4" Conduit for

Outer Channel,

Maximum

2" Conduit for

Center &

Outer Channel

8" CORE HOLE

Surface

6ATCBK, 6ATCBS,

6ATCNK 6ATCBZ,

6ATCGY

8ATC Series

• A/V

• Prewired

• Unwired

UNWIRED

Flush

Five Duplex Receptacles or Twentytwo Communication Ports or

Sixteen Legrand AVIP AV device plates or Sixteen Extron

®

MAAP

Plates or Four Extron

®

AAP Plates or any combination of the above

6ATBK, 6ATBS, 6ATNK

6ATBZ, 6ATGY

Surface

Two Hours

PREWIRED

Flush

6ATBK, 6ATBS, 6ATNK

6ATBZ, 6ATGY

0.0154

2

[9.90mm

2

]

6ATPBK, 6ATPBS,

6ATPNK 6ATPBZ,

6ATPGY

6ATCFFBK, 6ATCFFBS,

6ATCFFNK 6ATCFFBZ,

6ATCFFGY

8ATBK, 8ATBS, 8ATNK

8ATBZ, 8ATGY

FLUSH STYLE POKE-THRU DEVICES

8ATCPBK, 8ATCPBS,

8ATCPBZ, 8ATCPNK,

8ATCPGY

8ATPBK, 8ATPBS,

8ATPNK 8ATPBZ,

8ATPGY

0.0775

2

[16.60mm

2

]

Surface

6ATCPAVBK, 6ATCPAVBS,

6ATCPAVNK, 6ATCPAVBZ,

6ATCPAVGY

Maximum Copper

Cross-Sectional Area

9 1/4"

[235mm]

A/V

Flush

3/4" Conduit for

Outer Channel,

Maximum

2" Conduit for

Center Channel

6ATPAVBK, 6ATPAVBS,

6ATPAVNK 6ATPAVBZ,

6ATPAVGY

Model Series Capacity

Fire

Classification

Hours Rating

Power Communications

Flange/ Cover

Diameter

Conduit Stem

Diameter

4" CORE HOLE

RC4 Series

Two Duplex Receptacles & 4 Ports for Communication Devices

Two Hours

0.03072in

2

[19.82mm2]

0.00800in

2

[5.16mm

2

]

8 1/4"

[210mm]

One 3/4" Trade

Size Conduit

AV3 Series

One Duplex Receptacle – 3 Single

Width Extron Electronics MAAP

Adapter Plates or 4 Ports for

Communication Devices

Two Hours

0.01536in

2

[9.91mm

2

]

0.01938in

2

[12.50mm

2

]

8 1/4"

[210mm]

One 3/4" & One

1 1/4" Trade

Size Conduit

Die-cast aluminum cover assemblies for

Evolution Series Poke-Thru Devices are available in the following powder coated colors: gray (GY), black (BK), nickel (NK), brass (BS), and bronze (BZ).

Evolution Series

AV3 Series

12

WWW.LEGRAND.US

WIREMOLD

®

MEETING ROOM SOLUTIONS

MEETING ROOM SOLUTIONS

Wiremold

®

Meeting Room Solutions bring power and technology closer to the user’s work area. With an integrated set of products, power, communications and A/V cables & connections are managed from the building infrastructure to the work surface. Under Table Cable Management (UTCM) and the Meeting Room Transition Channel (MRTC) are designed to organize and retain cables while allowing ready accessibility to these services. Ease of ordering, installing and upgrading your meeting rooms provide you the power and technology you need to conduct business without cords and cables getting in the way.

I

INTEGRATED SOLUTIONS STRATEGY

InteGreat

A/V Table Boxes with InteGreat

Cable Retractors keep cables protected and organized. Combine this with other InteGreat

™ products like InteGreat

Under Table Cable

Management and InteGreat

Transition

Channel. These InteGreat

Series products were specifically designed to work and fit together, offering complete end-to-end cable management solutions.

H

H

F

A

B

D

E

A

B

D

E

G

C

C

C

A AVIP Device Plates Audio video interface plates and devices mounted in

InteGreat

A/V Table Box.

B InteGreat

A/V Table Box – Provides unique work surface solution to deliver devices access on the table surface and is fed from InteGreat™ UTCM system.

C InteGreat

Cable Retractors – Protects and organizes cabling while keeping table surface free of excess cabling.

D InteGreat

Under Table

Cable Management – Provides clean cable management for power, communication and A/V cables on the underside of the table.

E InteGreat

Transition Channel –

Connects with Poke-Thru devices or OFR Series Overfloor Raceway to transition cables from the floor to the underside of the table.

F OFR Series Overfloor Raceway – Feeds power, communication and A/V cabling from wall to the underside of meeting table when feeding through the floor is not possible.

G Evolution

Series Poke-Thru Device –

Delivers power, communication and A/V cabling through the floor.

H Evolution

Series A/V Wall Box –

Provides power, communication and

A/V services to flat screen monitors, while allowing the monitor to sit flush against the wall.

I Evolution

Series Ceiling Box –

Fully finished enclosure designed to manage and store A/V and IT equipment in an air handling plenum space above a false ceiling.

13

MEETING ROOM SOLUTIONS

EVOLUTION

SERIES CEILING BOX

Fully finished enclosure designed to manage and store A/V and IT equipment in an air handling plenum space above a false ceiling.

WIREMOLD

®

EVOLUTION

SERIES CEILING BOX MODEL SELECTION GUIDE

Evolution

Ceiling Box

Model

ECB2S ECB2SP ECB2S-CR ECB2SP-CR

23 3/4” x 23 3/4” x 6 3/4” [603mm x 603mm x 171mm] BOX SIZE:

INSTALL TYPE:

False Ceiling

Hard Ceiling

YES

YES

YES

YES

YES

YES

YES

YES

SHELF

CAPACITY:

RECEPTACLES:

2RU 2RU 2RU 2RU

6 7

4 Controlled,

2 Uncontrolled

4 Controlled,

3 Uncontrolled

ECB2S-RLNK

YES

YES

2RU

4 Controlled,

2 Uncontrolled

REMOVABLE

SHELVES:

PROJECTOR

MOUNT:

YES YES

No

Yes, Up to 50 lbs.

White White

YES

No

COVER

COLORS:

KO SIZE

RANGE:

(Trade Size)

1/2” to

2”

1/2” to

2”

White

1/2” to 2”

NOTE: Trim flange and decorative cover are paintable

YES

Yes, Up to 50 lbs.

White

1/2” to 2”

YES

No

White

1/2” to 2”

ECB2SP-

RLNK

YES

YES

2RU

4 Controlled,

3 Uncontrolled

YES

Yes, Up to 50 lbs.

White

1/2” to 2”

WIREMOLD

®

MEETING ROOM SOLUTIONS

EVOLUTION

SERIES WALL BOX

The Evolution

Series line of innovative products continues to expand with the introduction of the new Evolution Series

Hinged Wall Boxes. These boxes offer a sleek, clean look that architects love along with the functionality and flexibility that engineers and contractors require. Designed for both new work and old work applications, these boxes are available in both

4- and 8-gang versions to accommodate ever-increasing power, communications, and A/V requirements.

Product

Part

Number

4-Gang Wall Box, two module box

EHWB4

8-Gang Wall Box, one module box

EHWB8

EVOLUTION

SERIES HINGED WALL BOX

Cover

Dimensions

Box Dimensions Capacity Color

9 1/2” [241mm] x 13” [330mm]

14” [356mm] x

13” [330mm]

7 7/8” [200mm] x

10 7/8” [275mm] x 3 7/8” [98mm]

10 7/8” [275mm] x 10 7/8”

[275mm] x 3 7/8”

[98mm]

Four (4) NEMA size openings for power, communications or

A/V devices

Eight (8) NEMA size openings for power, communications or

A/V devices

White or

Black

White or

Black

Product

Part

Number

4-Gang Wall Box, two module box

EFSB4

2-Gang Wall Box, one module box

EFSB2

Dimensions of

Front Plate

13" [330mm] x

8 3/4" [222mm]

13" [330mm] x

8 3/4" [222mm]

EVOLUTION

SERIES A/V WALL BOX

Dimensions of

Back Box

Capacity Color

11 1/4" [287mm] x 10 7/8"

[275mm] x 3

7/8" [92mm]

11 1/4" [287mm] x 10 7/8"

[275mm] x 3

7/8" [92mm]

Four (4) NEMA size openings for power, communications or

A/V devices

Two (2) NEMA size openings for power, communications or

A/V devices

White

White

14

WWW.LEGRAND.US

15

MEETING ROOM SOLUTIONS

WIREMOLD

®

TABLE BOXES

Wiremold

®

Table Boxes bring technology closer to the user's work area.

Product

InteGreat

Svc. Location

@ Table

Cord

Length

Field Wired

Whip length

A/V Table Box Recessed

12' 6'

Cover Color/

Material

Electrical Outlets

Black,

Aluminum

Three 15A receptacles, two inside table box, and one underneath

Communication

Openings

Up to 5 available using InteGreat

Cable Retractors or

Wiremold AVIP plates

AV Openings

Up to five (5) Wiremold

AVIP device plates or five

(5) Extron

®

Electronics

MAAP device plates

InteGreat

Cable

Retractors

Underneath or with

InteGreat

A/V Table

Box

5' N/A Black N/A N/A N/A deQuorum

Recessed

Table Boxes deQuorum

Flip-Up

Table Boxes

Recessed

Above

12'

6'

6'

6'

Gray, Black

Black,

Stainless

(2) 20A

Duplexes Gasketed

Adapters for

Ortronics

®

Series II, TracJack or Wiremold Open

System

(1) 15A or 20A Duplex,

(1) USB Duplex

Receptacle

Adapters for

Ortronics

®

Series II or TracJack and Wiremold Open

System

N/A

Cable Cord Keeper or

Wiremold AVIP Plates or

Extron double

®

Electronics MAAP modules – (6) single or (3)

TableSource

Table Boxes

Lab Bench

Pedestal

Table Box

Desktop

Power Center

Desk

Module

Above

Above

Above

Flush

6'

N/A

6'

12'

N/A

N/A

N/A

N/A

* Extron

®

Electronics MAAP modules are sold separately.

** One (1) duplex is located on the bottom of unit for convenience power.

Clear

Anodized

Aluminum

Black, White and Ivory

(1) 15A

Duplex

2 Openings with

Adapters for

Ortronics

®

Series II, TracJack or Wiremold Open

System

Clear

Anodized

Aluminum

Black, White and Ivory

One or two

15A, 20A simplex or duplex, GFCI or 30A twist lock receptacles

1-4 Openings with Adapters for

Ortronics

®

Series II, TracJack or Wiremold Open

System

Black with

Magnesium

Side Panels

Brushed

Silver with

Black Cover

(3) 15A Outlets with (2)

USB Charging Outlets or

(4) 15A Outlets

(1) 15A Duplex

N/A

RJ45

(Retractor available)

N/A

Up to five (5) Wiremold

AVIP device plates or five

(5) Extron

®

Electronics

MAAP device plates

N/A

USB Charging (USB

Retractor available)

MEETING ROOM SOLUTIONS

WIREMOLD

®

Data Device Plate

AVIP SERIES DEVICE PLATES

AVIP Series Device Plates allow for A/V connectivity in the full range of Wiremold A/V compatible pathways. Each single device plate is 2.2” x 0.7” and easily fits into Wiremold faceplates for quick installation into poke-thru devices, floor boxes, table boxes, vista columns, raceways and work surface portals.

Audio/Video Device Plate

Video Device Plate

Audio Device Plate

Computer Device Plate

AVIP DEVICE PLATES & ORDERING INFORMATION

Part

Number

Description

AV6001BK Two RCA Female to Solder Cups White

Type

Audio

Plate

Size

Single

AV7000BK One 1/4" Stereo Phone Female to Solder Tabs

AV7004BK One 3.5mm Stereo Mini Jack to Solder Tabs

AV7005BK One 3.5mm Stereo Mini Jack to Captive Screw Term

AV8008BK One XLR 3-Pin Male to Solder Cups

AV8009BK One XLR 3-Pin Female to Solder Cups

AV8010BK One Mini XLR 3-Pin Male to Solder Cups

AV8011BK One XLR 3-Pin Male to Solder Cups - Swithcraft

AV8012BK One XLR 3-Pin Female to Solder Cups - Switchcraft

AV8013BK One Mini XLR 3-Pin Male to Solder Cups - Switchcraft

AV8014BK One XLR 3-Pin Male to Solder Cups - Neutrik

AV8015BK One XLR 3-Pin Female to Solder Cups - Neutrik

AV8016BK One Mini XLR 3-Pin Male to Solder Cups - Neutrik

AV9016BK XLR Panel Mount Plate (Accepts Size D Connectors)

AV2004BK One RCA Female to BNC Female Adapter, One 3.5mm Stereo Mini

Jack to Solder tabs

AV5005BK One DVI F/F Barrel with 3.5mm Stereo with Solder Tabs

Audio

Audio

Audio

Audio

Audio

Audio

Audio

Audio

Audio

Audio

Audio

Audio

Single

Single

Single

Double

Double

Single

Double

Double

Single

Double

Double

Single

Audio Double

Audio/Video Single

AV1000BK One 15-Pin HD Female to Female

AV1002BK One 15-Pin HD Female to Five BNC on 4" Pigtails

AV4000BK One 9-Pin HD Female to Female

AV4005BK One USB B Female to USB A Female Adapter

AV9015BK One Keystone CAT6 Jack Plate

AV2002BK One RCA Female to BNC Female Adapter

AV2003BK Two RCA Female to BNC Female Adapters

AV3000BK One HDMI Female to One HDMI Female on 10" Pigtail

AV5000BK One BNC Female to Female Barrel

AV5001BK Two BNC Female to Female Barrels

Video

Video

Video

Video

AV5002BK Three BNC Female to Female Barrels Video

AV5004BK One DisplayPort Female to One DisplayPort Female on 10" Pigtail Video

Audio/Video Triple

Computer

Computer

Computer

Computer

Data

Video

Single

Single

Single

Single

Single

Single

Single

Single

Single

Single

Double

Single

AV9010BK One F-Connector Female to Female Barrel

AV9003BK Blank Plate, Single

AV9004BK Blank Plate, Double

AV9008BK One Keystone Jack Plate (Accepts Ortronics Keystones)

AV9012BK 3U CABLE KIT, 4 Openings (2 Small & 2 Large)

AV9014BK 5U CABLE KIT, 8 Openings (4 Small & 4 Large)

Video Single

Accessory Single

Accessory Double

Accessory Single

Accessory Triple

Accessory Quintuple

TableSource Table Unit

16

WWW.LEGRAND.US

deQuorum Flip-Up Table Boxes InteGreat A/V Table Box

17

MEETING ROOM SOLUTIONS

UNDER TABLE CABLE MANAGEMENT (UTCM)

Part Number

UTCM5

Description

Under Table Cable Management

Kit – Consists of a 5’ length of divided base, 5’ length of mounting hinge rail and four (4) latching clips, black, nonmetallic construction.

Base

Kit Contents

Hinge Rail

WIREMOLD

®

Latching Clips

WIREMOLD

®

MEETING ROOM SOLUTIONS

WORK SURFACE MODULAR POWER (WSMP)

Work Surface Modular Power Kits –

Make rearranging meeting rooms fast, easy, and safe by providing both under table power and cable management in one package.

MEETING ROOM TRANSITION CHANNEL (MRTC)

Part Number

Center Spine with Mounting

Plate

Side Channel

MTRC

Description

MRTC Meeting Room Transition Channel Kit –

Consists of aluminum center spine with steel mounting plate and four (4) screws, black aluminum side channels, black nonmetallic bottom boot and two (2) black nonmetallic transition covers.

Bottom Boot

Transition

Center

18

WWW.LEGRAND.US

WS

Work

Surface

Series = WS

ME

Table Box Power

Configuration:

Modular Power

Enhanced

=

ME

Modular Power

Standard

=

MP

Corded Power

Enhanced

=

CE

D

Data

2 Keystone

Openings =

D

Style:

TC

Under Table

=

UT

(No Flange)

Through Table =

TC

(Contour Flange)

NOTE: Enhanced units have cable management loops and convenience outlets under the table for powering routers or other active electronics.

72

Table Size:

72”=

72

60”=

60

SL

Cover Color:

Black =

BK

Silver =

SL

PART NUMBER CONFIGURATOR

SK -2

Table Box Kit

Configuration:

Single Kit =

SK

Double Kit =

DK

Wiring

Configuration:

Table Box wired for circuit 2 =

-2

Table Box wired for circuit 1 =

Blank

Example: WSMEDTC72SLSK-2

Table Length

Male-to-Female Cable

Female-to-Female Cable

Table Box

NOTE: Kits include table box(es), flange(s), cables and mounting clips. Enhanced

Portal Kit shown. Cables and

Connectors are wired for two circuits.

Table Boxes are either circuit 1 or circuit 2.

THROUGH TABLE ACCESS – SINGLE ENHANCED TABLE BOX KITS

WSMEDTC60SLSK, WSMEDTC60SLSK-2

Modular Power & Table Box Quick Kit for 5' Table

WSMEDTC72SLSK, WSMEDTC72SLSK-2

Modular Power & Table Box Quick Kit for 6' Table

NOTE: Kit configurations assume there is 1/2" of cabling on each side of the table to make the table-to-table connections.

THROUGH TABLE ACCESS – DOUBLE ENHANCED TABLE BOX KITS

WSMEDTC60SLDK, WSMEDTC60SLDK-2

Modular Power & Double Table Box Quick Kit for 5’ Table

WSMEDTC72SLDK, WSMEDTC72SLDK-2

Modular Power & Double Table Box Quick Kit for 6’ Table

NOTE: Kit configurations assume there is 1/2" of cabling on each side of the table to make the table-to-table connections.

UNDER TABLE ACCESS – (WHEN NOT USING A FLANGE)

WSMPDUT60BKSK, WSMPDUT60BKSK-2

Modular Power & Table Box Quick Kit for 5' Table

WSMPDUT72BKSK, WSMPDUT72BKSK-2

Modular Power & Table Box Quick Kit for 6' Table

WORK SURFACE MODULAR POWER – ACCESSORIES

WSMPHWSC72

Hardwire Starter Cable

WSMPCMM12

Connector Cable

WSMP-T

T Connector

19

CABLOFIL

®

CF 150/450

ZF 150/600*

EDRN

SWK

FASL100

FASL150

FASL200

FASL300

FASL450

FASP300

FASP450

FASU150

FASU300

FASU600

FS41

CABLOFIL

®

WIRE MESH TRAY

Cablofil

®

Wire Mesh Tray, the cable management system to handle any project. From interior data cable management to heavy-duty power installations, each are designed to install efficiently and increase your productivity.

WIRE MESH TRAY

Product

Number

Package

Qty

Depth Width Length Weight EZ BL

Custom

Paint

PG

CF 54/50 1 2” 2” 10’ 5.3

000 061 941 101 934 056

CF 54/100

CF 54/150

CF 54/200

CF 54/300

CF 105/150

1

1

1

1

1

2”

2”

2”

2”

4”

4”

6”

8”

12”

6”

10’

10’

10’

10’

10’

6.5

000 071 941 102 934 095

7.8

9.0

000 081 941 103

000 091 941 104

934 130

934 158

13.4

000 101 941 105 933 901

10.2

000 901 941 115 934 152

CF 105/200

CF 105/300

CF 105/450

CF 105/600

1

1

1

1

4”

4”

4”

4”

8”

12”

18”

24”

10’

10’

10’

10’

13.4

000 911 941 116 934 160

21.2

000 921 941 118 934 163

25.9

000 931 942 463 942 462

30.4

001 031 941 127 933 905

CF 150/300 1 6” 12” 10’ 24.4

000 961 941 122 934 174

6”

6”

RADT90KIT2

RADT90KIT4

RADT90KIT6

1

1

1

1

1

25

1

1

1

1

1

1

50

1

1

25

1

1

18” 10’ 26.5

001 011 941 125 933 902

24”

4’

6’

8’

12’

18’

12’

18’

4’

12’

24’

10’

0.4

0.8

6.4

3.3

29.5

942 466 942 474 942 475

8.8

3.6

558 241 941 281 934 032

943 215 943 217 **

941 257 930 523 556 100

941 258 930 525 556 110

941 259 930 527 556 120

941 260 930 529 556 130

942 848 942 600 556 150

941 155 930 016

941 157 930 020

14300

14450

941 268 930 577 557 420

941 270 930 581 557 440

941 273 930 587 557 470

559 007

Height

2’

4’

6’

0.66

942 911

0.66

942 912

0.67

942 942

* Products listed as “ZF” are only available in

Straight Edge Tray.

** 2" Easy Pack contains: (6)

78" sections (39') of 2" deep Cablofil Tray & 12

Preclick splices.

4", 6" and 8" Easy Pack

contains: (4) 78" sections

(26') of 2" deep Cablofil

Tray & 8 Preclick splices.

12" Easy Pack contains: (4)

78" sections (26') of 2" deep

Cablofil Tray, 8 Preclick splices & 4 SWK bolts.

Cablofil’s Optimized

Wire Size, Tray Patent

Number - 6.138.961.

All dimensions are nominal.

Finish Options:

Electrozinc Plating

Black Painted

Custom Painted

Custom Painted

† Dacromet

20

WWW.LEGRAND.US

CABLOFIL

®

CF 54

EDRN

FASU

CF 105

SWK

FS41

CF 150

FASL

RADT90KIT

21

PASS & SEYMOUR

®

ELECTRIC VEHICLE CHARGING STATIONS

Reliable, safe and user-friendly, Pass & Seymour

®

EV charging solutions make good sense, economically and environmentally, and come from an electrical innovator you can trust.

Part

Number

Output/

Power

L2EVSE30

L2EVPED1

L2EVPED2

Product Description Features

Level 2 30A EV

Charging Station

Pedestal mount for one EV charging station

(EV charging station sold separately)

Pedestal Mount for 2

EV Charging Stations

(EV charging stations sold separately)

Level 2 EV Charging Station for indoor or outdoor wall- or pedestal-mount installations

Sturdy, anodized aluminum Vista

Architectural Column for indoor and outdoor installations of one

EV charging station

• NEMA 3R weather-proof rated

• 18’ cord with cable hook for easy cord management

• Delayed start option for off-peak charging

• RoHS Compliant

• NEMA 3R weather-proof rated

Sturdy, anodized aluminum Vista

Architectural Column for indoor and outdoor installations of two

EV charging stations

• NEMA 3R weather-

proof rated

30A 208/240V

AC, Full

Charge in 3-6

Hours

L2EVPED2

(shown with

L2EVSE30 charging units, sold separately)

L2EVSE30 L2EVSE30

Handle

L2EVPED1

PLUG LOAD RF RECEPTACLE/RF SIGNAL PACK

• Achieve automatic, occupancy-based control of plug loads without the need to wire receptacles to power packs.

• Meet energy code requirements and leverage lighting controls for improved ROI

Part Number

RF26252CH*

RF26352CH*

RF26252CD*

RF26352CD*

RFP

Description

Half-Controlled

Receptacles

Dual-Controlled

Receptacles

RF Signal (Ceiling) Pack

A

15

20

15

20

Rating

VAC

125

125

125

125

Colors

I, LA, W, GRY,

BK, –, RED

NEMA Config.

5-15R

5-20R

5-15R

5-20R

RF Receptacle & Signal Pack

White

WIRING DEVICES

Pass & Seymour

®

Wiring Devices bring style, performance, durability and value, as well as key features designed to increase installer productivity and provide energy savings.

COMMERCIAL DIMMERS & OCCUPANCY SENSORS

Part Number Description

PlugTail

®

Sensors

Titan

®

Commercial

Dimmers

Ultrasonic

Ceiling Sensors

CD1603PW*

CD700W*

CD3FB103P277W*

CD4FB3PW*

Slide Single-Pole/3-Way Preset 1600W White Incandescent Dimmer

Slide Single-Pole 700W White Incandescent Dimmer

Slide Single-Pole/3-Way Preset 10A, 277V White Electronic Fluorescent Dimmer

Slide Single-Pole/3-Way 4-Wire Preset 24VDC White Electronic Fluorescent Dimmer

CD4FBL* Slide Single-Pole/3-Way Preset 0-10V Dimmer

PTWSP250W* PlugTail

®

Wall Mounted White Occupancy Sensor

PTS6STR3 PlugTail

®

Single-Pole 90 degree Switch Connector

WSP250W* PIR Wall Mount White Occupancy Sensor

OSR300SW*

WDT200W*

SWP26W*

CSU2200

CSD1000

WA2000

WA90

PIR Dual-Relay White Occupancy/Vacancy Sensor

White Bi-Level Dual Technology Wall Switch Sensor

Screwless White Single-Gang Wall Plate

Ultrasonic Ceiling Sensor 2200SF Coverage

Dual Technology Ceiling Sensor 1000SF Coverage

Wide Angle Wall Sensor PIR 24VDC

Hallway Sensor PIR 24VDC

* Products indicated by an asterisk are available in additional colors. Please check with your local representative or refer to the Pass & Seymour catalog (print version or available online at www.legrand.us/passandseymour).

22

WWW.LEGRAND.US

PASS & SEYMOUR

®

WIRING DEVICES

Pass & Seymour

®

Wiring Devices bring style, performance, durability and value, as well as key features designed to increase installer productivity and provide energy savings.

Manual

Controllers

PlugTail

®

Switches

PlugTail

®

GFCI

Receptacles

PlugTail

®

Receptacles

USB Charging

Devices

SWITCHES & MANUAL CONTROLLERS

Part Number Description

PT20AC1W*

PT20AC3W*

PlugTail

®

20A, 125/277V Single-Pole White Toggle Switch

PlugTail

®

20A, 125/277V 3-Way White Toggle Switch

PT20AC1WSL* PlugTail

®

20A, 125/277V Single-Pole White Illuminated Toggle Switch

PTS6STR3 PlugTail

®

Single-Pole 90 degree Switch Connector

PTS6STR4 PlugTail

®

3-Way 90 degree Switch Connector

SS1

7803MD

7863R

302/304 Stainless Steel Single-Gang Toggle Switch Wall Plate

30A, 600V 3-Pole, 3-Phase Manual Controller

60A 3-Pole Manual Controller within NEMA 3R Enclosure

* Products indicated by an asterisk are available in additional colors. Please check with your local representative or refer to the

Pass & Seymour catalog (print version or available online at www.legrand.us/passandseymour).

STRAIGHT BLADE RECEPTACLES & GFCI RECEPTACLES

Part Number Description

PT5362W* PlugTail

®

20A/125V White Duplex Receptacle

PTTR5362W* PlugTail

®

20A/125V White Duplex Tamper-Resistant Receptacle

PTRA6STR PlugTail

®

90 degree Receptacle Connector

PT5362SCW* PlugTail

®

20A/125V White Split-Circuit Duplex Receptacle

PTTESTER PlugTail

®

Tester for PlugTail

®

Receptacles and Receptacle Connectors

WR5362W*

SS8

White Weather-Resistant 20A/125V Duplex Receptacle

302/304 Stainless Steel Single-Gang Duplex Receptacle Wall Plate

SS82

CA8WH*

302/304 Stainless Steel Two-Gang Duplex Receptacle Wall Plate

Weatherproof Single-Gang Horizontal Mount White Duplex Cover

PT2097W* PlugTail

®

20 Amp Duplex White Self-Test GFCI Receptacle

PT2097TRW* PlugTail

®

20 Amp Duplex White Self-Test GFCI Tamper-Resistant Receptacle

PT2097NTLTRW* PlugTail

®

White Tamper-Resistant 20 Amp Combination Nightlight/Self-Test GFCI

2097TRW*

2097TRWRW*

20 Amp Duplex White Self-Test Tamper-Resistant GFCI Receptacle

Combination Weather-Resistant & Tamper-Resistant 20 Amp Duplex White Self-Test GFCI

CA26WV*

5351W*

TR5351W*

SS7

TR5362USBW

Weatherproof Single-Gang Vertical Mount White Decorator Cover

White 20A/125V Single Receptacle

White 20A/125V Single Tamper-Resistant Receptacle

302/304 Stainless Steel Single-Gang Single Receptacle Wall Plate

White 20A/125V Combination Duplex Tamper-Resistant Fed Spec Receptacle with two

USB Charging Outlets

* Products indicated by an asterisk are available in additional colors. Please check with your local representative or refer to the

Pass & Seymour catalog (print version or available online at www.legrand.us/passandseymour).

PlugTail

®

Surge

Protective

Receptacles

Isolated Ground

Receptacles

Part Number Description

PT5362WSP*

PTIG5362OSP*

PlugTail

®

White Surge Protective Device 20A/125V with Audible Alarm

PlugTail

®

Orange Isolated Ground Surge Protective Device 20A/125V with Audible Alarm

PTTR5362WSP* PlugTail

®

White Tamper-Resistant Surge Protective Device 20A/125V with Audible Alarm

PTIG5362* PlugTail

®

Orange Isolated Ground 20A/125V Duplex Receptacle

PTRA6STR PlugTail

®

90 degree Receptacle Connector

TRIG5362OSP* Orange IG Tamper-Resistant Surge Protective Device 20A/125V with Audible Alarm

TRIG5362*

SS26

TP8IG

Orange IG Tamper-Resistant 20A/125V Duplex Receptacle

302/304 Stainless Steel Single-Gang Decorator Wall Plate

Nylon Single Gang Duplex Orange Wall Plate marked “Isolated Ground”

* Products indicated by an asterisk are available in additional colors. Please check with your local representative or refer to the

Pass & Seymour catalog (print version or available online at www.legrand.us/passandseymour).

23

PASS & SEYMOUR

®

SPECIFICATION GRADE DEVICES

GFCIs 15 & 20A, 125VAC

Product Description

Product

Number

Self-Test GFCI Receptacles

New Self-Test GFCI with SafeLock

®

Protection conducts an automatic test every three seconds, ensuring it’s always ready to protect. Meets 2015 UL requirements.

Audible Alarm Self-Test GFCI Receptacle

Tamper-Resistant Self-Test GFCI Receptacle with Audible

Alarm alert of tripped condition. Alarm can be turned

ON/OFF. Alarm rated at 60 db at 10 feet. Meets 2015 UL requirements.

Combination Night Light/Tamper-Resistant

Self-Test GFCI Receptacle

High impact Resisitant lens made of Lexan

®

. Energy efficient LED has an average 20-year life expectancy, eliminating bulb replacement. Photocell turns nightlight

ON in dark, OFF in daylight.

Tamper-Resistant Self-Test GFCI Receptacle

Dual mechanical shutter system to help prevent insertion of foreign objects. Meets 2015 UL requirements.

1597*

2097*

1597TRA*

2097TRA*

1597NTLTR*CC4

2097NTLTR*

1597TR*

2097TR*

Isolated-Ground Self-Test GFCI Receptacle

Tamper-Resistant Self-Test GFCI receptacle meets 2015

UL requirements, and receptacle’s grounding system is isolated from the building’s grounding system.

NOTE: GFCIs also available in Hospital Grade and PlugTail models.

1597IGTR*

2097IGTR*

15

20

15

20

15

20

15

20

15

20

Rating

A VAC

125

125

125

125

125

125

125

125

125

125

Colors

I, W, GRY, BK, RED, LA, and –

NEMA

Config

No.

5-15R

5-20R

15 amp colors: I, W, LA,

-, BK

20 amp colors: I, W, LA, -,

BK, RED, GRY

5-15R

5-20R

I, W, BK, NI, AB,

DB, and LA

I, W, GRY, NI, AB,

DB, and LA

I, W, BK, - , NI, AB, DB, and LA

I, W, GRY, BK, - , RED and LA

15 amp colors: I, W, LA, O

20 amp colors: I, W, LA,

GRY, BK, O

5-15R

5-20R

5-15R

5-20R

5-15R

5-20R

*Color Designation

I: Ivory

-: Brown

W: White

GRY: Gray

BK: Black

LA: Light Almond

RED: Red

NI: Nickel

AB: Antique Brass

DB: Bark Bronze

O: Orange

1597TRW with plate

NEW WORK RECESSED TELEVISION BOX

NEW WORK RECESSED TV BOX & FRAME

Part

Number

TV2MW

New Work

Metal

Television

Box 2 Gang

35 6.9

7.6

3.5

Wire Fill

17 No. 4

15 No. 12

14 No. 10

TV2MW

PASS & SEYMOUR

®

WALL PLATES

SCREWLESS WALL PLATES

Part Number

SWP1*CC10

SWP8*CC10

SWP26*

Description

Toggle Switch Opening

Duplex Receptacle Opening

Decorator Opening

Colors

W, LA

W, LA

I, W, - , GRY, BK and LA

1

1

Number of Gangs

1

TRADEMASTER

®

PLATES

Part

Number

TP1

TP8

TP26

Description Colors

Toggle Switch Opening I, W, - , GRY, BK, LA and RED 1

Duplex Receptacle Opening I, W, - , GRY, BK, LA, RED, BL and OR 1

Decorator Opening

Number of Gangs

I, W, - , GRY, BK, LA, RED, BL and OR 1

*Color Designation

I: Ivory

-: Brown

W: White

GRY: Gray

BK: Black

LA: Light Almond

RED: Red

NI: Nickel

AB: Antique Brass

DB: Bark Bronze

O: Orange

NOTE: Available in multiple gangs

-- see catalog.

Back side view of TV2MW

SWP26W – Screwless Wall Plate

24

WWW.LEGRAND.US

PASS & SEYMOUR

®

PLUGTAIL

®

SINGLE POLE DECORATOR SWITCHES

Rating

Part Number Colors

A VAC

PT2601I

PT2601W

15

15

120/277

120/277

Ivory

White

PT2601

PT2601GRY

PT2601RED

PT2601BK

PT2601LA

PT2621I

PT2621W

PT2621

PT2621GRY

PT2621RED

PT2621BK

PT2621LA

20

20

20

20

20

20

15

15

15

15

15

20

120/277

120/277

120/277

120/277

120/277

120/277

120/277

120/277

120/277

120/277

120/277

120/277

Brown

Gray

Red

Black

Light Almond

Ivory

White

Brown

Gray

Red

Black

Light Almond

PLUGTAIL

®

ELECTRICAL SWITCHES

PLUGTAIL

®

THREE-WAY DECORATOR SWITCHES

Rating

Part Number Colors

A VAC

PT2603I

PT2603W

PT2603

PT2603GRY

PT2603RED

15

15

15

15

15

120/277

120/277

120/277

120/277

120/277

Ivory

White

Brown

Gray

Red

PT2603BK

PT2603LA

PT2623I

PT2623W

PT2623

PT2623GRY

PT2623RED

PT2623BK

PT2623LA

15

15

20

20

20

20

20

20

20

120/277

120/277

120/277

120/277

120/277

120/277

120/277

120/277

120/277

Black

Light Almond

Ivory

White

Brown

Gray

Red

Black

Light Almond

PLUGTAIL

®

SINGLE POLE ILLUMINATED DECORATOR SWITCHES

Rating

Part Number Colors

A VAC

PT2625I

PT2625W

PT2625BK

PT2625LA

20

20

20

20

120/277

120/277

120/277

120/277

Ivory

White

Black

Light Almond

PLUGTAIL

®

THREE-WAY ILLUMINATED DECORATOR SWITCHES

Rating

Part Number Colors

A VAC

PT2626I

PT2626W

PT2626BK

PT2626LA

20

20

20

20

120/277

120/277

120/277

120/277

Ivory

White

Black

Light Almond

PTS6STR3

PT2626W

PTRA6STR

PLUGTAIL

®

CONNECTORS FOR SINGLE POLE SWITCHES

Part Number

Rating

VAC

Type

Wire

Length

Wire Colors

PTS6STR3 120/277

3 Wire

Stranded

6"

Green, Black,

Black

PTS6SOL3

PTS6STR3277

PTS6SOL3277

120/277 3 Wire Solid 6"

120/277

3 Wire

Stranded

6"

120/277 3 Wire Solid 6"

Green, Black,

Black

Green, Brown,

Brown

Green, Brown,

Brown

PLUGTAIL

®

CONNECTORS FOR THREE-WAY SWITCHES

Part Number

Rating

VAC

Type

Wire

Length

Wire Colors

PTS6STR4 120/277

4 Wire

Stranded

6"

Green, Red,

Red, Black

PTS6SOL4

PTS6STR4277

PTS6SOL4277

120/277 4 Wire Solid 6"

120/277

4 Wire

Stranded

6"

120/277 4 Wire Solid 6"

Green, Red,

Red, Black

Green, Brown,

Yellow, Yellow

Green, Brown,

Yellow, Yellow

25

90%

90%

90%

90%

90%

90%

90%

90%

90%

72°

72°

WATTSTOPPER

®

90%

90%

90%

DIGITAL LIGHTING MANAGEMENT

72°

Control strategies for superior energy performance management

72°

90%

72°

90%

Control Strategy

On/off Switching

Relays controlled by occupancy sensors, daylighting sensors, scheduling and/or personal controls turn lighting on when it is needed and off at other times to save energy

Dimming/Multi-level Control

Manages energy by adjusting the lighting level, or recalling lighting scenes, in response to occupancy,

High End Trim

Reduces the maximum light level for energy savings when the lighting is on

Plug Load Control

Turns off task lighting and devices plugged in to selected outlets after hours or when an area is vacant

Occupancy-based Control

Turns lighting off when an area is vacant using passive infrared (PIR), ultrasonic or dual technology sensors

Daylighting Control

Manages the electric light level as the daylight contribution changes

Personal Control

72°

Saves energy through manual-on and auto-on to 50% control strategies that keep lights off, or at reduced levels, until needed

Shade Control

Adjusts motorized shades to reduce glare and minimize thermal gain

AV Integration

Allows third party systems to command DLM, and enables coordination of A/V, touch screens, shading and lighting controls

Scheduling

Saves energy by establishing time-based normal hours and after hours behaviors and sequences of operation

Room Area

Whole

BLDG

• • •

• • •

• • •

• • •

• • •

• • •

• • •

• • •

• • •

• • •

72°

90%

Contact Closure Integration

Communicates occupancy status to HVAC and enables third party inputs for efficient operation

Power Monitoring

72°

Provides fast, affordable access to lighting and plug load energy use with per occupant granularity

BACnet Integration

72°

Turns lighting off when an area is vacant using passive infrared (PIR), ultrasonic or dual technology sensors

Remote Device Configuration

Makes it easier to fine tune settings including sensitivity and time delay to maximize energy savings

Demand Response

Dims lighting or turns off selected electrical loads in response to utility requests to minimize peak loads

• • •

• • •

• • •

Web Browser-based Control

Manage from anywhere, on- or off-site, using standard web browser-based user interface

Advanced Integration and Customization

Ultimate native control of data points and additional DLM parameters built on the Niagara framework

26

WWW.LEGRAND.US

WATTSTOPPER

®

Feature Legend

ON/OFF - ON/OFF SWITCHING

DIM - DIMMING

NOZ - NUMBER OF ZONES

RJ45 - NUMBER OF RJ45 PORTS

PNG - PLUG N' GO

AC - AUTOMATIC CALIBRATION

INTERFACES AND ACCESSORIES

Part Number Description Function

LMRL-100

LMIO-101

LMIO-102

Isolated Relay

Interface

Input/Output

Interface

Partition

Interface

Single-pole, double throw relay communicates occupancy status

Single-pole, double throw relay communicates occupancy status of selected sensor(s) Accepts inputs from up to three 3rd party devices

Accepts inputs from 3rd party contact closures on 4 moveable walls

LMIO-301

Photocell Input

Module

Reads input from analog photocells

LMDI-100

LMIR-100

LMRJ

LMKT-100

Serial Data

Interface

Communicates with 3rd party control system via

RS-232 signals

Digital IR

Ceiling Mount

Receiver

Pre-terminated cable

Pre-packaged

Room level solution

Infrared transceiver accepts commands from DLM

IR remote controls and transmits them over DLM local network

Cable connects DLM components on local network, segment wire creates segment network

Contains room controller, dual technology ceiling mount sensor, digital wall switch and LMRJ cables

DIGITAL LIGHTING MANAGEMENT

Product Matrix

Part

Number

Description

DAYLIGHTING SENSORS

Voltage

Features

LMLS-400

Single-zone On/Off and Dimming Closed

Loop Photosensor

24 VDC; 7mA

• •

1 1

• •

LMLS-500

Multi-zone On/Off and Dimming Open

Loop Photosensor

24 VDC; 7mA

• •

3 1

LMLS-600

Single-zone Dual Loop Switching and

Dimming Photosensor

24 VDC; 7mA

• •

1 1

• •

NETWORK COMPONENTS

Part Number Description Function

LMBC-300

LMSM-3E

LMSM-6E

NB-SWITCH

NB-SWITCH-8

NB-SWITCH-16

NB-ROUTER

Network Bridge

Provides segment network connectivity to one DLM local network

Segment Manager,

3 MS/TP segment networks

Segment Manager, for use with

NB-ROUTER(s)

Provides browser based remote control and management for

DLM devices connected to a segment network

Global Network

Switches

Segment Network to IP Router

Provides high speed connectivity for Digital

Lighting Management

(DLM) networked systems

Provides a connection point between a single Digital Lighting

Management (DLM) segment network and an Ethernet LAN

LMAX-100 NIAGARA AX

DRIVER MODULE

Niagara AX Driver

Module

CONFIGURATION TOOLS

Free driver streamlines integration between

DLM and Niagara AX framework

LMCT-100

Wireless

Configuration Tool

Enables convenient system and device modifications via pushbutton. Stores up to nine sensor profiles.

LMCI/LMCS

Computer

Interface Tools and

Software

Enables PC connection to DLM local network in order to modify or document device and system settings.

27

WATTSTOPPER

®

DIGITAL LIGHTING MANAGEMENT

Product Matrix

ROOM CONTROLLERS

Part Number Description Voltage

Features

Load Ratings

LMRC-101

LMRC-102

1-relay On/Off Room Controller

2-relay On/Off Room Controller

120/277VAC

120/277VAC

Ballast: 20A

Incan: 20A

Motor: 1Hp

Ballast: 20A

Incan: 20A

Motor: 1Hp

1

2

LMRC-211

LMRC-211-347*

LMRC-212

LMRC-212-347*

LMRC-213

LMRC-213-347*

LMRC-221

120/277VAC

1-relay On/Off 0-10V Dimming Room

Controller

2-relay On/Off 0-10V Dimming Room

Controller

3-relay On/Off 0-10V Dimming Room

Controller

347VAC*

120/277VAC

347VAC*

120/277VAC

347VAC*

1-relay On/Off Forward Phase Dimming

Room Controller

120/277VAC

2-relay On/Off Forward Phase Dimming

Room Controller

120/277VAC LMRC-222

PLUG LOAD CONTROLLERS

LMPL-101 Plug Load Room Controller 120VAC

LMPL-201

Plug Load Room Controller with

Current Monitoring

*15A Ballast only

Ballast: 20A

Incan: 20A

Motor: 1Hp

120VAC

Ballast: 20A

Incan: 20A

Motor: 1Hp

Ballast: 20A

Incan: 20A

Motor: 1Hp

Feature Legend

ON/OFF - ON/OFF SWITCHING

DIM - DIMMING

NOR - NUMBER OF RELAYS

Ballast: 20A

Incan: 20A

Motor: 1Hp

• •

2 2

Ballast: 20A

Incan: 20A

Motor: 1Hp

• •

3 3

Incandescent, MLV, LED: 20A 2-wire or 3-wire ballast: 16A

• •

1

4

Incandescent, MLV, LED: 20A 2-wire or 3-wire ballast: 16A

• •

2

4

4

4

1 1

1

1

0-10V DIM - 0-10V DIMMING OUTPUT

CM - CURRENT MONITORING

RJ45 - NUMBER OF RJ45 PORTS

4

3

4

3

3

28

WWW.LEGRAND.US

WATTSTOPPER

®

Part Number

LMPW-101

LMPW-102

LMDW-101

LMDW-102

LMPX-100

LMPC-100

LMUC-100

LMDX-100

LMDC-100

Description

1-button PIR Wall Switch Occupancy

Sensors

2-button PIR Wall Switch Occupancy

Sensors

1-button Dual Technology Wall Switch

Occupancy Sensors

2-button Dual Technology Wall Switch

Occupancy Sensors

Corner Mount PIR Occupancy Sensor

Ceiling Mount PIR Occupancy Sensor

Ceiling Mount Ultrasonic Occupancy

Sensor

Corner Mount Dual Technology

Occupancy Sensor

Ceiling Mount Dual Technology

Occupancy Sensor

DIGITAL LIGHTING MANAGEMENT

Product Matrix

OCCUPANCY SENSORS

Features

Voltage Coverage

24VDC; 8mA

24VDC; 8mA

24VDC; 20mA

24VDC; 20mA

24VDC; 7mA

24VDC; 7mA

24VDC; 20mA

Up to 40 ft. (major motion)

Up to 25 ft. (minor motion)

Up to 40 ft. (major motion)

Up to 25 ft. (minor motion)

Up to 40 ft. (major motion)

Up to 25 ft. (minor motion)

Up to 40 ft. (major motion)

Up to 25 ft. (minor motion)

LMPX-100: high density lens, up to 1,000 ft2

LMPX-100-1: long range lens, up to 90 ft.

LMPX-100-3: 2-sided aisleway lens, up to 60 ft.

LMPX-100-4: 1-sided aisle lens, up to 60 ft.

LMPC-100: extended range lens, up to 1,200 ft

2

LMPC-100-1: high density lens, up to 500 ft

2

LMPC-100-5: extended height lens, up to 3,800 ft

2

LMUC-100-2: up to 1,000 ft

2

1

2

2

24VDC; 20mA

LMDX-100: up to 2,000 ft

2

(walking) up to 1,000 ft

2

(desktop)

1

24VDC; 20mA LMDC-100: up to 1,000 ft

2

2

2

2

2

2

Feature Legend

LS - LOAD SWITCHING

LD - LOAD DIMMING

SC - SCENE CONTROL

RJ45 - NUMBER OF

RJ45 PORTS

LCD - LCD- DISPLAY

CP - CONFIGURATION

PROFILES

Part Number

LMSW-100 Series

LMDM-101

LMSW-105

LMPS-104

LMRH-102

LMRH-101

LMRH-105

Description Voltage

1-, 2-, 3-, 4- and 8-button Digital Wall

Switches

24 VDC; 5mA

PERSONAL CONTROLS

Features

• • •

2

1-button Dimming Wall Switch

5-button Scene Switch

4-button Partition Switch

2-button IR Remote Control

1-button Dimming IR Remote Control

3 AAA batteries

3 AAA batteries

5-button Scene IR Remote Control

24 VDC; 5mA

24 VDC; 5mA

24 VDC; 5mA

3 AAA batteries

• •

• •

• • •

2

• •

2

2 16

29

DIGITAL HIGH/LOW PASSIVE INFRARED FIXTURE

INTEGRATED OUTDOOR SENSOR

The FSP-211 mounts in an outdoor lighting fixture and provides multi-level control based on motion. The sensor also includes a photocell to measure the ambient light level. It controls 0-10 VDC LED drivers or dimming ballasts, as well as non-dimming ballasts and, with an FSP-Lx Lens, is rated for wet and cold locations. All control parameters are adjustable via a wireless configuration tool capable of storing and transmitting sensor profiles.

ORDERING INFORMATION

Part Number

FSP-211

FSIR-100

Description

Fixture mount, passive infrared motion sensor

Remote handheld configuration tool

Input Voltage

120/277V, 50/60Hz or 230V, 50Hz

(3) 1.5V AAA alkaline batteries

Fully adjustable high and low dimmed light levels

Adjustable via handheld wireless configuration tool

Designed for LED fixtures; rated for extreme temperatures and up to

200,000 on/off cycles

IP66 rated with choice of lenses for wet and outdoor locations, and mounting heights from 8’ to 40’

Adjustable time delay and cut off delay Hold off setpoint with automatic calibration option for convenience and added energy savings

LENSES FOR PASSIVE INFRARED FIXTURE

INTEGRATED OCCUPANCY SENSORS

FS-Lx lenses work with FSP-211 motion sensors to provide multi-level lighting control based on motion and the ambient light level. Four lens choices provide flexibility for varying mounting heights.

ORDERING INFORMATION

Part Number Description

FSP-L2

FSP-L3

FSP-L4

FSP-L7

360° lens, maximum coverage 48’ diameter from 8’ height

360° lens, maximum coverage 40’ diameter from 20’ height

360° lens, maximum coverage 60’ diameter from 40’ height

360° lens, maximum coverage 100’ diameter from 40’ height

Four interchangeable lenses for FSP-211 fixture sensors

Coverage choices for mounting heights between 8-40 feet

IP66 rated when installed in outdoor-rated fixture

Mounts easily onto sensor component from fixture exterior

WATTSTOPPER

®

30

WWW.LEGRAND.US

WATTSTOPPER

®

Compact line voltage sensor with integral lens for all high bay applications range of -40° to 130°F

HIGH/LOW BAY PASSIVE INFRARED OCCUPANCY SENSOR

The HBP Series High Bay Passive Infrared (PIR) Occupancy Sensors provide automatic control of individual LED and fluorescent lighting fixtures in indoor high bay spaces.

Adjustible time delay and hold-off daylighting level

HBP-111 adjustable via handheld wireless configuration tool

360° coverage from 15’-40’; rotatable snap-on aisleway masking

Part Number

HBP-111-L7

HBP-112-L7

HBP-EM1

HBP-SM1

HBP-L7

FSIR-100

HBP-111-L7-OEM

HBP-111-L7-EM1-OEM

HBP-111-L7--SM1-OEM

HBP-112-L7-OEM

HBP-112-L7-EM1-OEM

HBP-112-L7-SM1-OEM

Color

White

White

White

White

White

White

White

White

White

White

White

White

Description

High/low bay PIR sensor with IR remote capability

High/low bay PIR sensor, no IR capability

High/low bay extender module

High/low bay surface mount module

Spare L7 lens for HBP-111 or HBP-112

Remote handheld configuration tool

HBP-111-L7, bulk packed

HBP-111-L7 and HBP-EM1, bulk packed

HBP-111-L7 and HBP-SM1, bulk packed

HBP-112-L7, bulk packed

HBP-112-L7 and HBP-EM1, bulk packed

HBP-112-L7 and HBP-SM1, bulk packed

120, 277, 347V,

60Hz or 230V, single phase, 50Hz operation

The HBP-L7 lens covers a

100’ diameter area when mounted at a height of 40’.

0'

15'

27'

40'

50' 40' 30' 20' 10' 0' 10' 20' 30' 40' 50'

Voltage

ORDERING INFORMATION

120/230(1P,L-N)/277/347 VAC

120/230(1P,L-N)/277/347 VAC

3) 1.5V AAA alkaline batteries

120/230(1P,L-N)/277/347 VAC

120/230(1P,L-N)/277/347 VAC

120/230(1P,L-N)/277/347 VAC

120/230(1P,L-N)/277/347 VAC

120/230(1P,L-N)/277/347 VAC

120/230(1P,L-N)/277/347 VAC

ISOLE PLUG LOAD CONTROL

The Isolé IDP-3050 is an energy-saving control system that provides maximum surge and noise suppression while keeping plug load equipment off when there is no occupancy. It consists of an eightoutlet power strip and a personal occupancy sensor.

Part Number

IDP-3050-A

DI-110

ORDERING INFORMATION

Description

Eight-outlet power strip with personal sensor

Auto-on personal sensor

31

ORTRONICS

®

MIGHTY MO 20 CABLE MANAGEMENT SYSTEM

Mighty Mo racks and cable management solutions have been stragically designed from the ground up to protect network integrity. Cable management is not just an add-on accessory, it is the basis for our design.

Part Number Description

MM20 Channel Racks

OR-MM20716

OR-MM20816

OR-MM20916

OR-MM20730

OR-MM20830

OR-MM20930

MM20 4 Post Racks

OR-MM20730FXD38

OR-MM20830FXD38

16.25" Channel 45 Ru, 7' 12-24 Tapped Holes

16.25" Channel 51 Ru, 8' 12-24 Tapped Holes

16.25" Channel 58 Ru, 9' 12-24 Tapped Holes

30" Channel 45 Ru, 7' 12-24 Tapped Holes

30" Channel 51 Ru, 8' 12-24 Tapped Holes

30" Channel 58 Ru, 9' 12-24 Tapped Holes

OR-MM20736ADJ38

OR-MM20836ADJ38

OR-MM20742ADJ38

OR-MM20842ADJ38

30" Dp 4Post 45 Ru, 7' 3/8 Square Holes

30" Dp 4Post 51 Ru, 8' 3/8 Square Holes

36" Dp 4Post Adjustable 45 Ru,

7' 3/8 Square Holes

36" Dp 4Post Adjustable 51 Ru,

8' 3/8 Square Holes

42" Dp 4Post Adjustable 45 Ru,

7' 3/8 Square Holes

42" Dp 4Post Adjustable 51 Ru,

8' 3/8 Square Holes

Vertical Markets

OR-MM20VMD706

OR-MM20VMD806

OR-MM20VMD906

OR-MM20VMD710

OR-MM20VMD810

OR-MM20VMD910

OR-MM20VMD712

OR-MM20VMD812

6.5" W Vertical Manager With Door 7'

6.5" W Vertical Manager With Door 8'

6.5" W Vertical Manager With Door 9'

10" W Vertical Manager With Door 7'

10" W Vertical Manager With Door 8'

10" W Vertical Manager With Door 9'

12" W Vertical Manager With Door 7'

12" W Vertical Manager With Door 8'

OR-MM20VMD912 12" W Vertical Manager With Door 9'

Lightweight Air Baffles

OR-MM20ABL71612

OR-MM20ABL73012

Use With Mm20716 And Mm20vmd712

Use With Mm20730 And Mm20vmd712

OR-MM20ABL81612

OR-MM20ABL83012

Use With Mm20816 And Mm20vmd812

Use With Mm20830 And Mm20vmd812

OR-MM20ABL91612

OR-MM20ABL93012

Accessories

Use With Mm20916 And Mm20vmd912

Use With Mm20930 And Mm20vmd912

OR-MM20UCT2X2

OR-MM20BLC

OR-MM20CMS10

OR-MM20CMS6

OR-MM20CMR3

OR-MM20CMR6

2X2 Trough With Hex Mounting For Channel

Racks

6" Bend Limiting Clip For Vertical Managers

11" L Cable Management Spools 10" And 12"

Vertical Managers

6" L Cable Management Spools 6" Vertical

Manager

3" Cable Management Rings

6" Cable Management Rings

Part Number Description

Overhead Cable Passageways

OR-60401001 2 Ru, 23.6" W X 7.4" H, 90 Lb Capacity

OR-60401015

OR-6041089

5 Ru, 23.6" W X 12.6" H, 90 Lb Capacity

8 Ru, 23.6" W X 18.1" H, 90 Lb Capacity

Tooless Snap In Filler Panel

OR-BFPT-1RU 19" W 1 Ru 10 Pk

OR-BFPT-2RU 19" W 2 Ru 10 Pk

Mighty Mo 20

FIBER RACEWAY

Part Number

OR-PCG4W

OR-PCG4WA4X4

OR-MMFCG4WC4X4

OR-MMFCG4WCK4X4

Description

Pathway Cable Guide 4" W

Pathway Cable Guide, 4" W Adapter To

4X4 Duct

Pathway Cable Guide , 4" W With Cover

Pathway Cable Guide Kit, 4" W Includes 4X4

Adpater, Cover, 90 Down Elbow

32

WWW.LEGRAND.US

ORTRONICS

®

WALL MOUNT CABINETS

Mighty Mo network and server cabinets offer the same advanced cable management and airflow properties as our Mighty

Mo racks, designed into a secure, fully configurable enclosure.

Part Number

MIGHTY MO WALL MOUNTS CABINETS

Door,

Height

Dimensions Color

OR-MMW122420S-B

Solid door,

23.50”

Weight

Capacity

12U x 24”W x 20”D Black 150 lbs

OR-MMW122420P-B

OR-MMW192420S-B

OR-MMW192420P-B

OR-MMW262420S-B

OR-MMW262420P-B

OR-MMW122426S-B

OR-MMW122426P-B

OR-MMW192426S-B

OR-MMW192426P-B

OR-MMW262426S-B

Plexiglass,

23.50”

12U x 24”W x 20”D Black 150 lbs

Solid door,

35.75”

19U x 24”W x 20”D Black 200 lbs

Plexiglass,

35.75”

19U x 24”W x 20”D Black 200 lbs

Solid door,

48.00”

26U x 24”W x 20”D Black 300 lbs

Plexiglass,

48.00”

26U x 24”W x 20”D Black 300 lbs

Solid door,

23.50”

12U x 24”W x 26”D Black 150 lbs

Plexiglass,

23.50”

12U x 24”W x 26”D Black 150 lbs

Solid door,

35.75”

19U x 24”W x 26”D Black 200 lbs

Plexiglass,

35.75”

19U x 24”W x 26”D Black 200 lbs

Solid door,

48.00”

26U x 24”W x 26”D Black 300 lbs

OR-MMW262426P-B

Part Number

OR-MMCFAN-4-50

OR-MMWHMBM12-B

OR-MMWBPK

Plexiglass,

48.00”

26U x 24”W x 26”D Black 300 lbs

ACCESSORIES

Description Additional Info

4”, 50cfm Fan Kit

Rear Horizontal Mount

Bracket Kit

Brush Plate Kit

OR-MMW12M12-B

OR-MMW19M12-B

OR-MMW26M12-B

12U Mounting Rail

19U Mounting Rail

26U Mounting Rail

12-24, 1 pair

12-24, 1 pair

12-24, 1 pair

FEATURES & BENEFITS

·

Cable management to support and organize cables, ensuring proper cable management for minimum distortion and maximum network performance

·

Choice of solid or plexiglas door

·

The cabinet can be mounted to open left or right

·

Locking center section swings out to provide easy access to the equipment

·

Front and center sections are keyed alike

·

Includes one pair of fully adjustable 12-24 EIA mounting rails for 20” deep cabinet

·

Optional brush cable entries

·

Cable knockouts and 3” removable cable access holes standard on top and bottom

·

Vented sides for passive cooling of active equipment

·

Optional 50cfm cooling fans are available to further protect active equipment

·

Heavy duty 14 GA (.075”) steel construction

MM Wallmount Cabinet

33

ORTRONICS

®

GX CABINETS

Ortronics

®

network and server cabinets offer the same advanced cable management and airflow properties as our racks, designed into a secure, fully configurable enclosure.

24U X 24"W X 36"D CABINETS

Part Number Description

Frame OR-GXC242436-B

Full Width Doors

OR-GXC2424DFM-B

OR-GXC2424DFP-B

OR-GXC2424DFS-B

Split Doors

OR-GXC2424DSM-B

OR-GXC2424DSS-B

EIA Mounting Rails

OR-GXC2424M12-B

OR-GXC2424M38-B

Side Panels

OR-GXC2442SPSL-B

Top Panels

OR-GXC2436TPC4-B

OR-GXC2442TPC-B

OR-GXC2442TPS-B

OR-GXC2442TPV-B

Casters

OR-GXCCSTR-B

Cable Management

OR-GXC24VPMLD

Blanking Panels

Full Width Doors, with mesh, 180° swing

Full Width Doors, Plexiglass, 180° swing

Full Width Doors, solid, 180° swing

Split, mesh, 180° swing

Split, solid, 180° swing

#12-24 tapped, 12 ga., includes two rails

0.375 square hole, 14 ga., includes two holes

42” deep, locking, covers 1 side of frame

36”D, solid, includes (2) 4” diameter grommets

42” deep, cabling H-panel

42” deep, solid, includes

(2) 4” diameter grommets

42” deep, vented or fan, includes

(2) 4” diameter grommets

Casters, set of 4

Cable lacing/PDU mount, double-wide

OR-BFPT-1RU-10

Blanking panel, plastic, tool-less, 1U, pack of 10

Shelves

OR-MMCFSV-1926

Hardware

Fixed – 19”EIA x 26”D, 4-point mount, 200 lbs. capacity

OR-PS-1224CNv

OR-60400533

Top Fans/Brush

Single hole cage nuts, #12-24 thread,

50pk, clear

Panel mounting screws, #12-24 x 0.625”,

50pk, black

OR-MMCFAN-6

OR-GXCTPBK

6” fan for top panel, 120V, 235 CFM, 24” cord, 1 fan

Brush kit for cabling H-panel, covers both openings

Dimensions

47.25”H x 24”W x 26”D

PRE-CONFIGURED CABINETS

Part Number

GX Cabinet

Colors

White and Black

Description

Weight Capacity

3000 bs static

2250 lbs casters

OR-GXC422442-A1-B

Server, cabinet assembly

42U (80.45”H), 24”W, 42”D, black

OR-GXC422942-A1-B

Network, cabinet assembly

42U (80.45”H), 29.5”W, 42”D, black

NOTE: Pre-Configured Cabinets are available in white only.

NOTE: Cabinets are available in various heights, width and other sizes.

See the Ortonics catalogs for greater detail.

For white add a “-W”

34

WWW.LEGRAND.US

ORTRONICS

®

MIGHTY MO FIBER RACEWAY

Mighty Mo fiber raceway is specifically designed for routing and protecting fiber optic cords between termination equipment, fiber patching or splicing enclosures, racks and cabinets in data centers, telecommunications rooms or anywhere fiber optic cabling is present. Available in 5 sizes, it comes with a complete selection of fittings and drop outlets for every size. It also easily mounts above racks and cabinets or can mount to runway or Cablofil Tray.

Part Number

OR-MMFSD2X2-Y

OR-MMFSD4X2-Y

OR-MMFSD4X4-Y

OR-MMFSD8X4-Y

OR-MMFSD12X4-Y

SOLID DUCT

Description

2” x 2”, yellow

4” x 2”, yellow

4”x 4”, yellow

8”x 4”, yellow

12”x 4”, yellow

OR-MMFSDC2X2-Y 2”x 2”, with cover, yellow

OR-MMFSDC4X2-Y 4” x 2”, with cover, yellow

OR-MMFSDC4X4-Y 4”x 4”, with cover, yellow

OR-MMFSDC8X4-Y 8”x 4”, with cover, yellow

OR-MMFSDC12X4-Y 12”x 4”, with cover, yellow

OR-MMFSDHC2X2-Y 2”x 2”, with hinged cover, yellow

OR-MMFSDHC4X2-Y 4” x 2”, with hinged cover, yellow

OR-MMFSDHC4X4-Y 4”x 4”, with hinged cover, yellow

OR-MMFSDHC8X4-Y 8”x 4”, with hinged cover, yellow

OR-MMFSDHC12X4-Y 12”x 4”, with hinged cover, yellow

SLOTTED DUCT

Part Number Description

OR-MMFSL2X2-Y

OR-MMFSL4X2-Y

OR-MMFSL4X4-Y

OR-MMFSLC2X2-Y

2” x 2”, yellow

4” x 2”, yellow

4”x 4”, yellow

2”x 2”, with cover, yellow

OR-MMFSLC4X2-Y

OR-MMFSLC4X4-Y

4” x 2”, with cover, yellow

4”x 4”, with cover, yellow

OR-MMFSLHC2X2-Y 2”x 2”, with hinged cover, yellow

OR-MMFSLHC4X2-Y 4” x 2”, with hinged cover, yellow

OR-MMFSLHC4X4-Y 4”x 4”, with hinged cover, yellow

ACCESSORIES*

* insert size required, e.g. 2” x 4” = 2, 4

OR-MMFHE30U*X*-Y

OR-MMFHEC30U*X*-Y

OR-MMFHE45D*X*-Y

OR-MMFHEC45D*X*-Y

OR-MMFHE45U*X*-Y

OR-MMFHEC45U*X*-Y

OR-MMFHE90D*X*-Y

OR-MMFHEC90D*X*-Y

OR-MMFHE90U*X*-Y

OR-MMFHEC90U*X*-Y

OR-MMFHT*X*-Y

OR-MMFHTC*X*-Y

OR-MMFVT*X*-Y

OR-MMFVTC*X*-Y

OR-MMFHC*X*-Y

OR-MMFHCC*X*-Y

Part Number

OR-MMFJ*X*-Y

OR-MMFVE30D*X*-Y

OR-MMFVEC30D*X*-Y

OR-MMFVE30U*X*-Y

OR-MMFVEC30U*X*-Y

OR-MMFVE45D*X*-Y

OR-MMFVEC45D*X*-Y

OR-MMFVE45U*X*-Y

OR-MMFVEC45U*X*-Y

OR-MMFVE90D*X*-Y

OR-MMFVEC90D*X*-Y

OR-MMFVE90U*X*-Y

OR-MMFVEC90U*X*-Y

OR-MMFHE30D*X*-Y

OR-MMFHEC30D*X*-Y

Description

Joiners

Vertical Elbow 30° down

Vertical Elbow 30° down with cover

Vertical Elbow 30° up

Vertical Elbow 30° up with cover

Vertical Elbow 45° down

Vertical Elbow 45° down with cover

Vertical Elbow 45° up

Vertical Elbow 45° up with cover

Vertical Elbow 90° down

Vertical Elbow 90° down with cover

Vertical Elbow 90° up

Vertical Elbow 90° up with cover

Horizontal Elbow 30° down

Horizontal Elbow 30° down with cover

Horizontal Elbow 30° up

Horizontal Elbow 30° up with cover

Horizontal Elbow 45° down

Horizontal Elbow 45° down with cover

Horizontal Elbow 45° up

Horizontal Elbow 45° up with cover

Horizontal Elbow 90° down

Horizontal Elbow 90° down with cover

Horizontal Elbow 90° up

Horizontal Elbow 90° up with cover

Horizontal Tee

Horizontal Tee with cover

Vertical Tee

Vertical Tee with cover

Horizontal Cross

Horizontal Cross with cover

35

ORTRONICS

®

HIGH DENSITY FIBER MODULES

Legrand

®

has successfully introduced a new high density jack footprint in Category 6a, 6 and 5e – the Clarity

®

High Density

Copper Solution. To add to the options, Legrand has designed optical fiber adapters and cassettes available in the same HD footprint. Now you can easily combine and readily swap out copper and fiber elements in the same patch panel.

HIGH DENSITY FIBER MODULES

Part Number Description

OR-HDFM-FLC2CL-00

OR-HDFM-FLC2CA-00

OR-HDFM-FLC2CC-00

OR-HDFM-FLC2CM-00

OR-HDFM-FLC2CG-00

OR-HDFM-FLC2CI-00

OR-HDFM-FSC1CL-00

OR-HDFM-FSC1CA-00

OR-HDFM-FSC1CC-00

OR-HDFM-FSC1CM-00

OR-HDFM-FSC1CG-00

OR-HDFM-FSC1CI-00

OR-HDFM-FMTZNL-00

OR-HDFM-FMTZNC-00

Duplex LC, aqua

Duplex LC, blue

Duplex LC, green

Duplex LC, beige

Duplex LC, red

Duplex LC, yellow

Simplex SC, aqua

Simplex SC, blue

Simplex SC, green

Simplex SC, beige

Simplex SC, red

Simplex SC, yellow

MPO, aqua, type A

MPO, green, type A

Part Number

OR-HDFM-FMTZNM-00

OR-HDFM-FMTZNH-00

Description

MPO, beige, type A

MPO, black, type A

OR-HDFM-FMTZNN-00

OR-HDFM-FMTZNG-00

OR-HDFM-FMTZNA-00

OR-HDFM-FMTZNE-00

MPO, magenta, type A

MPO, red, type A

MPO, blue, type A

MPO, gray aligned key, type B

Notes: Type A MPO adapters are key up/key down. Type B MPO adapters are key up/key up.

OR-HDFM-FSC1CA-00 OR-HDFM-FLC2CG-00 OR-HDFM-FMTZNC-00

MTP-TO-LC 12-FIBER CASSETTE

Part Number Description

OR-HDCA6LC12AH

OR-HDCA6LC12AJ

High density cassette assembly, 50 LOMF (OM4+)*,

12-fiber, 1-MTP(M), 6-LC DX,

0.5dB max cassette insertion loss

High density cassette assembly, single-mode,

12-fiber, 1-MTP(M), 6-LC DX, 1.05dB max cassette insertion loss

Notes: *Effective modal bandwidth 4900 MHz-km at 850nm. Contact a Legrand representative for additional configurations.

OR-HDCA6LC12AH

OR-HDCA6LC12AJ

36

WWW.LEGRAND.US

ORTRONICS

®

FIBER SYSTEMS

ORTRONICS

®

FC SERIES RACK-MOUNT FIBER CABINETS

FOR PATCH AND SPLICING APPLICATIONS

Application

Patching

Splicing/

Patching

Splicing

Height

1U

2U

3U

4U

1U

2U

3U

4U

1U

2U

3U

4U

-

-

-

-

9

12

3

6

9

12

3

6

Adapters

Panel

Capacity

Splice Tray

Capacity

Part Number

2

6

11

16

-

-

-

-

4

12

22

32

OR-FC01U-P

ORFC02U-P

ORFC03U-P

ORFC04U-P

OR-FC01U-C

ORFC02U-C

ORFC03U-C

ORFC04U-C

OR-FC01U-S

ORFC02U-S

ORFC03U-S

ORFC04U-S

PRE-TERMINATED CASSETTES - MOMENTUM

2 HIGH PERFORMANCE CASSETTES

Ideal for data centers and SANS, Ortronics

®

fiber is a modular, pre-terminated cabling system integrating high performance optical cassettes with advanced compact micro data center

MTP

®

backbone cables.

Rack

Units Bandwidth

1U

1U

4900/500

[email protected]

Fiber

Type

Fibers Adapter

24

50/125

LOMF

12

Singlemode

12

24

12

12

LC Quad

LC Duplex

LC Duplex

SC Duplex

Part Number

OR-M2CLCQ24-50E

OR-M2CLCD12-50E

SC Duplex OR-M2CSCD12-50E

LC Quad OR-M2CLCQ24-09

OR-M2CLCD12-09

OR-M2CSCD12-09

Flat Panels

Part Number Flat 24-Port

OR-PPCF610U24

OR-PPCF66U24

Part Number Flat 48-Port

OR-PPCF610U48

OR-PPCF66U48

Description

Clarity 10G flat panels with

6-port modules

Clarity 6 flat panels with 6-port modules

Angled Panels

Part Number Angled 24-Port

OR-PPCA610U24

OR-PPCA66U24

Panel Jack Panels Without Jacks

Part Number Angled 48-Port Description

OR-PPCA610U48

OR-PPCA66U48

Clarity 10G angled panels with

6-port modules

Clarity 6 angled panels with

6-port modules

Part Number Flat Port

OR-PHDSJU24

OR-PHDSJU48

Part Number Angled Port

OR-PHASJU24

OR-PHASJU48

Description

24-Port, unloaded

48-Port, unloaded

COPPER SNAP

PANELS

6-PORT & INDIVIDUAL JACK PANELS

Panel Jacks

Part Number

OR-PJSN6A-xx

OR-PJSN6-xx

Colors:

Black

Blue

Red

Orange

Yellow

Green

Gray

44

45

68

00

36

42

43

Description

Clarity 6A

Clarity 6

xx

OR-PPCF66U24 OR-PPCA66U48 OR-PHDSJU24

37

ORTRONICS

®

HILOC

SYSTEM

Traditionally, a trunk cable is plugged into an MTP

-to-LC cassette, and then LC-to-LC patch cords are connected from the cassette to the device. Installing an MTP™-to-LC HiLOC™ harness, instead of a cassette, allows a connector pair to be eliminated from the link.

Part Number

OR-60401144

OR-HC02U-P

OR-HDFP-MPA72LA

OR-HDFP-MPA72CA

Description

HiLOC multi-use panel, hold 4 HiLOC shells

Rack mount 2U enlcosures, holds 24 HiLOC shells

HD panel, 6 MPO aqua adapters, feed through multimode, Type A

HD panel, 6 MPO green adapters, feed through, singe mode, Type A

OR-60401144

HARNESS PART NUMBER FORMULA

Fiber

Count &

Polarity

H 3

E=8F,

A-B

Polarity

G=8F,

A-A

Polarity

T=12F,

A-B

Polarity

U=12F,

A-A

Polarity

Fiber Type

C= single mode

(0S2)

F=LOMF

(OM3)

H=LOMF

(OM4)

Jacket

M=OFNP

N=LSZH

Stagger

Definition

A=0.03m

Duplex

Stagger

Connector B

A=LC/PC Duplex

B=Custom B=SC/PC Clipped

N=No

Stagger

I=LC/APC Clipped

Duplex

J=SC/APC Clipped

Duplex

N=Reconfigurable

LC/PC

P=Reconfigugurable

LC/APC

Q=Reconfigurable

LC/UPC

U=LC/UPC Duplex

V=SC/UPC Clipped

Duplex

Connector B Length 1 Connector A Connector A

XF=X Feet

O=MTP-F

(PC)

XS=1/2 meter interval

XH=1/2foot interval

P=MTP-M

(PC)

Length 2

Secure keying

Call for

Information

Connector

1 breakout

Junction

X=MTP=F

APC

Secure keying

Call for

Information

MTP

(Connector

2) to

Breakout

Junction

Z=No keying

XM=X meters

Y=MTP-

M-APC

XXF=XX feet

XXS=1/2 meter interval

XXH=1/2 foot interval

Sample Part Number: H3TFMNAZ7HYZ02F

ORTRONICS

®

OR-PHD6AU48

OR-PHA6AU24

OR-PHD66U24

OR-PHDHJU48

CLARITY

®

PATCH PANELS

CLARITY 6A 6-PORT PATCH PANELS

Part Number Description

Clarity 6A/10G Flat Patch Panels

OR-PHD6AU24

24-port flat Clarity 6A patch panel, T568A/B, 1.75”x 19”, 1 RU

OR-PHD6AU48

48-port flat Clarity 6A patch panel, T568A/B, 3.5”x 19”, 2 RU

Clarity 6A/10G Angled Patch Panels

OR-PHA6AU24

24-port flat Clarity 6A patch panel, T568A/B, 1.75”x 19”, 1 RU

OR-PHA6AU48

48-port angled Clarity 6A patch panel, T568A/B, 3.5”x 19”, 2 RU

Clarity 6

Part Number

CLARITY 6 AND CLARITY 5E MODULAR TO 110 PATCH PANELS

Clarity 5E

Part Number

Description

High Density Patch Panels with 6-Port Modules

OR-PHD66U24 OR-PHD5E6U24

24-port, T568A/B, 1.75”H x 19”W, 1 RU

OR-PHD66U48 OR-PHD5E6U48

48-port, T568A/B, 3.5”H x 19”W, 2 RU

OR-PHD66U96 OR-PHD5E6U96

96-port, T568A/B, 7”H x 19”W, 4 RU

CLARITY

®

HIGH DENSITY JACK PANELS

Part Number

OR-PHAHJU24

OR-PHAHJU48

OR-PHAHJU72

OR-PHDHJU24

OR-PHDHJU48

OR-PHDHJU72

HIGH DENSITY JACK PANELS

Description

24-port angled HDJ jack panel, unloaded 1.75”H x 19”W, 1 RU

48-port angled HDJ jack panel, unloaded 1.75”H x 19”W, 1 RU

72-port angled HDJ jack panel, unloaded

3.5”H x 19”W, 2 RU

24-port flat HDJ jack panel, unloaded

1.75”H x 19”W, 1 RU

48-port flat HDJ jack panel, unloaded

1.75”H x 19”W, 1 RU

72-port flat HDJ jack panel, unloaded

3.5”H x 19”W, 2 RU

OR-H3TFMAAZPZ1MO1M

38

WWW.LEGRAND.US

39

ORTRONICS

®

SNAP

HORIZONTAL CABLE ASSEMBLIES

MULTIPLE CABLE HARNESSES MATRIX

Choose cable type, number of cables, color, length, and leg style using the shaded code.

PCH

Cable Type

Cat6a Plenum

Cat6a Riser

Cat6 Plenum

Cat6 Riser

Cat6 LSZH

Number of Cables

XP

XR

2P

2R

2Z

6 spiral-bound bundle

6 in mesh

6 spiral-bound bundle

Color

Length Feet

(including Legs)

6B

6M

Blue 06

XXX (feet) xxX (meters)

.0 (full meter)

.5 (1/2 meters)

End 1 Legs

no stagger w/ protective sock stagger left w/ protective sock stagger right w/ protective sock no stagger w/ pulling sock stagger left w/ pulling sock stagger right w/ pullingsock

1

2

3

4

5

6

End 2 Legs

no stagger w/ protective sock stagger left w/ protective sock stagger right w/ protective sock no stagger w/ pulling sock stagger left w/ pulling sock stagger right w/ pullingsock

1

2

3

4

5

6

Example: PCH XP 6B 06 XXX

SINGLE CABLE ASSEMBLY MATRIX

Choose cable type, number of cables, color, length, and leg style using the shaded code.

PCS

Cable Type

Cat6a Plenum

Cat6a Riser

Cat6 Plenum

Cat6 Riser

Cat6 LSZH

XP

XR

2P

2R

2Z

Color

Blue

Green

06

05

Length Feet

(including Legs) Cable Number Label

XXX (feet) xxX (meters)

.0 (full meter)

.5 (1/2 meters)

No Label

#1

#2

#3

#99

00

01

02

03

99

Example: PCS XP 06 XXX

PRH

ORTRONICS

®

Cable Type

Cat6 Plenum

Cat6 Riser

SNAP

CABLE ASSEMBLIES

MULTIPLE CABLE HARNESSES MATRIX

Choose cable type, number of cables, color, length, and leg style using the shaded code.

Number of Cables Color

2P

2R

1P

1R

6 spiral-bound bundle

6 in mesh

6B

6M

Blue 06

Length Feet

(Including Legs)

XXX

End 1 Legs

RJ45 End

End 2 Legs

SNAP End

no stagger w/ protective sock stagger left w/ protective sock stagger right w/ protective sock no stagger w/ pulling sock stagger left w/ pulling sock

2 stagger left w/ protective sock

3 stagger right w/ protective sock

4

5 no stagger w/ pulling sock stagger left w/ pulling sock stagger right w/ pulling sock

6 stagger right w/ pulling sock

1

2

3

4

5

6

Example: PRH 2P 6B 06 XXX

SINGLE CABLE ASSEMBLY MATRIX

Choose cable type, number of cables, color, length, and leg style using the shaded code.

PRS

Cable Type

Cat6 Plenum

Cat6 Riser

Color

2P

2R

1P

1R

Blue

06

Length Feet

(including Legs)

XXX

Cable Number Label

No Label

#1

#2

#3

#99

00

01

02

03

99

Example: PRS 2P 06 XXX

PCH3R6M0600411

40

WWW.LEGRAND.US

PCHXP6B0601511 PCSXRZZ00601194

PRH2P6B09605011 PRS2R09601001193

41

ORTRONICS

®

EZ PATCH

Ortronics

®

patent pending EZ Patch solution is a revolutionary way to dispense and manage patch cords, reducing installation time and waste. There are no bags to open, tie wraps to undo or straightening necessary; the cords dispense one after another, ready to install.

CLARITY 6A

Part Number

EZC6A03Q50-XX

EZC6A05Q50-XX

EZC6A07Q40-XX

EZC6A09Q30-XX

EZC6A15Q20-XX

Description

EZ Patch Clarity 10G modular patch cord, 3’

EZ Patch Clarity 10G modular patch cord, 5’

EZ Patch Clarity 10G modular patch cord, 7’

EZ Patch Clarity 10G modular patch cord, 9’

EZ Patch Clarity 10G modular patch cord, 15’

Contains Part Number

OR-MC610003-XX

OR-MC610005-XX

OR-MC610007-XX

OR-MC610009-XX

OR-MC6100015-XX

To order standard colors, replace xx suffix: -06 = blue; -05 = green; and EZC6A15Q20-XX is only available in -06 = blue

Qty Per Carton

50

50

40

30

20

CLARITY 6

Part Number

EZC603Q50-XX

EZC605Q50-XX

EZC607Q50-XX

EZC609Q40-XX

EZC610Q40-XX

Description

EZ Patch Clarity 6 modular patch cord, 3’

EZ Patch Clarity 6 modular patch cord, 5’

EZ Patch Clarity 6 modular patch cord, 7’

EZ Patch Clarity 6 modular patch cord, 9’

EZ Patch Clarity 6 modular patch cord, 10’

Contains Part Number

OR-MC603-XX

OR-MC605-XX

OR-MC607-XX

OR-MC609-XX

OR-MC610-XX

EZC615Q25-XX EZ Patch Clarity 6 modular patch cord, 15’ OR-MC615-XX

To order standard colors, replace xx suffix: -09 = white; -08 = gray; -06 = blue; -05 = green; -04 = yellow; -02 = red

EZC610Q40-XX is available in -06 = blue; -05 = green and -04 = yellow only

EZC615Q25-XX is available in -06 = blue; -05 = green; -04 = yellow and -02 = red only

CLARITY 5E

Part Number

EZC5E03Q50-XX

EZC5E05Q50-XX

EZC5E07Q50-XX

EZC5E09Q40-XX

EZC5E10Q40-XX

Description

EZ Patch Clarity 5E modular patch cord, 3’

EZ Patch Clarity 5E modular patch cord, 5’

EZ Patch Clarity 5E modular patch cord, 7’

EZ Patch Clarity 5E modular patch cord, 9’

EZ Patch Clarity 5E modular patch cord, 10’

Contains Part Number

OR-MC5E03-XX

OR-MC5E05-XX

OR-MC5E07-XX

OR-MC5E09-XX

OR-MC5E10-XX

Qty Per Carton

50

50

50

40

40

EZC5E15Q25-XX EZ Patch Clarity 5E modular patch cord, 15’ OR-MC5E15-XX 25

To order standard colors, replace xx suffix: -09 = white; -08 = gray; -06 = blue; -05 = green; -04 = yellow

EZC610Q40-XX andEZC5E15Q25-XX are available in -06 = blue; -05 = green and -04 = yellow only

40

40

25

Qty Per Carton

50

50

50

EZ Patch

42

WWW.LEGRAND.US

ORTRONICS

®

INDIVIDUAL JACKS

TracJack

®

modules combine the ease and reliability of a front-loading individual jack with preferred 110 termination and offer universal T568A/B wiring. High density jacks offer a friendly lacing cap terminating method for termination tools and rugged rear loading design.

Part Number

OR-TJ6A

OR-TJ600

OR-TJ5E00

TRACJACK

®

HIGH DENSITY JACKS

Description

Clarity 6a jack, 8-position, 180° exit, fog white

Clarity 6 jack, 8-position, 180° exit, fog white

Clarity 5e jack, 8-position, 180° exit, fog white

Part Number

OR-40300545

OR-403STJ14

OR-403STJ16

OR-404TJ6

Part Number

OR-403HDJ13

NOTE: Call for other colors.

FACEPLATES

Description

Holds six TracJacks, 2.75” x 4.5”, plastic

Holds four TracJacks, 2.75” x 4.5”, stainless steel

Holds six TracJacks, 2.75” x 4.5” , stainless steel

Holds six TracJacks, 6.98” x 4.33” x 1.16” Note: Includes internal storage ring for fiber and two TracJack blanks. Can mount directly to single or double gang recessed wall boxes.

CLARITY HIGH DENSITY JACKS & FACEPLATES

Description

Faceplate single gang, 3 port, fog white, rear load, with designation

OR-TJ600 OR-404TJ6 OR-403STJ14

43

ORTRONICS

®

SERIES II

®

SOLUTIONS/AV

Part Number

OR-60900372

OR-60900376

OR-60900375

OR-60900313

OR-60900225

OR-60900378

OR-60900379

OR-60900212

OR-60900235

OR-60900314

OR-60900315

OR-60900316

OR-60900373

Description

HDMI, female to female, 19pin, 1unit

VGA 15pin, female to female, 1unit

VGA 15pin, female to screw term, 1unit

VGA 15pin, female to crimp pins, 1unit

S-Video to 110, 1unit

S-Video w/ 3.5m to 110, 1unit

S-Video w/ RCA red, white to 110, 1unit

2 RCA 1-white 1-red female to female, 1unit

3 RCA red, white, yellow to 110, 1unit

2 RCA 1-red 1-white female to 110, 1unit

2 RCA 1-red 1-white, female to solder, 1unit

3 RCA white, red, yellow female to female, 1unit

3 RCA red, green, blue female to female, 1unit

Part Number

OR-60900374

OR-60900273

OR-60900381

OR-60900382

OR-60900380

OR-60900377

OR-60900017

OR-60900018

OR-60900019

OR-60900020

OR-60900073

OR-KSS2210

OR-40300749

Description

3 RCA red, green, blue to 110, 1unit

3.5mm, stereo jack female to female, 1unit

Speakon, 4pin male to solder, 1.5unit

XLR, 4pin female to screw term, 1.5unit

Binding post, red, black pair, 1unit

Serial 9pin, female to female, 1unit

F Conn 75 ohm, female to female, 1unit

BNC 75 ohm, female to female, 1unit

2 BNC 75 ohm, female to female, 1unit

2 F Conn 75 ohm, female to female, 1unit

F Conn 75 ohm, angled, female to female, 2 unit

Series II bezel, 2port, keystone opening, 1unit, 10pk

Series II bezel 2port, tracjack openings, 1unit, 10pk

OR-60900377 OR-60900314 OR-60900372

OR-60900019

SERIES II FACEPLATES

Legrand

®

offers single and double gang Series II

®

plastic faceplates with a variety of module capacities to match your workstation applications. Series II plates offer recessed label fields, slotted screw holes to adjust alignment and are ruggedly constructed from high impact thermo-plastic 94V-0 rated to ensure long life.

SINGLE GANG PLASTIC, DOUBLE GANG PLASTIC & ANGLED SERIES II FACEPLATES

Part Number Description

Single gang plastic, low profile, .5”D, fog white, 2.75” x 4.5”

OR-40300158

OR-40300011

OR-40300159

OR-40300175

OR-40300664

Single gang plastic, standard profile, .75”D, fog white, 2.75” x 4.5”

Double gang plastic, standard profile, .75”D, fog white, 4.5” x 4.5”

Double gang plastic, high profile, 1.65”D, fog white, 4.5” x 4.5”

Angled, single gang faceplate holds (2) 1-unit modules, 2.5” x 4.5”

OR-40300158

OR-40300664

OR-40300159

44

WWW.LEGRAND.US

ORTRONICS

®

Part Number

OR-KSHDMI

OR-KSSV

OR-KSSVIDC

OR-KSRCAR

OR-KSRCAG

OR-KSRCABL

OR-KSRCAY

OR-KSRCAW

OR-KSRCAB

OR-KS35ST

OR-KS35STST

OR-KS14ST

TECHCHOICE

®

KEYSTONE TRACJACK SOLUTIONS/AV

TechChoice

®

Keystone footprint is a rear loading style module that comes in a variety of A/V connector types as well as

Category 5e and 6 data connectivity. It’s ideal for creating a quality solution for A/V and data connectivity. The keystone footprint can also be used with Series II through the use of an adapter bezel.

Description

HDMI, female to female, 19pin

S-Video to 110

S-Video, female to female

RCA red to 110

RCA green to 110

RCA blue to 110

RCA yellow to 110

RCA white to 110

RCA black to 110

3.5mm, stereo jack, female to female

3.5mm, stereo jack, female to screw term

1/4” stereo jack, female to solder

Part Number

OR-KSUSBAA

OR-KSUSBAB

OR-KSBP

OR-KSBNC75

OR-KSBNC

OR-KSFCN

OR-KSFCNR

Description

USB 2.0 A-A, female to female

USB 2.0 A-B, female to female

Binding post, set of 2

BNC 75 ohm, female to female, 75 ohm

BNC 50 ohm, female to female, 50 ohm

F Conn 75 ohm, female to female

F Conn 75 ohm, recessed, female to female

OR-KSRCAG

OR-KSSV

OR-63700058

OR-63700060

OR-63700025

TRACJACK SOLUTIONS

TracJack

®

footprint is front loading and supports a number of A/V and data modules. It’s ideal for combining A/V with our high performance Clarity

®

workstation products. The TracJack footprint can also be used with Series II

®

through the use of an adapter bezel.

Part Number Description

OR-63700085

OR-63700071

OR-63700069

OR-63700059

OR-63700084

OR-63700023

OR-63700058*

OR-63700085

OR-63700059*

OR-63700060*

OR-63700071

OR-63700084

OR-63700070

OR-63700047

OR-63700046

OR-63700025

OR-63700069

OR-63700023

RCA red female-to-female

RCA blue, female-to-female

RCA white female-to-female

RCA yellow female-to-female

RCA red to 110

RCA blue to 110

RCA white to 110

RCA yellow to 110

Pair of RCA to 110 (1) red, (1) black, 180° exit

S-Video to 110

3.5mm stereo jack

BNC 75 ohm, female-to-female

OR-63700006

OR-63700087

F Conn 75 ohm, female-to-female

F Conn 75 ohm, recessed, female-to-female

OR-42100002

TracJack blank, 10pk

NOTE: Standard color for TracJack modules is fog white.

Also available in -99 Wiremold

®

ivory and -88 white.

Contact Legrand sales department for other colors.

*Only available in fog white.

45

STAND-ALONE FLOOR-STANDING ENCLOSURES

BGR-SA SERIES

The BGR-SA Series has the highest level of space efficiency, strength and flexibility.

• Designed to accommodate evolving AV systems

• Breakthrough design provides high strength

without extra weight

• Wide open top and bottom offer many cabling

and cooling options

• Fixed solid side for security and to control airflow

Part

Number*

BGR-19SA-27

BGR-25SA-27

BGR-25SA-32

BGR-38SA-27

BGR-38SA-32

BGR-41SA-27

BGR-41SA-32

BGR-45SA-27

BGR-45SA-32

PRODUCT INFORMATION

Racking Height

33-1/4" (19 space)

43-3/4" (25 space)

43-3/4" (25 space)

66-1/2" (38 space)

66-1/2" (38 space)

71-3/4" (41 space)

71-3/4" (41 space)

78-3/4" (45 space)

78-3/4" (45 space)

Overall

Height

37-3/8"

47-7/8"

47-7/8"

70-5/8"

70-5/8"

75-7/8"

75-7/8"

82-7/8"

82-7/8"

32"

27"

32"

27"

Overall

Depth

27"

27"

32"

27”

32”

Useable

Depth

24-3/8"

24-3/8"

29-3/8"

24-3/8"

29-3/8"

24-3/8"

29-3/8"

24-3/8"

29-3/8"

Add'l 10/32

Threaded

Rackrail (Pair)

BGR-RR19

BGR-RR25

BGR-RR25

BGR-RR38

BGR-RR38

BGR-RR41

BGR-RR41

BGR-RR45

BGR-RR45

*Available without rear door, suffix part # ‘LRD’.

**Accent trim also available in black, suffix part # ‘B’

Accent Trim

(Silver)**

BGR-TRIM19

BGR-TRIM25

BGR-TRIM25

BGR-TRIM38

BGR-TRIM38

BGR-TRIM41

BGR-TRIM41

BGR-TRIM45

BGR-TRIM45

38

25

45

41

19 spaces

MIDDLE ATLANTIC

PRODUCTS

®

27” or 32”

BGR-45SA-32

23”

OPTIONS

Fits Part

Number

Solid Plexi

Front Doors

Vented

Curved

Door

Vented

BGR-19SA-27 BFD-19 BPFD-19 BVFD-19 VFD-19A

Curved

Door

Plexi

PFD-19A

Rear Doors

Cable Entry

Rear Door**

BGR-RDC19

BGR-25SA-27 BFD-25 BPFD-25 BVFD-25 VFD-25A

BGR-25SA-32 BFD-25 BPFD-25 BVFD-25 VFD-25A

BGR-38SA-27 BFD-38 BPFD-38 BVFD-38 VFD-38A

BGR-38SA-32 BFD-38 BPFD-38 BVFD-38 VFD-38A

BGR-41SA-27 BFD-41 BPFD-41 BVFD-41 VFD-41A

BGR-41SA-32 BFD-41 BPFD-41 BVFD-41 VFD-41A

BGR-45SA-27 BFD-45 BPFD-45 BVFD-45 VFD-45A

PFD-25A

PFD-25A

PFD-38A

PFD-38A

PFD-41A

PFD-41A

PFD-45A

BGR-RDC25

BGR-RDC25

BGR-RDC38

BGR-RDC38

BGR-RDC41

BGR-RDC41

BGR-RDC45

BGR-45SA-32 BFD-45 BPFD-45 BVFD-45 VFD-45A PFD-45A BGR-RDC45

*All fan tops come with blank panels to close top of rack. **Order with part # ‘LRD’.

Solid

Top

Top Rail

Reducer

Vented

Top

552 CFM 276 CFM

Fan Tops*

552 CFM with

Controller

– – – – – –

– – – – – –

– – – – – –

BGR-STP9 BGR-TRR9 BGR-LVT BGR-552FT BGR-276FT BGR-552FT-FC

BGR-STP9 BGR-TRR9 BGR-LVT BGR-552FT BGR-276FT BGR-552FT-FC

BGR-STP9 BGR-TRR9 BGR-LVT BGR-552FT BGR-276FT BGR-552FT-FC

BGR-STP9 BGR-TRR9 BGR-LVT BGR-552FT BGR-276FT BGR-552FT-FC

BGR-STP9 BGR-TRR9 BGR-LVT BGR-552FT BGR-276FT BGR-552FT-FC

BGR-STP9 BGR-TRR9 BGR-LVT BGR-552FT BGR-276FT BGR-552FT-FC

276 CFM with

Controller

BGR-276FT-FC

BGR-276FT-FC

BGR-276FT-FC

BGR-276FT-FC

BGR-276FT-FC

BGR-276FT-FC

Part Number

BGR-CC-45FB

BGR-CC-41FB

BGR-CC-38FB

Description

BGR front and back cable chase,

4.4” width, fits 45 space racks

BGR front and back cable chase,

4.4” width, fits 41 space racks

BGR front and back cable chase,

4.4” width, fits 38 space racks

Part Number

BGR-CC-38LT

BGR-CC-32LT

BGR-CC-27LT

Description

BGR top cable chase, 4.4” width, 38” deep

BGR top cable chase, 4.4” width, 32” deep

BGR top cable chase, 4.4” width, 27” deep

Front Trim Kit Part

Number (Silver)

BGR-TRIM19

BGR-TRIM25

BGR-TRIM38

BGR-TRIM41

BGR-TRIM45

NOTE: Please refer to the enclosure options section in the MAP Catalog on pgs. 44-50 or visit our website for more info.

Front Trim Kit Part

Number (Black)

BGR-TRIM19B

BGR-TRIM25B

BGR-TRIM38B

BGR-TRIM41B

BGR-TRIM45B

Fits

BGR 19 space racks

BGR 25 space racks

BGR 38 space racks

BGR 41 space racks

BGR 45 space racks

46

WWW.MIDDLEATLANTIC.COM

38

25

45

41

19 spaces

MIDDLE ATLANTIC

PRODUCTS

®

GANGABLE FLOOR-STANDING ENCLOSURES

BGR SERIES

The BGR Series innovative rack delivers the highest level of integration flexibility and space efficiency.

• Designed to accommodate evolving AV systems

• Breakthrough design provides high strength

without extra weight

• Wide open top and bottom offer many cabling

and cooling options

Part

Number*

BGR-1927

BGR-2527

BGR-2532

BGR-3827

BGR-3832

BGR-4127

BGR-4132

BGR-4138

BGR-4527

BGR-4532

BGR-4538

Racking Height

33-1/4" (19 space)

43-3/4" (25 space)

43-3/4" (25 space)

66-1/2" (38 space)

66-1/2" (38 space)

71-3/4" (41 space)

71-3/4" (41 space)

71-3/4" (41 space)

78-3/4" (45 space)

78-3/4" (45 space)

78-3/4" (45 space)

*Available without rear door, suffix part # ‘LRD’

**Accent trim also available in black, suffix part # ‘B’

Overall

Height

Overall

Depth

37-3/8" 27"

47-7/8" 27"

47-7/8" 32"

70-5/8" 27"

70-5/8" 32"

75-7/8" 27"

75-7/8" 32"

75-7/8" 38"

82-7/8" 27"

82-7/8" 32"

82-7/8" 38"

Useable

Depth Side Panels

24-3/8" BSPN-19-27

24-3/8" BSPN-25-27

PRODUCT INFORMATION

Add'l 10/32

Threaded

Rackrail (Pair)

Accent Trim

(Silver)**

BGR-RR19

BGR-RR25

BGR-TRIM19

BGR-TRIM25

29-3/8" BSPN-25-32

24-3/8" BSPN-38-27

29-3/8" BSPN-38-32

24-3/8" BSPN-41-27

29-3/8" BSPN-41-32

35-3/8" BSPN-41-38

24-3/8” BSPN-45-27

29-3/8" BSPN-45-32

35-3/8” BSPN-45-38

BGR-RR25

BGR-RR38

BGR-RR38

BGR-RR41

BGR-RR41

BGR-RR41

BGR-RR45

BGR-RR45

BGR-RR45

BGR-TRIM25

BGR-TRIM38

BGR-TRIM38

BGR-TRIM41

BGR-TRIM41

BGR-TRIM41

BGR-TRIM45

BGR-TRIM45

BGR-TRIM45

27”, 32” or 38”

BGR-4532

23”

OPTIONS

Fits Part

Number

Solid Plexi

Front Doors

Vented

Curved

Door

Vented

BGR-1927 BFD-19 BPFD-19 BVFD-19 VFD-19A

Curved

Door

Plexi

PFD-19A

Rear Doors

Cable Entry

Rear Door**

BGR-RDC19

Solid

Top

Top Rail

Reducer

BGR-2527 BFD-25 BPFD-25 BVFD-25 VFD-25A

BGR-2532 BFD-25 BPFD-25 BVFD-25 VFD-25A

BGR-3827 BFD-38 BPFD-38 BVFD-38 VFD-38A

BGR-3832 BFD-38 BPFD-38 BVFD-38 VFD-38A

BGR-4127 BFD-41 BPFD-41 BVFD-41 VFD-41A

BGR-4132 BFD-41 BPFD-41 BVFD-41 VFD-41A

BGR-4138 BFD-41 BPFD-41 BVFD-41 VFD-41A

BGR-4527 BFD-45 BPFD-45 BVFD-45 VFD-45A

PFD-25A

PFD-25A

PFD-38A

PFD-38A

PFD-41A

PFD-41A

PFD-41A

PFD-45A

BGR-RDC25

BGR-RDC25

BGR-RDC38

BGR-RDC38

BGR-RDC41

BGR-RDC41

BGR-RDC41

BGR-RDC45

BGR-STP9 BGR-TRR9

BGR-STP9 BGR-TRR9

BGR-STP9 BGR-TRR9

BGR-STP9 BGR-TRR9

BGR-STP9 BGR-TRR9

BGR-STP9 BGR-TRR9

BGR-4532 BFD-45 BPFD-45 BVFD-45 VFD-45A PFD-45A BGR-RDC45 BGR-STP9 BGR-TRR9

BGR-4538 BFD-45 BPFD-45 BVFD-45 VFD-45A PFD-45A BGR-RDC45

*All fan tops come with blank panels to close top of rack. **Order with part # ‘LRD’.

BGR-STP9 BGR-TRR9

Vented

Top

552 CFM 276 CFM

Part Number Description Part Number Description

Front Trim Kit Part

Number (Silver)

BGR-CC-45FB

BGR front and back cable chase,

4.4” width, fits 45 space racks

BGR-CC-38LT BGR top cable chase, 4.4” width, 38” deep

BGR-TRIM19

BGR-CC-41FB

BGR-CC-38FB

BGR front and back cable chase,

4.4” width, fits 41 space racks

BGR front and back cable chase,

4.4” width, fits 38 space racks

BGR-CC-32LT

BGR-CC-27LT

BGR top cable chase, 4.4” width, 32” deep

BGR top cable chase, 4.4” width, 27” deep

BGR-TRIM25

BGR-TRIM38

BGR-TRIM41

BGR-TRIM45

NOTE: Please refer to the enclosure options section in the MAP Catalog on pgs. 44-50 or visit our website for more info.

Fan Tops*

552 CFM with

Controller

BGR-LVT9 BGR-552FT BGR-276FT BGR-552FT-FC

BGR-LVT9 BGR-552FT BGR-276FT BGR-552FT-FC

BGR-LVT9 BGR-552FT BGR-276FT BGR-552FT-FC

BGR-LVT9 BGR-552FT BGR-276FT BGR-552FT-FC

BGR-LVT9 BGR-552FT BGR-276FT BGR-552FT-FC

BGR-LVT9 BGR-552FT BGR-276FT BGR-552FT-FC

BGR-LVT9 BGR-552FT BGR-276FT BGR-552FT-FC

BGR-LVT9 BGR-552FT BGR-276FT BGR-552FT-FC

Front Trim Kit Part

Number (Black)

BGR-TRIM19B

BGR-TRIM25B

BGR-TRIM38B

BGR-TRIM41B

BGR-TRIM45B

276 CFM with

Controller

BGR-276FT-FC

BGR-276FT-FC

BGR-276FT-FC

BGR-276FT-FC

BGR-276FT-FC

BGR-276FT-FC

BGR-276FT-FC

BGR-276FT-FC

Fits

BGR 19 space racks

BGR 25 space racks

BGR 38 space racks

BGR 41 space racks

BGR 45 space racks

47

GANGABLE FLOOR-STANDING ENCLOSURES

SNE SERIES

The SNE Series is the most advanced security rack enclosure available.

• Four available configurations fit your system

type, wiring needs, cooling requirements and

rack location

• Thermal options built for unconditioned

or conditioned environments with active or

passive ventilation

• Adaptable equipment mounting threaded rail,

cage nut rail or innovative adapter for both

• Raised-floor ready with seismic and standard

riser bases

MIDDLE ATLANTIC

PRODUCTS

®

PRODUCT INFORMATION

Overall

Height

(w/ casters)

48”

(24 space)

79-1/2”

(42 space)

84-3/4”

(45 space)

Overall

Height

(w/ casters)

48”

(24 space)

79-1/2”

(42 space)

84-3/4”

(45 space)

Hybrid or

Digital

Ventilation

Hybrid

Hybrid top active rear active

Digital front to rear passive

Hybrid top active

Hybrid rear active

Digital front to rear passive

Digital passive chimney

Hybrid

Hybrid top active rear active

Digital front to rear passive

Digital passive chimney

Hybrid or

Digital

Ventilation

Hybrid

Hybrid top active rear active

Digital front to rear passive

Hybrid top active

Hybrid rear active

Digital front to rear passive

Digital passive chimney

Hybrid top active

Hybrid rear active

Digital front to rear passive

Digital passive chimney

Overall

Height

(w/ casters)

48”

(24 space)

79-1/2”

(42 space)

84-3/4”

(45 space)

Hybrid or

Digital

Ventilation

Hybrid top active

Hybrid rear active

Digital front to rear passive

Hybrid

Hybrid top active rear active

Digital front to rear passive

Digital passive chimney

Hybrid top active

Hybrid rear active

Digital front to rear passive

Digital passive chimney

36” Depth

SNE30H-4236-A1

SNE30H-4236-A2

SNE30D-4236-P1

SNE30H-4536-A1

SNE30H-4536-A2

SNE30D-4536-P1

36” Depth

SNE24H-2436-A1

SNE24H-2436-A2

SNE24D-2436-P1

SNE24H-4236-A1

SNE24H-4236-A2

SNE24D-4236-P1

SNE24H-4536-A1

SNE24H-4536-A2

SNE24D-4536-P1

36” Depth

SNE27H-4236-A1

SNE27H-4236-A2

SNE27D-4236-P1

SNE27H-4536-A1

SNE27H-4536-A2

SNE27D-4536-P1

24” Width

42” Depth

SNE24H-2442-A1

SNE24H-2442-A2

SNE24D-2442-P1

SNE24H-4242-A1

SNE24H-4242-A2

SNE24D-4242-P1

SNE24D-4242-P2

SNE24H-4542-A1

SNE24H-4542-A2

SNE24D-4542-P1

SNE24D-4542-P2

27.6” Width

42” Depth

SNE27H-4242-A1

SNE27H-4242-A2

SNE27D-4242-P1

SNE27D-4242-P2

SNE27H-4542-A1

SNE27H-4542-A2

SNE27D-4542-P1

SNE27D-4542-P2

30” Width

42” Depth

SNE30H-4242-A1

SNE30H-4242-A2

SNE30DI4242-P1

SNE30D-4242-P2

SNE30H-4542-A1

SNE30H-4542-A2

SNE30D-4542-P1

SNE30D-4542-P2

48” Depth

SNE24D-4248-P1

SNE24D-4248-P2

SNE24D-4548-P1

SNE24D-4548-P2

48” Depth

SNE27D-4248-P1

SNE27D-4248-P2

SNE27D-4548-P1

SNE27D-4548-P2

48” Depth

SNE30D-4248-P1

SNE30D-4248-P2

SNE30D-4548-P1

SNE30D-4548-P2

45

42

24 spaces

36”, 42”, or 48”

SNE24H-4536-A1

24”, 27.6”, or 30”

MIDDLE ATLANTIC

PRODUCTS

®

GANGABLE FLOOR-STANDING ENCLOSURES

SNE SERIES

OPTIONS

Options

Cable Chase Lift-Off

(Front & Back Only)

Cable Chase Top Only

Front-Air Dam/ Zero-U Panel Mount

Height

42 space

45 space

42 space

45 space

42 space

Width

all

45 space all all

27.6”

30”

27.6”

30” all

36” Deep

SNE-CC-36LT

SNE-CC-36LT

SNE-TCB-36

42” Deep

Fits

48” Deep

SNE-CC-42LT

SNE-CC-42LT

SNE-CC-48LT

SNE-CC-48LT

SNE-TCB-42 SNE-TCB-48

All Depths

SNE-CC-42FB

SNE-CC-45FB

SNE27-FAD-PM-42

SNE30-FAD-PM-42

SNE27-FAD-PM-45

SNE30-FAD-PM-45

Bracket for Top Cable Pass-Through

Lever Lock

Mounting Bracket all all LL-SNE-36BKT LL-SNE-42BKT LL-SNE-48BKT

Lever Lock

Accessories

6” Wide Vertical Wire Grid Lace

Internal Vertical Cable Manager all

24 space

42 space

45 space

24 space

42 space

45 space all all all

Seismic Anchoring Brackets all

24”

27.6”

30”

NOTE: Please refer to the enclosure options section in the MAP Catalog on pgs. 44-50 or visit our website for more info.

Vertical

Angle

LL-VA21

LACE-WB6-24

LACE-WB6-42

Vertical

Channel

LL-VC21

LACE-WB6-45

SNE-IVCMF-24

SNE-IVCMF-42

SNE-IVCMF-45

SNE24-Z4

SNE27-Z4

SNE30-Z4

Vertical

10” Plate

Vertical

DIN Rail

LL-VP2110 LL-VDIN21

48

WWW.MIDDLEATLANTIC.COM

49

MIDDLE ATLANTIC

PRODUCTS

®

C5 SERIES CREDENZAS

Middle Atlantic Products is expanding its C5 Series Credenza offering to address the latest trends in commercial interior design.

• Frame to Furniture

design complements an

integrator’s installation workflow

• Attractive styles, finishes and options reflect

current design trends

• Frames are in stock guaranteeing quick

delivery while allowing the integrator to

immediately start the installation (the custom

finishing kit is manufactured to order)

Build a C5 Series Credenza now.

Go to our step-by-step guide online www.middleatlantic.com

moderno sota klasik

L5 SERIES LECTERNS

The L5 Series lectern is the industry’s most integration-friendly lectern.

• Frame to Furniture

design complements an

integrator’s installation workflow

• Frames are in stock guaranteeing quick

delivery while allowing the integrator to

immediately start the installation (the custom

finishing kit is manufactured to order)

• 3 sizes, 2 top styles, 2 designs

• Easy to integrate: frames ship from stock to

quickly get you the foundation you need to

start your install

• Future proofing: damage panels can be

individually replace or the entire outer shell

can be refinished without removing equipment

Build a L5 Series lectern now.

Go to our step-by-step guide online www.middleatlantic.com

MIDDLE ATLANTIC

PRODUCTS

®

TECHPED

SERIES TECHNOLOGY PEDESTAL

The TechPed

Series Technology Pedestals provide under table support while housing equipment and cables; a simple to integrate, easy to service solution ideal for conference rooms and collaboration spaces.

• Frame to Furniture

design complements an integrator’s

installation workflow

• Frames are in stock guaranteeing quick delivery while

allowing the integrator to immediately start the

installation (the custom finishing kit is manufactured

to order)

• Table support system designed to house electronics

and cables

• Available in a spectrum of finishes to match any meeting

room décor

Frame

TP-F1318

TP-F1325

TP-F1330

Width

18”

25”

30”

Finishing

Kit*

TP-K1318

TP-K1325

TP-K1330

PRODUCT INFORMATION

Top & Bottom

Opening

Ideal For

12” x 17”

12” x 24”

12” x 29” small size tables with minimal equipment mounting small to mid size tables with equipment mounting and table top boxes mid to large size tables with equipment mounting and table top boxes with cable retractors

*Finishing kits require finish color selection.

OPTIONS

Part Number

TCCH-M-5

UTCM

TP-MK1

TP-CR-BKT

Description

under table hinged cable management, 9-1/2” wide under table hinged cable management, 5” wide custom finishing kit for millworker change the mounting position of Wiremold

®

cable retractors*

*Required on 1318 and 1325

43” size

sota klasik

33” turret model, sota design in limber maple shown

23” and 43” sizes also available

50

WWW.MIDDLEATLANTIC.COM

51

MIDDLE ATLANTIC

PRODUCTS

®

VIEWPOINT

SERIES CONSOLE SYSTEM

The ViewPoint

Series is specifically designed for reliability, flexibility and ergonomics. Ideal for:

Security and monitoring, command and control, network operating center, and front of house controls.

• Console bays are rugged, fully welded steel

construction

• Engineered for fast assembly and effective

equipment cooling

• Built-in cable management functions

• Certified for mission critical installations

• Built and shipped for installation that is

35% faster than the competition

To Order:

Free CAD compatible 3D layout & specification software creates elevations, plan views, and quotes in minutes.

VISIT MIDDLEATLANTIC.COM TO DOWNLOAD

For technical questions or design assistance, please contact our Design

Services support team at 800-266-7225.

Shown with bay extender for rackmounting deep equipment

Shown with turrets, slide out keyboard trays, wedge design

Shown with deskwall for flexible monitor mounting 18”

(457mm) console work surface provides top access to equipment and cabling

NOTE: Please refer to the ViewPoint

options section the MAP Catalog on pgs. 144-147 or visit our website for more info.

VIEWPOINT

SIT/STAND WORKSTATIONS

The ViewPoint

Sit/Stand workstations are specifically designed for healthy work environments with height-adjustable functionality.

• Available in console bays or as a stand-alone work station

• Factory integrated lifty systems, pre-installed in welded

ViewPoint™ console bays makes installation easy

• 3 programmable pre-set heights to accommodate multiple

users and/or ergonomic preferences

PRODUCT INFORMATION

Part Number* Description

VC-LS3619-DT37SA

VC-LS4819-DT37SA

VC-LS7219-DT37SA

VC-LSWS1-DT37SA

36” w x 19”d stand-alone ViewPoint

lift system

48” w x 19”d stand-alone ViewPoint

lift system

72” w x 19”d stand-alone ViewPoint

lift system stand-alone ViewPoint

lift system workstation

*When ordering, suffix part # for desired finish

OPTIONS

Part Number

VC-LS-SP219

Description

pair of left and right sided panels mount on any bay

NOTE: Please refer to the ViewPoint

options section the MAP Catalog on pgs. 144-147 or visit our website for more info.

stand-alone work station shown

MIDDLE ATLANTIC

PRODUCTS

®

To Order:

Free CAD compatible 3D layout & specification software creates elevations, plan views, and quotes in minutes.

VISIT MIDDLEATLANTIC.COM TO DOWNLOAD

For technical questions or design assistance, please contact our Design

Services support team at 800-266-7225.

VISIONFRAME

SERIES

The VisonFrame

Series monitor wall is a robust video monitor support system application engineered for unparalleled monitor support.

• Create the combination of monitor and

sizes you need

• Unbeatable installation experience

• Minimal assembly required

OPTIONS

Part Number

VF-MPV

VF-VPM-3

Description

accessory panel mount three rackspace rear hanging mount

1

vertical panel mount option

2

vertical multi-mount panel option

4

3

6

3

generous hidden vertical cable management

4

horizontal cable management

5

power strips clip easily to rear beam

6

unique cleat system eliminates measurement and guess work

7

5

1

8

2

7

factory pre-assembled mount structure saves field time

8

quick turn custom

Screen-Lock

fasteners for fast assembly

9

heavy duty support can freestand or bolt to floor, and includes levelers deskmount wall version attaches directly to

ViewPoint

consoles

9 holds 3 convenient pre-set height settings

52

WWW.MIDDLEATLANTIC.COM

53

MIDDLE ATLANTIC

PRODUCTS

®

DISPLAYSTATION SERIES MONITOR WALLS

The DisplayStation Series carts and stands are a collection of display solutions that are ideal for simple surveillance and monitoring systems.

• Every model ships with integrated power strip

that attaches to the support channel

• UL Listed to the highest standard for safety in

multi-use environments, including public,

educational and institutional spaces

• Designed for professionally-finished

installations with a convenient cable

management system and display

micro-adjustment mechanism

PRODUCT INFORMATION

Part Number Description

Walls

DS-600-2X2L-AL

DS-600-2X2L-AL

DisplayStation stand, 600 VESA, 2x2, display wall, with levelers

DisplayStation cart, 600 VESA, 2x2, display wall,

with casters

Finish

aluminum aluminum

OPTIONS

Part Number

DS-CS108-B

DS-UTS10-B

DS-LSH1416-B

Description

DisplayStation camera shelf,10 inch wide x 8 inch deep

DisplayStation utility shelf, 10 inch wide x 10 inch deep usable area

DisplayStation locking shelf 16 inch wide x 14 inch deep

Finish

black powder coat black powder coat black powder coat

DISPLAYSTATION SERIES CARTS & STANDS

The DisplayStation Series carts and stands are a collection of display solutions that are ideal for simple video teleconferencing, presentation and digital signage systems.

• UL Listed to the highest standard for safety in

multi-use environments including public,

educational and institutional spaces

• Portrait to landscape adjustability of screen

orientation with display mounted (single post

models only)

• Every model ships with integrated power

strip into the support channel

• Designed for professionally-finished

installations with a convenient cable

management system

Carts

PRODUCT INFORMATION

Part Number Description

DS-600SC-AL

DisplayStation cart, 600 VESA, single display mount, with casters

DS-1000SC-AL

DisplayStation cart, 1000 VESA, 2 post single display,with casters

Stands

DS-600SL-AL

DS-600SP-AL

DS-1000SL-AL

DisplayStation stand, 600 VESA, single display mount,with levelers

DisplayStation stand, 600 VESA, single display mount with steel base plate

DisplayStation stand, 1000 VESA, 2 post single display,with levelers

Finish

aluminum aluminum aluminum aluminum aluminum

OPTIONS

Part Number

DS-CS108-B

DS-UTS10-B

DS-LSH1416-B

Description Finish

DisplayStation camera shelf,10 inch wide x 8 inch deep black powder coat

DisplayStation utility shelf, 10 inch wide x 10 inch deep usable area black powder coat

DisplayStation locking shelf 16 inch wide x 14 inch deep black powder coat

integrated power strip included with every model application engineered cable management system for a professional finish

54

WWW.MIDDLEATLANTIC.COM

shown with (2) 70” displays

FINISHES

black black & champagne

MIDDLE ATLANTIC

PRODUCTS

®

VTC SERIES

The VTC Series Video Carts are the industry’s most versatile mobile monitor cart system for videoconferencing and presentation applications.

• Heavy-duty design to support large screens:

up to one 80” or two 70”

• 3-space equipment mounting area in base

• Configurable mounting area of 4 rackspaces or a

tower CPU

• Efficient mounting Lever Lock

system compatible

Black Finish

Part Number

VTC-4280S-BW

VTC-4255D-BW

VTC-5670D-BW

VTC-4280S-BW

VTC-4255D-RBW

VTC-5670D-RBW

Champagne Finish

Part Number

VTC-4280S

VTC-4255D

VTC-5670D

VTC-4280S-R

VTC-4255D-R

VTC-5670D-R

Display Capacity

single 42"- 80" dual 42" - 55" dual 56" - 70" single 42" - 80" dual 42" - 55" dual 56" - 70"

PRODUCT INFORMATION

Includes Rack Frame Capacity

4 rackspaces + 10" Lever Lock

plate

4 rackspaces + 10" Lever Lock

plate

4 rackspaces + 10" Lever Lock

plate

12 rackspaces + 10" Lever Lock

plate

12 rackspaces + 10" Lever Lock

plate

12 rackspaces + 10" Lever Lock

plate

X

X

X

Black Finish

Part Number

VTC-DWR-5.5-BW

Champagne

Finish Part #

VTC-DWR-5.5

Description

5.5" high X 7.5"deep, drawer for

VTC Series

VTC-SPK-SH11-BW VTC-SPK-SH5.5

5.5" high, VTC speaker shelf only

VTC-SPK-SH5.5-BW VTC-SPK-SH11 11" high, VTC speaker shelf only

Part Number

LL-VTC-K

VTC-WS-32X12SL

VTC-R1214

OPTIONS

Description

VTC Lever Lock

kit, (2) LL receptacles (1) LL-HC21 (1) LL-VP2110

32" wide, 12" deep VTC work surface, slate

12SP EIA, 14" deep, VTC Add-On rack with glass door

NOTE: For additional Lever Lock

options please refer to the MAP Catalog on pgs. 206-207 or visit our website for more info.

rack version shown with additional

8 RU (12 RU total)

VTC-4280S-BW

55

FLEXVIEW

SERIES

The FlexView

Series is a collection of display stands and carts that are easy-to-integrate, cost-effective solutions for corporate, hospitality and education environments.

• Engineered for durability, certified for

strength and safety

• Rugged casters on cart models provide

long-lasting use

• Lowest profile display mount in the industry

PRODUCT INFORMATION

Part Number Base

FVS-800SC-BK

FVS-800ESC-BK casters casters

FVS-800SC-WH casters

FVS-800ESC-WH casters

FVS-800S-BK

FVS-800ES-BK

FVS-800S-WH

FVS-800ES-WH levelers levelers levelers levelers

Lift or Static

static electric lift static electric lift static electric lift static electric lift

Description

FlexView single display cart with 4 inch casters, up to vesa 800 mounting pattern

FlexView electric lift display cart with 4 inch casters, up to vesa 800 mounting pattern

FlexView single display cart with 4 inch casters, up to vesa 800 mounting pattern

FlexView electric lift display cart with 4 inch casters, up to vesa 800 mounting pattern

FlexView single display stand, static with levelers, up to vesa 800 mounting pattern

FlexView electric lift display stand, static with levelers, up to vesa 800 mounting pattern

FlexView single display stand, static with levelers, up to vesa 800 mounting pattern

FlexView electric lift display stand, static with levelers, up to vesa 800 mounting pattern

MIDDLE ATLANTIC

PRODUCTS

®

white black black white white

Finish

black black white

OPTIONS

Part Number

FVS-SBBU

FVS-CMTB-128-BK

FVS-CMTB-128-WH

Description

FlexView soundbar attachment bracket, mounts soundbar above or below monitor, universal fit

FlexView camera mount, fits flexview cart/stand, top or bottom of screen mounting

FlexView camera mount, fits flexview cart/stand, top or bottom of screen mounting

NOTE: For Lever Lock

options please refer to the MAP Catalog on pgs. 206-207 or visit our website for more info.

Finish

black black powdercoat white powdercoat

FVS-800SC-WH

56

WWW.MIDDLEATLANTIC.COM

FVS-800ES-BK

FINISHES

black white

MIDDLE ATLANTIC

PRODUCTS

®

UNINTERRUPTIBLE POWER SUPPLIES

PREMIUM SERIES

Premium Series UPS Backup Systems are the ideal solution for protecting high end and sensitive electronics. Featuring pure sine wave technology and IP capability.

15

Amp

20

Amp

Part Number

UPS-1000R

UPS-1000R-IP

UPS-1000R-8

UPS-1000R-8IP

UPS-2200R

UPS-2200R-IP

UPS-2200R-8

UPS-2200R-8IP

UPS-2200R-HH

UPS-EBPR

UPS-IPCARD

UPS-RBP

Description

1000VA / 750W

1000VA / 750W

1000VA / 750W

1000VA / 750W

Outlet Controlled

Critical/Non-critical Bank

Critical/Non-critical Bank

Individual Outlet

Individual Outlet

2150VA / 1650W

2150VA / 1650W

2150VA / 1650W

2150VA / 1650W

2150VA / 1650W

UPS Expansion

Battery Pack

UPS Network

Interface Card

UPS Replacement

Battery Pack

Critical/Non-critical Bank

Critical/Non-critical Bank

Individual Outlet

Individual Outlet

Critical/Non-critical Bank

Dimensions

19”W x 3.5”H x 19”D

19”W x 3.5”H x 19”D

19”W x 3.5”H x 19”D

19”W x 3.5”H x 19”D

19”W x 3.5”H x 19”D

19”W x 3.5”H x 19”D

19”W x 3.5”H x 19”D

19”W x 3.5”H x 19”D

19”W x 3.5”H x 19”D

Termination

9’ cord w/NEMA 5-15P Plug

9’ cord w/NEMA 5-15P Plug

9’ cord w/NEMA 5-15P Plug

9’ cord w/NEMA 5-15P Plug

9’ cord w/NEMA 5-20P Plug

9’ cord w/NEMA 5-20P Plug

9’ cord w/NEMA 5-20P Plug

9’ cord w/NEMA 5-20P Plug hardwired 36” flex cable input & hardwired output

No

Yes

No

Yes

No

IP Card

Installed

No

Yes

No

Yes

front rear

UPS-2200R

15

Amp

20 Amp

Part Number

UPS-S500R

UPS-S1000R

UPS-S1500R

UPS-S2200R

UPS-SRBP-500

UPS-SRBP-1000

UPS-SRBP-1500

UPS-SRBP-2200

UPS-IPCARD

SELECT SERIES

Select Series UPS Backup Systems are a competitively priced option for ensuring uptime of electronic components in the event of a power outage. Select Series UPS models are available in compact form factors when space is at a premium, in capacities to support a wide range of installations. All models are available with web-enabled IP control.

Description

500VA, 120V 60HZ

1000VA, 120V 60HZ

1500VA, 120V 60HZ

2200VA, 120V 60HZ replacement battery pack 500VA replacement battery pack 1000VA replacement battery pack 1500VA replacement battery pack 2200VA

UPS Network Interface Card

Outlet Controlled

bank control bank control bank control

– bank control

Dimensions

17”W x 1.75”H x 8.75”D

17"W x 1.75"H x 15"D

17"W x 3.5"H x 15"D

17"W x 3.5"H x 15"D

Termination

10’ cord w/NEMA 5-15P Plug

10’ cord w/NEMA 5-15P Plug

10’ cord w/NEMA 5-15P Plug

10’ cord w/NEMA 5-20P Plug

Rackspaces

1 space

1 space

2 space

2 space

front rear

UPS-S500R

57

RACKLINK

POWER MANAGEMENT

The RackLink

Power Management System provides integrators with system monitoring and control and is accessible locally, over the web, and through available apps for iOS and Android

mobile devices. It is designed to help ensure system reliability and uptime through the use of intuitive setup and operation, pre-emptive problem notification and automatic problem resolution.

• Individual outlet control for up to 8 outlets

• Monitor power and temperature

• Autoping network device diagnostic/utility

• Event logging and notification

PRODUCT INFORMATION

Part # Form Factor

RLNK-MON115-NS

RLNK-MON120-NS

RLNK-SW215-NS

RLNK-SW220-NS

RLNK-SW715R

RLNK-SW715R-NS

RLNK-SW620R

RLNK-SW620R-NS

RLNK-SW415R-SP

RLNK-SW815R-SP

RLNK-SW820R-SP

In-Line Module

In-Line Module

In-Line Module

In-Line Module

Rackmount

Rackmount

Rackmount

Rackmount

Half-Rack

Rackmount

Rackmount

Max

Load

15A

15A

20A

20A

15A

15A

20A

15A

20A

15A

20A

Rated

Load

12A

12A

16A

16A

12A

12A

16A

12A

16A

12A

16A

Surge

Protection

Basic

Basic

Basic

Basic

2-Stage

Basic

2-Stage

Basic

Series

Series

Series

Sequencing

No

No

No

No

Yes

Yes

Yes

No

No

No

No

4

8

8

6

6

7

7

1

2

2

Total

# of Outlets

Controlled

1 0

0

1

1

5

5

4

4

4

8

8

2

2

2

4

5

4

5

0

0

1

1

Controlled

Dry Contacts

MIDDLE ATLANTIC

PRODUCTS

®

Integrated

Web Server

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

compact In-Line models great for one or two outlets dry contact outputs/inputs local control of outlets via illuminated manual switches individually controlled outlets

IP, RS-232 and network connections temperature probe

RLNK-SW415R-SP

RLNK-SW715R-NS

PD-915R-SP

PD-420R-SP

MIDDLE ATLANTIC

PRODUCTS

®

SERIES PROTECTION

POWER DISTRIBUTION

Middle Atlantic’s Series Protection

Power Distribution products feature the industry’s fastest-responding surge protection technology. This patented non-degrading protection won’t contaminate the system ground, automatically disconnects devices to protect from sustained over and under voltage events and provides automatic recovery after these events to minimize system downtime.

• Engineered with non-sacrificial and non-degrading protection that absorbs surges without contaminating ground

• 100% MOV-free design – offering superior protection

• Automatic recovery – does not require hard reset after

an over or under voltage event

Part Number Circuits

PD-915R-SP 1

PD-920R-SP 1

PD-415R-SP 1

PD-420R-SP 1

PD-HW15-SP 1

Rated

Load

15A

20A

15A

20A

15A

Spec Grade

Output Type

Illuminated

Combo

Breaker ON/OFF

Duplex on rear, single on front Rear (with bar)

Duplex on rear, single on front Rear (with bar)

Duplex – rear only Side (with bar)

Duplex – rear only Side (with bar)

Internal J-Box w/ cover & knockout

N/A

Outlets

PRODUCT INFORMATION

Protection

Overload

Over/Under

Voltage

Notification LED

9

4

Total Rear Front

9 8 1

4

8

4

4

1

0

0

Surge

Series

Protection supplementary overload protector

Two LEDS.

• Over voltage

• Under voltage

• Default=Off

N/A N/A N/A None

PD-HW15-SP

58

WWW.MIDDLEATLANTIC.COM

59

SERIES PROTECTION

COMPACT SURGE DEVICE

Series Protection

Compact Surge products offer the same industry leading fast response technology in the most compact stand alone device in the industry.

• Safeguards against both over and under

voltage events

• Features automatic recovery – does not

require hard reset after a surge event

• Engineered with non-sacrificial and

non-degrading protection that absorbs

surges without contaminating ground

MIDDLE ATLANTIC

PRODUCTS

®

9.01”

PD-28-SP

PRODUCT INFORMATION

Part

Number

Circuits

PD-28-SP 1

Rated

Load

8A

Input Type

detachable cord

(IEC inlet)

4.65”

Output Type

ComboBreaker

ON/OFF

NEMA 5-15R Yes

Surge

Series

Protection

Overload

supplementary overload protector

Protection

Over/Under Voltage

Notification LED

Yes

Power On LED

Yes

2-STAGE COMPACT SURGE DEVICE

MOV protected Compact Surge products offer the industry’s most compact Line-to-Neutral stand alone surge protection device.

• Two stage technology for enhanced surge

protection

• Safeguards against both over and under

voltage events

• Deflects surge events to neutral without

contaminating ground

PD-215

6.51”

PRODUCT INFORMATION

Part

Number Circuits Rated Load

PD-215 1 12A

Input Type

detachable cord (IEC inlet)

Output Type

ComboBreaker

ON/OFF

NEMA 5-15R Yes

Surge

MOV

Overload

supplementary overload protector

Protection

Over/Under Voltage

Notification LED

Yes

4.65”

Power On LED

Yes

60

WWW.MIDDLEATLANTIC.COM

MIDDLE ATLANTIC

PRODUCTS

®

wood grain

Formica

White Ash

FINISHES

Technical furniture and mounting systems from Middle Atlantic are built for user ergonomics and system reliability.

Just like our racks, they incorporate the best equipment mounting technologies that are:

• Optimized for Audio-Video and Security applications

• Engineered for fast, labor-saving installation

• Innovative solutions, promoting best practices for

system reliability

• Designed and manufactured with the highest quality

and standards

• The industry’s highest customer service levels and

quick delivery

Trust your AV installs to the furniture systems built from the rack up and certified for AV – only from Middle Atlantic Products.

HPL OPTIONS VENEER OPTIONS

wood grain

Wilsonart

High Line

Formica

Weathered Ash

WiIsonart

5th Ave. Elm

Wilsonart

Walnut Heights

Sandy – Maple Scarlett –

Cherry

Cerise – Sapele Ashen – Walnut Late – Walnut

Formica

Pecan Woodline

Wilsonart

Limber Maple

Formica

Oiled Lengo

Wilsonart

Mambo

Formica

Blackened Lengo

Wilsonart

Studio Teak

Formica

Aged Ash

Wilsonart

Fonthill Pear

Formica

Glamour Cherry

Wilsonart

Versailles

Anigre

solid finish

Formica

Prestige Walnut

Wilsonart

Montana Walnut

Formica

Espresso Pear

Wilsonart

Asian Night

Wilsonart

Brite White

Wilsonart

Beige

Wilsonart

Grey

Wilsonart

Citadel

Wilsonart

Black

t-lam

Demitasse –

Walnut

Sepia –

Walnut

Mink – Cherry Titan – Walnut Noire – Sapele

THERMOLAMINATE OPTIONS

FIN-NM

Native Maple

FIN-FN

Fenelon

FIN-HN

Hazelnut Maple

FIN-SE

Sequoia

FIN-AS

Auburn Stream

FIN-NA

Napa

FIN-CN

Café Noir

FIN-SA

Sienna

FIN-BA

Belambra

FIN-TW

Timberwolf

FIN-IS

Ibis

FIN-GA

Gray Ash

FIN-FT

Frost

FIN-SG

Shark Gray

FIN-PS

Pepperstone

visual texture

Wilsonart

Light Beige

Wilsonart

Shadow

Formica

Basalt Slate

Formica

Perlato Granite

Nevamar

Silver Alu Metalx

Formica

Mineral Spa

Nevamar

Adaptable Muse

steel

Formica

Neutral Weft

Formica

Flax Gauze

Formica

Earth Wash

Wilsonart

Orchre Roletta

Formica

Smoke

Quarstone

SEMI-CUSTOM COLORS

Black

(Wrinkle)

Putty

(Wrinkle)

Gray

(Texture)

White

(Gloss)

White

(Texture)

FIN-GS

Graystone

FIN-DS

Darkstone

FIN-SL

Slate

FIN-NT

Nighttide

MFR AND RFR OPTIONS

MFR

RFR

knotted maple black rain grained ebony ash grained dark cherry cherry rain teak rain

Blue

(Texture)

61

RE

STORE

THE ENVIRONMENT.

WWW.LEGRAND.US

38

reduction

%

in

5

years

Legrand had reduced its energy intensity across U.S. Facilities by 38% since 2009.

As we execute our sustainability goals, we share the resources and tools we’ve developed with our partners, suppliers and customers, free of charge, to help you as you navigate your own sustainability journey.

These include our Energy Marathon and Power Down Day toolkits, Energy

Management Handbook, Project Evaluation tool and white papers. Use them to get started and assess your own needs.

WWW.LEGRAND.US/SUSTAINABILITYTOOLS

FEATURED RESOURCES

A GUIDE TO THE BUILDING PERFORMANCE LANDSCAPE

For those that serve the building community, the building performance landscape can seem confusing, complex, and continuously changing. Download our second in a series of white papers to gain a better understanding of the performance-focused initiatives at work in the building market today.

POWER DOWN DAY TOOLKIT

Engage employees in energy reduction with our Power

Down Day Toolkit. See how much energy you can reduce in one day and apply those strategies long term.

ENERGY MANAGEMENT HANDBOOK

Need sustainability direction? Start with energy management! Download our step-by-step Energy

Management Handbook.

62

WWW.MIDDLEATLANTIC.COM

63

C2G

3555 Kettering Boulevard

Moraine, OH 45439

800.506.9607

Cablofil

8319 Route 4

Mascoutah, IL 62258

618.566.3244

Middle Atlantic Products

300 Fairfield Road

Fairfield, NJ 07004

973.839.1011

Ortronics

125 Eugene O’Neill Drive

New London, CT 06320

860.445.3900

Pass & Seymour

P.O. Box 4822

Syracuse, NY 13221-4822

315.468.6211

WattStopper

2800 De La Cruz Blvd.

Santa Clara, CA 95050

408.988.5331

Wiremold

60 Woodlawn Street

West Hartford, CT 06110

860.233.6251

Legrand, North America

60 Woodlawn Street

West Hartford, CT 06110

1.877.BY.LEGRAND (295.3472) www.legrand.us

570 Applewood Crescent

Vaughan, Ontario L4K 4B4

905.738.9195 www.legrand.ca

FOLLOW US

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
