CDP-D11
CD Player

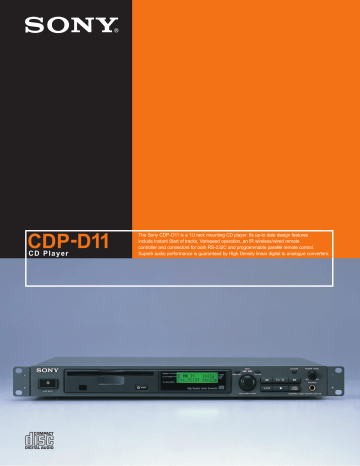

The Sony CDP-D11 is a 1U rack mounting CD player. Its up-to date design features
include Instant Start of tracks, Varispeed operation, an IR wireless/wired remote
controller and connectors for both RS-232C and programmable parallel remote control.
Superb audio performance is guaranteed by High Density linear digital to analogue converters.
Main Features
Flexible output interfacing
Analog audio outlets are via balanced XLR connectors and unbalanced RCA
connectors. Both coaxial and optical digital outputs are also provided.
Coaxial and optical SPDIF (IEC 958 type ll) digital outputs.
Main functions
INSTANT START, MARK&LOCATION, SPEED CONTROL (±12.5% in 0.5% steps).
AUTO CUE function searches for the beginning of the music automatically and
enters PAUSE mode. AUTO PAUSE function enters pause status at the end of
each TRACK automatically. PROGRAM, SHUFFLE, A-B REPEAT are available.
In VARI- SPEED mode, actual playback time can be indicated.
A special "fader play" mode is provided on the parallel interface to automatically
play tracks in order as the fader start switch is opened and closed.
Dual-mode Wired/IR wireless remote controller supplied (RM-DS11)
Supplied commander RM-DS11 can function as a wired control
or infrared wireless control.
Wired remote control is particularly suitable for use in installations with multiple
players.
Long-duration sequential playback
Sequential playback from several CDP-D11 units using the Relay Play
input and output feature.
After a unit’s playback has come to an end, a control signal is fed through the
relay jack and triggers a second unit start to playback automatically.
Comprehensive remote control
Remote control via RS-232C or parallel remote control ports.
Parallel remote can be user-assigned to control and monitor several functions of the
machine.
Other features
*Music scans function for quick location of tracks.
*Advanced Electronic Shock Protection with 4 Mb D-RAM buffer (2.972 msec).
*Plays both 8 cm and 12 cm CDs without an adapter.
*Headphone monitoring output with level control.
CDP -D11
CD Player
The space saving design of the CDP-D11 features a slot-in loading mechanism
designed for high reliability and with resistance to shock and to high temperatures.
A three-second Advanced ESP anti-shock memory is also standard.
Front Panel
Specifications of RM-DS11
Supplied Remote Control Unit
RM-DS11
The RM-DS11 dual mode remote
controller connects to the 3.5 mm
Control-S jack with a supplied
5 m cable, but also operates as a
Remote control
9-pin D-sub, male
RS-232C:
Parallel remote: 9-pin D-sub, female
input, TTL 10 V max
output, open collector 100 mA max
RELAY IN/OUT/PLAY IN
Relay play:
3.5 mm lack x 2
conventional IR remote when not
connected to the Control-S jack.
Pin connections for the Parallel Remote
connector are as follows.
The alternative functions are available via
the Set-up Menu.
Pin
Rear Panel
Preset Function
Alternative Functions
1
Input
PLAY
PLAY/PAUSE, FADER PLAY
2
Input
PAUSE
PLAY, PAUSE
3
Input
STOP
STOP, FF, REW
4
Input
AMS+
AMS+ AMS-
5
Input
AMS-
EJECT, OFF
6
GND
7
Output
PLAY
PLAY, PAUSE
8
Output
PAUSE
NO DISC
9
Output
NO DISC
OFF
Specifications
Audio performance
General
Frequency response:
THD:
S/N ratio:
Dynamic range:
System:
Laser:
Varispeed range:
D/A conversion:
Wow and Flutter:
20 Hz - 20 kHz ±0.5 dB
< 0.01%
better than 93 dB
digital, 97 dB
analog, 92 dB
±12.5% in 0.5% steps
High Density Linear
(8x over sampling, 1 bit with 20 bit accuracy)
below measurable limits
Connector
Rated output
Load impedance
CD player
semiconductor GaAIAs laser
( 780nm)
44.1 kHz
120V AC, 60 Hz
11 W
0 ˚Cto 40˚C
-20˚Cto 60˚C
5.2 kg
482 (W) x 44 (H) x 350(D) mm
Wired/Wireless Remote Commander
RM-DS11
Phono
Maximum
+8 dBu
+10/+24 dBu
(switchable)
More than 10 kΩ
OdBu=0.775Vrms
Outputs
ANALOG
LINE OUT
XLR3-32
Sampling frequency:
Power requirements:
Power consumption:
Operating temperature:
Storage temperature:
Mass:
Dimensions:
Supplied accessory:
More than 600 Ω
DIGITAL
OPTICAL OUT
Square optical
connector
-18 dBm
(optical power)
DIGITAL
COAXIAL OUT
Phono
0.5 Vp-p
75 Ω
PHONES
Stereo Phone
0 -10 mW
The level varies
32 Ω
CDP-D11
CD Player
Dimensions (Unit:mm)
DIGITAL OUT
ANALOG OUT(UNBAL)
This unit can be attached to a standard 19 inch rack (type EIA).
After detaching the four feet on the bottom of the unit,
mount the unit on the rack.
ANALOG(BAL)
R
RS-2320
PELAY
PARALLEL
IN
OUTPUT
LEVEL
L
REMOTE
COAXIAL
OPTICAL
R
L
"US AND FOREIGN PATENTS LICENSED
FROM DOLBY LABORATORIES LICENSING
CORPORATION"
350
370
CTRL-S
Mounting the unit
430
482
44
AMB
LOCATE
PHONE LEVEL
DISPLAY
PLAY MODE
MIN
VARI SPEED
PHONES
EJECT
ON
Distributed by
A-1050
MK7402V1AB99NOV
OFF
MAX
ACUE
PUSH MARK/ENTER
44
REPEAT
VARI
SPEED
COMPACT DISC PLAYER CDP-D11
©2000 Sony Corporation. All rights reserved.
Reproduction in whole or in part without written permission is prohibited.
Features and specifications are subject to change without notice.
All non-metric mass and measures are approximate.
Sony is a registered trademark of Sony Corporation.
All other trademarks are property of their respective owners.
Printed in USA 1/100
