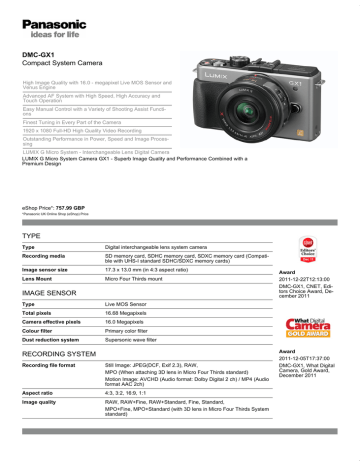

Panasonic DMC-GX1XVEG-K digital MILC
DMC-GX1
Compact System Camera
High Image Quality with 16.0 - megapixel Live MOS Sensor and
Venus Engine
Advanced AF System with High Speed, High Accuracy and
Touch Operation
Easy Manual Control with a Variety of Shooting Assist Functions
Finest Tuning in Every Part of the Camera
1920 x 1080 Full-HD High Quality Video Recording
Outstanding Performance in Power, Speed and Image Processing
LUMIX G Micro System - Interchangeable Lens Digital Camera
LUMIX G Micro System Camera GX1 - Superb Image Quality and Performance Combined with a
Premium Design
eShop Price*: 757.99 GBP
*Panasonic UK Online Shop (eShop) Price
TYPE
Type
Digital interchangeable lens system camera
Recording media
SD memory card, SDHC memory card, SDXC memory card (Compatible with UHS-I standard SDHC/SDXC memory cards)
Image sensor size
17.3 x 13.0 mm (in 4:3 aspect ratio)
Lens Mount
Micro Four Thirds mount
IMAGE SENSOR
Type
Live MOS Sensor
Total pixels
16.68 Megapixels
Camera effective pixels
16.0 Megapixels
Colour filter
Primary color filter
Dust reduction system
Supersonic wave filter
RECORDING SYSTEM
Recording file format
Still Image: JPEG(DCF, Exif 2.3), RAW,
MPO (When attaching 3D lens in Micro Four Thirds standard)
Motion Image: AVCHD (Audio format: Dolby Digital 2 ch) / MP4 (Audio
format AAC 2ch)
Aspect ratio
4:3, 3:2, 16:9, 1:1
Image quality
RAW, RAW+Fine, RAW+Standard, Fine, Standard,
MPO+Fine, MPO+Standard (with 3D lens in Micro Four Thirds System
standard)
Award
2011-12-22T12:13:00
DMC-GX1, CNET, Editors Choice Award, December 2011
Award
2011-12-05T17:37:00
DMC-GX1, What Digital
Camera, Gold Award,
December 2011
Color Space
sRGB, Adobe RGB
File size(Pixels)
Still Image
[4:3] 4592x3448(L) / 3232x2424(M) / 2272x1704(S) / 1824x1368(When
attaching 3D lens in Micro Four Third System standard)
[3:2] 4576x3056(L) / 3232x2160(M) / 2272x1520(S) / 1824x1216(When
attaching 3D lens in Micro Four Third System standard)
[16:9] 4576x2576(L) / 3232x1824(M) / 1920x1080(S) / 1824x1024
(When attaching 3D lens in Micro Four Third System standard)
[1:1] 3424 x 3423 (L) / 2416 x 2416 (M) / 1712 x 1712 (S) / 1712x1712
(When attaching 3D lens in Micro Four Third System standard)
Motion Image (MP4* : NTSC)
[Full HD] 1920 x 1080, 30fps (sensor output is 30p) (Approx.20Mbps)
Motion Image (MP4* : NTSC)
[HD] 1280 x 720, 30fps (sensor output is 30p) (Approx.10Mbps)
Motion Image (MP4* : NTSC)
[VGA] 640x480, 30fps (sensor output is 30p) (Approx.4Mbps)
Motion Image (MP4* : PAL)
[Full HD] 1920 x 1080, 25fps (sensor output is 25p) (Approx.20Mbps)
Motion Image (MP4* : PAL)
[HD] 1280 x 720, 25fps (sensor output is 25p) (Approx.10Mbps)
Motion Image (MP4* : PAL)
[VGA] 640x480, 25fps (sensor output is 25p) (Approx.4Mbps)
Motion Image (AVCHD* : NTSC) [Full HD] 1920×1080, 60i (sensor output is 30p) (FSH:17Mbps)
[HD] 1280 x 720, 60p (sensor output is 30p)(SH:17Mbps)
Motion Image (AVCHD* : PAL)
[Full HD] 1920×1080, 50i (sensor output is 25p) (FSH:17Mbps)
[HD] 1280 x 720, 50p (sensor output is 25p)(SH:17Mbps)
Award
2012-01-04T17:49:00
DMC-GX1, Photography
Blog, Highly Recommended, January 2012
Award
2012-01-04T17:54:00
DMC-GX1, Pocket-lint,
Hot Product, January
2012
Continuous recordable time (Mo- AVCHD with picture quality set to [FSH]: Approx. 140 min with Htion images)
PS14042 / Approx. 130 min with H-FS014042 / Approx. 150 min with HH014
Actual recordable time (Motion
images)
AVCHD with picture quality set to [FSH]: Approx. 70 min with HPS14042 / Approx. 65 min with H-FS014042 / Approx. 75 min with HH014
FOCUS
Type
Contrast AF system
Focus mode
AFS (Single) / AFF (Flexible) / AFC (Continuous) / MF
AF mode
Face detection / AF Tracking / 23-area-focusing / 1-area-focusing/Pinpoint
Touch (1- area-focusing in Face detection / AF Tracking / Multi-area-focusing / 1-area-focusing / Pinpoint)
AF detective range
EV 0 - 18 (ISO100 equivalent)
AF assist lamp
YES
AF lock
Set the Fn button in custom menu to AF/AE lock or Shutter button halfway pressed in AFS mode
Others
Quick AF, Continuous AF (during motion image recording), AF+MF,
Touch shutter, Touch MF Assist
EXPOSURE CONTROL
Light metering system
144-zone multi-pattern sensing system
Light metering mode
Intelligent Multiple / Center Weighted / Spot
Metering range
EV 0 - 18 (F2.0 lens, ISO100 equivalent)
Exposure mode
Program AE, Aperture Priority AE, Shutter Priority AE, Manual, Auto
ISO sensitivity (Standard Output Auto / Intelligent ISO / 160 / 200 / 400 / 800 / 1600 / 3200 / 6400 /
Sensitivity)
12800 (Changeable to 1/3 EV step)
Award
2012-01-17T12:48:08
DMC-GX1, Expert Reviews, Best Buy Award,
January 2012
Award
2012-01-23T13:39:30
DMC-GX1, ePHOTOzine, Highly Recommended, January 2012
Exposure compensation
1/3EV Step ±5EV
AE lock
Set the Fn button in custom menu to AE lock
AE bracket
3,5,7 frame, in 1/3, 2/3 or 1 EV Step, ±3 EV
WHITE BALANCE
White balance
Auto / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1,
2 / Color temperature setting
White balance adjustment
Blue/amber bias, Magenta/green bias
Color temperature setting
2500-10000K in 100K
White balance bracket
3 exposures in blue/ amber axis or in magenta/ green axis
Award
2012-01-27T10:32:59
DMC-GX1, Trusted Reviews, Recommended
Award, January 2012
SHUTTER
Type
Focal-plane shutter
Shutter speed
Still Images: 1/4000 ~ 60 and Bulb (up to approx. 2 minutes)
Motion image: 1/16000 ~ 1/30 (NTSC), 1/16000 ~ 1/25 (PAL)
Self timer
10sec, 3 images/ 2sec / 10sec
Remote control
Remote control with bulb function by DMW-RSL1 (Optional)
Award
2012-01-27T10:08:00
DMC-GX1, ePHOTOzine, Editors Choice
Award, January 2012
SCENE MODE
Still Image SCN mode
Portrait / Soft Skin / Scenery / Architecture / Sports / Peripheral Defocus
/ Flower / Food / Objects / Night Portrait / Night Scenery / Illiminatioms /
Baby 1, 2 / Pet / Party / Sunset
Movie SCN mode
Portrait / Soft Skin / Scenery / Architecture / Sports / Flower / Food /
Objects / Low-light / Party / Sunset
(Activated by selecting Still Image SCN mode then pressing Movie Button. Still Image SCN modes without corresponding Movie SCN mode is
recorded in mode suitable for the recording situation.)
CREATIVE CONTROL
Creative control
Award
2012-02-07T16:14:00
DMC-GX1, Stuff, Hot
Buy Award, February
2012
(Still image & Motion image) Expressive / Retro / High key / Low key /
Sepia / High Dyamic / Toy effect / Miniature effect
BURST SHOOTING
Burst speed
SH: 20 frames/sec, H: 4.2 frames/sec (When AFS mode), M: 3 frames/
sec (with Live View), L: 2 frames/sec (with Live View)
Number of recordable images
9 images (when there are RAW files with the particular speed)
Unlimited consecutive shooting (when there are no RAW files)
(depending on memory card size, battery power, picture size, and compression)
BUILT-IN-FLASH
Type
TTL Built-in-Flash, GN7.6 equivalent (ISO 160 ·m), Built-in Pop-up
Flash Mode
Auto, Auto/Red-eye Reduction, Forced On, Forced On/Red-eye Reduction,
Slow Sync., Slow Sync./Red-eye Reduction, Forced Off
Synchronization speed
Less than 1/160 second
Flash output adjustment
1/3EV Step ±2EV
Flash synchronization
1st Curtain Sync / 2nd Curtain Sync
Award
2012-02-01T17:56:00
DMC-GX1, Digital Photo, Gold Award, February 2012
Hot shoe
TTL Auto with FL220 / FL360 / FL500 (Optional)
ZOOM
Additional zoom operation
Touch Zoom (when use power zoom lenses*) *H-PS14042 lens and HPS45175 lens
Digital zoom
2x, 4x
LCD MONITOR
LIVE VIEW functions
Guide Lines (3 patterns)
LIVE VIEW functions
Real-time Histogram
Type
TFT LCD with Touch panel
Monitor size
3.0inch / 3:2 Aspect / Wide-viewing angle
Pixels
460K dots
Filed of view
Approx. 100%
Monitor adjustment
Brightness (7 levels), Contrast and Saturation (7 levels), Red tint (7 levels), Blue tint (7 levels)
EXTRA TELE CONVERSION
Extra Tele Conversion
Still image: Max.2x (Not effective with L size recording. Magnification
ratio depends on the recording pixels and aspect ratio.)
Extra Tele Conversion
Motion image: Max.4.8x (Magnification ratio depends on the recording
quality and aspect ratio.)
Award
2012-02-01T17:54:00
DMC-GX1, Photo Professional, Editors Choice
Award, February 2012
Award
2012-03-01T11:07:54
DMC-GX1, Stuff, Test
Winner Award, March
2012
LEVEL GAUGE
Level Gauge
Yes (Built-in 3 shaft accelerometer sensor)
DIRECTION DETECTION FUNCTION
Direction Detection Function
Yes
Award
2012-03-01T15:23:51
DMC-GX1, Advanced
Photographer, Best On
Test, March 2012
FUNCTION BUTTON
Fn1, Fn2, Fn3*, Fn4*(*Touch
icons on LCD monitor)
ONE PUSH AE /PREVIEW / LEVEL GAUGE / FOCUS AREA SET /
PHOTO STYLE / ASPECT RATIO / PICTURE SIZE / QUALITY / METERING MODE / FLASH / FLASH ADJUST. / I.RESOLUTION / I.DYNAMIC / EX. TELE CONV. /
Fn1, Fn2, Fn3*, Fn4*(*Touch
icons on LCD monitor)
DIGITAL ZOOM / STABILIZER / SENSITIVITY / WHITE BALANCE / AF
MODE /DRIVE MODE / MOTION PIC. SET / PICTURE MODE / HISTOGRAM / GUIDE LINE / REC AREA
CUSTOM MENUE
C1, C2-1/2/3
Yes (Registering Personal Menu Settings)
PLAYBACK
Playback mode
Normal playback, 30-thumbnail display, 12-thumbnail display, Calendar
display, Zoomed playback (16x Max.), Slideshow (duration & effect is
selectable), Playback Mode (Normal/Picture/Video/3D Play/Category/
Favorite),
Title Edit, Text Stamp, Video Divide, Resize, Cropping, Aspect Conversion, Rotate, Rotate Display, Favorite, Print set, Protect, Face Recognition Edit
Award
2012-04-02T17:18:00
DMC-GX1, Computer
Shopper, Best Buy, April
2012
IMAGE PROTECTION / ERASE
Protection
Single / Multi, Single in Burst Group / Multi in Burst Group, Cancel
Erase
Single / Multi / All / Except Favorite
PRINT
Direct Print
PictBridge compatible(Print size, Layout, Date setting are selectable )
INTERFACE
USB
USB 2.0 High Speed
HDMI
miniHDMI TypeC
Video: Auto / 1080i / 720p / 480p (576p in PAL system)
Audio: Linear PCM
Audio video output
Monaural Type, NTSC/PAL, NTSC only for North America
*Check the website of the Panasonic sales company in your country or
region for details on the products that are available in your market.
Remote
Remote socket
Microphone
Stereo, Wind-cut: Off / Auto
Microphone level adjustable: Lv1 / Lv2 / Lv3 / Lv4
Speaker
Monaural
Award
2012-03-09T12:06:40
DMC-GX1, Photography
for Beginners, Editor's
Choice Award, March
2012
Award
2012-03-19T15:19:48
DMC-GX1, Cameralabs,
Recommended Award,
March 2012
LANGUAGE
OSD language
Japanese, English, German, French, Italian, Spanish
GENERAL
Power
Battery
Li-ion Battery Pack (7.2V, 1010mAh) (Included)
Battery Charger
Battery life (CIPA standard)
Approx. 310 images with H-PS14042
Dimensions (W x H x D)
116.3 x 67.8 x 39.4 mm / 4.58 x 2.67 x 1.55 inch (excluding protrusions)
Weight
Approx. 318g / 11.22 oz (SD card, Battery, Body)
Approx. 272g / 9.59 oz (Body only)
Approx. 413g / 14.59 oz (SD card, Battery, H-PS14042 lens included)
Award
2012-04-20T16:53:40
DMC-GX1, Computer
Active, Buy It! Award,
April 2012
Operating Environment
Operating temperature
0 to 40 (32°F to 104°F)
Operating humidity
10% RH to 80% RH
DMW-LVF2E
Standard Accessories
Software
PHOTOfunSTUDIO 7.0 HD Edition
SILKYPIX® Developer Studio 3.1 SE
LoiLoScope (trial version)
USB Driver
Standard accessories
Battery Charger, Body Cap, Lens Cap, Lens Rear Cap
USB Connection Cable, Shoulder Strap, CD-ROM
H-F008E
INTERCHANGEABLE LENS-1
Nano Surface Coating
Yes
Aperture range
F3.5(Wide) - F5.6(TELE)
Lens Name
LUMIX G X VARIO PZ 14-42mm/F3.5-5.6 ASPH/POWER O.I.S
Lens Construction
9 elements in 8 groups (4 aspherical lenses , 2 ED lens)
Mount
Micro Four Thirds mount
Optical Image Stabilizer
YES (POWER OIS)
Focal Length
f=14-42mm (35mm camera equivalent 28-84mm)
Aperture Type
7 diaphragm blades / Circular aperture diaphragm
Minimum Aperture
F22
Closest Focusing Distance
0.2m / 0.66ft (14-20mm), 0.3m / 0.98ft (21-42mm)
Maximum magnification
Approx. 0.17x / 0.34x (35mm camera equivalent)
Diagonal Angle of View
75°(Wide) to 29°(TELE)
H-FS045200E
H-FS100300E
H-PS14042E-K
General
Others
Electric zoom lever, Manual focus lever
Filter Size
φ37mm / 1.5in
Max. Diameter
φ61mm / 2.4in
Overall Length
Approx. 26.8mm / 1.1in (When the lens is retracted.)
Weight [g]
Approx. 95g (excluding lens cap and lens rear cap)
Weight [oz]
Approx. 3.4oz (excluding lens cap and lens rear cap)
NOTE
* Use a card with SD Speed Class with "Class4" or higher
H-FS014045E
H-PS14042E-K
H-PS45175E-K
H-H020E
H-H014E
H-FT012E
H-X025E
H-ES045E
H-VS014140E
H-F007014E
DMW-MA1E
DMW-MA2ME
DMW-MA3RE
DMW-FL500E
DMW-FL360E
DMW-FL220E
DMW-CZ18E
DMW-RSL1E
H-PS14042E-K
H-PS14042E-S
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
