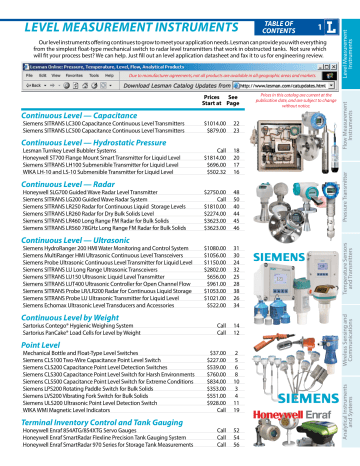

LEVEL MEASUREMENT INSTRUMENTS

TABLE OF

CONTENTS

1

Our level instruments offering continues to grow to meet your application needs. Lesman can provide you with everything from the simplest float-type mechanical switch to radar level transmitters that work in obstructed tanks. Not sure which will fit your process best? We can help. Just fill out an level application datasheet and fax it to us for engineering review.

Due to manufacturer agreements, not all products are available in all geographic areas and markets.

Prices in this catalog are current at the publication date, and are subject to change without notice.

Continuous Level — Capacitance

Siemens SITRANS LC300 Capacitance Continuous Level Transmitters

Siemens SITRANS LC500 Capacitance Continuous Level Transmitters

Prices See

Start at Page

$1014.00 22

$879.00 23

Continuous Level — Hydrostatic Pressure

Lesman Turnkey Level Bubbler Systems

Honeywell ST700 Flange Mount Smart Transmitter for Liquid Level

Siemens SITRANS LH100 Submersible Transmitter for Liquid Level

WIKA LH-10 and LS-10 Submersible Transmitter for Liquid Level

Continuous Level — Radar

Honeywell SLG700 Guided Wave Radar Level Transmitter

Siemens SITRANS LG200 Guided Wave Radar System

Siemens SITRANS LR250 Radar for Continuous Liquid Storage Levels

Siemens SITRANS LR260 Radar for Dry Bulk Solids Level

Siemens SITRANS LR460 Long Range FM Radar for Bulk Solids

Siemens SITRANS LR560 78GHz Long Range FM Radar for Bulk Solids

Continuous Level by Weight

Sartorius Contego® Hygienic Weighing System

Sartorius PanCake® Load Cells for Level by Weight

Call 18

$1814.00 20

$696.00 17

$502.32 16

$2750.00 48

Call 50

$1810.00 40

$2274.00 44

$3623.00 45

$3623.00 46

Continuous Level — Ultrasonic

Siemens HydroRanger 200 HMI Water Monitoring and Control System

Siemens MultiRanger HMI Ultrasonic Continuous Level Transceivers

$1080.00 31

$1056.00 30

Siemens Probe Ultrasonic Continuous Level Transmitter for Liquid Level $1150.00 24

Siemens SITRANS LU Long Range Ultrasonic Transceivers

Siemens SITRANS LU150 Ultrasonic Liquid Level Transmitter

Siemens SITRANS LUT400 Ultrasonic Controller for Open Channel Flow

$2802.00 32

$656.00 25

$961.00 28

Siemens SITRANS Probe LR/LR200 Radar for Continuous Liquid Storage $1053.00 38

Siemens SITRANS Probe LU Ultrasonic Transmitter for Liquid Level

Siemens Echomax Ultrasonic Level Transducers and Accessories

$1021.00 26

$522.00 34

Call 14

Call 12

Point Level

Mechanical Bottle and Float-Type Level Switches

Siemens CLS100 Two-Wire Capacitance Point Level Switch

$37.00 2

$227.00 5

Siemens CLS200 Capacitance Point Level Detection Switches $539.00 6

Siemens CLS300 Capacitance Point Level Switch for Harsh Environments $760.00 8

Siemens CLS500 Capacitance Point Level Switch for Extreme Conditions

Siemens LPS200 Rotating Paddle Switch for Bulk Solids

Siemens LVS200 Vibrating Fork Switch for Bulk Solids

Siemens ULS200 Ultrasonic Point Level Detection Switch

WIKA WMI Magnetic Level Indicators

$834.00 10

$353.00

$551.00

3

4

$928.00 11

Call 19

Terminal Inventory Control and Tank Gauging

Honeywell Enraf 854ATG/854XTG Servo Gauges

Honeywell Enraf SmartRadar Flexline Precision Tank Gauging System

Honeywell Enraf SmartRadar 970 Series for Storage Tank Measurements

Call 52

Call 54

Call 56

2

FLOAT

SWITCHES

Illinois, Indiana, Missouri, and Iowa

Phone: 800-953-7626 • 630-595-8400

Fax: 630-595-2386

Float-Type Level Switches

Stop Nuisance Switching

Liquids sloshing around can cause a float to bob up and down rapidly, if the liquid surface is in contact with the float. This creates nuisance switching, an off/on condition that wears on your patience and your reed switch. A slosh shield creates a pocket of calm liquid, so the switch can operate as designed.

Construction: Wetted materials: Stainless steel, beryllium copper, nickel, Buna-N. Slosh shield: Lucite

Environment: Operating

temperature: -40° to 140° F;

Liquid specific gravity: 0.55 min.; Pressure: 150 PSI max.

Switch: SPST, 20 VA

Model Selection Guide

Catalog

Shielded Switch

Normally Open

Normally Closed

Number

43765

43760

Price

$140.00

140.00

Tethered Float Switches for

Liquid Level

• For all liquid types

• SPDT mercury switch

• Polyethylene, Teflon, or

316 Ti stainless steel float

• Temperatures to 320° F,

Pressures to 30 PSIG

Need a float switch in polypropylene? Call us.

Model Selection Guide

Float

Polyethylene

Teflon

316 SS

316 SS

Material Maximum Catalog

Cable Cladding Pressure Temp. Number Price

PVC

Teflon

30 PSIG 190° F NSP-5101

15 PSIG 320° F NST-5101

$243.00

888.00

Silicone, SS Braid 90 PSIG 320° F NSE-5101 1229.00

Silicone, SS Braid 220 PSIG 320° F NSE-5201 1117.00

Lesman Instrument Company www.lesman.com [email protected]

Stainless steel float

Wisconsin, and Upper Peninsula Michigan

Phone: 800-837-1700 • 262-923-1790

Fax: 262-923-1797

Heavy Duty Float Switch

• Temperatures to 480° F, Pressures to 360 PSIG

• High capacity 10 Amp switch

• All 316 stainless steel wetted parts

• All-metal design ideal for harsh environments

Specifications

Operating Conditions: Media temperature:480° F; Pressure: 360 PSIG max

Process Medium: Specific gravity 0.7 minimum

Construction: NEMA 4/IP65 epoxy-coated aluminum housing, 316SS wetted materials with square flange or 2” NPT fitting; optional 1/2” NPT conduit

Switch: SPDT microswitch, 10 Amp @ 250 VAC, 0.6 Amp @ 220 VDC, 3/4” switch hysteresis

Model Selection Guide

Catalog

Fitting Style Number Price

NGS float switch with square flange fitting

NGS float switch with 2” NPT fitting

NGS-2100 $659.00

NGS-2200 659.00

1/2” NPT electrical conduit connection -C 21.00

Options NGS-2100 Carbon steel mating flange NGS-MFF1 158.00

NGS-2100 316 stainless steel mating flange NGS-MFF2 331.00

Chemical-Resistant Level Switch

• Ideal for tanks with inaccessible tops or bottoms

• Normally open or normally closed switch contact

• Polypropylene housing with NEMA 6 protection rating provides great chemical resistance

• Maintenance-free, easy to install

with PVDF housing

Specifications

Maximum Operating Conditions: Temperature: 175° F; Pressure: 145 PSIG;

Fluid Density: 0.6 g/ml

Materials: Float, housing: Polypropylene; Fittings: 1/2” NPT or bulkhead;

Orientation: Horizontal ±30°; Cable: 3 ft. PVC, AWG 20/2

Reed Switch: Gas encapsulated; Normally open or normally closed operation;

Voltage: 250 VAC max.; Current: 1.5A max.; Power: 50 watts max.

Model Selection Guide

Housing

Polypropylene

Fittings Catalog Number Price

1/2” NPT NKP-2401 $37.00

Bulkhead NKP-6401 37.00

Microwave

Level Switch

• Good to 212° F (to 302° F

for 30 minutes for CIP applications)

• EHEDG approved for use in food applications

• For conductive and nonconductive media

• Level measurement, even with foam or deposits

Food-safe radar level switch

Specifications

Operating Conditions: Process temperature: 32° to 212° F (302° F for 30 minutes for Clean-in-Place use); Ambient temperature: 150° F max; Working

pressure: 145 PSI

Construction: Stainless steel head and thread supports, PEEK coupler, hygienic weld-in sleeves, IP67 protection rating

Connections: Process: G1/2, M12x1.5; Cable: M16x15 threaded connection

Output: Open collector, PNP, 50 mA

Switch Delay: 0.2 seconds standard, 0.3–1.0s available on request

Power Supply: 18-36 VDC, <50 mA without load

Dielectric Constant: >20

Call Lesman for pricing and delivery.

Illinois, Indiana, Missouri, and Iowa

Phone: 800-953-7626 • 630-595-8400

Fax: 630-595-2386

Lesman Instrument Company www.lesman.com [email protected]

Wisconsin, and Upper Peninsula Michigan

Phone: 800-837-1700 • 262-923-1790

Fax: 262-923-1797

POINT LEVEL

3

Rotary Paddle Switch for Bulk Solids

SITRANS LPS200 Paddle Switch

• Proven paddle switch technology for bulk solids

• High integrity mechanical switch

• Switch-selectable power supply

• Unique friction clutch mechanism prevents damage caused by falling materials

• Stainless steel 1-1/4” NPT or 1-1/2” BSP threaded connection

• Hinged paddle option for use with low-density materials

• Simple installation through process connection — Either paddle fits into small threaded nozzle — fits where other manufacturer’s models won’t

• High temperature model and optional extension kit available

How It Works:

• Motorized paddle rotates in free air

• Material contact stops rotation

• Transferred torque activates switch

• Clutch avoids gear failure/replacement

Siemens SITRANS LPS200 rotary paddle switch detects full, empty, or demand conditions on materials like grain, feed, cement, plastic granulate, and wood chips. The LPS paddle switch can handle bulk densities as low as 100 g/l with the standard measuring vane , or 35g/l with the hinged vane.

A low revolution geared motor with slip clutch drives a rotating vane that senses the presence of material at the LPS mounted level. As material comes into contact with the rotating paddle, rotation stops, which changes the microswitch state. When the paddle is no longer covered, rotation resumes and the relay reverts to its normal condition.

The LPS200 comes in a variety of configurations, including compact, extended, and cable extension. The LPS200 standard vane is effective in most applications, or it can be configured with a hinged vane for increased sensitivity for light materials.

Specifications

Temperature: -4° to 176° F (-20° to 80° C); Optional: -4° to 662° F (-20° to 350° C)

Max. Pressure: 7 PSI (0.5 bar); Optional: 145 PSI (10 bar)

Minimum Material Density: Standard Vane: Down to 100 g/l; Hinged Vane:

Down to 15 g/l; (depends on shaft/vane coverage)

Power: Jumper selectable; 115 VAC, ±15%, 50-60 Hz, 4 VA, 230 VAC, ±15%,

50 Hz, 6 VA, or 24 VDC, ±15%, 2.5 W

Alarm Output: Relay 5A at 250 VAC, noninductive

Material: Enclosure: Epoxy coated aluminum, Type 4/NEMA 4/IP65; Process

connec tion: 1-1/4” NPT, stainless steel; Conduit entry: 2 x 1/2” NPT; Measuring

shaft and vane: Stainless steel

Approvals: FM/CSA Class II, Div. 2, Groups E–G;

ATEX II 1/2 D (dust explosion); CE

Accessories

Description

SITRANS LPS200 Instruction Manual

Motor Gear/PLC-Multivoltage

Replacement Vane, Boot Shape, 35 x 106 mm

Hinged Vane, 65 x 210 mm

Ordering Instructions

Make one selection from each table section below. Check the availability column to be sure the unit you need is available. A finished catalog number looks like this: 7ML5725-5EE11-2AC0

Model Selection Guide

Description

Please submit orders to: Siemens Industry Inc, c/o Lesman Instrument Company.

Process Up to 176° F (80° C)

Temperature Up to 302° F (150° C)

Up to 482° F (250° C)

Up to 662° F (350° C)

Power 115 VAC, 1 Rev/Min

Switch Selectable, 1 Rev/Min

Switch Selectable, 5 Rev/Min

Model Price

LPS200 compact version with 1.25” NPT threaded connection, Process pressure to 7.25 psi (0.5 bar), measuring vane 1.38” x 4.17”

Connection Aluminum

Material 303 Stainless Steel

Extension 3.94” (100 mm) with Boot-Shaped Vane

Length 5.91” (150 mm) with Boot-Shaped Vane

Agency CSA/FM Dust Ignition Proof

Approvals CSA/FM General Purpose

Quick Ship Models

7ML5725-1 $353.00

7ML5725-2 506.00

7ML5725-3 595.00

7ML5725-4 710.00

_ EE1 _-

_ QE1 _ -

_ RE1_ -

0.00

76.00

91.00

_ _ _ _1-

_ _ _ _ 2-

1A _ _

2A _ _

_ _ A0

_ _ C0

0.00

39.00

0.00

0.00

109.00

0.00

(Two week standard delivery)

Compact LPS200, aluminum, 115 VAC power, 1 rev/min, 1.25” NPT thread, 7.25

PSI max pressure, 3.94” extension, 1.38”x 4.17” boot shaped vane, CSA/FM

General Purpose approval

LPS200 compact aluminum model 7ML5725-5EE11-2AC0 $279.00

Compact LPS200, stainless steel, switch-selectable power, 1 rev/min, 1.25” NPT thread, 7.25 PSI max pressure, 5.91” extension, 1.38”x 4.17” boot shaped vane,

CSA/FM Dust Ignition Proof approval

Catalog

Number Price

7ML1998-5FS62 $39.00

7ML1830-1KG 246.00

LPS200 compact stainless steel model 7ML5725-6QE12-2AA0 shaped vane, CSA/FM Dust Ignition Proof approval

416.00

Extended design LPS200, 303 stainless steel, switch-selectable power, 1 rev/ min, 1.25” NPT thread, 7.25 PSI max pressure, 7.87” extension, 1.38”x 4.17” boot

7ML1830-1KH

7ML1830-1KJ

32.00

72.00

LPS200 extended stainless steel model 7ML5726-5QC12-2BA1 449.00

Rigid Extension Kit: Spring coupling, rigid tube extension, and required pins.

500, 400, and 300 mm

Length 1000, 900, 800, 700, and 600 mm

7ML5711-0AA

7ML5711-1AA

1500, 1400, 1300, 1200, and 1100 mm 7ML5711-2AA

39.00

51.00

68.00

Extended design models and cable extension and model selection options.

4

POINT LEVEL

Illinois, Indiana, Missouri, and Iowa

Phone: 800-953-7626 • 630-595-8400

Fax: 630-595-2386

Lesman Instrument Company www.lesman.com [email protected]

Wisconsin, and Upper Peninsula Michigan

Phone: 800-837-1700 • 262-923-1790

Fax: 262-923-1797

SITRANS LVS200 Vibrating Fork Switch for Bulk Solids

• High resistance to mechanical forces

• Suitable for low density materials: standard version 20 g/l (1.3 PCF), liquids/solids interface version 60 g/l (3 PCF)

• Extension lengths to 4000 mm (157”)

• Low frequency, low energy operation

• Best self-cleaning properties

• Won’t burrow into the material

• High or low level alarm in solids — Simple failsafe high/low selection

LVS200 with pipe extensions start at $764.00

Cable extension LVS200 models start at $716.00

Vibrating Fork Technology

As soon as you apply power, the LVS200 forks vibrate. The forks are very active and sensitive at the tip — not at the base — to help resist detecting material buildup between the forks.

A dual crystal pack is directly coupled to the vibrating legs to generate high amplitude, low frequency (125 Hz) vibration, providing optimum self-cleaning characteristics during operation.

A third passive crystal senses the fork vibration.

Relays activate when fork vibration is damped by material contact, and the resulting signal falls below the sensitivity threshold.

The forks vibrate at a high amplitude, but with low energy. This ensures reliable detection of even the lightest material, and avoids the tendency to burrow and lose contact.

Factory sensitivity setting fits most applications, especially for light materials. For higher density materials, operating sensitivity can be switched lower to avoid some material adhesion.

The SITRANS LVS200 is an electromechanical vibratory switch for level detection of powder and granular solids.

The SITRANS LVS200 is an excellent solution for low bulk density, low humidity/adhesion, and free flowing applications. This unit is ideal for new installations or for replacing:

• Diaphragm-based switches subject to rupture

• Problematic rotating paddle switches

• Electrostatic discharge sensitive switches

• Material dielectric sensitive switches

• Switches that require special application configuration or multiple

The standard LVS200 detects high or low levels of dry bulk solids in bins, silos, or hoppers. The liquid/solid interface version can also detect settled solids within liquids or solids in confined spaces, like feed pipes.

It is designed to ignore liquids in order to detect the interface between a solid and a liquid. A pipe extension version is available with either the standard or liquid/solid interface electronics and fork, separated by a customer-supplied 1” pipe.

The LVS has a compact design, and can be top- or side-mounted. The vibrating fork design ensures the lines are kept clean. The unique design of the fork and crystal assembly eliminates false high level readings.

Specifications

Material Density: 20 g/l (1.3 lb/ft

3 ) min.; Liquid/Solid interface version:

60 g/l (3 lb/ft 3 )

Process Temperature: -40° to 302° F (-40° to 150° C); CSA Class II, Group G:

-40 ° to 284° F (-40° to 140° C), CSA temperature code T3B

Pressure: 145 PSI maximum

Sensitivity: High or low, switch selectable

Measuring Frequency: 125 Hz; Liquid/Solid interface version: 350 Hz

Power: 19-230 VAC, ±10%, 50-60 Hz, 8 VA or 19-55 VDC, ±10%, 1.5 W

Alarm Output: Relay delay: Approx. 1 second from loss of vibration; Approx.

1 to 2 seconds from resumption of vibration; Relay failsafe: High or low, switch selectable; Relay 8A at 250 VAC, noninductive

Material: Enclosure: Epoxy coated aluminum, NEMA 4/Type 4/IP65; Process

connection: 1.5” NPT; Sensor: Stainless steel; Conduit entry: 1/2” NPT

Approvals: FM/CSA Class II, Div. 1, Groups E–G,

Class III; ATEX II 1/2 D (Dust Explosion Proof); CE

Ordering Instructions

Make one selection from each table section below. Check the availability column to be sure the unit you need is available. A finished catalog number looks like this: 7ML5731-7AB11-1AA0

Model Selection Guide

Please submit orders to: Siemens Industry Inc, c/o Lesman Instrument Company.

Basic LVS200, 19-230 VAC/19-55 VDC, one SPDT relay output, no temperature isolator, 1.5” NPT threaded process connection, 304SS standard extension, with

CSA/FM dust-ignition proof approval

7ML5731-7AB11-1AA0 $519.00

Description Model Price

LVS200 standard vibrating point level switch for high or low levels of bulk solids.

19–230 VAC, 19–55 VDC, One Relay Output (SPDT)

19–230 VAC, 19–55 VDC, Two Relay Outputs (DPDT)

Process No Temperature Isolator

Temperature Temperature Isolator

7ML5731-1 $501.00

7ML5731-2

_ A _ _ _ -

_ B _ _ _ -

551.00

0.00

134.00

Process 1.5” NPT Threaded (ANSI/ASME B1.20.1)

Connection 2” NPT Threaded, Sliding Sleeve

_ _ B _ _- 0.00

_ _ D _ _- 202.00

2” ASME Flange 150 Lb

3” ASME Flange 150 Lb

4” ASME Flange 150 Lb

_ _ G _ _-

_ _ H _ _-

_ _ J _ _ -

238.00

312.00

408.00

Extension Standard Length,230 mm (9.06”)

Length

[Note 1]

300–500 mm

501–750 mm

751–1000 mm

1001–1250 mm

1251–1500 mm

(11.81”–19.69”)

(19.72”–29.53”)

(29.57”–39.37”)

(39.41”–49.21”)

(49.25”–59.06”)

_ _ _ 31- 0.00

_ _ _ 32- 232.00

_ _ _ 33- 276.00

_ _ _ 34- 307.00

_ _ _ 35- 335.00

_ _ _ 36- 366.00

Material 316 SS Ti (1.4571) Connection, Extension

CSA/FM General Service

Approvals CSA/FM Dust-Ignition Proof

CSA/FM Intrinsically Safe

2 _ _ _

_ CA0

_ AA0

_ EA0

50.00

0.00

101.00

101.00

Note 1: For extensions other than 230 mm standard length (Code 31), add the following to your model number: Y01: Insertion Length _____ mm

Call for remote enclosure and cable, extensions to 4000 mm.

Accessories

Description

SITRANS LVS200 User Manual

Replacement Electronics Module (125Hz)

2” NPT Sliding Sleeve

Catalog

Number Price

7ML1998-5FT63 $47.00

7ML1830-1KL 287.00

7ML1830-1JN 277.00

Illinois, Indiana, Missouri, and Iowa

Phone: 800-953-7626 • 630-595-8400

Fax: 630-595-2386

Lesman Instrument Company www.lesman.com [email protected]

Wisconsin, and Upper Peninsula Michigan

Phone: 800-837-1700 • 262-923-1790

Fax: 262-923-1797

CAPACITANCE

POINT LEVEL

5

CLS100 Capacitance Point Level Switch

• Very short (4”) insertion length

• Suitable for use with both conductive and nonconductive process media

• Accurate, repeatable switchpoint due to advanced tip-sensing technology

• Extremely high chemical resistance

• Level detection independent of tank wall or pipe system

• Simple setup procedure, verification with built-in LEDs

• Precision 20-turn potentiometer for adjustable sensitivity

• Two level outputs: Two-wire current loop detection and solid-state transistor relay

• Low maintenance costs. No moving parts

• Can be connected directly to most PLCs

• Intrinsically safe and dust/ignition-proof models

CLS100

Specifications

Models: Standard, intrinsically safe

Modes of Operation: High/low

Switchpoint Repeatability: 0.08”

Operating Frequency: 5.5 MHz

Dielectric Constant: 1.5 min.

Temperature Range: -40° to 257° F

Pressure (Vessel) Range: 0 absolute to

2500 kPa (25 bar or 365 PSI) gauge

Adjustment Potentiometer: 20-turn

Current Output: 0/4-20 mA loop supplied;

Current Reversible: By polarity change power supply; Load: 600Ω max. @ 24 VDC

Solid-State Switch: Output: Galvani cally isolated, 100 mA max. load current;

Switch voltage: 28 VAC/40 VDC max.

Integrated Enclosure: Housing (Electron­

ics)/Connection: AISI 316L stainless steel;

Ingress Protection: Type 4X/NEMA 4X/

IP65; Connection: 4 conductor, 22 AWG, shielded, 3.3 ft. black polyester cable

Signal Indicators: LEDs for adjustment control, output status, and power

Power: Standard Model: 10-33 VDC; Intrin­

sically Safe Model: 10-30 VDC

Sensor Probe: PVDF Kynar®, 4” insertion, 3/4” NPT process connection

Approvals: Standard Model: CE/KEMA/FM. CSA approvals (Class II, III, Div.

1, Groups E, F, G); Intrinsically Safe Model: CE/CENELEC/FM. CSA approvals

(Class I, Div. 1, Groups A-D)

SensGuard Chemical-Resistant Probe Cover

Pressure Range: Full vacuum to 365 PSI (FV to 25 bar)

Temperature Range: -40º to 257° F (-40º to 125º C)

Construction: Polyphenylene Sulfide, fiberglass filled

Process Connections: External: 3/4” NPT; Internal: 3/4” NPT

Insert Length: 2.75”

Flexural Strength: 315 lbs.

CLS100 Through the “Site Glass”

CLS100 has been field-tested in many applications. It’s sensitive enough to measure levels accurately through tank windows and site glasses made of plastic, glass, or fiberglass.

It works with a heavy material buildup on the sensor (like chocolate or dust), and even in sludge interfaces. Want a demo? Call us!

Ordering Instructions

Select one option from each table section below. A completed catalog number looks like this: 7ML5501 - _ _ _ _ _

Model Selection Guide

Description

CLS100: Capacitance Point Level Detection

Sensor, 3/4” NPT Thread

Please submit orders to: Siemens Industry Inc, c/o Lesman Instrument Company.

Catalog Price

Number Each

7ML5501 - $227.00

Approvals General Purpose

Intrinsically Safe

Standard Integrated Cable

Versions ABS Enclosure, 1/2” NPT Conduit

Options Integrated Cable, Kynar Probe Body

ABS Enclosure, Kynar Probe Body

0AA _ _

0AC _ _

_ _ _ 10

_ _ _ 30

_ _ _ 50

_ _ _ 60

0.00

62.00

0.00

47.00

87.00

121.00

Accessories

SensGuard 3/4” NPT Chem-Resistant Probe Cover

Stainless Steel Tag (Single Text Line)

English Quick Start Guide

7ML1830-1DL

7ML1930-1AC

A532146158

76.00

50.00

55.00

CLS Flange, 3/4” Thread for Mounting

any 3/4” NPT Pointek CLS Level Switch 7ML1500-0_ _0 0.00

Pressure Rating (ANSI B16.5)

150 Lbs. (_ A) 300 Lbs. (_ B) 600 Lbs. (_ C)

Flanged 1” (A _)

Process 1.5” (B _)

Connection 2” (C _)

Size 3” (D _)

4” (E _)

$226.00

270.00

321.00

384.00

461.00

$274.00

316.00

361.00

468.00

592.00

$289.00

344.00

418.00

506.00

702.00

6

CAPACITANCE

POINT LEVEL

Illinois, Indiana, Missouri, and Iowa

Phone: 800-953-7626 • 630-595-8400

Fax: 630-595-2386

Lesman Instrument Company www.lesman.com [email protected]

Wisconsin, and Upper Peninsula Michigan

Phone: 800-837-1700 • 262-923-1790

Fax: 262-923-1797

Pointek CLS200: Capacitance Point Level Detection Sensors

Probe buildup affecting level readings? Not with

Siemens CLS sensors.

Visit Lesman.com/train/ and watch the video demo!

Pointek CLS capacitance point level detection devices:

• Work accurately without a reference electrode.

• Detect a single, high, or low level for liquids, solids, slurries, or foam (any material with a dielectric constant >1.5).

• Work in a vessel of any shape, constructed of conductive or nonconductive material.

• Operate in temperatures up to 257° F.

• Accept voltage from 12 to 250 VAC/DC, without jumpers.

How is our capacitance offering different?

• Compact design and 3.9” insertion length, so you can use more of your tank for product.

• Adjustable insertion lengths: Slide coupling lets you put more probe into the process.

• Mounting options: 3/4”, 1”, 1.5” NPT, 3A sanitary, and flanges.

• Electronics tested to 4G vibration levels in three dimensions.

• Flame-, explosion-, and dust/ignition-proof approvals.

Models

Choose from several configurations, including rigid, sanitary and cable sensors. While the base unit remains constant, each model can have a different selection of process connections, extensions, and approvals.

Both standard and extended length units are designed to operate in clean-in-place (CIP) applications in the food industry.

Standard Models: Suitable for use in virtually any point level detection application. With a minimum insertion length of just 4 inches compared with 14 inches on competitive products, the standard model can be easily installed in small diameter pipes. In tank applications, content capacity can be maximized.

Sanitary Models: Meet industry requirements for temperatures exceeding 212° F. The process connection is a sanitary standard tri-clamp.

Wetted parts of 316L stainless steel and PVDF (Kynar®) are 3A compliant and food-grade safe.

Extended Models: Available in both cable and rigid versions. When it is not possible to penetrate the tank wall near the bottom, Pointek

CLS cable versions provide excellent application flexibility through the use of cable extension, protected by a PVDF jacket.

Effective in both liquids and solids, these versatile units can also be used for level detection and for interface detection (e.g. oil/water) in large storage tanks. Cable can be supplied at lengths up to 115 feet to meet specific application requirements.

Rigid versions have short or extended rod lengths up to 18 feet.

An adjustable sliding process mount is available.

Options

Thermal Isolator (Thermopart): In applications where the ambient temperature of the transmitter can exceed 185° F due to hot processes.

The isolator extension raises the enclosure approximately 4” above the process fitting.

Process Connections: Process connection sizes range from 3/4” to

1.5 NPT and 1” to 3” sanitary flange.

Adjustable Sliding Process Mount: For applications where the exact level sensing point is in doubt, a sliding process sealing gland is available to provide exact adjustment of the sensor’s position.

See what makes Pointek different.

NEMA 4/IP65 Aluminum Enclosure

The cast aluminum enclosure is Epoxy coated to provide additional chemical resistance. Remove the lid to gain access to wiring, dip switch settings, and LED functions.

Alarm/Control Functions and Failsafe

Operation

The SPDT relay provides normally open and normally closed contacts. You can use the failsafe relay operation for alarm purposes to alarm on material detection or instrument power interruption.

The solid-state relay (300 VDC or 250 VAC) is polarity insen sitive for simplified wiring, and galvan ically isolated for circuit protection.

You can add a relay across the power source to generate a two-wire output based on the drawn power supply current.

Material Sensitivity Adjustment

Reduces Spare Parts

When you’re detecting a sticky conductive material, you can easily adjust the level detection switchpoint using either the range selection switch or potentiometer.

No Relay Chatter!

An adjustable output delay prevents chatter when material is at the critical detection level. It is adjusted by a single potentiometer and applied to both the SPDT relay and transistor outputs.

It can also be applied when entering or leaving alarm. The delay can be tem porarily disabled to confirm output operation, without readjusting the delay setting.

LED Indicators

The Power On, Sensor Status, and Output

Status LED indicators provide a simple way to verify performance during installation.

Power On confirms that power is supplied to the unit. Sensor Status indicates that material has been detected. Output Status shows the change in output state.

Illinois, Indiana, Missouri, and Iowa

Phone: 800-953-7626 • 630-595-8400

Fax: 630-595-2386

Lesman Instrument Company www.lesman.com [email protected]

Wisconsin, and Upper Peninsula Michigan

Phone: 800-837-1700 • 262-923-1790

Fax: 262-923-1797

CAPACITANCE

POINT LEVEL

7

These SITRANS CLS200S are in stock, ready to ship to you within 24 hours!

7ML5630-0AA00-0GA0 ....................................$663.00

7ML5630-0AA00-0HA0 ...................................... 539.00

7ML5630-0AB00-0FA0 ........................................ 672.00

7ML5630-0AB00-0GA0 ....................................... 742.00

7ML5630-0AB00-0HA0 ....................................... 618.00

7ML5630-0AD00-0GA0 ...................................... 845.00

7ML5630-0AE00-0HA0 ....................................... 773.00

Common Specifications

Supply Voltage: 12 to 260 VAC/DC, any polarity, galvanically isolated

Power Consumption: 2VA/2 Watts

Signal Indicators: 3 LEDs provide adjustment, output status, and power

Adjustment: Potentiometers: 2, for adjustment of time delay and sensitivity;

Switches: 1 SPST dip switch for time delay select. Failsafe high/low, and time delay test/adjust, high low sensitivity

Temperature Range: -40° to 185° F operation and storage

Materials: Process Connection: 316L Stainless Steel; Probe: PPS (Ryton);

Enclosure: Epoxy Coated Aluminum (NEMA 4X, 7/9, IP65)

Switch Point Repeatability: 0.08”; Hysteresis: 0.08”

Dielectric Constant: 1.5 minimum

Operating Frequency: 5 MHz maximum

Cable Entry: 1/2” NPT; Cable Gland: PG 13.5 (available)

Output Functions

Relay Contact: Form C SPDT, NC or NO contact selectable

Contact Load: 10 mA/50 VDC min., 50A/30 VDC max.; 8A/250 VAC max.

Switching Capacity: 2000VA/150 Watt max.

Solid-State Switch: Galvanically isolated, with sensor failure detection

Safety: Non-polarity sensitive (no wiring errors)

Switch Voltage: 250 VAC/300 VDC max.; Voltage Drop: <1 Volt

Load: 2 Watt max. Load Current: 100 mA max.

Time Delay: (On/Off) 1-60 seconds

Approvals: General Purpose; Dust/Ignition­Proof

worth IS Probe: CSA/FM Class II, Div. 1, Group E-G,

Class III T4; Explosion­Proof: CSA Class I, Div. 1,

Groups A-D

Standard Model

Process Connections: 3/4” NPT

Maximum Length: 4”

Resistance: 365 PSI maximum

Sanitary Model

Process Connections: 1”, 1.5” or 2”

Tri-Clamp

Maximum Length: 4”

Resistance: 365 PSI maximum

Extended Rigid Model

Process Connections: 3/4” NPT

Maximum Length: 216”

Resistance: 365 PSI maximum

Extended Cable Model

Process Connections: 3/4” NPT

Maximum Length: 1,378”

Tensile Strength: 396 Lbs. max

Resistance: 150 PSI maximum

Ordering Instructions

Select one option from each table section below. A complete catalog number looks like this: 7ML5630-_ _ _ _ _ - _ _ _ _

Model Selection Guide

Please submit orders to: Siemens Industry Inc, c/o Lesman Instrument Company.

Catalog Price

Description Number Each

CLS200 Capacitance Point Level Detection Sensor 7ML5630 - $539.00

316L SS

Process

Threaded, 3/4” NPT

Threaded, 1” NPT

Threaded, 1.25” NPT

Connection Threaded, 1.5” NPT

1” ASME, 150 Lb Welded Flange

1.5” ASME, 150 Lb Welded Flange

2” ASME, 150 Lb Welded Flange

3” ASME, 150 Lb Welded Flange

4” ASME, 150 Lb Welded Flange

0A_ _ _-

0B_ _ _-

0C_ _ _-

0.00

36.00

48.00

0D_ _ _- 80.00

5A_ _ _- 263.00

5D_ _ _- 318.00

5G_ _ _- 379.00

5K_ _ _- 452.00

5N_ _ _- 540.00

Standard Insertion Lengths (No Y01 code needed.) Length from flange face.

Threaded lengths include process connection

Standard Compact (Threaded 120 mm, Flanged 98 mm) _ _ A _ _-

Standard Extended Rod 250 mm 9.84”

0.00

_ _ B _ _- 74.00

Standard Extended Rod 350 mm 13.78”

Standard Extended Rod 500 mm 19.69”

Standard Extended Rod 750 mm 29.53”

Standard Extended Rod 1000 mm 39.37”

_ _ C _ _-

_ _ D _ _-

_ _ E _ _-

_ _ F _ _-

147.00

170.00

219.00

232.00

Standard Extended Rod 1250 mm 49.21”

Standard Extended Rod 1350 mm 53.15”

Standard Extended Rod 1500 mm 59.06”

Standard Extended Rod 1750 mm 68.09”

Standard Extended Rod 2000 mm 78.74”

_ _ G _ _- 243.00

_ _ H _ _- 256.00

_ _ J _ _- 267.00

_ _ K _ _- 281.00

_ _ L _ _- 292.00

Temp/

No Thermal Isolator _ _ _ 0 _- 0.00

Thermal Isolator (Process Temps >185° F) _ _ _ 1 _- 50.00

Electronics Remote Mount Electronics, 2 m Cable

Remote Mount Electronics, 5 m Cable

_ _ _ 2 _- 282.00

_ _ _ 3 _- 297.00

Wetted FKM

Materials FFKM (Process Temps > -47° F)

Probe

Material

316L SS with PPS Probe Body

316L SS with PVDF Probe Body

CSA/FM/CE General Service

Approvals CSA/FM Dust-Ignition Proof, IS Probe

CSA/FM Explosion Proof, IS Probe

_ _ _ _ 0- 0.00

_ _ _ _ 1- 122.00

0 _ _ _

1 _ _ _

0.00

50.00

_ H _ _ 0.00

_ F _ _ 50.00

_ G _ _ 116.00

Enclosure IP65 Rating

IP68 Rating

CLS Flange, 3/4” Thread for Mounting

any 3/4” NPT Pointek CLS Level Switch

_ _ A0

_ _ C0

0.00

45.00

7ML1500-0_ _0 0.00

Pressure Rating (ANSI B16.5)

150 Lbs. (_ A) 300 Lbs. (_ B) 600 Lbs. (_ C)

Flanged

Process

1” (A _)

1.5” (B _)

Connection 2” (C _)

Size 3” (D _)

4” (E _)

Spare Parts and Accessories

$226.00

270.00

321.00

384.00

461.00

$274.00

316.00

361.00

468.00

592.00

$289.00

344.00

418.00

506.00

702.00

1/2” HF Cable Gland (GP, Dust/Ignition-Proof)

1/2” HF Cable Gland (Explosion-Proof)

3/4” NPT Ryton SensGuard (PPS) Cover

CLS200 English Instruction Manual

7ML1830-1JA

7ML1830-1JB

7ML1830-1DL

7ML1998-5JH04

$21.00

34.00

76.00

39.00

Use the CLS in More Applications than Ever Before

With the SensGuard abrasive- and chemical- resistant cover for the CLS standard probe.

• NPT threaded process connection sizes

• Handles pressure ranges from full vacuum to 365 PSIG, temperatures from -40° to 257° F

Need a custom probe length? Call Lesman.

Custom extended rods available up to 5500 mm (18.04’).

Welded flange process connections also available in ASME

300 and 600 lb versions. Call for pricing.

8

CAPACITANCE

POINT LEVEL

Illinois, Indiana, Missouri, and Iowa

Phone: 800-953-7626 • 630-595-8400

Fax: 630-595-2386

Lesman Instrument Company www.lesman.com [email protected]

Wisconsin, and Upper Peninsula Michigan

Phone: 800-837-1700 • 262-923-1790

Fax: 262-923-1797

Pointek CLS300: Capacitance Point Level Detection Sensors

The Technology Behind the Performance

The Pointek CLS300 is based on the patented, field-proven LC500 level measurement technology. It combines active shield technology with a wide input range, temperature stability, and inverse frequency operation. The active shield is electrically isolated from an active measurement section. The active measurement section becomes the frequency-determining component for the triangular wave oscillator in the transmitter.

When the capacitance increases or decreases with the level of material, the measuring frequency changes inversely. The same signal is also connected to the active shield portion of the probe, effectively eliminating the electrical potential difference between the shield and the measurement section. The probe will not be affected by changes in vapor concentration, dust, or condensation.

The CLS300 will provide accurate level detection even in highly conductive materials with build-up on the probe.

Thermal isolator eliminates effect of process temperature

Fully potted transmitter unaffected by condensation, dust, or vibration

Features

• One design fits all, even in harsh and heavy duty environments; suitable for high pressures and high temperatures in liquids, solids, slurries, and interfaces

• All wetted parts made of stainless steel and PFA, Teflon, or ceramics for high-chemical resistance

• High-sensitivity probe provides accurate level detection without the effects of conductive material buildup. Works equally well in wood chips or tomato sauce!

• Patented LC500 active technology for reliable point level detection, unaffected by vapor concentration, product deposits, dust, and condensation

• Simple threshold/air calibration for rapid, cost-effective setup with LED verification

• Universal galvanically isolated power supply and one universal transmitter provide low cost of ownership and minimal requirements for stocking spare parts

• Multiple switch outputs provide relay, solid state (transistor), or two-wire point detection with one design, including time delays for on/off

The Pointek CLS300 offers accurate, reliable level detection even in harsh, heavy duty industrial applications with high pressures and high temperatures.

It’s effective in liquids, solids, slurries, interfaces, and applications involving viscous (conductive and nonconductive) materials. The fully potted transmitter is unaffected by condensation, dust, or vibration.

All metal parts are made of stainless steel, with a PFA Teflon shield section for high chemical resistance. For higher temperature applications, ceramics can be supplied. Materials with low or high dielectric properties are accurately detected, and the unique active shield helps in ignoring the effects of buildup.

Its unique modular design provides for a wide range of configurations, process connections, extensions, and approvals to meet the precise temperature and pressure requirements of specific applications. The modular design makes it easy to specify and reduces stocking requirements. A wide range of probe configurations is available, including rod and cable/rope models.

Dimensions

Standard

Model

Butterfly plate significantly improves switchpoint repeatability in low dielectric materials (

εr<4.0)

High-

Temperature

Model

Cap

(All Models)

Explosion and flame-proof epoxy coated enclosure with two inlets

Cable

Model

Illinois, Indiana, Missouri, and Iowa

Phone: 800-953-7626 • 630-595-8400

Fax: 630-595-2386

Lesman Instrument Company www.lesman.com [email protected]

Wisconsin, and Upper Peninsula Michigan

Phone: 800-837-1700 • 262-923-1790

Fax: 262-923-1797

CAPACITANCE

POINT LEVEL

9

Not with Siemens CLS sensors. demonstration in our video library.

Specifications

Approvals: FM/CSA Class I, Div. 1, Groups A-D, Class II/III, Div.

1 Grps E-G (Dust/Ignition Proof), CE, NRTL/C, CENELEC EEx d [ia] IIC, T6..T4

Probe

Probe Lengths: Rod version: 14” to 40”; Rope/cable version: 20” to 985”

Wetted Parts: AISI 316L/PFA/Peek; High-temperature version: AISI 316L/ ceramics AI

2

0

3

(99.7%)

Temperature Range: -40° to 398° F; High-temperature version: -40° to 752° F

Pressure Range: 511 PSIG

Dielectric Constant: 1.5 min.

Tensile Force: 4,188 lbs. max.

Enclosure: Epoxy coated, NEMA 4/Type 4/IP65

Process Connection: NPT/BSPT/JIS

Power Supply and Transmitter

Need to find your media dielectric constant?

See page 488.

Supply Voltage: 12-250 VAC/VDC any polarity galvanically isolated

Power Consumption: 2 VA/2 Watt

Wiring Connections: Max. 0.009”; Temperature range: -40° to 185° F

Signal Indicators: 3 LEDs for adjustment control, output status and power

Adjustment Potentiometers: 2 PCS, for time delay and sensitivity

Adjustment Switches: 5 PST dip switch for time delay select. Failsafe high/ low and time delay test/adjust, high/low sensitivity

Sensitivity: 1% max. change in actual capacitance

Temperature Drift: 0.2% max. of actual capacitance value

Measurement Frequency: 600 kHz max.

E.S.D. Protection (kV): Protected to 55 kV continuous discharge

Output Functions

Relay Contact (with Signal Failure Detection): Contact: Form C SPDT (selectable NC or NO contact); Max. contact load: DC: 5A/30 VDC; AC: 8A/250

VAC (cosn=1); Max. switching capacity: 150 Watt/2000 VA; Min. contact load: 10 mA/5 VDC; Time delay (on and/or off): 1-60 seconds

Solid-State Switch (with Signal Failure Detection): Output: Galvanically isolated; Safety: Non-polarity sensitive transmitter; Max. load: 2 Watt; Max. switch voltage: 250 VAC/300 VDC; Max. load current: 100 mA; Voltage drop:

Below 1 Volt typical at 50 mA; Time delay (on and/off): 1-60 seconds.

Two-Wire Switch: With customer-supplied external trip devices

CLS300

Ordering Instructions

Select one option from each table section below. A complete catalog number looks like this: 7ML5650-_ _ _ _ _ - _ _ _ _ -Z

Model Selection Guide

Please submit orders to: Siemens Industry Inc, c/o Lesman Instrument Company.

Catalog Price

Description Number Each

CLS300 Capacitance Point Level Detection Sensor

316L SS

Threaded, 3/4” NPT

Threaded, 1” NPT

Process Threaded, 1.25” NPT

Connection Threaded, 1.5” NPT

1” ASME, 150 Lb Welded Flange

1” ASME, 300 Lb Welded Flange

1.5” ASME, 150 Lb Welded Flange

1.5” ASME, 300 Lb Welded Flange

2” ASME, 150 Lb Welded Flange

2” ASME, 300 Lb Welded Flange

3” ASME, 150 Lb Welded Flange

3” ASME, 300 Lb Welded Flange

4” ASME, 150 Lb Welded Flange

4” ASME, 300 Lb Welded Flange

7ML5650 - $760.00

0A_ _ _-

0B_ _ _-

0.00

37.00

0C_ _ _- 50.00

0D_ _ _- 83.00

5A_ _ _- 271.00

5B_ _ _- 330.00

5D_ _ _- 327.00

5E_ _ _- 383.00

5G_ _ _- 389.00

5H_ _ _- 436.00

5K_ _ _- 464.00

5L_ _ _- 565.00

5N_ _ _- 557.00

5P_ _ _- 714.00

Standard Probe Lengths (No Y01 code needed.) Length from flange face.

Threaded lengths include process connection

Standard Extended Rod 350 mm 13.78”

Standard Extended Rod 500 mm 19.69”

Standard Extended Rod 750 mm 29.53”

Standard Extended Rod 1000 mm 39.37”

Temp.

Options

_ _ A _ _-

_ _ B _ _-

_ _ C _ _-

_ _ D _ _-

0.00

48.00

91.00

116.00

No Thermal Isolator _ _ _ 0 _- 0.00

Thermal Isolator (Process Temps >185° F) _ _ _ 1 _- 77.00

Wetted

Seals

Probe

FKM

FFKM (Process Temps > -47° F)

316L SS, PFA Lining, PEEK Isolators

_ _ _ _ 0- 0.00

_ _ _ _ 1- 421.00

0 _ _ _ 0.00

Enclosure

CSA/FM/CE General Service

Approvals CSA/FM Dust-Ignition Proof, IS Probe

CSA/FM Explosion Proof, IS Probe

IP65 Rating

IP68 Rating

_ H _ _

_ F _ _

_ G _ _

_ _ A _

_ _ C _

0.00

44.00

58.00

0.00

50.00

Active

Shield

Length

125 mm Threaded, 105 mm Flanged

250 mm Threaded, 230 mm Flanged **

400 mm Threaded, 380 mm Flanged **

CLS Flange, 3/4” Thread for Mounting

any 3/4” NPT Pointek CLS Level Switch

_ _ _ 0

_ _ _ 1 286.00

_ _ _ 2

7ML1500-0_ _0

0.00

309.00

0.00

Flanged

Process

1” (A _)

1.5” (B _)

Connection 2” (C _)

Size 3” (D _)

4” (E _)

Spare Parts and Accessories

Pressure Rating (ANSI B16.5)

150 Lbs. (_ A) 300 Lbs. (_ B) 600 Lbs. (_ C)

$226.00

270.00

321.00

384.00

461.00

$274.00

316.00

361.00

468.00

592.00

$289.00

344.00

418.00

506.00

702.00

1/2” HF Cable Gland (GP, Dust/Ignition-Proof)

1/2” HF Cable Gland (Explosion-Proof)

3/4” NPT Ryton SensGuard (PPS) Cover

CLS300 English Instruction Manual

7ML1830-1JA $21.00

7ML1830-1JB 34.00

7ML1830-1DL 76.00

7ML1998-5JH04 39.00

** 250 mm Extended shield available only on probe lengths >500 mm.

400 mm Extended shield available only on probe lengths >750 mm.

Need a probe length that’s not shown here? Call Lesman for custom probes from 9.8” to 39.3” (250 to 998 mm)

Need 600 lb ASME flanges? Call for pricing.

10

CAPACITANCE

POINT LEVEL

Illinois, Indiana, Missouri, and Iowa

Phone: 800-953-7626 • 630-595-8400

Fax: 630-595-2386

Lesman Instrument Company www.lesman.com [email protected]

Wisconsin, and Upper Peninsula Michigan

Phone: 800-837-1700 • 262-923-1790

Fax: 262-923-1797

Pointek CLS500 Point Level Switch for Extreme Conditions

Features

• Wide range of applications in high pressure and temperature, chemically aggressive, and other extreme process environments

• Viscous, conductive and non-conductive liquids, solids, slurries, and interfaces

• Integrated local display for service and commissioning or remote adjustable programming and control via HART®

Good for use in environments up to

392°F and 7665 PSI!

• Two-wire analog mA output with two-state functionality

(4–20 mA or 20–4 mA)

• Adjustable hysteresis on/off for solid-state output and for current signal; Damping function

• Signal current compliant to NAMUR NE 43

• Full range of local/remote diagnostics

• Pre-detection of trip point for high safety requirements

• Polarity-insensitive current loop

• General purpose, dust ignition proof, explosion proof and intrinsically safe approved models

Siemens Pointek CLS500 is a two-wire capacitance point level switch for detecting interface solids, liquids, slurries, and viscous materials in critical conditions of extreme pressure. It uses a unique, frequency-based measurement system and patented Active-Shield technology to deliver highly accurate, repeatable results.

Measurement is unaffected by moisture, vapors, foam, temperature and pressure variations, or material build-up around the mounting glands.

The CLS500 combines a sophisticated, easy-to-adjust transmitter

(MSP-2002-1) with a measurement electrode and process seal designed to accommodate numerous configurations. The advanced electronics and integrated local display provide for one-point calibration without interrupting the process, and the probe shield design eliminates the need for frequent recalibration.

Pointek CLS500 can be used as a pump controller, by connecting the

2-state mA output and/or the solid state switch to a relay, and activating a pump via an auxiliary power circuit.

Standard S-Series (Threaded)

Specifications

Measurement Range: 0 to 330 pF; Span: Minimum 1 pF

Measurement Frequency: 420 kHz

Accuracy: Deviation <0.1% of actual measurement value; Non­Linearity

and Reproducibility: 0.1% full scale and actual measurement respectively

Temperature Stability: Greater of 0.15 pF (0 pF) or <0.25% (typical <0.1%) actual measurement value over full temperature range

Process Connection: NPT thread; ANSI, DIN flat-faced flanges

Process Material: AISI 316 L standard; C 22.8 N, Monel 400, Hastelloy C22,

Duplex optional

Safety: Current signaling according to NAMUR NE 43; 3.6 or 22 mA, probe input ESD protected to 55 kV, inputs/outputs fully galvanically isolated, polarity-insensitive current loop, fully potted, integrated safety barrier

Diagnostics: Includes fault alarm when primary variable (PV) out of limits, system failure in measurement circuit, deviation between A/D and D/A converter, checksum, watch dog and self-checking facility probe

Probe Length: Rod version: Up to 1000 mm (216”) with 16 or 24 mm diameter probe; Diameter: 16 mm (0.63”) or 24 mm (0.95”) rod

Probe Installation: PFA, Enamel

Function Rotary Switch: Positions 0 to 9, A to F

Remote Communication: HART® Foundation

Pressure Rating: FV to 50 bar (725 PSI), up to 525 bar (7665 PSI) optional

Enclosure: Aluminum, epoxy coated Type 4X/NEMA 4X/IP65; 2 x 1/2” NPT cable entry

Temperature Rating: -328° to 392° F, up to 752° F optional

Supply Voltage: 12 to 33 VDC (30 VDC for IS model)

Loop Current: 3.6 to 22 mA / 22 to 3.6 mA (2-wire current loop)

Environmental: Location: indoor/outdoor; Altitude: 2000 m maximum;

Ambient Temperature: -40° to 185° F standard and for T5 to T1 ATEX explosion proof, -40° to 158° F for T6; Installation category: II; Pollution degree: 4

Approvals: CE; FM/CSA: Class I, II & III, Div. 1 Groups A-D (Intrinsically Safe),

Class I, Div. 2, Class II, Div. 2, Class III, Div. 1 & 2 (Hazardous Locations); FM: Class I, II & III, Div. 1 Groups

A-D (Explosion Proof); 3A Sanitary

Call for pricing on welded flange, single piece flange and hightemp configurations.

Ordering Instructions

Make one selection from each table below. A complete catalog number looks like this: 7ML5601 - _ _ _ _ _-_ _ AO_Z

Model Selection Guide

Description

Please submit orders to: Siemens Industry Inc, c/o Lesman Instrument Company.

Catalog

Number Price

Pointek CLS 500, S-series, threaded

Two-Wire capacitance point level detection

device, PFA probe insulation, 316LSS connection 7ML5601- $834.00

Electronic None

Transmitter MSP2002-1 (330 pF)

Process 1” Threaded NPT

Connection 1

1

/

2

” Threaded NPT

Size 2” Threaded NPT

Approvals General Purpose

FM/CSA Approved

Probe/Electrode Diameter

16 mm Rigid Rod, 1000 mm max length

Rigid Thermal Isolator

Options Total Insertion Length

Active Shield Length (50 mm Min.)

MSP 2002-1 Transmitter, 330 PF

CLS500 Instruction Manual

0_ _ _ _ -

1 _ _ _ _ -

_ BA1 _ -

_ DA1 _ -

_EA1 _ -

_ _ _ _1-

_ _ _ _ 2-

0.00

1327.00

0.00

0.00

0.00

0.00

110.00

1_ _ _ - _

_ AA0

141.00

165.00

Z-Y01 _ _ _ _

Z-Y02 _ _ _ _

0.00

0.00

7ML1830-1JP 1293.00

7ML1998-5GG03 47.00

Illinois, Indiana, Missouri, and Iowa

Phone: 800-953-7626 • 630-595-8400

Fax: 630-595-2386

Lesman Instrument Company www.lesman.com [email protected]

Wisconsin, and Upper Peninsula Michigan

Phone: 800-837-1700 • 262-923-1790

Fax: 262-923-1797

ULTRASONIC

POINT LEVEL

11

Pointek ULS200: Ultrasonic Point Level Detection Sensor

ULS200

Features

• Noncontacting point level detection on bulk solids (0.8 to 9.8 ft.), liquids and slurries (0.8 to 16.4 ft.)

• Type 6, NEMA 6/IP67 polycarbonate or aluminum enclosure

• Built-in temperature compensation

• Two-button setup, simple cable-entry wiring, and a self-cleaning sensor

• AC or DC power supply

• Sanitary version available, with an industry standard flange

Ideal for sump control!

In Case of Emergency...

You can use your Pointek ULS200 as a high-level emergency shutoff switch!

It’s a good engineering practice to have a backup high- level switch that uses a different technology than your continuous level devices.

Look at all the ULS200 offers...

Two independent settings that allow for high- and low- level switch points from a single unit

• Noncontacting, self-cleaning sensor, made of Tefzel® or Kynar-Flex®

• Polycarbonate or Epoxy enclosure available

The perfect point level backup device for your capacitance applications.

Specifications

Detection Range: Liquids: 0.8 to 16.4 ft.

Solids: 0.8 to 9.8 ft.

Dimensions

Operating Modes: High, low, high-high, high-low, low-low level indication

Repeatability: 0.25% of full range

Resolution: 0.1”

Echo Processing: Patented Sonic

Intelligence ® software

Memory: Nonvolatile EEPROM

Operating Pressure: 30 PSI

Beam Angle: 10° at 3db boundary

Ambient/Process Temperature: -40° to 140° F. Metal mounting: -5° to

140° F

Outputs: AC Version: Two Form C SPDT contacts, rated 5A at 250 VAC noninductive; DC Version: Two nonpolarized transistor switches rated 48 VDC, 100 mA max. or two Form C SPDT contacts, rated 5A at 48 VDC

LCD Display: Displays three 0.35” digits for programming distance between sensor face and material. Multi-segment graphic for operation status.

Programming: 2 keys

Power Supply: 18 to 30 VDC, 3W max. or 100 to 230 VAC max.

Terminal Block Wiring: 14 gauge solid/16 gauge stranded max.

Cable Entry (2 connections): Polycarbonate enclosure: PG 13.5 or 1/2” NPT.

Aluminum enclosure: 1/2” NPT or PG 13.5

Sensor Mounting: Threaded: 2” NPT, 2” BSP or PF2.

Electronics Enclosure: Material: Polycarbonate or Epoxy coated aluminum with gasket. Ingress protection: Type 6/NEMA 6/IP67.

Sensor: ETFE or PVDF

Environmental : Location: Indoor/outdoor; Altitude: 6562 ft. max.; Install ation category: II; Pollution degree: 4

Approvals: CE, CSA/FM Class I, II, III, DIv 1, Gr A-G T4, ATEX II,

C-TIC, INMETRO

Ordering Instructions

Select one option from each table following. A complete catalog number looks like this: 7ML1510 - _ _ _ _ _

Model Selection Guide

Please submit orders to: Siemens Industry Inc, c/o Lesman Instrument Company.

Catalog

Description Number Price

ULS200: Ultrasonic Point Level Detection Sensor

Power

24 VDC, Relay Output

24 VDC, Transistor Output

100 to 230 VAC, Relay Output

Approvals CE, CSA, Cl I Div 2, Zone 2, Cl 2 Div 2

CE, C-TICK, CSA, FM, GP

Process 2” NPT ETFE

Connection 2” NPT PVDF Copolymer

Housing/ Polycarbonate, 1/2” NPT

Cable Entry Aluminum, 1/2” NPT

Parts and

FMS200 Universal Box Bracket

Universal Adaptor, 2” NPT

Accessories Polycarbonate Lid

Aluminum Lid

7ML1510 - $928.00

1 _ _ _ _

2 _ _ _ _

3 _ _ _ _

0.00

0.00

128.00

_ J _ _ _

_ K _ _ _

_ _ A _ _

_ _ E _ _

0.00

0.00

47.00

0.00

_ _ _02

_ _ _04

7ML1830-1BK

7ML1830-1BT

7ML1830-1LG

7ML1830-1LH

0.00

158.00

138.00

135.00

21.00

43.00

Note:

The ultrasonic Pointek ULS200 is intended to be a primary measure ment and control device. For overfill or level safe protection, Siemens advises using Pointek contacting technology, like the CLS200 on pages 6 to 7 of this catalog.

12

LEVEL BY

WEIGHT

Illinois, Indiana, Missouri, and Iowa

Phone: 800-953-7626 • 630-595-8400

Fax: 630-595-2386

Load Cells for Level by Weight

Features

• Easy mounting

• Only 25/35 mm installation height

• Hermetically welded seal IP68 equivalent to NEMA 6

• Stainless steel construction

• Direct 4 to 20 mA output (LA)

• CENELEC Ex-version available (LE)

• Level control for liquid and bulk materials

Lesman Instrument Company www.lesman.com [email protected]

Wisconsin, and Upper Peninsula Michigan

Phone: 800-837-1700 • 262-923-1790

Fax: 262-923-1797

This is the perfect solution to all your level control requirements: Sartorius’ revolutionary PanCake® technology for level-by-weight applications.

This system is extremely durable for the utmost precision in most applications. It works independent of material properties and the surrounding environment. Retrofitting is fast and easy. PanCake technology is tried and tested in many installations, and is available at an affordable price.

Conventional level control instrumentation can lead to errors of 5% and more. In extreme cases this could result in interruption of the associated process. New PanCake level-by-weight technology gives extremely accurate readings better than 1% in “real-life” applications over a complete range of capacities up to more than 35,000 pounds.

Exceptionally price competitive, the PanCake system offers not only great technical advantages, it also offers exceptional value for the money.

Compared to ultrasonic or radar systems, savings of up to 50% are possible.

The extremely reliable, tough and durable design of sensors and the use of high quality materials lead to unequaled reliability, even under harsh industrial conditions. Maintenance or recalibration is rarely needed, except in case of mechanical changes to the tank.

The high quality sensor maintains calibration for years, without drift or creep. The stainless steel housing is hermetically sealed by welding and complies to the highest rating (IP68) for 10,000 hours at 1.5m (5’), equivalent to NEMA 6.

PanCake Capabilities

The model LA provides 4 to 20 mA output for direct connection to process instrumentation or PLCs/DCS. Models L and LE featuring mV/V output are connected via Sartorius transmitters and indicators. Usually only one PanCake is required (three legs). If two are used (four legs) you still require only one input channel in your PLC or Process Indicator by simply switching the two outputs in parallel.

Watch our website for more information on Sartorius load cells, scales, and precision batching systems.

Ready to order a load cell?

Fill out the application datasheet at www.Lesman.com/datasheets and fax it back to Lesman.

Specifications

Load Cell Construction: Hermetically sealed, welded stainless steel construction, filled with Polyurethane

Material: 500kg; 10t: 1.4021 (DIN), 420 S 37 (B.S.); 16t: 1.4542 (DIN), S 604/S

622 (B.S.), 17 to 4 pH (Int.)

Protection: IP68, IEC 529, equivalent to NEMA 6. The load cell can be submerged in water to a depth of 1.5 m for 10,000 hours.

Cable: Robust, flexible, screened; Sheath: Thermopl, Elastomer; Color: gray

(LE: blue, LA/LAC: green); Diameter: 5mm, wires 4 x 0.35 mm 2 ; Length:

5 m; Bending radius: ≤ 50 mm

Certificate of Conformity: EEx ia IIC T6 (PTB Nr. Ex-00.E.2040, II 2G EEx ia II

T6 (PBTB 00 ATEX 2039)

Technical Data

Accuracy Class

L LA/LAC

0.5%

LE

Minimum Dead Load

Safe Overload

Destructive Load

Rated Output

0%E max

5%E max

0%E max

150%E max

100%E max

150%E max

2.0

300%E max

16mA 2.0

Tolerance on Rated Output

Tolerance on Zero Signal

Repeatability Error

Creep During 30 Minutes

Non-Linearity

Hysteresis

< 4

<0.25

< 4

4mA

<0.1

<0.1

<0.25

<0.15

< 4

<0.25

Temperature Effect on Zero <0.15%C n

/10K

Temperature Effect on Output <0.1%C n

/10K <0.1%C n

/10K <0.1%C n

/10K

Input Impedance 645±60Ω 645±60Ω

Output Impedance 635±15Ω 635±15Ω

Insulation Impedance >5000x10Ω >5000x10Ω

Recommended Supply Voltage 4 to 21V 20 to 28V 4 to 24V

Maximum Supply Voltage

Ambient Temperature

Storage Temperature

Permissible Eccentricity

32V 28V 25V

-10° to 70° C -30° to 55° C -10° to 55° C

(Nominal) (Nominal) (Nominal)

-30° to 95° C -30° to 70° C -30° to 95° C

(Usable) (Usable) (Usable)

-40° to 95° C -40° to 80° C

10 mm

-40° to 95° C

Vibration Resistance

Air Pressure Effects

Nominal Deflection

20g, 100h, 10 to 150 Hz

≤20g/kPa

Up to 2t <0.1/16t <0.2 mm

Illinois, Indiana, Missouri, and Iowa

Phone: 800-953-7626 • 630-595-8400

Fax: 630-595-2386

Lesman Instrument Company www.lesman.com [email protected]

Wisconsin, and Upper Peninsula Michigan

Phone: 800-837-1700 • 262-923-1790

Fax: 262-923-1797

Precise for All Materials

The new PanCake level-byweight technology determines the actual content of a vessel directly in kilograms or pounds.

One sensor provides reliable readings for all measured materials.

Easy to Install

Just lift one leg of the vessel for a little more than an inch, slide the PanCake into the gap, setup is ready, in many instances without additional mounting kits, complicated mechanical conversion of the vessel, or changes to the pipework. Easy to start up.

No calibration weights required.

Example 1: Formation of foam and bubbles, phase transition and evaporation may affect others, but not PanCake.

Example 1: The vessel is lifted at one side only. The resulting inclination is small enough not to disturb the readings.

Example 2: Material sticking to the wall of a vessel, variable moisture content and deviations in particle size, but PanCake gets it right.

Example 2: One leg of the vessel is just shortened by an inch. No inclination occurs.

LEVEL BY

WEIGHT

13

Why Use a Load Cell for Level?

Easy Start Up... Better Performance... Low Maintenance

Calibration without weights — Competitors calibration of 50,000lb vessel normally takes 4 to 6 hours. There are usually no weights available . Sartorius calibration time is less than 20 minutes.

No shimming or corner adjustments — Sartorius PanCake only takes

5 minutes, by hand rotating the load cell to determine whether or not there is a load. Only a minimal 1% of the load is required.

No resistors or trim pots in the junction box — Resistors and potentiometers tend to be temperature and moisture sensitive. This can affect system accuracy.

Matched load cells — All Sartorius load cells are totally matched and can be replaced without the need for re-calibration.

No influence from the effect of mixers (moving center of gravity)—

Due to matched load cells and unique mounting design

No side load effects due to temperature expansion of the vessel —

Side forces are taken by the mounting kits which have freedom for temperature expansion.

Load cells have lighting protection — Special strain gauge design in combination with our junction box makes it possible.

Stainless steel and hermetically sealed — The load cells can be submerged in water under 5 feet for 10,000 hours.

Special load cell cable for harsh environments — No PVC insulation,

PTFE is used for high chemical resistance and a Kevlar fiber for “Pull

Protection.”

High Ω load cell design — 650 to 1200Ω input resistance for minimizing the effect of cabling on accuracy and higher signal under intrinsically safe conditions

NOW limited LIFETIME WARRANTY on most STAR Line load cells

Load cells remain within all specifications up to a usable load of 150 to 200% of nominal

All controls are designed with a built-in test function and can be

“calibrated without weights.”

We offer a wide range of weighing and batching solutions, from simple indication to complex batching systems.

Example 3: Material comes from filling or discharging, but cannot comprise readings of PanCake.

Example 3: The vessel is lifted leg-by-leg, one leg is supported by

PanCake. Other legs are leveled out by adding shimming plates.

Such a small solution to a big problem!

Sartorius Accuracy Class is calculated using these criteria: Hysteresis, linearity, temperature effects on zero and span, repeatability, and creep.

These compression load cells are available with several accuracies:

PR6201 (Left): 0.25% to 0.5%; 0.04% to 0.05%; or 0.015%

PR6211 (Center): 0.04% to 0.05%

PR6241 (Right): 0.04% to 0.05%; 0.015%; or 0.008%

Looking for a high accuracy load cell? Call Lesman!

14

LEVEL BY

WEIGHT

Illinois, Indiana, Missouri, and Iowa

Phone: 800-953-7626 • 630-595-8400

Fax: 630-595-2386

Lesman Instrument Company www.lesman.com [email protected]

Wisconsin, and Upper Peninsula Michigan

Phone: 800-837-1700 • 262-923-1790

Fax: 262-923-1797

Contego® Hygienic Weighing System

Features

• For production, mixing, charging, and storage vessels where cleaning is critical

• For containers with total load of 100kg to 2t

• 6.6” diameter for installation in tight spaces

• Head and base plates made of AISI 316L stainless steel for corrosion-resistance and hygienic connections

• Accuracy classes D1 (±0.04%) and C3 (±0.015%)

• EHEDG-certified, FDA-compliant silicone cover, Weights and Measures approval to

IOML R60

Food and pharmaceutical industries are known for high standards regarding hygiene in the production process. Many sensitive areas, from delivery to packaging and distribution are located next to one another, making it particularly challenging to combine precise measurement results with compliance to hygiene requirements.

The most critical requirements are those regarding components of machines and systems that come directly into contact with the product.

They must have a high level of corrosion resistance, must not give off any chemical substances and will ideally have surfaces that have been optimized for ease of cleaning.

Depending on the contamination type (flour, cocoa, egg white, fat), system components must withstand cleaning methods like compressed air, suction, fluids or water, or steam blasting. High-quality materials, like stainless steel or highly resistant plastics offer effective protection against dust and moisture.

For small-to medium-size process containers with a total load of

100kg–8t or anywhere meeting hygienic standards is important, Sartorius’ Contego® combines a load cell and mounting kit into a single hygienic solution.

The stainless steel construction protects the central components from corrosion and the FDA-compliant silicone sleeve offers the highest level of hygienic security. The small diameter unit fits in tight spaces, and a built-in jack-up function makes it easy to lift and lower the process vessel during maintenance, without the need for additional tools.

The Contego module is easily installed under the foot of the container, so a separate structure isn’t necessary. The head and base plates are made of stainless steel AISI 316 L (1.4404). They protect all central components against corrosion and offer an extremely hygienic and stable solution for attaching to the container and base element.

An integrated jack-up function provides simple and correct lifting or lowering of the container during maintenance work, without the need for additional tools. As a special element for stabilizing the container,

Contego has an integrated lift-off protector and a constrainer. These ensure reliable stability of the container during operation. If the floor is sealed with silicone, an optional adapter plate is directly cast as well, that prevents the risk of dirt accumulating.

The FDA-compliant silicone casing is also approved for the pharmaceutical industry, and offers the highest levels of hygienic security. It’s securely connected to the head and base plates through a special geometric seal to avoid the formation of gaps that can cause contamination. This protective casing also has high chemical resistance to most cleaning agents.

Overall, the advantage of this weighing solution lies in its impressive hygienic properties, combined with significant cost savings in planning, design and operation. The Contego is available in two versions, with the cable outlet on the side or on the top, and has an appropriately hygienic cable connection. Both load cell models are naturally available as an explosion-proof version suitable for use in potentially explosive areas. An intrinsically safe load cell supply can be integrated for use in potentially explosive areas.

Specifications

Load Cell Construction: S-shaped version for torque-free load application.

Pure stainless steel, hermetically sealed and filled with protective gas.

Material: Load cell: 1.4542 (AISI 630, 17-4PH) Mounting parts: 1.4404 (AISI

316L) Bellow: Silicone

Ingress Protection: Load cell: IP68 in accordance with IEC 60529: 1.5 m water column/10,000h. Weighing module: IP69K, according to DIN 40050: water under high pressure, steam cleaning

Cable: Robust, flexible, screened, Cable 4 + 0.35 mm2; Sheath: TPE thermoplastic elastomer; Diameter: 5 mm; Length: 5 m;Bending Radius: Fixed installation: >25 mm; Flexible installation: >75 mm

Certificates of Conformity: Ex Marking: II 1G EEx ia IIC T6, II 1D IP65 85° C

Registration number: PTB 02 ATEX 2059, TÜV 03 ATEX 2301x. Usable for

explosion hazard subgroups IIA, IIB and III. IIC on request.

Technical Data

Metrological

Accuracy Class

Minimum LC Verification

Deadload Output Return

Tolerance on Rated Output

Repeatability Error

Creep (30 Minute Duration)

Linearity

Hysteresis

Temperature Effect on Smin

Temperature Effect on C

Ambient Pressure Impact

Nominal Deflection: < 0.5 mm

Minimal Dead Load: 0

Usable Load: 150% E max

Destructive Load: > 300% E max

Zero Output Signal: < 1.0 % C n

Rated Output: 2 mV/V

Supply Voltage: 4–24 V

Ambient Temperature Range: -40°–203° F

Permissible Eccentricity: 5 mm

Vibration Resistance: 20 g, 100 h, 10–150 Hz

D1

0.04

5,000

1,000

< 0.25

< 0.01

< 0.03

< 0.03

< 0.04

< 0.028

< 0.03

≤ 0.005

C3

0.015

% E max

14,000

3,000

< 0.07

< 0.005

< 0.015

% C n

% C n

% C n

< 0.01

< 0.015

% C n

% C n

% C n

/10 K < 0.01

< 0.01

% C n

/10 K

≤ 0.0025

% C n

/kPa

Call for pricing and delivery.

Mechanical

Permissible Horizontal Force: 7 kN; Destructive force: > 30 kN max.

Permissible Vertical Load: 1.5 t max. without load cell

Permissible Lift-Off Force: 8 kN max.

Permissible Load for Jack-Up: 1.5 t max.

Illinois, Indiana, Missouri, and Iowa

Phone: 800-953-7626 • 630-595-8400

Fax: 630-595-2386

Lesman Instrument Company www.lesman.com [email protected]

Wisconsin, and Upper Peninsula Michigan

Phone: 800-837-1700 • 262-923-1790

Fax: 262-923-1797

BATCH

PROCESSING

15

Batch Processing and Recipe Management System

Sartorius ProBatch+ Recipe Management System

• Open batch system for PLC controllers

• Simple, user-friendly operation with clear process data

• Material management with stock monitoring and tracking

• Built-in script language for customer specific process requirements

• Connection of controllers in accordance with Batch Standard ANSI/

ISA S88.01 via OPC

• Creates production and batch reports, consumption quantity lists

Batch processes are optimized and production resources put to optimal use through simple adaptation of batch parameters to variable raw material characteristics, automatic calculation of batch sizes, and the optional automatic start from the daily production plan.

ProBatch+ manages raw materials, creates recipes, and runs and starts production cycles. It can be connected to batch controllers and PLC systems directly via Ethernet, or indirectly via field bus to a PLC. Recipe steps can be carried out directly on an PLC.

Specifications

Computing minimum requirements

• Pentium III, 700MHz, 256 MB RAM, 10 GB hard drive

• Serial or ethernet interface, USB port for hardware key

• SVGA Graphics: Resolution of 1024 x 768

• Uninterruptible power supply prevents data losses from power failure

• Microsoft® Windows XP with SP1, ProBatch+ software and the OPC

Server run on the same PC. One copy of ProBatch+ per computer

Standard interfaces

• Serial RS232, RS485, Ethernet TCP / IP

• Batch standard: S88

• Database interfaces: ODBC/SQL; Dynamic data exchange via DDE or

OPC with other Windows programs

• PC-PLC-Link for Siemens S7-300/400, Phoenix RFC430

• Support for field bus protocols: Profibus, Interbus, DeviceNet, CC-Link,

Modbus

User access rights

• Production planning, recipe production, operation, data security

• Report access

• System functions

ProBatch+ controls…

• Maximum 16 batch controllers, 16 parallel running real and logic balances, 16 production lines

• Max. 9999 recipes per production line

• Max. 9999 components per production line

• 30/20 place recipe name/ID, 30/20 place component name/ID, 3 lines x 30 character + date for raw material batch ID

• Microsoft® Access® database with data security also in ZIP files

Production start modes

• Start direct on the controller

• Start single production

• Start number of batches

• Start production quantity; automatic calculation of batch quantities

• Start in accordance with % details

Reports

• Batch report

• Production report

• Consumption quantities and stock

• Production quantities, recipe related

• Alarms and messages

• Printing: Automatically at the end of a production run or batch, or on request by operator

Model Selection Guide

Catalog

Description Number Price

ProBatch+ for Windows Software, CD, Manuals 9405 384 00001 $120.00

Basis License, 4 Weighing Points, Hardware Key 9405 384 00111 4015.00

Upgrade from 4 to 8 Weighing Points

Upgrade from 8 to 12 Weighing Points

Upgrade from 12 to 16 Weighing Points

9405 384 00121 2020.00

9405 384 00131 2020.00

9405 384 00141 2020.00

Optional Production Plan/Stock Mgmt License 9405 384 00211 1705.00

Optional DDE Interface License 9405 384 00311 875.00

Optional Remote Control License 9405 384 00411 875.00

Want to learn more about batch processing and recipe management? Call and talk to our product specialist.

16

LIQUID LEVEL

TRANSMITTERS

Illinois, Indiana, Missouri, and Iowa

Phone: 800-953-7626 • 630-595-8400

Fax: 630-595-2386

Lesman Instrument Company www.lesman.com [email protected]

Submersible Liquid Level Transmitters

Wisconsin, and Upper Peninsula Michigan

Phone: 800-837-1700 • 262-923-1790

Fax: 262-923-1797

Features

• Standard ranges available from stock

• Rated IP68 for permanent submersion

• 4-20 mA two-wire output signal

• Vented polyurethane cable withstands 220 pounds of strain

• Custom cable lengths available on LS-10. LH-10 comes with integral 40’ cable.

Dimensions

WIKA LS-10 liquid level transmitter is designed for economical and reliable performance in a variety of level measurement applications. The LS-10 provides a

4-20 mA signal output and an accuracy of 0.25% span.

The high performance LH-10 provides 0.125% accuracy. The LH-10 includes a dual cable entry design that prevents ingress of moisture into the electronics, even if the cable is damaged.

Both models feature watertight vented cable that can withstand more than 220 pounds of strain. This means the transmitters can be supported without the need for additional cabling.

Both the LS-10 and LH-10 can be ordered with the LevelGuard™ (below) for protection in difficult environments.

Need an FM approved intrinsically safe submersible transmitter? Call

Lesman for the WIKA IL-10

WIKA LevelGuard™ Anti-Clog

Attachment for Submersible

Liquid Level Transmitters

Features

• For lift stations, wet wells, and other level applications

• All 316 stainless steel construction for durability

• 2” diameter diaphragm provides excellent measurement sensitivity

• Birdcage-style enclosure protects diaphragm from physical damage and turbulence

• Added weight prevents unwanted transmitter movement

The WIKA LevelGuard attachment is designed for difficult level sensing applications where sludge, slurry, or turbulence may be present.

Great for dirty media applications and turbulent processes!

The large 2” diaphragm provides excellent sensitivity and performance, even when used to monitor extremely low liquid levels, or when the assembly is buried in a layer of sludge or slurry. The cable supplied with the

WIKA LS-10 submersible transmitter is designed to withstand more than 200 pounds of strain, so no additional support or conduit connections are required.

Model Selection Guide

Pressure Maximum Burst** Catalog Price

Range Pressure* Pressure Number Each

LH-10: 0.125% Accuracy, 316 SS, Polyurethane, Polyamid wetted parts, G1/2B pressure connection, 4-20 mA output.

Integral 40’ vented polyurethane cable.

0-50”WC 14 PSI

0-100”WC 30 PSI

0-150”WC 30 PSI

0-250”WC 60 PSI

0-400”WC 72 PSI

0-5 PSI

0-10 PSI

0-15 PSI

30 PSI

60 PSI

72 PSI

0-25 PSI

0-50 PSI

145 PSI

240 PSI

0-100 PSI 500 PSI

29 PSI

87 PSI

35 PSI

9699703 $712.44

35 PSI 9699711 712.44

35 PSI 9699729 712.44

70 PSI 9699737

9699745

8371846

712.44

712.44

712.44

70 PSI 9699754 712.44

87 PSI 9736225 712.44

170 PSI 9699762 712.44

290 PSI 9699770 712.44

600 PSI 9699788 712.44

LS-10: 0.25% Accuracy, 316 SS, Polyurethane, Polyamid wetted parts, G1/2B pressure connection, 4-20 mA output.

Select cable length below and append to catalog number.

0-100”WC 30 PSI

0-150”WC 30 PSI

0-250”WC 60 PSI

35 PSI

35 PSI

70 PSI

4262761 $502.32

4262779

4262787

502.32

502.32

0-5 PSI

0-10 PSI

0-15 PSI

0-25 PSI

30 PSI

60 PSI

72 PSI

145 PSI

0-30 PSI

0-50 PSI

145 PSI

240 PSI

0-100 PSI 500 PSI

Vented Polyurethane

Cable (Append to

Transmitter Model

Number e.g., 4262850/4360903)

Accessories

35 PSI

70 PSI

87 PSI

170 PSI

170 PSI

290 PSI

600 PSI

4262809

4262817

4262825

4262833

4262841

4262850

4262868

502.32

502.32

502.32

502.32

502.32

502.32

502.32

5’ 4347868 0.00

10’ 4347876 18.00

15’ 4347885 36.00

20’ 4347893 53.98

25’

30’

4347906

4347915

75.01

89.98

40’ 4347931 125.91

50’ 4347957 161.95

60’ 4347974 197.88

70’ 4347990 233.87

75’ 4348006 251.86

100’ 4348040 341.90

Stainless Steel LevelGuard™

Desiccant Drying Cartridge

Vent Tube Filter

Cable Clamp

Additional Weight

Cable Junction Box

50077091 568.48

9836700

7193131

20.17

Call

2074257

1524399

30.22

97.49

2459686 107.97

Ordering an LS­10? Don’t forget to order a desiccant drying cartridge. Helps prevent moisture buildup inside the transmitter’s vent tube.

Notes

* Maximum pressure, causing no permanent changes in specifications but may lead to adjustable zero/span shifts.

** Burst pressure, leading to destruction of transmitter.

Need a cable longer than 100 feet?

Call for pricing and availability.

Illinois, Indiana, Missouri, and Iowa

Phone: 800-953-7626 • 630-595-8400

Fax: 630-595-2386

Lesman Instrument Company www.lesman.com [email protected]

Wisconsin, and Upper Peninsula Michigan

Phone: 800-837-1700 • 262-923-1790

Fax: 262-923-1797

LIQUID LEVEL

TRANSMITTERS

17

SITRANS LH100 Submersible Liquid Level Transmitter

Features

• 0.3% accuracy

• Transmitter for hydrostatic depth measurement

• Piezoresistive flush-mounted sensor

• Stainless steel sensor and enclosure

• 4-20 mA two-wire output

• Easy installation with junction box or cable hanger

• Replaces the retired SITRANS P MPS submersible transmitter

Siemens’ SITRANS LH100 pressure transmitter is a submersible sensor for hydrostatic liquid level measurement in tanks, containers, channels dams, unpressurized/open vessels and wells.

On one side of the sensor, the diaphragm is exposed to the hydrostatic pressure, which is proportional to the submersion depth. This pressure is compared with atmospheric pressure. Pressure compensation is carried out using the vent pipe in the connecting cable. The vent pipe is equipped with a humidity filter which prevents the build-up of condensation in the vent pipe.

The hydrostatic pressure of the liquid column acts on the diaphragm of the sensor and transmits the pressure to the Wheatstone resistance bridge in the sensor. The output voltage of the sensor is applied to the electronic circuit where it is converted into an output current of 4 to 20 mA.

Specifications

Measuring Range

0–3 m (0–9 ft) H

2

O

0–4 m (0–12 ft) H

2

O

0–5 m (0–15 ft) H

2

0–6 m (0–18 ft) H

2

O

O

0–10 m (0–30 ft) H

2

O

0–20 m (0–60 ft) H

2

O

Maximum Working Pressure

1.5 bar (21.8 psi) 15 m (45 ft) H

2

O

1.5 bar (21.8 psi) 15 m (45 ft) H

2

O

1.5 bar (21.8 psi) 15 m (45 ft) H

2

1.5 bar (21.8 psi) 15 m (45 ft) H

2

O

O

3.0 bar (43.5 psi) 30 m (90 ft) H

2

O

6.0 bar (87.0 psi) 60 m (180 ft) H

2

O

Zero/Span: Ambient Temperature Influence: 0–3 m (0–9 ft) H

2

O: 0.5%/10

K fullscale; 4–6 m (12–18 ft) H

2

O: 0.45%/10 K full scale; ≥6 m (18 ft) H

0.3%/10 K full scale; Long­Term Stability: 0–3 m (0–9 ft) H full-scale/year

2

2

O:

O: 0.5% full scale/ year; 4–6 m (12–18 ft) H

2

O: 0.25% full scale/year; ≥6 m (18 ft) H

2

O: 0.2%

Ambient Operating Temperature: 14° to 176° F (-10° to 80° C)

Material: Seal Diaphragm: AI

2

O

3

ceramic, 96%; Sensor/Casing: 316L stainless steel; Gasket: FPM; Connecting Cable: PE/HD sheath

Power Supply: Terminal voltage on pressure transmitter: 10–33 VDC

Explosion Protection: Intrinsic safety IECEx SEV 14.0003, SEV 14ATEX 0109;

Identification: II 1 G Ex ia IIC T4 Ga

Junction Box: Enclosure: IP65 Polycarbonate; Electrical Connection: 2x 3-way

(28–18 AWG); Cable Entry: 2x Pg9

Cable Hanger: For mounting the transmitter; Galvanized steel, polyamide

Ordering Instructions

Select one option from each table following. A complete catalog number looks like this: 7MF1572 - _ _ _ _ _

No time for on-site training? Check out our online training center! View past training sessions and how-to videos at Lesman.com/train/

Model Selection Guide

Description

Measuring

Range/

Cable

0-12 Ft H

2

O, 33 Ft Cable

0–15 Ft H

2

O, 33 Ft Cable

0–18 Ft H

2

O, 33 Ft Cable

0–30 Ft H

2

O, 66 Ft Cable

Range/ 0–60 Ft H

2

O, 98 Ft Cable

Cable Length 0–4 m H

2

O, 10 m Cable

0–5 m H

0–6 m H

2

2

O, 10 m Cable

O, 25 m Cable

0–10 m H

2

O, 25 m Cable

0–20 m H

2

O, 25 m Cable

Accessories Plastic Junction Box, IP54

Carbon Steel Cable Hanger

Please submit orders to: Siemens Industry Inc, c/o Lesman Instrument Company.

Catalog Number Price

7MF1572-2DA10 $696.00

7MF1572-2EA10 696.00

7MF1572-2FA10 696.00

7MF1572-2HA10 801.00

7MF1572-2KA10 909.00

7MF1572-1DA10 696.00

7MF1572-1EA10 696.00

7MF1572-1FA10 696.00

7MF1572-1HA10 801.00

7MF1572-1KA10 909.00

7MF1572-8AA

7MF1572-8AB

86.00

21.00

Learn more about level technology online at www.Lesman.com

Intrinsically Safe Loop-Powered

Submersible Level Transmitter

• 2-5/8” Teflon-coated Buna-N diaphragm

• FM/CSA Intrinsically safe, Class I, Div. 1, Group

A-D rated with approved barrier

• 4-20 mA output, 0.25% full scale accuracy,

0.2% full scale/year long-term stability

Temperature Range: -40° to 185° F

Max Overpressure Range: 1.5 PSI 8X full scale; 5.0 PSI

4X full scale; 15 PSI & 30 PSI 2X full scale

For severe wastewater applications

Materials: Teflon-coated 31SS housing; Teflon/Buna N diaphragm; Polyethylene cable, vent tube, shielded 18 AWG conductors

Power Required: 9-30 VDC (750Ω load @ 24VDC)

Call for pressure ranges. Prices start at $1000.00.

18

BUBBLER

SYSTEMS

Illinois, Indiana, Missouri, and Iowa

Phone: 800-953-7626 • 630-595-8400

Fax: 630-595-2386

Lesman Instrument Company www.lesman.com [email protected]

Wisconsin, and Upper Peninsula Michigan

Phone: 800-837-1700 • 262-923-1790

Fax: 262-923-1797

Using a Pressure Transmitter as a Bubbler for Liquid Level

Smart Pressure

Transmitters

91-HF Combination

Filter-Regulator

Series 62 Constant

Differential Relay

Air Bubbler Theory

1 A constant flow of pressurized air is applied to the tube

2 A pressure transducer monitors the air pressure in the tube

3 The pressure in the tube equals the pressure at the tank’s bottom

4 The liquid level equals the pressure inside the tube divided by the liquid’s density

5 As long as the material density remains constant, the pressure is proportional to the liquid level in the tank

Advantages

• Not affected by foam or turbulence

• Can be used in small diameter pipes

• Easy to understand/proven technology

• Large installed base

Common Applications

• Determine head through a flume or weir

• Level in a lift station

• Tank level when foam is present

• Can be used with atmospheres other than air

A bubbler system is an inexpensive but accurate means of measuring the fluid level in open or vented containers, especially those in harsh environments such as cooling tower sumps, swimming pools, reservoirs, vented fuel tanks, drain sumps, or air washers.

A complete system consists of a source of compressed air, air flow restrictor, sensing tube, and pressure transmitter.

The only component exposed to the elements is the sensing tube. All others can be remotely located in a protected area.

Assembled and ready for installation!

A basic Lesman bubbler system includes:

• NEMA 4 panel with hinged door, sub-panel and wall mount bracket kit

• Coalescing filter (replaceable element)

• Your choicec of gauge pressure HART® transmitter,

FM, I/S and explosion-proof, configured for level (local control system or optional panel meter provides 24 VDC transmitter power)

• Siemens 62VA constant differential relay for air flow volumetric rate with indicating flow rotameter

• Polyflo plastic tubing and brass push-to-connect fittings inside the panel, compression fitting bulkhead connections for air and bubbler supply

• Panel label (specify up to 24 characters)

• Options include: air supply filter/regulators, solenoid valves, power supplies, and any other components necessary for your specific application

Model Selection Guide

To build a complete model number, choose one option from each section below.

Description

Lesman Bubbler System (See included items list at left.)

Panel

Material

Carbon Steel, 16” H x20” W x8” D

Stainless Steel, 16” H x20” W x8” D

Plastic, 18” H x16” W x10” D

Catalog

Number

Bubbler-

CS-

SS-

FG-

Regulator and Filter

HART®

Smart

Pressure

Transmitter

Range

0–60 PSIG Air Supply Regulator, 0.3 Micron Coalescing Filter

0–60 PSIG Regulator, 0.01 Micron Filter (for Residual Oil)

4” to 400” (33’) Water Column: Siemens DS-III, Accuracy: ≤0.075%

33’ to 133’ Water Column: Siemens DS-III, Accuracy: ≤0.075%

133’ to 275’ Water Column: Siemens DS-III, Accuracy: ≤0.075%

14’ to 275’ Water Column: Honeywell ST700, Accuracy: ±0.065%

14’ to 275’ Water Column: Honeywell ST800, Accuracy: ±0.055%

L-D-

L-E-

-SB

-SC

-SD

-H7

-H8

Door-

Mounted

Digital

Indicator

None (Control System Must Supply Power to Transmitter)

No Display, 24 VDC Transmitter Power

6-Digit Indicator

6-Digit Indicator, 2 Alarm Relays

6-Digit Indicator, 4-20 mA Retransmit Output

6-Digit Indicator, 2 Alarm Relays, 4-20 mA Retransmit Output

6-Digit Indicator, 4 Alarm Relays, 4-20 mA Retransmit Output

-XXX

-X24

-IXX

-I2X

-IXR

-I2R

-I4R

Level Range Specify Level: (0-XXX), units (inches, meters, feet), specific gravity

Panel Meter

Range

Specify Indicator Range: For volume or mass corresponding to the level range

(0-XXXXXX), up to 6 digits, units (gallons, liters, pounds)

Panel Label Specify Label: Up to 40 characters

Example: Bubbler-CS-91-E-SB-IXX

Level Range: 0-22 feet, SG = 1.00 (water),

Meter Range: 0-7200 gallons

Panel Label: North side sump, Capacity 7200 Gallons

Need to add solenoid valves, power supplies, or other components?

For custom requirements, call Lesman at 800-953-7626

Call and let our factory-trained level application specialists guide you through building your bubbler system.

Illinois, Indiana, Missouri, and Iowa

Phone: 800-953-7626 • 630-595-8400

Fax: 630-595-2386

Lesman Instrument Company www.lesman.com [email protected]

Wisconsin, and Upper Peninsula Michigan

Phone: 800-837-1700 • 262-923-1790

Fax: 262-923-1797

LIQUID LEVEL

TRANSMITTER

19

What’s the Right Level Technology for Your Application?

Need help figuring out which level measurement instrumentation to use in your process? Start with the reference charts below. Find your media type, process conditions, and tank design to help narrow down your choices. Depending on your application, there may be more than one technology for you.

Key

Excellent: Recommended.

l

Good: Works in most cases.

u

Fair: Works, but others are better.

Poor: Do not use.

Point Level

Technologies

Continuous Level

Technologies

Media Properties

Liquids - Clean

Liquids - Coating

Slurries

Liquid/Liquid Interfaces

Liquid/Solid Interfaces

Solids - Low Dust

Solids - High Dust

l ▼ ▼ ▲ ▲

▼ ▼ ▼ l ▲

▼ ▼ ▼ l ▲

▼ ▼ ▼ ▲ ▼

▼ ▼ ▼ ▼ ▼

▼ l l l l

▼ l l l ▼

Process Environment

Vapors

Foam

Temp >350° F

l ▼ ▼ l ▼ u ▼ ▼ u ▼

▼ ▼ ▼ ▼ ▼ l ▼ ▼ l ▼

Pressure >50PSI

Vacuum

Turbulence

l ▼ ▼ l ▼

Tank Design and Structural Properties

▼ l l l

Agitators

Obstructions

▼ ▼ l l l l l l l l

See dielectric constants for common materials, page 488.

Media Properties

Liquids - Clean

Liquids - Coating

Slurries

Liquid/Liquid Interfaces

Liquid/Solid Interfaces

Solids - Low Dust

Solids - High Dust

Liquid - Shifting Specific Gravity

Dielectric <2

Shifting Dielectric

Process Environment

Vapors

Foam

Temp >350° F

Pressure >50PSI

▼ u u

▼ l l

▲ u l

▼ u

▼ l l

▲ l l

▼ u u

▲ l

▼ u

▲ l

▼ l l l l l ▼ ▲ u u l ▲ ▼ ▼ ▼

▲ l l ▼ l ▼ ▲

▲ ▼ l ▲ l ▼ ▲

Vacuum

Turbulence

Tank Design and Structural Properties

Agitators

Obstructions

▲ ▼ l ▲ l ▼ ▲

▲ u l u ▼ l l

▲ u u l l u u

▼ l l l l l

Not sure what you need? Get an application worksheet from Lesman.com/ datasheets/ and send it to Lesman for an engineering review.

WMI Magnetic Liquid Level Indicator

• Dependable liquid and interface level indication for years with little or no maintenance required

• Bright, dependable two-color indicator with a scale for easy reading from up to 200 feet away

• Measuring lengths from 6” to 20 feet standard, longer lengths available

• Temperature ranges from 320° to 1000°F; Pressures from full vacuum to 5000 PSI

• Liquid and interface specific gravities as low as 0.35

• Floats built specific to your application for best possible accuracy

• Outputs: Magnetostrictive or reed chain transmitter, dry contact or reed switch, thermocouple or RTD

Condensed Specifications

Indicator: Red and silver flags; Ruler display in feet/inches, metric, percent, or special (no charge for custom rulers)

Construction: 304L, 314L, 317, 329, and 347 stainless steel

(per AMSE B31.1, B31.3 or NACE requirements); Hastelloy

B or C; Alloy 20; Inconel 625; Monel

Available Outlets: Extruded, saddled, or welded T

Need help designing the perfect indicator for your tank? Download a

WIKA WMI application worksheet from Lesman.com/datasheets/.

Process Connections: ANSI flanges, NPTM or NPTF threads,

O-lets, welded ends; Sizes: 1/2” to 8” standard

Vent and Drain Options: Flat caps, dome caps, weld neck or slip-on flanges, weld ends, threads, reducing flanges, valves (per user specification)

Mounting: Horizontally with side connections to tank, or vertically on top of tank

Additional options: High temperature or cryogenic insulation, steam or electrical heat tracing, reinforced flange supports, liquid gas chamber construction

20

LIQUID LEVEL

TRANSMITTER

Illinois, Indiana, Missouri, and Iowa

Phone: 800-953-7626 • 630-595-8400

Fax: 630-595-2386

Lesman Instrument Company www.lesman.com [email protected]

Wisconsin, and Upper Peninsula Michigan

Phone: 800-837-1700 • 262-923-1790

Fax: 262-923-1797

Flange-Mounted Liquid Level Transmitter

Features:

• Accuracies up to 0.05% standard

• Stability up to 0.015% URL per year for ten years

• Automatic static pressure and temperature compensation

• Rangeability up to 100:1

• Response times as fast as

90ms

• Multiple local display capabilities

• External zero, span, and configuration capability

Replaces the retired Honeywell

STF924

• Modular design

• World-class overpressure protection

• Polarity insensitive electrical connections

• Integral dual seal design for highest safety per ANSI/NFPA

70-202 and ANSI/ISA 12.27.0

• Comprehensive on-board diagnostic capabilities

• Communications Options: Honeywell Digitally Enhanced

(DE), HART ® Version 7.0, FOUNDATION™ Fieldbus

• Full compliance to SIL 2/3 requirements

• Available with 15 year warranty

Dimensions

SmartLine family pressure transmitters are designed around a high performance piezo-resistive sensor; One sensor integrates multiple sensors, linking process pressure measurement with on-board static pressure

(DP Models) and temperature compensation measurements. This allows the ST 700 to replace most competitive transmitters available today.

Indication/Display Option: Honeywell’s ST700 modular design accommodates a basic alphanumeric LCD display.

LCD Display Features:

• Can be added or removed in the field

• 16 most-common engineering measurement units

• 2 Lines 16 Characters alphanumeric display

• Position display at 0°, 90°,180°, and 270° for easy reading

• Square root output indication (√)

Diagnostics: SmartLine transmitters offer digitally accessible diagnostics that help provide advanced warning of possible failure events, minimizing shutdowns, and providing lower operational costs.

Configuration Tools

Integral Three Button Configuration Option: SmartLine offers the ability to configure the transmitter and display via three externally accessible buttons. Zero/span capabilities are also optionally available via these buttons with or without selection of the display option.

Hand Held Configuration: SmartLine transmitters feature two-way communication and configuration capability between the operator and the transmitter via Honeywell’s field-rated Multiple Communication

Configurator (MCT202). The MCT202 is capable of field configuring DE and HART Devices and can be ordered for use in intrinsically safe environments. Honeywell transmitters are designed and tested for compliance with the offered communication protocols and are designed to operate with any validated hand held configuration device.

Personal Computer Configuration: Honeywell’s SCT 3000 Configuration Toolkit provides an easy way to configure Digitally Enhanced (DE) instruments using a personal computer as the configuration interface.

Field Device Manager (FDM) Software and FDM Express are also available for managing HART and Fieldbus device configurations.

Modular Design: ST 700 transmitters are modular in design, so you can replace meter bodies, add indicators or change electronic modules without affecting performance or approval body certifications. Each meter body is uniquely characterized to provide in-tolerance performance over a range of variations in temperature and pressure.

Modular Features:

• Meter body replacement

• Exchange/replace electronics/comms modules

• Add or remove integral indicator

• Add or remove lightning protection (terminal connection)

Illinois, Indiana, Missouri, and Iowa

Phone: 800-953-7626 • 630-595-8400

Fax: 630-595-2386

Lesman Instrument Company www.lesman.com [email protected]

Wisconsin, and Upper Peninsula Michigan

Phone: 800-837-1700 • 262-923-1790

Fax: 262-923-1797

LIQUID LEVEL

TRANSMITTER

21

Specifications

Reference Accuracy: 0.05% span

Stability (%URL/year for five years): STF728: 0.020%;

STF72F: 0.020%; STF732: 0.040%

Temperature: Ambient: -40° to 185° F; Meter Body:

-40° to 257° F

Humidity: 0 to 100% RH

Maximum Allowable Working Pressure (MAWP):

4500 PSI for temperatures -40° to 275° F

Analog Output: Two-wire, 4 to 20 mA (HART and DE transmitters only)

Output Failure: Normal Limits: 3.8 to 20.8 mA Honeywell standard, or 3.8 to 20.5 mA NAMUR NE 43 Compliant;

Failure Mode: ≤3.6 mA and ≥21.0 mA

Supply Voltage: 10.8 to 42.4 VDC at terminals (IS versions limited to 30 VDC); Voltage Effect: 0.005% span per volt

Transmitter Turn-On Time: HART or DE: 2.5 seconds

Response Time (Delay + Time Constant): HART or DE:

100 mS; Foundation Fieldbus: 150 mS host-dependent

Damping Time Constant: HART: Adjustable from 0 to 32 seconds in 0.1 increments. Default: 0.50 seconds; DE: Discrete values from 0 to 32 seconds. Default: 0.48 seconds

Vibration Effect: Less than ±0.1% URL without damping.

Per IEC60770-1 field or pipeline, high vibration level

Electromagnetic Compatibility: IEC 61326-3-1

Lightning Protection (Option): Leakage Current: 10uA max @ 42.4VDC 93C

Materials: Barrier Diaphragms: 316L SS, Hastelloy® C-276,

Monel® 400, Process Head: 316 SS, Carbon Steel (Zincplated) , Hastelloy C-276; Vent/Drain Valves/Plugs: 316

SS, Hastelloy C-276; Head Gaskets: PTFE standard; Meter

Body Bolting: Zinc-plated CS. 316 SS, NACE A286 SS bolts;

Mounting Flange: Flush or extended diaphragm, CS,

304 SS, or 316 SS; Fill Fluid: Silicone DC® 200 oil or CTFE;

Electronic Housing: Polyester powder-coated aluminum.

Meets NEMA 4X, IP66, IP67. All stainless housing optional.

Process Connections: 1/4” or 1/2” NPT with DIN adapter

Wiring: Accepts up to 16 AWG (1.5 mm diameter)

Enclosure: Type 4X, IP66, IP67

Digital Communications: Honeywell DE, HART 7 protocol or FOUNDATION Fieldbus ITK 6.0.1 compliant

Communication/Diagnostics: HART 7,

Foundation Fieldbus, Honeywell DE

Agency Approvals: FM/CSA: Explosion-Proof: Class I, Div

1, Grps A-D; Dust-Ignition Proof: Class II, III, Div 1, Grps

E-G T4; Intrinsically Safe: Class I, II, III, Div 1, Grps A-G T4;

Non-Incendive: Class I, Div 2, Grps A-D; ATEX: Flameproof:

II 1/2 G Ex d IIC T4; Intrinsically Safe: II 1 G Ex ia IIC T4;

Non-Incendive: II 3 G Ex nA IIC T4; Enclosure: IP66/IP67

SIL 2/3 Certification: IEC 61508 SIL 2 for non-redundant use and SIL 3 for redundant use according to EXIDA and

TÜV Nord Sys

Restrictions

w Not available with extended mount meters v Available only with extended mount meters

Note: It is considered good engineering practice to provide redundant disparate level technologies for overfill protection of storage tanks (per API 2350 standard). Call

Lesman for point level solutions to complement your continuous level transmitter choice.

Ordering Instructions

Make one selection from each table section below. Check the restriction letters to be sure the unit you need is available. A finished catalog number looks like this:

STF724-_ _ _ _ _ _ - _ _ _ - _ - _ _ _ - _ _ _ - A - _ _ _ _ - _ _ , _ _ - 0000

Model Selection Guide

Description

Model

Range Limits

(Span)

Meter Body Flush Mount 316SS Wetted Parts, CS Head

Flush Mount All 316 SS Wetted Parts

Extended Mt, 316SS Wetted Parts, CS Head

Pseudo-Flange, CS Head, 316 SS Vent/Drain Valve

Fill Fluid

-400 to 400” H2O (4 to 400” H2O)

-100 to 100” PSI (1 to 100” bar)

-400 to 400” H2O (1 to 400” H2O)

-100 to 100” PSI (1 to 100” bar)

Process

Connections

Process Head

Bolts

Silicone Oil DC200

Fluorinated Oil CTFE

1⁄4” NPT Ref. HD, High Pressure Side Flange

1⁄4” NPT Ref. HD, Low Pressure Side Flange

Carbon Steel Bolts

316 SS Bolts and Nuts for Process Head

Vent/ Drain Single Ended Reference Head

Dual Ended Reference Head with Vent

Gasket Teflon or PTFE (Glass Filled)

Flange

Pseudo

Flange

Extension

2” ANSI Class 150, Carbon Steel

3” ANSI Class 150, Carbon Steel

4” ANSI Class 150, Carbon Steel

2” ANSI Class 150, No Vent/Drain, 316 SS

3” ANSI Class 150, No Vent/Drain, 316 SS

Gasket Ring No Selection

Flush Design, 316 Stainless Steel

Extended Design, 316 Stainless Steel

No Selection

Flush Extension

1.87” Diameter, 2” Long Tank Spud

1.87” Diameter, 4” Long Tank Spud

Approvals

Connection

Type

Output/

Protocol

No Approvals Required

FM Explosion Proof

CSA Explosion Proof

Aluminum, 1/2” NPT, No Lightning Protection

Aluminum, 1/2” NPT, Lightning Protection

Customer

Interface

Selections

Failsafe/Write

Protect

4-20mA DC, HART Protocol

4-20mA DC, DE Protocol

No Analog Output, Foundation Fieldbus Protocol

None

Zero and Span Only

Basic Indicator

Basic Indicator plus Zero/Span/Configuration

Fail Mode High

Fail Mode Low

Fail Mode High, Write Protect Enabled

Fail Mode Low, Write Protect Enabled

Customer

Tag

Conduit

Plugs and

Adapters

None

One Wired SS Tag (4 Lines, 26 Char/Line)

Two Wired SS Tag (4 Lines, 26 Char/Line)

No Conduit Plugs or Adapters Required

1/2” NPTM to 3/4” NPTF 316 SS Conduit Adapter

1/2” NPT 316 SS Conduit Plug

Certificates Calibration Test Report, Conformance Cert. (F3399)

Paper

Manuals

ST 700 User Manual

ST 700 HART/DE Communications Manual

ST 700 Safety Manual

Catalog

Number

STF724-

STF732-

STF72F-

STF73F-

A_ _ _ _ _-

E_ _ _ _ _-

M_ _ _ _ _-

1_ _ _ _ _-

_1_ _ _ _-

_2_ _ _ _-

_ _A_ _ _-

_ _C_ _ _-

_ _ _C_ _-

_ _ _S_ _•

_ _ _ _1_-

_ _ _ _4_•

_ _ _ _ _A• •

Avail- ability

0-

A-

B-

A _ _-

C_ _-

_ H _-

_ D _-

_ F _-

_ _0-

_ _A-

_ _B-

_ _C-

11S-A-

12S-A-

13S-A-

14S-A-

7_ _-

1_ _-

4_ _-

S_ _-

P_ _-

_0_-

_1_-

_5_-

_ _0-

_ _F-

_ _C-

_ _D-

• w v v

00 _ _-

01 _ _-

02 _ _-

_ _ A0,

_ _ A2,

_ _ A6,

F1

34-ST-25-44

34-ST-25-47

34-ST-25-37

• •

0.00

27.00

27.00

0.00

76.00

71.00

299.00

408.00

0.00

60.00

204.00

300.00

0.00

0.00

37.00

177.00

0.00

0.00

0.00

0.00

0.00

0.00

146.00

160.00

0.00

25.00

25.00

25.00

0.00

27.00

37.00

0.00

226.00

71.00

37.00

35.00

35.00

35.00

Price

$1936.00

2173.00

1814.00

1927.00

0.00

55.00

246.00

0.00

0.00

74.00

0.00

0.00

0.00

50.00

0.00

43.00

0.00

22

CAPACITANCE

LEVEL

Illinois, Indiana, Missouri, and Iowa

Phone: 800-953-7626 • 630-595-8400

Fax: 630-595-2386

Lesman Instrument Company www.lesman.com [email protected]

Wisconsin, and Upper Peninsula Michigan

Phone: 800-837-1700 • 262-923-1790

Fax: 262-923-1797

SITRANS LC300 Capacitance Continuous Level Detector

Dimensions

Rod

Version

Cable/Rope

Version

Features

• Shear- and abrasion-resistant probe

• Accurate level measurement

• Two-wire loop powered isolated

4-20 mA

• Integrated local display and pushbutton calibration

• Current signaling per NAMUR NE 43

• Patented Active-Shield capacitance technology

• Adjustable range: level, damping and diagnostics

• Corrosion-resistant construction and wetted parts

• 82 ft. (25 m) maximum insertion length; Sanitary rod optional

Ready to buy an LC300? Complete a Siemens

/ order. Download from

Lesman.com/datasheets

Not sure the LC300 is right for you? Use the datasheet to request an engineering review.

Specifications

Media: Liquids, bulk solids, slurries with 1.5 minimum dielectric constant

Range: 0-3300 pF; minimum span 3.3 pF

Measurement Frequency: 600 kHz maximum

Accuracy: <0.5% of actual measurement value

Temperature Stability: 0.25% of actual capacitance value

Nonlinearity/Reproducibility: <0.4% /full scale and actual value

Current Signaling: According to NAMUR NE 43, signal 3.8 to 20.5 mA, fault ≤ 3.6 or ≥ 21mA (22mA)

Output Current Loop: Continuous signal 4 to 20mA/20 to 4mA

Probe Diameter: Rod Version: 0.75” with or without PFA jacket; Rope/

Cable Version: 0.24” without PFA jacket, 0.35 “ with

Probe Lengths: Rod: 14” to 40”; Rope/Cable: 20” to 985”

Active Shield Length: Rod: 3.94”; Rope/Cable: 4.92”

Maximum Tensile Force:1900kg (4188lbs); Horizontal: 30Nm (rod version)

E.S.D Probe Protection (kV): Protected to 55kV continuous discharge

Wetted Parts: AISI 316L/PFA/PEEK™

User Interface: Display local LCD, 4 digits capable of displaying numbers

0 to 9 and limited alpha characters

Wiring Connections: Maximum 2.5 mm

2 (PED/97/23/EC)

Process Connection: Threaded: 3 /

4”

to 1 1 /

2

” NPT; Flanges: 1” to 4” ANSI

Enclosure: Aluminum and epoxy coated construction; NEMA 4/Type 4/

IP65; 2 x 1 /

2

” NPT cable inlet

Process Conditions: -14.6 to 511 PSIG; -40° to 392° F

Supply Voltage: 9-32 VDC any polarity, 2-wire loop (9V @ 22mA)

Environmental: Indoor/outdoor location, 2000m max. altitude,

-40° to 185° F, relative humidity suitable for outdoors (Type

4/NEMA 4/IP65 enclosure), installation category II, pollution degree 4

Approvals: CSA/FM Class I, Div. 1, Gr. A, B, C, D; CSA/FM Class II,

Div. 1, Gr. E, F, G; CSA/FM Class III T4

Ordering Instructions

Make a selection from each table below. A complete catalog number looks like this: 7ML567_-_ _ _ _ _ - _ _ _ _.

Siemens requires a completed application datasheet with any LC300 order. SeeLesman.com/datasheets/.

Model Selection Guide

Please submit orders to: Siemens Industry Inc, c/o Lesman Instrument Company.

Description

SITRANS LC300, rod version

SITRANS LC300, PFA coated cable version

¾” NPT (Taper), ANSI/ASME B1.20.1

1” NPT (Taper), ANSI/ASME B1.20.1

Process

Connection

Threaded,

316L SS

Catalog

Number

7ML5673

Price

7ML5670 $1014.00

— 1171.00

0A _ _ _

0B _ _ _

0.00

45.00

1¼” NPT (Taper), ANSI/ASME B1.20.1

0C _ _ _

1½” NPT (Taper), ANSI/ASME B1.20.1

0D _ _ _

1½” ASME, 150 lb

2” ASME, 150 lb

5D _ _ _

5G _ _ _

97.00

97.00

387.00

458.00

97.00

387.00

458.00

Probe

Cable

Length

Wetted

Seals

3” ASME, 150 lb

4” ASME, 150 lb

300 to 1000 mm (11.81 to 39.37”)

1000 to 2000 mm (39.37 to 78.74”)

5K _ _ _

5N _ _ _

_ _ A00

_ _ A0 _

549.00

657.00

168.00

168.00

2001 to 4000 mm (78.78 to 157.48”) _ _ B0_ 329.00

FKM

FFKM (temperatures above -4° F)

_ _ _ _ 0

_ _ _ _ 1

0.00

0.00

549.00

657.00

110.00

110.00

215.00

0.00

468.00

Approvals

Enclosure

Insertion

Length

Stainless

Steel Tag

General Safety -0A _ _

Explosion Proof Enclosure w/IS Probe -0E _ _

General Safety -1A _ _

Explosion Proof Enclosure w/IS Probe -1E _ _

Aluminum epoxy coated 2 x ½” NPT via adapter - cable inlet, IP65

Specify total in plain text:

- _ _ A0

,Z-Y01

Specify tag in plain text:

,Z-Y15

35.00

203.00

0.00

0.00

43.00

159.00

247.00

0.00

0.00

43.00

Illinois, Indiana, Missouri, and Iowa

Phone: 800-953-7626 • 630-595-8400

Fax: 630-595-2386

Lesman Instrument Company www.lesman.com [email protected]

Wisconsin, and Upper Peninsula Michigan

Phone: 800-837-1700 • 262-923-1790

Fax: 262-923-1797

CONTINUOUS

LEVEL

23

SITRANS LC500 Capacitance Continuous Level Detector

Prices start at $879.00

Call Lesman with your application for a full review and pricing.

Features

• Smart transmitter with built-in HART® communications — Fully potted integral transmitter is impervious to condensation, dust, and vibration

• Integrated local display and optional handheld communicator for easy on-site or remote commissioning and inspection

• Pushbutton calibration for easy installation and setup; One-point calibration for setup without shutting down production

• Two-wire analog 4-20/20-4 mA current loop output

• Pre-detection without using a PLC, allowing for corrections and moderations of the process before the trip point

• Output time delay and damping function for clearly defined, reliable readings of turbulent processes, like fraction levels in distillation column trays

• Full-function diagnostics that comply with NAMUR NE 43 for both local and remote diagnostics, showing all the relevant variables at the same instant

• Measurement range of 3300 pF for high accuracy

• Rod probe versions to 5.5m (18 Ft), and cable probe versions to 35m (115 Ft)

• Integrated zener safety barrier for intrinsically safe conditions

• Patented spring package and cone construction in the process gland resist pressure and temperature changes for maximum safety

Specifications—

Transmitter

Measurement range: 0 to 3300 pF with 3.3 pF minimum span

Measurement frequency: 420 kHz @ Cx=0 pF

Accuracy: ±<0.1% actual value

Safety: ESD protected to 55 kV; Current signaling according to NAMUR NE

43; Galvanically isolated inputs/outputs; Polarity-insensitive current loop;

Fully potted; Integrated safety barrier

Diagnostics: Primary variable (PV) out of limits; System failure measurement circuit; Deviation between A/D and D/A converter values; Check sum;

Watchdog; Self-checking facility

Outputs (current loop): Galvanically isolated 4-20/20-4 mA; two-state functionality 4-20 or 20-4 mA, on or off; Solid state switch 40 VDC/28 VAC /100 mA at 2 VA max.; Time delay 1 to 100 sec. activating / de-activating; Adjustable hystereses (on / off) 0 to 100%, min. 1% range; Damping range 1 to 10,000

Supply power: max. 33 VDC (30 VDC for IS) min. 12 VDC @ 3.6 mA min. 9.5

VDC @ 22 mA

Loop current: 3.6 to 22 mA / 22 to 3.6 mA (2-wire current loop)

User interface: 4-1/2 digit LCD Integrated local display; Rotary switch; 16 menu items divided between two menu levels: 0 to 9, and A to F; Pushbuttons

Communications: HART® protocol; Profibus-PA (optional)

Environmental: Location: Indoor/outdoor; Altitude: 2000m (6562 Ft) max.;

Ambient temperature: -40° to 185° F for standard and ATEX XP T5 to T1,

-40° to 158° F for ATEX T6; Relative humidity: Suitable for outdoors (Type

4X/NEMA 4X/IP65 enclosure); Installation category: II; Pollution degree: 4

Process conditions: Temperature rating: -328° to 392° F standard, up to 752°

F optional; Pressure rating: FV to 2920 psi standard, up to 7665 psi optional

Approvals: CE: Complies with requirements of ECC per EN 55011 and EN

61326; Dust­Ignition Proof: FM/CSA (CL. I, Div. 2, Grps. A–D T4/CL. II, III Div.

1 Grps. E–G T4); ATEX II 3 GD (EEx nA[ib] IIC T6...T4);

Intrinsically Safe: FM/CSA (CL. I, Div. 1, Groups A–D

T4);ATEX II 1 G (EEx ia IIC T6...T4); Explosion­proof

Enclosure: FM/CSA (CL. I, Div.1, Groups A–D T4);ATEX II

1/2 GD (EEx d [ia] IIC T6...T1); Marine: Lloyd’s Register

ENV1, ENV2, ENV3, ENV5; Sanitary: 3A

Standard Combinations of LC500 Probes

Features Series S Series D Series SD Series DD Series HP Interface Sanitary

Process

Threaded

Connection Flanged

✓ ✓

✓ ✓ ✓ ✓ ✓ ✓

Tri-Clamp

Sanitary

Thread ✓

Process Stainless Steel AISI 316L

Connection Carbon Steel C22.8 N

Hastelloy

1

Monel 400

B2 or C22

Tantalum

Probe PFA

Insulations PE 2

Ceramic

✓ ✓ ✓

Max 216” 216” 216” 216” 100” N/A 216”

Parameters Max Cable Length

Max Pressure

3

Max Temperature 3

1378”

2900 PSI

392° F

1378”

2175 PSI

392° F

1378”

2175 PSI

392° F

1378”

2175 PSI

392° F

N/A

7613 PSI

842° F

1378”

73 PSI

212° F

N/A

145 PSI

392° F

1 Flange made of AISI-316L SS with a 0.19” welded Hastelloy plate. 2 For general purpose applications only.

3 Depends on range.

24

ULTRASONIC

LEVEL

Illinois, Indiana, Missouri, and Iowa

Phone: 800-953-7626 • 630-595-8400

Fax: 630-595-2386

Lesman Instrument Company www.lesman.com [email protected]

Wisconsin, and Upper Peninsula Michigan

Phone: 800-837-1700 • 262-923-1790

Fax: 262-923-1797

The Probe Ultrasonic Continuous Level Transmitter

Features

• Reliable level readings from 0.8 to 26.2 feet

• For liquids and slurries in open or closed vessels

• 4-20 mA output

• Non-contacting

• One-piece design

• Built-in temperature compensation

• Easy to install, program, and maintain

• 2” NPT and 3” flanged connections

• Approved for general service or intrinsically safe environments

Award-Winning Integrated Design: This sleek, durable package combines the sensor and electronics in a single molded body. Electronics are potted in rugged PVC; the wetted part, encasing the transducer and temperature sensor, is made of injection-molded Tefzel, a fluoropolymer inert to most chemicals. The seamless sensor housing resists buildup and cleans easily.

It is ideal for corrosive environments and in applications where cleaning and washdowns are frequent.

Sonic Intelligence™: The Probe provides ultrasonic measurement reliability, maintenance-free operation, and Sonic Intelligence. Siemens’ advanced software effectively discriminates between real and false echoes to add to the inherent accuracy of the unit. So, the Probe meets your needs in the demanding applications where conventional contacting methods can fail.

Simplicity: Bolt, clamp, or screw the unit to the mounting surface above the material being monitored. You won’t need to empty the tank. And, unlike load cells, there are no special mechanical considerations. Because the compact one-piece unit houses both sensor and electronics, you can connect wiring easily through one of the two cable entry knockouts.

Two-Step Calibration: Open the Probe’s hinged lid to access the control panel for calibration push-buttons and data display. With the material at its corresponding 4 mA (low) level, push the 4 button twice. With the material at its corresponding 20 mA (high) level, press the 20 button twice. That’s it!

Low Maintenance Costs: Probe’s ultrasonics and advanced design lower maintenance costs dramatically in comparison to competitive technologies.

There are no mechanical moving parts and, as a result, the unit requires no periodic maintenance due to fouling or wear.

Specifications

Dimensions

Measurement Range: 0.8 to 16.4 ft. (0.8 to

26.2 ft. for 3-wire models)

Operating Conditions: Temperature: -40° to

140° F (-5° F with metallic mount). Built-in temperature compensation. Pressure: 14.5

PSI in vessel max. static.

mA Output: Range: 4–20 mA; Accuracy:

0.25% target range (air); Resolution: 0.125”;

Loading: 3-Wire: 750Ω max. @ 24 VDC;

2-Wire Loop-Powered: 800Ω @ 28 VDC max. load.

Power: 3­Wire: 18–30 VDC supply, 5w (200 mA @ 24 VDC) max. consumption; 2­Wire

Loop Powered: 23–28 VDC supply, 0.75w (25 mA @ 28 VDC) max. consumption

Selectable Damping: Immediate, 5m-, 1 m- or 0.03 m/min.

Beam Angle: 10° @ -3 dB boundary.

Integrated Housing: Electronics: Molded PVC; Transducer: Seamless

Tefzel® or Kynar Flex.

Enclosure Rating: IP65, NEMA 4X, Type 4

Mounting: 2” threaded NPT

Cable Entry: Two 0.87” holes for 0.5” conduit connector.

Approvals: 3­Wire: CSA, FM approved for general use,

CE; 2­Wire Loop­Powered: CSA approved for general use,

Intrinsically safe (IS version only), CSA/FM Class I and II,

Div. 1, Groups A-G, BASEEFA/CENELEC EExiaIICT4, CE.

Ordering Instructions

Make one selection from each table section below. A complete catalog number looks like this: 7ML1201 - _ _ _ _ _

Model Selection Guide

Please submit orders to: Siemens Industry Inc, c/o Lesman Instrument Company.

Catalog

Description Number Price

The Probe 16.5 Foot (5 meter) Measuring Range 7ML1201-1_ _ _ _ 1150.00

Ultrasonic 26 Foot (8 meter) Measuring Range 7ML1201-2_ _ _ _ 1232.00

Transmitter

Sensor PVDF Copolymer (Kynar Flex), 2” NPT

Model and

Approval

3 Wire, 24 VDC, CSA/CE/FM

2 Wire, CE (Note 1)

2 Wire, IS, ATEX, CSA, FM (Note 1)

_ E _ _ _

_ _ E00

_ _ F00

_ _ K00

0.00

0.00

0.00

310.00

Accessories

Stainless Steel Tag

Universal Box Bracket Mounting Kit

Universal Mounting Adapter for 3” Flange, 2” NPT

Instruction Manual

7ML1930-1AC

7ML1830-1BK

7ML1830-1BT

A5E32243983

50.00

138.00

135.00

39.00

Note 1: Two-wire models available with 16.5 foot (5 m) range only.

These Siemens PROBES are in stock, ready to ship to you within 24 hours!

10-Foot Range, 2-Wire, CE Approved

16.5-Foot Range, 3-Wire, CSA/CE/FM

16.5-Foot Range, 2-Wire, CE Approved

16.5-Foot Range, 2-Wire, CSA/FM,

ATEX Approved Intrinsically Safe

7ML1201-0EF00 ........ $OB.S

7ML1201-1EE00 .......1150.00

7ML1201-1EF00 .......1150.00

7ML1201-1EK00 .......1460.00

Note: It is considered good engineering practice to provide redundant disparate level technologies for overfill protection of storage tanks

(per API 2350 standard). Call Lesman for point level solutions to complement your continuous level transmitter choice.

Illinois, Indiana, Missouri, and Iowa

Phone: 800-953-7626 • 630-595-8400

Fax: 630-595-2386

Lesman Instrument Company www.lesman.com [email protected]

Wisconsin, and Upper Peninsula Michigan

Phone: 800-837-1700 • 262-923-1790

Fax: 262-923-1797

ULTRASONIC

LEVEL

25

SITRANS LU150 Ultrasonic Continuous Level Transmitter

Ordering Instructions

Make one selection from each table section below. A complete catalog number looks like this: 7ML1201 - _ _ _ _ _

Replaces the

Milltronics Probe

Features

• Reliable level readings from 0.8 to 16 feet

• For liquids and slurries in open or closed vessels

• 4-20 mA output

• Non-contacting

• One-piece design

• Built-in temperature compensation

• Uses Siemens patented

Sonic Intelligence to discriminate between true and false echoes

• Easy to install, program, and maintain

• 2” NPT, BSP, G, and 4” Tri-

Clamp connections

• Replaces “The Probe”

Model Selection Guide

Please submit orders to: Siemens Industry Inc, c/o Lesman Instrument Company.

Catalog

Description Number Price

Siemens SITRANS LU150 two-wire, loop powered 4-20 7ML5201- $656.00 mA output transmitter, PVDF copolymer transducer

2” NPT

Process R 2” BSPT

Connection G 2” BSPP

4” sanitary mount

0E _ _

0F _ _

0G _ _

0J _ _

0.00

0.00

0.00

72.00

Cable Inlet M20 x 1.5”

M20 x 1.5”, Cable gland included

1/2” NPT Stainless steel entry,

_ _ A0

_ _ B0

_ _ C0

0.00

11.00

16.00

Accessories

Printed Engish User Manual

Sanitary 4” Mounting Clamp

Stainless Steel Tag

Universal Box Bracket Mounting Kit

Universal Mounting Adapter for 3” Flange, 2” NPT

A5E34590123

7ML1830-1BR

7ML1930-1AC

7ML1830-1BK

7ML1830-1BT

23.00

69.00

50.00

138.00

135.00

Need HART® output? Turn the page for Siemens SITRANS Probe LU.

Siemens’ new SITRANS LU150 is a short-range, non-contacting ultrasonic level measurement transmitter that combines both the sensor and electronics into a one-piece, sealed unit. It has a rugged, fully encapsulated IP68-rated PVDF sensor that is resistant to corrosion, chemicals, and extreme shock.

Designed primarily for environmental, water/wastewater, and energy management applications, the LU150 is ideal for continuous level measurement of liquids and slurries in open or closed vessels.

With only two wires, installation is straightforward, and the unit’s two-button interface makes it both simple to configure and easy to use.

The LU150 includes Siemens Sonic Intelligence echo processing algorithms, which use a filter to differentiate the true material level echoes from the false ones that can result from acoustic or electrical noises, as well as from agitator blades in motion. The ultrasonic pulse propagation time to the material and back is temperaturecompensated and converted into distance for display, analog output.

Specifications

Measuring Principle: 54 kHz non-contacting ultrasonic level

Range: 0.8 to 16.4 feet (0.25 to 5 meters)

Beam Angle: 12°

Accuracy: Measurement error 0.25 % range (in air); 0.125” resolution (3 mm); Built-in temperature compensation

Output: 4–20 mA. Max. load 600 Ω in the loop at 24 V DC

Power Supply: 12-30 VDC, 0.1 A surge; Max. power consumption 0.75

W (25 mA at 24 VDC)

Echo Processing: Siemens patented Sonic Intelligence

Ambient Temperature: -22° to 140°F; Metallic mounting: -4° to 140°F

Materials: IP68/NEMA 6/Type 6 PBT electronic enclosure,

PVDF copolymer transducer

Process Connection: 2” NPT, 2” BSP, 2” G, and 4” Tri-clamp;

Cable entry connections: M20x1.5 or 1/2” NPT

Approvals: CE, cCSAus

Note: It is considered good engineering practice to provide redundant disparate level technologies for overfill protection of storage tanks (per

API 2350 standard). Call Lesman for point level solutions to complement your continuous level transmitter choice.

26

ULTRASONIC

LEVEL

Illinois, Indiana, Missouri, and Iowa

Phone: 800-953-7626 • 630-595-8400

Fax: 630-595-2386

Lesman Instrument Company www.lesman.com [email protected]

Wisconsin, and Upper Peninsula Michigan

Phone: 800-837-1700 • 262-923-1790

Fax: 262-923-1797

SITRANS Probe LU for Ultrasonic Level Measurement

Features

• Continuous level measurement up to 12 m (40 ft) range

• Easy installation and simple startup — set two parameters and go!

• Patented Sonic Intelligence signal processing

• Auto False-Echo Suppression for fixed obstruction avoidance

• Short blanking distance, even on long range applications

• Programming using Siemens’ infrared intrinsically safe handheld programmer, HART® communicator, or Siemens SIMATIC PDM software and a laptop PC

• ETFE or PVDF transducers for chemical compatibility

• Built-in alphanumeric display — visible through the transparent lid

SITRANS Probe LU is a two-wire loop powered ultrasonic transmitter for level, volume, and flow monitoring of liquids in storage vessels and simple process vessels, as well as in open channels.

The Probe LU is ideal for level monitoring in the water/wastewater industry and for overseeing chemical storage vessels.

Siemens took the time-tested Milltronics Probe and applied new revolutionary features — including the latest microprocessor and communication technologies. The low noise transmitter and noise shield result in an excellent signal-to-noise ratio, providing higher accuracy and reliability.

You can choose a SITRANS Probe LU with either an ETFE or a PVDF transducer to suit the chemical conditions of your application. Both have built-in temperature sensors, to compensate for the varying process temperatures in your application.

Using the handheld infrared programmer, you can set up the unit or change configurations without ever opening the lid — even in hazardous areas.

Siemens’ Self-Learning Echo

Suppression Technology

Features

• Patented self-learning algorithm is standard in all Siemens noncontacting instruments

• No laptop PC or special software required

• Five-minute setup eliminates false echoes

• Accessible via $100 infrared handheld programmer

The Simple Solution

You’ll run Siemens’ self-learning algorithm when the tank is empty or near empty.

To implement the automatic obstruction suppression feature with the handheld programmer, you need to know (a) where the actual level is and (b) the distance from the transducer face to the material level.

1. On the handheld, select parameter P838 and key in the distance from the transducer face to the material level minus 0.5 m.

2. Select parameter P837, press 2, and press ENTER.

After a few seconds, the level device calculates the new echo profile, and automatically modifies the filter around the area of the obstruction to ignore its echo.

Before: The

BLUE

line represents the echo being returned to the level instrument, including all echoes from obstructions. The

RED

line represents a default filter applied by the unit to suppress the nominal noise returned with the echo. The first echo could be from an agitator or tank brace. The second signal is the data you really want: the reflection from the surface of the level being measured.

After: The level unit is instructed to “learn” where the obstructions (false echoes) are between the device and the level of the material. The

RED

line represents the “learned filter” that is set above the false echoes, screening them out. All that’s left is the “true” echo from the material surface.

Before

After

Illinois, Indiana, Missouri, and Iowa

Phone: 800-953-7626 • 630-595-8400

Fax: 630-595-2386

Lesman Instrument Company www.lesman.com [email protected]

Wisconsin, and Upper Peninsula Michigan

Phone: 800-837-1700 • 262-923-1790

Fax: 262-923-1797

ULTRASONIC

LEVEL

27

Dimensions Connecting the Probe LU

Specifications

Measuring Range: 10” to 20’ (6 M) or 10” to 40’ (12 M); Blanking Distance: 10”

(0.25 M); Beam Angle: 10° at -3 dB boundary

Accuracy: Greater of ±0.15% range or ±0.25”; Repeatability: ≤3 mm (0.12”);

Resolution: ≤3 mm (0.12”)

Frequency: 54 KHz (ultrasonic)

Update Time: <5 seconds

Output: 4-20 mA; Accuracy: ±0.02 mA

Temperature: Ambient: -40 to 176° F (-40 to 80° C); Process temperature at

flange or threads: -40 to 185° F (-40 to 85° C)

Temperature Compensation: Built in to compensate over full range

Power: Nominal 24 VDCwith max. 550Ω; 30 VDCmax.; 4 to 20 mA

Enclosure: PBT polymer, hard-coated polyether imide lid; Type 4X/NEMA

4X, Type 6/IP68 protection

Sensor: EFTE (Tefzel) or PVDF (Kynar®)

Process Connection: Threaded: 2” NPT, BSP, or G/PF; Flange: 3” universal

Cable Inlets: Two 1/2” NPT threads

Design: Rotating head aligns with conduit, adjusts for optimal visibility

Local Display: Alphanumeric display, visible through the transparent lid

Communication: HART® standard, integral to analog output; Configuration using Siemens SIMATIC PDM (PC) or HART handheld communicator, or

Siemens infrared hand programmer

Approvals: ATEX Ex II 1 G, EEx ia IIC T4, SIRA certificate 01ATEX2147; ATEX hazardous area II 1G EEx ia IIC T4; FM Class 1, Div. 1, Groups A-D (barrier required); Class II, Div. 1, Groups E-G; Class III; CSA Class I, Div. 1, Groups

A-D (barrier required); Class II, Div. 1, Group G; Class III

See page 96 for details and pricing on Simatic PDM.

Ordering Instructions

Make one selection from each table section below. A complete catalog number looks like this: 7ML5221 - _ _ _ _ _

Model Selection Guide

Please submit orders to: Siemens Industry Inc, c/o Lesman Instrument Company.

Catalog

Description Number Price

SITRANS Probe LU: Ultrasonic Level Transmitter

Range

20 Ft (6 M) ETFE

20 Ft (6 M) PVDF Copolymer

40 Ft (12 M) ETFE

40 Ft (12 M) PVDF Copolymer

7ML5221 - $1021.00

2A _ _ _

2B _ _ _

2C _ _ _

2D _ _ _

89.00

21.00

283.00

208.00

Commun- HART® and 4-20 mA Output

ication Profibus PA

Approvals General Purpose FM, CSA, CE

FM Class I, Div 2

Intrinsically Safe (HART) FM/CSA

Intrinsically Safe (Profibus) FM/CSA

Accessories

_ _ A1 _

_ _ A2 _

_ _ _ _ 1

_ _ _ _ 4

_ _ _ _ 8

_ _ _ _ 5

0.00

193.00

0.00

0.00

258.00

193.00

Intrinsically Safe Handheld Programmer 7ML5830-2AH 159.00

Universal Mounting Adapter for 3” Flange, 2” NPT 7ML1830-1BT 135.00

SITRANS Probe LU Instruction Manual A5E32337695 47.00

SITRANS Probe LU Quick-Start Guide

USB HART® Modem for PC and Simatic PDM

A5E32168031 55.00

7MF4997-1DB 663.00

Note: It is considered good engineering practice to provide redundant disparate level technologies for overfill protection of storage tanks (per

API 2350 standard). Call Lesman for point level solutions to complement your continuous level transmitter choice.

Wireless power for your Probe LU!

Banner Engineering’s DX80 Performance D5 node radio powers a loop powered 4-20mA transmitter from the radio’s battery on a scheduled, periodic, intermittent basis for true wireless performance. An ultrasonic unit can sample 3x per hour with a 3 month battery life.

The D5 is a 150 mW node radio in the metal enclosure and comes with a dome antenna (shown). It is intrinsically safe when used with an approved I/S transmitter, certified for operation in Class I, Div 1, Groups A–D; Class II, Div

1, Groups E–G; Class III, Div 1; Zone 0 (Group IIC) and

Zone 20 (Group II) locations.

For more on Banner wireless I/O systems, see pages 126 to 132.

DX80 D5 Performance Node Radio

Description

120mW Performance Node Radio, Internal Battery

Direct mounting hardware

1/2” NPT SS Hex nipple for close coupling

3/4”x 1/2” NPT SS reducer for threaded port

For remote antenna connection

1/2” NPT feedthrough, RPSMA-F antenna connector

3/4” NPT feedthrough, RPSMA-F antenna connector

18” 5 dBi omni antenna, RPSMA-M connector

18” 5 dBi omni antenna, RPSMA-M swivel connector

0.5 m (20”) RPSMA x N-male adapter cable

Catalog

Number

20178

122SS8

110SS12x8

11835

11834

HG905RD-RSP

17721

77486

Price

$1475.00

6.50

5.95

66.00

62.00

49.00

60.00

40.00

28

ULTRASONIC

LEVEL

Illinois, Indiana, Missouri, and Iowa

Phone: 800-953-7626 • 630-595-8400

Fax: 630-595-2386

Lesman Instrument Company www.lesman.com [email protected]

Wisconsin, and Upper Peninsula Michigan

Phone: 800-837-1700 • 262-923-1790

Fax: 262-923-1797

SITRANS LUT400 Ultrasonic Controller

• SITRANS LUT400’s ± 0.04” accuracy gives you confidence in your measurements

• Next generation Sonic Intelligence — improved performance in noisy environments

• Enhanced diagnostics — echo profile and trend view on the display

• Communications convenience — HART® communications with access via the local user interface, SIMATIC PDM, Emerson handhelds, and web-browser

• Quick to configure — graphical Quick Start Wizards guide you through setup

• Easy to use — local user interface with four-button programming, menu-driven parameters, and Wizard support for key applications

• Integrated datalogger — record historic performance and alarm events

• Universal 4-20 mA analog output with sourcing/sinking reduces ground loops!

• Cost-efficiency — energy-saving algorithms and real time clock help you reduce pump operation cost by avoiding peak energy periods

• Case design includes wall, pipe, and DIN rail mounting configurations with removable terminal strips for hassle-free wiring

Comparing Features of SITRANS LUT400 Models

• SITRANS LUT420 level controller: Level or volume measurement of liquids, slurries, and solids, as well as basic pump control function, and basic data logging capability

• SITRANS LUT430 level, volume, pump, and flow controller: Includes all features of the

SITRANS LUT420 plus a full suite of advanced pump control and alarm functionality, open channel flow monitoring, and basic flow data logging capability

• SITRANS LUT440 High Accuracy OCM: Siemens’ most featured, highest accuracy model.

Includes all features of the SITRANS LUT430, plus the industry’s best accuracy (±0.04”), full suite of advanced control functionality, and enhanced flow logging capability

Category Feature

Operations

Specifications

Data logging and communications

Level, space, and distance measurement

Volume conversion

Open channel flow measurement

Compatible with EchoMax and ST-H transducers

Standard accuracy: ± 1 mm +0.17 % of measured distance

Mounting options: wall or panel, pipe, DIN-rail

HART communications

4–20 mA output (active and passive)

Integrated datalogger for measurement value and alarms

Integrated datalogger for fixed rate flow logging

Integrated datalogger for variable rate flow logging

Daily logging for min/max/avg flow, totalized volume, and min/max temperature

Flow monitoring 9 digit daily and running flow totalizers

Pump control

High and low flowrate alarms

External totalizer and sampler control

High accuracy open channel flow measurement

Wall cling reduction

Alternate duty pump routines

Submergence detection

Energy saving algorithms for pump control

Pump run-on functionality

Pump start and power resumption delays

Fixed duty and service ratio pump routines

Discrete input pump interlocks

Pumped volume totalizer

Time to spill calculation

Replacing an old

MiniRanger Plus?

Try the new

SITRANS LUT420.

For more on the LUT440 open channel flowmeter, see page 76.

LUT420 LUT430

Level controller Level, pump and flow controller

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

LUT440

Open channel flow controller

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

Illinois, Indiana, Missouri, and Iowa

Phone: 800-953-7626 • 630-595-8400

Fax: 630-595-2386

Lesman Instrument Company www.lesman.com [email protected]

Wisconsin, and Upper Peninsula Michigan

Phone: 800-837-1700 • 262-923-1790

Fax: 262-923-1797

ULTRASONIC

LEVEL

29

A “So What” review of Siemens new SITRANS LUT400

Part of my job as technical specialist at Lesman is to make sense of new products, and figure out what’s going to matter most to our customers.

Sometimes it’s much-needed new functionality, or better configuration tools, easier mounting, or switching to the most current form of data storage.

In the case of Siemens’ LUT400, it’s all that and more.

Dan Weise,

Product Specialist

Siemens Milltronics ultrasonic transceivers, like the

HydroRanger, MultiRanger, and OCM-III have been around for years with no notable improvements. Instead of updating these devices, Siemens has done a complete redesign with the SITRANS LUT400.

Here are my initial thoughts on this new player in the ultrasonic game.

• Universal 4-20 mA analog output helps reduce ground loop issues.

• Completely redesigned case! It’s a 1/2 DIN, out-of-the-box ready for

DIN-rail, wall-, and pipe-mounting. Conduit knockouts are built in, so you don’t have to drill the case, and snap-off/snap-on terminal wiring connectors mean you can wire the unit without contortions!

They even included quarter-turn door screws for easy access. If you want to panel-mount the LUT400, you can. There’s a remote display that connects via cable to the electronics box.

• Improved signal-to-noise and echo processing algorithms (Siemens calls it Sonic Intelligence) for accuracy and performance. Still compatible with the current Echomax ultrasonic transducers, so if you’re upgrading, you only upgrade the transceiver/controller. You can use your existing sensors.

The pros:

• Three models: One for level, one for pump control, and one for open channel flow monitoring (replacing the retired Milltronics OCM-III)

• No more handheld programmer or 1970s-era “Pxxx” parameters to decode during configuration and programming updates. There are quick-start wizards for configuration, and Engish-named settings. Not a P-code in sight! There’s also HART communications for configuration and monitoring through SIMATIC PDM.

• New LCD display gives you more information. Includes not just numeric values, but an echo profile and trend view on the screen, so it’s better for all the visual folks.

• USB connection and a built-in web server for setup, maintenance, diagnostics, communication, and security

The cons:

• It’s a single channel device, so it can only handle one transducer. You can’t do differential level with this unit. But, it is the first one Siemens has released. I’m confident the multi-channel units will follow.

• Other than HART, no digital communication. The LUT400 doesn’t do

Modbus, Profibus, or Remote I/O. Again, this will be coming, in time.

• It only has three relays, so if you need more for pump control, you’ll have to use a different device.

If your application requires any of these features, you’ll need to stick with a Siemens HydroRanger or MultiRanger 200. They’re still the best solution for these requirements.

Read more of Dan’s tips at blog.lesman.com.

A complete LUT400 system includes:

1. LUT400 series controller

2. Echomax transducer (page 34-35)

3. TS3 temperature sensor (optional for added accuracy)

4. Point level solution for storage tank overfill protection

(recommended good engineering practice per API 2350 standard).

Specifications

Range: 1 to 200 ft, depending on transducer

Accuracy: ±1 mm (0.04”) plus 0.17% distance

Resolution: Greater of 0.1% measured range or 0.08”

Temperature: Ambient: -4° to 122° F; Process: -40° to 302° F

Communications: HART®, USB

Interface: Back-lit LCD; Removable display, operational up to 16 ft from enclosure base

Programming: Four local push buttons, SIMATIC PDM Emerson AMSTM, web browser (IE), Field Device Tool (DT), Field

Communicator 375/475 (FC375/FC475)

Output: One Form C SPDT relay, two Form A SPST relays;

One 4–20 mA output (active or passive)

Input: Two discrete inputs (0-50 VDC max switching level) with 24 VDC bias for contact level device and/or pump interlock; One TS3 temperature sensor input optional

Enclosure: Wall/Pipe/DIN Rail mount; 1/2 DIN; Type 4X/

NEMA 4X/IP65, panel mount display IP 54 (Type 3/NEMA 3/

IP54); Polycarbonate.

Approvals: General purpose: CE.CSAUS/C, FM, UL Listed,

C-TICK; Hazardous location: CSA Class I, II, III, Div 2 (Groups

A–G), CE, ATEX 3D, IECEx, C-TICK

Ordering Instructions

Select one option from each table section below. A complete catalog number looks like this: 7ML5050-_ _ _ _ _ - _ _ _ _ -Z

Model Selection Guides

Description

SITRANS LUT400 Single Channel Ultrasonic Controller

Model

Enclosure

Display

Options

SITRANS LUT420 Level controller

SITRANS LUT430 Level, pump, flow controller

With display

With remote panel mount display

No display (blank lid provided)

Please submit orders to: Siemens Industry Inc, c/o Lesman Instrument Company.

Catalog Number Price

7ML5050$ 961.00

0A _ _ _-

0B _ _ _-

_ _ A _ _-

_ _ B _ _-

_ _ C _ _-

0.00

432.00

139.00

315.00

0.00

Input

Voltage

100 to 230 VAC ± 15%

10 to 32 VDC

Cable Inlet 3 cable inlets, cable glands not supplied

3 cable inlets, M20 plastic cable glands supplied

Approvals General purpose CE, FM, CSA US/C, UL, C-TICK

CSA Class I, II, III, Div 2 Groups A–G

Optional

Adders

Documen- tation

Manufacturer’s test certificate

Stainless steel tag: Max. 27 characters plain text

Preset Namur NE43 Failsafe setting <3.6mA

Printed English User Manual

Printed Communications Manual

_ _ _ 1 _-

_ _ _ 2 _-

_ _ _ _ 1-

_ _ _ _ 2 -

1DA0

1DC0

-Z-C11

-Z-Y15

-Z-NO7

A5E33329501

A5E33701270

0.00

0.00

0.00

17.00

0.00

69.00

28.00

44.00

46.00

73.00

47.00

Accessories Stainless steel tag, 0.47 x 1.77”, one text line

Panel Mount Cable Extension 2.5 m (8.2 ft)

3-Pack Cable Glands and Retaining Nuts

HART Modem, USB

LUT400 Sunshield, 304 Stainless Steel

7ML1930-1AC

7ML1930-1GF

7ML1930-1GB

7MF4997-1DB

7ML1930-1GE

50.00

60.00

21.00

663.00

246.00

Need even better accuracy? Add a TS-3 temperature sensor. Call for pricing.

30

ULTRASONIC

LEVEL

Illinois, Indiana, Missouri, and Iowa

Phone: 800-953-7626 • 630-595-8400

Fax: 630-595-2386

Lesman Instrument Company www.lesman.com [email protected]

Wisconsin, and Upper Peninsula Michigan

Phone: 800-837-1700 • 262-923-1790

Fax: 262-923-1797

MultiRanger 200 HMI Ultrasonic Level Transceiver System

Compatible with Echomax ultrasonic transducers and

SmartLinx interface modules.

Features

• Single or dual point level monitoring

• Level, volume, and flow measurements in open channels, differential control, extended pump control, and alarm functions

• Easy to use HMI display with local four-button programming, menu-driven parameters, and Wizard support for key applications

• Digital input for back-up level override from point level device

• Auto False-Echo Suppression algorithms for fixed obstruction avoidance

• Differential amplifier transceiver for common mode noise reduction and improved signal-to-noise ratio

• Communication using built-in Modbus RTU via RS 485

• Removable terminal blocks for easy wiring

• Wall and panel mounting options

Specifications

Measuring Range: 1 to 50 feet (0.3 to 15 m) depending on transducer

Measuring Points: 1 or 2

Accuracy: Greater of 0.25% range or 0.24” (6 mm)

Resolution: Greater of 0.1% range or 0.08” (2 mm)

Temperature Compensation: -58° to 302° F (-50° to 150° C); Integral temperature sensor or External TS-3 temperature sensor; Programmable fixed temperature values

Input: Analog: 0/4–20 mA, from alternate device, scalable; Discrete: 10–50 VDC switching level; Logical 0 ≤ 0.5 VDC, Logical 1 = 10 to 50 VDC Max. 3 mA

Compatible Transducers: ST-H and EchoMax series XPS-10, XPS-15/15F, and XRS-5

Output: Relays: Rating 5A @ 250 VAC, non-inductive; Analog: 0/4–20 mA, 750Ω, isolated, 0.1% of range

Display: 2.36” x 1.57” LCD, 240 x 160 pixels resolution

Communication: RS 232 with Modbus RTU or ASCII via RJ-11 connector; RS 485 with

Modbus RTU or ASCII via terminal strips; Optional: SmartLinx cards for PROFIBUS

DPV1, DeviceNet

Power: AC version: 100 to 230 VAC ± 15 %,50/60 Hz, 36 VA (17 W); DC version: 12 to

30 VDC (20 W)

Electrical Connection: Transducer and mA output signal: 2-core copper conductor, twisted, shielded, 22 to 18 AWG, Belden 8760 or equivalent is acceptable; Separation between transducer and transceiver: 365 m (1 200 ft) max

Enclosure: Wall mount: IP65/Type 4X/NEMA 4X; Panel

mount: IP54/Type 3/NEMA 3

Certificates and Approvals: CE, RCM2, FM, CSA

US/C

, UL,

CSA Class I, Div. 2, Groups A-D, Class II, Div. 2, Groups F and G, Class III (wall mount only)

Ordering Instructions

Make one selection from each table below. A complete catalog number looks like this: 7ML5033 - _ _ _ _ _ - _ _

Model Selection Guide

Please submit orders to: Siemens Industry Inc, c/o Lesman Instrument Company.

Description

Catalog

Number Price

Siemens’ new MultiRanger 200 HMI is a versatile short to medium-range ultrasonic single and multi-vessel level monitor/ controller. It can be used with water, municipal waste, acids, woodchips, or on materials with high angles of repose.

MultiRanger HMI Ultrasonic Level Controller

Model MultiRanger 100: Level Only

MultiRanger 200: Level, Volume, and Flow

7ML5033 - $1056.00

1 _ _ _ _ -

2 _ _ _ _ -

108.00

470.00

MultiRanger 200 HMI will monitor open channel flow and features more advanced relay alarming and pump control functions as well as volume conversion.

MultiRanger 200 HMI features Sonic Intelligence advanced echo-processing software for increased reading reliability. It offers true dual-point monitoring, digital communications with built-in

Modbus RTU via RS 485, plus compatibility with SIMATIC PDM for

PC configuration and setup.

Key applications include wet wells, flumes/weirs, bar screen control, hoppers, chemical storage, liquid storage, crusher bins, and dry solids storage.

Mounting 4-Button HMI, Wall Mt, Standard Enclosure

4-Button HMI, Wall Mt, Four Entries

4-Button HMI, Panel Mount

Input

Voltage

Communi- SmartLinx Ready (No Module) cations SmartLinx DeviceNet Module cations SmartLinx Profibus-DP V1 Module

Output

Relays

100 to 230 VAC

12 to 30 VDC

Software Single Point System

Dual Point System

3 Relays: 2 Form A, 1 Form C (250 VAC)

6 Relays: 4 Form A, 2 Form C (250 VAC)

1 Relay: Form A, 250 VAC (MultiRanger 100)

_ D _ _ _ -

_ E _ _ _ -

_ F _ _ _ -

_ _ A _ _ -

_ _ B _ _ -

_ _ _ 0 _ -

_ _ _ 1 _ -

_ _ _ _ 0 -

_ _ _ _ 3 -

_ _ _ _ 4 -

1 _

2 _

3 _

0.00

0.00

71.00

0.00

0.00

0.00

268.00

0.00

734.00

734.00

21.00

153.00

0.00

A complete continuous level measurement system includes:

1. Ultrasonic transceiver

2. Transducer (compatible with ST-H, XRS-5,

XPS-10, XPS-15/15F)

3. Additional cable lengths, as necessary

4. Handheld programmer/calibrator

5. Optional flanges, aiming kits, software, and communications, as needed

6. Point level solution for storage tank overfill protection (recommended good engineering practice per API 2350 standard)

Approvals General Purpose CE, CSA, FM, UL Listed

CSA Class I, Div 2; Class II, Div 2; Class III

Accessories English Instruction Manual

Handheld Programmer for MultiRanger

_ A

_ B

7ML1998-5FB06

A5E36563512

0.00

73.00

73.00

67.00

Need help finding the right level system for your process?

See www.Lesman.com/datasheets for the Siemens ultrasonic level datasheet. Complete the form and fax it to Lesman. We’ll have an engineer review your process and specify the best instrument to meet your needs.

Illinois, Indiana, Missouri, and Iowa

Phone: 800-953-7626 • 630-595-8400

Fax: 630-595-2386

Lesman Instrument Company www.lesman.com [email protected]

Wisconsin, and Upper Peninsula Michigan

Phone: 800-837-1700 • 262-923-1790

Fax: 262-923-1797

WASTEWATER

MONITORING

31

HydroRanger 200 HMI Water Monitoring and Control System

Features

• Single or dual point level monitoring

• Local four-button programming, menu-driven parameters, and graphical quick start wizard support for key applications — set up in less than a minute

• Patented Sonic Intelligence echo processing technology and auto false echo suppression to avoid fixed obstructions

• Modbus RTU and Profibus DPV1 digital communications

• Redesigned enclosure with a protected wiring compartment, removable terminal blocks, and an updated face

• Available submergence shield for the ability to sense flooding or overfill conditions

For nearly thirty years, Siemens’ HydroRanger 200 has been the industry standard for level measurement in monitoring and pumping wet wells, weirs, and flumes, inventory management, truck load-outs, and open channel monitoring.

The new HydroRanger 200 HMI is an ultrasonic level controller for up to six pumps and provides control, differential control, and open channel flow monitoring. It offers single-point monitoring with all models, and optional dual-point monitoring with the six-relay model.

The six-relay HydroRanger 200 HMI will monitor open channel flow and features advanced relay alarming and pump control functions as well as volume conversion. It is compatible with SIMATIC PDM for

PC configuration and setup. It also features digital communications with built-in Modbus RTU via RS-485.

HydroRanger 200 HMI uses continuous ultrasonic echo ranging technology to monitor water and wastewater of any consistency up to 50 feet deep. Unlike contacting devices, HydroRanger 200 HMI is immune to problems caused by suspended solids, harsh corrosives, grease or silt in the effluent, reducing downtime.

Specifications

Measuring Principle: Ultrasonic level

Range: 1 to 50 feet (0.3 to 15 meters), transducer and material dependent

Measuring Points: 1 or 2

Input: Analog: 0-20 mA or 4-20 mA, from alternate device, scalable (six-relay model); Discrete: 10-50 VDC switching level; Logical 0 <= 0.5 VDC or 1 = 10-50

VDC, 3 mA max.

Transducer: 44 kHz; Compatible transducers: ST-H and EchoMax XPS-10, XPS-

15/15F, and XRS-5; Separation between transducer and transceiver: 1200 feet

(365 meters) max.

Relays: Rating 5 A at 250 VAC, non-inductive; Six­relay model: 4 SPST Form A, 2

SPDT Form C

Analog Output: 0/4-20 mA, Max. load 750Ω, isolated, Resolution: 0.1 % range

Accuracy: Greater of 0.24” (6 mm) or 0.25% of maximum range

Resolution: Greater of 0.1% of measuring range or 0.08” (2 mm)

Temperature Compensation: -58° to 302°F; Integral temperature sensor in transducer or optional TS-3 external sensor; Programmable fixed temperature values

Display: 2.36” x 1.57” LCD, 240x160 pixel resolution

Communication: RS-232 with Modbus RTU or ASCII via RJ-11 connector; RS-485 with Modbus RTU or ASCII via terminal blocks; Optional: SmartLinx cards for

PROFIBUS DPV1 or DeviceNet

Enclosure: Polycarbonate; Wall mount IP65/Type 4X/NEMA 4X, Panel mount

IP54/Type 3/NEMA 3

Cable: Transducer and mA output signal two-core copper conductor, twisted, shielded, 300 VRMS, 18 AWG, Belden 8 760 or equivalent is acceptable

Power Supply: AC version: 100-230 VAC ± 15%, 50/60

Hz, 36 VA (17 W); DC version: 12-30 V DC (20 W)

Approvals: CE, RCM, FM/CSA, UL listed, CSA us/c Class

I, Div 1, Groups A-D, Class II, Div 2, Groups F, G, Class III

(wall mount only); MCERTS Class 2 approved for Open

Channel Flow

Ordering Instructions

Make a selection from each table section below. A complete catalog number looks like this: 7ML5034 - _ _ _ _ _. All models ship with one printed user manual.

A complete ultrasonic continuous level measurement system includes:

1. Transceiver

2. Echomax transducer (compatible with ST-H,

XPS-10, XPS-15/15F, and XRS-5)

3. Additional cable lengths, as necessary

4. Handheld programmer/calibrator

5. Optional flanges, as necessary

6. Aiming kits, software, and communications, as needed.

See transducers on pages 34-35.

Note: It is considered good engineering practice to provide redundant disparate level technologies for overfill protection of storage tanks

(per API 2350 standard). Call Lesman for point level solutions to complement your continuous level transmitter choice.

Model Selection Guide

Description

Please submit orders to: Siemens Industry Inc, c/o Lesman Instrument Company.

Catalog

Number Price

7ML5034 - $1080.00 HydroRanger 200 HMI Ultrasonic Level Controller with Four-Button Interface

Wall Mount , Standard Enclosure

Mounting Wall Mount, 4xM20 Cable Glands

Panel Mount

Input

Voltage

100 to 230 VAC

12 to 30 VDC

Feature Single Point System, 6 Relays

Software Dual Point System, 6 Relays

Single Point System, Level Only, 1 Relay

Single Point System, Level Only, 3 Relays

Data SmartLinx Ready (No Module)

Communi- SmartLinx Profibus-DP V0 Module cations SmartLinx Devicenet Module

SmartLinx Profibus DP V1 Module

Approvals General Purpose, CE, CSA, FM, UL Listed

CSA Class I, Class II, Class III Approvals

Accessories Handheld Programmer

Printed English Instruction Manual

4 _ _ _ _

5 _ _ _ _

6 _ _ _ _

_ A _ _ _

_ B _ _ _

_ _ A _ _

_ _ B _ _

_ _ C _ _

_ _ D _ _

_ _ _ 0 _

_ _ _ 2 _

_ _ _ 3 _

_ _ _ 4 _

_ _ _ _ 1

_ _ _ _ 2

A5E36563512

7ML1998-5FC03

0.00

0.00

71.00

0.00

0.00

444.00

711.00

108.00

128.00

0.00

734.00

734.00

734.00

0.00

71.00

67.00

73.00

See page 96 for details and pricing on Simatic PDM.

32

ULTRASONIC

LEVEL

Illinois, Indiana, Missouri, and Iowa

Phone: 800-953-7626 • 630-595-8400

Fax: 630-595-2386

Lesman Instrument Company www.lesman.com [email protected]

Wisconsin, and Upper Peninsula Michigan

Phone: 800-837-1700 • 262-923-1790

Fax: 262-923-1797

SITRANS LU Long Range Ultrasonic Level Transmitters

Specifications

Range (Level): From 1 ft. to 200 ft. max.

Accuracy: 0.25% of target range subject to application.

Resolution: Greater of 0.1% of target range or 0.08”.

Programming: Removable magnetic base programmer commun icating through an infrared interface or Dolphin interface.

Display: Graphic 2” x 5” LCD for measurement readings, operating status; Reading:

Level, space or distance in cm, mm, ft., in., %, or any other units as programmed.

Volume in desired units; Operating Status: Level bargraph, alarm, data communication, filling/emptying, temperature, rate of change

Temperature: Ambient: -5° to 122° F; Compensation: -58° to 302° F. Error: 0.09% of range with compensation. 0.31% per ° F deviation from programmed temperature.

Single mA Output: 0-20 or 4-20 mA, scalable 0.1% resolution 350Ω max. load (common ground) or 750Ω max. load (floating common) or 600Ω isolated (LIS-1 required).

Relay Outputs: Four alarm/control relays; one form C SPDT contact per relay, rated

5A at 250 VAC, non-inductive.

Enclosure: Type 4X/NEMA 4X/IP65 polycarbonate enclosure. 11.2”W x 8.2”H x 3.6”D.

Cable: Transducer: RG-62U Coax ial for extensions to 1,200 ft. Run in grounded metal conduit, separate from other wiring. TS­3: Belden 8760 2 wire shielded/twisted, 18

AWG or equivalent, good to 1,200 ft.

Programmer: Power: 9V (ANSI/NEDA 1604, PP3 or equivalent); Keypad: 20 keys, tactile feedback; Interface: Noninvasive, infrared.

Compatible Transducers: Echomax®: XPS 10,15, 30, 40; XCT

8, 12; XLS 30, 60; XLT 30, 60; Ultrason®: STH

Approval: CE, CSA (NRTL/C)

Features

• Single point or dual point long range level monitoring in tanks up to 200 feet

• Accuracy to 0.25% target range

• Easy to install and program using infrared keypad

• Backlit LCD displays level, space, distance, or volume;

Shows icons for vessel filling/emptying and bargraph for quick view of changing levels

• Automatic level-to-volume conversion for standard or custom tank shapes

• Single 0- or 4-20 mA analog output plus four SPDT alarm control relays

• Compatible with Dolphin Plus programming software and SmartLinx communication interface modules

The SITRANS LU01 system reliably monitors static or dynamically changing level of liquids, slurries, or solids in processes involving high temperatures, harsh chemicals, caustics, steaming solids, and fine powders.

The SITRANS LU02 adds the flexibility of a multi-frequency capability. One monitor to scan liquids, solids or both, in any two bins of differing size, shape, and configuration. The electronics are so powerful it is possible to place the unit up to 1200 feet from its transducers.

The SITRANS LU02 is shipped from the factory pre-calibrated for typical liquid and solid applications without the need for detailed setup. Select a single parameter to switch between liquid and solid materials, enter the bin dimensions and the control unit is up and running.

A complete level transmitter system includes:

1. Transceiver

2. Ultrasonic transducer (see pages 34 and 35)

3. Additional cable lengths

4. Handheld programmer/calibrator

5. Optional flanges, as necessary

6. Aiming kits, software, communications, as needed

7. Point level solution for storage tank overfill protection (recommended good engineering practice per API 2350 standard)

Need help finding the right level system for your process?

See www.Lesman.com/datasheets for the Siemens ultrasonic level datasheet. Complete the form and fax it to Lesman. We’ll have an engineer review your process and specify the best instrument to meet your needs.

Ordering Instructions

Make one selection from each table below. A complete catalog number looks like this:

7ML5004 - _ _ _ _ _ - 1A

Model Selection Guide

Description

Please submit orders to: Siemens Industry Inc, c/o Lesman Instrument Company.

SITRANS LU Long Range Ultrasonic Level Transceivers

Catalog

Number

7ML5004 -

Price

$2802.00

Version LU01, Single Point

LU02, Dual Point

Input Voltage AC, Voltage Selector Switch

Enclosure Standard: CSA NRTL/C, FM Approvals

1 _ _ _ _ -

2_ _ _ _ -

_AA10 -

- 1A

Handheld Programmer

Dolphin Plus, RS485 to RS232 Link

A5E36563512

7ML1841-1AA00

Dolphin Plus and Converter 7ML1841-0AA01

Accessories LU01 Main Mother Card, Comms-Ready 7ML1830-1KX

LU01 Daughter Card, Comms-Ready

LU02 Daughter Card, Comms-Ready

Display Card

7ML1830-1LN

LU02 Main Mother Card, Comms-Ready 7ML1830-1MA

7ML1830-1LP

7ML1830-1LQ

Additional

Manuals

SITRANS LU01

SITRANS LU02

7ML1998-5BE02

7ML1998-5BD02

0.00

357.00

0.00

0.00

67.00

397.00

483.00

1850.00

1481.00

1850.00

1481.00

426.00

47.00

47.00

Need to add SmartLinx communications? Call us!

Illinois, Indiana, Missouri, and Iowa

Phone: 800-953-7626 • 630-595-8400

Fax: 630-595-2386

Features

• Ten-point level monitoring in tanks to 200 feet

• Accuracy to 0.25% target range

• Easy to program using infrared keypad

• Program the backlit LCD display for level, space, distance, or volume; Icons for vessel filling/emptying and bargraph for quick viewing of changing levels

• Automatic level-to-volume conversion for standard or custom tank shapes

• On-board analog and relay for programming only. Add AO-10 for additional 0/4-20 mA outputs

• Compatible with Dolphin Plus programming software and SmartLinx interface modules

The SITRANS LU10 controls and measures efficiently in multiple tank applications. It has been field-proven in extremely high temperatures, as well as steamy, dusty, and corrosive environments.

If your processes demand reliable level measurement data in one to 10 vessels of any shape or size, in any liquid or bulk solid, and in any environment, a single SITRANS

LU10 has the flexibility to get the job done.

The SITRANS LU10 is shipped from the factory precalibrated for typical liquid and solid applications without the need for detailed setup. Select a single parameter to switch between liquid and solid materials, enter the bin dimensions and the control unit is up and running.

You can view program values during setup and operation, so you don’t have to shut down the process or switch between display modes to interrogate.

Lesman Instrument Company www.lesman.com [email protected]

Wisconsin, and Upper Peninsula Michigan

Phone: 800-837-1700 • 262-923-1790

Fax: 262-923-1797

ULTRASONIC

LEVEL

33

Multichannel Ultrasonic Level Transmitter

Ideal for tank farm applications!

Specifications

Range: 1 to 200 feet, depending on transducer; Span: 196 ft max., 2” min.

Channels: Max. 10 active channels per LU10 unit.

Accuracy: Greater of 0.25% range or 0.24”; Resolution: Greater of 0.1% range or 0.08”.

Temperatures: Operating: -5° to 140° F; Electronics: -5° to 122° F; Process: -40° F to 300° F;

Compensation: Common temp sensor input; Option T1B-10 temp sensor input board to provide independent compensation per channel.

Volume Conversion: User-selected units for eight common tank shapes.

Power: 100/115/200/230 VAC ±15%, jumper selective; 50/60Hz, 15VA.

Display: 2” x 5” graphic LCD. Two 4-digit 0.7” numeric displays. AO10/SAM20 Display: 1 power/comms status LED; 20 relay status LEDs (SAM-20).

Programmer: Removable, non-intrusive infrared programmer with magnetic retainer, general purpose ABS plastic enclosure.

Enclosure: NEMA 4X polycarbonate, stainless steel screws

Cable: For extensions to 333 ft. total, use 18 AWG shielded twisted pair cable. For extensions to 1,200 feet max., use RG-62 A/U coaxial cable.

Transducer Drive: 44 kHz, 315V peak pulses of max. 1 mSec duration typical; 22 kHz, 150V peak pulses of max. 1.7 mSec. duration typical; or 13 kHz, 150V peak pulses of max 1.7 mSec. duration typical; Max. repetition rate: 200 mSec/transmit.

Analog Output: Programming only, no on-board output. AO­10 Output Module: 10 analog outputs. Isolated 0–20 or 4–20 mA into 750Ω max., 0.1% resolution.

Relay Outputs: Programming only, no on-board relays.

Data Link: Transmit only; Single ±20 mA bi-polar current loop @ 4800 baud. 10,000 feet max loop. Loading: 3 peripheral devices max.

Memory: 10 minutes minimum data retention.

Interconnection Cable: Belden 8760, 1 pair shielded/twisted, 18 GA.

See Echomax

34—35.

A complete level transmitter system includes:

1. Transceiver

2. Transducer (see pages 34 and 35)

3. Additional cable lengths

4. Handheld programmer/calibrator

5. Optional flanges, as necessary

6. Aiming kits, software, communications, as needed

Note: It is considered good engineering practice to provide redundant disparate level technologies for overfill protection of storage tanks (per API 2350 standard). Call Lesman for point level solutions to complement your continuous level transmitter choice.

Ordering Instructions

Make one selection from each table section below. A complete catalog number looks like this:

7ML5007 - _ _ _ _ _ - 1A

Model Selection Guide

Please submit orders to: Siemens Industry Inc, c/o Lesman Instrument Company.

Description

SITRANS LU10 Long-Range Ultrasonic Level Transceiver

Configuration AC, Voltage Selector Switch, Standard

SmartLinx Ready (No Module)

Temperature None

Option Standard (TIB9)

Enclosure Standard Enclosure, CE, CSA, FM Approved

SITRANS LU AO: 10 Output Module

Handheld Programmer

TIB-9 Temperature Card

Accessories Communications Ready Main Mother Card

Communications Ready Daughter Card

Display Card

Instruction

Manuals

SITRANS LU10 Instruction Manual

SITRANS LU AO Instruction Manual

Catalog

Number

7ML5007 -

Price

$6207.00

1AA0 _ -

_ _ _ _ 0 -

_ _ _ _ 1 -

- 1A

0.00

0.00

306.00

0.00

7ML5810-1A

A5E36563512

1757.00

67.00

7ML1830-1CN 347.00

7ML1830-1ML 4885.00

7ML1830-1LY

7ML1830-1LQ

2589.00

426.00

7ML1998-5AN02

7ML1998-5CE01

64.00

23.00

Need to add SmartLinx communications? Call us!

34

ULTRASONIC

TRANSDUCERS

Illinois, Indiana, Missouri, and Iowa

Phone: 800-953-7626 • 630-595-8400

Fax: 630-595-2386

Lesman Instrument Company www.lesman.com [email protected]

Wisconsin, and Upper Peninsula Michigan

Phone: 800-837-1700 • 262-923-1790

Fax: 262-923-1797

Echomax Ultrasonic Level Transducers

Features

• Two-way dynamic impedance matching provides high output and sensitive echo capture

• Unique unidriver construction gives highest temperature operation available in any ultrasonic system: 150º C (300º F)

• Uniformity as close as 1 foot, so you can depend on shortrange reliability

• Reliable in liquids and solids from 1 to 200 feet

• No moving parts to cause downtime

• Simple, economical installation

• Mounting location is more flexible, so obstacles can be avoided

• Chemically resistant

• Hermetically sealed models immune to dust, steam, turbulence, corrosives

• Aiming is less critical

• 1” NPT conduit connection with NEMA 4 ingress protection

(except XRS-5, which has IP68 rating)

• Models available with CSA, FM,

CE, 3A, and FDA approvals

Please submit orders to: Siemens Industry Inc, c/o Lesman Instrument Company

Transducers Compatible with All Siemens Continuous Ultrasonic Transmitter Systems

Beam Measuring Temperature

Angle Distance Range

Process

Connection

Cable

Series Length

Catalog

Number

For Wet Applications: Blue Kynar Housing and Aluminum Sensor Face. ATEX and FM Approvals.

12°

12°

12°

12°

12°

12°

12°

12°

12°

12°

12°

12°

1 to 50 Ft -40 to 203° F

1 to 50 Ft -40 to 203° F

1 to 50 Ft -40 to 203° F

1” NPT Thread

1” NPT Thread

1” NPT Thread

XPS-15

XPS-15

XPS-15

5M

10M

30M

1 to 50 Ft -40 to 203° F 6” CPVC Flange XPS-15-6 5M

1 to 50 Ft -40 to 203° F 6” CPVC Flange XPS-15-6 10M

1 to 50 Ft -40 to 203° F 6” CPVC Flange XPS-15-6 30M

1 to 50 Ft -40 to 203° F 8” CPVC Flange XPS-15-8 5M

1 to 50 Ft -40 to 203° F 8” CPVC Flange XPS-15-8 10M

1 to 50 Ft -40 to 203° F 8” CPVC Flange XPS-15-8 30M

1 to 33 Ft -40 to 203° F

1 to 33 Ft -40 to 203° F

1” NPT Thread

1” NPT Thread

XPS-10

XPS-10

5M

10M

1 to 33 Ft -40 to 203° F 1” NPT Thread XPS-10

1 to 33 Ft -40 to 203° F 3” CPVC Flange XPS-10-3

30M

5M

1 to 33 Ft -40 to 203° F 3” CPVC Flange XPS-10-3 10M

1 to 33 Ft -40 to 203° F 3” CPVC Flange XPS-10-3 30M

1 to 33 Ft

1 to 33 Ft

1 to 33 Ft

1 to 33 Ft

1 to 33 Ft

1 to 33 Ft

-40 to 203° F 4” CPVC Flange XPS-10-4 5M

-40 to 203° F 4” CPVC Flange XPS-10-4 10M

-40 to 203° F 4” CPVC Flange XPS-10-4 30M

-40 to 203° F 6” CPVC Flange XPS-10-6 5M

-40 to 203° F 6” CPVC Flange XPS-10-6 10M

-40 to 203° F 6” CPVC Flange XPS-10-6 30M

7ML1118-0BA30

7ML1118-0CA30

7ML1118-0EA30

7ML1118-0BD30

7ML1118-0CD30

7ML1118-0ED30

7ML1118-0BE30

7ML1118-0CE30

7ML1118-0EE30

7ML1115-0BA30

7ML1115-0CA30

7ML1115-0EA30

7ML1115-0BC30

7ML1115-0CC30

7ML1115-0EC30

7ML1115-0BD30

7ML1115-0CD30

7ML1115-0ED30

7ML1115-0BE30

7ML1115-0CE30

7ML1115-0EE30

Price

$847.00

878.00

920.00

1228.00

1259.00

1301.00

1327.00

1358.00

1400.00

667.00

702.00

748.00

893.00

928.00

974.00

932.00

967.00

1013.00

1148.00

1183.00

1229.00

For Corrosive and Wet Applications: Blue Kynar Housing, Teflon-Coated Aluminum Sensor Face. ATEX, FM Approvals.

12°

12°

12°

12°

12°

12°

12°

12°

12°

1 to 33 Ft

1 to 33 Ft

1 to 33 Ft

1 to 33 Ft

1 to 33 Ft

1 to 33 Ft

1 to 33 Ft

1 to 33 Ft

1 to 33 Ft

1 to 50 Ft

1 to 50 Ft

1 to 50 Ft

-40 to 203° F

-40 to 203° F

-40 to 203° F

-40 to 203° F

-40 to 203° F

-40 to 203° F

-40 to 203° F

-40 to 203° F

-40 to 203° F

-40 to 203° F

-40 to 203° F

-40 to 203° F

3” CPVC Flange

3” CPVC Flange

3” CPVC Flange

4” CPVC Flange

4” CPVC Flange

4” CPVC Flange

6” CPVC Flange

6” CPVC Flange

6” CPVC Flange

6” CPVC Flange

6” CPVC Flange

6” CPVC Flange

XPS-10T-3

XPS-10T-3

XPS-10T-3

XPS-10T-4

XPS-10T-4

XPS-10T-4

XPS-10T-6

XPS-10T-6

XPS-10T-6

XPS-15T-6

XPS-15T-6

XPS-15T-6

5M

10M

30M

5M

10M

30M

5M

10M

30M

5M

10M

30M

7ML1115-2BC30

7ML1115-2CC30

7ML1115-2EC30

7ML1115-2BD30

7ML1115-2CD30

7ML1115-2ED30

7ML1115-2BE30

7ML1115-2CE30

7ML1115-2EE30

7ML1118-2BD30

7ML1118-2CD30

7ML1118-2ED30

1014.00

1049.00

1095.00

1053.00

1088.00

1134.00

1269.00

1304.00

1350.00

1337.00

1368.00

1410.00

For Hazardous Environments: Blue Kynar Housing, Aluminum Sensor Face. FM (Class 1, Division 1) Approval.

1 to 50 Ft

1 to 50 Ft

1 to 50 Ft

-40 to 203° F

-40 to 203° F

-40 to 203° F

1” NPT Thread

1” NPT Thread

1” NPT Thread

XPS-15F

XPS-15F

XPS-15F

5M

10M

30M

7ML1171-1BA10

7ML1171-1CA10

7ML1171-1DA10

984.00

1015.00

1057.00

For Caustic Liquids and Slurries: Polypropylene Housing, Hypalon Rubber Sensor Face. CE, CSA, FM, ATEX Approvals.

Teflon Facing Available on Flanged Models— Call Lesman.

10° 1 to 16.5 Ft -4 to 149° F

10° 1 to 16.5 Ft -4 to 149° F

10° 1 to 16.5 Ft -4 to 149° F

10° 1 to 16.5 Ft -4 to 149° F

10° 1 to 16.5 Ft -4 to 149° F

10° 1 to 16.5 Ft -4 to 149° F

1” NPT Thread

1” NPT Thread

1” NPT Thread

3” ANSI Flange

3” ANSI Flange

3” ANSI Flange

XRS-5

XRS-5

XRS-5

XRS-5-3

XRS-5-3

XRS-5-3

5M 7ML1106-1AA20-0A

10M 7ML1106-1BA20-0A

30M 7ML1106-1CA20-0A

5M 7ML1106-1AA20-0B

10M 7ML1106-1BA20-0B

30M 7ML1106-1CA20-0B

$522.00

552.00

591.00

716.00

746.00

785.00

For FM Class I, Div 1 Liquid and Solid Applications, including Hazardous, Corrosive and Wastewater Environments.

Tefzel Base and Lid Epoxy Fitted Joint). CE, CSA, CENELEC Approvals.

12°

12°

12°

1 to 33 Ft

1 to 33 Ft

1 to 33 Ft

-40 to 164° F

-40 to 164° F

-40 to 164° F

2” NPT Thread

2” NPT Thread

2” NPT Thread

ST-H

ST-H

ST-H

5M

10M

30M

7ML1100-0AA20

7ML1100-0BA20

7ML1100-0CA20

907.00

946.00

998.00

Transducers Compatible Only with Siemens LU (AiRanger) Series Ultrasonic Transmitters

Beam Measuring Temperature

Angle Distance Range

Process

Connection

Cable

Series Length

Catalog

Number Price

For Wet Applications: Blue Kynar Housing, Aluminum Sensor Face. CSA, FM Approvals. 1-1/2” NPT Mounting Thread.

2 to 100 Ft -40 to 203 F 1.5” NPT Thread

2 to 100 Ft -40 to 203° F 1.5” NPT Thread

2 to 100 Ft -40 to 203° F 1.5” NPT Thread

XPS-30

XPS-30

XPS-30

5M

10M

30M

7ML1123-0BA50

7ML1123-0CA50

7ML1123-0EA50

$1297.00

1327.00

1366.00

Don’t see the process connection or cable length you need? Call us!

Illinois, Indiana, Missouri, and Iowa

Phone: 800-953-7626 • 630-595-8400

Fax: 630-595-2386

Lesman Instrument Company www.lesman.com [email protected]

Wisconsin, and Upper Peninsula Michigan

Phone: 800-837-1700 • 262-923-1790

Fax: 262-923-1797

ULTRASONIC

TRANSDUCERS

35

XRS-5

Built-in temperature com-

pensation automa tically adjusts for velocity variations caused by air temperature changes in the vessel, ensuring optimum accuracy from -4º to

149º F (-20° to 65º C)

Narrow beam pattern with negligible side lobes gives reliable performance over full temperature range, even in narrow tanks.

Low ringing cuts blanking

distance to a minimum, so you can use the full tank capacity and eliminate the need for tall standpipes

Closed cell foam is immune to moisture and temperatureindependent

High sensitivity across the transducer face improves performance on solids and is especially effective for long shots up to 200 feet

Self-cleaning, low mainte-

nance. Condensa tion, liquid, and dust won’t build up on the active transducer face

Echomax

FMS Series Mounting

Brackets Compatible With

Probe (FMS-200 Only)

ULS200 (FMS-200 Only)

XPS-15 XPS-10

XPS-15F XRS-5

ST-H

FMS Mounting Brackets

Siemens mounting brackets make installing Echomax ultrasonic transducers quick and easy. These rugged high-quality mounting brackets are made of 304 stainless steel, and are suitable for use in both indoor and outdoor installations. They adjust to fit almost any application, saving you the time and expense of building custom brackets.

Each kit contains all necessary mounting parts.

Mounting Brackets for Ultrasonic Sensors

FMS-200 Universal Box Bracket

Allows any unit with a threaded 1” or

2” connection to be mounted 8” to 12” out from a wall or beam. Box design also acts as a sun shield.

Kit Includes

Two 1” mounting nuts

One 2” mounting nut

FMS-210 Wall Mount Channel

Bracket

Lets any transducer with a threaded

1” connection be mounted 5” to 19” out from a wall or beam.

Kit Includes

Four 1/4” lock washers

Two 1” mounting nuts

Two 2” mounting nuts

Four M6x12 bolts

FMS-220 Extended Channel

Bracket

Allows any transducer with a threaded 1” connection to be mounted 13” to 39” out from a wall or beam.

Kit Includes

Four 1/4” lock washers

Two 1” mounting nuts

Four M6x12 bolts

Two M6x30 bolts

FMS-310 Floor Mount Channel

Bracket

Lets any transducer with a threaded

1” connection be mounted from 19” high and 22” out past the mounting.

Kit Includes

Four 1/4” lock washers

Two 1” mounting nuts

Four M6x12 bolts

One M8x50 bolt

FMS-320 Floor Mount

Extended Channel Bracket

Allows any transducer with a threaded 1” connection to be mounted from

19” high and from 16” to 43” out past the mount.

Kit Includes

Four 1/4” lock washers

Two 1” mounting nuts

Six M6x12 bolts

Two M6x30 bolts

One M8x50 bolt

FMS-350 Floor Mount

Bridge Channel Bracket

Lets any transducer with a threaded

1” connection be mounted from 19” high, anywhere along a 65” beam.

Great for open channel flow applications. Provides a stable mount for the transducer above a flume or weir.

Kit Includes

Four 1/4” lock washers

Two 1” mounting nuts

Twelve M6x12 bolts

Three M6x30 bolts

Two M8x50 bolts

Order

7ML1830-1BK

$138.00

Order

7ML1830-1BL

$202.00

Order

7ML1830-1BM

$347.00

Order

7ML1830-1BN

$333.00

Order

7ML1830-1BP

$477.00

Order

7ML1830-1BQ

$784.00

Need an aiming kit or field mounting hardware for your level sensor?

Please submit orders to: Siemens Industry Inc, c/o Lesman Instrument Company

Catalog

Aluminum Easy Aimer Kits Number

NPT, 1.5” Galvanized Coupling* 7ML1830-1AN $144.00

NPT, 1” Galvanized Coupling 7ML1830-1AP 144.00

NPT, 3/4” x 1” PVC Coupling 7ML1830-1AQ 144.00

* For use with XPS-30 or XPS-40 transducers only.

Price

Catalog

304SS Easy Aimer Kits Number

NPT with 1.5” Coupling

NPT with 1” Coupling

Easy Aimer User Manual

7ML1830-1AT

7ML1830-1AU

7ML1998-5HG62

Price

$625.00

625.00

26.00

36

RADAR

LEVEL

Illinois, Indiana, Missouri, and Iowa

Phone: 800-953-7626 • 630-595-8400

Fax: 630-595-2386

Tired of Level Headaches?

Ask yourself...

Do steam and vapors affect the accuracy and dependability of your existing level device?

Do you work with tanks or silos with coned bottoms? Have they caused problems getting reliable low level readings?

Is your current contacting level technology undependable, unreliable, or maintenance- intensive?

Have you considered non-contact technology, but rejected it because of excessive blanking distance requirements?

Have you tried radar, but experienced unexplained “loss of echo” errors?

Have you tried radar technology, but couldn’t get it “tuned” to ignore false echoes caused by obstructions in the vessel?

Are you using radar technology now, but need to call a factory guy to set it up or retune it when operating conditions change?

When was the last time you installed a new radar unit? How long did it take? Have you ever had it configured and working in less than four minutes?

Did you know that for less than $1000, you can buy a radar unit that works in liquids for vessels up to 66 feet?

Lesman Instrument Company www.lesman.com [email protected]

Wisconsin, and Upper Peninsula Michigan

Phone: 800-837-1700 • 262-923-1790

Fax: 262-923-1797

Siemens Radar Technology Has the Answers!

Reliable liquid and bulk solid level measurements, unaffected by steam and vapor

Narrow beam angle radars that provide strong level signals, even in tanks and silos with coned bottoms

Dependable, low-maintenance non-contact level technology

Short blanking distances — 2” from the horn!

Dynamic TVT thresholds that adjust depending on the signal strength, reducing “loss of echo” errors

Self-learning algorithms, like automatic false echo suppression, ignore echoes caused by in-tank obstructions

Process Intelligence Quick Start, easy menus, and step-by-step tuning, so you can configure the unit in a few as two parameters and less than five minutes — and reprogram the unit without a factory guy, if your needs change

Models for any application, from simple liquid storage tank monitoring to bulk solids and tall tanks — with prices starting under

$1000!

See What’s Hot...

SITRANS LR250

See Page 40

SITRANS LR200 and Probe LR

See Page 38

SITRANS LR560

See Page 46

2­Wire 25 GHz Pulse Radar

Liquids and Slurries

Short or Narrow Tanks

Low Dielectrics Materials

66 Feet Max.

5 mm Accuracy

2­Wire 6.3 GHz Pulse Radar

Liquids and Slurries

Storage or Process Vessels

Large Diameter Tanks

66 Feet Max.

10 mm Accuracy

78 GHz FMCW Radar

Bulk Solids

Tall Tanks and Silos

Low Dielectric Materials

329 Feet Max.

0.25% Accuracy

Siemens LG200

Guided Wave Radar

• Horizontal cylinders

• Measuring in side pipes or bypass

• Liquid interfaces

• Applications with steam or ammonia

• Processes with turbulence inside the tank

• Medium range solids

• See pages 48 and 49 for details

• See www.Lesman.com/datasheets for the

LG200 application datasheet (Required with any LG200 order.)

Siemens Process Intelligence

Provides Error-Free Results

Multiple signals, indirect path signals, weak signals, and false echoes from internal obstructions all contribute to the headaches of measuring level in tanks and silos. Your instrument has to learn how to ignore all of the noise and lock onto the correct echo signal for the material.

TVT

Threshold

Echoes

Process Intelligence software differentiates between true echoes from the material and false echoes generated by obstructions or electrical noise. It includes sophisticated algorithms, multiple-shot averaging, and automatic false-echo suppression for advanced echo selection.

True

Echo

Siemens’

Process Intelligence extracts the correct measurement from the clutter.

For fast startup, the Process Intelligence Quick Start menu and Siemens’ self-learning technology allows easy setup in minutes.

False

Echo

False

Echo

Ignored

True

Level

Echo

Automatic False Echo Suppression

A false echo can be a silo seam, structural member, material buildup, or other interference, resulting in a low echo confidence. Siemens self-learning algorithm detects false echoes and instructs the radar to ignore them. All Process Intelligence algorithms can be fine-tuned using a handheld programmer or SIMATIC PDM software and your laptop PC.

Illinois, Indiana, Missouri, and Iowa

Phone: 800-953-7626 • 630-595-8400

Fax: 630-595-2386

Lesman Instrument Company www.lesman.com [email protected]

Wisconsin, and Upper Peninsula Michigan

Phone: 800-837-1700 • 262-923-1790

Fax: 262-923-1797

RADAR

LEVEL

37

Comparing Radar Instruments for Liquid Level

SITRANS Probe LR SITRANS LR200

Two-wire loop powered pulse radar level transmitters for liquids

Function

Bulk storage in simple process vessels and tank farms.

Range

Frequency

Process

Temperature

Process

Pressure

-40° to 176° F

To 43.5 PSI

6.3 GHz

-40° to 392° F

Dielectric

Constant

Communications

Process

Connections

>3 (for <3 use waveguide antenna or stillpipe)

Accuracy

± Greater of 0.1% range or 10mm

Output

4-20 mA, HART® 4-20 mA, HART or Profibus

PA, NAMUR NE 21, NE 43

HART, SIMATIC

PDM for configuration and diagnostics

HART or Profibus

PA, SIMATIC PDM for configuration and diagnostics

1.5” NPT, BSP, or G (polypropylene), flanges, sanitary

Antenna

Hermetically sealed polypropylene rod

Hermetically sealed polypropylene or PFTE Teflon® rod. Optional horn and sliding waveguide

Display

Multi-segment alphanumeric liquid crystal with bar graph (representing level)

Enclosure

PBT polymer, polyether imide lid; Type 4X/NEMA

4X, Type 6/IP68

Aluminum, polyester powder-coated; Type 4X/

NEMA 4X, NEMA 6, IP67

Approvals

CE, CSA, FM, ATEX

SITRANS LR250 SITRANS LR250 FEA

Two-wire pulse radar level transmitters for liquids and slurries

For general storage and process vessels.

66 feet (20 meters)

-40° to 320° F

(using FKM O-ring)

For corrosive or aggressive

To 580 PSI chemical processes.

25 GHz

>1.6, antenna and application-independent

±0.02 mA

Polyester powder-coated aluminum; Ingress protection:

CE, CSA, FM, ATEX

Type 4X/NEMA 4X, Type 6/NEMA 6, IP67, IP68

CE, CSA, FM, ATEX

SITRANS LR250 HEA

For hygienic or sanitary

-40° to 338° F

4-20 mA, HART, Profibus PA, Foundation Fieldbus

NAMUR NE 21, NE 43 processes.

HART or Profibus PA, SIMATIC PDM for configuration and diagnostics

1.5” or 2” NPT; 2”, 3”, or 4” ANSI flange connections

2” to 6” ANSI flange connections

2”, 3”, 4” sanitary/hygienic flanged, threaded, clamp, or union connections

316L stainless steel with PTFE lens 316L stainless steel or

PVDF antenna, 1.5”, 2”, 3”, 4” horns, with optional 4” horn extension

Graphical user interface including quick-start wizard and echo profile display

See page

38 38 40 42

CE, CSA, FM, ATEX, EHEDG,

3-A Sanitary

42

Siemens requires a completed radar application datasheet with any radar instrumentation order.

See www.Lesman.com/datasheets/

38

TWO-WIRE

PULSE RADAR

Illinois, Indiana, Missouri, and Iowa

Phone: 800-953-7626 • 630-595-8400

Fax: 630-595-2386

Lesman Instrument Company www.lesman.com [email protected]

Wisconsin, and Upper Peninsula Michigan

Phone: 800-837-1700 • 262-923-1790

Fax: 262-923-1797

SITRANS Probe LR and LR200 for Bulk Liquid Storage Levels

Prices start at 1053.00!

Probe LR (left) has a plastic enclosure — ideal for chemical applications. LR200 (right) has an aluminum enclosure.

Features

• Two-wire loop-powered radars offer low-cost installation.

• Great for bulk liquid storage in simple process vessels and tank farms.

• Low frequency of 6.3 GHz offers high immunity against condensation or deposits.

• Very high signal-to-noise ratio for reliable performance to ranges to 66 feet. Ample signal to withstand condensation, turbulence, or low dielectrics.

• Initial setup and configuration can be completed with as few as two parameters — with no need for an echo profile.

• Program using intrinsically safe handheld programmer, Simatic

PDM software and a PC, or HART® handheld communicator. You don’t have to open the cover — exposing the terminals to the elements and corrosion.

• Built-in display has a primary reading, an auxiliary reading and a level bargraph.

• Rotating head swivels to line up with conduit or wiring connections. After installation, just rotate the head to the desired position for easy display viewing. After orientation, the head can be locked into place for permanent use.

• “Uni-construction” polypropylene rod antenna. The threads and rod antenna are made of the same material, and hermetically sealed to prevent chemical ingress. The internal shield ensures that no nozzle noise is introduced by the installation.

• Flange adapter version offers optional process connections and antennae.

• Advanced Sonic Intelligence signal-processing software includes Auto False-Echo Suppression for automatic detection and suppression of echoes from tank obstructions.

• Rugged, encapsulated enclosure is submersible and corrosion resistant. The potted design provides an extremely high level of shock and vibration resistance.

Dimensions

Probe LR and LR200 are designed for safe and simple programming, using the intrinsically safe hand programmer, without having to open the instrument’s lid. Both units offer a standard uni-construction, hermetically sealed, polypropylene rod antenna that offers excellent chemical resistance.

A local alphanumeric display is standard to all models.

A primary display shows engineering units or percent of level, distance, or volume; a secondary display shows mA, temperature, signal status, faults, and parameter values, and an active bargraph reports material level.

Startup is easy, with as few as two parameters for basic operation. You can make parameter changes

Specifications

Range: 66 ft. (20 m)

Frequency: 6.3 GHz

Dielectric Constant: >3 (for <3 use waveguide antenna or stillpipe)

Accuracy: ± greater of 0.1% range or 10mm; Repeatability: ±5mm

Analog Output: 4 to 20 mA ±0.02 mA accuracy max.

550Ω @ 24 VDC

Local Display: Multi-segment alphanumeric liquid crystal with bar graph (representing level)

Communications: HART®, Infrared handheld programmer, SIMATIC PDM

Process Connections: 1.5” NPT, BSP, or G (polypropylene), flanges, sanitary

Dielectric constants table available on page 488.

using the hand programmer, a

HART® handheld communicator, or with a PC and Siemens Simatic

PDM configuration software.

An echo status indicator ensures that your echo is reliable. If the echo confidence drops below the echo confidence threshold, the failsafe timer starts running. When the timer expires, a Loss of Echo status shows on the display. When a valid reading is received, the level reading display returns to normal operation.

Antenna: Hermetically sealed polypropylene rod. Standard: 100 mm (4”) shield for max. 100 mm (4”) nozzle;

Optional: 250 mm (10”) long shield; Rod: Teflon® (PTFE);

Other antenna types available; Purge optional

Enclosure: Probe LR: PBT polymer, hard-coated polyether imide lid; Type 4X/NEMA 4X, Type 6/IP68; LR200: Aluminum, polyester powder-coated; Type 4X/NEMA 4X, NEMA

6, IP67 protection

Power: 4 to 20 mA loop powered

Temperature: Ambient: -40° to 176° F (-40° to 80° C);

Process: -40° to 392° F (-40° to 200° C) process conn. type-dependent

Vessel Pressure: Up to 40 bar (600 PSI) process connections type-dependent

Approvals: CE, CSA

US/C

, FM, ATEX, Industry Canada, FCC, R&TTE, 3A

SITRANS Probe LR

LR200

Illinois, Indiana, Missouri, and Iowa

Phone: 800-953-7626 • 630-595-8400

Fax: 630-595-2386

Lesman Instrument Company www.lesman.com [email protected]

Wisconsin, and Upper Peninsula Michigan

Phone: 800-837-1700 • 262-923-1790

Fax: 262-923-1797

TWO-WIRE

PULSE RADAR

39

Ordering Instructions

Find the table for the model you need. Make one selection from each table section. Complete catalog numbers will look like:

7ML5430-_ _ _ 10, 7ML5422-_ _ _ _0,

7ML5424-_ _ _ _ _- 0 _ _ _, or 7ML5425- _ _ _ _ _ - 0 _ _ _.

A completed application datasheet is required with all LR200 orders.

See www.Lesman.com/datasheets.

Please submit orders to: Siemens Industry Inc., c/o Lesman Instrument Company

Notes and Restrictions — All Models

1 Requires flange connection >2”, threaded connection larger than 1.5”

2 For flanged connections only. FKM O-ring for threaded connections or shielded antenna extension models.

SITRANS Probe LR

Description

Catalog

Number Price

Sitrans Probe LR: PBT Enclosure, 2x0.5” NPT Cable Inlet 7ML5430- $1053.00

Antenna 1.5” NPT, Integral 100 mm Shield

1.5” NPT, Integral 250 mm Shield

Approvals FM, CSA General Purpose

(Note 3) FM Class I, II, III, Div 1, Grps A–G

Intrinsically Safe (with Suitable Barrier)

Output Hart Communications and 4-20 mA

1A _ _ _

1D _ _ _

_ _ B _ _

_ _ D _ _

_ _ _ 10

348.00

474.00

0.00

194.00

0.00

SITRANS LR200 Uni-Construction Rod Antenna

Description

Catalog

Number Price

Sitrans LR200 Uni-Construction PP Rod Antenna Model 7ML5422- $1309.00

Antenna Polypropylene,

Type Integral 100 mm Shield, 1.5” NPT

Approvals FM General Purpose

FM Class I, II, Div 1, Grp A–G, Intrinsic Safe

FM Class I, Div 2, Grp A–D

FM Class I, II, III, Div 1, Grp A–G

Output Hart Communications and 4-20 mA

2A _ _ _

_ _ B _ _

_ _ D _ _

_ _ F _ _

_ _ J _ _

_ _ _ 30

384.00

0.00

206.00

0.00

239.00

0.00

3 All approvals include radio FCC 6.3 GHz; Unit only rated FM intrinsically safe when used with a suitable barrier. Approval J not valid with Profibus PA output.

6 Available only with Horn Size Options C, D, or E

SITRANS LR200 Horn Antenna, Flange Connection

Description

Catalog

Number Price

Sitrans LR200 Flange Adapter Horn Antenna Version

Antenna 316L Stainless Steel, PTFE Cone Emitter

1000 mm Sliding Waveguide, (Note 5)

Process 2” ANSI 150 Lb, FF Flange (Note 4)

Connect. 3” ANSI 150 Lb, FF Flange

(316 SS) 4” ANSI 150 Lb, FF Flange

6” ANSI 150 Lb, FF Flange

8” ANSI 150 Lb, FF Flange

Output Hart Communications and 4-20 mA

Process FKM

Seal Nitrile (Sliding Waveguide Systems)

Horn

Size

80 mm Horn for Stillpipe Applications

100 mm Horn for Stillpipe Applications

150 mm Horn

200 mm Horn

100 mm Horn, 150 mm Extension

150 mm Horn, 150 mm Extension

Approval FM, CSA General Purpose

7ML5425- $1762.00

0 _ _ _ _- 0.00

2 _ _ _ _- 715.00

_ FB _ _- 135.00

_ GB _ _- 181.00

_ HB _ _- 264.00

_ JB _ _-

_ KB _ _-

511.00

911.00

_ _ _20-

_ _ _ _ 0-

_ _ _ _ 1-

2B _ _

2C _ _

2D _ _

2E _ _

2G _ _

2L _ _

_ _ B _

0.00

0.00

0.00

499.00

499.00

499.00

499.00

911.00

911.00

0.00

Pressure Per Pressure/Temp Curves in Manual

Rating 0.5 bar (7.5 PSI) Maximum

_ _ _ 0

_ _ _ 1

73.00

0.00

Also available with 300# flange process connections and waveguide extensions. Call for price and availability.

SITRANS LR200 Rod Antenna, Flange Connection

Description

Catalog

Number Price

Sitrans LR200 Flange Adapter, PTFE Teflon Rod Antenna 7ML5423- $1762.00

Process 2” ANSI 150 Lb, FF Flange

Conn. 3” ANSI 150 Lb, FF Flange

(316 SS) 4” ANSI 150 Lb, FF Flange

1.5” NPT Threaded

2” Threaded

Antenna None

Extension 50 mm PTFE Extension

100 mm PTFE Extension

100 mm 316 SS Shield (Note 1)

150 mm 316 SS Shield (Note 1)

200 mm 316 SS Shield (Note 1)

250 mm 316 SS Shield (Note 1)

1FB _ _-

1GB _ _-

625.00

862.00

1HB _ _- 1135.00

1LA _ _- 605.00

1MA _ _- 641.00

_ _ _ 0 _-

_ _ _ 1 _-

_ _ _ 2 _-

0.00

69.00

84.00

_ _ _ 3 _- 0.00

_ _ _ 4 _- 181.00

_ _ _ 5 _- 223.00

_ _ _ 6 _- 264.00

Process Integral Gasket (Note 2)

Seal FKM O-Ring (Note 2)

Output Hart Communications and 4-20 mA

_ _ _ _ 0- 149.00

_ _ _ _ 1- 0.00

2C _ _ 0.00

Approvals FM General Purpose

FM/IS: Class I, II, Div 1, Grp A–G

FM Class I, Div 2, Grp A–D

FM Class I, II, III, Div 1, Grp A–G

Pressure Per Pressure/Temp Curves in Manual

Rating 0.5 bar (7.5 PSI) Maximum

_ _ B _

_ _ D _

_ _ F _

_ _ J _

_ _ _ 0

_ _ _ 1

0.00

206.00

0.00

239.00

73.00

0.00

Also available with 300# flanges. Call for details.

Ready to buy a Probe LR or LR200? Get a radar datasheet at www.Lesman.com/datasheets, and send it to Lesman with your order. Not sure which unit is right for you? Use the datasheet to request an engineering review.

Accessories — All Models

Description

Probe LR IS/HART® Handheld Programmer

IS/Infrared Profibus Handheld Programmer

USB HART® Modem for Simatic PDM/PC

Instruction Manual, LR200 HART® Models

Quick-Start Guide, LR200 HART® Models

SIMATIC PDM v9.0 Software Utility for

Configuring, Commissioning, and

Diagnostics; (Profibus, HART®, 4 Tags)

Catalog Number Price

7ML1930-1BK

7ML5830-2AJ

7MF4997-1DB

$159.00

159.00

663.00

7ML1998-5JP02

A5E31993614

36.00

73.00

6ES76583AB580YA5 725.00

Programming Options

Siemens’ intrinsically­safe handheld programmer. Learn more on pages 94 to 96. Need to connect to your PC for SIMATIC PDM? Use

Siemens’ USB to HART® modem.

Note: It is considered good engineering practice to provide redundant disparate level technologies for overfill protection of storage tanks (per

API 2350 standard). Call Lesman for point level solutions to complement your continuous level transmitter choice.

40

TWO-WIRE

PULSE RADAR

Illinois, Indiana, Missouri, and Iowa

Phone: 800-953-7626 • 630-595-8400

Fax: 630-595-2386

Lesman Instrument Company www.lesman.com [email protected]

Wisconsin, and Upper Peninsula Michigan

Phone: 800-837-1700 • 262-923-1790

Fax: 262-923-1797

SITRANS LR250 Two-Wire 25GHz Pulse Radar for Level purpose, intrinsically use models.

Features

• 25 GHz high frequency for small horn antennas for easy mounting in nozzles

• Short blanking distance for improved minimum measuring range to 50 mm from the end of the horn — provides high accuracy of low and high levels, even with low dielectric media

• Small horn (1.5” to 4”) and narrow beam angle allows installation practically anywhere in your vessel

• Now available with a 2” threaded PVDF antenna. Great for measuring acids, alkalis, and other corrosive chemicals!

• Graphical local user interface –displays echo profiles and diagnostic information, makes operation simple

• Fast and easy to configure – Quick Start Wizard guides you during setup

• Insensitive to mounting location and obstructions, and less sensitive to nozzle interference

• Process Intelligence – Advanced signal processing for improved measurement reliability, and automatic false echo suppression of fixed obstructions

• Operational in minutes — infrared handheld programmer for local operation or SIMATIC PDM via HART® — without exposing the electronics to the environment

Making Radar Work for Liquid and Slurry Level Monitoring

Siemens’ SITRANS LR250 two-wire 25 GHz radar level transmitter measures liquids and slurries in vessels up to 20 m (66 ft).

The LR250 is the easiest to install and quickest to configure on the market today. With its narrow beam and small antenna, SITRANS LR250 can be installed practically anywhere on your vessel.

The small horns (1.5” to 4” models) allow for installation in existing openings, and the concentrated high-frequency beam ensures minimal interference from the vessel walls.

The Quick Start Wizard guides you through programming the transmitter using a few key parameters, so the LR250 can be measuring in minutes. The transmitter can be programmed using the intrinsically safe handheld programmer, or remotely via HART® — without opening the transmitter lid and exposing the electronics to aggressive atmospheres.

Process Intelligence evaluates dynamic echo signals. It applies algorithms (based on field data collected from more than a million level measurement applications) to raw echoes, to produce accurate and reliable measurement readings. It can automatically ignore obstructions, and is the processor behind the advanced diagnostic tools, the Quick

Start Wizard, and automatic false-echo suppression. Sonic Intelligence significantly improves the measurement accuracy in low level vessels and low dielectric media.

Specifications

Frequency: 25 GHz (k-band)

Measurement Range: Minimum: 2” from the end of the horn; Maximum: 65 feet (20 m), depending on horn size

Non-repeatability: 0.2” (5 mm)

Dielectric Constant: >1.6, horn and application dependent

Output: 4 to 20 mA; Accuracy: ±0.02 mA

Failsafe: Programmable as high, low, or hold (loss of echo); NE 43 programmable

Power: 24 VDC nominal, 30 VDC max.

Display: Local graphic interface with Quick Start Wizard and echo profiles

Programming: SIMATIC PDM or Intrinsically safe infrared handheld

Communication: HART®; PROFIBUS PA optional

(Profile 3.0, Class B)

Process Conditions

Temperature: Ambient: -40° to 176° F; Process: -40° to 302° F at process connection with FKM O-ring

Pressure: 580 psi max., depending on temperature and process connection

Design

Enclosure: Die-cast aluminum, polyester powder-coated; Ingress Protection:

Type 4X/NEMA 4X, Type 6/NEMA 6, IP67, IP68; Cable Inlet: Two 1/2" NPT inlets; Process Connections: 1.5" or 2" NPT

Horn Antenna: Material: 316L Stainless steel; Sizes: 1.5", 2”, 3”, or 4” nominal

(40, 48, 75, or 95 mm); 4” (100 mm) optional horn extension; Threaded PVDF antenna for corrosive media

Approvals

General: CSAus/c, CE, FM, NE 21, NE 43, C-Tick

Radio: FCC, Industry Canada, Europe ETSI EN302-372, C-Tick

Hazardous Areas: Intrinsically Safe (barrier required): FM/CSA

Class I, Div 1, Groups A-D; Class II, Div 1, Groups E-G; Class

III T4; Non­Incendive: FM/CSA Class I, Div 2, Groups A-D T5;

Explosion­Proof: FM Class I, II, III, Div 1, Groups A-G, no barrier required.

Illinois, Indiana, Missouri, and Iowa

Phone: 800-953-7626 • 630-595-8400

Fax: 630-595-2386

Lesman Instrument Company www.lesman.com [email protected]

Wisconsin, and Upper Peninsula Michigan

Phone: 800-837-1700 • 262-923-1790

Fax: 262-923-1797

TWO-WIRE

PULSE RADAR

41

Nominal

Horn Size

1.5”

2”

3”

4”

Horn

OD

Horn

Height

Beam

Width

1.57”

A

3.93” 19°

1.88”

B

5.18” 15°

2.94”

C

6.48” 10°

3.73”

D

8.64” 8°

Measuring

Range

32.8’

65.6’

65.6’

65.6’

Ordering Instructions

Make one selection from each table section below. A complete catalog number will look like this: 7ML5431-_ _ _ _ 0 - _ _ _ _

Model Selection Guide

Description

Please submit orders to: Siemens Industry Inc, c/o Lesman Instrument Company.

Catalog

Number Price

SITRANS LR250 Two-Wire 25GHz Pulse Radar

Process 316L SS, PTFE Emitter, FKM Seal

Connect 316L SS, PTFE Emitter, FFKM Seal

Process 1.5” NPT Taper (ANSI/ASME B1.20.1) [1]

Connect. 2” NPT Taper (ANSI/ASME B1.20.1)

Type 2” ASME, 150 Lb

3” ASME, 150 Lb

4” ASME, 150 Lb

7ML5431- $1810.00

0 _ _ _ _- 497.00

1 _ _ _ _- 701.00

_ AA _ _- 0.00

_ AD _ _- 60.00

_ BA _ _- 240.00

_ BB _ _- 365.00

_ BC _ _- 426.00

Commun- 4-20 mA, HART® (Startup at <3.6 mA) ication PROFIBUS PA

_ _ _ 20-

Enclosure Aluminum, Epoxy Paint, 2 x 1/2” NPT Inlets 0 _ _ _

0.00

_ _ _ 10- 194.00

0.00

Antenna 1.5” Horn

2” Horn (Fits ASME Nozzles)

3” Horn (Fits ASME Nozzles)

4” Horn (Fits ASME Nozzles)

1.5” Horn with 100 mm Extension

2” Horn with 100 mm Extension

3” Horn with 100 mm Extension

4” Horn with 100 mm Extension

Approvals General Purpose CE, CSA, FM, FCC

Intrinsically Safe CSA/FM, FCC [2]

Non-Incendive CSA/FM, FCC

Explosion Proof FM [3]

_ A _ _

_ B _ _

_ C_ _

_ D _ _

_ E _ _

_ F _ _

_ G _ _

_ H _ _

_ _ A _

_ _ B _

_ _ D _

_ _ H _

0.00

0.00

0.00

0.00

121.00

121.00

121.00

121.00

0.00

194.00

0.00

226.00

Pressure 7.5 PSI (0.5 bar) Max. Pressure Rating

SIL2 [4] Functional Safety, SIL 2 Compliance Cert

Accessories English User Manual

Handheld Programmer, IS

HART® Modem, USB

_ _ _ 1

, Z-C20

A5E32220602

7ML1930-1BK

7MF4997-1DB

0.00

109.00

73.00

159.00

663.00

Don’t forget to order a handheld programmer and a manual. (Quick-start guide included with each unit.)

Siemens radar application datasheet required with any SITRANS LR250 order. See www.Lesman.com/datasheets.

Model Selection Guide

Description

Please submit orders to: Siemens Industry Inc, c/o Lesman Instrument Company.

Catalog

Number Price

7ML5431- $1810.00

SITRANS LR250 Two-Wire 25GHz Pulse Radar

Connect

Commun- ication

2” NPT Threaded PVDF Antenna

4-20 mA, HART® (Startup at <3.6 mA)

PROFIBUS PA

4PA _ _-

_ _ _ 20-

_ _ _ 10-

Enclosure Aluminum, Epoxy Paint, 2 x 1/2” NPT Inlets 0R _ _

0.00

194.00

0.00

Approvals General Purpose CE, CSA, FM, FCC

Intrinsically Safe CSA/FM, FCC [2]

Non-Incendive CSA/FM, FCC

Explosion Proof FM [3]

Pressure Rating per Pressure/Temperature Curves

SIL2 [4] Functional Safety, SIL 2 Compliance Cert

Accessories English User Manual

Handheld Programmer, IS

HART® Modem, USB

_ _ A _

_ _ B _

_ _ D _

_ _ H _

_ _ _ 2

, Z-C20

A5E32220602

7ML1930-1BK

7MF4997-1DB

0.00

194.00

0.00

226.00

0.00

109.00

73.00

159.00

663.00

See page 96 for

SIMATIC PDM software.

Note: It is considered good engineering practice to provide redundant disparate level technologies for overfill protection of storage tanks (per

API 2350 standard). Call Lesman for point level solutions to complement your continuous level transmitter choice.

Notes

[1] For 1.5” horn antennae only.

[2] Intrinsic safety barrier required.

[3] No IS barrier required. Available only with HART® communications option

[4] For HART models with general purpose or intrinsically safe approvals only.

42

RADAR

TANK LEVEL

Illinois, Indiana, Missouri, and Iowa

Phone: 800-953-7626 • 630-595-8400

Fax: 630-595-2386

Lesman Instrument Company www.lesman.com [email protected]

Wisconsin, and Upper Peninsula Michigan

Phone: 800-837-1700 • 262-923-1790

Fax: 262-923-1797

SITRANS LR250 Encapsulated Radar Transmitters

SITRANS LR250 FEA flanged encapsulated antenna for corrosives and harsh media.

Features

• 25 GHz high frequency

• Short blanking distance for improved minimum measuring range to 50 mm from the end of the horn — provides high accuracy of low and high levels, even with low dielectric media

• Graphical local user interface –displays echo profiles and diagnostic information, makes operation simple

• Insensitive to mounting location and obstructions, and less sensitive to nozzle interference

• Process Intelligence – Advanced signal processing for improved measurement reliability, and automatic false echo suppression of fixed obstructions

• Operational in minutes — infrared handheld programmer for local operation or SIMATIC PDM via HART® — without exposing the electronics to the environment

SITRANS LR250 HEA hygienic encapsulated antenna for sanitary applications.

Specifications

Frequency: 25 GHz (k-band)

Measurement Range: Minimum: 2” from the end of the horn; Maximum:

65 feet (20 m), depending on horn size

Non-repeatability: 0.2” (5 mm)

Dielectric Constant: >1.6, antenna dependent

Analog Output: 4 to 20 mA; Accuracy: ±0.02 mA

Failsafe: Programmable, High, low, or hold (loss of echo); NAMUR NE43

Measured Error: 0.118” (3mm) max. at >500 mm from sensor reference point: 1” (25mm) max. at < 500 mm from sensor reference point

Temperature Range: Process: -40° to 338°F (-40° to 170°C) at process connection; Ambient: -40° to 176°F (-40° to 80°C); Influence of ambient

temperature: < 0.003 %/K

Digital Output: HART version 5.1, Profibus PA 3.01, Foundation Fieldbus H1

Display: Local graphic interface with Quick Start Wizard and echo profiles

Programming: Intrinsically Safe Siemens handheld programmer, Infrared receiver; handheld HART communicator (375/475), PC with SIMATIC PDM,

Emerson AMS, Siemens SITRANS DTM (for connection into FDT, such as

PACTware or Fieldcare)

Power Supply: 4­20 mA/HART: Nominal 24 VDC (max. 30 V DC) with max.

550Ω; PROFIBUS PA: 15 mA; FOUNDATION Fieldbus: 20.0 mA

Design

Enclosure: Type 4X/NEMA 4X, Type 6/NEMA 6, IP67, IP68 polyester powdercoated aluminum, with two x 1/2” NPT cable inlets

Process Connections: FEA version: Flanged connection, raised face; 2”,

3:, 4:, 6” Class 150 ASME B16.5; HEA version: 2”, 3” & 4” Sanitary Clamp according to ISO 2852, DN 50/ 80/ 100 Aseptic/ Hygienic threaded, flanged, clamped, or union connections, Type F (50 mm) and Type N

(68 mm) Tuchenhagen Varivent; Hygienic lens surface finish: (Ra) 0.8 μm

Antenna: 316L stainless steel (1.4435 or 1.4404) and TFM 1600 PTFE Lens

Approvals

General: CSA, CE, FM, NE 21, RCM

Radio: FCC, Industry Canada and Europe ETSI EN 302-372, RCM

Hazardous Areas: Explosion Proof/ Intrinsically Safe: CSA/FM Class I, Div.

1, Groups A-D; Class II, Div. 1, Groups E-G; Class III T4;: CSA/FM Class I, Div.

1, Groups A- D; Class II, Div. 1, Groups E-G; Class III T4; Non-Incendive:

CSA/FM Class I, Div. 2, Groups A-D T5; INMETRO, NEPSI, IECEx/ATEX, GOST

Hygienic/Sanitary: HEA version only; EHEDG EL Class I, EL Aseptic Class I

Functional Safety: SIL-2 suitable in accordance with IEC 61508/61511

Ordering Instructions

Select one option from each table section below. A complete catalog number looks like this: 7ML5432 - _ _ _ _ _ - 0A_0.

Siemens requires a completed radar application datasheet with LR250 orders.

Download it from www.Lesman.com/datasheets/and include with your order.

Model Selection Guide

Description

SITRANS LR250 FEA Two-Wire 25GHz Pulse Radar

Process

2” Class 150 ANSI Flange

3” Class 150 ANSI Flange

Connection 4” Class 150 ANSI Flange

6” Class 150 ANSI Flange

Commun- ication

Approvals

Safety

Profibus PA

4-20 mA HART (Startup at <3.6 mA)

Foundation Fieldbus

Please submit orders to: Siemens Industry Inc, c/o Lesman Instrument Company.

Catalog

Number Price

7ML5432- $2611.00

General Purpose CE, CSA, FM, FCC

Intrinsically Safe CSA/FM, FCC

Non-Incendive CSA/FM, FCC

Explosion Proof CSA/FM, FCC

SIL 2 Safety Compliance Certification

0BF_ _-

0BG_ _-

0BH_ _-

0BJ_ _-

_ _ _ 10-

_ _ _ 20-

_ _ _30-

0AA0

0AB0

0AD0

0AH0

, Z-C20

241.00

366.00

429.00

474.00

208.00

0.00

338.00

0.00

208.00

0.00

242.00

109.00

Description

SITRANS LR250 HEA Two-Wire 25GHz Pulse Radar

Hygienic/

Sanitary

Approval

EHEDG EL Class I

EHEDG EL Aseptic Class I

EHEDG EL Class I & 3-A Sanitary

Process 2” Sanitary Clamp per ISO 2852

Connection 3” Sanitary Clamp per ISO 2852

4” Sanitary Clamp per ISO 2852

Commun- ication

Approvals

Safety

Profibus PA

4-20 mA HART (Startup at <3.6 mA)

Foundation Fieldbus

General Purpose CE, CSA, FM, FCC

Intrinsically Safe CSA/FM, FCC

Non-Incendive CSA/FM, FCC

Explosion Proof CSA/FM, FCC

SIL 2 Safety Compliance Certification

Catalog

Number Price

7ML5433- $2621.00

1 _ _ _ _-

2 _ _ _ _-

4 _ _ _ _-

_ AA _ _-

_ AB _ _-

_ AC _ _-

0.00

0.00

0.00

0.00

223.00

257.00

_ _ _ 10-

_ _ _ 20-

_ _ _30-

0AA0

0AB0

0AD0

0AH0

, Z-C20

194.00

0.00

316.00

0.00

194.00

0.00

226.00

109.00

See previous page for user manuals and programmers.

Illinois, Indiana, Missouri, and Iowa

Phone: 800-953-7626 • 630-595-8400

Fax: 630-595-2386

Lesman Instrument Company www.lesman.com [email protected]

Wisconsin, and Upper Peninsula Michigan

Phone: 800-837-1700 • 262-923-1790

Fax: 262-923-1797

BULK SOLIDS

RADAR LEVEL

43

Picking the Right Radar for Bulk Solids Level

Method

Range

Power

LR260

25 GHz pulse radar

98 feet (30 m)

Nominal 24 VDC, 30 VDC max,

4-20 mA

Profibus PA: 15.0 mA

LR460

24.2 to 25.2 GHz FMCW

Radar

328 feet (100 m)

100-230 VAC ±15%, 50/60

Hz, 6W (12A) or

24 VDC +25/-20% 6W optional

εr >1.4

LR560

78 GHz FMCW Radar

329 feet (100 m)

Nominal 24 VDCor

9 to 32 VDC(PROFIBUS)

Media Dielectric

Constant

Analog Output

Local Display

Communications and Programming

Enclosure

Process

Connections

Horn Antenna

Process

Conditions

Approvals

See Page

εr >1.6

εr >2.0

4-20 mA loop powered

Graphic LCD with bargraph and echo profile

HART®, Profibus PA, SIMATIC PDM,

Intrinsically safe handheld programmer, local operation

Polyester powder-coated aluminum

Type 4X/NEMA 4X, Type 6/NEMA 6, IP67, IP68

Two 1/2” NPT cable inlets

Universal: 2”, 3”, 4”, or 6” with integral

EasyAimer

2”, 3”, or 4” diameter horn, optional dust cover, optional 1/8” NPT purge connection

Ambient: -40° to 176° F;

Process: -40° to 392° F

General: CSA us/c, CE, FM

Radio: FCC, Industry Canada, European

(R&TTE), C-TICK

Hazardous Areas: CSA, FM, ATEX, IEC Ex

44

4-20 mA optically isolated

Alphanumeric LCD

HART®, Profibus PA, SIMATIC PDM,

Intrinsically safe handheld programmer, local operation

Polyester powder-coated aluminum

Type 4X/NEMA 4X, Type 6/NEMA 6, IP67

Two 1/2” NPT cable inlets

HART® communicator 375/475, SIMATIC

PDM, AMS, PACTware, Infrared receiver

Type 4X/NEMA 4X, Type 6/NEMA 6, IP68 with lid closed, 316L/1.4404 stainless steel

Universal: 3”, 4”, or 6” with integral EasyAimer Universal: 3”, 4”, or 6” with integral EasyAimer

3” or 4” diameter horn, optional dust cover, optional 1/8” NPT purge connection

Ambient: -40° to 149° F;

Process: -40° to 392° F

General: CSA us/c, CE, FM

Radio: FCC, Industry Canada, European

(R&TTE), C-TICK

Hazardous Areas: CSA, FM, ATEX, IEC Ex

45

4-20 mA

Graphic LCD, with bar graph for level

None required

Ambient: -40° to 176° F;

Process: -40° to 392° F

General: CSA

US/C

, CE, FM

Radio: Europe (R&TTE), FCC, Industry

Canada, C-TICK

FM/CSA Class II, Div. 1, Groups E–G; Class III

T4: FM/CSA Class I, Div. 2, Groups A–D, T4

46

LR560 ignores dust, reports true level

In a coal-fired power plant, the coal is transported from the yard to the silos on a conveyor system.

The process of dumping coal from the conveyed buckets into the silo creates a lot of dust.

One Lesman power plant customer had been using laser transmitters to detect the level of coal in their silos. But since the laser didn’t discriminate between the dust and the true level of the coal, they were experiencing false high levels, which forced unnecessary process shutdowns. They’d then have to override the system to get it back online.

Eager to end their shutdown issues, the customer considered switching to load cells, which are very accurate at measuring volume, but very costly. They would have needed to cut all the steel support members on their coal tanks, at a cost of nearly $100,000 per tank.

The customer agreed to put a Siemens LR560 radar unit on trial, and it worked flawlessly right away, providing true level readings regardless of the dusty environment.

At a cost of only $3,300 per silo, the customer was able to save roughly $750,000 and a significant amount of downtime for accurate level readings and the end of their forced shutdown issues.

Sensor design cures material buildup headaches

A local flour processing plant has more than 30 different storage tanks: outdoor holding tanks for when the grain comes off the rail cars, and indoor tanks for holding the wheat flour after processing.

When they first installed their level detection system 15 years ago, ultrasonics were the only available solution. Radar level systems for dry solids didn’t exist.

Their problem was the dust buildup on the ultrasonic transducer, which was mounted at the floor. When the sensors stopped seeing level, they’d come by and kick the transducer to knock the flour buildup off.

The sensor would start working again, and all was fine... till the next time.

The Siemens LR560’s lens antenna was designed specifically to resist material buildup, and includes a built-in air purge to keep the sensor face clean at all times.

After a one-week demonstration, the customer bought 10 LR560s for their processing plant, and has since recommended the devices to their end-user customers who were having similar level monitoring issues.

44

BULK SOLIDS

RADAR LEVEL

Illinois, Indiana, Missouri, and Iowa

Phone: 800-953-7626 • 630-595-8400

Fax: 630-595-2386

Lesman Instrument Company www.lesman.com [email protected]

Wisconsin, and Upper Peninsula Michigan

Phone: 800-837-1700 • 262-923-1790

Fax: 262-923-1797

SITRANS LR260 Radar for Dry Bulk Solids

Features

• Two-wire loop-powered radar for low cost of ownership

• Small antenna, narrow beam, flexible mounting locations, short and long ranges, excellent reflection properties on solids and low dielectric media

• Built-in Easy Aimer for optimal signal reflection

• Quick start Wizard guides you through basic function setup. Enhanced EDD with quick-start wizard for SIMATIC PDM

• Patented Process Intelligence differentiates between true media echoes and false echoes generated by obstructions

• Intrinsically safe programmer for local operation in hazardous areas; Digital communications with HART® and PROFIBUS PA

• Improved diagnostic messaging so you can define which errors are important and direct the error codes to where they are needed

New built-in timers let you schedule cleaning or replacement activities with automated alerts

Power your SITRANS

LR260 with a wireless radio. See page 129 for full details.

Ordering Instructions

Make a selection from each table section below. A complete catalog number will look like this: 7ML5424-0_ _ _0 - _ _ _0.

Don’t forget to order a handheld programmer and a manual. (One quick-start guide is included with each unit.)

Specifications

Measuring Principle: 25 GHz K-band pulse radar

Detectable Distance: 0.05 m (2”) minimum from end of horn

Measuring Range: 2” horn: 10 m (32.8 ft) max.; 3” horn: 20 m (65.6 ft) max.;

4” horn: 30 m (98.4 ft) max.

Media Dielectric Constant: εr >1.6, antenna and application dependent

HART® Output: 4 to 20 mA (±0.2 mA accuracy); Nominal 24 VDC; Fail signal:

3.6–23 mA or last value; Load: 230–600Ω; Line length: Multiwire, ≤1500 m

(4921 ft) max; Protocol: HART Version 5.1

PROFIBUS PA Output: Per IEC 61158-2, 15.0 mA; Profile V3.01, Class B

Accuracy: 25 mm (1”) from minimum detectable distance to 300 mm (11.8”);

Remainder of range: Greater of 10 mm (0.39”) or 0.1% span. Accuracy includes hysteresis and non-repeatability

Operating Conditions: Ambient temperature: -40° to 176° F; Process tempera­

ture: -40° to 392° F; Process pressure: 7.25 PSIG max (0.5 bar) standard, 43.5

PSIG (3 bar) optional with 176° F max temperature; Installation category:

1; Pollution degree: 4

Enclosure: Type 4X/NEMA 4X, Type 6/NEMA 6, IP67, IP68 rated, polyester powder-coated aluminum; Two 1/2” NPT conduit entries; 304 SS flange and horn; Process connections: 2”, 3”, 4”, and 6” universal flanges

Display: Graphic LCD, with bargraph representing level

Approvals: General: CSAUS/C, CE, FM; Radio: Europe (R&TTE), FCC, Industry

Canada, C-Tick; Hazardous: CSA/FM Class II, Div. 1, Groups E–G, Class III,

ATEX II 1D, 1/2D, 2D Ex tD A20 IP67, DP68 T 100° C

Programming: Local interface with quick-start wizard and echo profile displays; Siemens handheld programmer and infrared receiver; Intrinsically safe, ATEX II 1G EEx ia IIC T4, CSA/FM Class I, Div. 1, Groups A–D; HART® handheld; Siemens SIMATIC PDM Windows-based software

Note: It is considered good engineering practice to provide redundant disparate level technologies for overfill protection of storage tanks (per API

2350 standard). Call Lesman for point level solutions to complement your continuous level transmitter choice.

Model Selection Guide

Description

Please submit orders to: Siemens Industry Inc, c/o Lesman Instrument Company

Catalog

Number Price

Sitrans LR260 Two-Wire 25GHz Pulse Radar

Process Universal Flat Faced 3” (80mm)

Connect. Universal Flat Faced 4” (100mm)

Purge

Universal Flat Faced 6” (150mm)

Antenna 3” Horn, Fits 3” Nozzles

3” Horn, 100 mm Extension

3” Horn, 200 mm Extension

3” Horn, 500 mm Extension [1]

3” Horn, 1000 mm Extension [1]

4” Horn, Fits 4” Nozzles

4” Horn, 100 mm Extension

4” Horn, 200 mm Extension

4” Horn, 500 mm Extension [1]

4” Horn, 1000 mm Extension [1]

None

Purge (Self-Cleaning) Connection

Commun- 4-20 mA, HART® ication Profibus PA

Cable Inlet Two 1/2” NPT Cable Inlets

0 _ _ _

1 _ _ _

_ B _ _

Approvals General Purpose CSAus/c, FCC, CE, R&TTE _ _ A _

CSA/FM Class II, Div 1, Gr E-G, Class III _ _ B _

Pressure 43.51 PSI (3 bar) pressure rating in Bar

Rating 7.25 PSI (0.5 bar) maximum

_ _ _ 0

_ _ _ 1

LR260 Instruction Manual, HART 7ML1998-5KE03

LR260 Instruction Manual, Profibus 7ML1998-5KF01

Accessories Handheld Programmer, IS 7ML5830-2AJ

HART® Modem, USB

PTFE Dust Cover for 3” Horn

PTFE Dust Cover for 4” Horn

7MF4997-1DB

7ML1930-1BL

7ML1930-1BM

7ML5427- $2274.00

0B _ _ _-

0C _ _ _-

0D _ _ _-

270.00

270.00

348.00

_ _ F _ _-

_ _ G _ _-

_ _ H _ _-

_ _ J _ _-

0.00

126.00

246.00

608.00

_ _ K _ _- 1213.00

_ _ L _ _- 0.00

_ _ M _ _-

_ _ N _ _-

126.00

246.00

_ _ P _ _- 608.00

_ _ Q _ _- 1213.00

_ _ _ 00-

_ _ _ 10-

0.00

284.00

0.00

189.00

0.00

0.00

194.00

68.00

0.00

47.00

33.00

159.00

663.00

155.00

155.00

[1] Not available with Purge Connection option.

Illinois, Indiana, Missouri, and Iowa

Phone: 800-953-7626 • 630-595-8400

Fax: 630-595-2386

Lesman Instrument Company www.lesman.com [email protected]

Wisconsin, and Upper Peninsula Michigan

Phone: 800-837-1700 • 262-923-1790

Fax: 262-923-1797

BULK SOLIDS

RADAR LEVEL

45

Features

• 24 GHz FMCW 4-wire radar provides excellent reflection from solids

• Process Intelligence for advanced echo processing and quick, easy adjustment

• Extremely high signal-to-noise ratio yields high performance

• 328 ft (100m) range for long-range and difficult applications

• Built-in Easy Aimer for optimizing signal on sloped surfaces

• Self-guided quick start wizard for fast simple setup — in just eight parameters

• Program using infrared intrinsically safe handheld programmer or HART handheld device and SIMATIC PDM

• Dynamic TVT threshold automatically adjusts echo detection sensitivity depending on echo strength

SITRANS LR460 Radar for Bulk Solids Level

What Makes the LR460 Unique?

• Four-Wire Power, 24 GHz FMCW Radar Technology: High frequency radar provides a narrow beam angle, reducing side-wall path interference and false signals from internal obstructions in tall silos. Combined with 4-wire power, this results in extremely high signal-to-noise ratio, ensuring exceptional performance in long-range applications.

• Process Intelligence Echo Processing: Differentiates between true echoes from the material and false echoes generated by obstructions.

Dynamic threshold adjusts automatically to changing conditions in the vessel. The result is repeatable, fast and reliable measurement, even through severe dust.

• Digital Communications: HART®; PROFIBUS PA; Connectivity with commonly used communications buses makes for flexible networking with a DCS or PLC.

• Infrared Handheld Programmer: No need to open the device for programming. Intrinsically safe for hazardous areas. Make changes without interrupting your process or exposing electronics to the environment.

• Enhanced Electronic Device Description (EDD) with Quick Start

Wizard: One of the first instruments to have an Enhanced EDD file that can be used in configuration software, like SIMATIC PDM and

Emerson AMS. A number of new advanced features are built in, including, easy-to-use graphical Quick Start Wizard and the ability to save echo profiles. The quick start wizard is also available via the infrared handheld programmer.

Specifications

Frequency: 24.2 to 25.2 GHz FMCW radar

Range: 1.15 to 328 feet (0.35 to 100 m)

Medium: Dielectric constant εr>1.4

Dielectric constants table available on page 488.

Accuracy: Non­Linearity: Greater of 1” (25 mm) or 0.25% span; Non­Repeat­

ability: ≤ 0.4” (10 mm)

Analog Output: Optically isolated 4 to 20 mA, 600 Ω max load; Failsafe: MA signal programmable as high, low or hold (loss-of-echo)

Digital Output: Relay, NC or NO function, max. 50 VDC, 200 mA, rating 5 W

Communication: HART; PROFIBUS PA

Vessel Pressure: 7.25 psi (0.5 bar) max.

Temperature: Ambient for enclosure: -40° to

149° F; Process: -40° to 392° F

Enclosure: Diecast aluminum, IP67/Type 4X/NEMA 4X/ Type 6/NEMA6; Cable

Inlet: Two 1/2” NPT; Location: Indoor/outdoor; Installation category: II; Pol­

lution Degree: 4; Optional: PTFE dust cap, 1/8” NPT air purge connection

Horn Antenna: Universal flanges, 316L stainless steel, flat faced, with integral

Easy Aimer; 3”, 4” or 6” (80 mm, 100 mm, or 150 mm) mates with flange EN

1092-1, ASME B16.5, or JIS B2238 bolt pattern

Power Supply: 100 to 230 VAC, 6 W (12 VA) or 24 VDC, 6 W (optional)

Programming: Intrinsically safe handheld programmer, ATEX II 1G EEx ia,

IIC T4, CSA/FM Class I, Div. 1, Groups A-D T6 @ max. ambient temperature

104° F (40° C); HART® Handheld: HART Communicator 375; PC

Software: SIMATIC PDM

Local Display: Alphanumeric LCD for readout and entry

Approvals: General: CSAUS/C, CE, FM; Radio: European Radio

(R&TTE), Industry Canada, FCC; Hazardous Areas: CSA/FM

Class II, Div. 1, Groups E-G, Class III; ATEX II 1D, 1/2 D, 2D T85° C

Ordering Instructions

Make a selection from each table section below. A complete catalog number will look like this: 7ML5424-0_ _ _0 - _ _ _0.

Don’t forget to order a handheld programmer and a manual. (One quickstart guide included with each unit.)

Model Selection Guide

Description

Please submit orders to: Siemens Industry Inc, c/o Lesman Instrument Company

Catalog

Number Price

7ML5426- $3623.00

Sitrans LR460 Four-Wire 24GHz FMCW Radar

Process Universal Flat Faced 3” (80 mm)

Connect. Universal Flat Faced 4” (100 mm)

Universal Flat Faced 6” (150 mm)

Antenna 3” Horn, Fits 3” Nozzles

4” Horn, Fits 4” Nozzles

4” Horn, 200 mm Extension

0A _ _ _-

0B _ _ _-

0C _ _ _-

_ _ A _ _-

_ _ F _ _-

_ _ H _ _-

275.00

275.00

335.00

0.00

0.00

251.00

Purge None

Purge (Self-Cleaning) Connection

Commun- 4-20 mA, HART® ication Profibus PA

_ _ _ 00-

_ _ _ 10-

0 _ _ _

1 _ _ _

Power/ 100 to 230 VAC, Two 1/2” NPT Cable Inlets _ B _ _

Cable Inlet 24 VDC, Two 1/2” NPT Cable Inlets _ D _ _

Approvals General Purpose CSAus/c, FCC, CE, R&TTE _ _ A0

CSA/FM Class II, Div 1, Gr E-G, Class III _ _ B0

Accessories English Instruction Manual

Handheld Programmer, IS

HART® Modem, USB

PTFE Dust Cover for 3” Horn

PTFE Dust Cover for 4” Horn

7ML1998-5JM02

7ML5830-2AJ

7MF4997-1DB

7ML1930-1BL

7ML1930-1BM

0.00

289.00

0.00

199.00

0.00

0.00

0.00

153.00

55.00

159.00

663.00

155.00

155.00

Get LR460 full specs, manuals, quick-start guides, and tech tips at Lesman.com/get/lr460.php

Note: It is considered good engineering practice to provide redundant disparate level technologies for overfill protection of storage tanks (per API

2350 standard). Call Lesman for point level solutions to complement your continuous level transmitter choice.

46

BULK SOLIDS

RADAR LEVEL

Illinois, Indiana, Missouri, and Iowa

Phone: 800-953-7626 • 630-595-8400

Fax: 630-595-2386

Lesman Instrument Company www.lesman.com [email protected]

SITRANS LR560 78GHz Radar for Bulk Solids

Features

• 78GHz frequency allows for a narrow 4° beam width

• Virtually unaffected by dust, vapor, pressure, or temperature

• Installs almost anywhere on top of a silo, and can even measure cone area

• Short wavelength for excellent reflection, even on highly sloped surfaces

• Lens antenna with built-in air purge feature resists material and dust build-up

• 2.5" antenna fits into almost any tank opening or nozzle

• Quick-start wizard gets the transmitter up and operational in minutes

• Local display interface for pushbutton programming diagnostics

Wisconsin, and Upper Peninsula Michigan

Phone: 800-837-1700 • 262-923-1790

Fax: 262-923-1797

Nozzle location

Extreme dust? No problem. Siemens two-wire, loop-powered SITRANS LR560 is a state-of-theart transmitter for continuous solids level measurement. The LR560 is the first radar transmitter on the market to operate at the 78 GHz frequency. It has an exceptionally narrow 4° beam, short wavelength and a unique non-clogging lens antenna.

The narrow beam angle means the transmitter can be installed practically anywhere on the top of a silo and still achieve accurate readings. Its small size and 2.5" lens antenna allow the unit to be installed on any existing nozzle or tank opening. To set the LR560 on a correct angle, you can easily add an aiming flange.

The traditional problems of noisy signals due to the standpipe or nozzle are now eliminated.

Wider beam angles typical of lower frequency radars can have difficulty measuring the cone area of a silo. They tend to see the sides of the silo and miss the true level reading in the cone area. Not so with the LR560. Since the narrow beam can be aimed into the cone, the LR560 can measure it effectively.

The other critical aspect of a 78 GHz radar is its short wavelength. All solids have an angle of repose that causes the transmit signal to split into two returning paths, one direct and one indirect, leading to complicated signal and measurement drift. The high frequency of 78 GHz minimized this issue. The short wavelength yields exceptional reflection from sloped solids, even without aiming, and less skip. Less skip means more signal and better reliability.

Look!!! No horn for material to build up on!

The SITRANS LR560 is the first radar to have a lens antenna, designed from the start to be highly resistant to material buildup. It comes standard with an air purge which blows directly across the lens face in a circular path. Most LR560s in dry solid applications will require little to no maintenance or cleaning.

Do you prefer buttons for programming or an infrared handheld? With the LR560, you can use either one. A quickstart booklet comes with the unit, and can be stored in the transmitter lid for use in the field, though most users don't require the paper guide. The graphical quick start wizard on the display makes the LR560 easy to program.

You also have the option of configuring the transmitter and viewing echo profiles using Siemens SIMATIC PDM, PACTware, or Emerson AMS software. SITRANS LR560 models are available with HART®, PROFIBUS PA, or Foundation™ Fieldbus protocols.

It's avialable in two versions, one for 40 meters and process temperatures to 212° F, one for

100 meters and 392° F. Designed for rugged field use, the LR560 is approved for hazardous conditions. The stainless steel enclosure is rated IP68, and the encapsulated electronics cup is easily replaceable.

• Beam angle is the width of the cone, where the energy density is half of the peak energy density

• The peak energy density is directly in front of and in line with the antenna

• A signal is transmitted outside the beam angle, so false targets can be detected

Aimer Adjustment

With 78 GHz frequency, aiming is rarely required for signal optimization. Still, proper aiming will improve your ability to measure material in the cone of your vessel.

Need a backup level alarm for overfill protection? Call Lesman for point level solutions.

Illinois, Indiana, Missouri, and Iowa

Phone: 800-953-7626 • 630-595-8400

Fax: 630-595-2386

Lesman Instrument Company www.lesman.com [email protected]

Wisconsin, and Upper Peninsula Michigan

Phone: 800-837-1700 • 262-923-1790

Fax: 262-923-1797

BULK SOLIDS

RADAR LEVEL

47

Universal Flat-Faced Flange 3" Aimer Flange 4” or 6" Aimer Flange

Specifications

Measurement Principle: 78 GHz FMCW radar level

Detectable Distance: 15.75” to 131 feet (400 mm to 40 m) or

15.75” to 328 feet (400 mm to 100 m) from reference point

Output: Analog: 4 to 20 mA; Communications: HART standard,

PROFIBUS PA or Foundation Fieldbus; Fail­safe: Programmable as high, low or hold, Loss of Echo, NAMUR NE43 programmable

Accuracy: Greater of 1" or ±0.25% range from minimum detectable distance to full range

Ambient Operating Temperature: -40° to 176° F

Media Conditions: Dielectric constant >2.0; Process temperature:

40 m version: -40° to 212 ° F; 100 m version: -40° to 392 ° F

Enclosure: 316L/SS, M20x1.5” conduit entry, or 1/2" NPT via adapter; with PEI or PEEK lens; Degree of protection: Type 4X/

NEMA 4X, Type 6/NEMA 6, IP68 with lid closed

Display: Graphic LCD, with bargraph representing level

Process connections: 3”, 4”, or 6” universal flat-faced flanges in 304 or 316L stainless steel; Aimer flanges: 3”, 4”, or 6” polyurethane powder-coated cast aluminum

Power Supply: 4­20 mA/HART: Nominal 24 VDC (max. 30 VDC) with max. 550W, PROFIBUS PA/Foundation Fieldbus: 13.5 mA, 9 to 32 VDC, per IEC 61158-2

Approvals: General: CSAUS/C, CE, FM; Radio Europe (R&TTE),

FCC, Industry Canada, C-TICK; Hazardous: FM/CSA Class II, Div.

1, Groups E-G, Class III, T4, Class I, Div. 2, Groups A-D, T4

Programming: Intrinsically safe Siemens programmer: ATEX, CSA/

FM Class I, II, III, Div. 1., Gr. A-G, T6 Ta=50C; HART® communicator:

Model 375/475; PC with SIMATIC PDM, AMS, or PACTware; Local graphical display with quick start wizard and echo profiles

Notes

(1) Universal flat flange with integral aimer rated to 248° F when used with pressure rating option 1 (7.5 PSIG max.)

No power? No problem!

Power your SITRANS LR560 radar level transmitter from a wireless radio’s battery on a scheduled, periodic, intermittent basis for true wireless performance. With it, you can sample 3x per hour with a 3 month battery life.

The Banner D5 is a 150 mW node radio in a metal enclosure with a dome antenna. It is intrinsically safe for use in Div 1 locations.

D5 Performance Node Radio 20178 $1475.00

Visit Lesman.com for more on Banner wireless I/O systems.

This SITRANS LR560 is available from Lesman stock, ready to ship to you within 24 hours!

4” Flat Flange, Integral Aimer, 4-20 mA Output, HART Interface, CSA/FM for

Hazardous Environments, Removable Local Display Interface

7ML5440-0HA00-0AB2 .......................$2702.00

Ordering Instructions

Select one option from each table section below.

A complete catalog number looks like this: 7ML5440 - _ _ _ _ _ - _ _ _ _.

Model Selection Guide

Please submit orders to: Siemens Industry Inc, c/o Lesman Instrument Company

Description

SITRANS LR560: Two-Wire 78GHz Radar Transmitter,

Stainless Steel Enclosure, 1x1/2" NPT Cable Inlet

Measuring

Range

Process

Connection

(See Note 1)

131 Feet Max Range, -40° to 212° F

329 Feet Max Range -40° to 392° F

3" (80mm) Universal Flat Flange, 304 SS

4" (100mm) Universal Flat Flange, 304 SS

6" (150mm) Universal Flat Flange, 304 SS

3" (80mm) Universal Flat Flange, 316L SS

4" (100mm) Universal Flat Flange, 316L SS

6" (150mm) Universal Flat Flange, 316L SS

3" (80mm) Flat Flange, Integral Aimer

4" (100mm) Flat Flange, Integral Aimer

6" (150mm) Flat Flange, Integral Aimer

Catalog

Number

7ML5440-

0 _ _ _ _-

1 _ _ _ _-

_ AA00

_ BA00

_ CA00

_ DA00

_ EA00

_ FA00

_ GA00

_ HA00

_ JA00

Price

$2298.00

0.00

897.00

0.00

105.00

156.00

68.00

168.00

220.00

0.00

105.00

156.00

Pressure

Rating

Output/

Interface

Agency

Approvals

Local

Display

Options

7.5 PSIG Max (0.5 bar g)

40 PSIG Max (3 bar g)

4-20 mA and HART

Profibus PA

Foundation Fieldbus

CSA, CE, FM General Purpose

CSA/FM Hazardous Environments

None

Removable Local Display Interface

Stainless Steel Tag: 16 Characters

0 _ _ _

1 _ _ _

_ A _ _

_ B _ _

_ C _ _

_ _ A _

_ _ B _

_ _ _ 1

_ _ _ 2

, Z-Y15

Accessories

Infrared Hand Programmer, IS

LR560 Sun Shield Cover

Printed LR560 User Manual, English

7ML1930-1BK

7ML1930-1FK

A5E34647946

159.00

150.00

55.00

Unit ships with electronic manual and quick-start guide. Order printed manual separately.

0.00

68.00

0.00

202.00

328.00

0.00

105.00

0.00

194.00

18.00

48

GUIDED WAVE

RADAR LEVEL

Illinois, Indiana, Missouri, and Iowa

Phone: 800-953-7626 • 630-595-8400

Fax: 630-595-2386

Lesman Instrument Company www.lesman.com [email protected]

Wisconsin, and Upper Peninsula Michigan

Phone: 800-837-1700 • 262-923-1790

Fax: 262-923-1797

SmartLine SLG700 Guided Wave Radar Level Transmitter

Features

• 0.4 to 50 m range

• Two-wire, loop-powered 4-20 mA transmitter with HART or Foundation

Fieldbus communications

• Accuracy greater of ±3 mm or 0.03% of measured distance

• Integral dual seal design for safety based on ANSI/NFPA 70-202 and ANSI/

ISA 12.27.01

• Automatic temperature compensation

• Comprehensive on-board diagnostic capabilities

• External zero, span, and configuration

• Modular dual-compartment design with polarity-insensitive electrical connections

• Compliant to SIL 2/3 requirements

Honeywell’s new SLG 700 guided wave radar level transmitters feature high performance Time Domain Reflectometry (TDR) level technology.

They provide high accuracy, stability, and applicability for level and interface applications.

SmartLine level transmitters feature the same powerful features with the other transmitters in the SmartLine family including modular design, polarity insensitivity, transmitter messaging, tamper notification, and integration with Experion® PKS.

Display Options

The SmartLine SLG series level transmitter’s modular design accommodates a basic alphanumeric LCD display or a unique advanced graphics

LCD display, either of which can be added in the field.

Basic Alphanumeric LCD Display Features

• 0°, 90°,180° and 270° position adjustments

• Ft, in, m, cm, or mm for level measurement units and corresponding units supported for volume and level rate

• Two lines, 16 characters alphanumeric display

Advanced Graphics LCD Display Features

• 0°, 90°,180° and 270° position adjustments

• Standard measurement units available. (Custom units applicable only for Foundation Fieldbus)

• Eight display screens with 3 formats are possible

• 128 by 64 dot matrix graphics display

• Large PV, bargraph and trend graph format supported. Echo stem plots with distance-to-product and distance-to-interface, configurable screen rotation timing

The local SmartLine Level display provides measurement values for the flange location, interface level, and Ullage level. The complete Echo curve is visible through your choice of user interface.

Diagnostics

SmartLine transmitters all offer digitally accessible diagnostics which aid in providing advanced warning of possible failure events minimizing unplanned shutdowns, providing lower overall operational costs

A new online SmartLine Application and Validation Tool (AVT) addresses one of the most common issues involved in ordering and implementing level transmitters — the proper specification of the correct level transmitter for your application.

The AVT intelligently guides you through the engineering process and electronically captures and documents the choices and inputs. The AVT output also serves as input to the Honeywell order management system, to ensure correct input of the transmitter model and the advantage of a transmitter with configuration parameters already specified to match your targeted tank application. Errors are eliminated and the engineering effort is preserved from start to finish.

Try it yourself at https://levelconfig.honeywellsmartline.com/

Modular Design

To help contain maintenance and inventory costs, all SLG series transmitters are modular in design supporting the userís ability to change electronic modules without affecting overall performance or approval body certifications.

Electronic modules may be swapped with another electronics module without losing in-tolerance performance characteristics.

With no performance effects, Honeywell’s unique modularity results in lower inventory needs and lower overall operating costs.

Configuration Tools

SmartLine offers the ability to configure the transmitter and display via three externally accessible buttons. Zero or span capabilities are also optionally available via these buttons, no display necessary.

SmartLine transmitters feature two-way communication and configuration capability between the operator and the transmitter via Honeywell’s field-rated Multiple Communication Configurator (MCT202 and MCT404).

SmartLine Level uses the standard unified DTM technology to access device parameters through the new Field Service Tool. Novice users are offered a guided experience to setup the device parameters while expert users can easily access the parameters desired through the well organized parameter pages. The Field Service Tool runs on any PC and avoids the need for a handheld configurator.

Honeywell’s Field Device Manager (FDM) Software and FDM Express are available for managing HART and FOUNDATION Fieldbus device configurations.

Specifications

Measuring Range: Liquids 164 feet (50 m)

Dielectric Constant: 1.4 minimum

Measuring Principle: Time Domain Reflectometry (TDR)

Measurements Performed: Level, volume, interface

Process Storage Tank Types: Vertical and horizontal cylinders, rectangular tanks, spheres, stilling / bypass wells

Available Probe Types: Rod, wire, coax

Illinois, Indiana, Missouri, and Iowa

Phone: 800-953-7626 • 630-595-8400

Fax: 630-595-2386

Lesman Instrument Company www.lesman.com [email protected]

Wisconsin, and Upper Peninsula Michigan

Phone: 800-837-1700 • 262-923-1790

Fax: 262-923-1797

GUIDED WAVE

RADAR LEVEL

49

Display: Basic: 2 lines by 16 characters LCD; Advanced: 128 x 64 pixels LCD; Output Units: Level: ft, in, m, cm, or mm; Volume: ft3, in3, US gal, Imp gal, barrels, yd3, m3, liters; Rate: ft/s, m/s, in/min, m/h, ft/min, in/sec

Output Process Variables: Level, percentage level, distance to level, level rate, volume, vapor thickness, vapor thickness %, vapor volume, distance to interface, interface level, interface level rate, % interface level, upper layer thickness, lower volume, upper volume

Maximum Allowable Working Pressure: 580 PSI

Supply Voltage, Current, and Load Resistance (HART): Voltage at HART terminal is 13.5 to 42.0 VDC (IS versions limited to 30

VDC) 0 to 1440Ω

Analog Output: Two-wire, 4 to 20 mA (HART transmitters only)

Output Failure Modes: Honeywell standard: 3.8–20.8 mA normal limits, ≤3.6 mA and ≥21.0 mA failure mode; NAMUR NE 43 compliance:

3.8–20.5 mA normal limits, ≤3.6 mA and ≥21.0 mA failure mode

Span: 15.75” to 164 feet (0.4 to 50 m)

Accuracy: Greater of 0.03% of level or ±0.12”; Repeatability: ±0.04”;

Resolution: ±0.04”

Ambient Temperature Effect: Greater of ±0.2mm/°K or ±30 ppm/°K of measured value

Damping Time Constant HART: Adjustable from 0 to 60 seconds in 0.1 increments; Default Value: 2 seconds

Electromagnetic Compatibility: IEC61326 (All transmitters),

NAMUR NE21 (HART and 4-20mA)

Lightning Protection: Leakage Current: 10 uA max @ 42.0 VDC 93C

Construction: Wetted materials: SS 316L; C-276 (future), PTFE

(future); O­Ring seals: Kalrez, Viton, EPDM, Buna-N; Electronic

housing: NEMA 4X, IP66, IP67 Pure polyester powder-coated low copper (<0.6%) aluminum; All stainless steel housing optional;

Mounting: Zinc-plated carbon steel or 304 SS angle bracket, or carbon steel flat bracket available with 2” pipe bracket. Remote mount housing available

Electrical Connections: 1/2” NPTF, M20 female

Wiring: Accepts up to 16 AWG (1.5 mm diameter)

Probe Sensors: Rod or Coax: 316L SS, C-276 (future), 1.3 to 20.7 feet length; Wire: 316SS, 3.3 to 164 feet length

Centering Disk: Rod and Wire: 316L SS 2” to 8” length

Digital Communications: HART 7 protocol or FOUNDATION Fieldbus ITK 6.0.1 compliant. All transmitters have polarity insensitive connection

Approvals and Certification

International Approvals: ATEX, IECex, SAEc, InMETRO, NEPSI

CSA: Explosion Proof with intrinsically safe output: Class I, Div 1, Gr

A-D; Class I, Zone 0/1; Dust Ignition proof: Class II, Division 1, Gr E-G;

T4, Class II Zone 21; Intrinsically safe: Class I, II, III, Div 1, Gr A-G; T4,

Class 1 Zone 0; Nonincendive with intrinsically safe output: Class I,

Div 2, Gr A-D; T4,Class I, Zone 0/2; Enclosure: Type 4X/ IP66/ IP67

FM: (With intrinsically safe probe) Explosion proof: XP-IS Class I, Div

1, Gr A-D, T4, Class 1, Zone 0/1; Dust Ignition proof: DIP-IS Class

II, Div 1, Gr E-G, T4, Zone 21, Probe: Zone 20; Intrinsically safe: IS

Class I, II, III, Div 1, Groups A-G, T4, Class l, Zone 0; Nonincendive:

NI-IS Class I, II, III, Div 2, Groups A-G, T4, Class l, Zone 2; Enclosure:

Type 4X/ IP66/ IP67

SIL 2/3 Certification: IEC 61508 SIL 2 for non-redundant use and

SIL 3 for redundant use according to EXIDA and TUV Nord Sys

Tec GmbH & Co. KG per: IEC61508-1: 2010; IEC 61508-2: 2010;

IEC61508-3: 2010.

Other Certifications Available: NACE MRO175, MRO103, ISO15156;

Steam Boiler Certification; Pressure Equipment Directive (PED); CE

Mark; CRN Registration

Ordering Instructions

Make one selection from each table section below. Follow the availability column down and check any restriction letters or notes to be sure the unit is available. A finished catalog number looks like this:

SLG720-_ _ _ _ _ _ _ M_ _ _ _ _ - _ _ _ _ - _ - _ _ _ - _ _ _ _ _ -A- _ _ _ - _ _ ,_ _ - 00000

Model Selection Guide

Description

Guided Wave Radar Level Transmitter

Probe Rod, 8mm Dia., 2000 mm Segments

Rod, 12mm Dia., 2000 mm Segments

Rod, 8mm Dia., 500 mm Segments

Rod, 8mm Dia., 1000 mm Segments

Rod, 12mm Dia., 500 mm Segments

Rod, 12mm Dia., 1000 mm Segments

Wire, Single 4mm Dia.

Wire, Single 4mm Dia., Max 300 mm Nozzle

Probe End None

Weighted

Disk None

2” 316L SS Centering Disk

3” 316L SS Centering Disk

4” 316L SS Centering Disk

6” 316L SS Centering Disk

8” 316L SS Centering Disk

Seal

Material

Probe

Length

Flange

Viton/Fluorocarbon Elastomer (-30° to 150°C)

Kalrez 6375 (-20° to 200°C)

EPDM (-40° to 120°C)

Buna-N (-30°to 120°C)

Metric Units, Length in 100mm Increments

Enter Length from 400 to 50000 mm

ANSI B16.5, 316L SS, 1.5” Class 150# RF

ANSI B16.5, 316L SS, 2” Class 150# RF

ANSI B16.5, 316L SS, 3” Class 150# RF

ANSI B16.5, 316L SS, 4” Class 150# RF

ANSI B16.5, 316L SS, 6” Class 150# RF

ANSI B16.5, 316L SS, 8” Class 150# RF

Approvals None Required

CSA Approved

Transmitter

Housing

Aluminum, 1/2” NPT Connection

Aluminum, 1/2” NPT Conn., Lightning Protection

316 SS, 1/2” NPT Connection

316 SS, 1/2” NPT Conn., Lightning Protection

Output

Indicator and

Interface

4-20 mA and HART Communications

Foundation Fieldbus Communications

No Indicator or Buttons

No Indicator, External Zero/Span Buttons

Basic Indicator

Indicator, External Zero/Span/Config Buttons

Advanced Indicator

Advanced Indicator, External Config Buttons

Measurement Type

Output

Limits

Tagging

Standard Level

Interface Level

Flooded Interface Level

Honeywell Std, Fail High >21.0 mA

Honeywell Std, Fail Low <3.6 mA

Write Protect, Honeywell Std, Fail High >21.0 mA

Write Protect, Honeywell Std, Fail Low <3.6 mA

Write Protect, Fieldbus or Profibus Limits

None

One Wired SS Tag (4 lines x 26 char/line)

Conduit

Plugs/

Adapters

None

1/2” NPTM to 3/4” NPTF 316 SS Conduit Adapter

1/2” NPT 316 SS Certified Conduit Plug

Certificates Calibration Test & Cert of Conformance (F3399)

Certificate of Origin (F0195)

FMEDA (SIL 2/3) Certification (FC33337)

Catalog

Number Price

SLG720 $2750.00

SRA _ _ _ _

SRB _ _ _ _

SRH _ _ _ _

SRJ _ _ _ _

SRM _ _ _ _

SRN _ _ _ _

SWA _ _ _ _

SWB _ _ _ _

_ _ _ N _ _ _

_ _ _ W _ _ _

65.00

65.00

115.00

105.00

125.00

110.00

35.00

144.00

0.00

55.00

_ _ _ _ 00 _

_ _ _ _ S2 _

_ _ _ _ S3 _

_ _ _ _ S4 _

_ _ _ _ S6 _

_ _ _ _ S8 _

_ _ _ _ _ _ V

_ _ _ _ _ _ K

_ _ _ _ _ _ E

_ _ _ _ _ _ B

0.00

65.00

75.00

85.00

95.00

105.00

85.00

265.00

95.00

95.00

M _ _ _ _ _

AS1A-

AS2A-

AS3A-

AS4A-

AS6A-

AS8A-

0

B

A _ _

C _ _

E _ _

G _ _

_ H _

_ F _

_ _ 0-

_ _ A-

_ _ B-

_ _ C-

_ _ D-

_ _ E-

100 _ _

110 _ _

120 _ _

_ _ _ 1S-A

_ _ _ 2S-A

_ _ _ 3S-A

_ _ _ 4S-A

_ _ _ 5S-A

_ 0 _ _

_ 1 _ _

_ _ A0

_ _ A2

_ _ A6

F1

F5

FE

0.00

350.00

350.00

510.00

600.00

850.00

1265.00

0.00

26.00

0.00

75.00

603.00

677.00

70.00

402.00

0.00

59.00

201.00

281.00

258.00

339.00

0.00

540.00

540.00

0.00

24.00

24.00

24.00

24.00

0.00

26.00

0.00

212.00

67.00

37.00

26.00

26.00

50

GUIDED WAVE

RADAR LEVEL

Illinois, Indiana, Missouri, and Iowa

Phone: 800-953-7626 • 630-595-8400

Fax: 630-595-2386

Lesman Instrument Company www.lesman.com [email protected]

Wisconsin, and Upper Peninsula Michigan

Phone: 800-837-1700 • 262-923-1790

Fax: 262-923-1797

SITRANS LG200 Guided Wave Radar

Features

• Loop-powered guided wave radar transmitter for level and interface measurement

• Unaffected by change in density and dielectric properties — Accurately measures materials with a dielectric range of 1.4 and higher. Can even measure light hydrocarbons.

• Reliable, accurate measurement to 0.12”

• Easy setup – Three-button pushbutton configuration for quick setup. HART® communications for more advanced control and greater functionality

• Sixteen different probe types (see below): One instrument for many applications in a plant simplifies plant operations and results in cost savings (stocking parts, training operators and maintenance staff). Probe lengths up to 75 ft

• Reliable measurement on harsh applications with pressures from full vacuum to 6250

PSI and temperatures as high as 800 ° F

• Intrinsically safe, explosion-proof, and non-incendive approvals

Siemens’ SITRANS LG200 is an advanced loop-powered, guided wave radar level transmitter for liquids, slurries, interface, and bulk solids with a dielectric range of 1.4 and higher. It is unaffected by changes in process conditions, high temperatures and pressures, and steam. For short and extended applications, LG200 offers coaxial, single or twin rod probes, and single or twin cable probes up to 75 feet.

The wide selection of models and the echo processing software ensure reliable measurement in liquids with corrosive vapors, foam, saturated steam, high viscosity, surface agitation, high fill/empty rates, low tank levels and varying dielectric or density.

Guided wave radar combines time-domain reflectometry (TDR), equivalent time sampling (ETS), and modern low power circuitry. TDR uses pulses of electromagnetic energy to measure distances or levels.

When a pulse reaches a dielectric discontinuity created by the medium’s surface, part of the energy is reflected. The greater the dielectric difference, the greater the amplitude (strength) of the reflection.

Ready to order a SITRANS

LG200 system? Fill out Siemens

LG200 application datasheet at www.Lesman.com/datasheets and send it to Lesman for engineering review.

In the SITRANS LG200, a waveguide with a characteristic impedance in air is used as a probe. When part of the probe is immersed in a medium other than air, it creates a lower impedance (due to the increased dielectric.) When an EM pulse sent down the probe meets the dielectric discontinuity, it generates a reflection.

ETS is a critical key in the application of TDR-to-vessel level measurement. The high speed

EM energy (1000 ft/ ms) is difficult to measure over short distances at the resolution required in the process industry. ETS captures the EM signals in real time (nanoseconds), and reconstructs them in equivalent time (milliseconds), which is much easier to measure with today’s technology.

LG200 takes about eight scans per second, and each scan gathers more than 30,000 samples.

16 Different Probes Make LG200 Fit Almost Any Level Application

Probe Type

General purpose

Coaxial probes

Application

Liquids with dielectric as low as 1.4

High pressure 5000 psig

750° F at 2000 psig

Probe Type

Rigid

Flexible for liquids

Non-stick

Single rod probes

Application

Liquids and slurries with a dielectric ≥1.9 (>10 if away from tank wall)

Applications with severe coating and buildup, ranges up to 75 ft

High viscosity liquids High temperature, high pressure

Steam Saturated steam environments Sanitary

Interface Corrosion

Food and beverages, pharmaceuticals, semiconductors,

3A approval

Aggressive media

Overfill

Measures both upper liquid level and interface level

Measures 100% full point of a tank

High temperature, high pressure

Flexible for solids

Viscous materials

Bulk solids ranges up to 75 ft

Probe Type

Standard twin rod

Extended twin rod

Flexible twin rod

Twin rod probes

Application

For applications where buildup is possible. Dielectric ≥ 1.9

Dirty, viscous or low-dielectric media

Bulk solids

Dielectric constants table available on page 488.

Illinois, Indiana, Missouri, and Iowa

Phone: 800-953-7626 • 630-595-8400

Fax: 630-595-2386

Lesman Instrument Company www.lesman.com [email protected]

Wisconsin, and Upper Peninsula Michigan

Phone: 800-837-1700 • 262-923-1790

Fax: 262-923-1797

GUIDED WAVE

RADAR LEVEL

51

Applications in Key Industries

Measurement in horizontal cylinders.

Measurement in side pipes/bypass.

Medium range solids

Applications with steam or ammonia

Condensed Specifications

Measurement Range: Up to 75 ft

Linearity: Coaxial/Twin rod probes: Greater of <0.1% of probe length or

0.1”; Single rod probes: Greater of <0.3% of probe length or 0.3”; Interface

models: <0.5”

Measured Error: Coaxial/Twin rod probes: Greater of ±0.1% of probe length or 0.1”; Single rod probes: Greater of ±0.5% of probe length or 12.7 mm

(0.5”); Interface models: Upper layer: ±1”; Interface layer: ± 1” (clean distinct interface required)

Resolution: ±0.1”

Repeatability/Hysteresis: <0.1”

Output: 4 to 20 mA with HART digital signal

Communication: HART®

Programming: Button menu-driven data entry and system security; Local:

Three button, menu driven data entry with security; Remote: SIMATIC PDM via HART®

Power: 11 to 36 V DC

Enclosure: Type 4/NEMA 4/IP65 epoxy-coated aluminum, two 1/2” NPT cable inlets

Process Conditions: Ambient temperature: -40° to 176° F; Process temperature:

-320° to 800° F, probe dependent; Vessel pressure: Full vacuum to 6250 PSIG, probe dependent

Approvals: CSAus/c, CE, FM, 3A for general service; CSA, FM, ATEX for hazardous areas

Applications with turbulence

Liquid interfaces

SITRANS LG200 is compatible with

Windows-based SIMATIC PDM software for configuration and management.

See page 96 for software and communication accessories.

52

INVENTORY BY

SERVO GAUGE

Illinois, Indiana, Missouri, and Iowa

Phone: 800-953-7626 • 630-595-8400

Fax: 630-595-2386

Lesman Instrument Company www.lesman.com [email protected]

Wisconsin, and Upper Peninsula Michigan

Phone: 800-837-1700 • 262-923-1790

Fax: 262-923-1797

Inventory Control by Servo Gauging

Safety, reliability, and efficiency are universal concerns in the world of tank and intermediate storage. As prices and performance demands increase, the concept of total cost of ownership grows in importance.

Honeywell Enraf servo tank gauges offer optimized operations, enhanced safety, and a high degree of accuracy and reliability.

Honeywell Enraf servo systems deliver optimized measurement performance in any environment. Characteristic features are robust design and modular construction which let you add precisely those functionalities that your specific operating environment demands.

All Honeywell Enraf instruments and systems combine the latest technology with decades of experience reflected in user-friendly programmability for fast and simple startup.

Industry Approvals

Honeywell Enraf systems are approved worldwide by national weights and measures authorities and by customs and excise services. Honeywell Enraf servo tank gauging systems have set the standard for officially certified automatic tank gauging systems such as those approved by the American

Petroleum Institute and International Standardization Organization for the installation and operation of automatic tank gauging systems, and the International Organization of Legal Metrology and the Netherlands

Metrology Institute for the performance requirements relating to those systems.

Honeywell Enraf tank gauging systems receive type approval in conformity with national legislation and in accordance with the OIML recommendations. The automatic gauging systems and their accuracy are tested both before and after installation to ensure reliability, reproducibility, sensitivity and integrity of the instruments. These instruments easily exceed the requirements for overfill protection equipment and therefore are approved to be used in any kind of safety system.

Reliable Measurement Principle

Honeywell Enraf servo tank gauging systems are based on a proven measurement concept. Level measurement is performed by a displacer, a strong and flexible measuring wire, a measuring drum, force transducer and servo motor.

The weight of the displacer ensures that the wire is constantly tensioned, even on turbulent liquid surfaces, avoiding measurement errors caused by displacer drift.

The level measurement is performed by lowering the displacer on the measurement wire down into the liquid. It will be partly immersed because the displacer has a greater density than the liquid. In accordance with Archimedes’ principle, the weight of the displacer will diminish by the weight of displaced product. The weight of the displacer less the weight of displaced product — the apparent weight — then serves as unit of measurement to determine the displacer position, and measure the level of the liquid.

A highly accurate and advanced force transducer continuously measures the apparent weight of the displacer. That apparent weight can be simply programmed by software settings. In the equilibrium state, the weight of the partly immersed displacer will be in balance with the programmed weight as measured by the force transducer.

When the storage tank is emptied, as the liquid level starts to fall, the upward force on the displacer will decrease. The force transducer will actuate the servo controller so the measuring drum unwinds, allowing the displacer to descend until it again becomes partly immersed in the liquid and its apparent weight corresponds to the programmed weight.

Measuring Interface Levels

Besides measuring the liquid level, Honeywell Enraf’s 854 XTG and 854

ATG gauges can also be used for measuring the interface level between two liquids. For this purpose, the servo motor, actuated by an interface command, lowers the displacer to the point where its apparent weight corresponds to the programmed interface setpoint of the second liquid.

This functionality is particularly useful to determine the sediment level or the interface level between water and tank liquid or between two liquids.

Intelligent Software

Honeywell Enraf servo gauges are fully microprocessor controlled tank level gauges. All instrument functions are driven by means of intelligent software, which filters out possible imperfections thereby optimizing measurement accuracy.

In addition, the software compensates for hydrostatic deformation of the tank. This method, without a standpipe, ensures an extremely high degree of accuracy.

Simple Installation and Fast Startup

Honeywell Enraf servo gauging systems are designed for easy installation. Electrical cabling and mechanical installation are quick and simple to perform. The systems are attached by a 2” mounting flange.

In order to simplify the startup, calibration and servicing procedures as much as possible, the portable Honeywell Enraf terminal can be interfaced with an optical infrared port. This device enables these jobs to be performed quickly, while bypassing the central system.

Illinois, Indiana, Missouri, and Iowa

Phone: 800-953-7626 • 630-595-8400

Fax: 630-595-2386

Lesman Instrument Company www.lesman.com [email protected]

Wisconsin, and Upper Peninsula Michigan

Phone: 800-837-1700 • 262-923-1790

Fax: 262-923-1797

INVENTORY BY

SERVO GAUGE

53

Comparing Honeywell Enraf Servo Gauges

Description

Servo Gauge 854 ATG

As tank gauging has evolved, the series 854 ATG servo level gauge has become an industrial standard all over the world.

Very reliable, versatile and accurate automatic tank gauge with a minimum of moving parts, meeting all international standards, regulations and recommendations.

Servo gauge 854 XTG

Honeywell Enraf offers the 854XTGH servo gauge as a superior alternative to mechanical float and tape gauges or other low-cost level measuring devices. The 854XTG servo gauge offers the proven accuracies and performances of the

854 ATG, without the local display.

Measuring Range

Accuracy

Standard: 0–88 ft (0–27 m); Optional: 0–121 ft (37 m), 0–115 ft (0-35 m) with measuring wire up to 492 ft (150 m)

Level: ±0.016” (4 mm)

Density: ± 0.19 Lb/Ft 3 (3 Kg/m 3 )

Interface: ±0.08” (2 mm)

Temperature: ±0.18° F (0.1° C)

Sensitivity/Repeatability: ±0.004” (0.1 mm)

Level: ±0.04” (1 mm)

Density: ± 0.31 Lb/Ft 3 (5 Kg/m 3 )

Interface: ±0.08” (2 mm)

Temperature: ±0.18° F (0.1° C)

Sensitivity/Repeatability: ±0.004” (0.1 mm)

Wave Integration

Operating

Pressure

Programmable, three setpoints, between 0.5 s and 10 s

M/C versions: Up to 90 PSI (6 bar)

H version: Up to 600 PSI (40 bar) in accordance to PED

-40° to 149° F (-40° to 65° C)

Up to 90 PSI (6 bar)

Ambient

Temperature

Protection Class

Safety Rating

FM: Class I, Div 1, Groups B-D in accordance to ANSI/NFPA

70

ATEX: II 1/2 G EEx d IIB T6, EEx de IIB T6, EEx d [ia/ib] IIB T6 or

EEx de [ia/ib] IIB T6

Materials

NEMA 4/IP65 according to EN 60529

Housing: Chromatized-finish cast aluminum

Drum Compartment: M Version: Cast aluminum; C/H Versions: Stainless steel; Magnet Cap: Stainless steel

O-Rings: Drum cover Silicone FEP or NBR 70

FM: Class I, Div 1, Groups B-D in accordance to ANSI/NFPA

70

ATEX: II 1/2 G EEx d IIB T6, or EEx d [ia/ib] IIB T6

Housing: Chromatized-finish cast aluminum

Measuring Drum/Shaft: Stainless steel

O-Rings: Drum cover Silicone FEP or NBR 70

Power Supply

110/130/220 V (+10% to -20%) and 230 V (±15%), optional 65 V (+10% to -20%), also suitable for 240 V (+10% to -20%)

Frequency Variation: 50/60 Hz (+10%); Power Ratings: 25 VA, Imax=2A

Communications

Infrared transmission to portable Enraf terminal (PET), serial, ASCII coded, Bio-Phase Mark (BPM) modulated; Standard

Enraf fieldbus (GPU) protocol; Two-wire twisted pair cabling, >1500V isolating voltage; Lightning protection via isolating transformers; >150 dB common mode rejection

Options

Two SPDT 3-Amp alarm relay outputs; Density measurement; 4-20 mA level output (accuracy to ±0.1% full scale);

Input boards for spot RTD, VITO probes for average temperature and/or water measurement, HART® devices

(e.g., transmitters); Modbus RS-232 or RS-485 data transmission

To order a Honeywell Enraf servo gauging system, fill out the application datasheet from www.Lesman.com/datasheets/ and send it to Lesman for engineering review.

54

RADAR TANK

GAUGING

Illinois, Indiana, Missouri, and Iowa

Phone: 800-953-7626 • 630-595-8400

Fax: 630-595-2386

Lesman Instrument Company www.lesman.com [email protected]

Wisconsin, and Upper Peninsula Michigan

Phone: 800-837-1700 • 262-923-1790

Fax: 262-923-1797

SmartRadar FlexLine for Precision Tank Gauging

The ever increasing requirements on tank gauging systems are placing a premium on flexibility, expandability and quality. Quick installation, seamless communication, reliable measuring under all conditions, trouble-free service and operation are concepts that are now being taken for granted, But how often does one tank level measuring system satisfy these requirements effectively and combine security, reliability and unprecedented levels of accuracy?

Honeywell Enraf’s SmartRadar FlexLine tank gauging system successfully addresses all these requirements and guarantees cost control, smooth operation, environmental management and security.

SmartRadar FlexLine is a complete set of products and accessories for tank gauging that use cutting-edge radar and state-of-the-art signal processing technologies. Advanced digital signal processing technology, optimum connectivity and compact planar antennae make the SmartRadar FlexLine series the ultimate measuring system for tank gauging and custody transfer applications. It’s an ideal solution for stock management and administration, customs transfer, quality control, processing and operation.

The SmartRadar FlexLine measuring system is airtight, and the integrated display is intrinsically safe. All basic functions are instantly available through the flip-top display. The display can show basic parameters and 24-hour trends. In addition to the standard display, an extra display can easily be connected to the SmartRadar FlexLine.

SmartRadar FlexLine tank gauging systems come in three versions: FlexLine XP for the strictest custody transfer requirements, FlexLine HP for standard custody transfer and FlexLine AP for transit and intermediate storage tanks.

Enhanced functions include correction of the amplification factor, automatic amplification monitoring, zone-identification and ullage-correction. So, not only can the FlexLine be installed close to the tank wall, but objects and other elements that cause disturbances (like sealants) do not influence signal processing quality. Even a deviation in the diameter of the still-pipe length or clogging is compensated by EPS technology.

Complete digital signal processing technology

The SmartRadar FlexLine measuring system uses digital signal processing technology that eliminates the need for regular verification and calibration required by analog components.

Digital signal processing ensures that the highest levels of measuring quality and accuracy are attained from the date of installation, and maintained over long periods even under extreme conditions.

SmartRadar FlexLine’s digital signal processing technology also offers advanced diagnostics, including storage of vital component trend information. Diagnostics take place at parameter level, and the electronics are continually monitored at component level. The diagnostic monitoring functions support a proactive maintenance strategy and contribute to a further simplification of remote service.

Maximizing tank measurement area

Traditional tank gauging systems require a minimum innage of 30 to

50 cm (12” to 20”) for accurate measurement. The SmartRadar FlexLine possesses an accuracy down to levels of just 10 cm (4”). This high degree of accuracy also applies to measuring level in close proximity to the radar antenna. Traditional systems require ullage of 0.5 to 1 m (20” to 40”), Smart-

Radar FlexLine requires only 30 cm (12”).

Enhanced signal processing capabilities

Honeywell Enraf’s latest Enhanced Performance Signal (EPS) Processing makes it possible, even under the most difficult circumstances, to measure the level with extreme precision.

Open Communication

SmartRadar FlexLine systems are equipped with a broad set of communications protocols, including Honeywell Enraf’s field-proven Bi-Phase

Mark (BPM) communications, the de facto standard for field communication in tank terminals.

A comprehensive array of input/output (I/O) options also includes

SPDT alarm outputs. Field equipment, like pressure transmitters, HART instrumentation and VITO probes for temperature or spot measuring can be easily connected to the SmartRadar FlexLine.

Antennae for every field of application

In order to satisfy every application, the SmartRadar FlexLine series offers a wide range of antennae including traditional horn and rod antennae and flat or planar antennae for long term stability and excellent measuring performances.

The practical advantages of these multi-feeder antennae are their small size, the perfect control of the microwave indicator and the measurement of the antenna contamination. The ability to automatically recognize

Illinois, Indiana, Missouri, and Iowa

Phone: 800-953-7626 • 630-595-8400

Fax: 630-595-2386

Lesman Instrument Company www.lesman.com [email protected]

Wisconsin, and Upper Peninsula Michigan

Phone: 800-837-1700 • 262-923-1790

Fax: 262-923-1797

RADAR TANK

GAUGING

55

Three SmartRadar FlexLine Models to Fit Your Application

SmartRadar FlexLine XP: Weights and

Measures­Approved for Custody Transfer

SmartRadar FlexLine HP:

API­Compliant for Custody Transfer

SmartRadar FlexLine AP:

API­Compliant for Intermediate Storage

With an accuracy of ±0.4 mm (±0.016”), the

FlexLine Xtreme Performance is the top of the range. FlexLine XL complies with all essential standards for tank level measurements, including API, ISO, OIML and NMi. The XL tank gauging system, with a measuring range up to 75 m

(246 ft), lends itself to Weights-and-Measures regulated customs transfer.

SmartRadar FlexLine High Performance offers all the necessary functions for tank gauging in large bulk storage tanks. The accuracy of ±1 mm

(±0.04”) makes the FlexLine HP ideal for custody transfer. It has a measuring range of 75 m (246 ft) and satisfies all essential standards for tank level measuring, including API, ISO, and IML.

With an accuracy of ±3 mm (±0.12”), the

SmartRadar FlexLine Advanced Performance is the right choice for transit and shipment tanks. The AP system satisfies OIML R85 and

API’s recommended practices. Depending on the antenna type, the measuring range of the

FlexLine AP is 75 m (246 ft). antenna contamination is essential toward trusting the maximum reliability of the measuring equipment at all times.

The antennae are further enhanced by the absence of mechanical alignment equipment, standard on parabola or horn antennae. The result is a reflection signal that ensures a higher degree of accuracy.

Planar antennae can be used on tanks for level measuring free space or measuring on still pipes. A special hinged antenna allows assembly through a

6” opening, so you can measure close to the tank wall without losing reliability and accuracy. Honeywell Enraf’s tank separator enables easy installation of all antennae.

SmartRadar components and accessories also include antennae for applications in open spaces, still pipes and in areas of high pressure and high temperatures.

Antenna Types

Free space antennae: Planar free space antennae can be mounted on a roof nozzle or manhole for most applications.

Still pipe antennae: For stilling well applications. Performs reliably, even on rusty and contaminated stilling wells. No cone adapters needed.

Free space wide array linear planar (WALP) antennae: For applications where the antenna position is close to the tank shell. The hinged construction of the T06 enables mounting through a standard 6” nozzle.

Measuring Range: 131 feet (40 m)

Temperature Range: -40° to 212° F (-40° to 100° C)

Operating Pressure: To 87 PSI (6 Bar)

Wetted Parts: AISI 316 stainless steel and FEP

High temperature antennae: For free space applications at high temperatures and aggressive chemical elements.

Measuring Range: 59 feet (18 m)

Temperature Range: -40° to 446° F (-40° to 230° C)

Operating Pressure: To 87 PSI (6 Bar)

Wetted Parts: AISI 316 stainless steel, and reinforced TFM

High pressure cone antennae: For use in spheres and bullet tanks at high pressures. The reference pin function allows safe verification without opening the tank. The tank separation provides an approved and safe process seal. A 1” or 4” optional full bore ball valve can also be included.

Measuring Range: 131 feet (40 m)

Temperature Range: -330° to 482° F (-200° to 250° C)

Operating Pressure: To 580 PSI (40 Bar)

Wetted Parts: AISI 316 stainless steel, PTFE, and CF8M for optional ball valve

SmartView display (option)

FlexConn expansion modules

Flame-proof enclosure with hinged cover

Antenna

Connection

Condensed Specifications

Measuring Range: Up to 75 m (246 ft); Resolution: 0.1 mm (0.001 ft)

Accuracy: FlexLine XP: ± 0.4 mm (0.016”); FlexLine HP: ± 1 mm (0.04”); FlexLine

AP: ± 3 mm (0.12”)

Measuring Method: FMCW Synthesized Pulse Reflectometer, X-band (9.538

GHz) R&TTE FCC compliant

Ambient Temperature: -40°to 149° F (-40° to 65° C)

Safety Approvals: ATEX, CD, IECEx, OIML, CB Scheme, FM, CSA, FCC, API,

NMi, TÜV certified Overfill Protection

Explosion Proof: FM/CSA: Class I, Div 1, Groups C–D according to ANSI/

NFPA 70 ; ATEX: II 1/2 G Ex d IIB T6 or Ex d [ia] IIB T6 or Ex de IIB t6 or Ex de

[ia] IIB T6; IEC: EX ZONE 0/1, Ex d IIB T6 or Ex d [ia] IIB T6 or Ex de IIB t6 or

Ex de [ia] IIB T6

Materials: IP66/IP67, NEMA 4X hard anodized aluminum alloy housing, NBR

70 O-rings and 3/4” NPT cable entries

Power Supply: Autoselect 65–240 VAC (+10% to -15%)

50/60 Hz, or 24–65 VDC (+10% to -15%), Rated 15W max typical (23W with options)

Expansion Modules: Five module slots available.

Interfaces for VITO temperature/water sensor, HART communications, HART communications with density calculation, and SPDT alarm contact outputs

To order a Honeywell Enraf precision tank gauging system, fill out the application datasheet from www.Lesman.com/datasheets/ and send it to Lesman for engineering review.

56

RADAR TANK

GAUGING

Illinois, Indiana, Missouri, and Iowa

Phone: 800-953-7626 • 630-595-8400

Fax: 630-595-2386

Lesman Instrument Company www.lesman.com [email protected]

Wisconsin, and Upper Peninsula Michigan

Phone: 800-837-1700 • 262-923-1790

Fax: 262-923-1797

SmartRadar for Storage Tank Measurement

SmartRadar 970 ATi

SmartRadar 971 LTi

High precision radar for custody transfer tank level gauging under Weights &

Measures regulations

Output

Standard Modbus or GPU via RS-232C or RS-485, 4-20 mA with HART protocol,

(accuracy of analog level signal 0.1% full scale), Foundation Fieldbus

Advanced radar for tank level gauging with custody transfer accuracy

Accuracy

±0.016” (±0.4 mm) ±0.04” (±1 mm)

Signal Processing Advanced digital signal processing (ADSP) Advanced digital signal processing (ADSP)

Standard Modbus via RS-232C or RS-485,

4-20 mA with HART protocol, (accuracy of analog level signal 0.1% full scale)

SmartRadar 973 LT

For radar tank gauging in intermediate liquid storage applications

±0.12” (±3 mm)

Digital signal processing (DSP)

RS-232C or RS-485 for indoor use or radio modem connection, 4-20 mA with HART protocol, (accuracy of analog level signal

0.1% full scale)

Input

VITO probes for average temperature,

HART devices (e.g., pressure transmitters)

VITO probes for average temperature or water bottom measurement, HART devices

Range

Resolution

Measuring Principle

Ambient Temperature

0-131 ft (0-40 m)

0.004” (0.1 mm)

FMCW synthesized pulse radar, 9.25 GHz to 10.75 GHx (X-band)

-40° to 140° F (-40° to 60° C)

Approvals

FM/CSA: Explosion proof Class I, Div 1, Groups B-D (per ANSI/NFPA 70); ATEX explosion proof also available.

Construction

Chromatized, polyurethane-coated aluminum alloy housing, rated NEMA 4/IP67. FPM (Viton) wetted O-rings, Buna-N non-wetted

O-rings, three 3/4” NPT cable entries

Power Supply

Power Rating

Lightning Protection

Communication

Alarm Relay Output

Infrared Connector

110- 240 VAC 45/65 Hz or 24-64 VDC; Autoselect -20% to +10%

Basic 10 VA, 25 VA max with options

Full galvanic isolation

Serial ASCII coded, BiPhase Mark modulated (BPM) standard Enraf fieldbus (GPU protocol)

Two SPDT, galvanically isolated

Serial communication with Portable Enraf Terminal (PET)

Compatible Antenna Types

Planar free space antennae: Can be mounted on a roof nozzle or manhole for most applications.

Still pipe antennae: For stilling well applications. Performs reliably, even on rusty and contaminated stilling wells.

No cone adapters needed.

Free space wide array linear planar (WALP) antennae: For applications where the antenna position is close to the tank shell. The hinged construction of the T06 enables mounting through a standard 6” nozzle.

Measuring Range: 131 feet (40 m)

Temperature Range: -40° to 212° F (-40° to 100° C)

Operating Pressure: To 87 PSI (6 Bar)

Wetted Parts: AISI 316 stainless steel and FEP

High temperature antennae: For free space applications at high temperatures and aggressive chemical elements.

Measuring Range: 59 feet (18 m)

Temperature Range: -40° to 446° F (-40° to 230° C)

Operating Pressure: To 87 PSI (6 Bar)

Wetted Parts: AISI 316 stainless steel, reinforced TFM

High pressure cone antennae: For use in spheres and bullet tanks at high pressures. The reference pin function allows safe verification without opening the tank. A 1” or 4” full bore ball valve can also be included.

Measuring Range: 131 feet (40 m)

Temperature Range: -330° to 482° F (-200° to 250° C)

Operating Pressure: To 580 PSI (40 Bar)

Wetted Parts: AISI 316 stainless steel, PTFE, and CF8M for optional ball valve

To order a Honeywell Enraf tank gauging system, fill out the application datasheet from www.Lesman.com/datasheets/ and send it to Lesman for engineering review.

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
