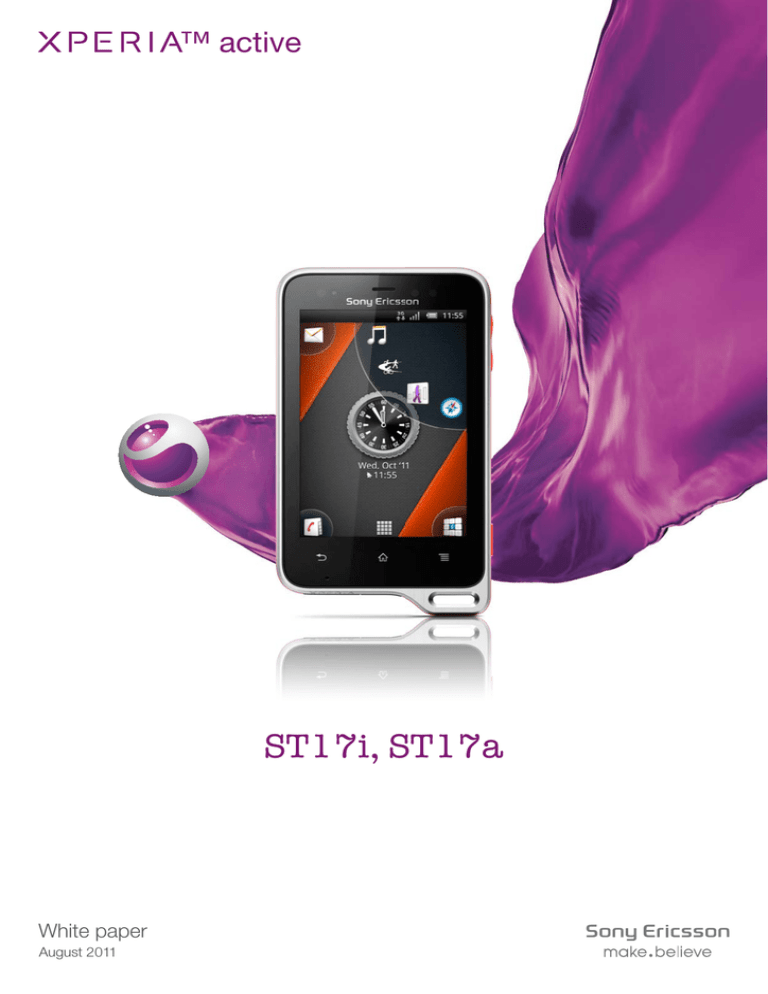

™ active
ST17i, ST17a
White paper
August 2011
White paper | Xperia™ active
Purpose of this document
Sony Ericsson product White papers are intended to give an overview of a product and provide details in
relevant areas of technology.
Document history
Version
August 2011
Third released version
Version 3
Sony Ericsson Developer World
For the latest Sony Ericsson technical documentation and development tools, go to
www.sonyericsson.com/developer.
This document is published by Sony Ericsson
Mobile Communications AB, without any
warranty*. Improvements and changes to this
text necessitated by typographical errors,
inaccuracies of current information or
improvements to programs and/or equipment
may be made by Sony Ericsson Mobile
Communications AB at any time and without
notice. Such changes will, however, be
incorporated into new editions of this document.
Printed versions are to be regarded as temporary
reference copies only.
This White paper is published by:
Sony Ericsson Mobile Communications AB,
SE-221 88 Lund, Sweden
www.sonyericsson.com
© Sony Ericsson Mobile Communications AB,
2009-2011. All rights reserved. You are hereby
granted a license to download and/or print a
copy of this document.
Any rights not expressly granted herein are
reserved.
*All implied warranties, including without
limitation the implied warranties of
merchantability or fitness for a particular
purpose, are excluded. In no event shall
Sony Ericsson or its licensors be liable for
incidental or consequential damages of any
nature, including but not limited to lost profits or
commercial loss, arising out of the use of the
information in this document.
Third released version (August 2011)
Publication number: 1252-9122.1
2
August 2011
White paper | Xperia™ active
Table of Contents
Product overview ........................................................................................................4
Xperia™ active .......................................................................................................4
Sony Ericsson signature features ..........................................................................6
Facts – dimensions, weight, performance and networks ......................................7
Application overview list ........................................................................................9
Categorised feature list ........................................................................................10
Technologies in detail ...............................................................................................12
Device-to-device communications (local) ...........................................................12
Bluetooth™ wireless technology ......................................................................12
Wi-Fi® ...............................................................................................................13
DLNA Certified™ (Digital Living Home Alliance) ...............................................14
ANT+ .................................................................................................................14
Messaging ...........................................................................................................15
MMS (Multimedia Messaging Service)..............................................................15
Email .................................................................................................................15
Positioning – location based services .................................................................16
Provisioning (OMA CP) ........................................................................................16
Multimedia (audio, image and video) ...................................................................17
Synchronisation (OMA DS, EAS, Google Sync™) ...............................................19
Web browser .......................................................................................................19
Trademarks and acknowledgements ..................................................................20
3
August 2011
White paper | Xperia™ active
Product overview
Xperia™ active
The Xperia™ active is the ultimate smartphone for an active life. The following are its key features:
• Water and dust resistant with exchangeable covers
• Scratch-resistant, multi-touch screen with wet finger tracking
• Reality Display with Mobile BRAVIA® Engine
• On-screen heart rate/pulse monitoring with ANT+*
• Capture your adventures in HD video
Compact, resistant and adaptable
Dust resistant, water resistant (IP67)**, and protected with an aluminium frame, Xperia™ active is optimized for your active lifestyle. If you missed a text or two while you were in the pool, you can scroll
through your messages on the scratch-resistant mineral glass display, even if your fingers are wet. Pocket
sized and optimised for one-hand use, it is optimised for your active life on the go. Xperia™ active can
reinvent itself with a range of exchangeable covers – go back to black in the outback, or show off with
fashionable white at work or at a party.
Your personal trainer
Xperia™ active is pre-loaded with sports apps to boost your performance. Open the iMapMyFitness app,
then hit the high peaks and monitor your progress. The ANT+ feature lets you gather data from a heart rate
monitor. If that’s not enough, you’ve got a compass and GPS navigation to keep you on the right track.
With all your fitness apps in one corner, and loads more available from Android Market™***, Xperia™
active is your on call personal trainer that you can count on to help achieve your fitness goals.
Vibrant display for a vibrant life
Film your practice laps in 720 pixel resolution with HD video at 30 frames per second. Or watch mortal
combat come to life in true colour on the sharp detail 3-inch HGVA Reality Display with Mobile BRAVIA®
Engine. Grab that stunning sunset view while making camp with friends at the top of the peak. It’s just a
snap away with the 5 megapixel auto focus camera (with photo flash).
Complete kit for your kitbag
Don’t train without the right equipment. Choose a phone with all the gear. The included kit comes with an
extra white cover; a stereo headset and attachable ear hooks for pounding the pavements; an arm case
and wrist strap to keep your phone close; a micro USB cable for managing your media; a 2G memory card
for all your entertainment.
* Requires ANT+ compliant chest belt for heart rate and pulse monitoring. Not included in the kit.
** It is according to International Protection Rating. IP67, implies that when the phone is correctly mounted
to maintain its dust and water resistant qualities, there is no ingress of dust (digit 6) and that ingress of
water (digit 7) in harmful quantity shall not be possible if the device is dropped in fresh water under up to 1
m of submersion for a duration of maximum 30 minutes.
4
August 2011
White paper | Xperia™ active
*** Applications from Android Market™ vary widely in size, from less than 100 KB for small utilities to 3-4
MB for full games, music player applications, or other major offerings. The average size – if a representative
selection of useful and fun applications is selected – is about 1 MB. This means that, on average, more
than 100 applications can be downloaded and used on your phone without negatively impacting performance. With Android Market™ application readily available in the phone, it is easy to delete and later reinstall
infrequently used applications.
5
August 2011
White paper | Xperia™ active
Sony Ericsson signature features
Xperia™ active comes with a range of Sony Ericsson features as standard. Below is a summary of the key
signature features.
Sony Ericsson Timescape™
The place to meet your friends
The Timescape™ application manages all your communication with one person in one place. You can
effortlessly browse by category your Facebook™*, Twitter™, email and text communications, as well as
view your photos. Now everything is all together and in chronological order, so you don't have to open different applications to see what's going on.
Sony Ericsson infinite button
Everything you want from everywhere
Tap the infinite button in the Timescape™ application and smart filter each category of communication by
person. For example, when viewing a text message from a friend in Timescape™, tap the infinite button to
view a list of all chat messages with that friend.
Sony Ericsson Sync
Your mobile life on the web
Synchronise your phone data using Sony Ericsson Sync so that you always have a backup. While you’re
at it, match your phone contacts with your Facebook™ contacts. All your synchronised phone data is right
at your fingertips and in your account on www.sonyericsson.com.
Sony Ericsson Local connectivity
More control over your media
Using Sony Ericsson Local connectivity, you can exercise more control over how media files get transferred and stored. For example, you can select MTP mode to transfer files if you want to limit the risk of
data corruption or select MSC mode if you want to have more control over the data storage.
Sony Ericsson Home screen application
The place you call Home
Customise your Home screen with widgets, shortcuts, folders, themes, wallpaper and other items.
Where’s best for you? Email top right? Music player bottom left? You decide. With four extensions to your
Home screen, you’ve got plenty of space to put things where you want. Just remember to flick left or right
to find them.
* This service is not available in all markets.
6
August 2011
White paper | Xperia™ active
Facts – dimensions, weight, performance and
networks
Operating system
Google™ Android™ 2.3 (Gingerbread)
Processor
1 GHz Qualcomm Snapdragon MSM8255
Size
55 x 92 x 16.5 mm
Weight
110.8 grams
Available colours
Orange band with black back cover – white extra cover in
the kit
White band with black back cover – white extra cover in the
kit
Main screen
Colours
16,777,216 colour TFT
Resolution
320x480 pixels
Size (diagonal)
3 inches
Scratch resistant
Yes
Input mechanisms
Text input
Quick text (Zi), On-screen QWERTY and 12 key
Touch screen
Capacitive (multi-touch), with Wet finger tracking
Touch gesture
Yes – multi-touch
Memory
Internal phone storage
1 GB (up to 320 MB user-accessible memory)
RAM
512 MB
Expansion slot
microSD™, up to 32 GB
Camera
Camera resolution
5 megapixel
Digital zoom
8x
Video zoom
16x
Video recording
Yes – HD 720p
Sensors
Accelerometer
Yes
Proximity sensor
Yes
Ambient light sensor
Yes
Pressure sensor
Yes
7
August 2011
White paper | Xperia™ active
Magnetometer
Yes
Networks
ST17i
UMTS HSPA 900 (Band VIII), 2100 (Band I)
GSM GPRS/EDGE 850, 900, 1800, 1900
ST17a
UMTS HSPA 800 (Band V), 1900 (Band II), 2100 (Band I)
GSM GPRS/EDGE 850, 900, 1800, 1900
Data transfer speeds
GSM GPRS
GSM GPRS: Up to 86 kbps
GSM EDGE
GSM EDGE: Up to 237 kbps
UMTS HSPA cat 6 (upload)
6 QPSK
Up to 5.8 Mbps
UMTS HSPA cat 8 (download)
8 QPSK
Up to 7.2 Mbps
Talk time (GSM)
Up to 4 hours 53 min*
Standby time (GSM)
Up to 351 hours* (for 2.9 mA)
Talk time (UMTS)
Up to 5 hours 31 min* (for 181 mA)
Standby time (UMTS)
Up to 335 hours* (for 3.04 mA)
Music listening time
Up to 25 hours
Video playback time
Up to 8 hours 30 min (for 113 mA)
Battery
Removable – 1200 mAh
* Values are according to GSM Association Battery Life Measurement Technique.
NOTE: Battery performance may vary depending on network conditions and configurations, and phone
usage.
8
August 2011
White paper | Xperia™ active
Application overview list
Sony Ericsson signature applications
Sony Ericsson Album application
Sony Ericsson Home screen application
Sony Ericsson Music player
Sony Ericsson Timescape™
Sony Ericsson services
Backup and restore
Mac iSync plug-in
Mac Media Sync
Media Go
PC Companion
PlayNow™ Arena Client
PlayNow™ service*
Qriosity™ (SOLS)
TrackID™ application
Sony Ericsson Sync
Walk Mate
Other applications
eCompass™
Facebook™*
iMapMyFitness
Torch application
Wisepilot™ turn-by-turn navigation (free trial version)*
* This service is not available in all markets.
9
August 2011
White paper | Xperia™ active
Categorised feature list
Music
Internet
Album art
Bluetooth™ stereo (A2DP)
Media player
Music tones (MP3/AAC)
PlayNow™ service*
Sony Ericsson Music Player
TrackID™ music recognition*
xLOUD™
Android Market™**
Bookmarks
Google™ search*
Google Voice™ Search*
Pan & zoom
Web browser (WebKit)
Communication
Messaging
Design
Call list
Conference calls
Facebook™ application*
Facebook inside Xperia™ 2.0
Google Talk™*
Noise Shield
Polyphonic ringtones
Skype™***
Sony Ericsson Timescape™
Speakerphone
Twitter™ (Timescape™
integration)*
Vibrating alert
Conversations
Email
Google Mail™*
Instant messaging
Multimedia messaging (MMS)
Predictive text input
Sound recorder
Text messaging (SMS)
Auto rotation
Dust and water resistant
Four-corner Home screen
Keyboard (on-screen, 12 key)
Live wallpaper
Picture wallpaper
Pressure sensor****
Reality Display with Mobile
BRAVIA® Engine
Screenshot capturing
Swipe to write
Touch screen
Wet finger tracking
Camera
3D sweep panorama
5 megapixel camera
8x digital zoom
Auto focus
Aperture f/2.6
Face detection
Flash/Photo light
Flash/LED
Geo tagging
HD video recording (720p)
Image stabiliser
Red-eye reduction
Scene detection
Self-timer
Send to web
Smile detection
Sweep panorama
Touch capture
Touch focus
Video light
Video recording
10
August 2011
White paper | Xperia™ active
Entertainment
Organiser
Connectivity
3D games
Accelerated Adobe Flash Video
Health mate
iMapMyFitness
Media browser
Motion gaming
Radio (FM radio with RDS)
Radio (FM)
Sony Entertainment Networks*
Video streaming
Video viewing
Walk Mate
YouTube™*
Alarm clock
Calculator
Calendar
Document readers
eCompass™
E-Manual
Flight mode
Google Calendar™*
Google Gallery 3D*
Infinite button
Phonebook
Setup guide
Stopwatch***
Tasks***
Timer***
Torch functionality
Widget manager
3.5 mm audio jack
aGPS*
ANT+
Bluetooth™ technology
DLNA Certified™
Google Latitude™*
Google Maps™ for Mobile
Google Maps™ with Street View*
Media Transfer Protocol support
Micro USB support
Modem
Native USB tethering
Synchronisation via Facebook™*
Synchronisation via Google
Sync™*
Synchronisation via Sony
Ericsson Sync
Synchronisation with computer
Synchronisation via Microsoft®
Exchange ActiveSync®
USB mass storage
USB High speed 2.0 support
USB support
USB OTG
Wi-Fi®
Wi-Fi® Hotspot functionallity
Wisepilot™ turn-by-turn
navigation*
* This service is not available in all markets.
** Applications from the Android Market™ vary widely in size, from less than 100 KB for small utilities to 34 MB for full games, music player applications, or other major offerings. The average size, if a
representative selection of useful and fun applications is selected, is about 1 MB. This means that, on
average, more than 100 applications can be downloaded and used on your device without negatively
impacting performance. With the ready availability of the Android Market™ application in the phone, it is
also very easy to delete and later reinstall infrequently used applications.
*** This feature is not pre-installed.
**** Enhance your GPS navigation by for example measuring the height levels or to be used as barometer
to provide you your local weather forecast.
11
August 2011
White paper | Xperia™ active
Technologies in detail
NOTE: The information outlined below is general and levels of compliance to standards and specifications
may vary between products and markets. For more information, contact Sony Ericsson Developer World
or your Sony Ericsson contact person where applicable.
Device-to-device communications (local)
Bluetooth™ wireless technology
Bluetooth™ profiles supported
Advanced Audio Distribution Profile V1.2
Audio/Video Remote Control Profile V1.0
Handsfree Profile V1.5
Headset Profile V1.1
Object Push Profile V1.1
Phonebook Access Profile V1.0
Core version and supported
core features
Bluetooth™ 2.1 + EDR
Connectable devices
Products supporting at least one of the profiles above
More information:
www.sonyericsson.com/developer
www.bluetooth.com
12
August 2011
White paper | Xperia™ active
Wi-Fi®
Supported standards
IEEE 802.11b/g/n and Wi-Fi
Connectable devices
Wi-Fi access points
Frequency band
2.4 GHz
Data transmission rate
Up to 72 Mbps
Security
CCMP (AES)
EAP-TLS
EAP-TTLS/MSCHAPv2
Open Authentication
PEAPv0/EAP-MSCHAPv2
PEAPv1/EAP-GTC
Shared Authentication
TKIP
WEP 64 bit
WEP 128 bit
WPA Personal and WPA2 Personal
WPA Enterprise and WPA2 Enterprise
Encryption
WEP, TKIP and AES
Power save
WMM-UAPSD
QoS, WMM
13
August 2011
White paper | Xperia™ active
DLNA Certified™ (Digital Living Home Alliance)
Supported Device Classes
M-DMS – Mobile Digital Media Server
Media Types: Images
Summary: The digital media server exposes the media
files in your phone to a Wi-Fi® network. The media files can then be
accessed from other DLNA Certified™ clients.
+PU+
Media Types: Images and Video
Summary: Play Media in the phone on other device, such as TV and
so on (2 box push). The feature +PU+ is integrated in Gallery
application.
Supported Bearers
Wi-Fi®
DRM Support
The Sony Ericsson DLNA Certified™ implementation does not support DRM-protected content.
ANT+
Your phone is equipped with ANT+, which is a function that allows you to connect your phone to different
devices within fitness and sports area, for example heart rate monitors.
ANT+ makes your phone compatible with the heart rate monitor. An application is needed for rendering
the data that the ANT+ device gathers, for example "iMapMyFitness".
14
August 2011
White paper | Xperia™ active
Messaging
MMS (Multimedia Messaging Service)
According to OMA Multimedia Messaging Service v1.0 + SMIL
Email
Bearer type (IP)
GPRS, EGPRS, UMTS
Character sets
BIG5 Traditional Chinese
ISO-2022-JP Japanese
ISO-8859-1
ISO-8859-2 Eastern Europe
ISO-8859-5 Cyrillic
ISO-8859-7 Greek
ISO-8859-9 Turkish
KOI8-R Cyrillic
Shift_JIS Japanese
USASCII
UTF-16
UTF-8
Windows® 1251 Cyrillic
Windows® 1252
Windows® 1254 Turkish
Windows® 1258 Vietnamese
Protocols
POP3 and IMAP4
Push email
Microsoft® Exchange ActiveSync® (EAS)
Secure email
SSL/TLS, both port methods (POPS/IMAPS) and
STARTTLS
HTML mail
Yes (read only)
More information:
www.sonyericsson.com/developer
www.openmobilealliance.org
15
August 2011
White paper | Xperia™ active
Positioning – location based services
Supported standards:
• 3GPP™ Control Plane location (incl. Emergency location)
• OMA Secure User Plane Location (SUPL) v1.0
• Qualcomm® GPSOneXtra™
Supported satellite systems:
GPS
GLONASS*
* NOTE: GPS and GLONASS are used together to calculate the position. With both systems active, the
accuracy and robustness of the positioning is better in most conditions. The usage of GLONASS as an
additional system is transparent both to users and developers, and the benefits are automatically available
to applications currently using the Satellite Positioning API (“GPS Provider” in Android terminology).
Provisioning (OMA CP)
OMA CP version 1.1
16
August 2011
White paper | Xperia™ active
Multimedia (audio, image and video)
Audio Playback
Audio Recording
Image Playback
Image Capture
Video Playback
Video Recording
Decoder format
Supported in file format
Audio decoding MPEG-1/2/2.5, audio
layer 3
MP3 (.mp3), 3GPP (.3gp),
MP4 (.mp4, .m4a)
AAC, AAC+, eAAC+
3GPP (.3gp), MP4 (.mp4)
AMR-NB, AMR-WB
3GPP (.3gp), MP4 (.mp4)
General MIDI (GM)
SMF (.mid)
Linear PCM 16bit
WAV (.wav)
OTA
OTA (.ota)
Ogg vorbis
Ogg vorbis (.ogg)
Encoder format
Supported in file format
AMR-NB, AMR-WB
3GPP (.3gp), MP4 (.mp4),
AMR (.amr)
AMR-NB, AMR-WB, AAC-LC stereo,
sample rate 48 kHz bit rate 128 kbps
3GPP (.3gp), MP4 (.mp4)
Decoder format
Supported in file format
1, 4, 8, 16, 24 and 32 bpp and RLE
encoded formats
BMP (.bmp)
Single and multi-frame, bitmap mask
support (GIF87a format and GIF89a
format)
GIF (.gif)
Joint Photographic Experts Group
JPEG (.jpg)
Portable Network Graphics Bitmap
mask support
PNG (.png)
Wireless Bitmap
WBMP (.wbmp)
Encoder format
Supported in file format
Joint Photographic Experts Group
JPEG (.jpg)
Decoder format
Supported in file format
MPEG-4 Visual Simple Profile,
Advanced Simple Profile Level 6
3GPP (.3gp), MP4 (.mp4)
H.264 High Profile Level 3.1
3GPP (.3gp), MP4 (.mp4)
H.263 Profile 0, Profile 3 Level 70
3GPP (.3gp)
Encoder format
Supported in file format
Video: H.263 Profile 0, H.264 Baseline
Profile
Audio: AAC-LC stereo, sample rate 48
kHz bit rate 128 kbps, AMR-NB
3GPP (.3gp), MP4 (.mp4)
17
August 2011
White paper | Xperia™ active
Audio/Video Streaming
Streaming transport
RTSP according to 3GPP™
HTTP streaming
DRM
DRM (Digital Rights Management) –
features the rights and copy protection
of downloaded content
OMA DRM 1.0
18
August 2011
White paper | Xperia™ active
Synchronisation (OMA DS, EAS, Google Sync™)
Google Sync™
Microsoft® Exchange ActiveSync® protocol version 2.5
Microsoft® Exchange ActiveSync® protocol version 12
OMA Data Synchronisation protocol versions 1.1.2 and 1.2
OMA Data Formats: vCard 2.1, vCalendar 1.0
Related information:
www.sonyericsson.com/developer
Web browser
Browser version
Android 2.3 Browser (Based on WebKit)
Navigation/rendering
Adobe™ Flash™ 10.3*
Full page PC rendering
Landscape/portrait rendering
Pan & Zoom
Search
Internet Search
Browser compliancy
CSS 2.0
CSS 2.1
CSS 3.0
DOM 2.0
DOM 3.0
HTML version 4.0
HTML version 5.0
JavaScript 1.7/ECMA-script 262 3rd edition
WebGL 1.0
XHTML Basic version 1.0
XHTML 1.1
Supported Device API
Geo-location API
Protocol Compliancy
Gzip
HTTP/1.1
OMA Download 1.0
TLS 1.0 and SSL 3.0
* Updates are distributed via Android market™.
Related information:
www.sonyericsson.com/developer
19
August 2011
White paper | Xperia™ active
Trademarks and acknowledgements
The Liquid Identity and Liquid Energy logos, PlayNow, TrackID, Xperia and Timescape are trademarks or
registered trademarks of Sony Ericsson Mobile Communications AB. Sony, "make.believe" and Mobile
BRAVIA Engine are trademarks or registered trademarks of Sony Corporation. Ericsson is a trademark of
Telefonaktiebolaget LM Ericsson.
The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by
Sony Ericsson is under licence. TrackID is powered by Gracenote Mobile MusicID. Gracenote and
Gracenote Mobile MusicID are trademarks or registered trademarks of Gracenote, Inc.
Google, Google Calendar, Google Gallery 3D, Google Latitude, Google Maps, Google Talk, Google
Search, Google Sync, Google Mail, Picasa, YouTube, Google Voice, Android and Android Market are
trademarks or registered trademarks of Google, Inc. Facebook is a trademark or registered trademark of
Facebook, Inc. Twitter is a trademark or a registered trademark of Twitter, Inc.
Wi-Fi is a trademark or registered trademark of the Wi-Fi Alliance. DLNA and DLNA Certified are
trademarks or registered trademarks of the Digital Living Network Alliance. microSD is a trademark or
registered trademark of SanDisk Corporation. XHTML is a registered trademark of the W3C.
Microsoft, Windows, and ActiveSync are either registered trademarks or trademarks of Microsoft
Corporation in the United States and/or other countries.
Adobe Flash is a trademark or registered trademark of Adobe Systems Incorporated in the United States
and/or other countries. 3GPP™ is a trademark of ETSI.
Wisepilot™ is a trademark of Appello Systems AB.
Qualcomm and GPSOneXTRA are trademarks or registered trademarks of Qualcomm, inc.
All other trademarks and copyrights are the property of their respective owners.
Some features described herein require supporting services. Usage charges may apply for such services.
20
August 2011
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
