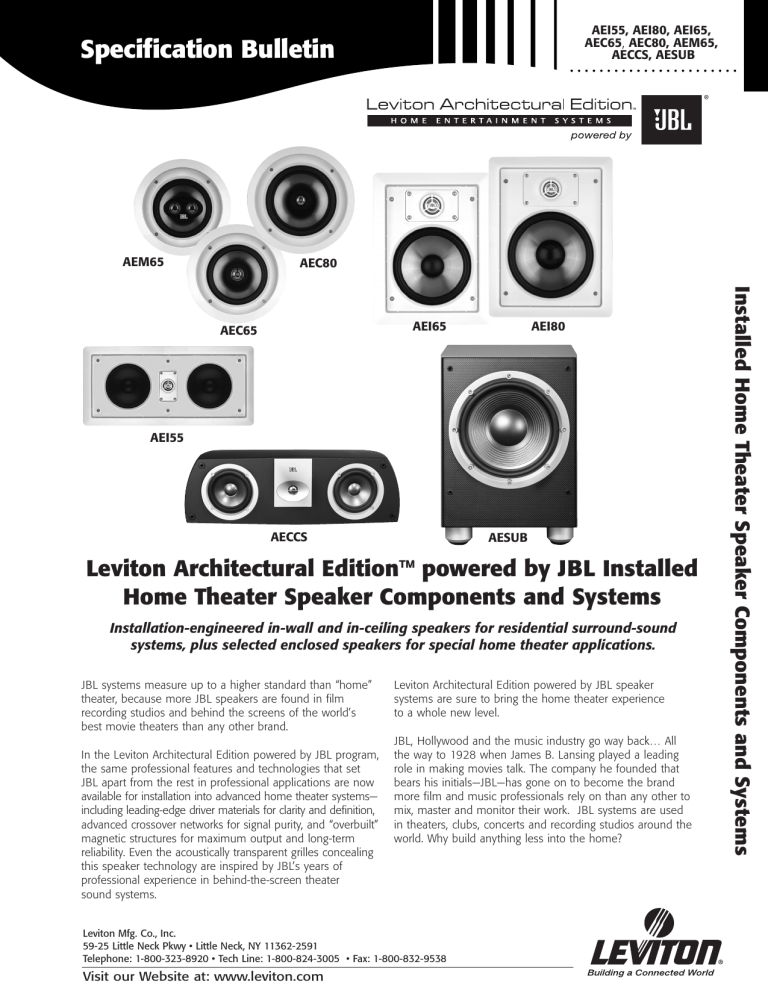

Specification Bulletin
AEI55, AEI80, AEI65,
AEC65, AEC80, AEM65,
AECCS, AESUB
Specification Bulletin
AEM65
AEC80
AEI80
AEI55
AECCS
AESUB
Leviton Architectural Edition™ powered by JBL Installed
Home Theater Speaker Components and Systems
Installation-engineered in-wall and in-ceiling speakers for residential surround-sound
systems, plus selected enclosed speakers for special home theater applications.
JBL systems measure up to a higher standard than “home”
theater, because more JBL speakers are found in film
recording studios and behind the screens of the world’s
best movie theaters than any other brand.
In the Leviton Architectural Edition powered by JBL program,
the same professional features and technologies that set
JBL apart from the rest in professional applications are now
available for installation into advanced home theater systems—
including leading-edge driver materials for clarity and definition,
advanced crossover networks for signal purity, and “overbuilt”
magnetic structures for maximum output and long-term
reliability. Even the acoustically transparent grilles concealing
this speaker technology are inspired by JBL’s years of
professional experience in behind-the-screen theater
sound systems.
Leviton Architectural Edition powered by JBL speaker
systems are sure to bring the home theater experience
to a whole new level.
JBL, Hollywood and the music industry go way back… All
the way to 1928 when James B. Lansing played a leading
role in making movies talk. The company he founded that
bears his initials—JBL—has gone on to become the brand
more film and music professionals rely on than any other to
mix, master and monitor their work. JBL systems are used
in theaters, clubs, concerts and recording studios around the
world. Why build anything less into the home?
Leviton Mfg. Co., Inc.
59-25 Little Neck Pkwy • Little Neck, NY 11362-2591
Telephone: 1-800-323-8920 • Tech Line: 1-800-824-3005 • Fax: 1-800-832-9538
Visit our Website at: www.leviton.com
Installed Home Theater Speaker Components and Systems
AEI65
AEC65
Specification Bulletin
APPLICATIONS
FEATURES
Home Theater In-Wall Speakers
For home theater applications, the Leviton/JBL AEI65 and
AEI80 In-Wall Speakers are an excellent choice for front (left
and right) home theater installations as well as the best choice
for surround-sound use. Their Elliptical Oblate Spheroidal™
(EOS™) waveguide, based on JBL’s renowned line of professional
studio monitors, improves high-frequency sound dispersion
allowing the in-wall speakers to generate a sharply focused
front sound field for precise soundtrack imaging.
All In-Wall and In-Ceiling Speakers
• JBL Titanium-laminate drivers (AEI65/80 in-wall and AEC65/80
and AEM65 in-ceiling models) or pure Titanium tweeter and
Polymer-coated aluminum woofers (AEI55 installed center
channel model) for maintaining musical accuracy and clarity
even at frequency extremes
• Straight-line Signal Path™ (SSP™) crossover network for minimal
signal distortion
• Long-excursion woofers with butyl-rubber half-round surrounds
and extended pole-piece magnetic structures for maximum bass
impact and dynamic range
• Low-diffraction, swivel-tweeter mounting system for optimum
stereo imaging
• Heavy-duty push-type input terminals for long-term connection
integrity
• Integrated dog-ear mounting brackets (optional rough-in kits
available for pre-construction installation in new homes)
• Acoustically-transparent paintable baffles and grilles
The Leviton/JBL AEI55 Two-Way In-Wall Center Channel
Speaker with EOS waveguide technology is a state-of-the art
“array” design that can be used as both a low-profile installed
front center channel speaker (and rear center in a 6.1 system)
and as an extreme performance left/right speaker in a nocompromise home theater system, to perfectly match the
center channel.
Home Theater In-Ceiling Speakers
When room aesthetics are critical, the Leviton/JBL AEC65 and
AEC80 Ceiling Speakers may be used in surround-sound
installations. The JBL low-diffraction swivel tweeter makes it
easy for the installer to optimize the sound field for a particular
listening room’s geometry.
The Leviton/JBL AEM65 Two-Channel Stereo Speaker is a
unique design suitable for surround-sound installations where a
minimum of holes in the ceiling is desired. With this product, it is
possible to produce both left and right surround-sound channels
from a single speaker location. The AEM65 “sums” two stereo
channels in a single speaker through its dual tweeter array and
dual voice coil design.
Home Theater Add-On Free-Standing Component
Loudspeakers
The Leviton Architectural Edition offers a free-standing two-way
Center Channel and a 12 inch Subwoofer to augment installed
residential home theater speakers.
AECCS Dual 5 inch Two-Way Shelf-Mount Center
Channel Loudspeaker
A free-standing (non-installed) center channel speaker that’s ideal
for applications where an installed speaker is not practical (such
as a home theater system in a large entertainment center where
an in-wall speaker would be blocked). The AECCS is an enclosed
shelf-mounted speaker that can keep up with the most advanced
in-wall installed left and right speakers available, including the
Leviton/JBL AEI55.
AESUB Powered 12 inch Subwoofer with
300-Watt Amplifier
A free-standing (non-installed), powered (amplified) subwoofer
that can be used to reinforce the performance of in-wall and inceiling installed system. The AESUB can be unobtrusively placed
behind furnishings to provide a high-impact low-frequency
acoustical foundation to make sound effects come alive and
complete the home theater viewing experience. Adjustable phase
and crossover controls allow the subwoofer to be matched to a
wide range of listening rooms and systems.
AECCS Dual 5 inch Two-Way Shelf-Mount Center
Channel Loudspeaker
• Straight-line Signal Path™ (SSP™) crossover network for minimal
signal distortion
• Dual 5 inch JBL PolyPlas™ cone woofers
• FreeFlow™ flared port for increased bass response without adding
unwanted port noise
• Elliptical Oblate Spheroidal™ (EOS™) waveguide technology for
improved high-frequency dispersion
AESUB Powered 12 inch Subwoofer with
300-Watt Amplifier
• High efficiency, high current switching amplifier
• JBL’s PolyPlas™ woofer for low frequencies
• FreeFlow™ flared port for increased bass response without
unwanted distortion or boominess
• Variable low-pass crossover frequency controls and a phase switch
allow the AESUB to be a djusted to a room’s particular acoustics
and an individual’s personal preference
• LFE and line level inputs for maximum connection flexibility
SPECIFICATIONS
AEI55 Dual 5 inch Two-Way In-Wall Center Channel
Home Theater Loudspeaker
Driver complement:
1 in (25 mm)
Pure Titanium
dome tweeter; Two 5 in
(125mm) Polymer-coated
aluminum woofers
Frequency Response
(-10dB): 40 Hz-20 kHz
Sensitivity (2.83V/1m):
88 dB
Power Handling:
120 Watts
Impedance:
Nominal 8 Ohms
Physical Dimensions and Weight:
Height
7.5 in (191 mm)
Width:
15.37 in (391 mm)
Depth:
3.87 in (98mm)
Mounting Cutout size:
14 in x 6 in (356 mm x
152 mm)
Weight:
5.7 lb/2.6 kg per speaker
Installed Home Theater Speaker
Components and Systems
.........................
AEI65 6.5 inch (170 mm) Two-Way In-Wall Loudspeaker
Driver complement:
1 in (25 mm)
Titanium-laminate dome
tweeter; 6.5 in (170mm)
Titanium-laminate woofer
Frequency Response (-10dB):
38 Hz-20 kHz
Sensitivity (2.83V/1m):
88 dB
Power Handling:
80 Watts
Impedance:
Nominal 8 Ohms
Physical Dimensions and Weight:
Height:
11 in (279 mm)
Width:
8.5 in (226 mm)
Depth:
3.87 in (98 mm)
Mounting Cutout size:
7.13 in x 9.69 in/
181.1 mm x
246.1 mm
Weight:
5 lb/2.3 kg per speaker
Sold in pairs
AEI80 8 inch (200 mm) Two-Way In-Wall Loudspeaker
Driver complement:
1 in (25 mm) Titaniumlaminate dome tweeter;
8 in (200mm) Titaniumlaminate woofer
Frequency Response (-10dB):
30 Hz-20 kHz
Sensitivity (2.83V/1m):
89 dB
Power Handling:
100 Watts
Impedance:
Nominal 8 Ohms
Physical Dimensions and Weight:
Height:
13.12 in (333 mm)
Width:
10.12 in (257 mm)
Depth:
4 in (102mm)
Mounting Cutout size:
8.88 in x 11.81 in/225.55
mm x 299.97 mm
Weight:
7.8 lb/3.5 kg per speaker
Sold in pairs
AEC65 6.5 inch (170 mm) Two-Way In-Ceiling Loudspeaker
Driver complement:
1 in (25 mm) Titaniumlaminate dome tweeter
6.5 in (170mm) Titaniumlaminate woofer
Frequency Response (-10dB):
40 Hz-20 kHz
Sensitivity (2.83V/1m):
88 dB
Power Handling:
80 Watts
Impedance:
Nominal 8 Ohms
Physical Dimensions and Weight:
Diameter:
9.18 in (233 mm)
Depth:
4.25 in (108 mm)
Mounting Cutout size:
7.88 in (200.16 mm)
Diameter
Weight:
4.5 lb/2.0 kg per speaker
Sold in pairs
AEC80 8 inch (200 mm) Two-Way In-Ceiling Loudspeaker
Driver complement:
1 in (25 mm) Titaniumlaminate dome tweeter;
8 in (200mm) Titaniumlaminate woofer
Frequency Response (-10dB):
32 Hz-20 kHz
Sensitivity (2.83V/1m):
89 dB
Power Handling:
100 Watts
Impedance:
Nominal 8 Ohms
Physical Dimensions and Weight:
Diameter:
10.87 in (275 mm)
Depth:
4.25 in (108 mm)
Mounting Cutout Size:
9.5 in (240 mm) Diameter
Weight:
5.6 lb/2.5 kg per speaker
Sold in pairs
AEM65 6.5 inch (170 mm) Two-Channel/Single-Location
Two-Way In-Ceiling Loudspeaker
Driver complement:
Dual .75 in (19mm)
titanium-laminate dome tweeter;
One 6.5 in (170mm) Dual voicecoil titanium-laminate woofer
Frequency Response (-10dB):
40 Hz-20 kHz
Sensitivity (2.83V/1m):
88 dB with both channels driven
Power Handling:
100 Watts (50Watts/channel)
Impedance:
Nominal 8 Ohms
Physical Dimensions and Weight:
Diameter:
9.18 in (233 mm)
Depth:
4.25 in (108 mm)
Mounting Cutout Size:
7.88 in (200.16 mm)
Diameter
Weight:
4 lb/1.8 kg per speaker
AECCS Dual 5 inch Two-way Shelf-Mount Center
Channel Loudspeaker
Driver complement:
.75 in (19 mm) Titaniumlaminate dome shielded
Tweeter; Two 5 in (130 mm)
PolyPlas™ shielded woofers
Frequency Response (-3dB):
75 Hz-20 kHz
Sensitivity (2.83V/1m):
90 dB
Power Handling:
75W/300W
Impedance:
Nominal 8 Ohms
Physical Dimensions and Weight:
Height:
6.5 in (165 mm)
Width:
20.25 in (514 mm)
Depth:
9.625 in (244mm)
Weight:
9.6 lb/4.4 kg per speaker
AESUB Powered 12 inch Subwoofer with
300-Watt Amplifier
Driver complement:
12 in (300 mm) PolyPlas™
woofer
Enclosure type:
Front-firing
Amplifier power output (RMS):
300 Watts
Dynamic power (peak):
500 Watts
Subwoofer Frequency
Response (+/- 3dB):
25 Hz- low-pass crossover
setting (variable)
Inputs:
Line-Level (switchable to LFE)
and Speaker-Level, with
five-way binding posts
Physical Dimensions and Weight:
Height:
19.75 in (502 mm)
Width:
14.37 in (365 mm)
Depth:
18 in (457mm)
Weight:
39.5 lb/18 kg
ORDERING INFORMATION
CAT. NO.
AEI55
AEI80
AEI65
AEC65
AEC80
AEM65
AECCS
AESUB
DESCRIPTION
Dual 5 inch Two-Way In-Wall Center Channel
Home Theater Loudspeaker
8 inch (200 mm) Two-Way In-Wall Loudspeaker
6.5 inch (170 mm) Two-Way In-Wall Loudspeaker
6.5 inch (170 mm) Two-Way In-Ceiling Loudspeaker
8 inch (200 mm) Two-Way In-Ceiling Loudspeaker
6.5 inch (170 mm) Two-Channel/Single-Location
Two-Way In-Ceiling Loudspeaker
Dual 5 inch Two-way Shelf-Mount Center
Channel Loudspeaker
Powered 12 inch - 300 Watt Subwoofer
AEI55, AEI80, AEI65, AEI80,
AEC65, AEC80, AEM65,
AECCS, AESUB
Specification Bulletin
.........................
(Installed Speakers only)
3.87" (98.30 mm)
8.625" (220 mm)
4" (101.6 mm)
7.00" (177.8 mm)
TOP VIEW
10.125" (257.18 mm)
TOP VIEW
FRONT VIEW
13.125" (333.38 mm)
SIDE VIEW
11.625" (295.30 mm)
9.50" (241.3 mm)
11.00" (279.4 mm)
8.50" (215.9 mm)
FRONT VIEW
SIDE VIEW
Cat. No. AEI80
4.25" (107.95 mm)
4.125" (104.77 mm)
Cat. No. AEI65
TOP VIEW
FRONT VIEW
SIDE VIEW
10.87" (276.10 mm)
9.125" (231.77 mm)
7.50" (190.5 mm)
9.25" (234.95 mm)
TOP VIEW
FRONT VIEW
SIDE VIEW
Cat. No. AEC80
Cat. No. AEC65
Note: Features and Specifications subject to change
14 (356 mm)
Straight-line Signal Path™ is a registered trademark of Harman International Industries, Incorporated.
PolyPlas™ is a registered trademark of Harman International Industries, Incorporated.
FreeFlow™ is a registered trademark of Harman International Industries, Incorporated.
IsoPower™ is a registered trademark of Harman International Industries, Incorporated.
Kapton® is a registered trademark of EI du Pont de Nemours and Company.
Elliptical Oblate Sphereoidal™ is a registered trademark of Harman International Industries, Incorporated.
WeatherPlas™ is a registered trademark of Harman International Industries, Incorporated.
6 (152mm)
13.12 (333 mm)
TOP VIEW
15.37 (391 mm)
FRONT VIEW
SIDE VIEW
Cat. No. AEI55
Leviton Mfg. Co., Inc.
59-25 Little Neck Pkwy • Little Neck, NY 11362-2591
Telephone: 1-800-323-8920 • Tech Line: 1-800-824-3005 • Fax: 1-800-832-9538
Visit our Website at: www.leviton.com
B-1178A/C7-JO
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
