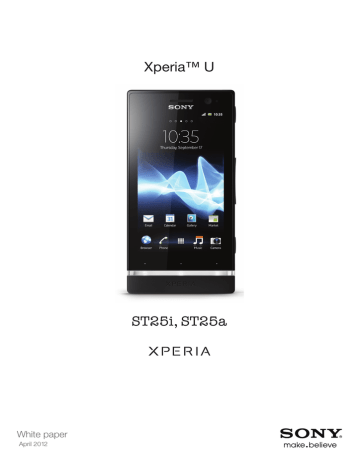

Xperia™ U
ST25i, ST25a
White paper
April 2012
White paper | Xperia™ U
Purpose of this document
Sony mobile product White papers are intended to give an overview of a product and provide details in
relevant areas of technology.
Document history
Version
February 2012
First released version
Version 1
April 2012
Second released version
Version 2
Sony Developer World
For the latest technical documentation and development tools, go to www.sonymobile.com/developer.
This document is published by Sony Mobile
Communications AB, without any warranty*.
Improvements and changes to this text
necessitated by typographical errors,
inaccuracies of current information or
improvements to programs and/or equipment
may be made by Sony Mobile Communications
AB at any time and without notice. Such changes
will, however, be incorporated into new editions
of this document. Printed versions are to be
regarded as temporary reference copies only.
This White paper is published by:
Sony Mobile Communications AB,
SE-221 88 Lund, Sweden
www.sonymobile.com
© Sony Mobile Communications AB, 2009-2012.
All rights reserved. You are hereby granted a
license to download and/or print a copy of this
document.
Any rights not expressly granted herein are
reserved.
*All implied warranties, including without
limitation the implied warranties of
merchantability or fitness for a particular
purpose, are excluded. In no event shall Sony or
its licensors be liable for incidental or
consequential damages of any nature, including
but not limited to lost profits or commercial loss,
arising out of the use of the information in this
document.
First released version (February 2012)
Publication number: 1257-8163.1
2
February 2012
White paper | Xperia™ U
Table of contents
Product overview ........................................................................................................2
Sony Xperia™ U – Powerful and personal ............................................................2
Signature features .................................................................................................4
Facts – dimensions, weight, performance and networks ......................................5
Categorised feature list ..........................................................................................7
Technologies in detail .................................................................................................9
Device-to-device communications (local) .............................................................9
Bluetooth™ wireless technology ........................................................................9
Wi-Fi® ...............................................................................................................10
DLNA Certified® (Digital Living Network Alliance) ............................................11
Messaging ...........................................................................................................12
MMS (Multimedia Messaging Service)..............................................................12
Email .................................................................................................................12
Positioning – location based services .................................................................13
Provisioning (OMA CP) ........................................................................................13
Multimedia (audio, image and video) ...................................................................14
Synchronisation (OMA DS, EAS, Google Sync™) ...............................................15
Web browser .......................................................................................................16
Trademarks and acknowledgements ..................................................................17
1
April 2012
White paper | Xperia™ U
Product overview
Sony Xperia™ U – Powerful and personal
Get yourself a front row seat. Enjoy the sights and sounds of your favourite films and music bombarding
your senses. On Xperia™ U’s razor sharp Reality Display, and in 3D surround sound. Snap photos fast,
film videos in super-sharp HD, and share them with your friends in a flash. Enjoy it all with super quick
performance powered by a dual core processor. Let the true you shine through with super snazzy
coloured bottom caps and a transparent band that changes colour to suit your themes, photos and album
art.
Made for movies
Watch every moment from every movie in crystal clear colours. See every smile from last year’s party in
true detail. Sheer video magic on the 3.5” Reality Display with Mobile BRAVIA® Engine. And with a dualcore processor at its heart, you’ll enjoy super-fast performance whether surfing the web or enjoying the
latest Hollywood blockbusters from Sony Entertainment Network.
Don’t miss the hit
Watching volleyball on the beach? Capture the smash, not the sand. Fire up the camera. Fire off the shots.
From sleep to snap in just over a second. And with 5 megapixels and face detection you’ll shoot that
winning smile. Fancy something more moving? Why not film the whole tournament in razor sharp high
definition?
Live the sound
Start your own sing-a-long. Download that summer playlist. Enjoy it all in crisp and loud sound with xLoud
and 3D surround sound Sony audio technology. Plug in your earphones, sit back and listen, as the deep
bases and high trebles shoot around your head.
Add some shine to your life
Watch the transparent band light up your life. It reflects your favourite artists’ album arts with matching
colours when you browse through your music, and changes to match the shades in your photos. Or why
not choose a theme that matches the exchangeable cap? Then you'll see the transparent band light up in
the same colour when you receive a call.
2
April 2012
White paper | Xperia™ U
Sony Entertainment Network1. Your ultimate source for digital entertainment
Feasts for film fans, masses of music. Enjoy a catalogue with millions and millions2 of songs from Music
Unlimited. Or download your favourite hit movies from Video Unlimited. It’s all on Sony Entertainment
Network. No trips to the store. No late fees. Just pure entertainment. The best tracks from Music
Unlimited. The latest movies from Video Unlimited – enjoy everything with one account. It’s the perfect fit
for a life full of entertainment.
1.Video Unlimited and Music Unlimited are not available in every market.
2.The number of tracks available by country varies.
3
April 2012
White paper | Xperia™ U
Signature features
Sony Xperia™ U comes with a range of features as standard. Below is a summary of the key signature
features.
Xperia™ Timescape™
The place to meet your friends
The Timescape™ application manages all your communication with one person in one place. You can
effortlessly browse by category your Facebook™, Twitter™, email and text communications, as well as
view your photos. Now everything is all together and in chronological order, so you don't have to open
different applications to see what's going on.
Xperia™ Infinite button
Everything you want – from everywhere
Tap the infinite button in the Timescape™ application and smart filter each category of communication by
person. For example, when viewing a text message from a friend in Timescape™, tap the infinite button to
view a list of all chat messages with that friend.
Xperia™ Local connectivity
More control over your media
Using Xperia Local connectivity, you can exercise more control over how media files get transferred and
stored. For example, you can select MTP mode to transfer files if you want to limit the risk of data corruption or select MSC mode if you want to have more control over the data storage.
Xperia™ Home screen application
The place you call Home
Customise your Home screen with widgets, shortcuts, folders, themes, wallpaper and other items.
Where’s best for you? Email top right? Music player bottom left? You decide. With four extensions to your
Home screen, you’ve got plenty of space to put things where you want. Just remember to flick left or right
to find them.
4
April 2012
White paper | Xperia™ U
Facts – dimensions, weight, performance and
networks1
Operating system
Google™ Android™ 2.3 (Gingerbread)
Processor
1 GHz NovaThor™ U8500 Dual-core Cortex A9
GPU
ARM Mali-400
Size
112 x 54 x 12 mm
Weight
110 grams
Available colours
Black
White
Main screen
Colours
16,000,000 colour TFT
Resolution
854x480 pixels
Size (diagonal)
3.5 inches
Scratch-resistant
Yes – anti-reflection coating on mineral glass
Input mechanisms
Text input
On-screen QWERTY keyboard
Touch screen
Capacitive (multi-touch)
Touch gesture
Yes – multi-touch, up to 4 fingers supported
Memory
RAM
512 MB
System memory
2 GB
Phone memory
2 GB
Internal storage
4 GB
Camera
Camera resolution
5 megapixel
Digital zoom
16x
Photo flash
Yes – LED
Video recording
Yes – HD 720p
Video chat camera
Yes
Sensors
Accelerometer
Yes
1.Performance metrics measured under laboratory conditions
5
April 2012
White paper | Xperia™ U
Proximity sensor
Yes
Ambient light sensor
Yes
Magnetometer
Yes – Compass
Networks
ST25a
UMTS HSPA 850 (Band V), 1900 (Band II), 2100 (Band I)
GSM GPRS/EDGE 850, 900, 1800, 1900
ST25i
UMTS HSPA 900 (Band VIII), 2100 (Band I)
GSM GPRS/EDGE 850, 900, 1800, 1900
Data transfer speeds
GSM GPRS
Up to 107 kbps (download). Up to 85.6 kbps (upload)
GSM EDGE
Up to 296 kbps (download). Up to 236.8 kbps (upload)
UMTS HSPA cat 6 (upload)
Up to 5.76 Mbps
UMTS HSPA cat 10(download) Up to 14.4 Mbps
Talk time (GSM)
Up to 6 hours and 36 minutes*
Standby time (GSM)
Up to 260 hours*
Talk time (UMTS)
Up to 5 hours and 36 minutes*
Standby time (UMTS)
Up to 472 hours*
Music listening time
Up to 45 hours
Video playback time
Up to 5 hours
Battery
1320 mAh, typical
1290 mAh, minimum
* Values are according to GSM Association Battery Life Measurement Technique as performed in controlled laboratory conditions. Actual time may vary.
NOTE: Battery performance may vary depending on network conditions and configurations, and phone
usage.
6
April 2012
White paper | Xperia™ U
Categorised feature list
Camera
Music
Internet
3D Sweep panorama™
5 megapixel camera
16x digital zoom
Auto focus
Face detection
Flash/Photo flash
Flash/Photo light
Front-facing camera (VGA)
Geotagging
HD video recording (720p)
Red-eye reduction
Self-timer
Send to web
Sweep Multi Angle
Sweep panorama™
Video light
Video recording
Album art
Bluetooth™ stereo (A2DP)
Clear bass
Clear stereo
Manual equalizer
Music Player
PlayNow™ service*
SensMe™
TrackID™ music recognition*
xLoud™
Google Play™
Bookmarks
Google™ search*
Google Voice™ Search*
Google Maps™ for Mobile with
Street view and Latitude™*
NeoReader™ barcode scanner
Web browser (WebKit™)
Communication
Messaging
Design
Call list
Conference calls
Facebook™ application*
Facebook inside Xperia™
Google Talk™ application*
Noise suppression
Xperia™ Timescape™
Skype™
Speakerphone
Twitter™ (Timescape™
integration)*
Video chat ready
Conversations
Email
Google Mail™*
Instant messaging
Multimedia messaging (MMS)
Predictive text input
Sound recorder
Text messaging (SMS)
Gesture input
Voice input
Auto rotation
Keyboard (on-screen, QWERTY)
Picture wallpaper
Reality Display with
Sony Mobile BRAVIA® Engine
Screenshot capturing
Touch screen
Live Wallpaper
7
April 2012
White paper | Xperia™ U
Entertainment
Organiser
Connectivity
Media browser
Radio (FM radio with RDS)
Sony Entertainment Network*
Video streaming
YouTube™*
Alarm clock
Calculator
Calendar
Airplane mode
3D Album
Infinite button
Contacts
Setup guide
Stopwatch
Timer
3.5 mm audio jack (CTIA)
aGPS*
Bluetooth™ wireless technology
DLNA Certified®
Media Transfer Protocol support
Micro USB support
Modem
Native USB tethering
Media Go™*
Synchronisation via Microsoft®
Exchange ActiveSync®
USB High speed 2.0 support
USB mass storage
USB Host
Wi-Fi®
Wi-Fi® Hotspot functionallity
Wisepilot™ turn-by-turn navigation*
* This service is not available in all markets.
8
April 2012
White paper | Xperia™ U
Technologies in detail
NOTE: The information outlined below is general and levels of compliance to standards and specifications
may vary between products and markets. For more information, contact Sony Developer World or your
Sony contact person where applicable.
Device-to-device communications (local)
Bluetooth™ wireless technology
Bluetooth™ profiles supported
Advanced Audio Distribution Profile v1.2
Audio/Video Remote Control Profile v1.0
Handsfree Profile v1.5
Headset Profile v1.1
Object Push Profile v1.1
Phonebook Access Profile v1.0
Core version and supported
core features
3.0
Connectable devices
Products which support at least one of the profiles above.
More information:
www.sonymobile.com/developer
www.bluetooth.com
9
April 2012
White paper | Xperia™ U
Wi-Fi®
Supported standards
IEEE 802.11b/g/n and Wi-Fi®
Connectable devices
Wi-Fi access points
Frequency band
2.4 GHz
Data transfer rate
Up to 72 Mbit/s
Security
WEP 64 bit
WEP 128 bit
TKIP
CCMP (AES)
Open Authentication
Shared Authentication
EAP-SIM
EAP-TLS
EAP-TTLS/MSCHAPv2
PEAPv0/EAP-MSCHAPv2
PEAPv1/EAP-GTC
WPA Personal and WPA2 Personal
WPA Enterprise and WPA2 Enterprise
Encryption
WEP, TKIP and AES
Power save
WMM-UAPSD
QoS, WMM
10
April 2012
White paper | Xperia™ U
DLNA Certified® (Digital Living Network Alliance)
Supported Device Classes
M-DMS – Mobile Digital Media Server
Media Types: Image, Video and Music
Summary: The digital media server exposes the media
files in your phone to a Wi-Fi® network. The files can
then be accessed from other DLNA Certified® clients.
+PU+
Media Types: Image, Video and Music
Summary: Play media saved in the phone on another
device, such as TV orcomputer, using 2 box push technology. The feature +PU+ is integrated in Gallery application and Music application.
M-DMP – Mobile Digital Media Player
Media Types: Image, Video and Music
Summary: Play content stored on another device, for
example a server or a PC, directly on the phone.
Supported Bearers
Wi-Fi®
DRM Support
The Sony DLNA Certified® implementation does not support DRM-protected content.
11
April 2012
White paper | Xperia™ U
Messaging
MMS (Multimedia Messaging Service)
According to OMA Multimedia Messaging Service v1.0 + SMIL
Email
Bearer type (IP)
GPRS, EGPRS, UMTS
Character sets
BIG5 Traditional Chinese
GB18030
ISO-2022-JP Japanese
ISO-8859-1
ISO-8859-2 Eastern Europe
ISO-8859-5 Cyrillic
ISO-8859-7 Greek
ISO-8859-9 Turkish
ISO 8859-11
KOI8-R Cyrillic
Shift_JIS Japanese
USASCII
UTF-16
UTF-8
Windows® 874
Windows® 1251 Cyrillic
Windows® 1252
Windows® 1254 Turkish
Windows® 1258 Vietnamese
Protocols
POP3 and IMAP4
Push email
Microsoft® Exchange ActiveSync® (EAS)
Secure email
SSL/TLS, both port methods (POPS/IMAPS) and STARTTLS
HTML mail
Yes (read only)
More information:
www.sonymobile.com/developer
www.openmobilealliance.org
12
April 2012
White paper | Xperia™ U
Positioning – location based services
Supported standards:
• OMA Secure User Plane Location (SUPL) v2.0
• 3GPP™ Control Plane location (incl. Emergency location)
Supported satellite systems:
GPS
Provisioning (OMA CP)
OMA CP version 1.1
13
April 2012
White paper | Xperia™ U
Multimedia (audio, image and video)
Audio Playback
Audio Recording
Image Playback
Image Capture
Video Playback
Decoder format
Supported in file format
Audio decoding MPEG-1/2/2.5,
audio layer 3
MP3 (.mp3)
AAC, AAC+, eAAC+
3GPP (.3gp), MP4 (.mp4, .m4a)
AMR-NB, AMR-WB
3GPP (.3gp)
General MIDI (GM)
SMF (.mid)
Linear PCM 16bit
WAV (.wav)
OTA
OTA (.ota)
Ogg vorbis
Ogg vorbis (.ogg)
Encoder format
Supported in file format
AMR-NB, AMR-WB
3GPP (.3gp), MP4 (.mp4),
AMR (.amr)
AMR-NB, AMR-WB, AAC-LC
stereo, sample rate 48 kHz bit rate
128 kbps
3GPP (.3gp), MP4 (.mp4)
Decoder format
Supported in file format
1, 4, 8, 16, 24 and 32 bpp and RLE
encoded formats
BMP (.bmp)
Single and multi-frame, bitmap
mask support (GIF87a format and
GIF89a format)
GIF (.gif)
Joint Photographic Experts Group
JPEG (.jpg)
Portable Network Graphics Bitmap
mask support
PNG (.png)
Wireless Bitmap
WBMP (.wbmp)
Encoder format
Supported in file format
Joint Photographic Experts Group
JPEG (.jpg)
Decoder format
Supported in file format
MPEG-4 Visual Simple Profile Level
6, Advanced Simple Profile Level 5
3GPP (.3gp), MP4 (.mp4)
H.264 High Profile Level 3.2
3GPP (.3gp), MP4 (.mp4)
H.263 Profile 0, Level 70
3GPP (.3gp)
14
April 2012
White paper | Xperia™ U
Video Recording
Encoder format
Supported in file format
Video H.263 Profile 0, H.264
Baseline Profile
Audio: AAC-LC stereo, sample rate
48 kHz bit rate 128 kbps, AMR-NB
3GPP (.3gp), MP4 (.mp4)
Audio/Video Streaming
Streaming transport
RTSP according to 3GPP™
HTTP streaming
DRM
DRM (Digital Rights Management) –
features the rights and copy
protection of downloaded content
OMA DRM 1.0
Synchronisation (OMA DS, EAS, Google Sync™)
OMA Data Synchronisation protocol versions 1.1.2 and 1.2
OMA Data Formats: vCard 2.1, vCalendar 1.0
Microsoft® Exchange ActiveSync® protocol version 2.5
Microsoft® Exchange ActiveSync® protocol version 12
Microsoft® Exchange ActiveSync® protocol version 12.1
Google Sync™
Related information:
www.sonymobile.com/developer
15
April 2012
White paper | Xperia™ U
Web browser
Browser version
Android 2.3 Browser (Based on WebKit)
Navigation/rendering
Adobe™ Flash™ 11*
Full page PC rendering
Landscape/portrait rendering
Pan & Zoom
Search
Internet Search
Browser compliancy
CSS 2.0
CSS 2.1
CSS 3.0
DOM 2.0
DOM 3.0
HTML version 4.0
HTML version 5.0
JavaScript 1.7/ECMA-script 262 3rd edition
WebGL 1.0
XHTML Basic version 1.0
XHTML 1.1
Supported Device API
Geo-location API
Protocol compliancy
Gzip
HTTP/1.1
OMA Download 1.0
TLS 1.0 and SSL 3.0
* Updates are distributed via Android market™.
Related information:
www.sonymobile.com/developer
16
April 2012
White paper | Xperia™ U
Trademarks and acknowledgements
The Liquid Identity and Liquid Energy logos, PlayNow, TrackID, Xperia, SensMe and Timescape are
trademarks or registered trademarks of Sony Ericsson Mobile Communications AB. Sony, "make.believe",
xLoud and Mobile BRAVIA Engine are trademarks or registered trademarks of Sony Corporation. Media
Go is a trademark or registered trademark of Sony Media Software and Services. Ericsson is a trademark
of Telefonaktiebolaget LM Ericsson.
The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by
Sony Ericsson is under licence. TrackID is powered by Gracenote Mobile MusicID. Gracenote and
Gracenote Mobile MusicID are trademarks or registered trademarks of Gracenote, Inc.
Google, Google Latitude, Google Maps, Google Talk, Google Search, Google Sync, Google Mail,
YouTube, Google Voice, Android and Android Market are trademarks or registered trademarks of Google,
Inc. Facebook is a trademark or registered trademark of Facebook, Inc. Twitter is a trademark or a
registered trademark of Twitter, Inc.
Wi-Fi is a trademark or registered trademark of the Wi-Fi Alliance. DLNA and DLNA Certified are
trademarks or registered trademarks of the Digital Living Network Alliance. XHTML is a registered
trademark of the W3C.
Microsoft, Windows, ActiveSync are either registered trademarks or trademarks of Microsoft Corporation
in the United States and/or other countries.
Adobe Flash is a trademark or registered trademark of Adobe Systems Incorporated in the United States
and/or other countries. 3GPP™ is a trademark of ETSI.
NeoReader is a trademark or registered trademark of NeoMedia Technologies Inc.
Skype is a trademark or a registered trademark of Skype Limited.
Wisepilot is a trademark of Appello Systems AB.
Java, JavaScript and Java-based trademarks and logos are trademarks or registered trademarks of
Oracle America, Inc., in the U.S. and other countries. End-user license agreement for Oracle Java
Platform, Micro Edition. 1. Restrictions: Software is confidential copyrighted information of Oracle and title
to all copies is retained by Oracle and/or its licensors. Customer shall not modify, decompile,
disassemble, decrypt, extract, or otherwise reverse engineer Software. Software may not be leased,
assigned, or sublicensed, in whole or in part. 2. Export Regulations: Software including technical data, is
subject to U.S. export control laws, including the U.S. Export Administration Act and its associated
regulations, and may be subject to export or import regulations in other countries. Customer agrees to
comply strictly with all such regulations and acknowledges that it has the responsibility to obtain licenses
to export, re-export, or import Software. Software may not be downloaded, or otherwise exported or reexported (i) into, or to a national or resident of, Cuba, Iraq, Iran, North Korea, Libya, Sudan, Syria (as such
listing may be revised from time to time) or any country to which the U.S. has embargoed goods; or (ii) to
anyone on the U.S. Treasury Department's list of Specially Designated Nations or the U.S. Commerce
Department's Table of Denial Orders. 3. Restricted Rights: Use, duplication or disclosure by the United
States government is subject to the restrictions as set forth in the Rights in Technical Data and Computer
Software Clauses in DFARS 252.227-7013(c) (1) and FAR 52.227-19(c) (2) as applicable.
All other trademarks and copyrights are the property of their respective owners.
Some features described herein require supporting services. Usage charges may apply for such services.
17
April 2012
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
