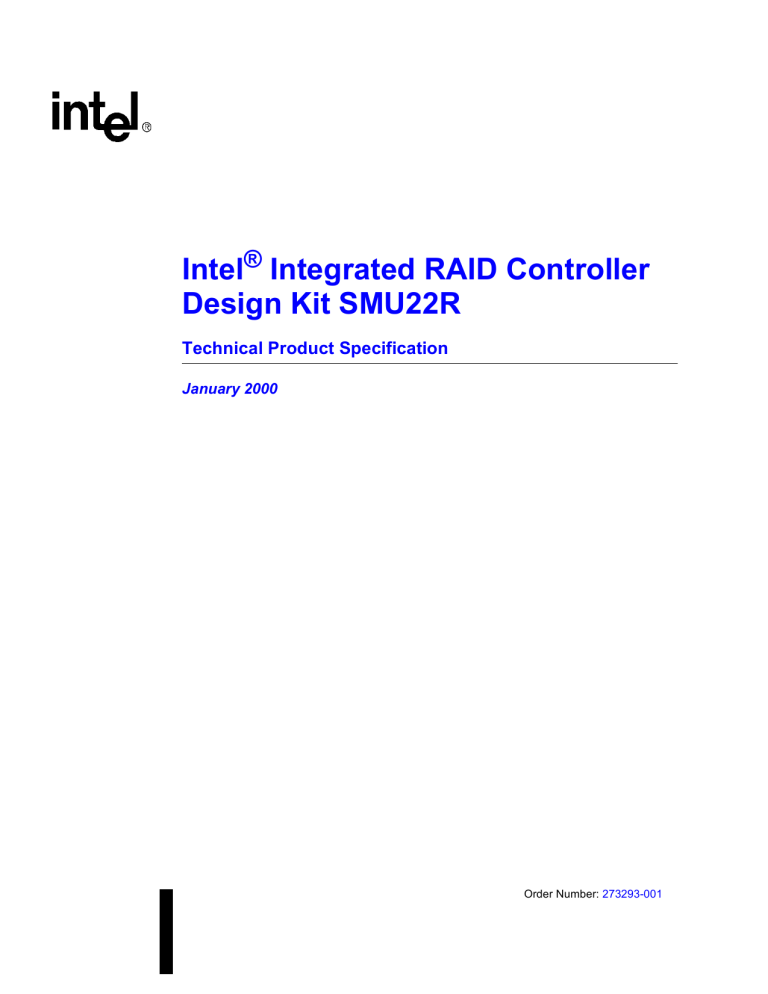

Intel Integrated RAID Controller Design Kit SMU22R

Intel Integrated RAID Controller Design Kit SMU22R

Intel

®

Integrated RAID Controller

Design Kit SMU22R

Technical Product Specification

January 2000

Order Number: 273293-001

Information in this document is provided in connection with Intel products. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document. Except as provided in Intel’s Terms and Conditions of Sale for such products, Intel assumes no liability whatsoever, and Intel disclaims any express or implied warranty, relating to sale and/or use of Intel products including liability or warranties relating to fitness for a particular purpose, merchantability, or infringement of any patent, copyright or other intellectual property right. Intel products are not intended for use in medical, life saving, or life sustaining applications. Intel may make changes to specifications and product descriptions at any time, without notice.

This document contains information on products in the design phase of development. Do not finalize a design with this information. Revised information will be published when the product is available. Verify with your local sales office that you have the latest datasheet before finalizing a design.

This product specification as well as the software described in it is furnished under license and may only be used or copied in accordance with the terms of the license. The information in this document is furnished for informational use only, is subject to change without notice, and should not be construed as a commitment by Intel Corporation. Intel Corporation assumes no responsibility or liability for any errors or inaccuracies that may appear in this document or any software that may be provided in association with this document.

Except as permitted by such license, no part of this document may be reproduced, stored in a retrieval system, or transmitted in any form or by any means without the express written consent of Intel Corporation.

Copyright © Intel Corporation 1999.

*Third-party brands and names are the property of their respective owners. All rights reserved

Technical Product Specification

Intel® Server RAID Controller SMU22R

Contents

1.0

2.0

3.0

4.0

5.0

Introduction......................................................................................................................... 5

1.1

Overview ............................................................................................................... 5

RAID Features.................................................................................................................... 7

2.1

2.2

2.3

2.4

2.5

2.6

2.7

2.8

OS Support............................................................................................................ 7

Supported RAID levels .......................................................................................... 7

Hot Plug Drive Support.......................................................................................... 7

Online Array Expansion......................................................................................... 7

Online Volume Migration .......................................................................................7

AutoDeclare Spare ................................................................................................ 8

Array Roaming ...................................................................................................... 8

Background Initialization / Instant Availability........................................................ 8

2.9

Pass-Thru Disks .................................................................................................... 8

2.10

Adjustable Rebuild Priority .................................................................................... 8

2.11

Global Hot-Spares................................................................................................. 9

Hardware Reference Design ..............................................................................................9

3.1

3.2

3.3

PCI 2.2 Compliant ................................................................................................. 9

Intel i960 RM I/O Processor .................................................................................. 9

Other Adapter Card Components........................................................................ 10

Intel Integrated RAID Software Features .........................................................................11

4.1

4.2

4.3

4.4

4.5

4.6

4.7

4.8

4.9

Storage Console.................................................................................................. 11

RAID Configuration Utility.................................................................................... 12

RAID Monitor Service ..........................................................................................13

Flash Update and Recovery Utilities ................................................................... 13

ROM-DOS Menu .................................................................................................14

HTML Launcher................................................................................................... 14

Flash Update Utility – Manufacturing Version ..................................................... 14

Software Installation ............................................................................................14

Software Customization ...................................................................................... 15

Certifications and Supported Technologies...................................................................... 16

5.1

5.2

OS Certifications .................................................................................................16

Supported Technologies .....................................................................................17

Technical Product Specification

3

Intel

®

Server RAID Controller SMU22R

1.0

Introduction

1.1

Overview

This technical product specification covers the following components of the Intel Server

RAID Controller Design Kit:

Intel

®

Server RAID Controller SMU22R Reference Design

Intel® Integrated RAID Controller SMU22R

Intel Integrated RAID software

The Intel Server RAID Controller SMU22R reference design is a dual-channel Ultra 2

SCSI RAID PCI adapter card. It utilizes the Intel i960

®

RM I/O processor, the LSI Logic

SYM53C896

*

SCSI controller, and the Intel Integrated RAID software.

The Intel Server RAID Controller SMU22R Design Kit was created to allow OEM’s and

IHV’s to design and manufacture their own branded RAID controllers, based upon the hardware reference design and RAID software provided with the kit. The resulting RAID controller would be a specific implementation, validated with their own motherboard or system products, allowing the OEM or IHV to compliment their product line. Intel must perform some software customizations for each OEM or IHV so that their product will function properly.

1.1.1

Acronyms

The following acronyms are used throughout this document.

DDM

DMI

FRU

HTML

HDM

I

2

O*

IOP

IRTOS

ISM

LVD

OSM

API

BSP

CGI

DIT

DLL

DOS

Application Programmer Interface

Board Support Package (for the IxWorks* IRTOS)

Common Gateway Interface (used by the HTML Browser)

DOS Interface Transport

Dynamic Linked Library

Generic term to reference either MS-DOS* or ROM-DOS*

Device Driver Module

(I

2

O* term referring to an HDM or ISM)

Desktop Management Interface

Flash Update/Recovery Utility

Hypertext Markup Language

Hardware Device Module (I

2

O hardware dependent device driver module, specific to the SCSI controller)

Intelligent I/O (architecture)

Intel

®

i960

®

RM I/O processor

I

2

O Real Time Operating System

Intermediate Service Module (I specific function such as RAID)

2

O hardware independent DDM, performs a

Low Voltage Differential SCSI

OS Service Module (I

2 layer)

O DDM that interfaces the host OS to the I

2

O message

Technical Product Specification

5

Intel

®

Server RAID Controller SMU22R

RAID

SAF-TE

SCA

SCSI

SMART

SNMP

XROM

Redundant Array of Independent Disks

SCSI Accessed Fault Tolerant Enclosure

Single Connector Attachment (80-pin SCSI connector on hot-swappable Ultra 2

LVD hard disks)

Small Computer Systems Interface

Self-Monitoring, Analysis, and Reporting Technology (disk drive error reporting feature)

Simple Network Monitoring Protocol

PCI Expansion ROM (BIOS utility accessed at boot)

Figure 1 Intel Integrated RAID Architecture

6

Note: Items in green/light shaded boxes in

Figure 1 are part of the Intel Integrated RAID

software.

The Intel Server RAID Controller SMU22R Reference Design is based upon the I

2

O version 1.5 specification, an open architecture that is independent of the operating system, processor platform, and system I/O bus. This split-driver model approach allows the OS vendor to produce a single driver for each I

2

O class of device. Likewise, the hardware vendor has to produce only one version of their driver that works for any OS that supports

I

2

O.

The Intel Server RAID Controller SMU22R Reference Design houses the LSI Logic

SYM53C896 HDM and the Intel Integrated RAID ISM in firmware on the adapter. The adapter can be utilized in the supported operating systems, each of which has implemented the appropriate Block Storage Class and SCSI OSM’s. The Intel Server

Technical Product Specification

Intel

®

Server RAID Controller SMU22R

RAID Controller SMU22R Reference Design includes a PCI Expansion ROM that is accessible during system boot. Additionally, Intel Integrated RAID software provides other operating system specific utilities, such as the RAID Monitor service.

2.0

2.1

2.2

2.3

2.4

2.5

RAID Features

OS Support

Intel Integrated RAID is designed to work with the following operating systems:

Windows NT* Server 4.0, Service Pack 4

Windows NT Server 4.0, Terminal Server Edition, Service Pack 4

Windows NT Server 4.0, Enterprise Edition, Service Pack 4

Novell NetWare* 4.2, Service Pack 6

Novell NetWare 5.0, Service Pack 2

SCO UnixWare* 7.1

Supported RAID levels

RAID 0 – The minimum number of drives supported is 1, maximum is 16.

RAID 1 – The minimum number of drives supported is 2, maximum is 16.

RAID 5 – The minimum number of drives supported is 3, maximum is 16.

RAID 10 – Minimum number of drives supported is 3, maximum is 16.

(

RAID 10 is a combination of RAID 0 and RAID1 and is not user selectable. It is a function of how the Intel Integrated RAID writes data on RAID 1 arrays with 3 or more disks configured.)

Hot Plug Drive Support

Remove and replace SCA disk drives while I/O activity is taking place on the same SCSI bus, provided that both the hard drive and backplane fully support hot-swap.

Online Array Expansion

The ability to add new drives to an existing array while the server is online. New space is immediately available for volume creation without requiring a reboot.

Online Volume Migration

Change a volume RAID level or stripe size while the server is online and the volume is inuse.

Technical Product Specification

7

Intel

®

Server RAID Controller SMU22R

2.6

2.7

2.8

2.9

AutoDeclare Spare

When an existing array is in degraded state, adding a new disk that is of the same size or larger than the failed disk will automatically become a spare for the degraded array, and rebuild will then automatically commence. If the new disk is smaller than the failed disk, it will not be marked as a spare and the volume will remain degraded.

With a SAF-TE enclosure, a bus scan occurs automatically when the drive is inserted.

No manual intervention is required.

When an enclosure without SAF-TE support is used, a reboot or bus scan is required for the Auto Declare Spare feature to commence.

A new drive may have the same or different SCSI ID than the failed drive which it replaces.

Array Roaming

Array Roaming allows the user the ability to move a complete array to another system

(with drives in any SCSI ID slot) and still preserve RAID configuration and user data on that array. Intel Integrated RAID firmware versions do not have to be the same on both systems (firmware updates are backward compatible). The array being moved must be connected while the destination server is offline.

Background Initialization / Instant Availability

All necessary initializations take place in the background after submitting a RAID volume creation request. The new volumes are available immediately, protecting newly written data and creating parity data concurrently. Supported operating systems provide instant access to newly created arrays without requiring a system reboot. Volume initialization is not impacted by system reboots. Volume initialization will continue when the server is restarted.

Pass-Thru Disks

One or more SCSI disks attached to the RAID adapter may be presented to the operating system individually and not as part of a RAID volume.

2.10

Adjustable Rebuild Priority

Rebuilding a degraded volume incurs a load on the IOP, the secondary PCI bus, the volume itself, and the SCSI bus. Intel Integrated RAID software allows the user to select the rebuild priority (low, medium, high) to balance volume access and rebuild tasks appropriately. The priority determines the ratio of IOP cycles dedicated to the volume rebuild process versus the number of cycles available to receive requests from the OSM.

Like volume initialization, a system reboot does not require the rebuild process to restart from the beginning.

8

Technical Product Specification

Intel

®

Server RAID Controller SMU22R

2.11

Global Hot-Spares

A global hot spare is a spare physical disk drive that has been marked as a hot spare and therefore is not passed through to the host OS and is not a member of an array. The hot spare automatically takes the place of a failed disk in a RAID 1, 5, or 10 volume. Multiple

Global Hot Spares are allowed. The user is warned when a selected hot-spare disk does not have at least the same capacity as the drives in the array.

3.0

Hardware Reference Design

3.1

PCI 2.2 Compliant

The Intel Server RAID Controller Reference Design is PCI 2.2 compliant. In addition, it is designed to function properly in PCI 2.1 compliant motherboards that provide a 3.3v power source to the PCI connector.

3.2

Intel i960 RM I/O Processor

The Intel Server RAID Controller Reference Design features the Intel i960 RM I/O processor. The core processor, PCI-to-PCI bridge, Memory Controller, and Application

Accelerator Unit are particularly useful in RAID applications. For more information on the Intel i960 RM processor, visit http://developer.intel.com/design/iio/index.htm.

3.2.1

i960 Core

The 80960JT core processor runs at 100Mhz on the i960 RM I/O processor internal 32-bit bus. Among other features, it contains a 128-bit register bus, 16Kbyte two-way instruction cache, 4Kbyte direct-mapped data cache, 1Kbyte zero wait state data RAM, and single clock execution of most instructions.

3.2.2

PCI-to-PCI Bridge Unit

The PCI-to-PCI bridge features fully independent PCI bus operation with independent clocks, dedicated data queues, 32-bit 33Mhz PCI bus support, and 64-bit Dual Address

Cycle addressing.

3.2.3

Memory Controller

The Memory Controller provides direct control of memory systems external to the i960

RM I/O processor, including SDRAM, ROM, and Flash. It features programmable chip selects, a wait state generator, ECC single-bit correction and double-bit error detection.

The memory controller operates at 66Mhz.

Technical Product Specification

9

Intel

®

Server RAID Controller SMU22R

3.2.4

Application Accelerator Unit

The Application Accelerator Unit (AAU) provides low-latency, high-throughput data transfer between the AAU and the 80960 local memory. In addition to performing data transfers, the AAU can perform XOR calculations on up to eight 128-byte pieces of data in one clock cycle. XOR calculations are used in every RAID 5 write transaction, and on every read transaction from a degraded RAID 5 volume.

3.3

Other Adapter Card Components

In addition to the Intel i960 RM I/O processor, the Intel Server RAID Controller

Reference Design utilizes the following major components.

3.3.1

LSI Logic

SYM53C896 SCSI Controller

The SYM53C896 is a PCI Dual-Channel Ultra 2 SCSI controller. It supports two SCSI channels with up to 80 MB/sec data transfer rate. It supports Low Voltage Differential

(LVD), High Voltage Differential (HVD), and Single-Ended SCSI devices. It also features

40Mhz internal operation, JTAG boundary scan, and 5 general purpose I/O pins.

3.3.2

Intel Smart 3 FlashFile

Flash Memory

This 3.3v, 16Mbit flash memory chip is used to store the RAID firmware. This nonvolatile storage can be address by the host processor for firmware updates.

3.3.3

ECC SDRAM

The Intel Server RAID Controller Reference Design provides an interface for 16Mbytes up to 128Mbytes of 3.3v ECC SDRAM. It is connected directly to the memory controller interface bus of the IOP, and serves as storage for the executable code transferred from the flash. It also serves as cache during RAID transactions and has 3 cache modes. Cache mode selection takes immediate effect while the server is online. Single-bit ECC error correction is provided by the Memory Controller.

The Downstream Write-Through cache mode uses cache memory to buffer write data until written to disk. This does not allow a read from cache following a write. All read commands get data from disk to ensure data consistency. This is not a user selectable option, however it is enabled any time that a Write-Back cache mode has not been selected.

Sequential Write-Back Cache mode is selectable on a per volume basis and gives a successful write reply as soon as the write data is moved to the RAID controller cache.

The actual write to disk will occur some time later. Only data from disk writes that are determined to be sequential are cached.

Full Write-Back mode is selectable on a per volume basis and gives a successful write reply as soon as the write data is moved to the RAID controller cache. Data from all disk writes is cached.

10

Technical Product Specification

Intel

®

Server RAID Controller SMU22R

3.3.4

Battery Backup

The battery circuit provides power to the SDRAM when power is removed from the system to prevent data loss due to a power loss or a system shutdown. The circuit uses a single Lithium-Ion battery, which can maintain power to the SDRAM for about 24 hours.

This feature ensures that any I/O data in cache (due to user selection of a write-back cache mode) during an unexpected power loss is maintained.

3.3.5

Diagnostic Features

The 80960 RM I/O processor JTAG signals are brought to a 16-pin connector. This connector is used to interface the card to a JTAG emulator for design or manufacturing debugging.

The Intel Server RAID Controller Reference Design provides two SCSI activity LED’s to indicate traffic on each of the two SCSI channels. Also, two additional LED’s are designed in that indicate the presence of 3.3v in the PCI slot where the adapter resides, and the status of the IOP after booting from reset mode.

Additionally, jumper pins are provided which allow the adapter to be booted with the IOP in reset mode, allowing host access to recover non-functional firmware.

4.0

Intel Integrated RAID Software Features

4.1

Storage Console

The Intel Integrated RAID Storage Console is an HTML interface to the RAID subsystem.

This is the primary tool for configuring multiple RAID volumes, monitoring volume status, managing disk drives, viewing enclosure, and all other configuration aspects of the

RAID subsystem. A CGI application interfaces with the Storage OSM and I

2

O Executive

Service on the operating system. A CGI interpreter and HTML browser are required.

Novell NetWare and SCO Unixware provide these applications. Windows NT 4.0 requires an add-on product for the CGI interpreter, such as Microsoft Internet Information Server.

HTML browser requirements for Windows NT 4.0 are Microsoft Internet Explorer* 4.0 or higher, or Netscape Navigator* 4.0 or higher.

4.1.1

Remote Management

Since Storage Console is an HTML-based application, remote connections to the server are supported. The host operating system or web service is responsible for ensuring that proper remote user credentials are met when connecting remotely. The OSM still provides local security as described under the security heading below.

4.1.2

RAID Features

Storage Console is the primary RAID configuration utility. All RAID features are accessible with this utility with the exception of selecting the boot device. These include:

Array Expansion

Volume Creation, Deletion

Technical Product Specification

11

Intel

®

Server RAID Controller SMU22R

Volume RAID level and stripe size migration

Cache mode selection

Battery state monitoring

Enclosure state monitoring (for SAF-TE enclosures)

Disk drive state selection (mark offline, format, pass-thru, hot spare, etc. …)

OEM/IHV support contact information

Bus scan

Reset configuration

Multiple views from disk, volume and array perspectives

Storage Console name customization for OEM/IHV branding

Administrative level privileges required to execute

4.1.3

Ease-of-Use

Due to the HTML format of the Storage Console utility, Intel Integrated RAID software has a consistent look and feel across multiple OS platforms. Additionally, the typical volume creation process recommends the proper volume RAID level and hot spare selection based upon available disks. Online help is provided, as well as highly visible notifications when the user is attempting to perform an action that might compromise their data integrity.

4.1.4

Security

The OSM ensures that proper local authentication has been satisfied prior to allowing the user to access the RAID subsystem via Storage Console. The following administrative level requirements must be met:

Windows NT Server 4.0 – Administrators group

Novell NetWare – Administrator

SCO UnixWare – root

4.2

RAID Configuration Utility

The RAID Configuration Utility (RCU) is a PCI Expansion ROM, accessible at boot time by hitting the CTRL-C while the host system is booting. RCU gives the system administrator the ability to create the initial RAID volume upon which an OS will be installed, without the need for any additional diskettes.

4.2.1

Boot Time Status

While the system is booting, the Intel Server RAID Controller reference card firmware initializes. The name of the selected boot volume is displayed on the console, as well as error messages such as disk failures and firmware or memory failures.

12

Technical Product Specification

Intel

®

Server RAID Controller SMU22R

4.2.2

RAID Features

RCU offers the following features:

Status display showing number and status of connected disks and volume.

The ability to create the first RAID volume. All available disks will be utilized, the highest possible RAID level will be chosen, the option to select a hot spare will be presented, the option to select the new drive as the boot volume will be presented.

Disk pass-thru selection

Disk drive formatting

Boot device (volume or Pass-thru disk) selection

Volume deletion

Reset Configuration

Online help

RCU is limited to utilizing the first 8 disks on the first channel of the RAID controller for volume creation, deletion, boot device select, and status display features. RCU is limited to a combination of 8 volumes and pass-thru disks for volume deletion, boot device select, and status display features.

4.3

RAID Monitor Service

The RAID Monitor Service detects events from the RAID subsystem and provides a local console alert. An entry is made in the appropriate event logging mechanism for the host

OS. RAID Monitor provides the following features:

Windows NT Server – utilizes Event Log, displays alert using local dialogue box

Novell NetWare – creates /sys/system/raid.log, displays System Console alert

SCO UnixWare – utilizes /usr/adm/syslog, can be configured to send administrative mail

Can launch Storage Console upon events

Event polling frequency adjustable from 5 to 60 seconds

Captures volume, disk and battery events.

4.4

Flash Update and Recovery Utilities

The Intel Integrated RAID software provides flash utilities to perform adapter card firmware updates or recover from firmware corruption. Both utilities are directly executable from the Intel Integrated RAID software CD’s ROM-DOS boot menu, as well as through diskettes that can be created from the HTML Launcher interface. When executing from the Intel Integrated RAID software CD ROM-DOS boot menu, the user may elect to update firmware from the CD itself, or from floppy disk.

Technical Product Specification

13

Intel

®

Server RAID Controller SMU22R

4.5

4.6

4.7

ROM-DOS Menu

The Intel Integrated RAID software CD-ROM contains a bootable ROM-DOS menu that provides access to the following features:

Flash Update and Recovery Utilities

RAID Troubleshooting (IOPSETUP) – This utility loads the DOS Interface Transport utility that lets an administrator access the software running on the IOP. Through this utility, the administrator or OEM/IHV technical support can fully access the RAID subsystem without having to rely on a bootable host OS.

Diskette Creation Feature – The ROM-DOS boot menu provides the ability to create

Flash Update and Recovery, OS installation, firmware, and RAID Troubleshooting

Diskettes.

HTML Launcher

When the Intel Integrated RAID software CD-ROM is inserted into a Windows NT 4.0 system, the operating system’s autorun feature will bring up an HTML launcher using the host operating systems registered web browser. The HTML Launcher provides the following features:

HTML-based for easy OEM/IHV customization

Frame for OEM/IHV logo

Diskette creation feature

RAID Software Suite installation for Windows NT 4.0

Hewlett-Packard OpenView* 5.02 Console Integration Setup

User’s Manual in HTML and PDF format

Link for release notes

Flash Update Utility – Manufacturing Version

FUU-MFG is a command line driven RAID configuration utility that is useful for setting up RAID volumes during the OEM or IHV’s manufacturing or system integration process.

Up to 6 SCSI disks may be configured with FUU-MFG.

4.8

Software Installation

4.8.1

Windows NT Server 4.0

Installation of the I

2

O OSM’s, Raid Monitor Service and Application, a link to Storage

Console, and the HTML and PDF version of the User’s Manual (collectively termed

RAID Software Suite) is performed through an InstallShield* setup program. The setup program detects for the correct OS and Service Pack versions, the existence of Microsoft

Internet Information Server*, proper user authentication, and notifies the user of

14

Technical Product Specification

Intel

®

Server RAID Controller SMU22R

additional requirements should they elect to install DMI Component Instrumentation and

SNMP integration. An uninstall utility is also provided, which provides the option to uninstall the RAID Software Suite and I

2

O OSM’s separately.

In addition to the RAID Software Suite, integration with Hewlett-Packards OpenView

5.02 system management software package is provided. An Intel Integrated RAID node is created, providing access to Storage Console and event alerts within the HP OpenView framework.

4.8.2

Novell NetWare 4.2 and 5.0

Installation of the RAID Software Suite is done by first creating a diskette from the ROM-

DOS boot menu or from the HTML launcher (running from a Win32 machine). The diskette copies the appropriate drivers and configuration tools to the server. When the installation is complete the RAID software suite will load automatically when the server starts.

4.8.3

SCO UnixWare 7.1

Installation of the RAID Software Suite is done by first creating two driver diskettes from the ROM-DOS boot menu or from the HTML launcher (running from a Win32 machine).

The remainder of the software is installed by executing an installation script from the Intel

Integrated RAID software CD-ROM.

4.9

Software Customization

The Intel Integrated RAID software is customized by Intel for the OEM/IHV in the following areas: OEM/IHV proper name, support contact information, and customization of the words preceding “Storage Console”. See the highlighted areas in

Figure 2 .

Figure 2 Storage Console

Technical Product Specification

15

Intel

®

Server RAID Controller SMU22R

A 300x300 gif file with the OEM/IHV logo and product name is included on all HTML

Launcher screens. The logo will be provided to Intel by the OEM/IHV.

Figure 3 HTML Launcher

5.0

5.1

Certifications and Supported Technologies

OS Certifications

The Intel Server RAID Controller reference design has been tested against the following

OS certification and labeling programs and found to pass. An OEM/IHV desiring such certification must do so themselves using their product based upon the Intel Server RAID

Controller reference design.

Microsoft Windows Hardware Quality Labs (WHQL) version 9.1

Novell “Yes, Tested and Approved” – Storage Access Services (DISKIT 2.9e)

SCO UnixWare “Works with SCO”

16

Technical Product Specification

Intel

®

Server RAID Controller SMU22R

5.2

Supported Technologies

5.2.1

I

2

O Version 1.5 Core Implementation

The Intel Integrated RAID software is a core implementation of the I

2 specification. The software uses I

2

O version 1.5

O messages to communicate between the RAID ISM, the SCSI controller HDM, and external OSM’s. The Intel i960 RM processor executes these modules within the Wind River Systems, Inc. IxWorks* I

2

O Real-Time Operating

System. This provides the possibility for the IOP to be utilized for other I

2

O compatible uses, particularly in systems where the OEM/IHV has elected to integrate the IOP onto the motherboard. For additional information on I

2 web site at http://www.i2osig.org

.

O, refer to the I

2

O Special Interest Group

5.2.2

SAF-TE 1.0

The Intel Server RAID Controller reference design supports SAF-TE enclosures adhering to the SAF-TE 1.0 specification.

Depending on the SAF-TE features supported by the enclosure, the following enclosure properties are supported by the Intel Integrated RAID software, and are displayed on the

Enclosure page within Storage Console:

Number of fans installed and their status

Number of power supplies and their status

Number of temperature sensors, the temperature readings, and their status

Temperature out of range

Door lock and speaker status

Number of device slots, their SCSI ID’s and status

The Intel Integrated RAID software will prepare device slots on SAF-TE enclosures by powering down and powering up the slot appropriately upon drive removal and insertion.

No vendor specific commands are supported. Please refer to the Validation section of this document for a list of validated SAF-TE enclosures. For additional information on SAF-

TE, refer to http://www.safte.org

.

5.2.3

SMART

For those drives that provide SMART support, the Intel Integrated RAID software’s RAID

ISM stores the information the disk drive generates when a SMART event occurs. These events are accessible from the Physical Disk page of Storage Console.

Technical Product Specification

17

Intel

®

Server RAID Controller SMU22R

18

Technical Product Specification

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
