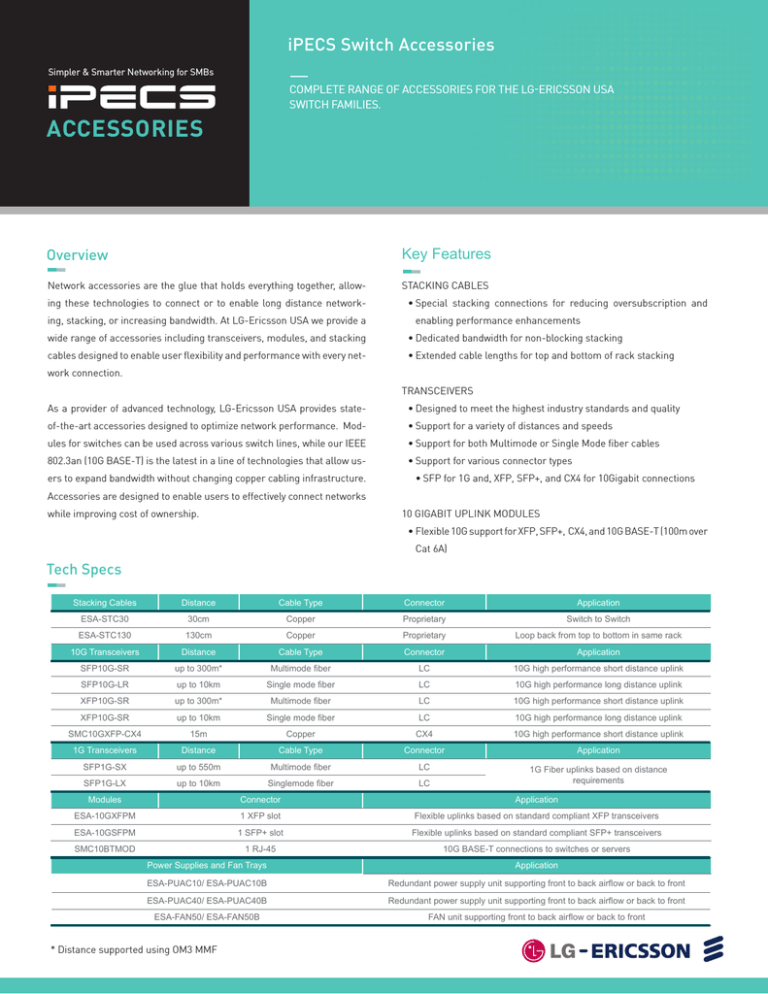

iPECS Switch Accessories
Simpler & Smarter Networking for SMBs
Complete range of accessories for the lg-ericsson usa
switch families.
accessories
Overview
Key Features
Network accessories are the glue that holds everything together, allow-
stacking cables
ing these technologies to connect or to enable long distance network-
•Special stacking connections for reducing oversubscription and
ing, stacking, or increasing bandwidth. At LG-Ericsson USA we provide a
enabling performance enhancements
wide range of accessories including transceivers, modules, and stacking
•Dedicated bandwidth for non-blocking stacking
cables designed to enable user flexibility and performance with every net-
•Extended cable lengths for top and bottom of rack stacking
work connection.
Transceivers
As a provider of advanced technology, LG-Ericsson USA provides state-
•Designed to meet the highest industry standards and quality
of-the-art accessories designed to optimize network performance. Mod-
•Support for a variety of distances and speeds
ules for switches can be used across various switch lines, while our IEEE
•Support for both Multimode or Single Mode fiber cables
802.3an (10G BASE-T) is the latest in a line of technologies that allow us-
•Support for various connector types
ers to expand bandwidth without changing copper cabling infrastructure.
•SFP for 1G and, XFP, SFP+, and CX4 for 10Gigabit connections
Accessories are designed to enable users to effectively connect networks
while improving cost of ownership.
10 Gigabit Uplink Modules
•Flexible 10G support for XFP, SFP+, CX4, and 10G BASE-T (100m over
Cat 6A)
Tech Specs
Stacking Cables
Distance
Cable Type
Connector
Application
ESA-STC30
30cm
Copper
Proprietary
Switch to Switch
ESA-STC130
130cm
Copper
Proprietary
Loop back from top to bottom in same rack
10G Transceivers
Distance
Cable Type
Connector
Application
SFP10G-SR
up to 300m*
Multimode fiber
LC
10G high performance short distance uplink
SFP10G-LR
up to 10km
Single mode fiber
LC
10G high performance long distance uplink
XFP10G-SR
up to 300m*
Multimode fiber
LC
10G high performance short distance uplink
XFP10G-SR
up to 10km
Single mode fiber
LC
10G high performance long distance uplink
SMC10GXFP-CX4
15m
Copper
CX4
10G high performance short distance uplink
1G Transceivers
Distance
Cable Type
Connector
Application
SFP1G-SX
up to 550m
Multimode fiber
LC
SFP1G-LX
up to 10km
Singlemode fiber
LC
1G Fiber uplinks based on distance
requirements
Modules
Connector
Application
ESA-10GXFPM
1 XFP slot
Flexible uplinks based on standard compliant XFP transceivers
ESA-10GSFPM
1 SFP+ slot
Flexible uplinks based on standard compliant SFP+ transceivers
SMC10BTMOD
1 RJ-45
10G BASE-T connections to switches or servers
Power Supplies and Fan Trays
Application
ESA-PUAC10/ ESA-PUAC10B
Redundant power supply unit supporting front to back airflow or back to front
ESA-PUAC40/ ESA-PUAC40B
Redundant power supply unit supporting front to back airflow or back to front
ESA-FAN50/ ESA-FAN50B
FAN unit supporting front to back airflow or back to front
* Distance supported using OM3 MMF
Switch Accessories
Switch Accessory Matrix
Managed
10/100
Managed
10/100/1000
MANAGED
10G
SFP
SFP+
XFP
KITS/
Cables
SFP1G-SX
SFP1G-LX
SFP10G-SR
XFP10G-SR
SMC10GXFP-CX4
ESA-STC30
ESA-STC130
Modules
ESA-10GXFPM
ESA-10GSFPM
SMC10BTMOD
ES-3026
X
X
ES-3026P
X
X
ES-3050
X
X
ES-3024G
X
X
ES-3024GP
X
X
ES-3052G
X
X
ES-3052GP
X
X
ES-4526G
X
X
X
X
X
X
X
X
ES-4550G
X
X
X
X
X
X
X
X
PSU
faN
ES-4028G
X
X
X
ES-4052G
X
X
X
ES-5048XG
X
X
X
X
X
ES-5024XG
X
X
X
X
X
