Panasonic | BT-87-TP-WHITE-P | Datasheet | Panasonic BT-87-TP

2621 Ridgepoint Drive, Suite 235 Austin, TX 78754
800.866.6506 (US)
www.ikey.com

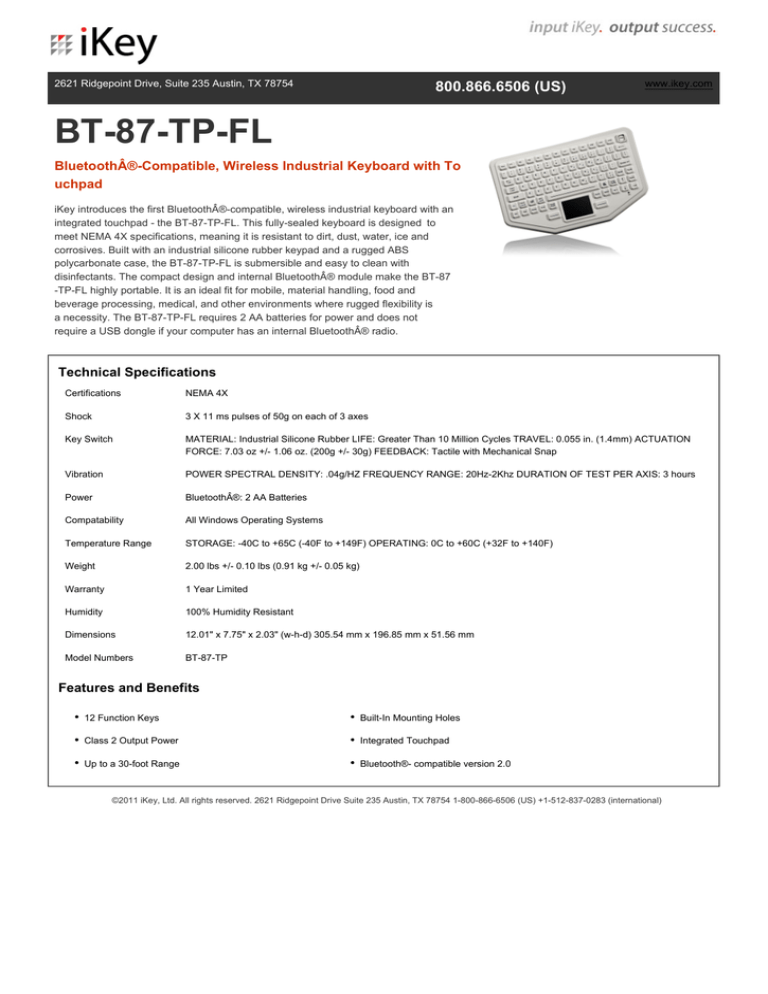

BT-87-TP-FL
Bluetooth®-Compatible, Wireless Industrial Keyboard with To
uchpad
iKey introduces the first Bluetooth®-compatible, wireless industrial keyboard with an
integrated touchpad - the BT-87-TP-FL. This fully-sealed keyboard is designed to
meet NEMA 4X specifications, meaning it is resistant to dirt, dust, water, ice and
corrosives. Built with an industrial silicone rubber keypad and a rugged ABS
polycarbonate case, the BT-87-TP-FL is submersible and easy to clean with
disinfectants. The compact design and internal Bluetooth® module make the BT-87
-TP-FL highly portable. It is an ideal fit for mobile, material handling, food and
beverage processing, medical, and other environments where rugged flexibility is
a necessity. The BT-87-TP-FL requires 2 AA batteries for power and does not
require a USB dongle if your computer has an internal Bluetooth® radio.
Technical Specifications
Certifications
NEMA 4X
Shock
3 X 11 ms pulses of 50g on each of 3 axes
Key Switch
MATERIAL: Industrial Silicone Rubber LIFE: Greater Than 10 Million Cycles TRAVEL: 0.055 in. (1.4mm) ACTUATION
FORCE: 7.03 oz +/- 1.06 oz. (200g +/- 30g) FEEDBACK: Tactile with Mechanical Snap
Vibration
POWER SPECTRAL DENSITY: .04g/HZ FREQUENCY RANGE: 20Hz-2Khz DURATION OF TEST PER AXIS: 3 hours
Power
Bluetooth®: 2 AA Batteries
Compatability
All Windows Operating Systems
Temperature Range
STORAGE: -40C to +65C (-40F to +149F) OPERATING: 0C to +60C (+32F to +140F)
Weight
2.00 lbs +/- 0.10 lbs (0.91 kg +/- 0.05 kg)
Warranty
1 Year Limited
Humidity
100% Humidity Resistant
Dimensions
12.01" x 7.75" x 2.03" (w-h-d) 305.54 mm x 196.85 mm x 51.56 mm
Model Numbers
BT-87-TP
Features and Benefits
12 Function Keys
Built-In Mounting Holes
Class 2 Output Power
Integrated Touchpad
Up to a 30-foot Range
Bluetooth®- compatible version 2.0
©2011 iKey, Ltd. All rights reserved. 2621 Ridgepoint Drive Suite 235 Austin, TX 78754 1-800-866-6506 (US) +1-512-837-0283 (international)
