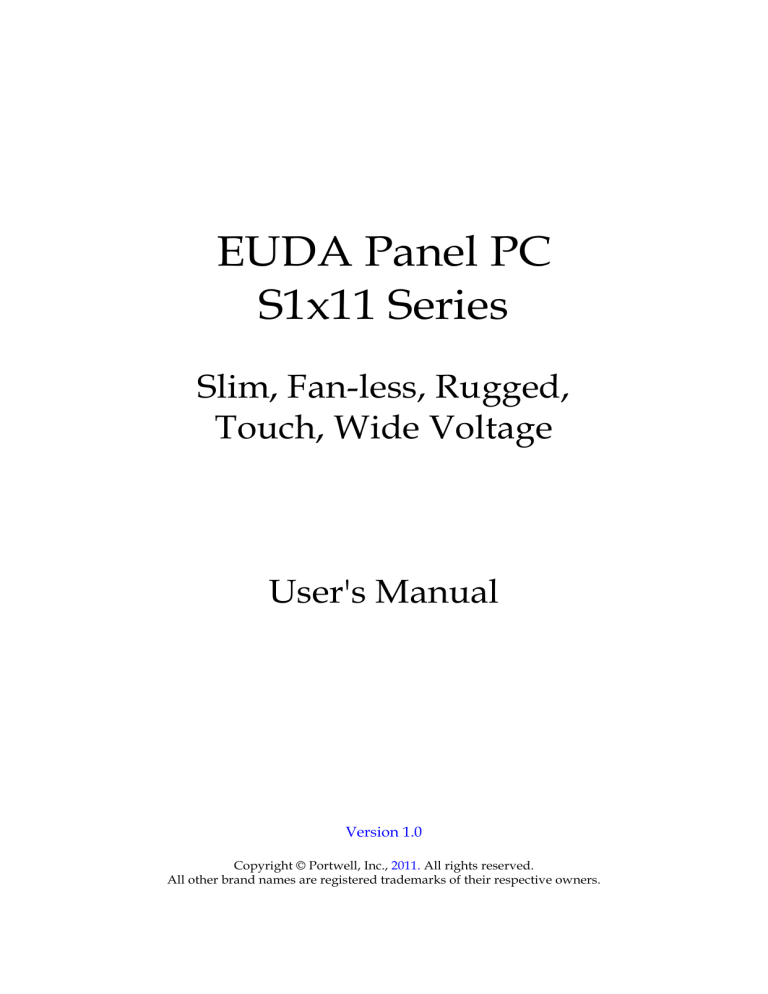

EUDA Panel PC S1x11 Series

EUDA Panel PC

S1x11 Series

Slim, Fan-less, Rugged,

Touch, Wide Voltage

User's Manual

Version 1.0

Copyright © Portwell, Inc., 2011.

All rights reserved.

All other brand names are registered trademarks of their respective owners.

Table of Contents

Table of Contents

How to Use This Manual

Chapter 1 System Overview....................................................................................................... 1-1

1.1 Introduction.................................................................................................................................. 1-2

1.2 Packing List .................................................................................................................................. 1-3

1.3 Product Specification .................................................................................................................. 1-4

1.3.1 Specification of the built-in Mini-ITX Board in EUDA Panel PC ............................... 1-4

1.3.2 Specification of TFT-LCD Display ................................................................................ 1-86

1.3.3 Specification of Touch Screen ...................................................................................... 1-108

1.3.4 Mechanical Drawing of the EUDA Panel PCs ( 12”, 15”, 17”, 19” )....................... 1-119

1.4 System Architecture ................................................................................................................ 1-131

1.5 Brief Outlook of the Assembly of Hardware Components.……………………………………….

1-12

Chapter 2 Hardware Configuration ........................................................................................... 2-1

2.1 Jumper Setting ............................................................................................................................. 2-1

2.2 Connector Allocation .................................................................................................................. 2-3

Chapter 3 System Installation.................................................................................................... 3-1

3.1 Intel® ATOM CPU ...................................................................................................................... 3-1

3.2 Main Memory .............................................................................................................................. 3-1

3.3 Installing the Mini-ITX Board.................................................................................................... 3-2

3.3.1 Chipset Component Driver.............................................................................................. 3-2

3.3.2 Intel Integrated Graphics GMCH Chip.......................................................................... 3-3

3.3.3 Realtek Gigabit Ethernet Controller ............................................................................... 3-4

3.3.4 Audio Controller ............................................................................................................... 3-5

3.4 Clear CMOS Operation............................................................................................................... 3-6

3.5 WDT Function.............................................................................................................................. 3-6

3.6 Hardware Installation................................................................................................................. 3-9

3.7 Driver Installation ..................................................................................................................... 3-12

3.7.1 Driver Directory .............................................................................................................. 3-12

3.8 Calibration of Touch Screen..................................................................................................... 3-18

Chapter 4 BIOS Setup Information............................................................................................ 4-1

4.1 Entering Setup.............................................................................................................................. 4-1

4.2 Main Menu ................................................................................................................................... 4-2

4.3 Standard CMOS Setup Menu .................................................................................................... 4-2

4.4 IDE Adaptors Setup Menu......................................................................................................... 4-4

4.5 Advanced BIOS Features............................................................................................................ 4-5

4.6 Advanced Chipset Features ....................................................................................................... 4-8

4.7 Integrated Peripherals .............................................................................................................. 4-10

4.8 Power Management Setup ....................................................................................................... 4-14

4.9 PnP/PCI Configurations .......................................................................................................... 4-17

4.10 PC Health Status...................................................................................................................... 4-19

4.11 Default Menu ........................................................................................................................... 4-19

4.12 Supervisor/User Password Setting ...................................................................................... 4-20

4.13 Exiting Selection ...................................................................................................................... 4-21

Chapter 5 FAQ ............................................................................................................................. 5-1

5.1 How to do Panel Mounting Kit Assembly and VESA Mount?............................................. 5-1

5.2 What if there is no display on the PPC screen?....................................................................... 5-4

5.3 I forgot my password of system BIOS, what am I supposed to do? .................................... 5-5

5.4 I’d like to know the System Memory Address Map............................................................... 5-5

Preface

5.5 I’d like to know more about the BIOS Setting ......................................................................... 5-5

5.6 I’d like to know more about Interrupt Request Lines (IRQ) ................................................. 5-7

Version

Version No. 20110729, edition 1.

Reminders to the Users

This manual is composed of texts, illustrative diagrams or pictures, instructions and a complete overview of the Panel PC system in order to let the users learn how to use the device easily and carefully.

Safety Instructions

Make sure the voltage of the power source is correct before connecting the equipment to the power outlet.

Keep the power cord away from being stepped on it by people.

Do not place anything over the power cord.

If the Panel PC will not be used for a long time, please remember disconnecting the power cord from the power source to avoid damage by transient over voltage.

If the Panel PC’s clock doesn’t show accurate time or the BIOS configuration resets to default, please check the battery first.

The detailed Panel Mounting installation procedure is shown in Chapter 5.

FCC Class B

The EUDA Panel PC series have been fully tested, compliant with the technical standards of

FCC Part 15 Class B (DoC); IC ICES-003 and CE EMC Directive 2004/108/EC (EN55022 /

EN55024)..

These limits regulate the digital device to provide proper protection from harmful emission interference when it is under operation in residential, hospital or working environment.

Digital device compliant with Class B generates less noise and lower radio frequency emission in order not to affect health of human body and not to interfere with other equipment, device or machine operated nearby as seriously as those units with Class A only.

Manufacturer

Portwell Inc. http://www.portwell.com.tw

Address : No. 242, Bo-Ai Street, Shu-Lin District, New Taipei City, 238, Taiwan

TEL : (02) 7731-8888

Preface

How to Use This Manual

The manual stipulates the Panel PC’s configuration, installation and set-up. It is divided into five chapters; each chapter addresses a basic concept and operation of the built-in Mini-ITX Board with the LCD Panel.

Chapter 1 : System Overview. It presents what users will see and what has been included inside the carton and gives users an overview of the product specifications and basic system architecture for the EUDA PPC series.

Chapter 2 : Hardware Configuration. It shows brief hardware installation, the definitions and locations of Jumpers and Connectors configured in the system.

Chapter 3 : System Installation. Describes how to properly assemble /disassemble the IPC system on the Panel PC, inert the main memory & Compact Flash, install drivers, calibrate the touch screen and provides a programming guide of Watch Dog

Timer function.

Chapter 4 : BIOS Setup Information. It specifies the meaning of each setup parameters, how to get advanced BIOS performance and update new BIOS. In addition, POST checkpoint list will give users some guidelines of trouble-shooting.

Chapter 5 : FAQ. The most frequently asked questions are listed in this chapter.

The content of this manual is subject to change without prior notice. These changes will be incorporated to new edition of the document. Portwell may make supplement or change to the Panel PC product series by keeping revision history.

Any updates to this manual, technical clarification, and answers to frequently asked questions will be shown on the following website : http://www.portwell.com.tw

System Overview

Chapter 1

System Overview

1.0 Specification Overview of

EUDA-S1x11 Panel PC

Series :

EUDA PPC User’s Manual 1-1

System Overview

Front View & Side View

1.1 Introduction

Portwell Inc., among one of the world’s leading innovators in the Industrial PC (IPC) market, develops its rugged and fan-free EUDA Panel PC (PPC) series by designing in a thinner fanless Mini-ITX board with the latest Intel® platform for embedded applications. Built in the PPC system is Portwell’s self-designed Mini-ITX board which takes advantage of Intel® 45-nanometer Hi-k process technology — the first generation of low-power IA-32 micro-architecture specially designed for Embedded

Platform and can support Intel® 945GSE chipset with the ICH7-M, can provide the low power consumption for compact and fanless HMI Panel PC in applications such as Automation, Order-taking Machine, Vending Machine, POS, Nursing Cart,

Bed-side Terminal, Kiosk, and Digital Signage.

EUDA PPC User’s Manual 1-2

System Overview

1.2 Packing List

The packing list of the EUDA series should cover the following basic items

 One Serial ATA Cable

 One SATA Power Cable

One 3-pin terminal block connector

 One HDD Bracket with 4x Screws

 One Panel Mount Kit ( 10~12 pieces/kit by model )

One User’s Manual & Installation Resources CD-Title

 HDD / CF / RAM ( Optional at request of configuration )

Keep all packing accessories for future’s installation, replacement and maintenance.

If any of these items is damaged or missing, please contact your local supplier for further check.

EUDA PPC User’s Manual 1-3

System Overview

1.3.1 Specification of the built-in Mini-ITX Board in EUDA Panel PC

Main processor

- Support Intel Atom processor N270

- CPU bus clock: 667/533 MHz

Chipset

Intel® 945GSE and ICH7-M

Main Memory

- Support signal channel DDR2 memory interface

- Up to 2GB DDR2 533 SDRAM on SO-DIMM socket

System BIOS

AWARD BIOS

Expansion Interface

One PCI Express x1 slot

SATA Interface

Two SATA ports

Serial Ports

Support two RS-232 serial ports

IR Interface

N/A

Parallel Port

N/A

USB Interface

Support Six USB (Universal Serial Bus) ports (four at rear, two on-board for internal devices)

PS/2 Mouse and Keyboard Interface

Support onboard pin header for PS/2 keyboard/mouse

Audio Interface

Connector of Mic-in/Line-out

Real Time Clock/Calendar (RTC)

Support Y2K Real Time Clock/Calendar

Watchdog Timer

- Support WDT function through software programming for enable/disable and interval setting

- Generate system reset

On-board VGA

- Intel 945GSE Integrated GMA950 Graphics device

- Intel DVMT 3.0 supports up to 128MB video memory

EUDA PPC User’s Manual 1-4

System Overview

On-board Ethernet LAN

One Gigabit Ethernet (10/100/ 1000 Mbits/sec) LAN port

High Driving GPIO

Onboard programmable 8-bit Digital I/O interface

Cooling Fans

Support one 3-pin power connector for system fan

System Monitoring Feature

Monitor system temperature and major power sources, etc

Outline Dimension (L X W):

170mm (6.69”) x 170mm (6.69”)

Power Requirements:

+12V(Board)@1.25A

System Configuration :

CPU Type

BIOS

System Configuration

Intel Atom Processor N270 1.6GHz 533MHz/ L2:512K

Portwell, Inc. EUDA Series Panel PC BIOS Rev. R1.00.W2

(02162011)

Memory

VGA Card

VGA Driver

LAN Card

Transcend DDR2 533 512MB (ELPIDA E5108AGBG-5C-E)

Onboard Mobile Intel 945GSE Chipset Controller

Mobile Intel® 945 Express Chipset Family Version 6.14.10.4926

Onboard Realtek RTL8111C PCI-E Gigabit Ethernet Controller

EUDA PPC User’s Manual 1-5

System Overview

LAN Driver

Audio Card

Realtek RTL8111C Family PCI-E Gigabit Ethernet NIC

Version 5.698.701.2008

Realtek ALC662 Audio Controller

Audio Driver Realtek high Definition Audio Version:5.10.0.5735

CHIP Driver Intel® Chipset Software Installation Utility Version 8.3.0.1013

USB 2.0 Driver Intel® 82801G (ICH7 Family) USB2 Enhanced Host Controller

Version 8.2.0.1008

SATA HDD WD1601ABYS

SATA CDROM LH-20A1S11C

Power Supply HEC-450TE-2WX

CPU Type Intel Atom Processor N270 1.6GHz 533MHz/ L2:512K

Operating Temperature:

0°C ~ 55°C

Storage Temperature:

-20°C ~ 80°C

Relative Humidity:

5% ~ 90%, non-condensing

EUDA PPC User’s Manual 1-6

System Overview

1.3.2 Specification of the built-in Power & I/O board in EUDA Panel PC

Power Requirements:

+DC 24V/28V/48V input Max. 60 Watt

On-board Ethernet LAN

One USB to Gigabit Ethernet LAN port

Serial Ports

Support One RS-232/422/485 serial ports

Operating Temperature:

0°C ~ 55°C

Storage Temperature:

-20°C ~ 80°C

Relative Humidity:

5% ~ 90%, non-condensing

Outline Dimension (L X W):

100mm (39.3”) x 72mm (28.3”)

EUDA PPC User’s Manual 1-7

System Overview

EUDA PPC User’s Manual 1-8

System Overview

EUDA PPC User’s Manual 1-9

System Overview

1.3.4 Specification of Touch Screen

EUDA PPC User’s Manual 1-10

System Overview

1.3.5 Mechanical Drawing of the EUDA Panel PCs ( 12”, 15”, 17”, 19” )

(1) Dimension of EUDA-S1211

EUDA PPC User’s Manual

(2) Dimension of EUDA-S1511

1-11

System Overview

(3) Dimension of EUDA-S1711

EUDA PPC User’s Manual

(4) Dimension of EUDA-S1911

1-12

System Overview

All of detailed operations of EUDA series are shown below in System Block Diagram.

5W Resistive Touch 12"/15"/17"/19" Panel

DC 24/28/48V

IN

Backlight

LVDS

2ch x 24 bit

Inverter

5W Resistive control board

USB

DDR2 SO-DIMM

WADE-8071

(Intel N270 1.6GHz

+945GSE+ICH7-M)

RS-232

USB

PB-24WCG

DC 12V IN

Rear I/O Rear I/O

RS-232/422/485 x1

Ethernet x1

DC 24-48V Terminal block connector x1

VGA x1

Ethernet x1

RS-232 x1

USBx4

Line-out x1

MiC x 1

CF

System Switch

System Block Diagram

SATA

2.5" 160GB HDD

EUDA PPC User’s Manual 1-13

System Overview

1.5 Brief Outlook of the Assembly of Hardware Components

EUDA PPC User’s Manual

Mini-ITX Board

1-14

System Overview

Power conversion & I/O board

View from Rear I/O

EUDA PPC User’s Manual 1-15

System Overview

Top View of EUDA-S1x11 PPC

Side View of CF Card Insertion

1.6 System Power consumption of EUDA-S1x11 Series

EUDA Panel PC is fully integrated at system assembly line before shipment. It’s not necessary for end users to do any assembly unless installing the optional HDD, RAM

Model Name Max. Power Consumption

EUDA-S1211 42.2W

EUDA-S1511 43.7W

EUDA-S1711 58.9W

EUDA-S1911 53.7W

EUDA PPC User’s Manual 1-16

Hardware Configuration

Chapter 2

Hardware Configuration

EUDA Panel PC is fully integrated at system assembly line before shipment. It’s not necessary for end users to do any assembly unless installing the optional HDD, RAM and CF.

This chapter is just to brief the definitions and shows the positions of jumpers, headers and connector for reference.

All of the configuration jumpers on the built-in Mini-ITX board are in the proper position. The default settings are indicated with a star sign ().

In general, jumpers on the single board computer are used to select options for certain features. Some of the jumpers are designed to be user-configurable, allowing for system enhancement. The others are for testing purpose only and should not be altered. To select any option, cover the jumper cap over (SHORT) or remove (NC) it from the jumper pins according to the following instructions. Here NC stands for

“Not Connect”.

Figure 2-1 Top-side Jumper and Connector Locations

EUDA PPC User’s Manual 2-1

Hardware Configuration

JP9 : CMOS Clear

PIN1

JP9 Function

1-2 Short Normal Operation 

2-3 Short Clear CMOS Contents

JP6 : PANEL BACKLIGHT Selection

PIN1 2

5

6

Pin No.

1-3, 2-4

1-3, 4-6

3-5, 2-4

3-5, 4-6

Signal Description

5V, Active High 

12V, Active High

5V, Active Low

12V, Active Low

JP8 : PANEL Voltage Selection

PIN1 2

5

6

JP8

2-4 Short +3.3V 

4-6 Short +5.0V 

3-4 Short +12V

Function

Note:

PANEL Voltage Selection Default;

EUDA-S1211 & EUDA-S1511 setting on 2-4 Pin;

EUDA-S1711 & EUDA-S1911 setting on 4-6 Pin.

JP8 : Pin Assignments

PIN No.

Signal

Description

1 N/A

2 +3.3V

PIN No.

Signal

Description

3 +12V

PIN No.

Signal

Description

5 N/A

4 VDDVLDS_IN 6 +5V

EUDA PPC User’s Manual 2-2

Hardware Configuration

Note:

Wrong voltage selection may damage the LVDS panel.

Please survey LVDS panel’s VDD before setup of this jumper setting.

I/O peripheral devices and Flash disk will be connected to these interface connectors.

Connector Function List

Connector Description

J2

J3

J4/J5

J6

J7

J8

J9

J10

J11

J13

JP1

JP2

JP3

JP4

JP5

JP7

JP11

COM Port Connector

POWER DC Jack

USB Connector

MIC Audio Jack

Line_out Audio Jack

RJ45 LAN Connector

POWER DC +12V Connector

CASEOPEN Pin HDR

SO-DIMM DDRII Socket

PCIE x1 SLOT

COM Port Pin HDR

MIC Pin HDR

Line_out Pin HDR

KB/MS Pin HDR

GPIO Pin HDR

Front Panel Pin HDR

BACK LIGHT PWR Connector

JP12/JP14 External +5V/+12V Pin HDR

JP13 External USB Pin HDR

Remark

D-Sub15

D-Sub9

Dual USB/TypeA

Wafer 2mm

DF13-30DP

22P*2

5P*2

Wafer 2mm

Wafer 2mm

5P*2

Wafer 2mm

Wafer 2mm ”1A”

EUDA PPC User’s Manual 2-3

Hardware Configuration

Pin Assignments of Connectors

J9 : POWER DC +12V Connector

3

4

2

PIN No. Signal Description

1 Ground

2 Ground

3 +12V

4 +12V

J12 : LVDS Connector

2 PIN1

PIN No. Signal Description

1 LCD1DO0+

3 LCD1DO1+

5 LCD1DO2+

7 LCD1DO3+

9 LCD1CLK+

11 LCD2DO0+

13 LCD2DO1+

15 LCD2DO2+

17 LCD2DO3+

19 LCD2CLK+

21 LCLK1

23 GND

25 GND

27 POWER

29 N/C

PIN No. Signal Description

2 LCD1DO0-

4 LCD1DO1-

6 LCD1DO2-

8 LCD1DO3-

10 LCD1CLK-

12 LCD2DO0-

14 LCD2DO1-

16 LCD2DO2-

18 LCD2DO3-

20 LCD2CLK-

22 LDATA1

24 N/C

26 Ground

28 POWER

30 POWER

EUDA PPC User’s Manual 2-4

Hardware Configuration

LVDS Connection

JP1 : COM Serial Port ( Connect Power & I/O board for RS-232/422/485 selection)

PIN1

2

PIN No.

1 DCD

2 DSR

Signal Description

3 RXD

4 RTS

5 TXD

6 CTS

7 DTR

8 RI

9 Ground

10 Ground

JP5 : GPIO Pin HDR

PIN1

2

PIN No. Signal Description

1 GPIO0

3 GPIO1

5 GPIO2

7 GPIO3

9 Ground

PIN No. Signal Description

2 GPIO4

4 GPIO5

6 GPIO6

8 GPIO7

10 +5V

EUDA PPC User’s Manual 2-5

Hardware Configuration

Note:

All General Purpose I/O ports can only apply to standard TTL ± 5% signal level

(0V/5V), and each Fan.

JP7 : Front Panel Pin HDR

PIN1

2

PIN No.

1

Signal Description

5VSBY through 330 ohm

3 N/C

5 PWRLED

7 N/C

9 N/C

11 N/C

13 +5V through 150 ohm

15 HDD_LED#

PIN No.

2 N/C

Signal Description

4 N/C

6 N/C

8 N/C

10 5VSBY through 1k ohm

12 PWR_ON

14 RESET#

16 Ground

EUDA PPC User’s Manual 2-6

Hardware Configuration

LED Indicator of Power & HDD

Power Switch Connection

JP11 : BACKLIGHT PWR Pin HDR

PIN1

PIN No.

1

Signal Description

BACK LIGHT ENABLE

2 GND

3 +12V

4 GND

5 VCC

EUDA PPC User’s Manual 2-7

Hardware Configuration

JP12/JP14 : SATA Power HDR

4

PIN1

PIN No.

1

Signal Description

+12V (Support 1A)

2 Ground

3 Ground

4 +5V (Support 1A)

JP13 : Internal USB Pin HDR

PIN No.

1

Signal Description

5V Dual

3 USB-

5 USB+

7 Ground

Key( no pin )

PIN No.

2

Signal Description

5V Dual

4 USB-

6 USB+

8 Ground

10 N/C

EUDA PPC User’s Manual 2-8

Hardware Configuration

USB Pin Header ( for Touch Screen & USB Ethernet cable connection )

EUDA PPC User’s Manual 2-9

Hardware Configuration

Connector Description

J1

12V POWER OUTPUT

J2 USB

J4

RS232

J5

LAN

J6

RS232/RS422/RS485

J7

24/28/48V POWER INPUT

JP1

RS232/422/485 jumper setting

EUDA PPC User’s Manual 2-10

Hardware Configuration

J1 : Power output Connector (Connect to DC 12V of Mini-ITX board )

PIN No. Signal Description

1 +12V

2 +12V

3 GND

4 GND

J2 : External USB Connector (For USB 2.0 to Gigabit Ethernet)

PIN No. Signal Description

2 USB-

3 USB+

4 Ground

J3 : COM Port Connector (Connect to COM port of Mini-ITX board)

EUDA PPC User’s Manual 2-11

Hardware Configuration

PIN No. Signal Description

1 DCD (Data Carrier Detect)

2 DSR (Data Set Ready)

3 RXD (Receive Data)

4 RTS (Request to Send)

5 TXD (Transmit Data)

6 CTS (Clear to Send)

7 DTR (Data Terminal Ready)

8 RI (Ring Indicator)

9 GND (Ground)

10 GND (Ground)

J5 : USB 2.0 to Gigabit Ethernet port

AX88178 Color Name of LED

Status LED Yellow Active LED

Operation of Ethernet Port

Blinking

Status LED Green Link LED On

※ USB 2.0 to Gigabit Ethernet port doesn’t support “Speed LED” to show status of current

Ethernet speed.

EUDA PPC User’s Manual 2-12

Hardware Configuration

J7 : Power Input Connector ( 3pin green terminal block connector)

PIN No. Signal Description

1 VIN (+24V /+28V/ +48V)

2 GND

RS-232

Function

JP1 : RS232/422/485 Jumper setting

JP1

3-5,4-6,9-11,10-12,15-17,16-18 Short 

EUDA PPC User’s Manual 2-13

System Installation

Chapter 3

System Installation

This chapter provides users with instructions or clear ideas of system hardware and software installation. The additional information is enclosed also to help users understand the setup of onboard PCI device and handle Watch Dog Timer (WDT).

3.1 Intel® ATOM CPU

The built-in Mini-ITX board onboard uses Intel Atom N270 CPU 1.6GHz processor.

Introducing Intel Atom processor, a new microprocessor designed from the ground up for mobility, with a mobile-optimized chipset. Intel mobile processor innovative design techniques allow faster execution of instructions at lower power.

The built-in Mini-ITX board provides 1 x 200-pin SO-DIMM sockets which supports

667/533 DDR2-SDRAM as main memory, Non-ECC (Error Checking and

Correcting), non-register functions. The maximum memory size can be up to 2GB capacity. Memory clock and related settings can be detected by BIOS via SPD interface.

For system compatibility and stability, do not use memory module without brand.

Memory configuration can be either one double-sided DIMM in either one DIMM socket or two single-sided SO-DIMMs in both sockets.

Watch out the contact and lock integrity of memory module with socket, it will impact on the system reliability. Follow normal procedures to install memory module into memory socket. Before locking, make sure that all modules have been fully inserted into the card slots.

CPU FSB Bandwidth

533MHz 4.2GB/s

Memory Frequency

Single Channel DDR

Bandwidth

667MHz 4.2GB/s

533 MHz 4.2GB/s

Note:

To maintain system stability, please don’t change any of DRAM parameters in BIOS setup to upgrade system performance without acquiring technical information.

EUDA PPC User’s Manual 3-1

System Installation

Memory frequency / CPU FSB synchronization

The built-in N270 Mini-ITX board supports different memory frequencies depending on the CPU front side bus and the type of DDR2 SO-DIMM.

CPU FSB

533 MHz

Memory Frequency

667/533MHz

3.3 Installing the Mini-ITX Board

The installation of the built-in Mini-ITX board into the IPC chassis is done before shipment. The following steps are taken:

Step 1 : Check all jumpers settings on the proper position.

Step 2 : Install and configure CPU and memory module on the right position

Step 3 : Place Mini-ITX board to the fixed position on the system

Step 4 : Connect cables to existing peripheral devices and secure them.

REMINDING

Make sure the Mini-ITX board is properly inserted and fixed by mechanism.

Note:

Please refer to section 3.3.1 to 3.3.4 to install Chipset/VGA/LAN/Audio drivers.

3.3.1 Chipset Component Driver

The chipset on the built-in Mini-ITX board is a new chipset that a few old operating systems might not be able to recognize. To overcome this compatibility issue, for

Windows Operating Systems such as Windows 2000 /XP, please install its INF before any of other Drivers are installed. You can find very easily this chipset component driver in board CD-title.

EUDA PPC User’s Manual 3-2

System Installation

3.3.2 Intel Integrated Graphics GMCH Chip

Using Intel® 945GSE GMCH with Media Accelerator (GMA) 950 graphics integrated chipset is aimed to gain an outstanding graphic performance. Shared 8 accompany it to 128MB system DDR2-SDRAM with Total Graphics Memory. This combination makes the built-in N270 Mini-ITX board an excellent piece of multimedia hardware.

With no additional video adaptor, this onboard video will usually be the system display output. By adjusting the BIOS setting to disable on-board VGA, an add-on

PCI-Express by 1 VGA card can take over the system display.

EUDA PPC User’s Manual 3-3

System Installation

3.3.3 Realtek Gigabit Ethernet Controller

Drivers Support

Please find Realtek RTL8111C LAN driver in Ethernet directory of the board CD-title.

The drivers support Windows 2000 /XP.

LED Indicator (for LAN status)

The built-in Mini-ITX board provides two LED indicators to report Realtek RTL8111C

Gigabit Ethernet interface status. Please refer to the table below as a quick reference guide.

8111C Color Name of LED

Operation of Ethernet Port

Linked Active

Status

LED

Orange LAN Linked & Active LED

Speed

LED

Orange

Green

LAN speed LED

Giga

Mbps

100 Mbps 10

Mbps

Orange Green Off

EUDA PPC User’s Manual 3-4

System Installation

3.3.4 AX88718 USB to Gigabit Ethernet Controller

Drivers Support

Please find AX88178 USB to Gigabit Ethernet driver in Ethernet directory of the board

CD-title. The drivers support Windows 2000 /XP/Win 7.

AX88178 Color Name of LED Operation of Ethernet Port

Status LED Yellow Active LED Blinking

Status LED Green Link LED On

Please find Realtek ALC662 Audio driver form the board CD-title. The drivers support Windows 2000 /XP.

EUDA PPC User’s Manual 3-5

System Installation

3.4 Clear CMOS Operation

The following table indicates how to enable/disable Clear CMOS Function hardware circuit by putting jumpers at proper position.

3 3

2

1

2

1

JP9 Function

1-2 Short Normal Operation 

2-3 Short Clear CMOS contents

3.5 WDT Function

The working algorithm of the WDT function can be simply described as a counting process. The Time-Out Interval can be set through software programming. The availability of the time-out interval settings by software or hardware varies from boards to boards.

The built-in Mini-ITX board allows users to control WDT through dynamic software programming. The WDT starts counting when it is activated. It sends out a signal to system reset or to non-maskable interrupt (NMI), when time-out interval ends. To prevent the time-out interval from running out, a re-trigger signal will need to be sent before the counting reaches its end. This action will restart the counting process. A

EUDA PPC User’s Manual 3-6

System Installation well-written WDT program should keep the counting process running under normal condition. WDT should never generate a system reset or NMI signal unless the system runs into troubles.

The related Control Registers of WDT are all included in the following sample program that is written in C language. User can fill a non-zero value into the

Time-out Value Register to enable/refresh WDT. System will be reset after the

Time-out Value to be counted down to zero. Or user can directly fill a zero value into

Time-out Value Register to disable WDT immediately. To ensure a successful accessing to the content of desired Control Register, the sequence of following program codes should be step-by-step run again when each register is accessed.

Additionally, there are maximum 2 seconds of counting tolerance that should be considered into user’ application program. For more information about WDT, please refer to Winbond W83627HG-AW data sheet.

There are two PNP I/O port addresses that can be used to configure WDT,

1) 0x2E: EFIR (Extended Function Index Register, for identifying CR index number)

2) 0x2F: EFDR (Extended Function Data Register, for accessing desired CR)

Below are some example codes, which demonstrate the use of WDT.

//Step1. Enter W83627HG configuration registers mode:

outportb(0x2E, 0x87);

outportb(0x2E, 0x87);

//* Step2. Pin89 to be WDTO

outportb(0x2E, 0x2b);

outportb(0x2E + 1, 0x04);

//* Step3. Select logic device 8:

outportb(0x2E, 0x07);

outportb(0x2E + 1, 0x08);

//* Step4. Config WDT using second to be unit:

outportb(0x2E, 0xf5);

outportb(0x2E + 1, 0x00);

//* Step5. Set WDT time-out time:

outportb(0x2E, 0xf6);

outportb(0x2E + 1, time_out);

//* Step6. Exit configuration registers mode:

outportb(0x2E, 0xaa);

EUDA PPC User’s Manual 3-7

System Installation

EUDA PPC User’s Manual 3-8

System Installation

3.6.1 Insert Memory module

1. Unscrew the IPC metal cover & detach it 2. Remove the IPC metal cover

3. Make sure the place of Memory slot 4. Insert Memory module to the slot

5.Finish Memory module Installation

EUDA PPC User’s Manual 3-9

System Installation

3.6.2 Serial ATA and IDE Hard Disk Installation Method

Unlike IDE bus, each Serial ATA channel can only connect to one SATA hard disk at a time; there are total two connectors, J14 and J15. The installation of Serial ATA is simpler and easier than IDE, because SATA hard disk doesn’t require setting up

Master and Slave, which can reduce mistake of hardware installation.

1. Fix the anti-vibration washers & screws 2. Fix the HDD to the bracket & connect SATA cable & Power cable

3. Connect the HDD power cable and SATA cable 4. Fix the HDD on the chassis with four M3x6 as illustrated. screws in the accessory box

EUDA PPC User’s Manual 3-10

System Installation

3.6.3 Insert CF Card

1.Unscrew the side bracket of chassis 2.Remove the side bracket

3. Insert CF card to CF socket carefully

4. Fix the side bracket by screw, the finish

CF card installation.

5. Reject CF card by bar if necessary

EUDA PPC User’s Manual 3-11

System Installation

3.6.4 DC 24V/28V/28V Power Input Installation

1. Male-type 3-pin terminal block connector 2.

Female type 3-pin terminal block connector. It can be found from accessory kit.

3. Fix Female type 3-pin terminal block connector to the system by screw.

4. Fix power cable according to signal definition on 3-pin thermal block connector by screw.

3.7.1 Driver Directory

EUDA PPC User’s Manual 3-12

System Installation

EUDA PPC User’s Manual 3-13

System Installation

EUDA PPC User’s Manual 3-14

System Installation

EUDA PPC User’s Manual 3-15

System Installation

EUDA PPC User’s Manual 3-16

System Installation

EUDA PPC User’s Manual 3-17

System Installation

3.8 Calibration of Touch Screen

The driver for the 5-wire touch screen has already been installed before shipment.

No step by step installation guide needs to be introduced here.

The calibration procedure is shown by degrees.

The “Touch Screen Utility” has been installed in EUDA series before shipment

How to calibrate the touch screen?

From the [Program] to find [eGalaxTouch] icon then click the [Configure Utility]

EUDA PPC User’s Manual 3-18

System Installation

Click the Page [About], you can find the information and version of the “Touch Screen Utility”

Click the Page [General], the installed USB Touch Screen Controller is shown. (USB interface is used in EUDA series.)

EUDA PPC User’s Manual 3-19

System Installation

Click the Page [Setting], you can choose the Linearization Style, either 9 Points or 25 Points.

Click the Page [Tools], you can choose [4 Points Calibration] to do 4 points alignment to match display.

EUDA PPC User’s Manual 3-20

System Installation

The 4 points calibration & Linearization are completed as follows

Click [Draw Test], draw by touch pen or finger to know touch accuracy

EUDA PPC User’s Manual 3-21

System Installation

Click the Page [Display], you can select the Operation Mode.

Click the Page [Hardware], Controller Model and Firmware Version can be seen.

EUDA PPC User’s Manual 3-22

System Installation

Click [Hardware Setting], you can adjust Sensitivity and Delay time of touch screen

Click the Page [Edge Compensation] to adjust the Edge Parameters.

EUDA PPC User’s Manual 3-23

BIOS Setup Information

Chapter 4

BIOS Setup Information

The built-in Mini-ITX board is equipped with the AWARD BIOS stored in Flash

ROM. These BIOS has a built-in Setup program that allows users to modify the basic system configuration easily. This type of information is stored in CMOS RAM so that it is retained during power-off periods. When system is turned on, the built-in

Mini-ITX board communicates with peripheral devices and checks its hardware resources against the configuration information stored in the CMOS memory. If any error is detected, or the CMOS parameters need to be initially defined, the diagnostic program will prompt the user to enter the SETUP program. Some errors are significant enough to abort the start-up.

Turn on or reboot the computer. When the message “Hit <DEL> if you want to run

SETUP” appears, press <Del> key immediately to enter BIOS setup program.

If the message disappears before you respond, but you still wish to enter Setup, please restart the system to try “COLD START” again by turning it OFF and then

ON, or touch the "RESET" button. You may also restart from “WARM START” by pressing <Ctrl>, <Alt>, and <Delete> keys simultaneously. If you do not press the keys at the right time and the system will not boot, an error message will be displayed and you will again be asked to,

Press <F1> to Run SETUP or Resume

In HIFLEX BIOS setup, you can use the keyboard to choose among options or modify the system parameters to match the options with your system. The table below will show you all of keystroke functions in BIOS setup.

↑↓→

General Help

: Move

+ / - /PU /PD : Value

F1

F2

F5

F6

F7

F9

: General Help

: Item Help

: Previous Values

: Fail-Safe Defaults

: Optimized Defaults

: Menu in BIOS

EUDA PPC User’s Manual 4-1

BIOS Setup Information

Once you enter the built-in Mini-ITX board AWARD BIOS CMOS Setup Utility, a

Main Menu is presented. The Main Menu allows user to select from eleven setup functions and two exit choices. Use arrow keys to switch among items and press

<Enter> key to accept or bring up the sub-menu.

Phoenix – Award BIOS CMOS Setup Utility

 Standard CMOS Features

 Advanced BIOS Features

 Advanced Chipset Features

 Integrated Peripherals

 Power Management Setup

 PnP/PCI Configurations

 PC Health Status

ESC : Quit

F10 : Save & Exit Setup

Load Fail-Safe Defaults

Load Optimized Defaults

Set Supervisor Password

Set User Password

Save & Exit Setup

Exit Without Saving

    : Select Item

Time, Date, Hard Disk Type …

Note:

It is strongly recommended to reload Optimal Setting if CMOS is lost or BIOS is updated.

4.3 Standard CMOS Setup Menu

This setup page includes all the items in standard compatible BIOS. Use the arrow keys to highlight the item and then use the <PgUp>/<PgDn> or <+>/<-> keys to select the value or number you want in each item and press <Enter> key to certify it.

Follow command keys in CMOS Setup table to change Date, Time, Drive type, and

Boot Sector Virus Protection Status.

Phoenix – Award BIOS CMOS Setup Utility

Standard CMOS Features

Date (mm:dd:yy) Fri, Jan 29 2010

Item Help

EUDA PPC User’s Manual 4-2

BIOS Setup Information

Time (hh:mm:ss)

 IDE Channel 0 Master

 IDE Channel 0 Slave

 IDE Channel 1 Master

 IDE Channel 1 Slave

10 : 20 : 30

[ST380817AS]

[None]

[None]

[None]

Menu Level 

Change the day, month, year and century

[EGA/VGA]

Halt On [

No

Errors]

Base Memory

Extended Memory

Total Memory

639K

1038336K

1039360K

: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

Note:

Oblique items are based on memory capacity which user adopts on single board.

Menu Selections

Item

Date

Options

mm:dd:yy

Time

IDE Channel 0 hh:mm:ss

Description

Change the day, month, year and century

Change the internal clock

Master

IDE Channel 0

Slave

Options are in its sub menu

Press <Enter> to enter next page for detail hard druve settings

IDE Channel 1

Master

IDE Channel 1

Slave

Video EGA/VGA

CGA 40

CGA 80

Halt On

MONO

All Errors

Select the default video device

Base Memory

Extended

Memory

639K

N/A

Total Memory N/A

Select the situation in which you want the BIOS to stop the POST process and notify you

Displays the amount of conventional memory detected during boot up

Displays the amount of extended memory detected during boot up

Displays the total memory available in the system

EUDA PPC User’s Manual 4-3

BIOS Setup Information

4.4 IDE Adaptors Setup Menu

The IDE adapters control the IDE devices, such as hard disk drive or CD-ROM drive.

It uses a separate sub menu to configure each hard disk drive.

Phoenix – Award BIOS CMOS Setup Utility

IDE Channel 0 Master (&Slave)

IDE HDD Auto-Detection [Press Enter] Item Help

IDE Channel 0 Master

Access Mode

[Auto]

[Auto]

Menu Level 

To atuo-detect the HDD’s

Cylinder 38309

Head 16

Precomp 0

Landing Zone 38308

Sector 255 channel

: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

Note:

The oblique items are meaning base on what kind of storage device user employs.

Menu Selections

Item

IDE HDD

Auto-detection

Options

Press Enter

Description

Press Enter to auto-detect the HDD on this channel. If detection is successful, it fills the remaining fields on this menu.

IDE Channel 0

Master

None

Auto

Manual

Selecting ‘manual’ lets you set the remaining fields on this screen. Selects the type of fixed disk. "User Type" will let you select the number of cylinders, heads, etc.

Note: PRECOMP=65535 means NONE !

Choose the access mode for this hard disk Access Mode CHS, LBA

Large, Auto

Capacity Auto Display your disk drive size

Disk drive capacity (Approximated). Note that this size is usually slightly greater than the size of a formatted disk given by a disk checking program.

The following options are selectable only if the ‘IDE Primary Master’ item is set to ‘Manual’

Cylinder Min=0, Max=65535 Set the number of cylinders for hard disk

Head

Precomp

Min=0, Max=255 Set the number of read/write heads

Min=0, Max=65535 **** Warning: Setting a value of 65535 means no hard disk

Landing zone Min=0, Max=65535 ****

Sector Min=0, Max=255 Number of sectors per track

EUDA PPC User’s Manual 4-4

BIOS Setup Information

4.5 Advanced BIOS Features

This section allows you to configure your system for basic operation. You have the opportunity to select the system’s default speed, boot-up sequence, keyboard operation, shadowing and security.

Phoenix – Award BIOS CMOS Setup Utility

Advanced BIOS Features

 CPU Feature

 Hard Disk Boot Priority

Virus Warning

Quick Power On Self Test

First Boot Device

Second Boot Device

Third Boot Device

Boot Other Device

Boot up NumLock Status

Gate A20 Option

Typematic Rate Setting

[Press Enter]

[Press Enter]

[Disabled]

[Enabled]

[CDROM]

[Hard Disk]

[LS120]

[Enabled]

[On]

[Fast]

[Disabled]

X Typematic Rate (Chars/Sec) 6

X Typematic Delay (Msec)

Security Option

250

[Setup]

APIC Mode [Enabled]

MPS Version Control For OS [1.4]

OS Select For DRAM > 64MB [Non-OS2]

Report No FDD For WIN 95 [No]

Small Logo(EPA) Show [Disabled]

Item Help

Menu Level 

: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

Phoenix – Award BIOS CMOS Setup Utility

CPU Feature

Delay Prior to Thermal [16 Min]

Limit CPUID MaxVal [Disabled]

C1E Function [Auto]

Execute Disable Bit [Enabled]

Item Help

Menu Level 

CPU C1E Function Select

: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

EUDA PPC User’s Manual 4-5

BIOS Setup Information

C1E Function

CPU C1E Function Select.

The selection : Auto, Disabled.

Execute Disabled Bit

When disabled, forces the XD feature flag to always return 0.

The selection : Enabled, Disabled.

Core Multi-Processing

The selection : Enabled, Disabled.

Phoenix – Award BIOS CMOS Setup Utility

Hard Disk Boot Priority

1. CH0 M. : ST380817AS

2. Bootable ADD-in Cards

Item Help

Menu Level 

Use <↑> or <↓> to select a device, then press <+> to move it up, or <-> to move it down the list. Press

<ESC> to exit this menu.

: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

Hard Disk Boot Priority

Select Hard Disk Boot Device Priority. Use <↑> or <↓> to select a device, then press

<+> to move it up, or <-> to move it down the list. Press <ESC> to exit this menu.

Virus Warning

Allow you to choose the VIRUS warning feature for IDE Hard Disk boot sector protection. If this function is enabled and someone attempt to write data into this area, BIOS will show a warning message on screen and alarm beep.

Enabled

Disabled

Activates automatically when the system boots up causing a warning message to appear when anything attempts to access the boot sector or hard disk partition table.

No warning message will appear when anything attempts to access the boot sector or hard disk partition table.

EUDA PPC User’s Manual 4-6

BIOS Setup Information

Quick Power On Self Test

Allows the system skip certain tests while booting. This will decrease the time needed to boot the system.

First/Second/Third Boot Device

Select your Boot Device Priority.

The selection : LS120, Hard Disk, CDROM, ZIP 100, USB-FDD, USB-ZIP,

USB-CDROM and Disabled.

Boot Other Device

Select your Boot Device Priority.

The selection : Enabled, Disabled.

Boot Up NumLock Status

Select power on state for NumLock.

The selection : Off, On.

Gate A20 Option

Fast-lets chipsets control GateA20 and Normal – a pin in the keyboard controller controls GateA20. Default is fast.

The selection : Normal, Fast.

Typematic Rate Setting

Keyboard repeat at a rate determined by the keyboard controller – when enabled, the typematic rate and typematic delay can de select.

The selection : Disabled, Enabled.

Typematic Rate (Chars/sec)

The rate is which character repeats when you hold down a key.

The selection : 6, 8, 10, 12, 15, 20, 24, and 30. (Default 6)

Typematic delay (Msec)

The delay before keystrokes begin to repeat.

The selection : 250, 500, 750, and 1000. (Default 250)

EUDA PPC User’s Manual 4-7

BIOS Setup Information

Security Option

Select whether the password is required every time the system boots or only when you enter setup.

System

Setup

The system will not boot and access to Setup will be denied if the correct password is not entered at the prompt.

The system will boot, but access to Setup will be denied if the correct password is not entered at the prompt.

APIC Mode

The selection : Enabled, Disabled.

MPS Version Control For OS

The selection : 1.1, 1.4

OS Select For DRAM > 64MB

Select OS/2 only if you are running OS/2 operating system with greater than 64MB of RAM on the system.

The selection : Non-OS2, OS2.

Report No FDD for WIN 95

The selection : No, Yes.

Small Logo (EPA) Show

The selection : Enabled, Disabled.

4.6 Advanced Chipset Features

This section allows you to configure the system based on the specific features of the

Intel GME965 chipset. This chipset manages bus speeds and access to system memory resources, such as DDR2 SO-DIMM and the external cache. It must be stated that these items should never need to be altered. The default settings have been chosen because they provide the best operating conditions for the system. The only time user might consider making any changes would be if you discovered that data was being lost while during system operation.

Phoenix - Award BIOS CMOS Setup Utility

Advanced Chipset Features

System BIOS Cacheable [Enabled]

Item Help

EUDA PPC User’s Manual 4-8

BIOS Setup Information

Memory Hole At 15M-16M [Disabled]

 PCI Express Root Port Func. [Press Enter]

*** VGA Setting ***

On-Chip Frame Buffer Size [8MB]

DVMT Mode [DVMT]

DVMT/FIXED Memory Size [128MB]

Boot Display [CRT + LVDS ]

Panel Scaling [Auto]

Panel Number [ 800x600 18bit 1ch ]

Menu Level 

: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

System BIOS Cacheable.

The selection : Enabled, Disabled.

Memory Hole At 15-16M

The selection : Enabled, Disabled.

PCI Express Root Port Func.

Phoenix - Award BIOS CMOS Setup Utility

PCI Express Root Port Func

PCI Express Port 1

PCI Express Port 2

PCI Express Port 3

PCI Express Port 4

PCI Express Port 5

PCI Express Port 6

PCI-E Compliancy Mode

[Auto]

[Auto]

[Auto]

[Auto]

[Auto]

[Auto]

[v1.0a]

Item Help

Menu Level 

: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

On-Chip Frame Buffer Size

Users can set the display memory size that shared from main memory.

The selection : 1MB, 8MB.

DVMT Mode

The selection : FIXED, DVMT, BOTH

DVMT/FIXED Memory Size

The selection : 64MB, 128MB, 224MB.

EUDA PPC User’s Manual 4-9

BIOS Setup Information

Boot Display

The selection : CRT, LVDS, CRT+LVDS, DVI, TV, CRT+DVI, CRT+TV.

Panel Scaling

The selection : Auto, On, Off.

Panel Number

The selection :

800x600 18bit 1ch, 1024x768 18bit 1ch, 1024x768 24bit 2ch, 1280x1024 24bit 2ch.

EUDA-S1211 ( 12" : Resolution setting at 800*600 ; 18bit ; 1ch )

EUDA-S1511 ( 15" : Resolution setting at 1024*768 ; 18bit ; 1ch )

EUDA-S1711 ( 17" : Resolution setting at 1280*1024 ; 24bit ; 2ch )

EUDA-S1911 ( 19" : Resolution setting at 1280*1024 ; 24bit ; 2ch )

Phoenix - Award BIOS CMOS Setup Utility

Integrated Peripherals

 OnChip IDE Device

 Onboard Device

 SuperIO Device

Watch Dog Timer Select

[Press Enter]

[Press Enter]

[Press Enter]

[Disabled]

Item Help

Menu Level 

EUDA PPC User’s Manual 4-10

BIOS Setup Information

: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

Phoenix - Award BIOS CMOS Setup Utility

OnChip IDE Device

IDE HDD Block Mode [Enabled]

IDE DMA transfer access [Enabled]

On-Chip Primary PCI IDE [Enabled]

IDE Primary Master PIO [Auto]

IDE Primary Slave PIO [Auto]

IDE Primary Master UDMA [Auto]

IDE Primary Slave UDMA [Auto]

On-Chip Secondary PCI IDE [Enabled]

IDE Secondary Master PIO [Auto]

IDE Secondary Slave PIO [Auto]

IDE Secondary Master UDMA [Auto]

IDE Secondary Slave UDMA [Auto]

*** On-Chip Serial ATA Setting ***

On-Chip Serial ATA [Combined Mode]

* SATA PORT Speed Settings Disabled

PATA IDE Mode [Secondary]

SATA Port P0, P2 is Primary

Item Help

Menu Level 

If your IDE hard drive supports block mode select Enabled for automatic detection of the optimal number of block read/writes per sector the drive can support.

: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

IDE HDD Block Mode

If IDE hard drive supports block mode select Enabled for automatic detection of the optimal number of block read/writes per sector the drive can support.

The selection : Enabled, Disabled.

IDE DMA transfer access

The selection : Enabled, Disabled.

On-Chip Primary/ Secondary PCI IDE

The chipset contains a PCI IDE interface with support for two IDE channels. Select

Enabled to activate the primary IDE interface. Select Disabled to deactivate this interface.

The selection : Enabled, Disabled

EUDA PPC User’s Manual 4-11

BIOS Setup Information

IDE Primary/Secondary Master/Slave PIO

The four IDE PIO (Programmed Input/Output) fields allow set a PIO mode (0-4) for each of the four IDE devices that the onboard IDE interface supports. Modes 0 through 4 provide successively increased performance. In Auto mode, the system automatically determines the best mode for each device.

The selection : Auto, Mode 0, Mode 1, Mode 2, Mode 3, Mode 4.

IDE Primary/Secondary Master/Slave UDMA

Ultra DMA/33/66/100 implementation is possible only if IDE hard drive supports and the operating environment includes a DMA driver (Windows 95 OSR2 or a third-party IDE bus master driver). If your hard drive and system software both support Ultra DMA/33/66/100, select Auto to enable BIOS support.

The selection : Auto, Disabled.

On-Chip Serial ATA

[Disabled]: Disabled SATA Controller. [Combined Mode]: PATA and SATA are combined. Max. of 2 IDE drives in each channel. [Enhanced Mode]: Enable both

SATA and PATA. Max. of 4 IDE drives are supported. [SATA only]: Only enable

SATA.

The selection : Disabled, Auto, Combined Mode, Enhanced Mode, SATA Only.

PATA IDE Mode

The selection : Secondary.

Onboard Device

Phoenix - Award BIOS CMOS Setup Utility

USB Device Setting

USB 1.0 Controller

USB 2.0 Controller

USB Keyboard Function

USB Mouse Function

Azalia/AC97 Audio Select

[Enabled]

[Enabled]

[Enabled]

[Disabled]

[Auto]

Item Help

Menu Level 

[Enabled] or [Disabled] universal host controller interface for universal serial bus.

: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

USB 1.0 Controller

[Enabled] or [Disabled] Universal host controller interface for universal serial bus.

EUDA PPC User’s Manual 4-12

BIOS Setup Information

The selection : Enabled, Disabled.

USB 2.0 Controller

[Enabled] or [Disabled] Enhanced host controller interface for universal serial bus.

The selection : Enabled, Disabled.

USB Keyboard/Mouse Function

[Enabled] or [Disabled] Legacy support of USB keyboard or mouse.

The selection : Disabled, Enabled.

Azalia/AC97 Audio Select

[Enabled] or [Disabled] AC97 Audio controller.

SuperIO Device

Phoenix - Award BIOS CMOS Setup Utility

SuperIO Device

Onboard Serial Port 1

Onboard Serial Port 2

[3F8/IRQ4]

[2F8/IRQ3]

UART Mode Select [Normal]

X RxD , TxD Active

X IR Transmission Delay

Hi , Lo

Enable

X UR2 Duplex Mode

XUse IR Pins

Half

IR-Rx2Tx2

Item Help

Menu Level 

: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

Onboard Serial Port 1/Port 2

Select an address and corresponding interrupt for the first and second serial ports.

The selection : Disabled, 3F8/IRQ4, 2F8/IRQ3, 3E8/IRQ4, 2E8/IRQ3, Auto.

UART Mode Select

This item allows users to select Infrared transmission mode.

IrDA

ASKIR

Select IrDA mode transmission

Select ASKIR mode transmission

Normal

Disable Infrared function

RxD, TxD Active

This item is to configure Infrared transmission rate. Four options are available:

Hi, Hi

High rate for receiving / High rate for transmitting

EUDA PPC User’s Manual 4-13

BIOS Setup Information

Hi, Lo

Lo, Hi

High rate for receiving / Low rate for transmitting

Low rate for receiving / High rate for transmitting

Lo, Lo

Low rate for receiving / Low rate for transmitting

IR Transmission Delay

This option will be available when IR is enabled.

The selection : Enabled, Disabled.

UR2 Duplex Mode

The available choices are full duplex mode and half duplex mode.

The selection : Full, Half.

UR2 Duplex Mode

The available choices are full duplex mode and half duplex mode

The selection : Full, Half.

Use IR Pins

The available choices are IR-Rx2Tx2/ RxD2, TxD2.

The selection : IR-Rx2Tx2 / RxD2, TxD2.

Watch Dog Timer Select

This BIOS testing option is able to reset the system according to the selected table.

The selection : Disabled, 10 Sec, 20 Sec, 30 Sec, 40 Sec, 1 Min, 2 Min, and 4 Min.

4.8 Power Management Setup

The Power Management Setup allows configuration of the system to most effectively save energy while operating in a manner consistent with your own style of computer use.

Phoenix - Award BIOS CMOS Setup Utility

Power Management Setup

ACPI Function [Enabled]

Item Help

EUDA PPC User’s Manual 4-14

BIOS Setup Information

ACPI Suspend Type [S3(STR)]

Run VGABIOS if S3 Resume [Auto]

Power Management

Video Off Method

Video Off In Suspend

[User Define]

[DPMS]

[Yes]

Soft-Off by PWR-BTTN

Power On by Ring

[Instant-Off]

[Disabled]

Wake up by onboard LAN [Enabled]

USB KB Wake-Up From S3 [Disabled]

Resume by Alarm

X Date(of Month) Alarm

X Time(hh:mm:ss) Alarm

[Disabled]

0

0 : 0 :0

** Reload Global Timer Events **

Primary IDE 0 [Disabled]

Primary IDE 1

Secondary IDE 0

Secondary IDE 1

FDD,COM,LPT Port

PCI PIRQ[A-D]#

[Disabled]

[Disabled]

[Disabled]

[Disabled]

[Disabled]

Menu Level 

: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

ACPI Function

This item allows you to enable/disable the Advanced Configuration and Power

Management (ACPI).

The selection : Enabled, Disabled.

ACPI Suspend Type

To decide which ACPI suspend mode to use.

The selection : S1 (POS), S3 (STR).

Run VGA BIOS if S3 Resume

The selection : Auto, Yes, No.

Power Management

This category allows selecting the type (or degree) of power saving and is directly related to “HDD Power Down”, “Suspend Mode”.

There are three selections for Power Management, three of which have fixed mode settings.

EUDA PPC User’s Manual 4-15

BIOS Setup Information

Min. Power Saving

Minimum power management. Suspend Mode = 1 Hour, and HDD Power Down = 15 Min.

Max. Power Saving

Maximum power management. Suspend Mode = 1 Min., and HDD Power Down = 1 Min.

User Defined

Allows you to set each mode individually. When not disabled, Suspend Mode ranges from 1 min. to 1 Hour and

HDD Power Down ranges from 1 Min. to 15 Min.

Video off Method

This determines the manner in which the monitor is blanked.

V/H SYNC+Blank

This selection will cause the system to turn off the vertical and horizontal synchronization ports and write blanks to the video buffer.

Blank Screen

DPMS

This option only writes blanks to the video buffer.

Initial display power management signaling.

Video Off In Suspend

This allows user to enable/disable video off in Suspend Mode.

The selection : Yes, No.

Soft-Off by PWR-BTTN

This item allows users to set the time to remove the power after the power button is pressed.

The selection : Instant-Off, Delay 4 Sec.

Power On by Ring

When select “Enabled”, a system that is at soft-off mode will be alert to

Wake-On-Modem signal.

The selection : Enabled, Disabled.

Wake Up By Onboard LAN

The selection : Disabled, Enabled.

USB KB Wake-Up From S3

The selection : Enabled, Disabled.

Resume by Alarm

This item allows users to enable/disable the resume by alarm function. When

“Enabled” is selected, system using ATX power supply could be powered on if a customized time and day is approached.

EUDA PPC User’s Manual 4-16

BIOS Setup Information

The selection : Enabled, Disabled.

Date(of Month) Alarm

When “Resume by Alarm” is enabled, this item could allow users to configure the date parameter of the timing dateline on which to power on the system.

The selection : 0 ~ 31.

Time (hh:mm:ss) Alarm

When “Resume by Alarm” is enabled, this item could allow users to configure the time parameter of the timing dateline on which to power on the system.

The selection : hh (0~23), mm (0~59), ss (0 ~59).

Primary/Secondary IDE 0/1

This item is to configure IDE devices being monitored by system so as to keep system out of suspend mode if the associated device is busy.

The selection : Enabled, Disabled.

FDD, COM, LPT Port

This item is to configure floppy device, COM ports, and parallel port being monitored by system so as to keep system out of suspend mode if the associated device is busy.

The selection : Enabled, Disabled.

PCI PIRQ[A-D]#

This option can be used to detect PCI device activities. If they are activities, the system will go into sleep mode.

The selection : Enabled, Disabled.

This section describes configuring the PCI bus system. PCI, or Personal Computer

Interconnect, is a system which allows I/O devices to operate at speeds nearing the speed the CPU itself uses when communicating with its own special components.

This section covers some very technical items and it is strongly recommended that only experienced users should make any changes to the default settings.

Phoenix - Award BIOS CMOS Setup Utility

PnP/PCI Configurations

EUDA PPC User’s Manual 4-17

BIOS Setup Information

Init Display First

Reset Configuration Data

Resources Controlled By

X IRQ Resources

[ PCI Slot ]

[Disabled]

[Auto(ESCD)]

Press Enter

PCI/VGA Palette Snoop [Disabled]

** PCI Express relative items **

Maximum Payload Size [4096]

Item Help

Menu Level 

: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

Init Display First

The selection : PCI Slot, Onboard, PCIEx.

Reset Configuration Data

Default is Disabled. Select Enabled to reset Extended System Configuration Data

(ESCD) when you exit Setup if you have installed a new add-on and the system reconfiguration has caused such a serious conflict that the OS cannot boot.

The selection : Enabled, Disabled.

Resource Controlled By

BIOS can automatically configure the entire boot and plug and play compatible devices. If set to Auto, IRQ DMA and memory base address fields can not be selected, since BIOS automatically assigns them.

The selection : Auto (ESCD), Manual.

IRQ Resources

When resources are controlled manually, assign each system interrupt a type, depending on the type of device using the interrupt.

The selection : Press Enter.

IRQ-3/IRQ-4/IRQ-5/IRQ-7/IRQ-9/IRQ-10/IRQ-11/IRQ-12/IRQ-14/IRQ-15 assigned to.

The selection : PCI Device, Reserved.

EUDA PPC User’s Manual 4-18

BIOS Setup Information

PCI/VGA Palette Snoop

Legacy ISA for devices compliant with the original PC AT bus specification, PCI PnP for devices compliant with the plug and play standard whether designed for PCI bus architecture.

The selection : Enabled, Disabled.

Maximum Payload Size.

Default 4096.

4.10 PC Health Status

Phoenix - Award BIOS CMOS Setup Utility

PC Health Status

CaseOpen# Warning [Disabled] Item Help

CPU Warning Temperature

Current System Temp

Current CPU Temperature

[Disabled]

39℃/ 102℉

47℃/116℉

Menu Level 

System FAN

CPU FAN

0 RPM

0 RPM

V

Vbat 3.28

+3.3 V

+12 V

+ 5 V

3.32 V

12.22 V

5.21 V

: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

CPU Warning Temperature

This item allows you to set a temperature above which the system will start the beeping warning. Default setting is disabled. This function will only with “ACPI” power management and “S3 (STR)” suspends type.

The selection : Disabled, 50℃/122℉, 53℃/127℉, 56℃/133℉, 60℃/140℉, 63℃/145

, 66℃/151℉, 70℃/158℉.

4.11 Default Menu

Selecting “Defaults” from the main menu shows two options which are described below,

EUDA PPC User’s Manual 4-19

BIOS Setup Information

Load Fail-Safe Defaults

When <Enter> is pressed, a confirmation dialog box with a message similar to:

Load Fail-Safe Defaults (Y/N) ? N

Pressing ‘Y’ loads the BIOS default values for the most stable, minimal-performance system operations.

Load Optimized Defaults

When <Enter> is pressed, a confirmation dialog box with a message similar to:

Load Optimized Defaults (Y/N) ? N

Pressing ‘Y’ loads the default values that are factory settings for optimal performance system operations.

4.12 Supervisor/User Password Setting

Either supervisor or user password can be setup, or both of then. The differences between are:

Set Supervisor Password : can enter and change the options of the setup menus.

Set User Password : just can only enter but do not have the right to change the options of the setup menus. When selecting this function, the following message will appear at the center of the screen to assist you in creating a password.

ENTER PASSWORD

Type the password, up to eight characters in length, and press <Enter>. The password typed now will clear any previously entered password from CMOS memory. You will be asked to confirm the password. Type the password again and press <Enter>. You may also press <Esc> to abort the selection and not enter a password.

To disable a password, just press <Enter> when prompted to enter the password. A message will confirm the password will be disabled. Once the password is disabled, the system will reboot and Setup can be entered freely.

PASSWORD DISABLED

When a password has been enabled, user will be prompted to enter it every time user tries to enter Setup. This prevents an unauthorized person from changing any part of your system configuration.

Additionally, when a password is enabled, you can also require the BIOS to request a password every time your system is rebooted. This would prevent unauthorized use of the computer.

EUDA PPC User’s Manual 4-20

BIOS Setup Information

User may determine when the password is required within the BIOS Features Setup

Menu and its Security option (see Section 3). If the Security option is set to “System”, the password will be required both at boot and at entry to Setup. If set to “Setup”, prompting only occurs when trying to enter Setup.

4.13 Exiting Selection

Save & Exit Setup

Pressing <Enter> on this item asks for confirmation:

Save to CMOS and EXIT (Y/N)? Y

Pressing “Y” stores the selections made in the menus in CMOS – a special section of memory that stays on after system off. During subsequnet booting of computer, the

BIOS configures the system according to the Setup selections stored in CMOS. After saving the values the system is restarted again.

Exit Without Saving

Pressing <Enter> on this item asks for confirmation:

Quit Without Saving (Y/N)? N

This allows user to exit Setup without storing in CMOS any change. The previous selections remain in effect. This exits the Setup utility and restarts your computer.

EUDA PPC User’s Manual 4-21

FAQ

Chapter 5

FAQ

5.1 How to do Panel Mounting Kit Assembly and VESA Mount?

Illustration of Panel Mount

First of all, check the wall thickness and the cut-out dimension, then insert the mounting kit step by step as the following illustration.

EUDA PPC User’s Manual 5-1

FAQ

EUDA PPC User’s Manual 5-2

FAQ

Illustration of VESA Mount

EUDA PPC User’s Manual 5-3

FAQ

5.2 What if there is no display on the PPC screen?

Firstly, please inspect and check whether the memory installation is firm and solid; secondly, check whether the resolution selection under the BIOS is correct or not.

If it still doesn’t work, please connect the Panel PC unit to an external monitor to further check the display function.

Finally, contact your account sales or ask for technical support from Portwell.

Note:

Please visit our technical web site at http://www.portwell.com.tw

For additional technical information, which is not covered in this manual, you can mail to [email protected]

or you can also send mail to our salespersons, they will be glad to forward them to us.

EUDA PPC User’s Manual 5-4

FAQ

5.3 I forgot my password of system BIOS, what am I supposed to do?

You can simply short 2-3 pins on JP9 (CMOS Clear) to clean your password.

5.4 I’d like to know the System Memory Address Map

Each On-board device in the system is assigned a set of memory addresses, which also can be identical of the device. The following table lists the system memory address used for your reference.

Memory Area Size Device Description

0040-004F 0.3K BIOS Data Area

0050-006F 0.5K Data

9F00-9FBF

= Conventional memory ends at 636K =

3K Extended BIOS Area

A000-AFFF 64K Graphics

B800-BFFF 32K Text

HMA 64K First 64K Extended

5.5 I’d like to know more about the BIOS Setting

It is assumed that users have correctly adopted modules and connected all the devices cables required before turning on DC 12V power. 200-pin DDR2 SDRAM, keyboard, mouse, SATA hard disk, VGA connector, device power cables, ATX accessories are good examples that deserve attention. With no assurance of properly and correctly accommodating these modules and devices, it is very possible to encounter system failures that result in malfunction of any device.

To make sure that you have a successful start with the built-in Mini-ITX board, it is recommended, when going with the boot-up sequence, to hit “DEL” key and enter the BIOS setup menu to tune up a stable BIOS configuration so that you can wake up your system far well.

EUDA PPC User’s Manual 5-5

FAQ

Loading the default optimal setting

When prompted with the main setup menu, please scroll down to “Load Optimal

Defaults”, press “Enter” and “Y” to load in default optimal BIOS setup. This will force your BIOS setting back to the initial factory configuration. It is recommended to do this so you can be sure the system is running with the BIOS setting that Portwell has highly endorsed. As a matter of fact, users can load the default BIOS setting any time when system appears to be unstable in boot up sequence.

Auto Detect Hard Disks

In the BIOS => Standard CMOS setup menu, pick up any one from

Primary/Secondary Master/Slave IDE ports, and press “Enter”. Setup the selected

IDE port and its access mode to “Auto”. This will force system to automatically pick up the IDE devices that are being connected each time system boots up.

Improper disable operation

There are too many occasions where users disable a certain device/feature in one application through BIOS setting. These variables may not be set back to the original values when needed. These devices/features will certainly fail to be detected.

When the above conditions happen, it is strongly recommended to check the BIOS settings. Make sure certain items are set as they should be. These include the COM1/

COM2 ports, USB ports, external cache, on-board VGA and Ethernet.

It is also very common that users would like to disable a certain device/port to release IRQ resource. A few good examples are

Disable COM1 serial port to release IRQ #4

Disable COM2 serial port to release IRQ #3

Etc…

A quick review of the basic IRQ mapping is given below for your reference.

IRQ#

IRQ #0

IRQ #1

IRQ #2

System Timer

Keyboard Event

Usable IRQ

Description

IRQ #3

IRQ #4

IRQ #5

IRQ #6

COM2

COM1

Usable IRQ

Diskette Event

IRQ #7

IRQ #8

Usable IRQ

Real-Time Clock

IRQ #9 Usable IRQ

IRQ #10 Usable IRQ

IRQ #11 Usable IRQ

EUDA PPC User’s Manual 5-6

FAQ

IRQ #12 IBM Mouse Event

IRQ #13 Coprocessor Error

IRQ #14 Hard Disk Event

IRQ #15 Usable IRQ

It is then very easy to find out which IRQ resource is ready for additional peripherals.

If IRQ resource is not enough, please disable some devices listed above to release further IRQ numbers.

5.6 I’d like to know more about Interrupt Request Lines (IRQ)

Peripheral devices can use interrupt request lines to notify CPU for the service required. The following table shows the IRQ used by the devices on board.

IRQ#

IRQ 0

Current Use

System ROM

Default Use

System Timer

IRQ 1

IRQ 2

IRQ 3

IRQ 4

System ROM

[Unassigned]

System ROM

System ROM

Keyboard Event

Usable IRQ

COM2

COM1

IRQ 5

IRQ 6

IRQ 7

IRQ 8

IRQ 9

IRQ 10

IRQ 11

IRQ 12

IRQ 13

[Unassigned]

System ROM

[Unassigned]

System ROM

[Unassigned]

[Unassigned]

[Unassigned]

System ROM

System ROM

Usable IRQ

Diskette Event

Usable IRQ

Real-Time Clock

Usable IRQ

Usable IRQ

Usable IRQ

IBM Mouse Event

Coprocessor Error

IRQ 14

IRQ 15

System ROM

[Unassigned]

Hard Disk Event

Usable IRQ

EUDA PPC User’s Manual 5-7

FAQ

5.7 How to install Operating System by PXE function

First, you need make sure the current BIOS version is R.100.W4 or later version. If not, you need to upgrade current BIOS version to R.100.W4 or later version.

When you enter BIOS setup screen by DEL key, please select BIOS Advanced BIOS atures

You will see PXE function is at “Disabled” status, please change its status from

Disabled to Enabled, then press F10 key or select “save changes and Exit” item.

EUDA PPC User’s Manual 5-8

FAQ

After then, please enter BIOS setup screen by DEL key again, you will see Realtek

LAN item is shown on First Boot Device. Please set Realtek LAN to First Boot Device, then press F10 key or select “save changes and Exit” item to reset system again.

When system reset, you will see “Realtek PCI-e Gigabit Ethernet Boot Agent

“ message is shown on BIOS boot screen. It will link RIS server to get IP address and

OS imaged through Realtek LAN port.

Note. AX88178 USB to Ethernet chip doesn’t support PXE function.

EUDA PPC User’s Manual 5-9

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
