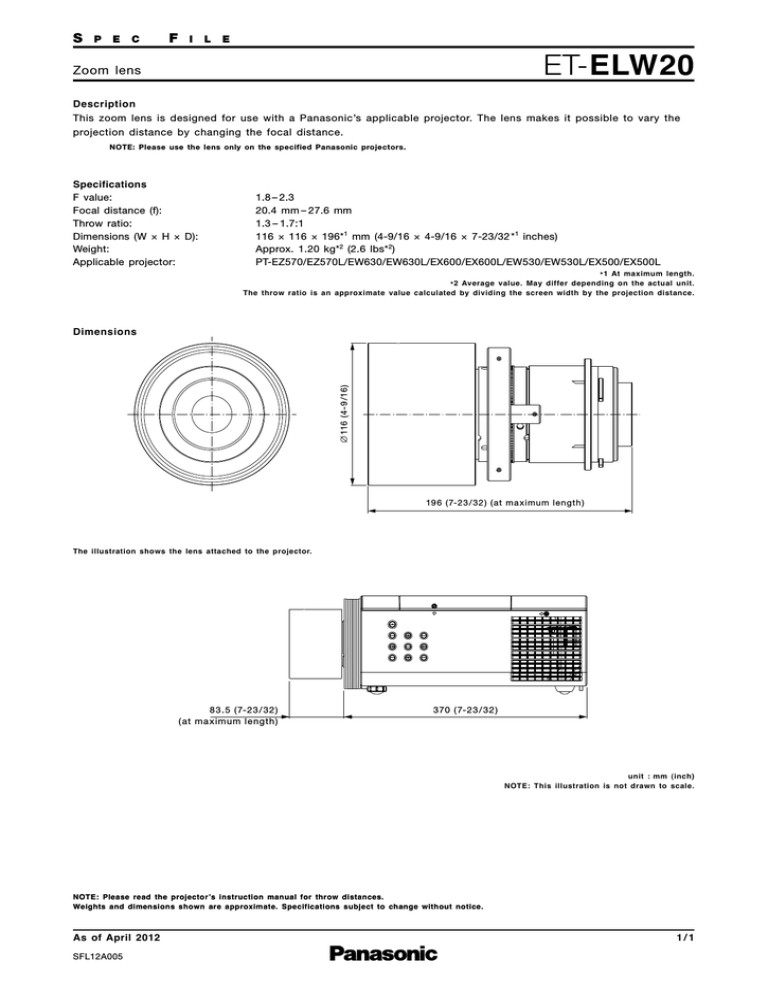

Panasonic ET-ELW20 Datasheet

Panasonic ET-ELW20 Datasheet
S
P
E
C
F
I
L
E
ET-ELW20
Zoom lens
Description
This zoom lens is designed for use with a Panasonic’s applicable projector. The lens makes it possible to vary the
projection distance by changing the focal distance.
NOTE: Please use the lens only on the specified Panasonic projectors.
Specifications
F value:
Focal distance (f):
Throw ratio:
Dimensions (W × H × D):
Weight:
Applicable projector:
1.8 – 2.3
20.4 mm – 27.6 mm
1.3 – 1.7:1
116 × 116 × 196*1 mm (4-9/16 × 4-9/16 × 7-23/32 *1 inches)
Approx. 1.20 kg*2 (2.6 lbs*2)
PT-EZ570/EZ570L/EW630/EW630L/EX600/EX600L/EW530/EW530L/EX500/EX500L
* 1 At maximum length.
* 2 Average value. May differ depending on the actual unit.
The throw ratio is an approximate value calculated by dividing the screen width by the projection distance.
∅ 116 (4-9 /16 )
Dimensions
19 6 (7-23 / 32 ) ( at ma ximum length )
The illustration shows the lens attached to the projector.
83.5 (7-23 / 32 )
( at ma ximum length )
370 (7-23 / 32 )
unit : mm (inch)
NOTE: This illustration is not drawn to scale.
NOTE: Please read the projector’s instruction manual for throw distances.
Weights and dimensions shown are approximate. Specifications subject to change without notice.
As of April 2012
SFL12A005
1/1
